Lighting - Light Bars

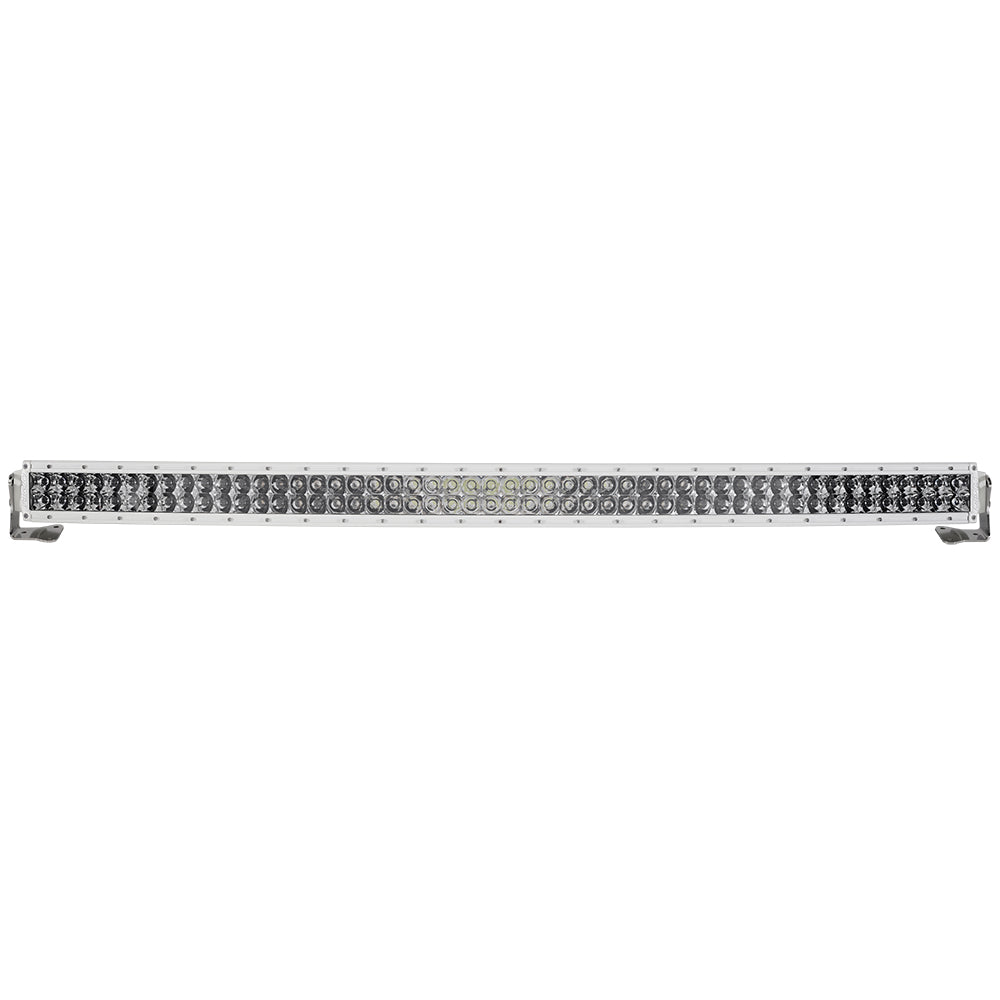

RDS-Series PRO 54" - Spot LED - White

RIGID revolutionized the lighting industry with the introduction of the RDS-Series, and recent advancements in LED technology have made them more powerful than ever before with the RDS-Series PRO, Professional Race Output. With an improved output of up to 70% more raw lumens, the RDS-Series PRO projects more usable light exactly where it's needed on the road ahead. By taking an E-Series light bar and treating it to a gentle arc, the RDS-Series PRO provides a sleek, integrated look with the curved windshields and bumpers on today's trucks and SUVs. The curve is for more than just looks, it is also functional: the arc of the RDS-Series PRO light bars provides a wider spread of LED light, providing unmatched lighting coverage with a single light bar. RDS-Series PRO also includes updated branding and blacked-out circuit boards for a more refined look.

Features:

• Family: RDS - Series | PRO
• Optic: Spot
• LED Color: Cool White
• Finish Color: White
• Mount Type: Surface
• Length: 54"
• Shipping Dimensions: 6" × 56.35" × 6"
• Product Weight: 16.076lb
• Sold As: Single
• Tough Alodine Coating that withstands the harshes Marine Environments
• Limited Lifetime Warranty

Specifications:

• Watts: 274
• Amp Draw: 19.57
• LED's: 108
• Raw Lumens: 85538
• Lux @ 10M: 2089.01
• Beam Distance: 457.1M
• Peak Beam Intensity: 208901 cd

Specifications:

• Beam Pattern: Spot
• Length (Inches): 54"
• Housing: White
• Voltage - Input Range (Volts): 12v
• Box Dimensions: 5"H x 9"W x 58"L WT: 22 lbs
• UPC: 849774030055

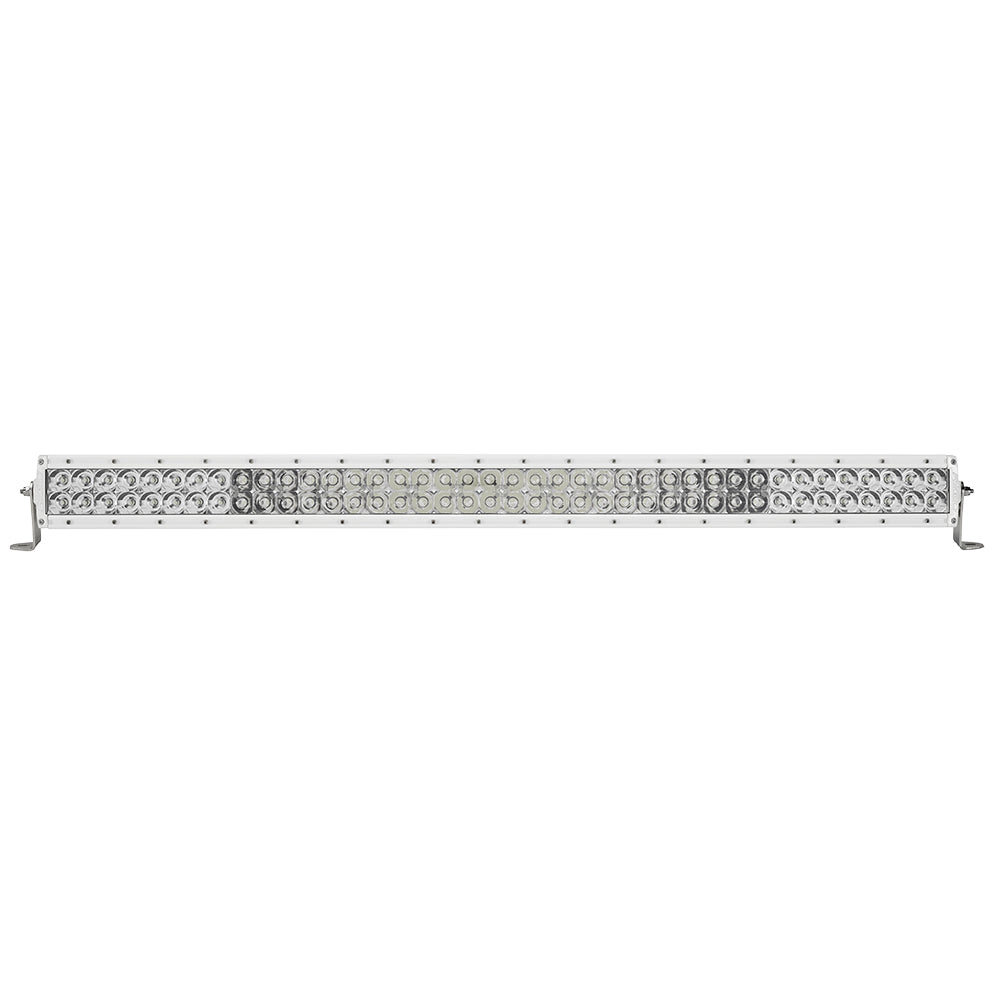

E-Series PRO 40" Spot-Flood Combo LED - White

The E-Series is one of RIGID's most versatile, all-around lighting solutions, and recent enhancements in LED technology delivering up to 111% more raw lumens than ever before with the E-Series PRO. Among RIGID's most popular product lines, the E-Series PRO has recently benefited from several upgrades to improve both looks and performance. Plus, new branding and new blacked-out circuit boards give the E-Series PRO a more refined look. Available with your choice of optics, the E-Series features a host of beam options, including Spot, Flood, Driving, Hyperspot, Diffused, and new Driving/Spot and Spot/Hyperspot combinations. These and other innovations make it one of the brightest and most efficient LED light bars on the market. The E-Series was born in off-road, but its versatility makes it well suited for use with power sports, marine, general automotive and even first responder applications.

Features:

• Optics: Hybrid - Spot / Flood Combo
• LED Color: White
• Finish Color:White
• Length: 40"
• Mount Type: Surface
• Shipping Dimensions: 6" × 43.25" × 6"
• Product Weight: 10.84lb
• Sold As: Single

Specifications:

• Watts: 220
• Amp Draw: 15.94
• LED's: 80
• Raw Lumens: 18400
• Lux @ 10M: 4890.0
• Beam Distance: 1398.6M
• Peak Beam Intensity: 489,000 cd

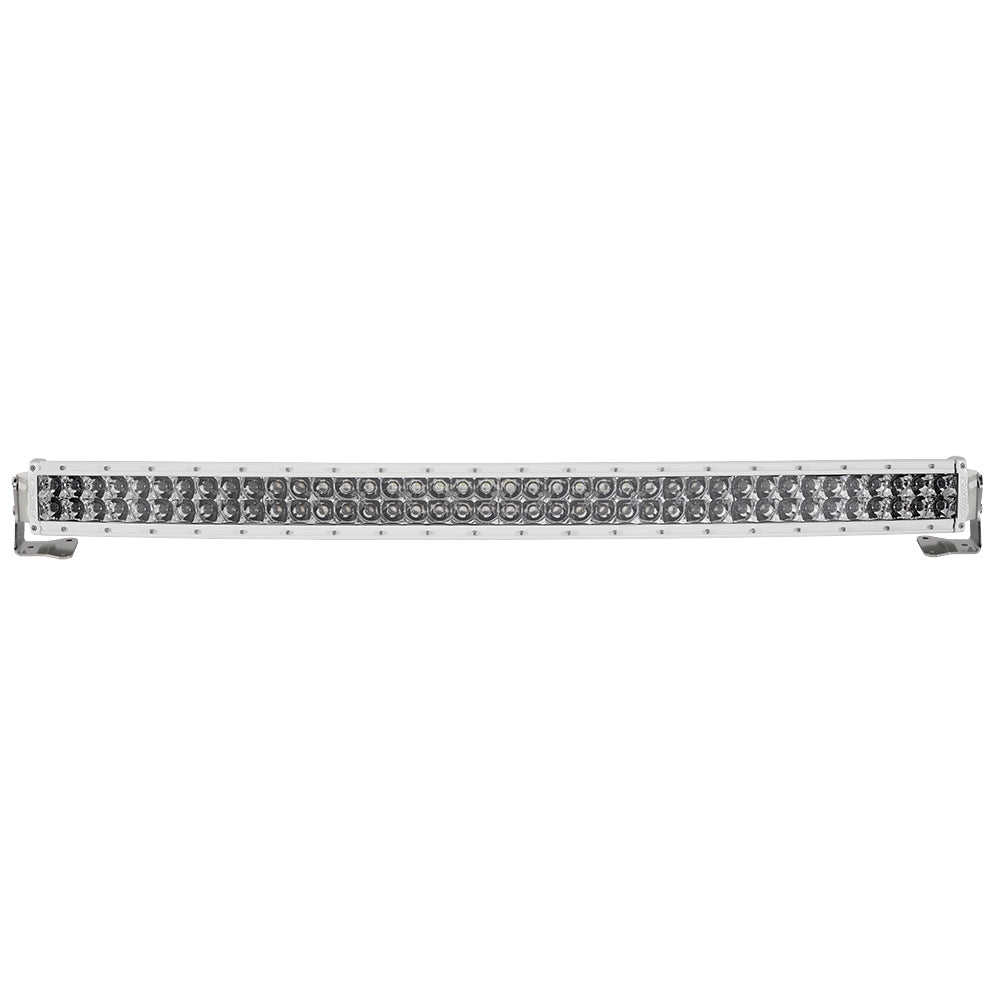

RDS-Series PRO 40" - Spot LED - White

RIGID revolutionized the lighting industry with the introduction of the RDS-Series, and recent advancements in LED technology have made them more powerful than ever before with the RDS-Series PRO, Professional Race Output. With an improved output of up to 70% more raw lumens, the RDS-Series PRO projects more usable light exactly where it's needed on the road ahead. By taking an E-Series light bar and treating it to a gentle arc, the RDS-Series PRO provides a sleek, integrated look with the curved windshields and bumpers on today's trucks and SUVs. The curve is for more than just looks, it is also functional: the arc of the RDS-Series PRO light bars provides a wider spread of LED light, providing unmatched lighting coverage with a single light bar. RDS-Series PRO also includes updated branding and blacked-out circuit boards for a more refined look.

Features:

• Family: RDS - Series | PRO
• Optic: Spot
• LED Color: Cool White
• Finish Color: White
• Mount Type: Surface
• Length: 40"
• Shipping Dimensions: 6" × 43.25" × 6"
• Product Weight: 12.404lb
• Sold As: Single
• Tough Alodine Coating that withstands the harshes Marine Environments
• Limited Lifetime Warranty

Specifications:

• Watts: 176
• Amp Draw: 12.57
• LED's: 80
• Raw Lumens: 63360
• Lux @ 10M: 1948.09
• Beam Distance: 441.4M
• Peak Beam Intensity: 194809 cd

Specifications:

• Beam Pattern: Spot
• Length (Inches): 40"
• Housing: White
• Voltage - Input Range (Volts): 12v
• Box Dimensions: 6"H x 10"W x 45"L WT: 19 lbs
• UPC: 849774030031

RIGID Industries E-Series PRO 20" Spot-Flood Combo LED - White [820313]

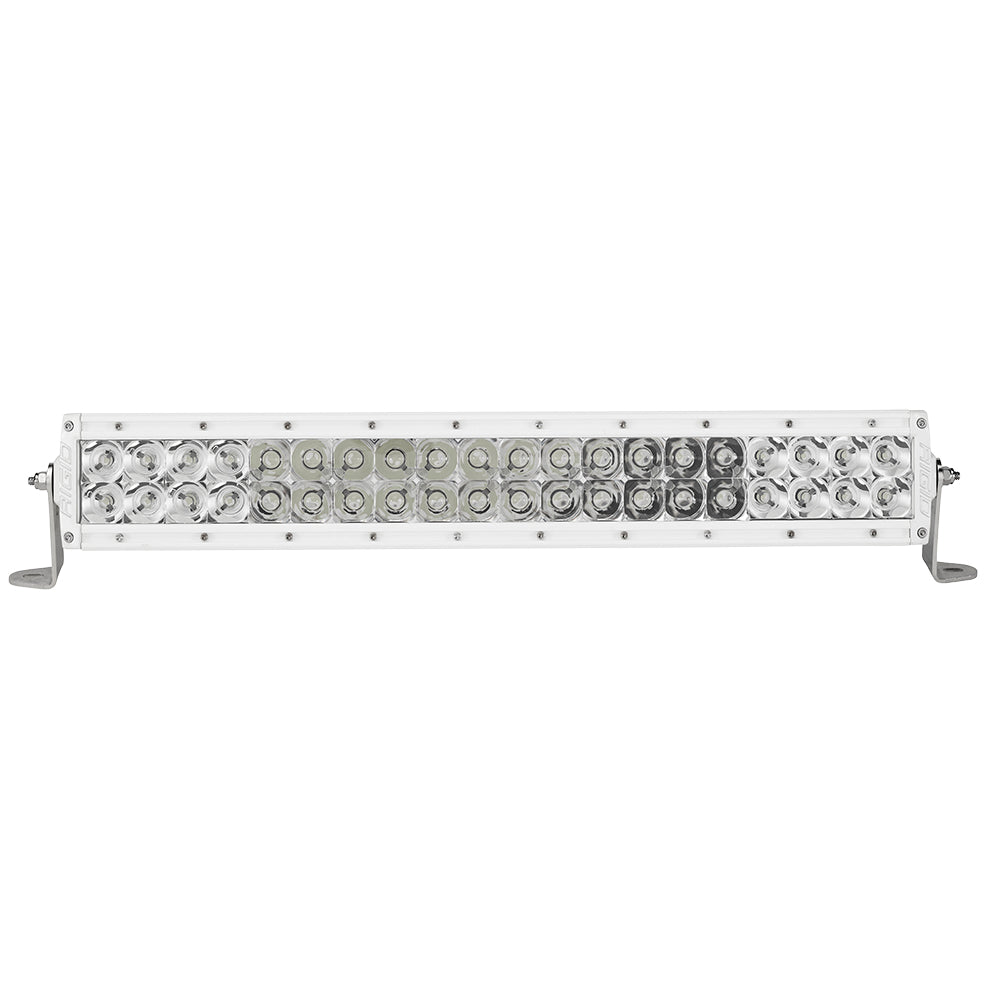

E-Series PRO 20" Spot-Flood Combo LED - White

The E-Series is one of RIGID's most versatile, all-around lighting solutions, and recent enhancements in LED technology delivering up to 111% more raw lumens than ever before with the E-Series PRO. Among RIGID's most popular product lines, the E-Series PRO has recently benefited from several upgrades to improve both looks and performance. Plus, new branding and new blacked-out circuit boards give the E-Series PRO a more refined look. Available with your choice of optics, the E-Series features a host of beam options, including Spot, Flood, Driving, Hyperspot, Diffused, and new Driving/Spot and Spot/Hyperspot combinations. These and other innovations make it one of the brightest and most efficient LED light bars on the market. The E-Series was born in off-road, but its versatility makes it well suited for use with power sports, marine, general automotive and even first responder applications.

Features:

• Optics: Hybrid - Spot / Flood Combo
• LED Color: White
• Finish Color:White
• Length: 20"
• Mount Type: Surface
• Shipping Dimensions: 6" × 23.25" × 6"
• Product Weight: 6.1lb
• Sold As: Single

Specifications:

• Watts: 110
• Amp Draw: 7.97
• LED's: 40
• Raw Lumens: 9200
• Lux @ 10M: 2620.0
• Beam Distance: 1023.7M
• Peak Beam Intensity: 262,000 cd

Specifications:

• Beam Pattern: Spot-Flood Combo
• Housing: White
• Length (Inches): 20"
• Voltage - Input Range (Volts): 12v
• Box Dimensions: 7"H x 8"W x 24"L WT: 9.3 lbs
• UPC: 849774029417

Brochure (pdf)

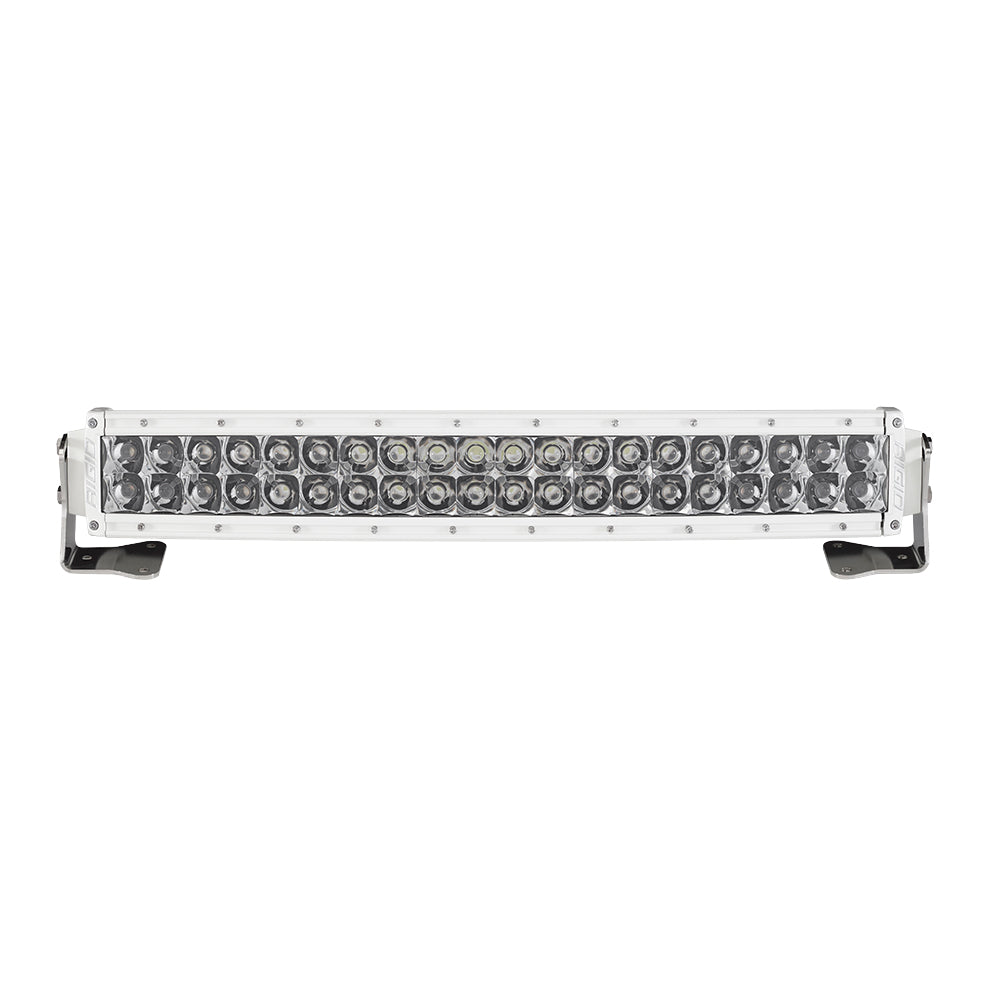

RDS-Series PRO 20" - Spot LED - White

RIGID revolutionized the lighting industry with the introduction of the RDS-Series, and recent advancements in LED technology have made them more powerful than ever before with the RDS-Series PRO, Professional Race Output. With an improved output of up to 70% more raw lumens, the RDS-Series PRO projects more usable light exactly where it's needed on the road ahead. By taking an E-Series light bar and treating it to a gentle arc, the RDS-Series PRO provides a sleek, integrated look with the curved windshields and bumpers on today's trucks and SUVs. The curve is for more than just looks, it is also functional: the arc of the RDS-Series PRO light bars provides a wider spread of LED light, providing unmatched lighting coverage with a single light bar. RDS-Series PRO also includes updated branding and blacked-out circuit boards for a more refined look.

Features:

• Family: RDS - Series | PRO
• Optic: Spot
• LED Color: Cool White
• Finish Color: White
• Mount Type: Surface
• Length: 20"
• Shipping Dimensions: 6" × 23.25" × 6"
• Product Weight: 6.31lb
• Sold As: Single
• Tough Alodine Coating that withstands the harshes Marine Environments
• Limited Lifetime Warranty

Specifications:

• Watts: 105
• Amp Draw: 7.5
• LED's: 40
• Raw Lumens: 31680
• Lux @ 10M: 1826.48
• Beam Distance: 427.4M
• Peak Beam Intensity: 182648 cd

Specifications:

• Beam Pattern: Spot
• Length (Inches): 20"
• Housing: White
• Voltage - Input Range (Volts): 12v
• Box Dimensions: 6"H x 10"W x 25"L WT: 11.85 lbs
• UPC: 849774030017
