Lighting - Accessories

Kraken Command Center

Kraken Command Center -  Includes 480W power converter and Poco Module.

Ethernet Communications Bridge & Multi-Zone Controller Kit

The Shadow-Caster MFD ( Multi-Function Display) Lighting Controller gives you full control of up to 6 independent zones of lighting on your vessel using your touchscreen MFD. Easily switch colors, adjust brightness, or synchronize lights with music. Set up scenes and deploy multiple changes to your zones all with one touch. Save your favorite settings and recall them later. Compatible with a wide range of MFD models from a range of manufactures including Garmin, Simrad, Lowrance, and B and G, Raymarine, and Furuno.

The SCM-MFD-LC is a kit that comes with two Shadow-Caster products. The Multi-Zone Lighting Controller ( SCM-ZC-SA) and the MFD Ethernet Communication Bridge ( SCM-MFD-Bridge). Allows a user to easily control all of the Shadow-Caster and Standard RGB lighting on their vessel. Designed to comply with an emerging NMEA lighting standard, the controller is designed to work on a CAN or NMEA2000 type network, through the use of Shadow-NET protocol CAN ( Control Area Network) Commands.

Features:

• Control Up to 6 Zones of Standard 4 or 5 wire RGB or Shadow-Caster Lights
• Quickly Adjust and Change Color and Brightness of Connected Lights
• Control Multiple Configurations of Color-Changing Patterns and Modes
• Includes 3.5 mm Audio Input for easy Music Synchronization

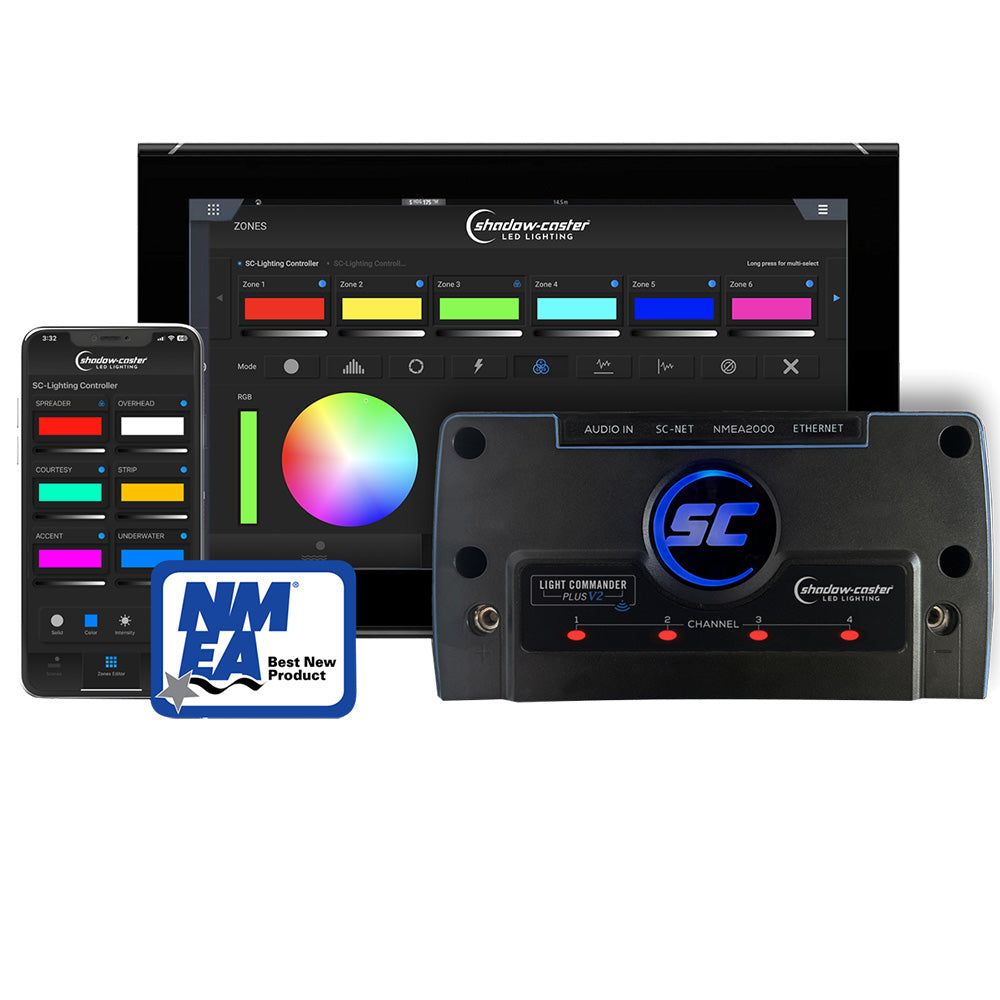

Light Commander Version 2 - 6-Zone Lighting Controller with Bluetooth/Wi-Fi, NMEA 2000 & HTML Ethernet Connectivity

Discover the SHADOW-CASTER® Light Commander NMEA 2000, a pioneering solution in LED lighting control for boats. This first-of-its-kind product is crafted in compliance with the latest NMEA 2000 lighting control standards, ensuring enhanced lighting control, seamless marine system integration, and improved interoperability.

Control up to 6 zones of lighting per module, including 4 zones of RGB or RGBW lights, with ease and precision. Explore, set, and store a variety of lighting scenes – from color change, fade, rotation, and strobe, through to music sync effects, offering versatility and customization to illuminate your boat like never before.

Encased in durable IP67 housing with Deutsch-style IP67 connections, the Light Commander NMEA 2000 ensures reliability and performance in the marine environment. The backlit logo signifies the quality and innovation that SHADOW-CASTER® is renowned for.

Elevate your marine lighting experience with the Light Commander NMEA 2000 – where technology meets functionality and style.

Features:

• NMEA 2000 Backbone or MFD Network Port Connectivity
• Global control for all lighting
• Up to 6 separate zones of lighting control – expandable to 12 or 18 by connecting additional SCM-LC-N2K modules
• 6 “Instant ON” switch inputs for enabling lights without MFD control
• Supports RGB and RGBW lighting
• Optional wireless connectivity for control from a mobile device (SCM-LC-PLUS-V2)
• IP67 Water-resistant housing with waterproof connections
• Deutsch style IP67 rated connections, for clean OEM installations
• All in one design, no need for a separate MFD communication bridge
• “Digitally fused” over current protection circuits, 15amps/channel (X4)
• Backlit logo and zone indicator LEDs to indicate functions and operation
• Built-in 3.5mm female audio port and microphone for music sync input
• Multi-zone Lighting Controller for NMEA 2000 & Ethernet connectivity with integrated HTML interface

Specifications:

• IP67 rated enclosure
• Power: Supports over 600 watts of RGB lighting and virtually limitless Shadow-NET® connected modules
• 15 amps per RGB(W) zone, 60 amps max
• 10 to 30V input range
• Direct 3.5mm female audio input for music synchronization
• Music sync created by onboard DSP (Digital Signal Processing)
• Digital power protection set at 15amps/channel
• Built-in switch inputs for instant lighting for each zone
• 24-bit color support and gamma correction for universal color support
• Enclosure: 8.9” (226mm ) x 4.75” (120mm) x 1.8” (46mm)

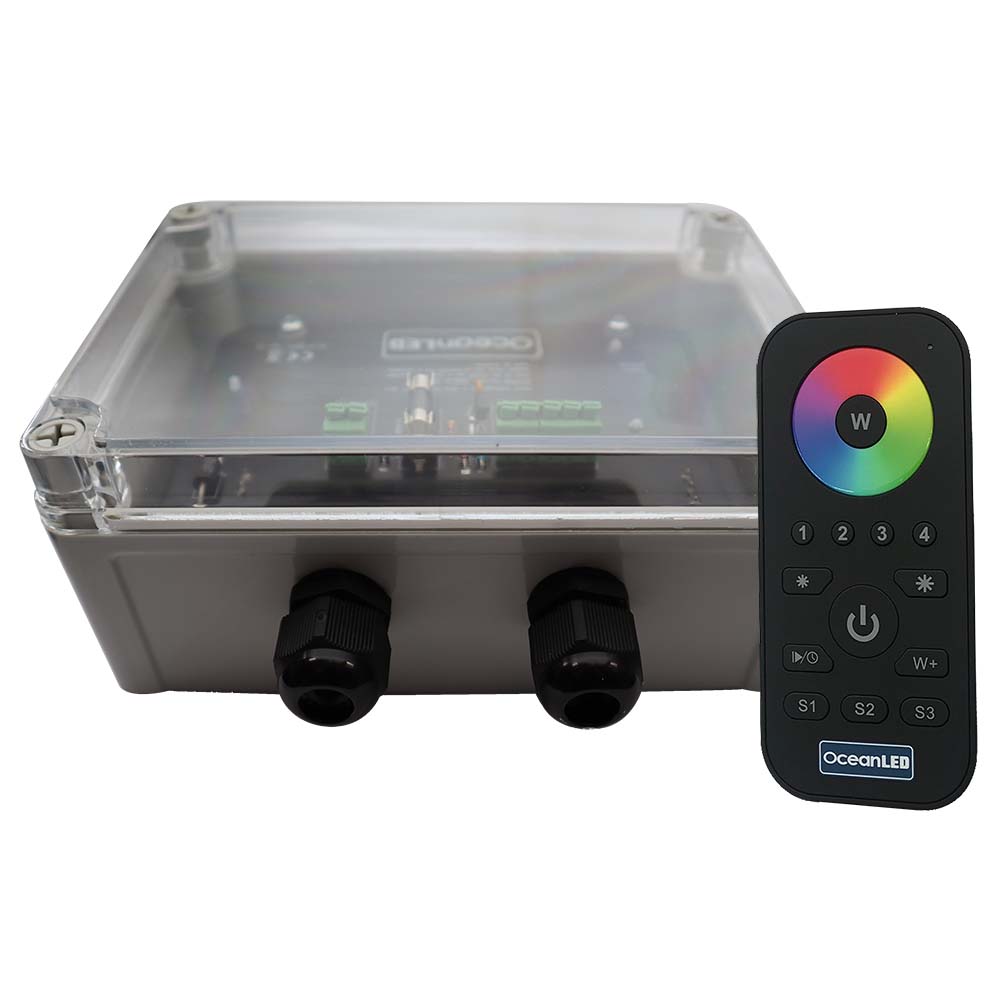

OceanDMX RC Explore XFM Colors 915MHz

The OceanDMX RC allows you to remotely control the RGBW color or dual-color LED lighting system installed on your boat via the DMX protocol (the lighting system must be DMX compatible). The remote has 3 programmable scenes with up to 10 pre-set modes, including a pause function. You can use up to 8 different remotes to control your lights with just 1 receiver. The kit consists of the hand-held push-button remote control, provided with a waterproof pouch, and the IP68 waterproof DMX Receiver. The remote has a range of up to 20 meters* and connects with the receiver using radio frequency (RF). The OceanDMX RC has the ability to connect to 4 zones independently**, therefore you can control your transom lights independently from your port/starboard lights. The OceanDMX RC can also be used with other 3rd party DMX systems, such as deck lighting, boat signage, etc.

Features:

• User-friendly interface, easy and simple operation
• Control up to 4 zones
• Control of third-party DMX devices
• 3 programmable scenes
• Can be controlled by a maximum of 8 different remotes
• Pre-set 10 changing modes, with pause function (Colors only)
• Enable to dim brightness of each R, G, B, W channel (B & W channels for dual-color version), in order to mix colors.

Box Contents:

• Remote control
• Waterproof pouch
• DMX Receiver
• Control Cable
• Terminator (Not included for X-Series)
• DMX Junction Box (X-Series Only)
• Installation Manual

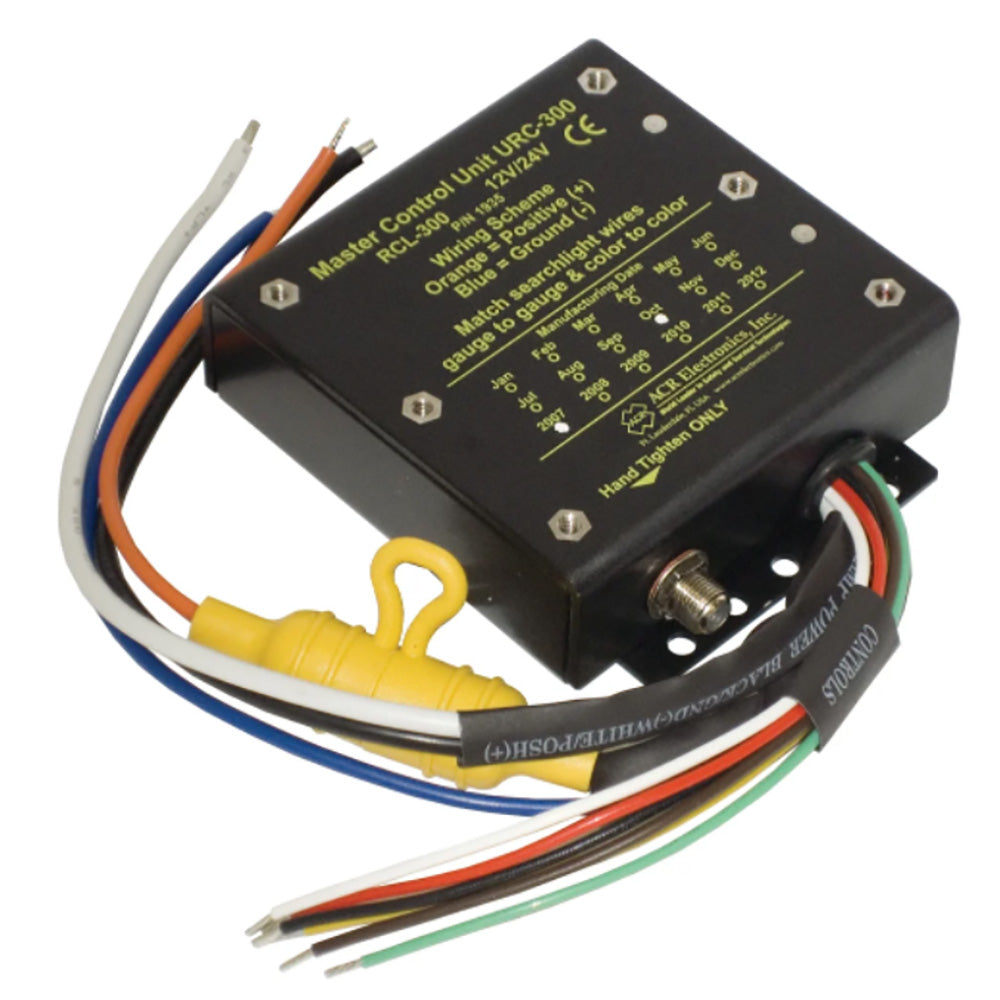

URC-300 Master Controller for RCL-300 Searchlights

Replacement controller for the RCL-300 searchlights.

Compatible With:

• RCL-300 searchlight

In the Box:

• URC-300 Controller
• Connectors

*Sold as an Individual

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Type: Parts
• Box Dimensions: 4"H x 6"W x 8"L WT: 1 lbs
• UPC: 791659019351

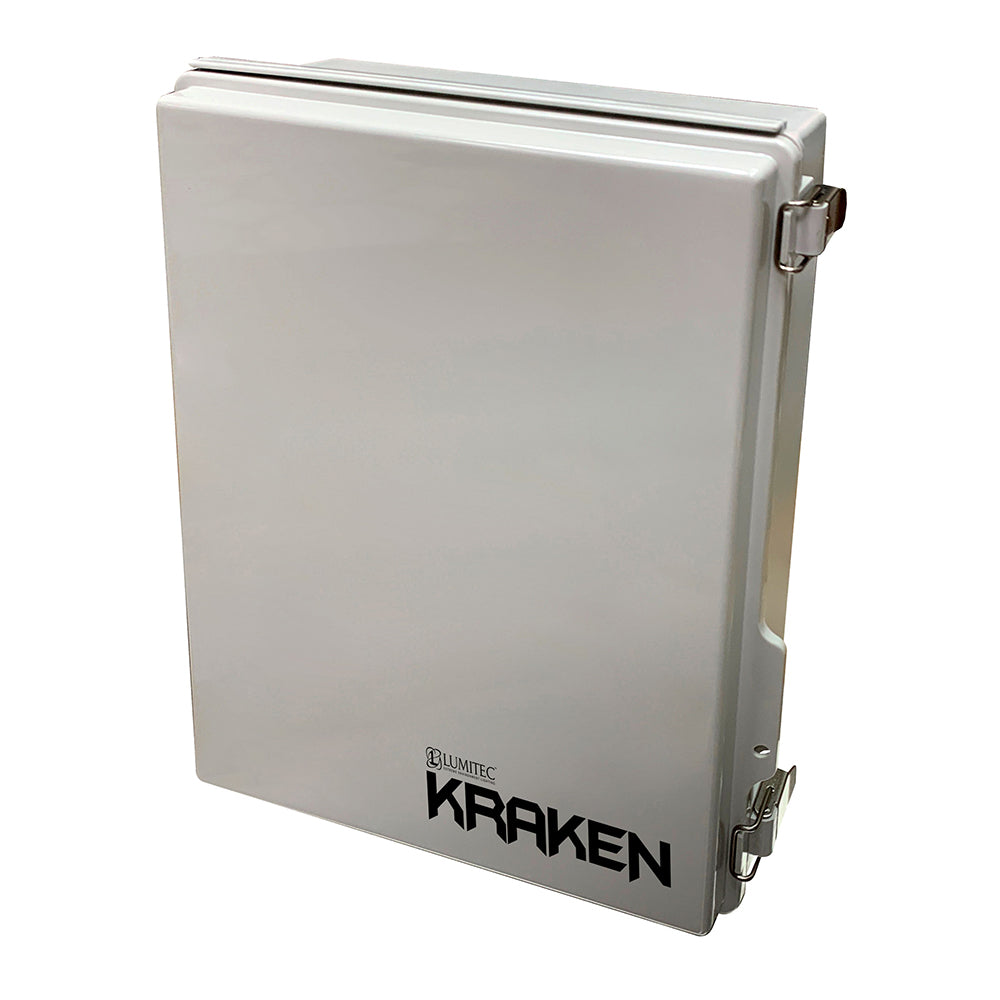

Kraken Secondary Power Supply with Opto-Coupler

Features:

• Connect up to 5 Kraken underwater lights.
• 480W power supply included.
• Includes all bus connectors and breakers.
• Two Opto-Couplers included (signal booster/breaker)
• Can connect two Poco channels per box.
• Weatherproof enclosure

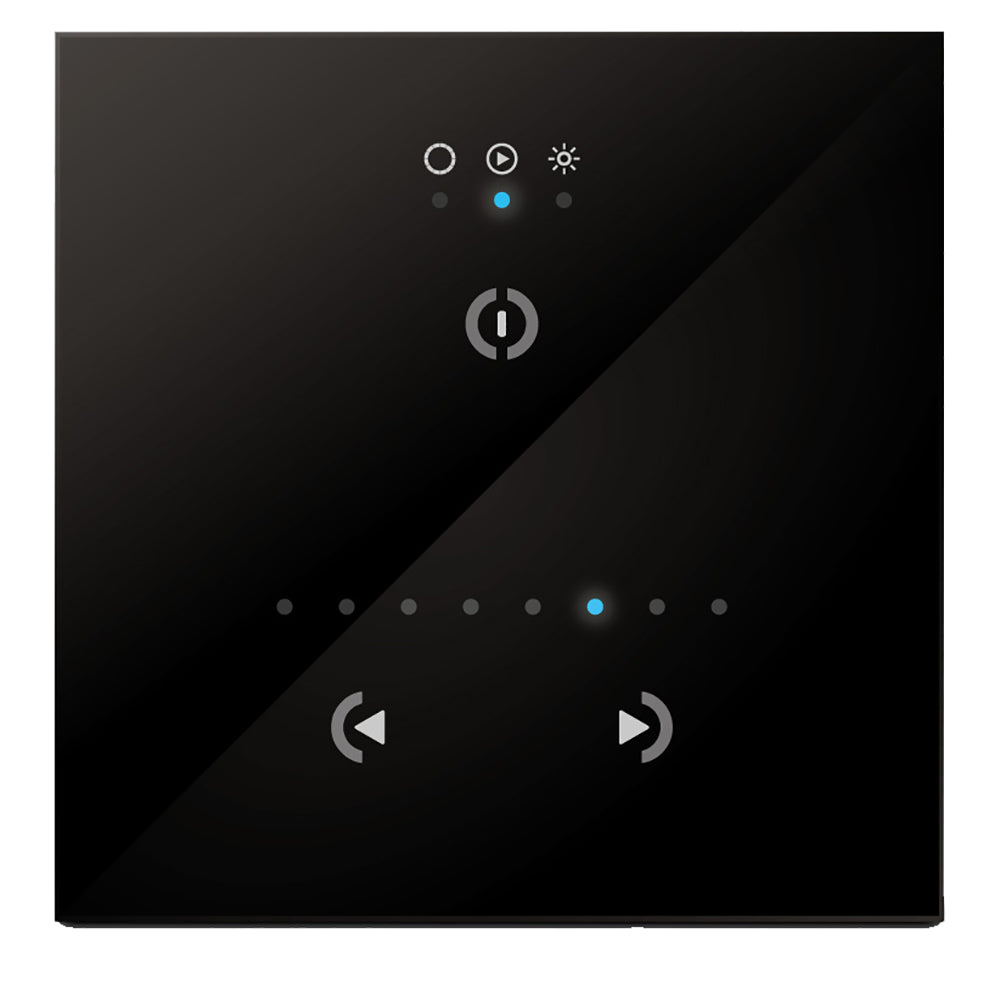

Explore E6 DMX Touch Panel Controller Kit Dual - Blue & White

The DMX Touch Panel Controller lets you control the colour of your underwater lights at the touch of a button. This touch sensitive intelligent control keypad enables the user to select from Red, Green, Blue, White or scroll modes.

Full RGBW control through a touch-sensitive display. Programmable through the included USB cable and control software.

For WiFi control, see the DMX WiFi Touch Panel Controller.

Features:

• Touch sensitive buttons
• DMX Colours Control
• Up to 24 dynamic or static scenes
• Touch sensitive intelligent control keypad for ease of use
• 3 touch sensitive buttons (on/off mode, previous, next)
• 5.5-12V DC
• Select from Red, Green, Blue, White or scroll modes

Specifications:

• Warranty: 3 years

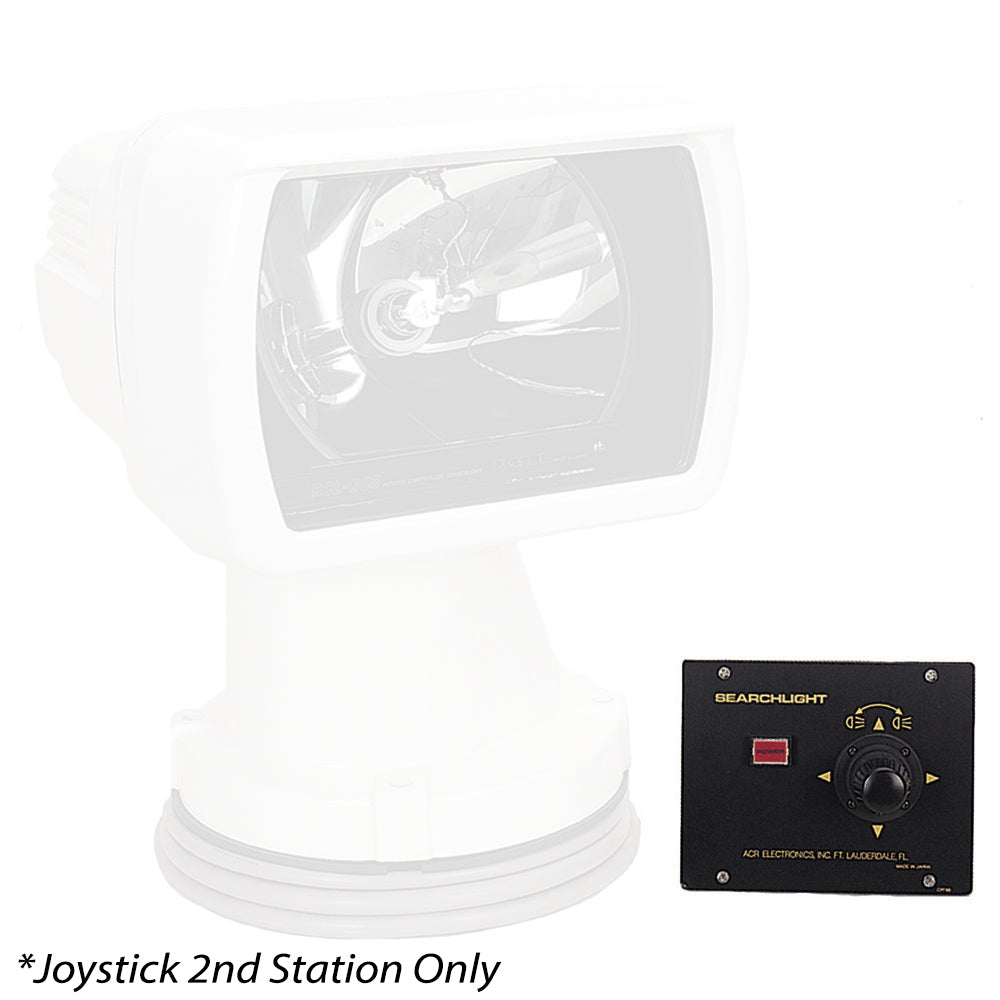

ACR Joystick 2nd Station Controller f/RCL-600A Searchlight [1942]

Ships Direct From Manufacturer

Joystick 2^nd Station Controller for RCL-600A Searchlight

Joystick controlled 2^nd station.  Surface mountable.

Compatible With:

• ACR RCL-600A (24 V) searchlight

*Sold as an Individual

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

• Type: Parts
• Box Dimensions: 6"H x 6"W x 7"L WT: 2 lbs
• UPC: 791659019429

Owner's Manual (pdf)
Brochure (pdf)
