Hunting & Fishing - Outrigger Accessories

Lee's Junior Outrigger Holders 2" x 18" Main Tube [OH226S]

Ships Direct From Manufacturer

The Original Wishbone Outrigger Holder

The Original Wishbone Style Outrigger Holder has been in production for over 45 years. Setting the standard for the industry, our "Junior" outrigger holder has often been imitated, but never equaled. Its ease of operation, adjustable fishing angle, ability to lay down for bridges and small footprint makes it the ideal holder for a multitude of boats.

Durability was the watchword at its conception. You won't find plastic parts in this holder. Constructed of heavy duty brass forgings, heavy wall brass pipe and a stainless steel main tube, it epitomizes strength and reliability. The three point mounting system provides maximum strength and distributes the stress to the mounting surface over a wide area. This holder can be mounted vertically or angled toward the stern. Somewhere between twenty to thirty five degrees is normal.

Model OH226S is for use with our deluxe 19ft. single spreader poles and non-spreader poles up to 22ft.

WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Construction: Stainless Steel
• Diameter (Inches): 2.0"
• Finish: Polished
• Mounting Style: Side
• Product Class: Mounting Brackets
• Box Dimensions: 6"H x 11"W x 23"L WT: 22 lbs
• UPC: 096811222601

Quick Guide (pdf)

Lee's 2" Flush Mount Skiff Series Outrigger Holder [OH219F]

Ships Direct From Manufacturer

Gunnel Mount Outrigger Holders

Size: 2.0"
Dimensions: 4 x 6 1/2

Attractive, Strong, and Bullet Proof all describe our Gunnel Mount Outrigger Holders. One piece flange construction. Plate, Tube and Bar-Pin are all cast simultaneously for the ultimate in strength. Curved Tube has Solid End Plug with Deep Slots to assure long service and reliability. Tubes are made with Port and Starboard slot orientation to optimize fishing angle. Flange mounts flush with gunnel. When tube is removed, gunnel is unobstructed. Unit has three positions, straight up Running, angled out Trolling and straight back for Bridge Clearing. Originally designed by Lee's in the 50's and copied by nearly all our competition. However, no one rivals our durability, fit & finish. Chrome on Brass construction.

WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Construction: Brass
• Diameter (Inches): 2.0"
• Finish: Chrome
• Mounting Style: Gunwale
• Product Class: Mounting Brackets
• Box Dimensions: 6"H x 11"W x 22"L WT: 21.6 lbs
• UPC: 096811221901

Lee's Center Rigger Holder - Inner Diameter 1-5/8" [MX8000CR]

MX8000CR

Adjustable Angle holders MX8000CR (1-5/8" ID) are our strongest and most versatile holders. The three-point mounting distributes the stress and provides side support. This heavy duty unit allows you to set your outrigger angle for maximum efficiency. The angle is set by positioning the clamp on the main tube during installation. The main tube of this unit is designed to accept the outrigger in either end so the holder can be mounted above or below any flat surface. A fast pin can be substituted for the bolt connecting the clamp to the wing for bridge laydown capability. Approximate area required for mounting is 14-1/2" x 18".

Recommended poles for MX8000CR

• MX8719CR - 19 ft MX Step- Tube Style

• MX8716CX - 16 ft MX Step- Tube Style - Single Spreader

• MX8719CX - 19 ft MX Step- Tube Style - Single Spreader

• MX8720CX - 20 ft MX Step- Tube Style - Double Spreader

• MX8722CX - 22 ft MX Step- Tube Style - Single Spreader or Double Spreader

Specifications:

• Construction: Anodized Aluminum
• Diameter (Inches): 1-5/8"
• Finish: Silver
• Mounting Style: Surface
• Product Class: Mounting Brackets
• Box Dimensions: 6"H x 11"W x 22"L WT: 6.55 lbs
• UPC: 096811800120

Lee's Center Rigger Holder [MX7000CR]

MX7000CR

Adjustable Angle holders MX7000CR (1-1/2" ID) are our strongest and most versatile holders. The three point mounting distributes the stress and provides side support. This heavy duty unit allows you to set your outrigger angle for maximum efficiency. The angle is set by positioning the clamp on the main tube during installation. The main tube of this unit is designed to accept the outrigger in either end so the holder can be mounted above or below any flat surface. A fast pin can be substituted for the bolt connecting the clamp to the wing for bridge laydown capability. Approximate area required for mounting is 14-1/2" x 18".

Recomended poles for MX7000CR
AO8716CR - 16 ft Center Rigger (Mk II)
AO8718CR - 18 ft Center Rigger (Mk II)
MX8712CR - 12 ft MX Step- Tube Style
MX8715CR - 15 ft MX Step- Tube Style
MX8718CR - 18 ft MX Step- Tube Style
MX8716CX - 16 ft MX Step- Tube Style - Single Spreader
MX8720CX - 20 ft MX Step- Tube Style - Double Spreader

Specifications:

• Construction: Anodized Aluminum
• Diameter (Inches): 1-1/2"
• Finish: Silver
• Mounting Style: Surface
• Product Class: Mounting Brackets
• Box Dimensions: 6"H x 14"W x 16"L WT: 6 lbs
• UPC: 096811700048

Lee's 2" Side Mount Skiff Series Outrigger Holder [OH2020S]

Ships Direct From Manufacturer

Side Mount Outrigger Holders

OH2020S

Size: 2.0"
Dimensions: 4 3/4 x 7 1/2

Side Mount Bracket utilizes same curved tube as Gunnel Mount. One piece Bracket construction. Tube, Feet and Bar-Pin are all cast simultaneously for the ultimate in strength. Unit provides same three positions as Flush Mount. Same rugged Chrom on Brass Cosntruction.

WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Construction: Stainless Steel/Brass
• Diameter (Inches): 2.0"
• Finish: Polished/Chrome
• Mounting Style: Side
• Product Class: Mounting Brackets
• Box Dimensions: 6"H x 11"W x 22"L WT: 17.55 lbs
• UPC: 096811202009

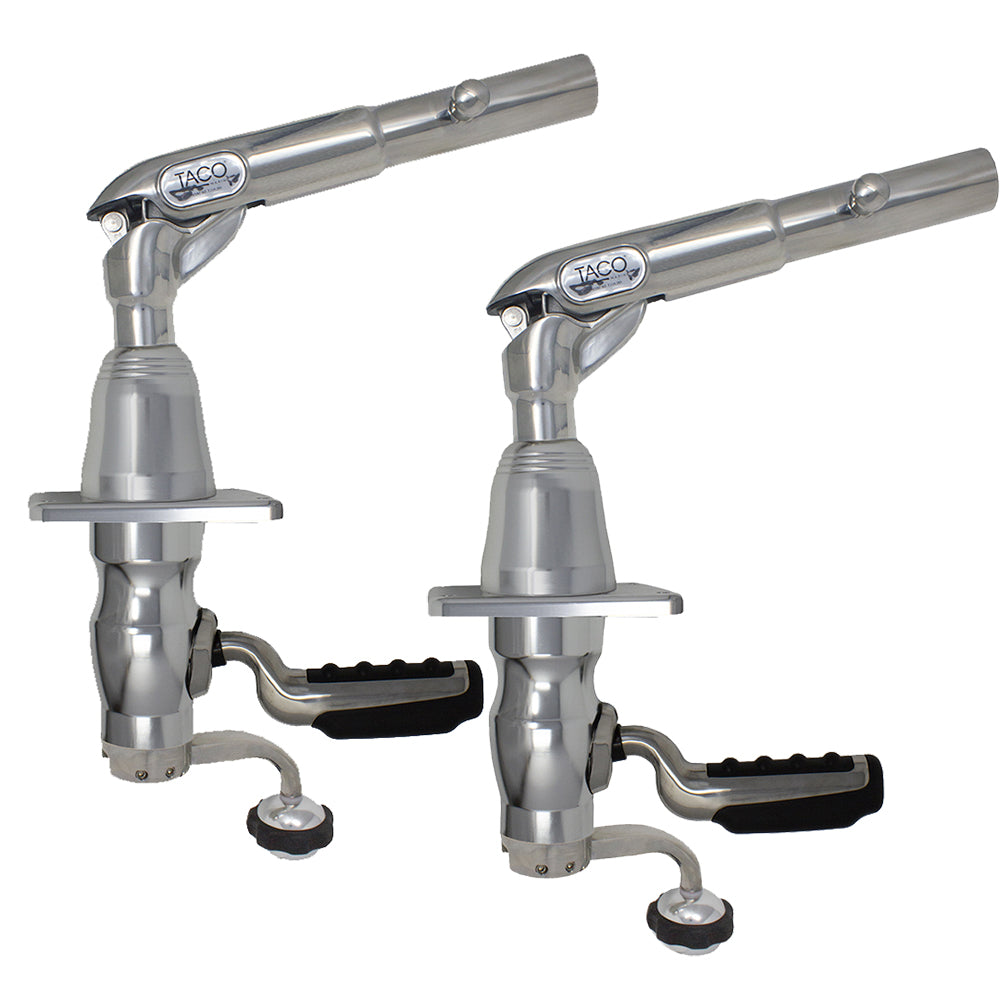

Grand Slam 390XL Outrigger Mount

TACO took all the durable, dependable features of the popular GS-380 and incorporated a more robust gusset and thicker arm to withstand the torque and pressure created when using longer outrigger poles. This base is perfect for the bigger, faster center console boats between 25’ and 40’. Anglers can easily deploy an outrigger’s vertical lift and horizontal rotation from the boat deck in rough seas. Additionally, the GS-390XL comes equipped with our secure pin-locking technology and pairs well with TACO’s Deluxe Aluminum and Carbon Fiber Tele-Outriggers. The GS-390XL has an enlongated base for tops up to 4” thick

Features:

• Stronger gusset support and thicker arm for enhanced durability
• GS-390XL has an enlongated base for tops up to 4” thick
• Elevation crank handle provides lift from under the T-top
• Allows for horizontal rotation from under the T-top
• Offset handle for better hand clearance
• Cast stainless-steel Type-316L and machined aluminum construction
• Strong locking head allows perfect positioning
• Pairs with TACO Deluxe Aluminum or Carbon Fiber Tele-Outriggers
• Tested and proven quality
• Sleek appearance
• 3-year limited warranty

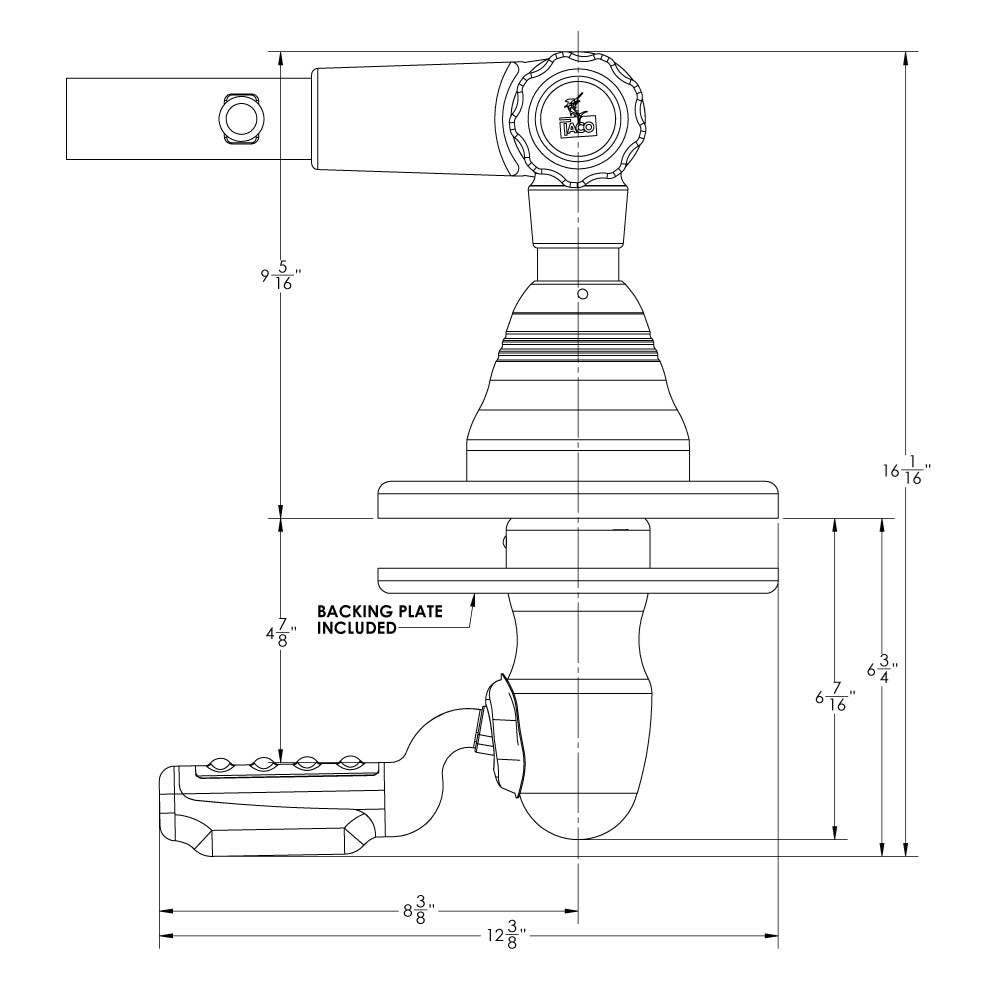

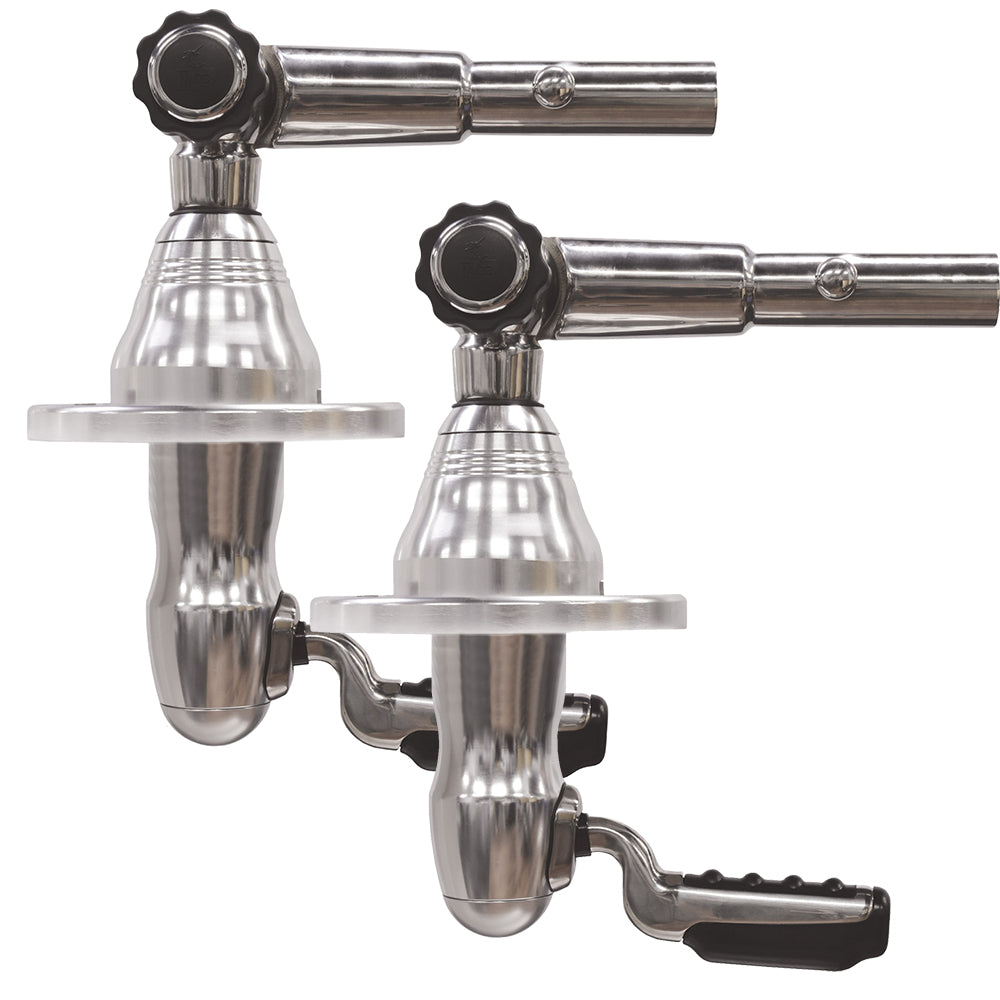

Grand Slam 400 Outrigger Top Mount - Pair

TACO Marinenow offers a higher performance outrigger mount with their 400 series specifically designed for boat lengths surpassing 50’ and quad engines exceeding 1600 horsepower. The center console market continues to grow and so does the size of its vessels and the engines that power them. The new GS-400 provides the upgrade in strength to easily handle the increasing outrigger pole lengths in both Aluminum and Carbon Fiber for up to 30’. Experience the difference with this new high performance series of outrigger mounts.

Features and Benefits

• Increased surface area on the hard top plate
• Increased thickness of the 6" x 8" oval hard top plate to 3/4" to reduce flex
• Larger top tube with longer bearing surface for improved stability
• Extended upper casting to prevent tube buckling
• Compatible with TACO Marine aluminum and carbon fiber poles (1-1/2" diameter)
• Ideal for use on high performance boats with 3, 4 or 5 engines
• Double the amount of top assembly hardware compared to Grand Slam 280 series
• Stainless lever grip for additional strength
• New mushroom outrigger twist and lock pin for one hand operation
• Eight bolt pattern attachment for increased arm and pole support
• Increased thickness in the backing plate to 1/2"
• Uses same bolt and hole pattern for installation as current Grand Slam series
• Sold in Pairs
• Three year limited warranty

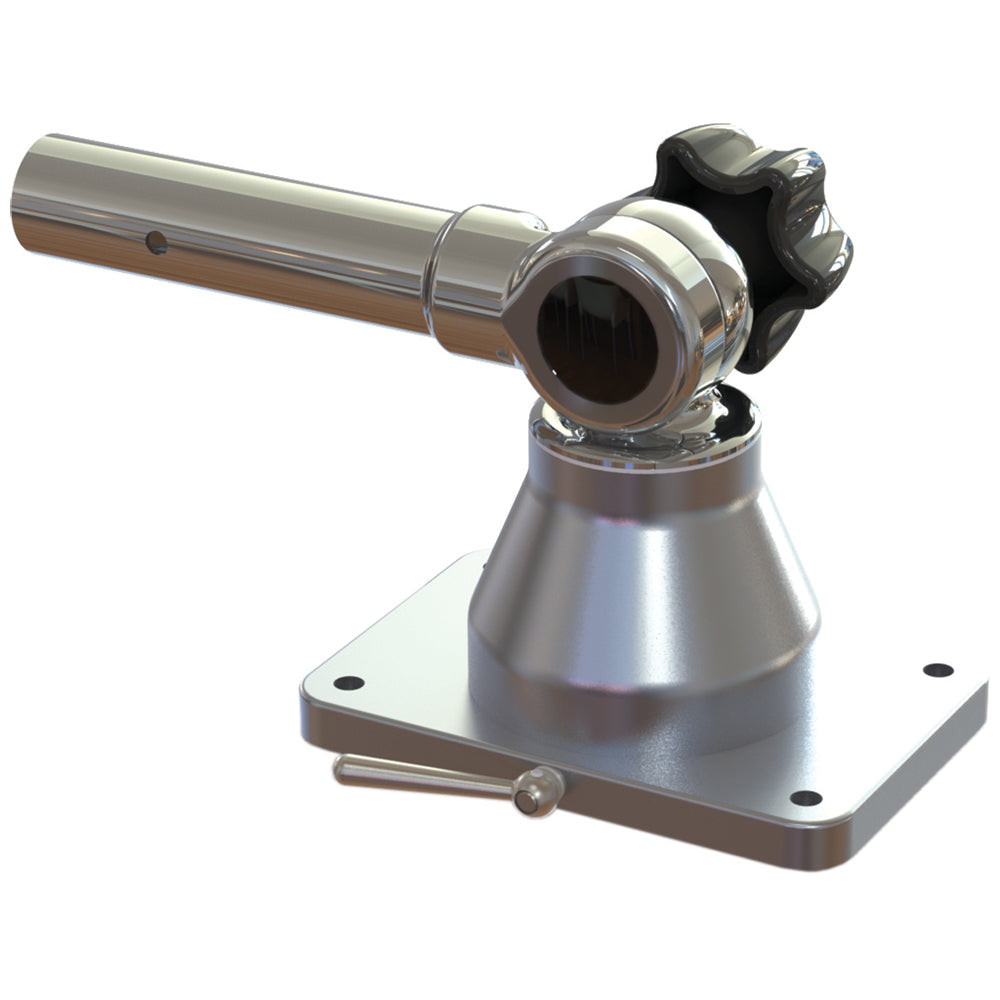

Grand Slam 170-2 Center Mount

• Uses TACO's spline lock technology for secure outrigger elevation

• Designed for use with standard 1-1/8" butt OD outriggers

• Locks every 18°

• Derlin bearings and stainless steel internal locking mechanism offer smooth adjustments, secure positioning and prevent movement

• Rugged, sure-grip knob adjusts and locks-in desired height & laydown position for safe trailering and navigation under bridges

• Stainless steel arm with locking feature ensures TACO outriggers remain securely in place

Specifications:

• Construction: Stainless Steel
• Diameter (Inches): 1-1/8"
• Finish: Silver
• Product Class: Mounting Brackets
• Box Dimensions: 7"H x 9"W x 12"L WT: 6.3 lbs
• UPC: 630838082710
