Entertainment - Satellite TV Antennas

Intellian ACU S6HD  i-Series DC Powered w/WiFi [BP-T901P]

ACU S6HD & i-Series DC Powered with WiFi

DC ACU for Intellian i2/i3/i4/i6 & S6HD

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Intellian B3 Antenna Control Board f/i3, i4, d4, i5  i6 [S3-0503]

Ships Direct From Manufacturer

B3 Antenna Control Board for i3, i4, d4, i5 & i6

Intellian's B3 Antenna Control Board for a range of Satellite TV Antennas. The complete range of Intellian marine satellite TV systems enables uninterrupted HD or SD TV viewing onboard. These dependable products have been developed for vessel owners who go to sea in all conditions, or for those who like to drop anchor in a quiet cove somewhere. Intellian manufactures antennas with fewer moving parts, making the products smaller, quieter, and easier to install and operate.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Intellian Control Board s6HD [S3-0506_A]

Ships Direct From Manufacturer

Control Board s6HD

Intellian's control board for the s6HD. The Intellian s6HD is a complete all-in-one satellite TV solution that enables boaters to enjoy high-definition TV channels just like at home. The antenna’s stylish polished radome design makes it a perfect fit for boats over 45 feet. See more for less, with the s6HD.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

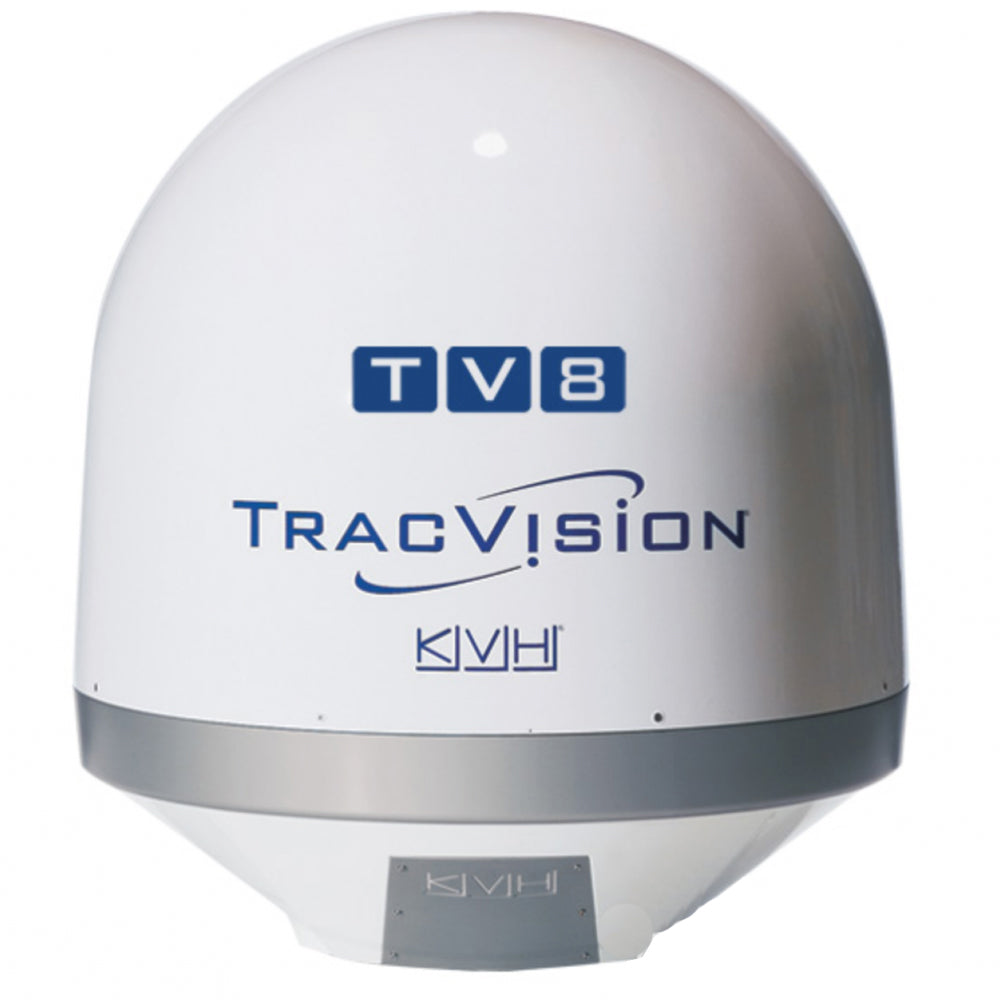

KVH TracVision TV8 Empty Dummy Dome Assembly [01-0387]

Ships Direct From Manufacturer

TracVision TV8 Empty Dummy Dome Assembly

*This Product MUST Ship Truck Freight & Does NOT Qualify for Any Shipping Promotions.

Dimensions:
39.3" x 35.0"

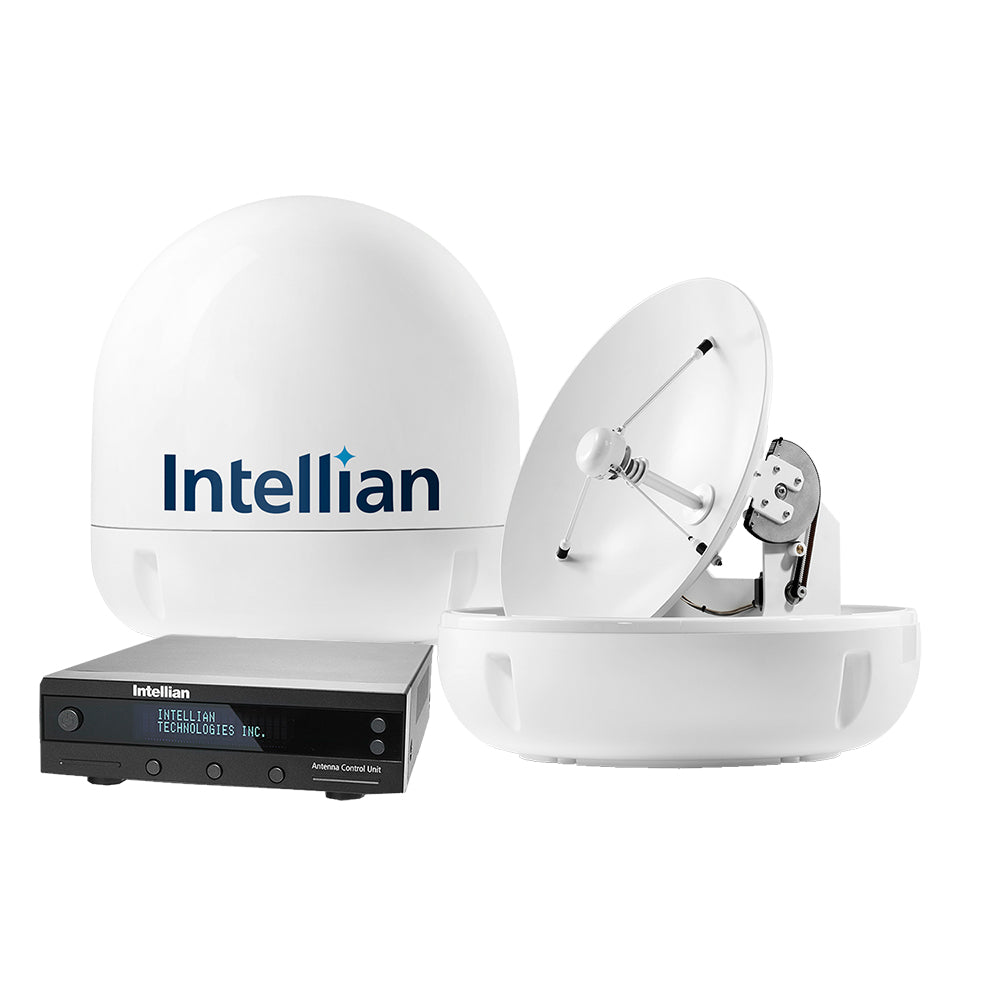

Intellian i6W 2-Axis Global System w/23.6" Reflector & Worldview LNB Gen 2 [B4-619W2]

Ships Direct From Manufacturer

i6W 2-Axis Global System with 23.6" Reflector & Worldview LNB Gen2

*Must Ship Truck Freight

The available i6W is equipped with Intellian's WorldView LNB, which allows for complete global operation without needing to adjust the antenna.

WorldView ready, the Intellian i6W is ideal for larger yachts or commercial
vessels traveling across different global regions. With its highly accurate
satellite tracking capability, the i6 outperforms in all conditions.

Intellian's best-selling system, the i6W is renowned for its robustness and exceptionally strong signal gain. Great for extended offshore voyaging, the i6W is ideal for ocean cruisers, larger yachts and commercial vessels.

The i6W can operate in any global coverage area without manual intervention.

Fully Automated System
Automatic Satellite Search and Identification Function 2-axis high speed tracking system.

High Performance Antenna
60 cm (24 in) diameter parabolic antenna for receiving Ku-Band satellite signals. Circular or linear polarization depending on region and LNB selected. Built-in HD module for Ku-band HD TV reception.

Quick & Quiet Technology
Technology allows you to tune in quickly, maintain a solid signal lock, and enjoy your favorite TV programming in quiet comfort. The Wide Range Search (WRS) Algorithm delivers the fastest signal acquisition available anywhere.
Dynamic Beam Tilting (DBT) technology uses intelligent, real-time beam analysis to ensure superior signal quality while eliminating intrusive background noise experienced with conventional antennas.

Antenna Control Unit
Intuitive controls and digital satellite information display on the ACU.
Wireless automated updates and diagnostics via Aptus PC and Aptus Mobile DC Out Port for easy power supply to the Intellian MIM or the Shaw Decoder Module.

Multiple Receiver Capability
Multiple receivers and TVs can be connected using a Multi-Switch (M2-TD02) sold separately or the Intellian MIM (Multi-Satellite Interface Module). Using the MIM a master receiver can be selected to control the target satellite. In North America, when using Dish Network or Bell TV, a MIM is required, enabling automatic satellite switching from your remote control just like you do at home.

Built-in GPS and NMEA 0183 Interface
The i6 includes a built-in GPS inside the Antenna Unit for faster signal acquisition. The ship's GPS can also be connected through the NMEA 0183 port on the rear panel of the ACU.

Stylish Radome Profile
70 cm (27.5 inch) antenna radome diameter
Antenna weighs less than 20 kg (44 lbs)

What's in the box?

• All Satellite Systems include the following parts as standard:

• Antenna & Radome 60 cm (24?) Reflector & LNB

• ACU (Antenna Control Unit)

• PC Controller Program (Software CD included)

• Installation & Operation Manual

• Installation Template

• Quick Installation Guide

Installation Kit:

• ACU Table Mounting Bracket x 2EA

• 15m (49 ft) x 1EA Antenna-ACU RG6 Coaxial Cable

• 3m (10 ft) x 1EA ACU-IRD RG6 Coaxial Cable

• 10m (33 ft) x 1EA DC Power Cable

• 1.8m (6 ft) x 1EA PC Serial Cable

• Connectors & Screws

3 Year Global Warranty
Industry leading 3-year parts and workmanship guarantee with a 2-year labor warranty for all antenna systems, ensuring peace of mind with your hardware investment.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

• Dome Weight (lbs): 44 lbs
• Service Coverage: DirecTV, Dish
• Voltage - Input Range (Volts): 9-30v
• Antenna Dish Diameter: 24"
• Box Dimensions: 33"H x 34"W x 44"L WT: 111 lbs
• UPC: 8863100120144

Owner's Manual (pdf)
Brochure (pdf)

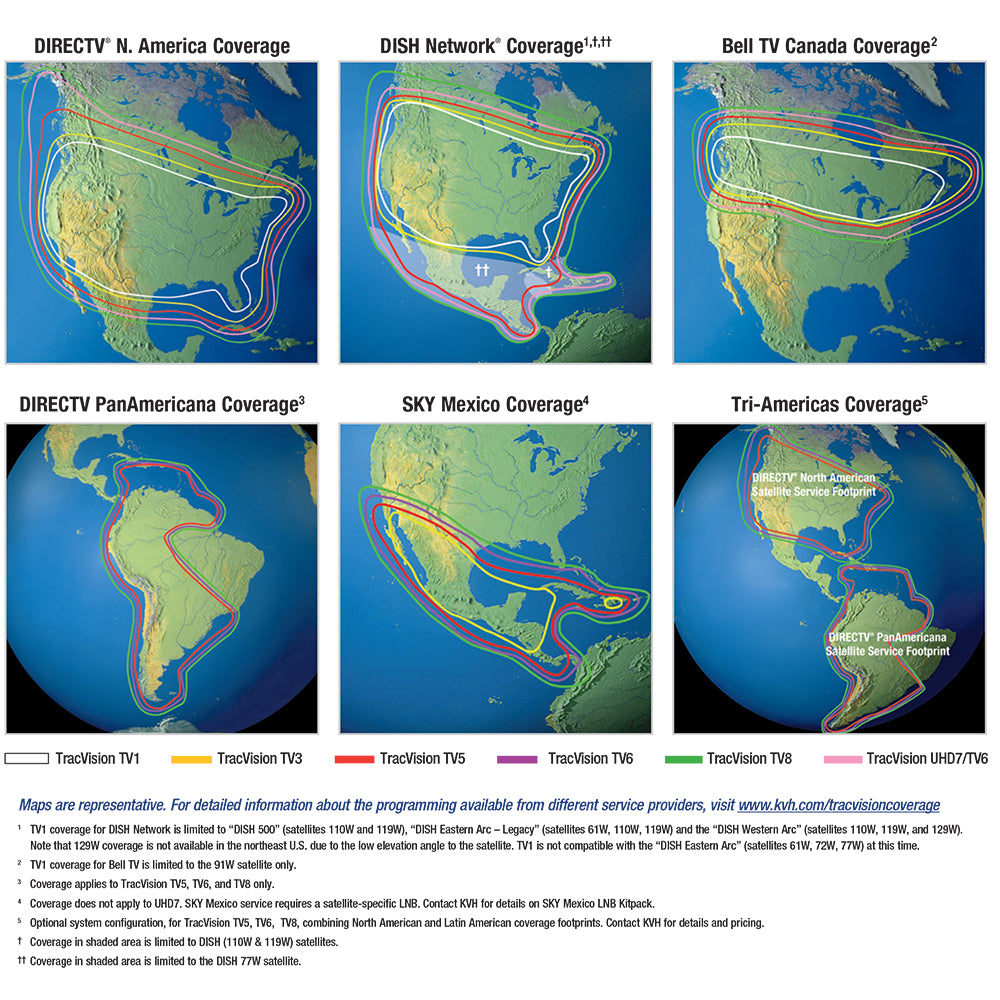

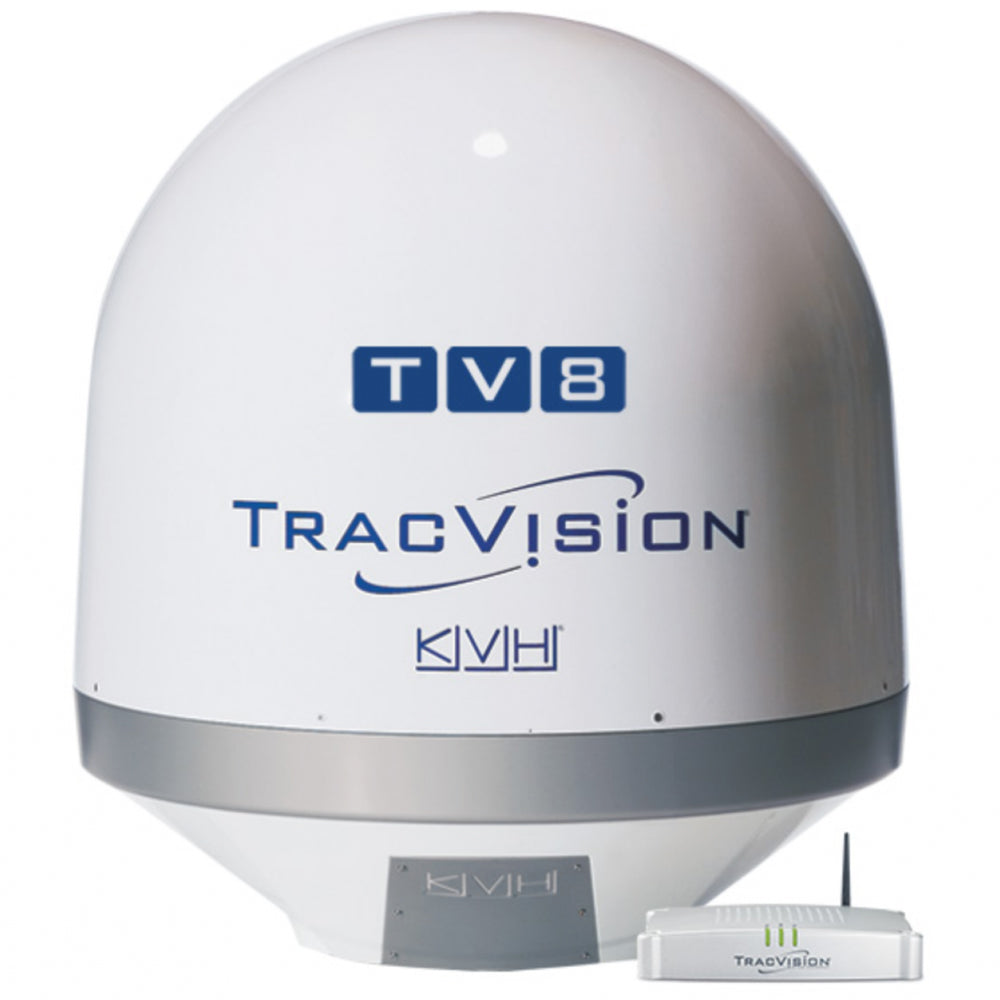

KVH TracVision TV8 Circular LNB f/North America - Truck Freight Only [01-0386-07]

Ships Direct From Manufacturer

*This Product MUST Ship Truck Freight & Does NOT Qualify for Any Shipping Promotions.

TracVision TV8 with Circular LNB for North America

Powerful Satellite TV Antenna System for Merchant Vessels Worldwide
KVH's 81 cm (32 inch) diameter TracVision TV8 satellite TV antenna system equips commercial vessels with high-performance tracking and excellent reception. The system is compatible with popular Ku-band HDTV and standard-definition satellite TV programming around the globe, so whether the vessel is in port or underway to its next destination in rough seas, the TracVision TV8 will bring the crew hundreds of channels of uninterrupted, crystal-clear entertainment.

System Supports Worldwide Use & Ease of Operation
The TracVision TV8 has automatic skew control and integrated GPS for the fastest satellite acquisition and unmatched tracking. The TV-Hub enables trouble-free setup, easy system monitoring, multi-satellite configuring, and easy switching between satellite TV services. Plus, TracVision TV8's satellite library is preprogrammed to track more than 90 TV satellites worldwide, so there is no need to add satellites manually.

Features:

• Ultra-high efficiency 81 cm (32 inch) diameter antenna

• Supports popular Ku-band HDTV and standard-definition satellite TV programming around the globe

• Single coaxial cable* for power, data, and video for easy installations and retrofits

• Advanced inertial-based stabilized search for fast satellite acquisition

• High-performance tracking with advanced algorithms for a crystal-clear television picture even in heavy seas

• Built-in worldwide TV satellite library preprogrammed to track more than 90 TV satellites around the world

• System configurations support multiple receiver installations

• 43 dBW minimum EIRP signal strength for extended travel range

• High-performance DVB-S2 tracking for superior offshore performance in demanding conditions

• Global support from KVH's Certified Support Network (CSN)

Complementary Systems
Complement your KVH TracVision satellite television system with a KVH TracPhone V-IP satellite communications system for fast and reliable satellite Internet and VoIP services. TracPhone V3-IP, V7-IP, and V11-IP are designed exclusively for KVH's mini-VSAT Broadband network, the world's no. 1 maritime VSAT service.

Specifications:

• Dome Weight (lbs): 88.2 lbs
• Service Coverage: All
• Voltage - Input Range (Volts): 10-30v
• Antenna Dish Diameter: 32"

Quick Guide (pdf)
Owner's Manual (pdf)
Brochure (pdf)

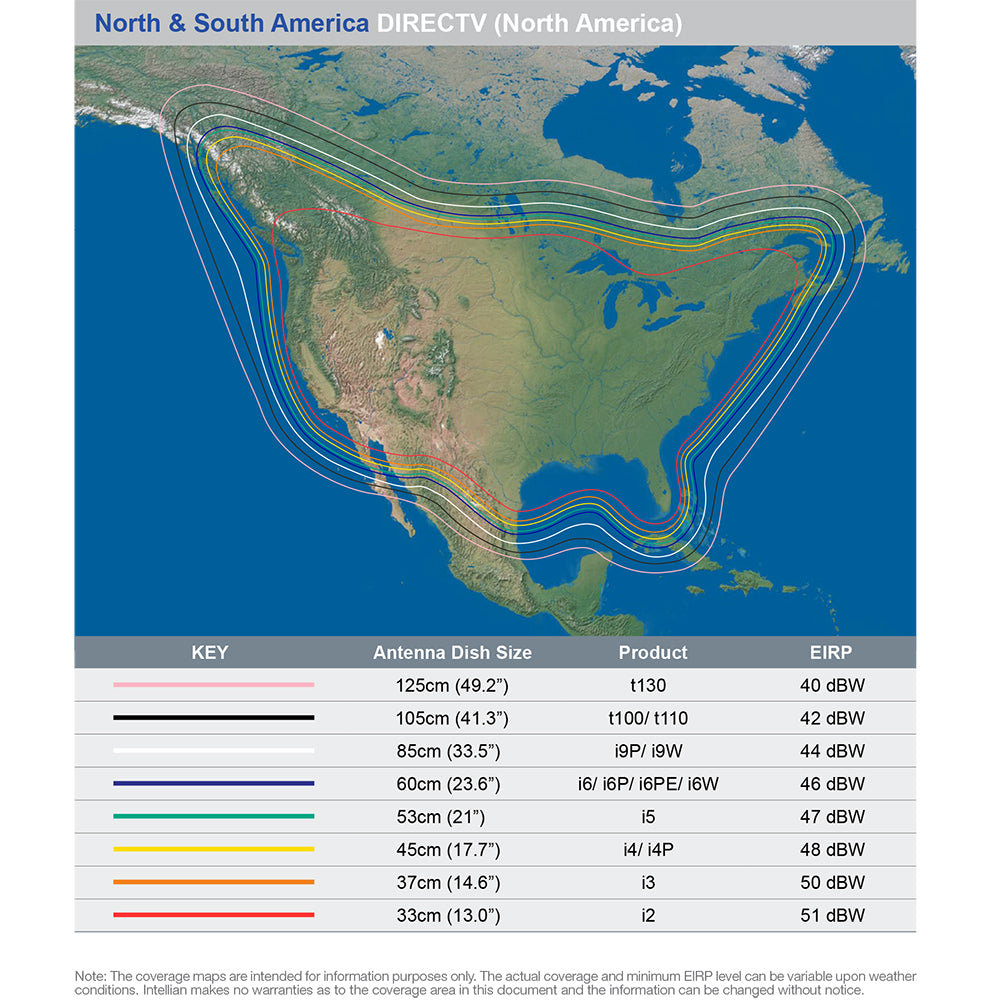

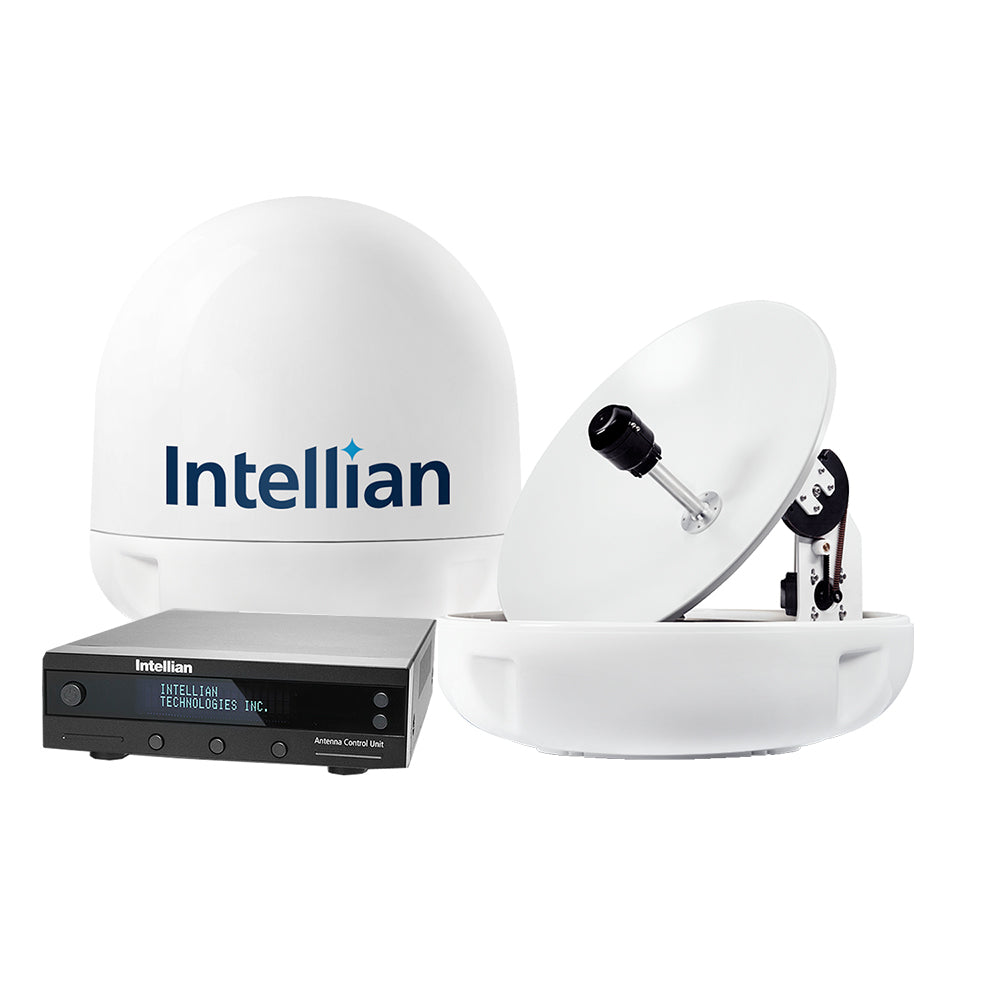

i5 US System - 20.8" Dish w/All-Americas LNB

The i5 is a significant addition to Intellian's TVRO product lineup and has also created another size category for marine satellite TV systems. The unique form factor is directly addresses the needs of offshore cruising vessels ranging from 40-60' in length.

The radome diameter of the i5 is 61cm (24") and it delivers extended coverage with a compact size. Intellian's signature iQ2 technology delivers quicker and quieter signal tracking and simple installation for the ultimate customer experience. The system's Wi-Fi enabled antenna control unit (ACU), provides the option to manage the system wirelessly via PC or Mobile Device, using Intellian's graphically intuitive control application, Aptus.

Features:

Just the Right Fit
The i5 is the world's first 20" satellite TV antenna purpose built for offshore cruising vessels in the 40-60' range. It's performance enables reception of TV service throughout the Bahamas, Caribbean and Mexico, while it's size is better suited for vessels under 60' in length.

Simple & Easy installation
With a single cable to connect the antenna and the ACU, the i5 system is quick and easy to install. Our intuitive ACU features a front panel display with functional keys and requires minimal setup so you can begin to enjoy TV programs in no time.

Quicker & Quieter
Intellian's patented iQ2 technology delivers the best user experience available on the market today. An advanced signal searching algorithm acquires the satellite 4-5 times faster than conventional methods. Intelligent, real time beam analysis holds the signal and reduces overall motor movement by up to 80%, eliminating annoying background noise while at anchor or in the slip.

Built-in GPS
The i5 includes a built-in GPS, which facilitates an easier installation by eliminating the need to integrate with the vessel's system. Additionally, the GPS enables faster signal acquisition and improves overall tracking performance.

Standard All Americas LNB
The i5 is built to cruise offshore throughout the Americas. For this reason it comes standard with Intellian's own All America's LNB, meaning users will not have to swap LNBs when sailing between regions.

Wireless Control via Aptus
Built-in Wi-Fi enables the ACU to be wirelessly managed and controlled via Aptus PC or Mobile, Intellian's graphical antenna control software. Aptus user-friendly displays vital performance metrics in a graphical format that simplfies operation. It even includes an auto diagnostic function designed to help solve problems quickly should they arise. The Aptus Mobile application is available in the Apple Store and through Google Play.

Instant Updates
Occasionally satellite TV service providers make unannounced changes to their network that cause outages for marine users who do not receive regularly scheduled updates via their at home dish. Aptus Mobile automatically checks for these updates, enabling users to stay current with any changes through a simple mobile app process.

Tune in your favorite HDTV channels
Intellian's i5 recieves HD channels from any Ku- band TV service. Enjoy HD programming whether cruising in the US, Mexico or the Caribbean.

Specifications:
Physical

• Radome Height: 62.7cm / 24.7"

• Radome Diameter: 61cm / 24"

• Reflector Diameter:53.5cm / 21"

• Weight: 17.3kg / 38lbs

• Operating Temp. Range: -25°C to +55°C / -13°F to +131°F

• Storage Temp. Range: -40°C to +80°C / -40°F to +176°F

• Water Ingress: IPX6

• Approvals: CE / FCC

• Warranty: 3 year parts and 2 year labor

• Reception Frequency: Ku-band (10.712.75GHz)

• Polarization: RHCP / LHCP

• Minimum EIRP: 47dBW

• Azimuth Range: 680L

• Elevation Range: 0° to +90°

• Ship's Motion Roll: ±25°, Pitch ±15°

• Roll & Pitch Response Rate: 50° / sec

• Turning Rate: 50° / sec

• RF Output: Dual Output

• Dimensions (WxDxH): 17.8cm x 21.7cm x 5.4cm / 7" x 8.5" x 2.1"

• Weight: 1.2kg / 2.6lbs

• Display: 2 line 20 character VFD module

• GPS Interface: Built-in (NMEA 0183 GPS)

• Power Requirement: 9.030.0V DC

• Power Consumption: Typ. 30W, Max. 50W

Specifications:

• Dome Weight (lbs): 38 lbs
• Service Coverage: DirecTV, Dish
• Voltage - Input Range (Volts): 9-30v
• Antenna Dish Diameter: 21"
• Box Dimensions: 27"H x 28"W x 33"L WT: 63 lbs
• UPC: 886310018450

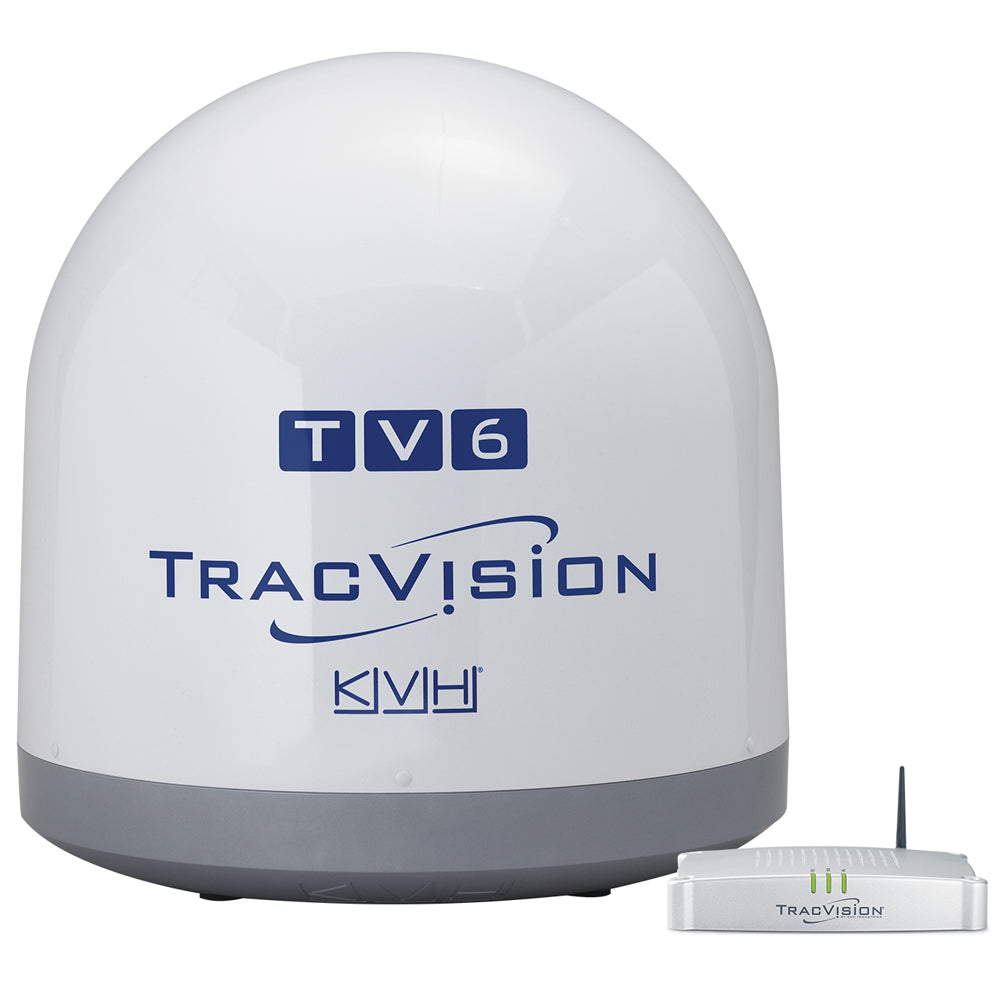

KVH TracVision TV6 w/IP-Enabled TV-Hub  Linear Universal Quad-Output LNB w/Autoskew  GPS [01-0369-02]

Ships Direct From Manufacturer

TracVision TV6 w/IP-Enabled TV-Hub & Linear Universal Quad-Output LNB w/Autoskew & GPS

**LNB Kit Pack 72-0825 required for SKY Mexico service**

Enjoy Your Favorite Television Programming - Everywhere You Cruise

With its IP-enabled TV-Hub, user-friendly interface, and single-cable installation, TracVision TV6 makes it easier than ever to enjoy your favorite television programming no matter where your seagoing adventures take you. This 60cm (24") marine satellite television antenna not only provides access to satellite television services worldwide, it supports multiple receivers so everyone onboard can watch what they want. Designed for an extended coverage area, this DVB-S2 compatible system is perfectly suited for boats heading offshore for short or long voyages.

Advanced Technology from the Leader in Marine Satellite TV

KVH, the leader in marine satellite television for 20 years, has integrated the latest advancements into the TracVision TV6, a versatile system that supports DIRECTV® U.S., DIRECTV Latin America, DISH Network®, Bell TV, and circular and linear Ku-band services worldwide:

• TracVision TV-Hub, a sleek IP-enabled belowdecks unit with easy user interface that provides system information from any Wi-Fi mobile device or computer
• Exclusive RingFire™ antenna technology for stronger signals, wider geographic coverage, and better reception
• Advanced inertial-based stabilized search for fast satellite acquisition
• High performance tracking with advanced algorithms for crystal-clear television picture in heavy seas

Highlights

• Ultra high-efficiency, 60cm (24") diameter antenna features proprietary RingFire technology for stronger signals, wider geographic coverage, and better reception
• Supports DIRECTV U.S., DIRECTV Latin America, DISH Network, Bell TV, and circular and linear Ku-band services worldwide
• Supports multiple receiver installations
• Linear Universal Quad LNB configuration offers built-in GPS and autoskew
• Tri-Americas LNB option for seamless TV throughout the Americas
• Sleek IP-enabled TracVision TV-Hub delivers easy setup and operation, and easy user interface for system information from any smartphone, tablet, smart TV, or computer
• HDTV compatible (Ku-band services only)
• Integrated Single Wire Multiswitch (SWM-8) built into belowdecks TV-Hub supports up to 8 DIRECTV receivers
• Single coaxial cable for power, data, and video enables easy installations and retrofits
• DVB-S2 compatible
• Advanced inertial-based stabilized search for fast satellite acquisition
• High performance tracking with advanced algorithms for crystal-clear television picture in heavy seas
• Built-in worldwide satellite library
• IP AutoSwitch option for multiple receiver installations - for simple auto-switching on Dish Pro and DiSEqC-compatible services
• World-class warranty coverage and support

TracVision TV-Hub

The innovative TracVision TV-Hub integrates the advanced functionality of the TV-series system into one streamlined unit:

• IP-enabled antenna control unit with Ethernet connection and built-in Wi-Fi interface allows access to system information from any Wi-Fi device
• Automatic satellite switching makes it easy to access all programming and local channels wherever you travel, and with whatever service you use
• Built-in SWM-compatible technology supports DIRECTV programming
• Built-in DISH Pro output supports DISH Network and Bell TV service
• Built-in DiSEqC protocol supports linear TV services around the world
• Two output ports provide the flexibility to use legacy receivers and expand SWM capability
• Status indicators quickly convey information about antenna function and power
• 10-30 VDC input provides power to the TV-Hub, which in turn provides power to the antenna
• NMEA 0183/2000 input for heading and GPS enable fastest satellite acquisition

RingFire Technology

KVH's proprietary RingFire technology is a remarkable breakthrough in antenna design, fusing precisely shaped, tuned parabolic dish antennas with custom-designed, dual-mode feed tubes and uniquely modified LNBs. RingFire technology provides unmatched illumination of the reflector resulting in signal strengths comparable to competitors' larger antennas. This means that with TracVision, you'll enjoy wider geographic coverage and better reception than with competing antennas, even in extreme weather.

Specifications:

• Dome Weight (lbs): 55 lbs
• Service Coverage: SKY MEXICO
• Voltage - Input Range (Volts): 10-30v
• Antenna Dish Diameter: 24"
• Box Dimensions: 31"H x 35"W x 36"L WT: 102 lbs
• UPC: 028327011851

Quick Guide (pdf)
Owner's Manual (pdf)
Brochure (pdf)
