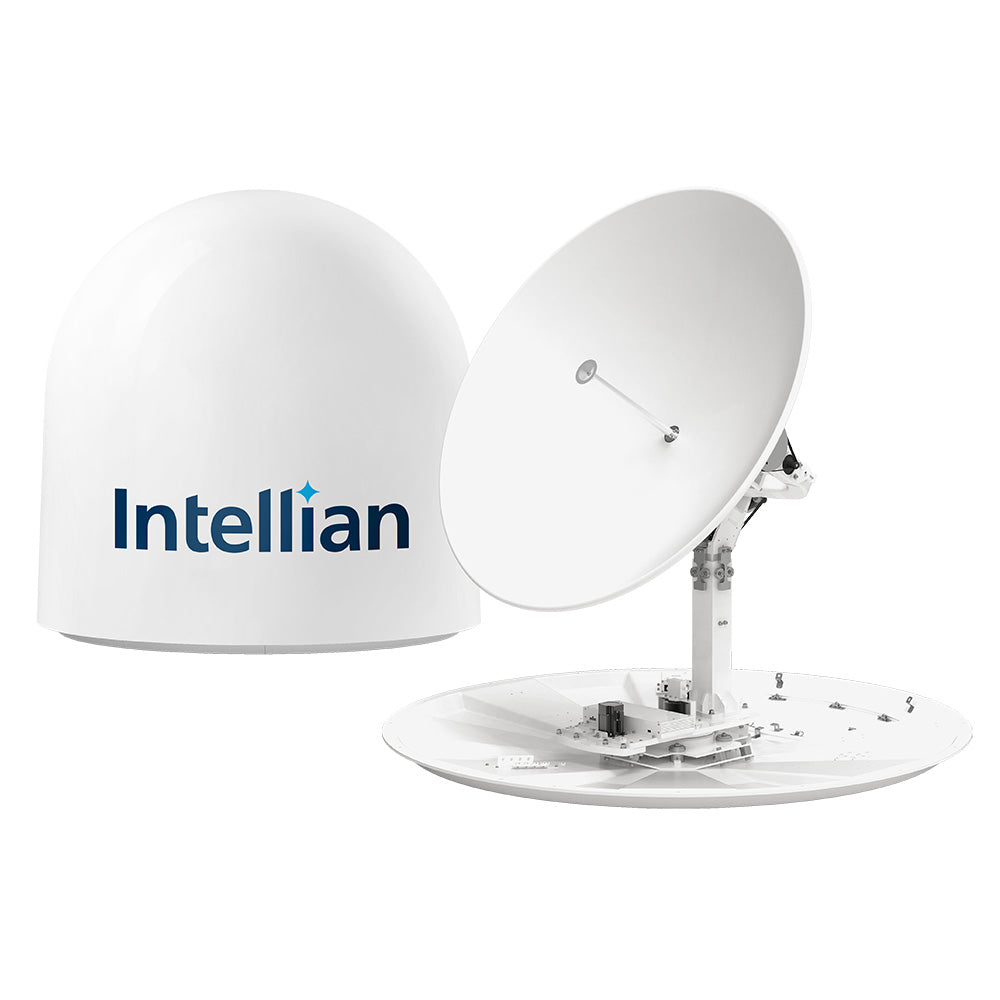

Intellian t130N 1.25M Maritime Global Satellite TV Antenna System in v130NX Matching Radome [T4-131BW3]

Ships Direct From Manufacturer

t130N 1.25M Maritime Global Satellite TV Antenna System in v130NX Matching Radome

1.25M Reflector Ku-band global satellite TV system.

The t130N provides outstanding performance with a 1.25m reflector with the added benefits of hardware and pedestal based on our quality-proven VSAT NX terminals. Modular components are used throughout the t-Series range, such as the main control unit and skew assembly. Sharing common modules across Intellian’s t-Series antenna reduces the number of spare parts required.

Features:

• Television everywhere - WorldView™ LNB module will automatically switch to the corresponding Ku-band local frequency and receive the signal without the need to switch the LNB.
• Unlimited azimuth range - With Intellian’s unique rotary joint and slip ring solution, those onboard will enjoy uninterrupted TV services no matter the number of turns the vessel makes.
• Wi-Fi connectivity - The Wi-Fi function enables the ACU to be wirelessly connected. Any kind of wireless device, such as PCs, laptops, and smartphones, can be used to connect to the ACU to manage and control the antenna system.
• AptusNTV - Intellian’s integrated M & C platform, AptusNTV, provides a responsive web user interface. The simple seven-step installation wizard configures the antenna system automatically for easier installation and operation.
• Fully integrated solution - With its Wi-Fi-enabled ACU, users can connect wirelessly to the antenna using AptusNTV. AptusNTV offers users instant diagnostics, performance logging functions, and one-touch updates of firmware and the satellite library. Programmable WorldView™ Ku-band LNB. DVB-S2 Digital TV reception.
• Hardware structure - Modular components are used throughout the t-Series range. Five cable configuration for easy installation. Unlimited azimuth range eliminates the need to wait for the antenna to unwrap the cable length once reached. Dual functionality via external Mediator.

Technical Specifications:

• Radome Dimensions - 66.18" (D) x 67.87" (H)
• Reflector Diameter - 49.21"
• Weight - 284.4lbs
• Azimuth Range - Unlimited
• Elevation Range - -15° - +115°
• Cross-Level Range - ±35°
• Rx Frequency - Ku-Band: 10.7 -12.75 GHz
• Rx Gain - > 42.2 dBi @ 11.7 GHz (w/o Radome)
• LNB Type - Ku-Band WorldView Pre-Programmable
• EIRP - 40.0 dBW (Min.)
• Polarization - Linear & Circular
• Stabilization Accuracy - 0.2° max in the presence of specified ship motions
• Ship Motion (@ 6 seconds) - Roll ±25°, Pitch ±15°, Yaw ±8°. Turning Rate: Up to 10°/sec²

Specifications:

• Antenna Dish Diameter: 66.18"
• Dome Weight (lbs): 284.4lbs

Brochure (pdf)

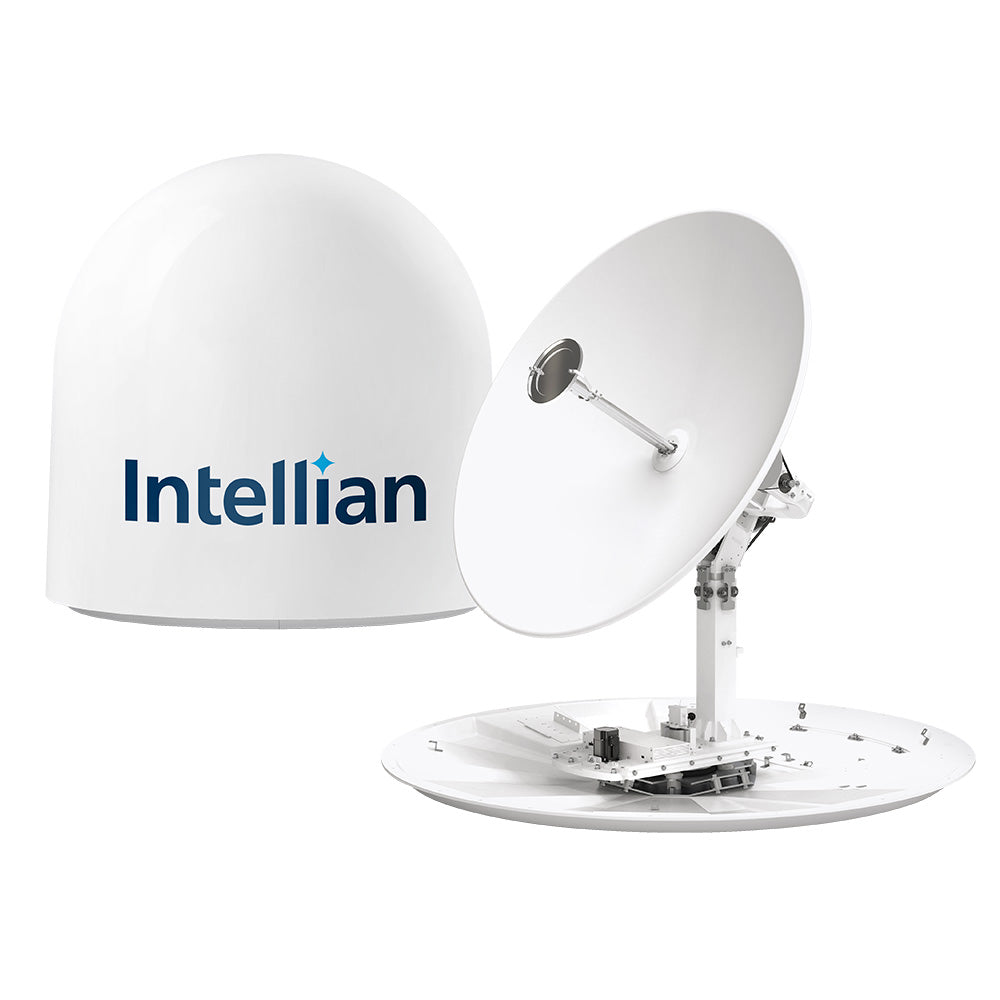

Intellian s130N 1.25M HD DirecTV  WorldView Satellite TV Antenna System In v130NX/t130N Dome - Includes Multi-Switch Module [T4-137BT3]

Ships Direct From Manufacturer

s130N 1.25M HD DirecTV & WorldView Satellite TV Antenna System In v130NX/t130N Dome - Includes Multi-Switch Module

1.25M (49.2 inches) reflector WorldView™ TV system with dedicated support for DIRECTV UHD.

The s130N provides outstanding performance with a 1m reflector and simultaneous DirecTV reception. Intellian’s WorldView™ Trio LNB™, with its triple feed horn, provides simultaneous reception of DIRECTV® satellites: two HD Ka-band (99°W/103°W) satellites and one Ku-band (101°W) satellite. The LNB receives Ku-band TV service worldwide, providing a complete HD entertainment experience at sea.

Features:

• Television, wherever you are: The user can select the desired TV programming from the enhanced satellite-tracking library of worldwide TV satellites, divided into geographical regions. A selection of TV satellites can be listed as favorites for quick access via AptusNTV or the ACU front panel. TV satellites can easily be added to the library via the AptusNTV dashboard.
• Unlimited azimuth range - With Intellian’s unique rotary joint and slip ring solution, those onboard will enjoy uninterrupted TV services no matter the number of turns the vessel makes. The solution eliminates the wait for the antenna to unwrap the cable once its length is reached. Never again miss a goal or touchdown of your favorite team.
• Redesigned Quattro WLNB - The WLNB has a dedicated output for satellite tracking on all polarizations and (hi and low) frequency bands. The satellite tracking tuner supports the latest DVB-S2X broadcast standard already being utilized by emerging satellite TV providers. The superior design of the s100N antenna ensures that performance and flexibility are increased with its Ku-Ka-band tuned radome and reflector.
• Matching dome solution - The s-Series antennas are fitted with radomes that match our NX Satellite Communication antennas for onboard aesthetics.
• NX-based antenna design - The pedestal, motor/encoder, and modular antenna control are based on the reliable NX (VSAT) platform. While the software is identical, the majority of the hardware on the TVRO t-s and s-series is spare parts that are interchangeable as well. Sharing common modules across Intellian’s TVRO series greatly reduces the number of spare parts required.
• AptusNTV - AptusNTV is the intuitive dashboard for the TVRO t- and s-series. The enhanced satellite tracking library and the 7-step installation wizard make the antenna easy to install, configure, and operate. The ACU has the option for Wi-Fi access to configure and operate the antenna from a PC, tablet, or smartphone.

Technical Specifications:

• Radome Dimensions - 66.28" (D) x 67.87" (H)
• Reflector Diameter - 49.2"
• Weight - 306.4lbs
• Azimuth Range - Unlimited
• Elevation Range - -15° - +115°
• Cross-Level Range - ±42°
• Rx Frequency - Ku-Band: 10.7 -12.75 GHz, Ka-Band: 18.3 -18.8/19.7 -20.2 GHz
• LNB Type - Trio WorldView Programmable
• EIRP - Ku-Band: 41.0 dBw (min.), Ka-Band: 44.0 dBw (min.)
• Polarization - Ku-Band: Linear & Circular, Ka-Band: Circular
• Stabilization Accuracy - 0.2° max in the presence of specified ship motions
• Ship Motion (@ 6 seconds) - Roll ±25°, Pitch ±15°, Yaw ±8°. Turning Rate: Up to 10°/sec²

Specifications:

• Antenna Dish Diameter: 66.28"
• Dome Weight (lbs): 306.4lbs

Owner's Manual (pdf)
Brochure (pdf)

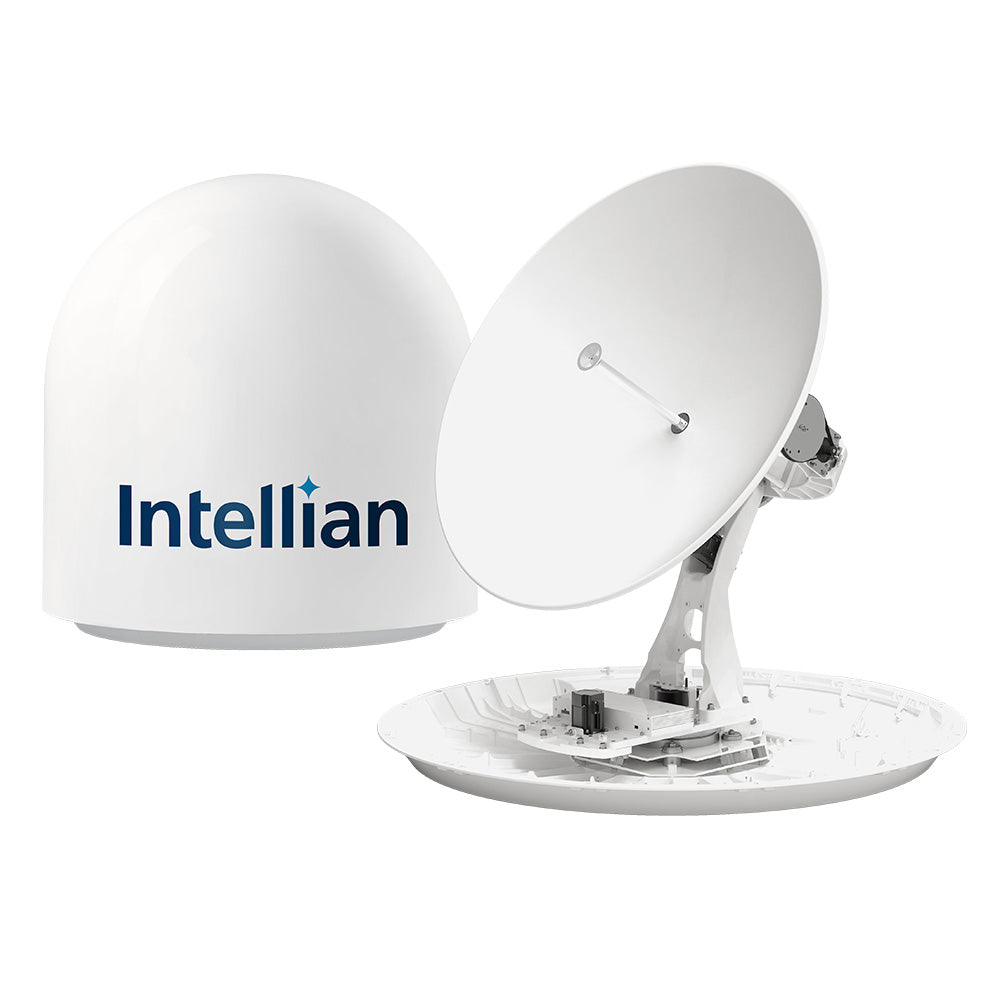

Intellian t100N 1M Maritime Global Satellite TV Antenna System In v100NX Matching Radome [T4-101BW3]

Ships Direct From Manufacturer

t100N 1M Maritime Global Satellite TV Antenna System In v100NX Matching Radome

1M Reflector Ku-band global satellite TV system. The t100N provides outstanding performance with a 1m reflector with the added benefits of all hardware and pedestal based on our quality-proven VSAT NX terminals. Modular components are used throughout the t-Series range, such as the main control unit and skew assembly. Sharing common modules across Intellian’s t-Series antenna reduces the number of spare parts required.

Features:

• Matching dome solution - Matching dome solution for the highly popular 1m-class VSAT antenna family
• Television everywhere - WorldView™ LNB module will automatically switch to the corresponding Ku-band local frequency and receive the signal without the need to switch the LNB.
• Wi-Fi connectivity - The Wi-Fi function enables the ACU to be wirelessly connected. Any kind of wireless device, such as PCs, laptops, and smartphones, can be used to connect to the ACU to manage and control the antenna system.
• Unlimited azimuth range - With Intellian’s unique rotary joint and slip ring solution, those onboard will enjoy uninterrupted TV services no matter the number of turns the vessel makes.
• Picture Perfect - Ideal for larger yachts, luxury vessels, and wherever symmetry and aesthetics are important on board. A complementary system for the Intellian 1m VSAT antennas. Matching TV and NX radomes.
• Fully integrated solution - With its Wi-Fi-enabled ACU, users can connect wirelessly to the antenna using AptusNTV. AptusNTV offers users instant diagnostics, performance logging functions, and one-touch updates of firmware and the satellite library. Programmable WorldView™ Ku-band LNB. DVB-S2 Digital TV reception.

Technical Specifications:

• Radome Dimensions - 54.3" (D) x 57.4" (H)
• Reflector Diameter - 41.3"
• Weight - 205lbs
• Azimuth Range - Unlimited
• Elevation Range - -15° - +110°
• Cross-Level Range - ±35°
• Rx Frequency - Ku-Band: 10.7 -12.75 GHz
• Rx Gain - > 40.7 dBi @ 11.7 GHz (w/o Radome)
• LNB Type - Ku-Band WorldView Pre-Programmable
• EIRP - 41.5 dBW (Min.)
• Polarization - Linear & Circular
• Stabilization Accuracy - 0.2° max in the presence of specified ship motions
• Ship Motion (@ 6 seconds) - Roll ±25°, Pitch ±15°, Yaw ±8°. Turning Rate: Up to 10°/sec²

Specifications:

• Antenna Dish Diameter: 54.3"
• Dome Weight (lbs): 205lbs

Brochure (pdf)

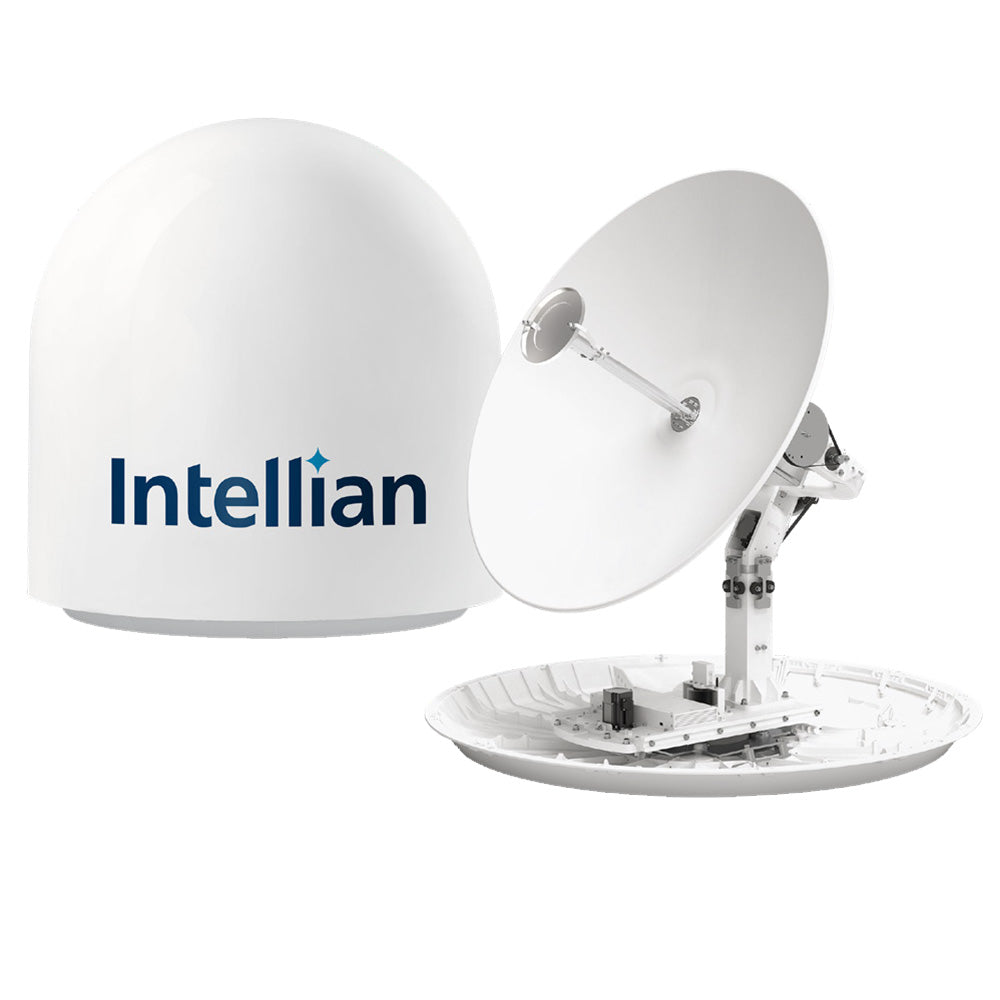

Intellian s100N 1M HD Satellite TV Antenna In v100NX/t100N Matching Dome - Includes Multi-Switch Module [T4-107BT3]

Ships Direct From Manufacturer

s100N 1M HD Satellite TV Antenna In v100NX/t100N Matching Dome - Includes Multi-Switch Module

1.09M (42.9 inches) reflector WorldView™ TV system with dedicated support for DIRECTV UHD.

The s100N provides outstanding performance with a 1m reflector and simultaneous DirecTV reception. Intellian’s WorldView™ Trio LNB™, with its triple feed horn, provides simultaneous reception of DIRECTV® satellites: two HD Ka-band (99°W/103°W) satellites and one Ku-band (101°W) satellite. The LNB receives Ku-band TV service worldwide, providing a complete HD entertainment experience at sea.

Features:

• Television, wherever you are: The user can select the desired TV programming from the enhanced satellite-tracking library of worldwide TV satellites, divided into geographical regions. A selection of TV satellites can be listed as favorites for quick access via AptusNTV or the ACU front panel. TV satellites can easily be added to the library via the AptusNTV dashboard.
• Unlimited azimuth range - With Intellian’s unique rotary joint and slip ring solution, those onboard will enjoy uninterrupted TV services no matter the number of turns the vessel makes. The solution eliminates the wait for the antenna to unwrap the cable once its length is reached. Never again miss a goal or touchdown of your favorite team.
• Redesigned Quattro WLNB - The WLNB has a dedicated output for satellite tracking on all polarizations and (hi and low) frequency bands. The new satellite tracking tuner supports the latest DVB-S2X broadcast standard already being utilized by emerging satellite TV providers. The superior design of the s100N antenna ensures that performance and flexibility are increased with its Ku-Ka-band tuned radome and reflector.
• Matching dome solution - The s-Series antennas are fitted with radomes that match our NX Satellite Communication antennas for onboard aesthetics.
• NX-based antenna design - The pedestal, motor/encoder, and modular antenna control are based on the reliable NX (VSAT) platform. While the software is identical, the majority of the hardware on the TVRO t-s and s-series is spare parts that are interchangeable as well. Sharing common modules across Intellian’s TVRO series greatly reduces the number of spare parts required.
• AptusNTV - AptusNTV is the intuitive dashboard for the TVRO t- and s-series. The enhanced satellite tracking library and the 7-step installation wizard make the antenna easy to install, configure, and operate. The ACU has the option for Wi-Fi access to configure and operate the antenna from a PC, tablet, or smartphone.

Technical Specifications:

• Radome Dimensions - 54.3" (D) x 57.4" (H)
• Reflector Diameter - 42.9"
• Weight - 231.5lbs
• Azimuth Range - Unlimited
• Elevation Range - -15° - +115°
• Cross-Level Range - ±42°
• Rx Frequency - Ku-Band: 10.7 12.75 GHz, Ka-Band: 18.3 18.8/19.7 20.2 GHz
• LNB Type - Trio WorldView Programmable
• EIRP - Ku-Band: 42.0 dBw (min.), Ka-Band: 45.0 dBw (min.)
• Polarization - Ku-Band: Linear & Circular, Ka-Band: Circular
• Stabilization Accuracy - 0.2° max in the presence of specified ship motions
• Ship Motion (@ 6 seconds) - Roll ±25°, Pitch ±15°, Yaw ±8°. Turning Rate: Up to 10°/sec²

Specifications:

• Antenna Dish Diameter: 54.3"
• Dome Weight (lbs): 231.5lbs

Owner's Manual (pdf)
Brochure (pdf)

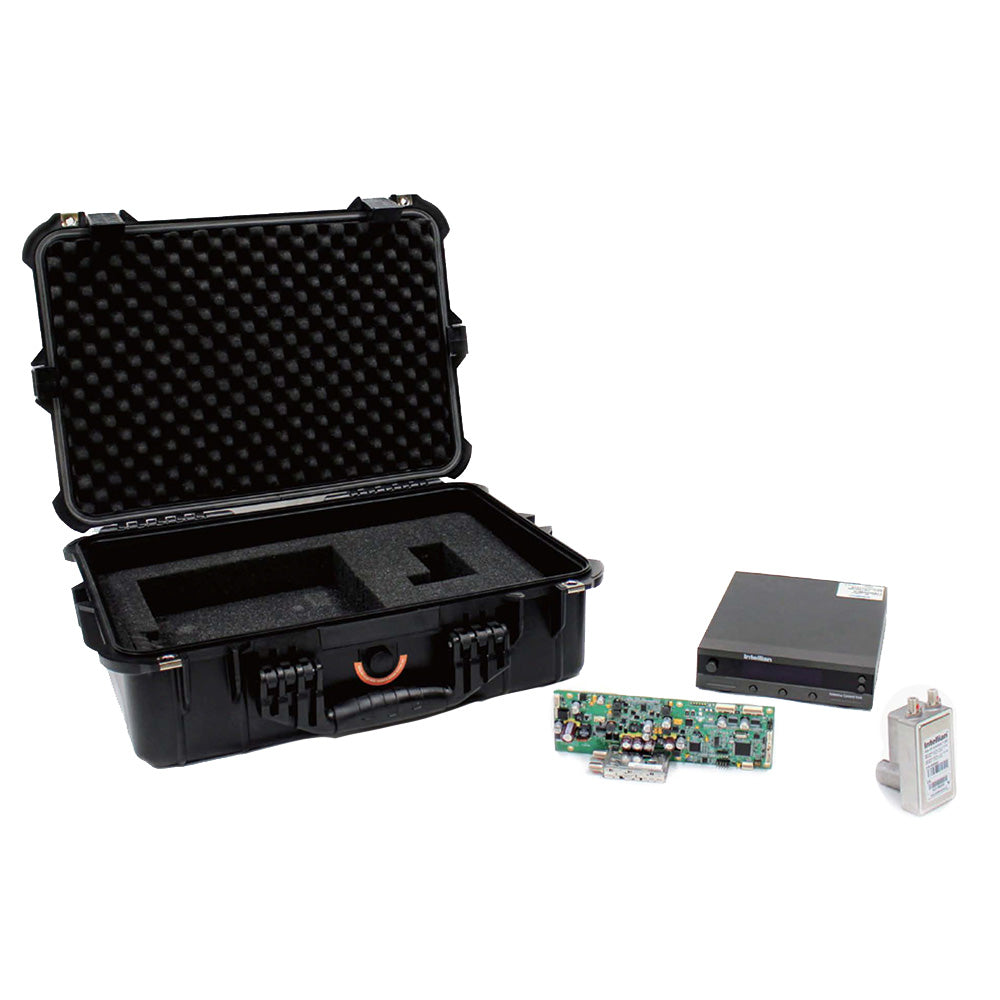

Intellian All-Americas i-Series (i3-i6) TVRO Spares Kit [AAI-KIT]

Ships Direct From Manufacturer

All-Americas i-Series (i3-i6) TVRO Spares Kit

lntellian supplies 3 types of TVRO spare parts kits with replacement LNBs, ACUs, and control board components to ensure that technicians have what they need on hand. All kits come neatly packaged in a custom rugged case. Each part is individually wrapped and labeled with a part number and description.

**Does not support i2 Intellian antennas**

What's In The Box?

• All-Americas LNB (Part # S2-0820)
• DC Powered ACU (Part # BP-T901P)
• Antenna Control Board (Part # S3-0503)

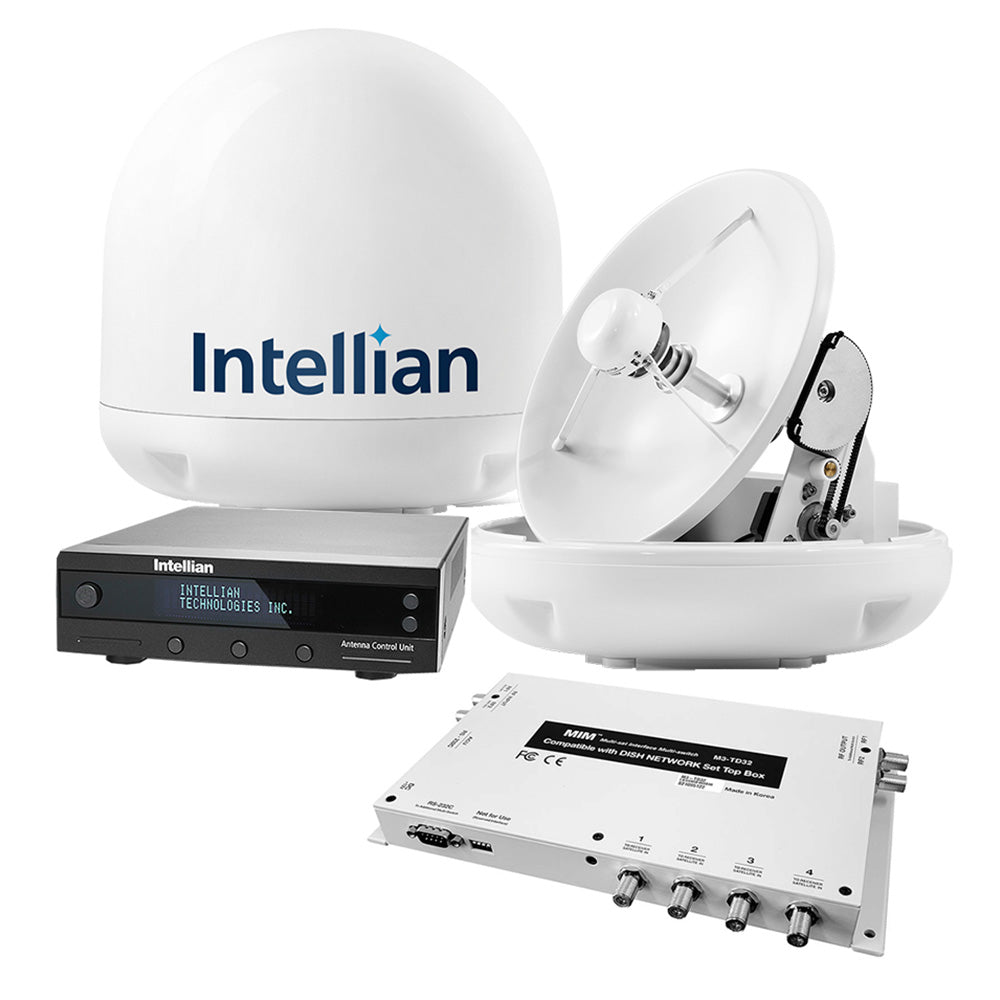

i3 US System with DISH/Bell MIM-2 (with 3M RG6 Cable) & 15M RG6 Cable

The Intellian i3 provides superior tracking performance compared to antenna systems of a similar size. With its stylish dome, the i3 is ideal for boats over 8m (25ft). The i3’s high signal gain makes it the best performing 37cm (15in) antenna system available today.

Features:

• Built-in Wi-Fi enables one touch diagnostic and updates from your PC or iOS device
• Auto satellite switching function from your remote control
• Compatible with leading satellite TV service providers around the world
• 60° per second turn rate ensures signal tracking at high speeds and in rough seas
• Travel further North or South with an extended elevation range of 10° to 80°
• Built-in GPS enables faster signal acquisition
• Simplicity of design, no external compass or rate sensors required
• Built-in HD module for Ku-band HD TV reception
• Receiver Required - Sold Separately

High Performance

You will never have to compromise on reception or quality. The i3 offers the highest signal strength available along with Intellian’s patented iQ² Technology. The slightly larger reflector and radome size over the i2 improve range and allow for a more ruggedized design, making the i3 ideal for vessels traveling at higher speeds or further into offshore waters.

Constant & Seamless Entertainment

With innovative technologies, the i3 always maintains the highest signal strength available and ensures crystal-clear TV reception.

Intellian's super-efficient 37cm (15 inch) diameter antenna provides constant, seamless reception while the vessel is moored, at anchor, motoring along the coast or cruising offshore. The i3 2-axis antenna features a built-in GPS which can accelerate the satellite signal acquisition time while boats with conventional antennas are left watching “SEARCHING FOR SATELLITE” on their screen.

Automatic Satellite Switching

DISH (US) and Bell TV (Canada) users will benefit from using an Intellian MIM (Multi-Satellite Interface Module) . The Intellian MIM is required to facilitate automatic switching between satellites for these services, allowing boaters to enjoy changing channels with automatic satellite switching just like a home system. See the Intellian MIM product guide for further details.

Specifications:

• Antenna Dish Diameter: 15"
• Dome Weight (lbs): 19.8 lbs
• Service Coverage: DirecTV, Dish
• Voltage - Input Range (Volts): 9-30v

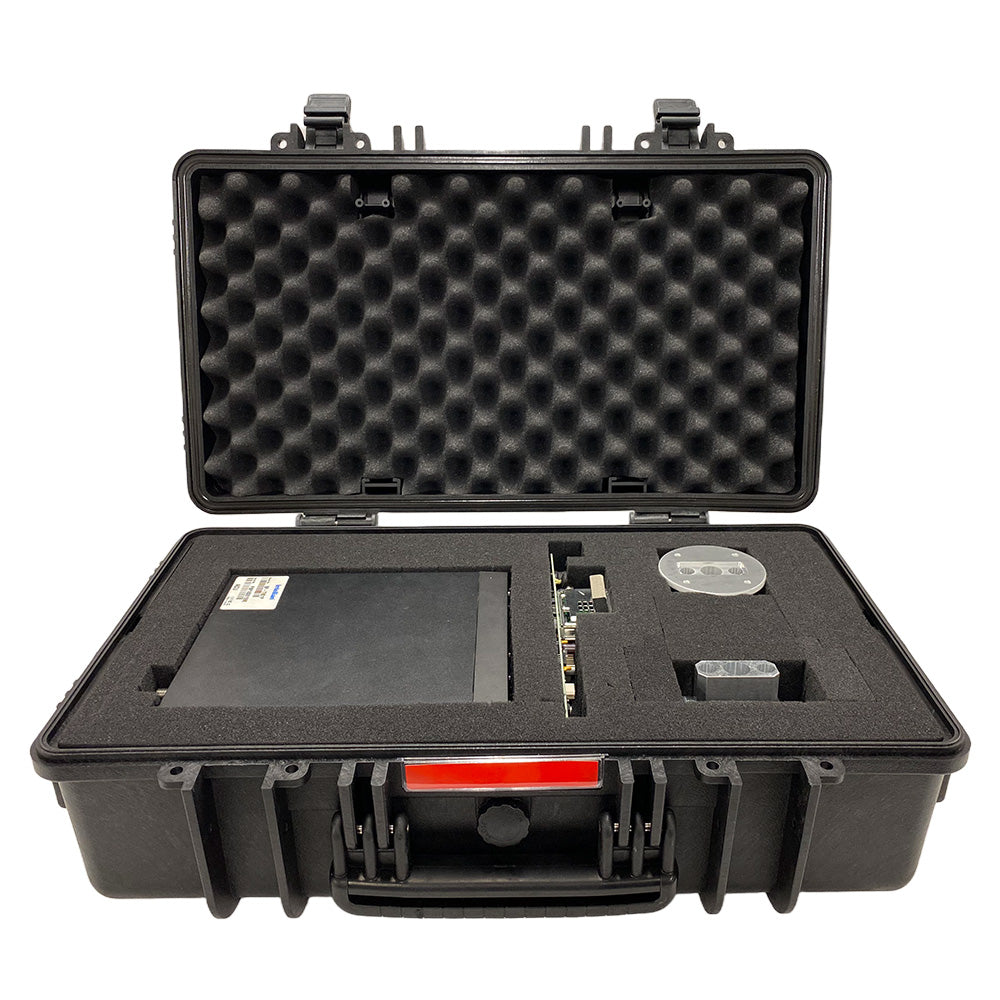

Intellian S6HD TVRO Spares Kit [S6HD-KIT]

Ships Direct From Manufacturer

S6HD TVRO Spares Kit

lntellian supplies 3 types of TVRO spare parts kits with replacement LNBs, ACUs, and control board components to ensure that technicians have what they need on hand. All kits come neatly packaged in a custom rugged case. Each part is individually wrapped and labeled with a part number and description.

In the Box:

• S6HD LNB & Feed Horn Assembly (Part # S2-6817)
• DC Powered ACU (Part # BP-T901P)
• Antenna Control Board (Part # S3-0506_A)

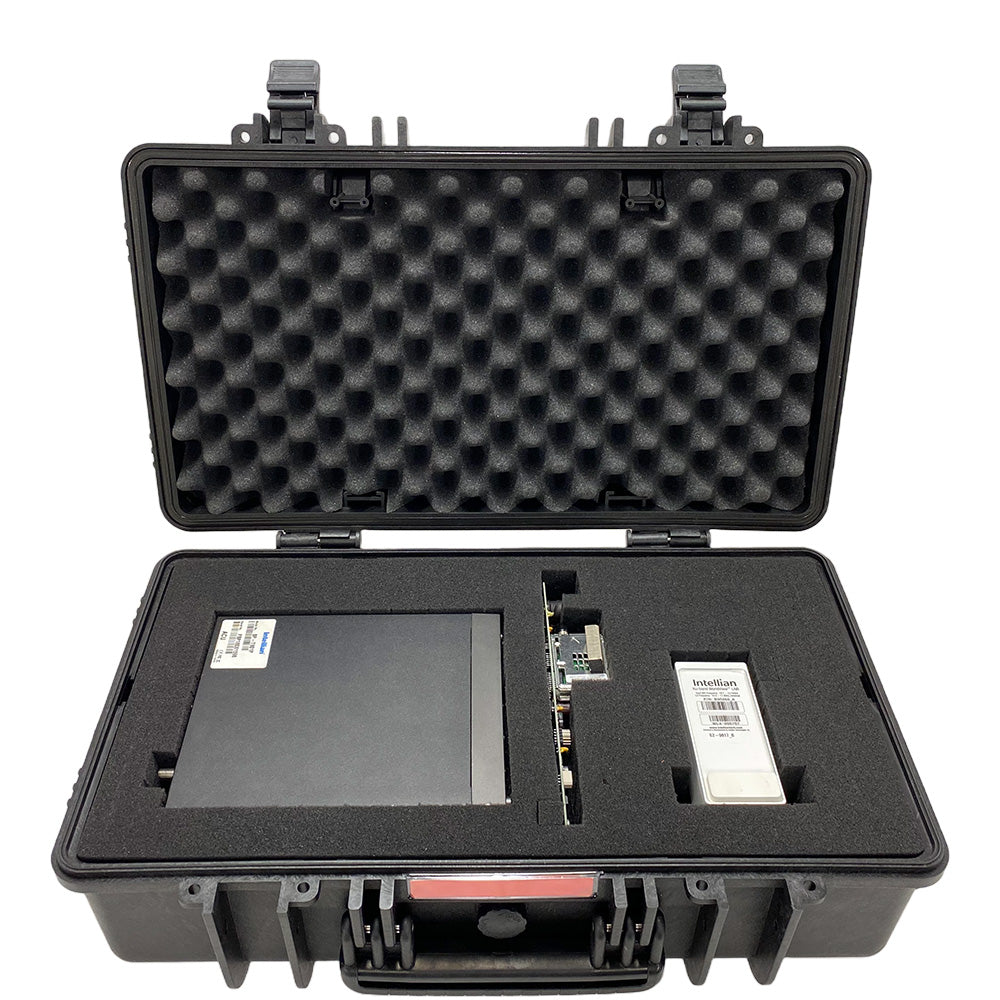

Intellian WorldView i-Series (i6W-i9W) TVRO Spares Kit [WVI-KIT]

Ships Direct From Manufacturer

WorldView i-Series (i6W-i9W) TVRO Spares Kit

lntellian supplies 3 types of TVRO spare parts kits with replacement LNBs, ACUs, and control board components to ensure that technicians have what they need on hand. All kits come neatly packaged in a custom rugged case. Each part is individually wrapped and labeled with a part number and description.

In the Box:

• WorldView LNB (Part # S2-0817_B)
• DC Powered ACU (Part # BP-T901P)
• Antenna Control Board (Part # S3-0506_A)
