Entertainment - Satellite Receivers

SXV300 Connect Tuner & Marine/RV Antenna *12-Pack

Connect, control, and enjoy all the wonders of satellite radio in the sky. The compact SXV300 tuner is genuinely plug-and-play with compatible car stereos and installs easily and discreetly behind the dash for a fully integrated look.

Features:

• Flexible Installation: Surface, Low Profile with Base, and Pedestal Mounts
• Compatible with third-party 1"-14 threaded masts and rail mounts (sold separately)
• Antenna with 6" pigtail and 25' antenna cable to allow for optimal placement
• Best antenna solution for both metallic and non-metallic mounting applications, such as boats or RVs

Technical Specifications:

• Dimensions - 3.42" (W) x 2" (H) x 0.7" (D)
• Power Requirements - 12V DC, 0.3 A (MAX) supplied by boat or RV
• Operating Temperature - -4°F to +158°F /-20°C to +70°C
• IPX67 rated

In the Box:

• SXV300 Connect Tuner
• Marine/RV Antenna
• 25' Antenna Cable
• Three Mounting Accessories: Surface, Low Profile with Base, and Pedestal Mounts

NOTE: The SXV300 Connect Tuner is not marinized. It should be mounted in a clean, dry location.

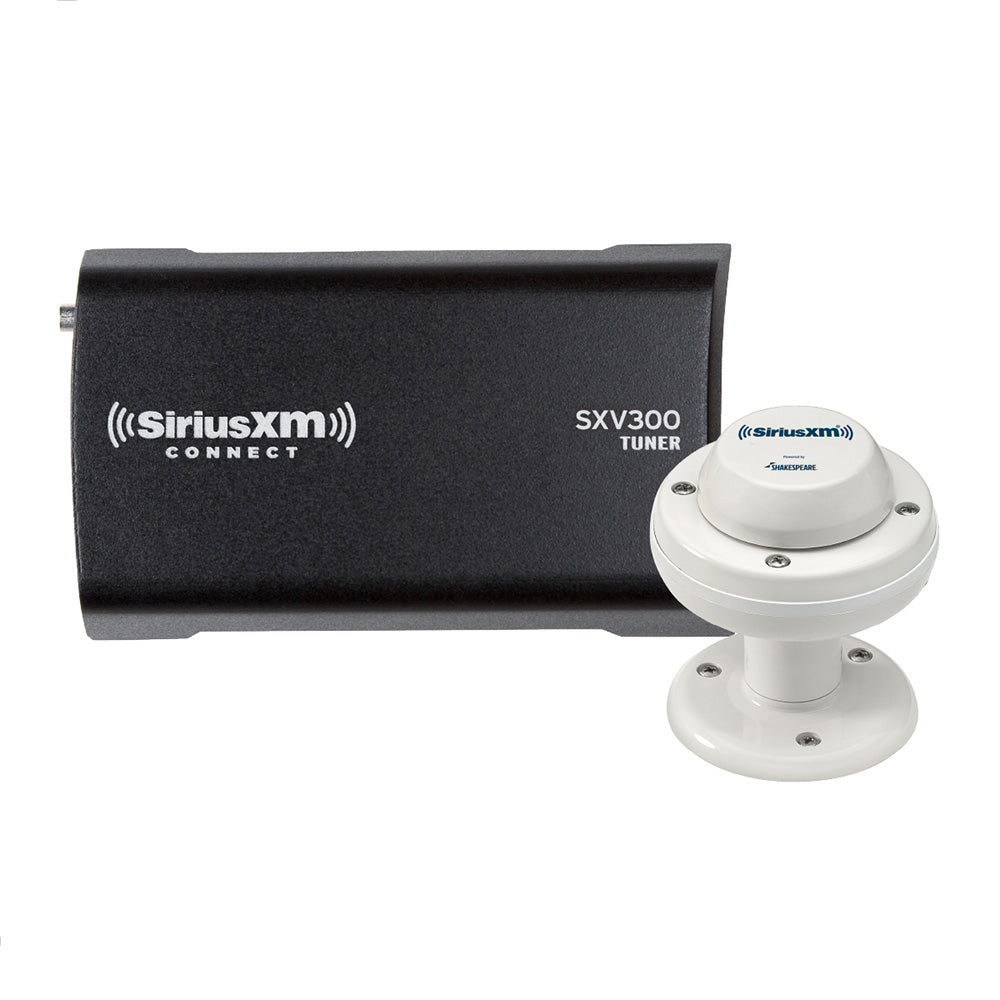

SiriusXM SXV300 Connect Tuner  Marine/RV Antenna *6-Pack [SXV300M1-6]

SXV300 Connect Tuner & Marine/RV Antenna *6-Pack

Connect, control, and enjoy all the wonders of satellite radio in the sky. The compact SXV300 tuner is truly plug-and-play with compatible car stereos and installs easily and discreetly behind the dash for a fully integrated look.

Features:

• Flexible Installation: Surface, Low Profile with Base, and Pedestal Mounts
• Compatible with third-party 1"-14 threaded masts, and rail mounts (sold separately)
• Antenna with 6" pigtail and 25' antenna cable to allow for optimal placement
• Best antenna solution for both metallic and non-metallic mounting applications, such as boats or RVs

Technical Specifications:

• Dimensions - 3.42" (W) x 2" (H) x 0.7" (D)
• Power Requirements - 12v DC, 0.3 A (MAX) supplied by boat or RV
• Operating Temperature - -4°F to +158°F /-20°C to +70°C
• IPX67 rated

In the Box:

• SXV300 Connect Tuner
• Marine/RV Antenna
• 25' Antenna Cable
• Three Mounting Accessories: Surface, Low Profile with Base, and Pedestal Mounts

NOTE: The SXV300 Connect Tuner is not marinized. It should be mounted in a clean, dry location.

Brochure (pdf)

Intellian Compact Maritime Outdoor Antenna Unit [OS-OW10HF]

Ships Direct From Manufacturer

Compact Maritime Outdoor Antenna Unit

The OW10HM is the ideal Flat Panel UT for the fishing and leisure markets, offering a small, lightweight, and sleek form factor, designed to outperform existing connectivity solutions.

Features:

• Optimized Performance - Utilizing Intellian’s innovative antenna design, the OW10HM delivers optimal performance in a compact form factor, making it the ideal connectivity solution for use cases that are SWaP-constrained. The resulting solution provides the user experience and service levels for maritime applications that customers expect.
• Seamless Connectivity - The OW10HM features Intellian’s advanced tracking technology, improving connection reliability and availability, even on heavy seas and at the lowest elevation angles encountered in equatorial regions. Ensuring minimal loss over scan, the innovative flat panel technology facilitates smooth, reliable handovers, which ensure seamless and undisrupted connectivity.
• Harsh Environment Performance - The OW10HM is designed to ensure dependable performance in even the most demanding environments, operating in extremely low temperatures down to -40 °C and up to +55 °C (-40 °F to +131 °F).
• Simplified Installation - Lightweight and sleek design with a single coaxial cable for both power and encrypted data, connects the UT to the CNX. Embedded differential dual GNSS antennas enable automated True North calibration and Tilt Error compensation.
• Customer Network Exchange - Intellian’s Customer Network Exchange (CNX) units are a critical component of the user terminal installation, providing both the power and data connectivity to the Flat Panel, and the connectivity to customer equipment and networks. For Compact Flat Panels, there are four CNX variants offered for specific deployments: CNX-BB, CNX-WIFI, CNX-RACK, and CNX-MOBILITY.
• Easily Deployable System - The lightweight design and compact form factor of the OW10HM enable easy installation by a single person. Paired with Intellian’s Maritime mount adapter, the UT is easily installed on pole, mast, and pedestal mounts commonly used in the Maritime market. Installation is further simplified through the use of combined power and data over a single coax cable connecting the below-deck CNX units. The use of Intellian’s mobile app for site survey, automated configuration, and monitoring further reduces the time required to get online.

Technical Specifications:

• Panel Dimensions - 22" x 17.7" x 4.7"
• Panel Weight - 26.9 lbs
• Operating Temperature - -40 °C to +55 °C (-40 °F to +131 °F)
• EIRP (Dual Carrier) - +36.6 dBW
• Ingress - 1P66
• G/T - 9 dB/K
• Interface - F-Type Port SMA Port (R-GNSS)
• Peak Downlink Data Rate - 75 Mbps
• Peak Uplink Data Rate - 14 Mbps

Brochure (pdf)

KVH Enterprise Maritime Outdoor Antenna Unit [OS-OW11FFG]

Ships Direct From Manufacturer

Enterprise Maritime Outdoor Antenna Unit

The OW11FM is the ideal flat-panel user terminal for the Cruise, Energy, Merchant, and Ferry markets, delivering low-latency, high-speed connectivity and reliability for critical communications, crew welfare, safety, route planning, and entertainment.

Features:

• Optimized Performance - Utilizing Intellian’s innovative antenna design, the OW11FM delivers the maximum throughput allowed on the OneWeb network. Offering the highest link margin, performance is guaranteed even over scan and at the lowest elevation angles, ensuring that the highest demands of maritime and land mobile customers.
• Seamless Connectivity - The OW11FM features Intellian’s advanced tracking technology, extended scan range, and blockage mitigation that improve connection reliability and availability even while in motion. Delivering the best performance at scan, the innovative flat panel technology facilitates smooth, reliable handovers, which ensure seamless and uninterrupted connectivity.
• Harsh Environment Performance - The OW11HM is designed to ensure dependable performance in even the most demanding environments, operating in extremely low temperatures down to -40 °C and up to +55 °C (-40 °F to +131 °F).
• Simplified Installation - Lightweight and sleek design with a single coaxial cable for both power and encrypted data, connects the UT to the CNX. Embedded differential dual GNSS antennas enable automated True North calibration and Tilt Error compensation.
• Customer Network Exchange - Intellian’s Customer Network Exchange (CNX) units are a critical component of the user terminal installation, providing both the power and data connectivity to the Flat Panel, and the connectivity to customer equipment and networks. For Enterprise Flat Panels, there are three CNX variants offered for specific deployments: CNX-WIFI, CNX-RACK, and CNX-MOBILITY.
• Easily Deployable System - The lightweight design and optimal form factor of the OW11FM enable easy installation by a single person. Paired with Intellian’s Maritime mount adapter kit, the UT is easily installed on pole, mast, and pedestal mounts commonly used in the Maritime market. Installation is further simplified through the use of combined power and data over a single coaxial cable connecting the below-deck CNX units. The use of Intellian’s mobile app for site survey, automated configuration, and monitoring further reduces the time required to get online.
• Blockage Mitigation Solution - Blockage Mitigation Solution is designed to overcome known and unavoidable blockages, enabling seamless, uninterrupted service in the primary-primary configuration. Utilizing a single service plan, the OW11FL (land fixed) and OW11FM (maritime) are the only flat panel user terminals to support this unique, more resilient, and cost-effective solution on Eutelsat's OneWeb LEO network. This is ideal for installations where an obstruction is unavoidable, such as a cell tower in cellular backhaul applications, or a ship’s superstructure in maritime environments.
  All existing Enterprise Series Flat Panels support the Blockage Mitigation Solution, which requires two user terminals and a CNX-Rack.

Technical Specifications:

• Panel Dimensions - 38.2" x 19.7" x 5.1"
• Panel Weight - 45.1 lbs
• Operating Temperature - -40 °C to +55 °C (-40 °F to +131 °F)
• EIRP (Dual Carrier) - +36.6 dBW
• Ingress - 1P66
• G/T - 10.7 dB/K
• Interface - F-Type Port SMA Port (R-GNSS)
• Peak Downlink Data Rate - 195 Mbps
• Peak Uplink Data Rate - 32 Mbps

Brochure (pdf)

Intellian Compact Land Mobile Outdoor Antenna Unit [MS-OW10HF]

Ships Direct From Manufacturer

Compact Land Mobile Outdoor Antenna Unit

The OW10HV is the ideal Flat Panel UT for the first responder, forestry, and transportation markets, offering a small, lightweight, and sleek form factor, designed to outperform existing connectivity solutions.

Features:

• Optimized Performance - Utilizing Intellian’s innovative antenna design, the OW10HV delivers optimal performance in a compact form factor, making it the ideal connectivity solution for use cases that are SWaP-constrained. The resulting solution provides the user experience and service levels that customers expect.
• Seamless Connectivity - The OW10HV features Intellian’s advanced tracking technology, improving connection reliability and availability, even on heavy seas and at the lowest elevation angles encountered in equatorial regions. Ensuring minimal loss over scan, the innovative flat panel technology facilitates smooth, reliable handovers, which ensure seamless and uninterrupted connectivity.
• Harsh Environment Performance - The OW10HV is designed to ensure dependable performance in even the most demanding environments, operating in extremely low temperatures down to -40 °C and up to +55 °C (-40 °F to 131 °F). Integrated radar rejection filtering ensures performance in high-interference installations and reliable broadband services for customers situated in the most remote locations.
• Simplified Installation - Lightweight and sleek design with a single coaxial cable for both power and encrypted data, connects the UT to the CNX. Embedded differential dual GNSS antennas enable automated True North calibration and Tilt Error compensation.
• Customer Network Exchange - Intellian’s Customer Network Exchange (CNX) units are a critical component of the user terminal installation, providing both the power and data connectivity to the Flat Panel, and the connectivity to customer equipment and networks. For Compact Flat Panels, there are four CNX variants offered for specific deployments: CNX-BB, CNX-WIFI, CNX-RACK, and CNX-MOBILITY.
• Easily Deployable System - The lightweight design and compact form factor enable easy installation by a single person. Designed for use with standard off-the-shelf mounting solutions, the OW10HV can be deployed in a variety of locations to suit the application and environment. Installation is further simplified through the use of combined power and data over a single coax cable connecting the indoor and outdoor units. The use of Intellian’s mobile app for site survey, automated configuration, and monitoring further reduces the time required to get online.

Technical Specifications:

• Panel Dimensions - 22" x 17.7" x 4.7"
• Panel Weight - 26.9 lbs
• Operating Temperature - -40 °C to +55 °C (-40 °F to +131 °F)
• EIRP (Dual Carrier) - +36.6 dBW
• Ingress - 1P66
• G/T - 9 dB/K
• Interface - F-Type Port SMA Port (R-GNSS)
• Peak Downlink Data Rate - 75 Mbps
• Peak Uplink Data Rate - 14 Mbps

Brochure (pdf)

Intellian Enterprise Land Mobile Outdoor Antenna Unit [MS-OW11FFG]

Ships Direct From Manufacturer

Enterprise Land Mobile Outdoor Antenna Unit

The OW11FV is the ideal Flat Panel user terminal for Government and Transportation markets, delivering low-latency, high-speed connectivity and reliability for critical communications, safety, route planning, and entertainment.

Features:

• Optimized Performance - Utilizing Intellian’s innovative antenna design, the OW11FV delivers the maximum throughput allowed on the OneWeb network. Offering the highest link margin, performance is guaranteed even over scan and at the lowest elevation angles, ensuring that the highest demands of land mobile customers.
• Seamless Connectivity - The OW11FV features Intellian’s advanced tracking technology, extended scan range, and blockage mitigation that improve connection reliability and availability even while in motion. Delivering the best performance at scan, the innovative flat panel technology facilitates smooth, reliable handovers, which ensure seamless and uninterrupted connectivity.
• Harsh Environment Performance - The OW11FV is designed to ensure dependable performance in even the most demanding environments, operating in extremely low temperatures down to -40 °C and up to +55 °C (-40 °F to +131 °F).
• Simplified Installation - Lightweight and sleek design with a single coaxial cable for both power and encrypted data, connects the UT to the CNX. Embedded differential dual GNSS antennas enable automated True North calibration and Tilt Error compensation.
• Customer Network Exchange - Intellian’s Customer Network Exchange (CNX) units are a critical component of the user terminal installation, providing both the power and data connectivity to the Flat Panel, and the connectivity to customer equipment and networks. For Enterprise Flat Panels, there are three CNX variants offered for specific deployments: CNX-WIFI, CNX-RACK, and CNX-MOBILITY.
• Easily Deployable System - The lightweight design and optimal form factor of the OW11FV enable easy installation by a single person. Paired with Intellian’s Mobile mount adapter kit, the UT is easily installed on vehicles of any size. Installation is further simplified through the use of combined power and data over a single coaxial cable connecting the outdoor and CNX unit. The use of Intellian’s mobile app for site survey, automated configuration, and monitoring further reduces the time required to get online.

Technical Specifications:

• Panel Dimensions - 38.2" x 19.7" x 5.1"
• Panel Weight - 45.1 lbs
• Operating Temperature - -40 °C to +55 °C (-40 °F to +131 °F)
• EIRP (Dual Carrier) - +36.6 dBW
• Ingress - 1P66
• G/T - 10.7 dB/K
• Interface - F-Type Port SMA Port (R-GNSS)
• Peak Downlink Data Rate - 195 Mbps
• Peak Uplink Data Rate - 32 Mbps

Brochure (pdf)

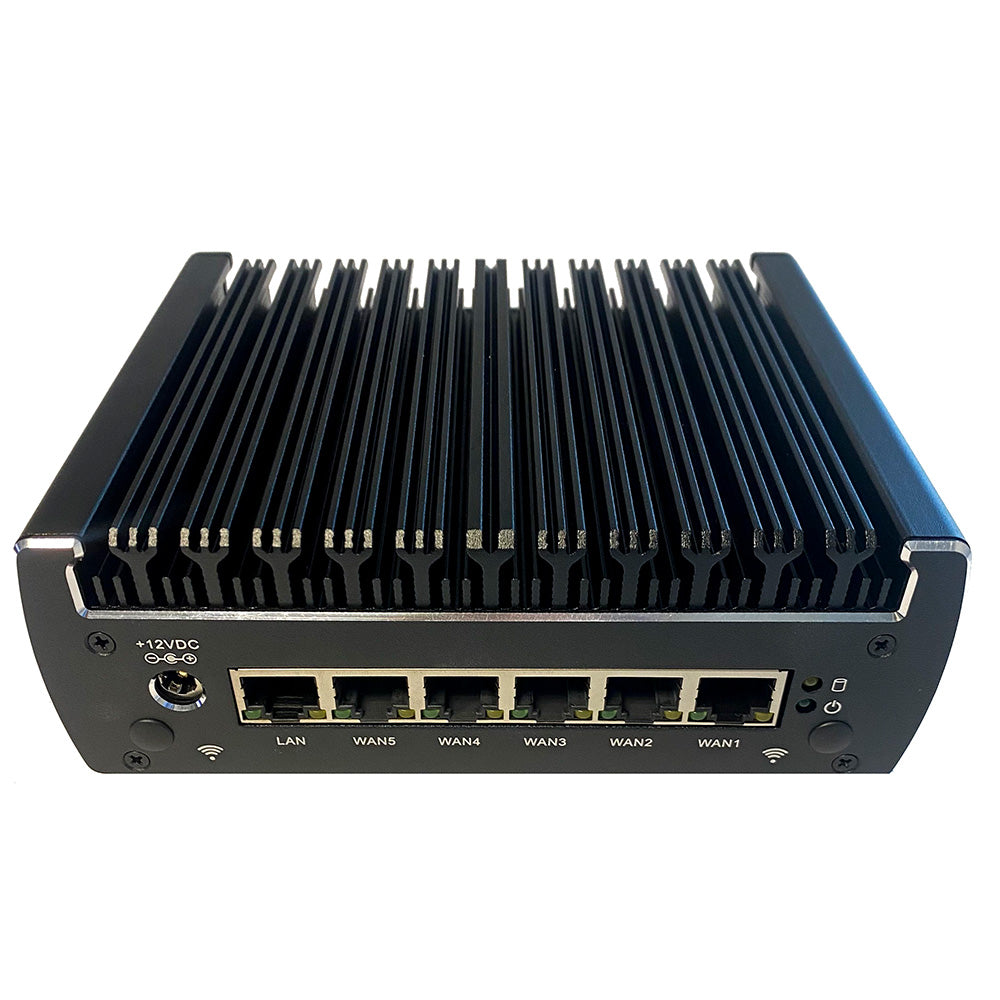

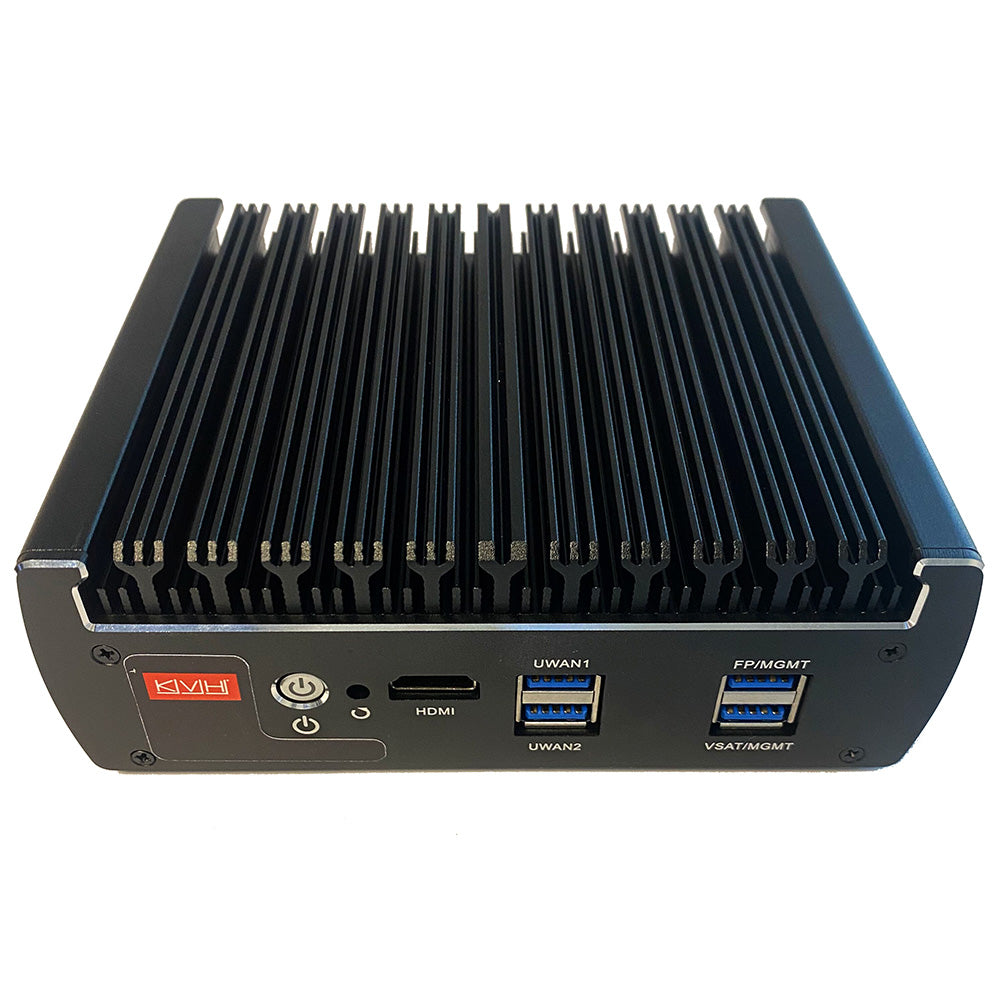

KVH K4 EdgeServer (Pro 6-Port Hub Network Management Device) [72-1056-01]

Ships Direct From Manufacturer

K4 EdgeServer (Pro 6-Port Hub Network Management Device)

Any vessel can have an all-inclusive system to control Internet connectivity thanks to the K4 EdgeServer. With its industrial-style, compact form, and support for up to seven WAN sources and one LAN source, the k4 EdgeServer offers a user-friendly interface that is both straightforward and effective for remote management, real-time metering, and analytics. This makes it possible to use enhanced bandwidth bonding to manage currently installed VSAT, LTE, and Marina Wi-Fi.

Enable the K4 EdgeServer for use with one or more of the following antenna systems:

• Starlink
• Cellular/Wi-Fi
• KVH TracNew H-series or TracPhone HTS-series
• Iridium Certus

Required Equipment:

• Users will need the following items to complete the configuration process:
• Laptop computer equipped with an Ethernet port (set up for DHCP)
• KVH configuration file download to a laptop (file provided by KVH Technical Support)
• Standard Ethernet network cable with RJ45 connectors

Brochure (pdf)

KVH TracNet H60 Ku-Band Antenna w/TracNet Hub [01-0436-11]

Ships Direct From Manufacturer

TracNet™ H60 Ku-Band Antenna with TracNet Hub

The TracNet™ H60 provides the fastest, most reliable connectivity with the KVH ONE™ hybrid network. The groundbreaking TracNet H60 is 42% lighter than leading competitors and includes integrated satellite, cellular, and Wi-Fi technology with intelligent, automatic network switching that will keep you connected to the best communication options at all times, in all sea states.

*Subscription required

KVH ONE Hybrid Network

• Global HTS Ku-band satellite network, with 276 million sq km (106+ million sq miles) of coverage, powered by Intelsat
• Cellular support in 150+ countries as far as 32+ km (20+ miles) offshore
• Compatible with shore-based Wi-Fi networks

Features:

• Automatically switches to the best connectivity option based on cost, data quality, and more
• Hybrid connectivity options (VSAT, Cellular, and WiFi)
• Stabilization - Three axis, stabilized skew
• Single cable install with DC and AC power BDUs (below deck units)
• Cybersecurity - Integrated terminal and network security; optional enterprise-level upgrade
• Up to 42% lighter than competitive systems
• For boats 60+ feet (18+ meters)
• Tuned antenna paired with KVH’s exclusive RingFire™ technology ensures superior reception

Technical Specifications:

• Dome Diameter - 24" (60cm)
• Dome Weight - 53.6 lbs (24.3 kg)
• Maximum Speed Download/Upload - 10 Mbps/3 Mbps
• Elevation/Azimuth Range - 24° to 116°/commercial-grade rotary joint for unlimited azimuth rotation
• Operating Temperature - -22°F to 131°F (-30°C to 55°C)
• Power Source - DC provided by the TracNet Hub or Hub+
• Single coax cable connection

Quick Guide (pdf)
Owner's Manual (pdf)
Brochure (pdf)
