Engine Parts & Service - Fuel Hose & Fittings

Trident Marine 1-1/2" x 50 Coil Type A2 Fuel Fill Hose [327-1126]

1-1/2" x 50' Coil Type A2 Fuel Fill Hose

Trident 1-1/2" ID A2 fuel fill hose for gasoline (including ethanol blends) and diesel (including bio diesel blends).

Features:

• This hose is built with the best fuel, fire, and age-resistant formulation
• Provides extraordinary resistance to aging, fire, heat, cold, and the ozone
• Also, provides excellent bend-ability

Application:

• Marine Fuel Hose for fill and vent plus diesel distribution
• Approved, for all marine fuels including gasoline, alcohol blends, diesel and bio-diesel

Construction:

• Tube & Cover: NBR / Neoprene
• Reinforcement: High tenacity polyester 2 spiral, spring steel helix
• Temperature Range: -20°F to 212°F (-20ºC to 100ºC)
• Length: 50 ft. (15.24 m) Coil

Specifications:

• Inner Diameter: (inch) 1/2" / (mm) 38
• Outer Diameter: (inch) 2 / (mm) 51
• Wall: (inch) 0.25 / (mm) 6.4
• Working Pressure: (psi) 60 / (mpa) 0.41
• Bend Radius: (inch) 5.5" / (mm) 140

*The #327 series exceeds ABYC H-24 & H-33, SAE J1527, ISO 7840, & USCG Type A2; and is NMMA Type Accepted, CE certified, and Lloyds Registry Type Approved

Specifications:

• ID Diameter (inches): 1-1/2"
• Length (Feet): 50'
• Box Dimensions: 6"H x 26"W x 27"L WT: 50 lbs
• UPC: 704917009056

Quick Guide (pdf)

2" x 50' Ocean-Flex Multipurpose Hose

This unique marine hose can be used for a multitude of applications for both Commercial and Recreational Vessels including Fuel Fill, Feed, and Vent (Diesel & Gasoline – Type A1), Lube Oil, Wet Exhaust, Water (Vital and Non-Vital), Bilge, Coolant, Drains, and Sanitation applications. OCEAN-FLEX boasts compliance with the following standards: USCG Inspected Vessels (Title 46 CFR Sub-Chap. T), SAE J1942 (Code F, VW, NVW), USCG Type A1, SAE J1527 A1 R2, SAE J2006 R2, SAE J20R2 B, SAE J20R4 B, SAE J20R5 B, SAE J30R5, ABYC H-22, H-24, H-33 P-1, P-4, ISO 7840 A1, ISO 8469 B1, ISO 13363 2B, and CE.

Provides excellent resistance to fuel, fire, heat, cold, ozone, and aging. Also provides excellent bend-ability and adheres to more standards than any other marine hose.

Specifications:

• Construction: Tube Black Nitrile, Cover Black Nitrile
• Reinforcement: Multiple Textile Spirals, Dual Steel Wire Helix
• Temperature Range: -20°F to 212°F (-29ºC to 100ºC)
• Lengths: 12.5’ (3.81 m) Length, 25’ (7.62 m) Coil (4”–6”), 50’ (15.24 m) Coil (up to 3-1/2” ID.)

Specifications:

• ID Diameter (inches): 2"
• Length (Feet): 50'
• Box Dimensions: 6"H x 31"W x 31"L WT: 38.5 lbs

Trident Marine 1-1/2" x 50' Ocean-Flex Multipurpose Hose [321-1126]

1-1/2" x 50' Ocean-Flex Multipurpose Hose

This unique marine hose can be used for a multitude of applications for both Commercial and Recreational Vessels including Fuel Fill, Feed, and Vent (Diesel & Gasoline – Type A1), Lube Oil, Wet Exhaust, Water (Vital and Non-Vital), Bilge, Coolant, Drains, and Sanitation applications. OCEAN-FLEX boasts compliance with the following standards: USCG Inspected Vessels (Title 46 CFR Sub-Chap. T), SAE J1942 (Code F, VW, NVW), USCG Type A1, SAE J1527 A1 R2, SAE J2006 R2, SAE J20R2 B, SAE J20R4 B, SAE J20R5 B, SAE J30R5, ABYC H-22, H-24, H-33 P-1, P-4, ISO 7840 A1, ISO 8469 B1, ISO 13363 2B, and CE.

Provides excellent resistance to fuel, fire, heat, cold, ozone, and aging. Also provides excellent bend-ability and adheres to more standards than any other marine hose.

Specifications:

• Construction: Tube Black Nitrile, Cover Black Nitrile
• Reinforcement: Multiple Textile Spirals, Dual Steel Wire Helix
• Temperature Range: -20°F to 212°F (-29ºC to 100ºC)
• Lengths: 12.5’ (3.81 m) Length, 25’ (7.62 m) Coil (4”–6”), 50’ (15.24 m) Coil (up to 3-1/2” ID.)

Specifications:

• ID Diameter (inches): 1-1/2"
• Length (Feet): 50'
• Box Dimensions: 6"H x 30"W x 30"L WT: 37.5 lbs

Quick Guide (pdf)

Trident Marine 2-1/2" x 25' Ocean-Flex Multipurpose Hose [321-2125]

2-1/2" x 25' Ocean-Flex Multipurpose Hose

This unique marine hose can be used for a multitude of applications for both Commercial and Recreational Vessels including Fuel Fill, Feed, and Vent (Diesel & Gasoline – Type A1), Lube Oil, Wet Exhaust, Water (Vital and Non-Vital), Bilge, Coolant, Drains, and Sanitation applications. OCEAN-FLEX boasts compliance with the following standards: USCG Inspected Vessels (Title 46 CFR Sub-Chap. T), SAE J1942 (Code F, VW, NVW), USCG Type A1, SAE J1527 A1 R2, SAE J2006 R2, SAE J20R2 B, SAE J20R4 B, SAE J20R5 B, SAE J30R5, ABYC H-22, H-24, H-33 P-1, P-4, ISO 7840 A1, ISO 8469 B1, ISO 13363 2B, and CE.

Provides excellent resistance to fuel, fire, heat, cold, ozone, and aging. Also provides excellent bend-ability and adheres to more standards than any other marine hose.

Specifications:

• Construction: Tube Black Nitrile, Cover Black Nitrile
• Reinforcement: Multiple Textile Spirals, Dual Steel Wire Helix
• Temperature Range: -20°F to 212°F (-29ºC to 100ºC)
• Lengths: 12.5’ (3.81 m) Length, 25’ (7.62 m) Coil (4”–6”), 50’ (15.24 m) Coil (up to 3-1/2” ID.)

Specifications:

• ID Diameter (inches): 2-1/2"
• Length (Feet): 25'
• Box Dimensions: 3"H x 38"W x 38"L WT: 38 lbs
• UPC: 704917018799

Quick Guide (pdf)

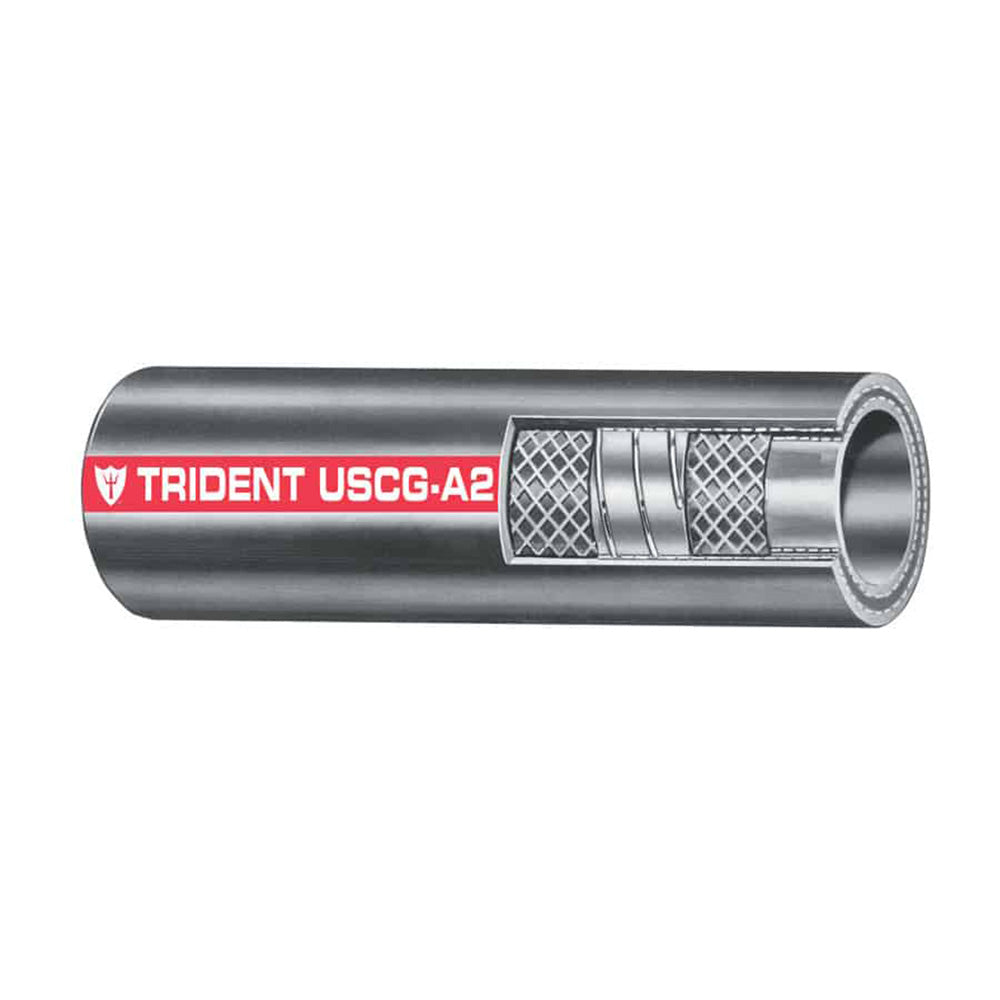

Trident Marine 2" x 50 Coil Type A2 Fuel Fill Hose [327-2006]

2" x 50' Coil Type A2 Fuel Fill Hose

Trident 2" ID A2 fuel fill hose for gasoline (including ethanol blends) and diesel (including bio diesel blends).

Features:

• This hose is built with the best fuel, fire, and age-resistant formulation
• Provides extraordinary resistance to aging, fire, heat, cold, and the ozone
• Also, provides excellent bend-ability

Application:

• Marine Fuel Hose for fill and vent plus diesel distribution
• Approved, for all marine fuels including gasoline, alcohol blends, diesel and bio-diesel

Construction:

• Tube & Cover: NBR / Neoprene
• Reinforcement: High tenacity polyester 2 spiral, spring steel helix
• Temperature Range: -20°F to 212°F (-20ºC to 100ºC)
• Length: 50 ft. (15.24 m) Coil

Specifications:

• Inner Diameter: (inch) 2" / (mm) 50.8
• Outer Diameter: (inch) 2.48 / (mm) 63.5
• Wall: (inch) 0.25 / (mm) 6.4
• Working Pressure: (psi) 50 / (mpa) 0.345
• Bend Radius: (inch) 7.0" / (mm) 178

*The #327 series exceeds ABYC H-24 & H-33, SAE J1527, ISO 7840, & USCG Type A2; and is NMMA Type Accepted, CE certified, and Lloyds Registry Type Approved

Specifications:

• ID Diameter (inches): 2"
• Length (Feet): 50'
• Box Dimensions: 8"H x 31"W x 31"L WT: 56 lbs
• UPC: 704917009124
