Engine Parts & Service - Exhaust Hose

Trident Marine 2-1/2" x 50' Extra-Flex Corrugated Marine Wet Exhaust Hose [252F-2126]

Ships Direct From Manufacturer

2-1/2" x 50' Extra-Flex Corrugated Marine Wet Exhaust Hose

Trident Extra-Flex corrugated marine wet exhaust hose with EXTRA flexibility for easier installations on tight bends for longer connections. Thick tube and cover with wire helix between 2-ply reinforcement. Exceptional flexibility and bend radius. Resists heat, ozone, exhaust fumes, panting, and collapse. Exceeds (SAE J2006-R2, and ABYC & NMMA P-1 exhaust standards). Lloyd’s Registry Type Approved.

Corrugated Wet Exhaust and Water Marine Hose offers the best performance with an incredible bend radius and high-temperature EPDM Rubber compounds. This enables it to handle higher temperatures while providing longer life and durability than its competition. It exceeds SAE J2006-R2, ABYC, and NMMA P-1 exhaust standards and is Lloyd’s Registry Type Approved. Black High Temp EDPM Rubber 250°F (121°C) Max. continuous.

Features:

• Black High Temp EDPM Rubber 250°F (121°C) Max.
• Sizes: 1 1/2" to 8", 38mm to 203.2 mm
• Colors: Black with White stripe with yellow edges
• Packaging: 6.25' to 12.5' (1.9-3.8m) lengths, 50’ (15m) Coils

Specifications:

• ID Diameter (inches): 2-1/2"
• Length (Feet): 50'
• Box Dimensions: 5"H x 55"W x 55"L WT: 63 lbs
• UPC: 704917028248

Quick Guide (pdf)

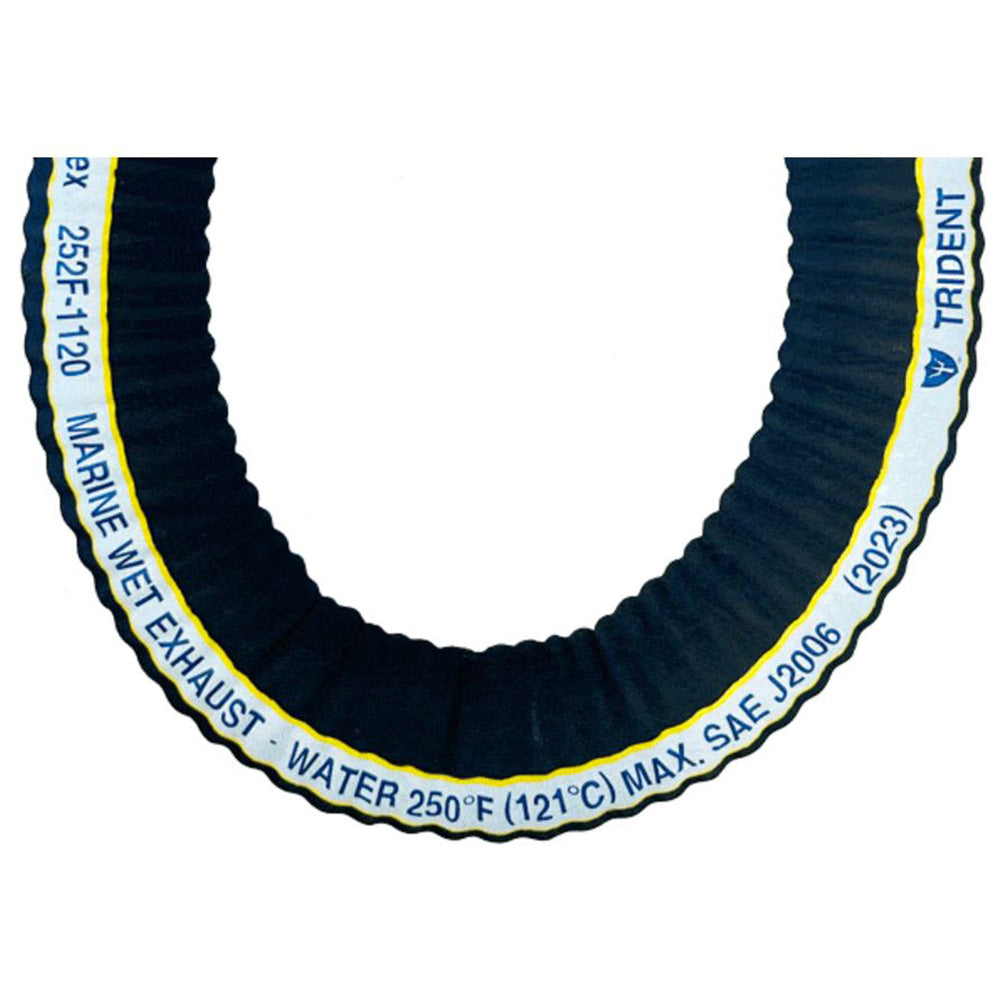

Trident Marine 3" x 50' Extra-Flex Corrugated Marine Wet Exhaust Hose [252F-3006]

Ships Direct From Manufacturer

3" x 50' Extra-Flex Corrugated Marine Wet Exhaust Hose

Trident Extra-Flex corrugated marine wet exhaust hose with EXTRA flexibility for easier installations on tight bends for longer connections. Thick tube and cover with wire helix between 2-ply reinforcement. Exceptional flexibility and bend radius. Resists heat, ozone, exhaust fumes, panting, and collapse. Exceeds (SAE J2006-R2, and ABYC & NMMA P-1 exhaust standards). Lloyd’s Registry Type Approved.

Corrugated Wet Exhaust and Water Marine Hose offers the best performance with an incredible bend radius and high-temperature EPDM Rubber compounds. This enables it to handle higher temperatures while providing longer life and durability than its competition. It exceeds SAE J2006-R2, ABYC, and NMMA P-1 exhaust standards and is Lloyd’s Registry Type Approved. Black High Temp EDPM Rubber 250°F (121°C) Max. continuous.

Features:

• Black High Temp EDPM Rubber 250°F (121°C) Max.
• Sizes: 1 1/2" to 8", 38mm to 203.2 mm
• Colors: Black with White stripe with yellow edges
• Packaging: 6.25' to 12.5' (1.9-3.8m) lengths, 50’ (15m) Coils

Specifications:

• ID Diameter (inches): 3"
• Length (Feet): 50'

Quick Guide (pdf)

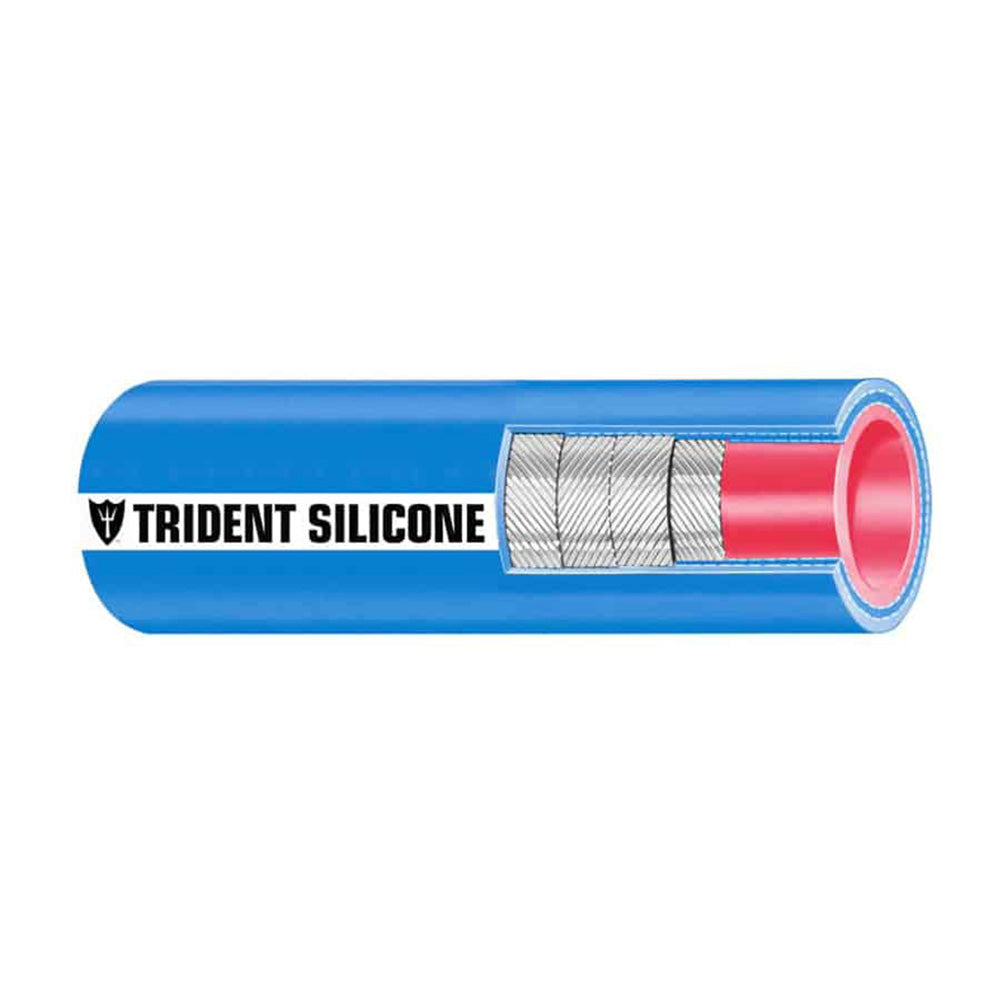

Trident Marine 8" ID x 6' Long Silicone Marine Wet Exhaust  Water Hose - Blue [202V8001]

8" ID x 6' Long Silicone Marine Wet Exhaust & Water Hose - Blue

Trident Silicone Marine Wet Exhaust and Water-Coolant Hose is the ultimate in extra thick soft wall silicone quality with very high-temperature performance and extra long service life. Exceeds SAE J2006-R1, and ABYC & NMMA P-1 exhaust standards. #202V Glossy Blue “Very Hi Temp” has 4-6 ply polyester reinforcement and 350°F (177°C) Max. Used worldwide on premium boats, yachts, and special service vessels. It has become the super yacht standard.

Specifications:

• ID Diameter (inches): 8"
• Length (Feet): 6'
• Box Dimensions: 15"H x 15"W x 15"L WT: 24 lbs
• UPC: 704917010717

Quick Guide (pdf)

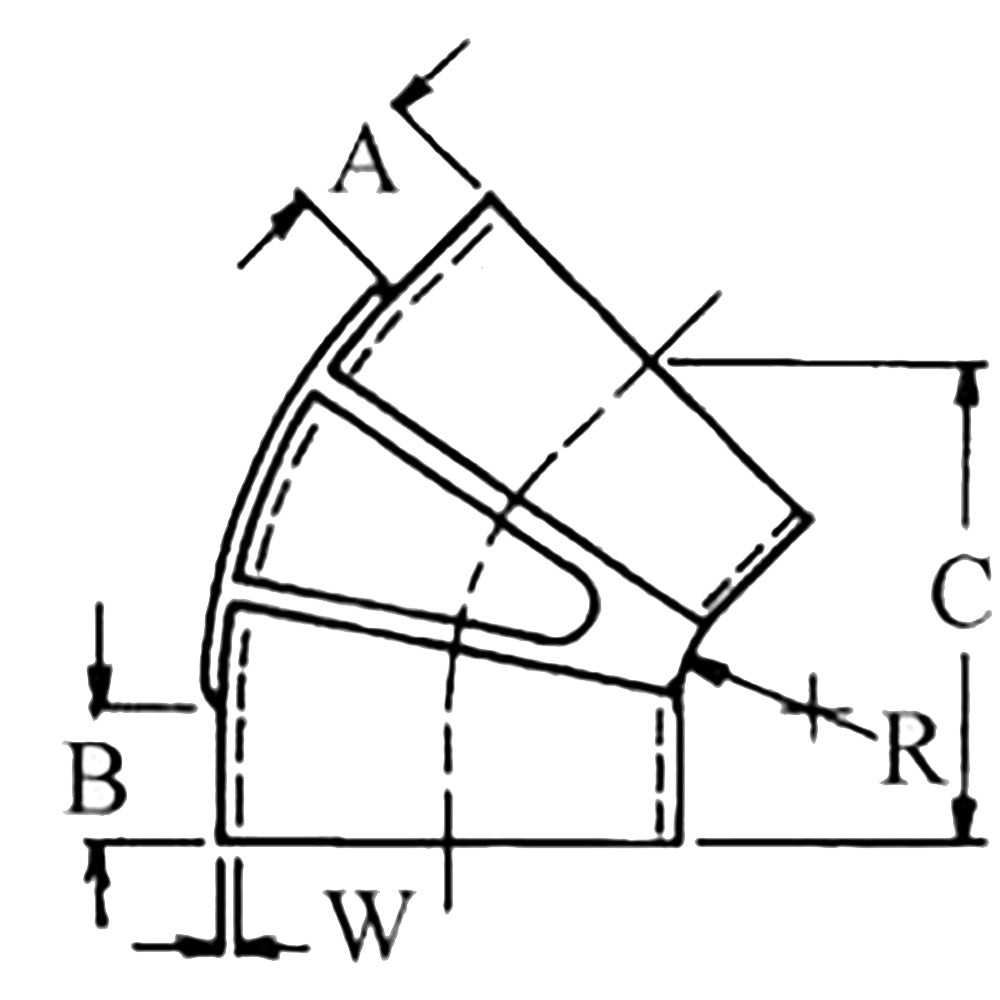

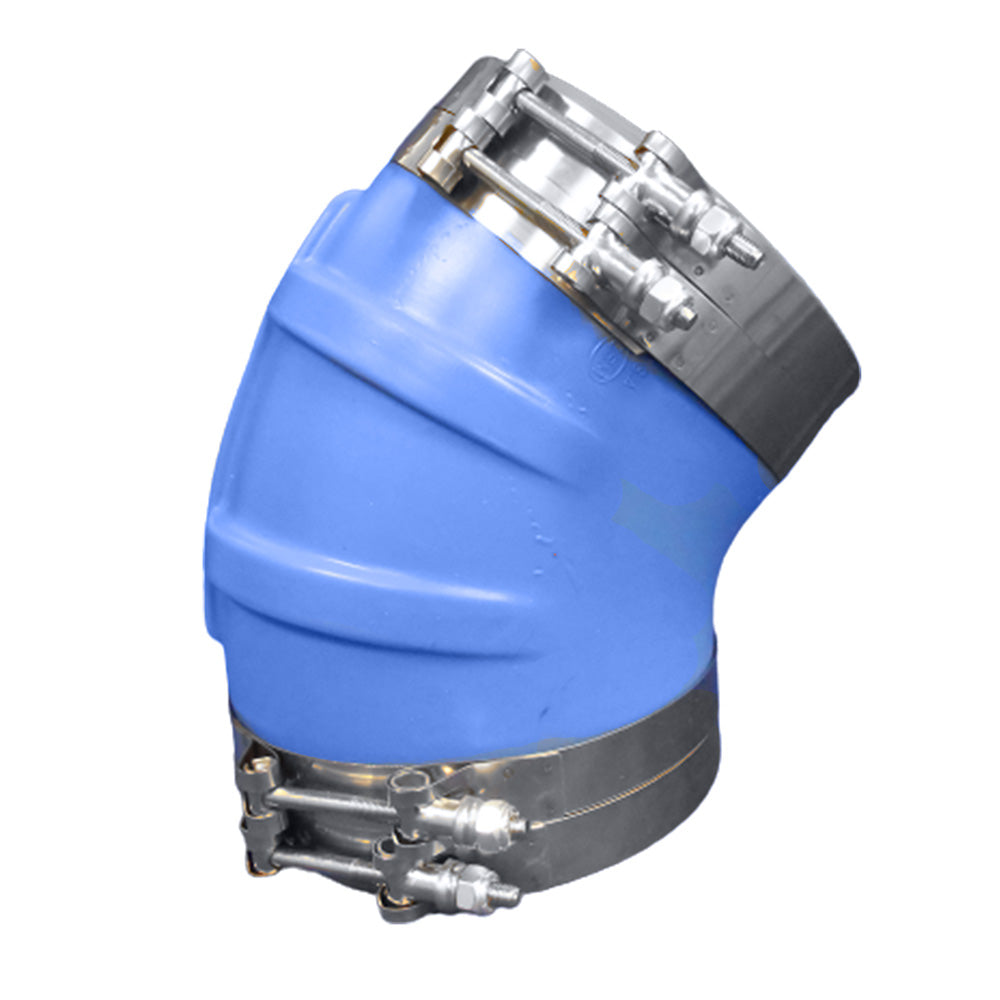

Trident Marine ID 45 Degree Blue Silicone Molded Wet Exhaust Elbow w/4 T-Bolt Clamps [240V10000-S/S]

ID 45 Degree Blue Silicone Molded Wet Exhaust Elbow with 4 T-Bolt Clamps

Silicone and Rubber Elbows and Hump Hose Bellows provide the ultimate flexible connectors for Marine Wet Exhaust Systems. They offer much greater tolerance to heat, misalignment, engine movement, and vibration, with significant savings in cost, parts, labor, and space. Highest max. continuous operating temps.

Specifications:

• Sizes: 2" to 18", 50.8 to 457mm
• Colors: Black, Blue & Red
• Packaging: Bulk or Boxed with 4 Stainless Steel, T-bolt Clamps

Specifications:

• ID Diameter (inches): 10"
• Box Dimensions: 15"H x 16"W x 16"L WT: 9.6 lbs
• UPC: 704917002361

2" x 50' Ocean-Flex Multipurpose Hose

This unique marine hose can be used for a multitude of applications for both Commercial and Recreational Vessels including Fuel Fill, Feed, and Vent (Diesel & Gasoline – Type A1), Lube Oil, Wet Exhaust, Water (Vital and Non-Vital), Bilge, Coolant, Drains, and Sanitation applications. OCEAN-FLEX boasts compliance with the following standards: USCG Inspected Vessels (Title 46 CFR Sub-Chap. T), SAE J1942 (Code F, VW, NVW), USCG Type A1, SAE J1527 A1 R2, SAE J2006 R2, SAE J20R2 B, SAE J20R4 B, SAE J20R5 B, SAE J30R5, ABYC H-22, H-24, H-33 P-1, P-4, ISO 7840 A1, ISO 8469 B1, ISO 13363 2B, and CE.

Provides excellent resistance to fuel, fire, heat, cold, ozone, and aging. Also provides excellent bend-ability and adheres to more standards than any other marine hose.

Specifications:

• Construction: Tube Black Nitrile, Cover Black Nitrile
• Reinforcement: Multiple Textile Spirals, Dual Steel Wire Helix
• Temperature Range: -20°F to 212°F (-29ºC to 100ºC)
• Lengths: 12.5’ (3.81 m) Length, 25’ (7.62 m) Coil (4”–6”), 50’ (15.24 m) Coil (up to 3-1/2” ID.)

Specifications:

• ID Diameter (inches): 2"
• Length (Feet): 50'
• Box Dimensions: 6"H x 31"W x 31"L WT: 38.5 lbs

Trident Marine 1-1/2" x 50' Ocean-Flex Multipurpose Hose [321-1126]

1-1/2" x 50' Ocean-Flex Multipurpose Hose

This unique marine hose can be used for a multitude of applications for both Commercial and Recreational Vessels including Fuel Fill, Feed, and Vent (Diesel & Gasoline – Type A1), Lube Oil, Wet Exhaust, Water (Vital and Non-Vital), Bilge, Coolant, Drains, and Sanitation applications. OCEAN-FLEX boasts compliance with the following standards: USCG Inspected Vessels (Title 46 CFR Sub-Chap. T), SAE J1942 (Code F, VW, NVW), USCG Type A1, SAE J1527 A1 R2, SAE J2006 R2, SAE J20R2 B, SAE J20R4 B, SAE J20R5 B, SAE J30R5, ABYC H-22, H-24, H-33 P-1, P-4, ISO 7840 A1, ISO 8469 B1, ISO 13363 2B, and CE.

Provides excellent resistance to fuel, fire, heat, cold, ozone, and aging. Also provides excellent bend-ability and adheres to more standards than any other marine hose.

Specifications:

• Construction: Tube Black Nitrile, Cover Black Nitrile
• Reinforcement: Multiple Textile Spirals, Dual Steel Wire Helix
• Temperature Range: -20°F to 212°F (-29ºC to 100ºC)
• Lengths: 12.5’ (3.81 m) Length, 25’ (7.62 m) Coil (4”–6”), 50’ (15.24 m) Coil (up to 3-1/2” ID.)

Specifications:

• ID Diameter (inches): 1-1/2"
• Length (Feet): 50'
• Box Dimensions: 6"H x 30"W x 30"L WT: 37.5 lbs

Quick Guide (pdf)

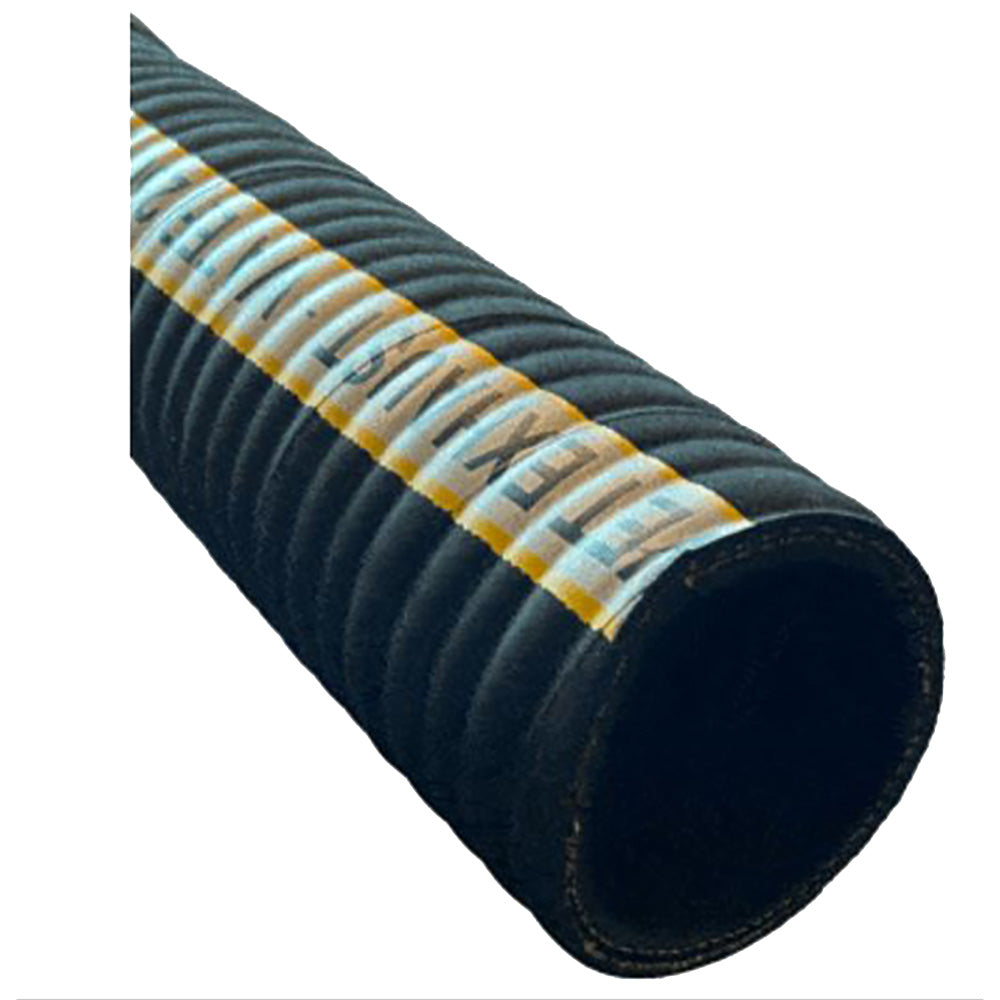

Trident Marine 1-1/2" x 50' Extra-Flex Corrugated Marine Wet Exhaust Hose [252F-1126]

1-1/2" x 50' Extra-Flex Corrugated Marine Wet Exhaust Hose

Trident Extra-Flex corrugated marine wet exhaust hose with EXTRA flexibility for easier installations on tight bends for longer connections. Thick tube and cover with wire helix between 2-ply reinforcement. Exceptional flexibility and bend radius. Resists heat, ozone, exhaust fumes, panting, and collapse. Exceeds (SAE J2006-R2, and ABYC & NMMA P-1 exhaust standards). Lloyd’s Registry Type Approved.

Corrugated Wet Exhaust and Water Marine Hose offers the best performance with an incredible bend radius and high-temperature EPDM Rubber compounds. This enables it to handle higher temperatures while providing longer life and durability than its competition. It exceeds SAE J2006-R2, ABYC, and NMMA P-1 exhaust standards and is Lloyd’s Registry Type Approved. Black High Temp EDPM Rubber 250°F (121°C) Max. continuous.

Features:

• Black High Temp EDPM Rubber 250°F (121°C) Max.
• Sizes: 1 1/2" to 8", 38mm to 203.2 mm
• Colors: Black with White stripe with yellow edges
• Packaging: 6.25' to 12.5' (1.9-3.8m) lengths, 50’ (15m) Coils

Specifications:

• ID Diameter (inches): 1-1/2"
• Length (Feet): 50'
• Box Dimensions: 8"H x 26"W x 26"L WT: 34 lbs
• UPC: 704917028163

Quick Guide (pdf)

Trident Marine 2-1/2" x 25' Ocean-Flex Multipurpose Hose [321-2125]

2-1/2" x 25' Ocean-Flex Multipurpose Hose

This unique marine hose can be used for a multitude of applications for both Commercial and Recreational Vessels including Fuel Fill, Feed, and Vent (Diesel & Gasoline – Type A1), Lube Oil, Wet Exhaust, Water (Vital and Non-Vital), Bilge, Coolant, Drains, and Sanitation applications. OCEAN-FLEX boasts compliance with the following standards: USCG Inspected Vessels (Title 46 CFR Sub-Chap. T), SAE J1942 (Code F, VW, NVW), USCG Type A1, SAE J1527 A1 R2, SAE J2006 R2, SAE J20R2 B, SAE J20R4 B, SAE J20R5 B, SAE J30R5, ABYC H-22, H-24, H-33 P-1, P-4, ISO 7840 A1, ISO 8469 B1, ISO 13363 2B, and CE.

Provides excellent resistance to fuel, fire, heat, cold, ozone, and aging. Also provides excellent bend-ability and adheres to more standards than any other marine hose.

Specifications:

• Construction: Tube Black Nitrile, Cover Black Nitrile
• Reinforcement: Multiple Textile Spirals, Dual Steel Wire Helix
• Temperature Range: -20°F to 212°F (-29ºC to 100ºC)
• Lengths: 12.5’ (3.81 m) Length, 25’ (7.62 m) Coil (4”–6”), 50’ (15.24 m) Coil (up to 3-1/2” ID.)

Specifications:

• ID Diameter (inches): 2-1/2"
• Length (Feet): 25'
• Box Dimensions: 3"H x 38"W x 38"L WT: 38 lbs
• UPC: 704917018799

Quick Guide (pdf)
