Engine Parts & Service - Alternators

Zeus A275L 1"-2" Single Foot Alternator with Regulator

The highest power output alternator in its size/class.

Features:

• Engineered for High Energy Production.
• Suitable for Marine, RV, Military, and Commercial applications.
• Rapidly charges large battery banks.
• Coolest operating temperatures for increased performance.
• Runs 8 - 20% cooler than incumbent alternators due to Heat shedding coatings, Rectifier located on housing exterior, Dual cooling fans, and OEM Components.
• It is optimized for performance at idle speeds.
• Reduces the need for a generator by creating additional power with your engine.
• Unleash peak performance with E-Coat/Cerakote. Our advanced coating absorbs less heat, keeping the A275L cooler. This translates to more amperage for sustained periods.
• Use an ARCO Zeus Bluetooth alternator regulator or lithium battery charging for maximum performance.
• SAE J1171 Certified.
• Made in the U.S.A.

Technical Specifications:

• Voltage - 12v
• Field Type - P
• Rotor Poles - 16
• Stator Size - 138mm
• Frame Size - Large
• Weight - 14.9 lbs/6.7 kg
• Regulation - Internal/External (Internally regulated with adaptor for optional external regulation.)
• Output Voltage - 14.1v (Default)
• Finish - (Black) Cerakote or E-coating
• Cut-In RPM - 1,061 Alternator RPM
• Maximum Alt RPM - 19,000
• Battery Post - M8 Thread Post, Side Mount
• Standard Pulley - 49K6 (6-groove, 49mm)
• Pulley Mount - 17mm diameter shaft, 25mm long, threaded M17 x 1.5
• Pulley Hardware - M17 x 1.5 x 24mm nut, w/ 18mm ID x 29mm OD washer (Included)
• Diodes - 6 positive, 6 negative, 50A Rated, Avalanche
• Max Output (Cold, 9,000 RPM) - 311 Amps
• Sustained Cruising Output (Hot, 6,000 RPM) - 227 Amps
• Sustained Idle Output (Hot, 3,000 RPM) - 198 Amps
• Max Continuous Operating Temperature - 110°C / 230°F

Mounting Application:

• Replaces most domestic styles using a single 1” or 2” mounting foot (e.g., Motorola, Prestolite)

Balmar Pulley Kit f/Yanmar 6LY, 6LYA-STP, 6LY2-STP [48-YSP-6LY-A]

Pulley Kit for Yanmar 6LY, 6LYA-STP, 6LY2-STP

AltMount® Serpentine Pulley Conversion Kit for Yanmar Diesel Engines

Yanmar Engines Covered: 6LY, 6LYA-STP, 6LY2-STP

Kit Includes: Three Ten-Groove (J10) Pulleys, Two J10, 55″ Circumference Serpentine Belts (one spare) & Mounting Hardware

Note:  If you specify an AT-200A Alternator, a longer belt length may be required.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Zeus A275L N62 Alternator with Regulator

The highest power output alternator in its size/class.

Features:

• Engineered for High Energy Production.
• Suitable for Marine, RV, Military, and Commercial applications.
• Rapidly charges large battery banks.
• Coolest operating temperatures for increased performance. Runs 8 - 20% cooler than incumbent alternators due to:

   - Heat shedding coatings

   - Rectifier located on housing exterior

   - Dual cooling fans

   - OEM Components

• It is optimized for performance at idle speeds.
• Reduces the need for a generator by creating additional power with your engine.
• Unleash peak performance with E-Coat/Cerakote. Our advanced coating absorbs less heat, keeping the A275L cooler. This translates to more amperage for sustained periods.
• Use an ARCO Zeus Bluetooth alternator regulator for maximum performance or lithium battery charging.
• SAE J1171 Certified.
• Made in the U.S.A.

Technical Specifications:

• Voltage - 12v
• Field Type - P
• Rotor Poles - 16
• Stator Size - 138mm
• Frame Size - Large
• Weight - 14.9 lbs/6.7 kg
• Regulation - Internal/External (Internally regulated with adaptor for optional external regulation.)
• Output Voltage - 14.1v (Default)
• Finish - (Black) Cerakote or E-coating
• Cut-In RPM - 1,061 Alternator RPM
• Maximum Alt RPM - 19,000
• Battery Post - M8 Thread Post, Side Mount
• Standard Pulley - 49K6 (6-groove, 49mm)
• Pulley Mount - 17mm diameter shaft, 25mm long, threaded M17 x 1.5
• Pulley Hardware - M17 x 1.5 x 24mm nut, w/ 18mm ID x 29mm OD washer (Included)
• Diodes - 6 positive, 6 negative, 50A Rated, Avalanche
• Max Output (Cold, 9,000 RPM) - 311 Amps
• Sustained Cruising Output (Hot, 6,000 RPM) - 227 Amps
• Sustained Idle Output (Hot, 3,000 RPM) - 198 Amps
• Max Continuous Operating Temperature - 110°C / 230°F

Mounting Application:

• Replaces most Mercedes and BMW alternators, Mercedes Sprinter 1999-2006 alternators, Mercedes Sprinter Factory dual alternator 2007-Up Replacement

Zeus A275L N62 Alternator with Clutch Pulley & Regulator

The highest power output alternator in its size/class.

Features:

• Engineered for High Energy Production.
• Suitable for Marine, RV, Military, and Commercial applications.
• Rapidly charges large battery banks.
• Coolest operating temperatures for increased performance. Runs 8 - 20% cooler than incumbent alternators due to:

   - Heat shedding coatings

   - Rectifier located on housing exterior

   - Dual cooling fans

   - OEM Components

• It is optimized for performance at idle speeds.
• Reduces the need for a generator by creating additional power with your engine.
• Unleash peak performance with E-Coat/Cerakote. Our advanced coating absorbs less heat, keeping the A275L cooler. This translates to more amperage for sustained periods.
• Use an ARCO Zeus Bluetooth alternator regulator for maximum performance or lithium battery charging.
• SAE J1171 Certified.
• Made in the U.S.A.

Technical Specifications:

• Voltage - 12v
• Field Type - P
• Rotor Poles - 16
• Stator Size - 138mm
• Frame Size - Large
• Weight - 14.9 lbs/6.7 kg
• Regulation - Internal/External (Internally regulated with adaptor for optional external regulation.)
• Output Voltage - 14.1v (Default)
• Finish - (Black) Cerakote or E-coating
• Cut-In RPM - 1,061 Alternator RPM
• Maximum Alt RPM - 19,000
• Battery Post - M8 Thread Post, Side Mount
• Standard Pulley - 49K6 (6-groove, 49mm)
• Pulley Mount - 17mm diameter shaft, 25mm long, threaded M17 x 1.5
• Pulley Hardware - M17 x 1.5 x 24mm nut, w/ 18mm ID x 29mm OD washer (Included)
• Diodes - 6 positive, 6 negative, 50A Rated, Avalanche
• Max Output (Cold, 9,000 RPM) - 311 Amps
• Sustained Cruising Output (Hot, 6,000 RPM) - 227 Amps
• Sustained Idle Output (Hot, 3,000 RPM) - 198 Amps
• Max Continuous Operating Temperature - 110°C / 230°F

Mounting Application:

• Mercedes Sprinter 1999-2006 alternators, Mercedes Sprinter Factory dual alternator 2007-Up Replacement. Replaces Roadtrek Mercedes Dual alternator

Zeus A275L Transit Alternator with Regulator

The highest power output alternator in its size/class.

Features:

• Engineered for High Energy Production.
• Suitable for Marine, RV, Military, and Commercial applications.
• Rapidly charges large battery banks.
• Coolest operating temperatures for increased performance. Runs 8 - 20% cooler than incumbent alternators due to:

   - Heat shedding coatings

   - Rectifier located on housing exterior

   - Dual cooling fans

   - OEM Components

• It is optimized for performance at idle speeds.
• Reduces the need for a generator by creating additional power with your engine.
• Unleash peak performance with E-Coat/Cerakote. Our advanced coating absorbs less heat, keeping the A275L cooler. This translates to more amperage for sustained periods.
• Use an ARCO Zeus Bluetooth alternator regulator for maximum performance or lithium battery charging.
• SAE J1171 Certified.
• Made in the U.S.A.

Technical Specifications:

• Voltage - 12v
• Field Type - P
• Rotor Poles - 16
• Stator Size - 138mm
• Frame Size - Large
• Weight - 14.9 lbs/6.7 kg
• Regulation - Internal/External (Internally regulated with adaptor for optional external regulation.)
• Output Voltage - 14.1v (Default)
• Finish - (Black) Cerakote or E-coating
• Cut-In RPM - 1,061 Alternator RPM
• Maximum Alt RPM - 19,000
• Battery Post - M8 Thread Post, Side Mount
• Standard Pulley - 49K6 (6-groove, 49mm)
• Pulley Mount - 17mm diameter shaft, 25mm long, threaded M17 x 1.5
• Pulley Hardware - M17 x 1.5 x 24mm nut, w/ 18mm ID x 29mm OD washer (Included)
• Diodes - 6 positive, 6 negative, 50A Rated, Avalanche
• Max Output (Cold, 9,000 RPM) - 311 Amps
• Sustained Cruising Output (Hot, 6,000 RPM) - 227 Amps
• Sustained Idle Output (Hot, 3,000 RPM) - 198 Amps
• Max Continuous Operating Temperature - 110°C / 230°F

Mounting Application:

• Replaces Ford Transit alternators 3.5L & 3.7L Gas engines 2015-2022

Zeus A275L N62 Alternator with Terminal Block

The highest power output alternator in its size/class.

Features:

• Engineered for High Energy Production.
• Suitable for Marine, RV, Military, and Commercial applications.
• Rapidly charges large battery banks.
• Coolest operating temperatures for increased performance. Runs 8 - 20% cooler than incumbent alternators due to:

   - Heat shedding coatings

   - Rectifier located on housing exterior

   - Dual cooling fans

   - OEM Components

• It is optimized for performance at idle speeds.
• Reduces the need for a generator by creating additional power with your engine.
• Unleash peak performance with E-Coat/Cerakote. Our advanced coating absorbs less heat, keeping the A275L cooler. This translates to more amperage for sustained periods.
• Use an ARCO Zeus Bluetooth alternator regulator for maximum performance or lithium battery charging.
• SAE J1171 Certified.
• Made in the U.S.A.

Technical Specifications:

• Voltage - 12v
• Field Type - P
• Rotor Poles - 16
• Stator Size - 138mm
• Frame Size - Large
• Weight - 14.9 lbs/6.7 kg
• Regulation - External Only (These units will come with a terminal block and a P-Type harness. They will only work with an external regulator, such as an ARCO Zeus Bluetooth alternator regulator.)
• Output Voltage - 14.1v (Default)
• Finish - (Black) Cerakote or E-coating
• Cut-In RPM - 1,061 Alternator RPM
• Maximum Alt RPM - 19,000
• Battery Post - M8 Thread Post, Side Mount
• Standard Pulley - 49K6 (6-groove, 49mm)
• Pulley Mount - 17mm diameter shaft, 25mm long, threaded M17 x 1.5
• Pulley Hardware - M17 x 1.5 x 24mm nut, w/ 18mm ID x 29mm OD washer (Included)
• Diodes - 6 positive, 6 negative, 50A Rated, Avalanche
• Max Output (Cold, 9,000 RPM) - 311 Amps
• Sustained Cruising Output (Hot, 6,000 RPM) - 227 Amps
• Sustained Idle Output (Hot, 3,000 RPM) - 198 Amps
• Max Continuous Operating Temperature - 110°C / 230°F

Mounting Application:

• Replaces most Mercedes and BMW alternators, Mercedes Sprinter 1999-2006 alternators, Mercedes Sprinter Factory dual alternator 2007-Up Replacement

Alternator 250 AMP Kit 12V 3.15" Dual Foot Saddle K6 Pulley Regulator & Temp Sensor

Kit Includes: XT-CR-250-K6 Alternator, MC-618 Regulator, Temperature Sensors & Mounting Hardware

XT Series Alternator: 250A, 12V, Saddle Mount (Dual Foot), 3.15in, K6 Serpentine Pulley, Case Ground

4" J-180-Style Mounting;  Typical for Caterpillar, Cummins, Detroit Diesel & John Deere Engines

Specifications:

• Amperage: 250A
• Voltage: 12v
• Box Dimensions: 11"H x 11"W x 14"L WT: 21 lbs
• UPC: 676205503518

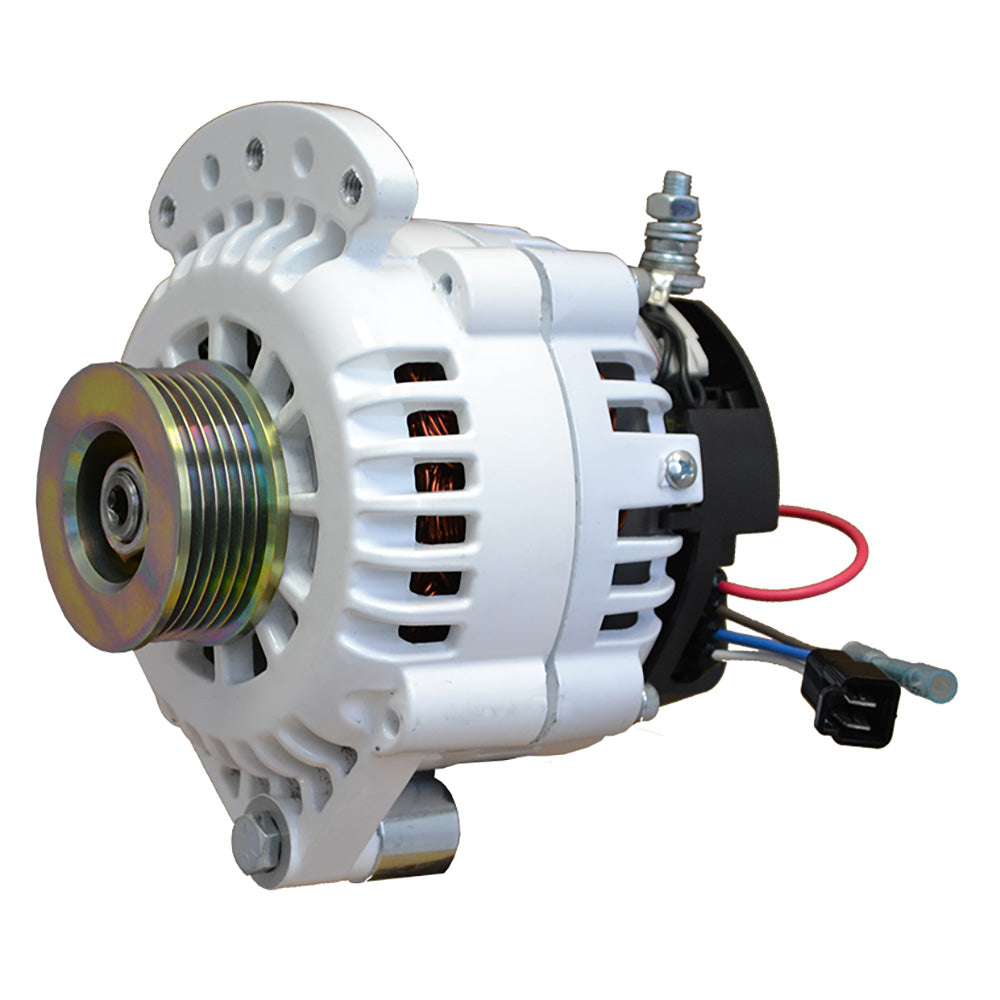

Balmar Alternator 100 AMP 12V 1-2" Single Foot Spindle Mount J10 Pulley w/Isolated Ground [621-100-J10]

Alternator 100 AMP 12V 1-2" Single Foot Spindle Mount J10 Pulley with Isolated Ground

Alternator, 621 Series, 100A, 12V, Spindle Mount (Single Foot), 1-2in, J10 AltMount Serpentine Pulley, Isolated Ground 1" Motorola-Style Mounting;  Typical for Westerbeke, Lehman, Hino & Pathfinder Engines 2" Delco-Style Mounting;  Typical for Volvo Penta (Gas & Diesel), John Deere, Perkins, Mercruiser, Pleasurecraft, Crusader, Indmar, Marine Power & other GM-based Engines

Replaces: 621-100-SR-IG

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

• Amperage: 100A
• Voltage: 12v
• Box Dimensions: 9"H x 10"W x 10"L WT: 12.9 lbs
• UPC: 676205500685

Brochure (pdf)
