Electrical

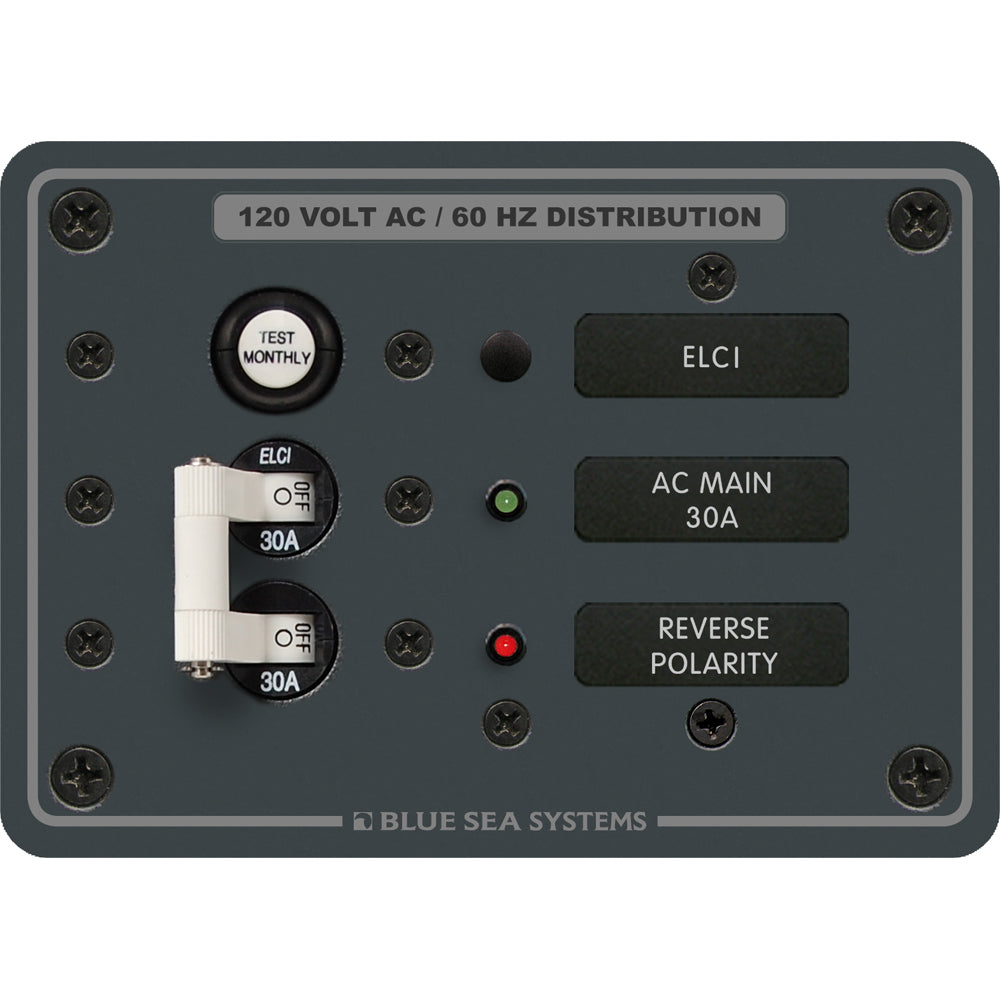

ELCI Main 30A Double Pole

• One 30A AC ELCI Main Residual Current Circuit Breaker, leakage trip amperate - 30 mA

• ELCI provides overcurrent and leakage protection per ABYC E-11 for whole boat shore power protection

• Red " Reverse Polarity" LED

• All circuit label positions are backlit

• "ON" indicating LEDs

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• AC/DC: AC
• Voltage: 120v
• Box Dimensions: 5"H x 9"W x 12"L WT: 2 lbs
• UPC: 632085081003

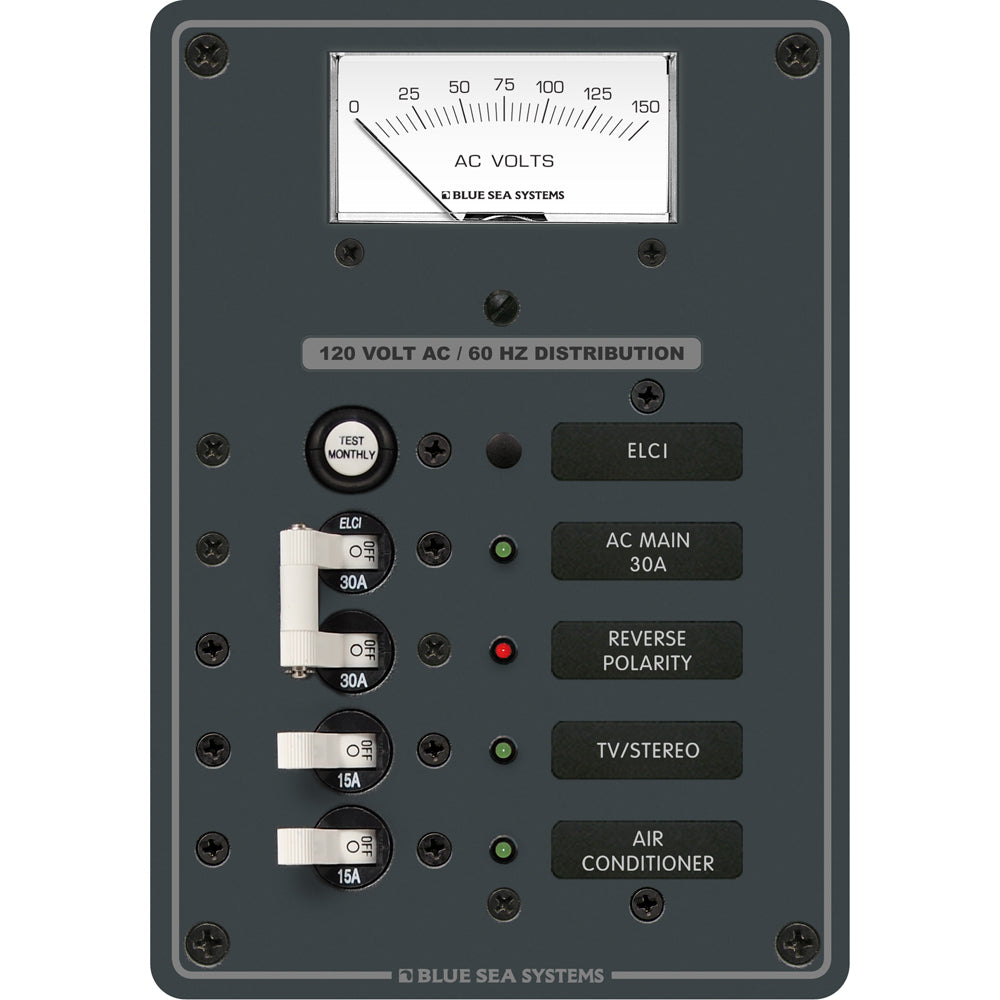

ELCI Main 30A Double Pole + 2 Positions with Voltmeter

• One 30A AC ELCI Main Residual Current Circuit Breaker, leakage trip amperate - 30 mA

• ELCI provides overcurrent and leakage protection per ABYC E-11 for whole boat shore power protection

• Red " Reverse Polarity" LED

• All circuit label positions are backlit

• "ON" indicating LEDs

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• AC/DC: AC
• Max Breaker Quantity: 2
• Voltage: 120v
• Box Dimensions: 5"H x 9"W x 11"L WT: 2.3 lbs
• UPC: 632085081027

Xantrex PROwatt SW2000 - True Sine Wave Inverter [806-1220]

PROwatt SW Sine Wave Inverter

PURE POWER. TRUE VALUE.

The PROwatt SW offers affordable, quality pure sine wave inverter solution for both recreational andcommercial applications. PROwatt SW provides the necessary current to startup demanding electrical loads. In addition to dual GFCI AC receptacles, the PROwatt SW Series include an innovative USB connection for providing power to most USB chargeable devices. The PROwatt SW Series offers many safety features not found in similar inverters. When equipped with a remote control, the PROwatt SW Series has the ability to provide automatic ignition lockout shutting down the inverter's output when the vehicle's ignition is not engaged.

The compact, easy-to-use and easy-to-install design of the PROwatt SW Series makes it ideal for use in commercial truck, RV and marine applications. With True Sine-Wave output, the PROwatt SW Series can provide power for all types of electrical loads including, variable speed power tools, advanced electrical appliances, microwaves and much more. The PROwatt SW provides household AC power anywhere.

Product Features:

• 1800W Continuous, 3000W Surge Capability
• Built-in digital display for DC volts and output power
• Built-in USB port
• Dual GFCI AC receptacles for safe operation
• Heavy duty terminals for trouble-free battery connection
• Available ON/OFF remote switch (with ignition lockout)
• Meets stringent UL458 regulatory standard
• Two year warranty

Protection Features:

• Low voltage shutdown (10.5 Vdc)
• Low voltage alarm (11.0 Vdc)
• Over voltage protection (15.5 Vdc)
• Over load shutdown
• Over temperature shutdown
• GFCI protection

Electrical Specifications:

• Continuous Power:1800W
• Surge Capacity (Peak): 3000W
• DC Input: 12 Vdc (nominal)
• AC Output Frequency: 60 ± 0.5 Hz
• AC Output Voltage Range: 104 - 127 Vac
• USB Output: 5 V / 500 mA
• Output Waveform: True Sine Wave
• Optimum Efficiency: 90%
• No Load Current Draw: < 0.8 A
• Input Voltage Range: 10.5 - 15.5 Vdc

General Specifications:

• Operating Temperature Range: 32°F - 104°F (0°C - 40°C)
• AC Receptacle: Dual GFCI
• USB Receptacle: Single Port (Type A)
• DC Connection: Hardwire
• Recommended DC Fuse: 250 A
• Digital Display: DC voltage, AC output power & error codes
• Dimensions (H x W x L): 3.9" x 11.8" x 13.7" (100 x 299 x 348mm)
• Weight: 10.7lb (4.9kg)
• Warranty: Two year

WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) which is known to the State of California to cause cancer, and Di-isodecyl Phthalate (DIDP) which is known to the State of California to cause reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• DC Connection Type: Hardwire
• GFCI: Yes
• Outlet Qty: 1 Duplex GFCI
• Inverter Surge Rating: 3000w
• Inverter Input Voltage: 12v
• Waveform: True Sine Wave
• Inverter Output Voltage: 120v
• AC Connection Type: Hardwire
• Inverter Cont. Output Wattage: 1800w
• Box Dimensions: 7"H x 14"W x 17"L WT: 13.3 lbs
• UPC: 715535894221

Quick Guide (pdf)
Owner's Manual (pdf)

Xantrex Freedom HF 1000 Inverter/Charger [806-1020]

Freedom HF 1000

Compact inverter/charger to power the comforts of home on your boat, RV, or truck

With modified sine wave output, Freedom HF 1000 inverter/charger is designed to run entertainment systems and small appliances in smaller boats, RV's and trucks. The Freedom XMIC inverter/charger is the smallest, lightest, and least expensive model in the Xantrex lineup.

Freedom HF is designed for demanding marine and RV conditions. Temperature-controlled multistage charging ensures that your batteries are recharged safely and efficiently. Both models include an automatic transfer switch and a detachable digital remote control panel display that provides precise system information and can be mounted wherever you require the information.

Product Features:

• Designed to power loads such as microwave ovens, TVs, DVD players, small appliances and other electronic equipment

• Removable digital display to provide system status

• Automatic three-stage battery charger

• Designed to be hardwired using a terminal strip, or by connecting AC through GFIC receptacles (Included)

• Built-in 30-amp relay to automatically transfer between inverter power and incoming AC utility power

Protection Features:

• Battery over-voltage and under-voltage protection

• Over-temperature shutdown

• Automatic overload protection

• Short-circuit protection

• Ground-fault protection

• ETL listed for use in mobile RV and marine applications

WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) which is known to the State of California to cause cancer, and Di-isodecyl Phthalate (DIDP) which is known to the State of California to cause reproductive harm. For more information go to P65Warnings.ca.gov.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

• Inverter Output Voltage: 120v
• Inverter Input Voltage: 12v
• Charger Input - Voltage: 120v
• Outlet Qty: 1 Duplex GFCI
• Charging Banks: 1
• Inverter Cont. Output Wattage: 1000w
• Charger Output Voltage: 12v
• Charger Output - Amps: 20a
• Box Dimensions: 6"H x 11"W x 18"L WT: 12.95 lbs
• UPC: 715535890414

Quick Guide (pdf)
Owner's Manual (pdf)

Main + 22 Positions

• All positive, negative and grounding buses installed, fully pre-wired

• Panels with meters include toggle switch for mounting up to 3 battery banks

• All panels with analog meters are owner upgradable to 24 Volts with 8240 or 8243 (18-32V DC meters)

• All circuit label positions are backlit on standard panels - No kit required

• "ON" indicating LEDs installed in all circuit positions

• MIL-C-5541C or equivalent immersion undercoating for lifetime corrosion resistance

• Two-part polyurethane slate gray finish

• Heavy 1/8" aluminum 5052 alloy

• Industry standard height and width

• Countersunk mounting holes throughout

• Detailed installation instructions and cutout template included

• Includes set of 30 common Large Format Panel Labels

• Over 500 individual labels available

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Max Breaker Quantity: 22
• AC/DC: DC
• Voltage: 12v
• Box Dimensions: 7"H x 14"W x 22"L WT: 8.3 lbs
• UPC: 632085083809

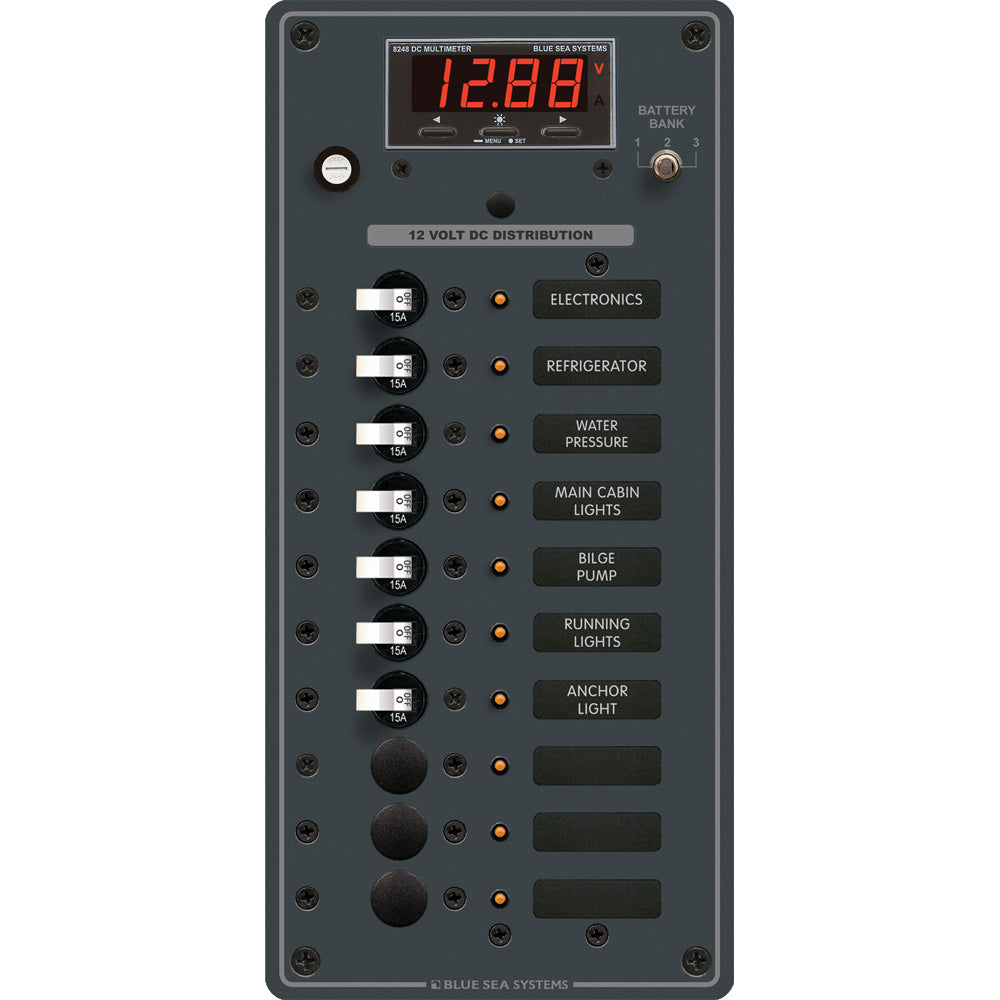

8402 DC 10 Position with Multi-Function Meter

Features:

• Voltage 12 VDC/24 VDC

• Amperage 100A

• All positive, negative and grounding buses installed, fully pre-wired

• Panels with meters include toggle switch for mounting up to 3 battery banks

• All panels with analog meters are owner upgradable to 24 Volts with 8240 or 8243 (18-32V DC meters)

• All circuit label positions are backlit on standard panels - No kit required

• "ON" indicating LEDs installed in all circuit positions

• MIL-C-5541C or equivalent immersion undercoating for lifetime corrosion resistance

• Two-part polyurethane slate gray finish

• Heavy 1/8" aluminum 5052 alloy

• Industry standard height and width

• Countersunk mounting holes throughout

• Detailed installation instructions and cutout template included

• Includes set of 30 common Large Format Panel Labels

• Over 500 individual labels available

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Voltage: 12/24v
• Max Breaker Quantity: 10
• AC/DC: DC
• Box Dimensions: 6"H x 10"W x 12"L WT: 4 lbs
• UPC: 632085084028

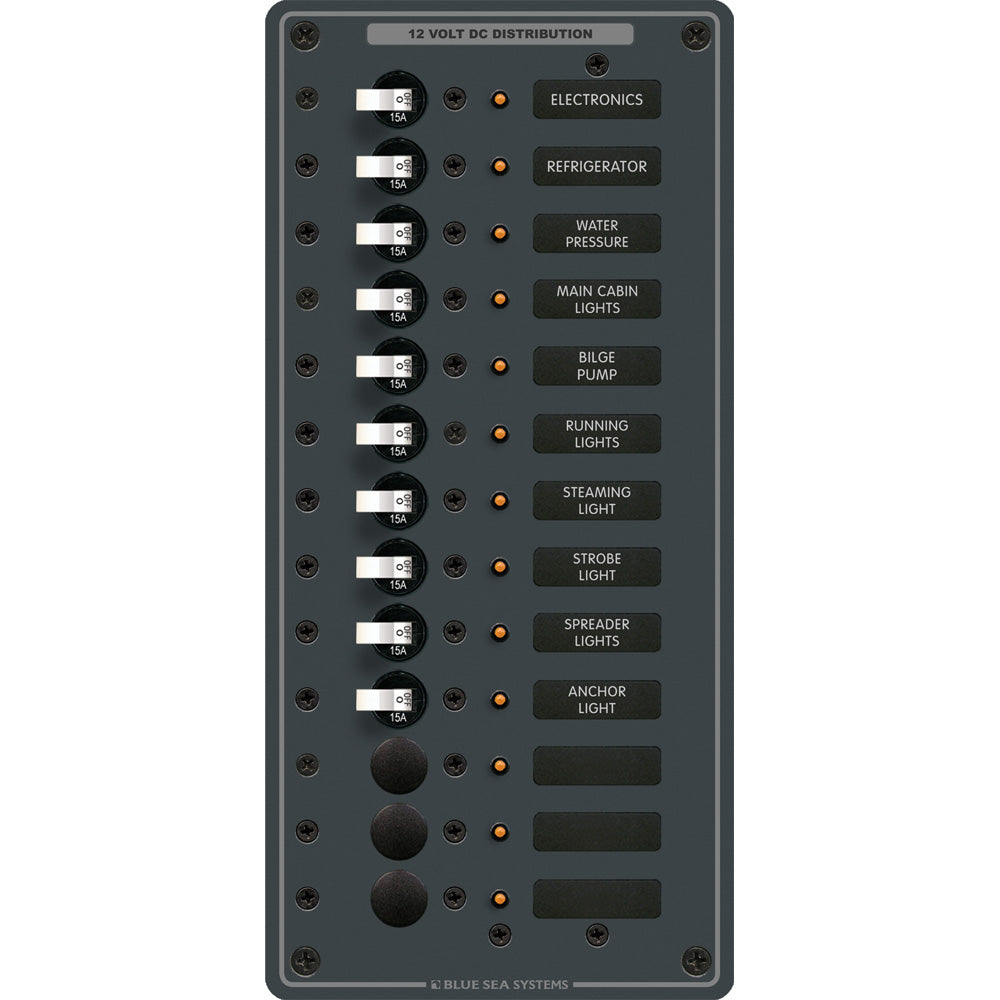

13 Positions

• All positive, negative and grounding buses installed, fully pre-wired

• Panels with meters include toggle switch for mounting up to 3 battery banks

• All panels with analog meters are owner upgradable to 24 Volts with 8240 or 8243 (18-32V DC meters)

• All circuit label positions are backlit on standard panels - No kit required

• "ON" indicating LEDs installed in all circuit positions

• MIL-C-5541C or equivalent immersion undercoating for lifetime corrosion resistance

• Two-part polyurethane slate gray finish

• Heavy 1/8" aluminum 5052 alloy

• Industry standard height and width

• Countersunk mounting holes throughout

• Detailed installation instructions and cutout template included

• Includes set of 30 common Large Format Panel Labels

• Over 500 individual labels available

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Max Breaker Quantity: 13
• AC/DC: DC
• Voltage: 12/24v
• Box Dimensions: 3"H x 9"W x 12"L WT: 3.5 lbs
• UPC: 632085083762

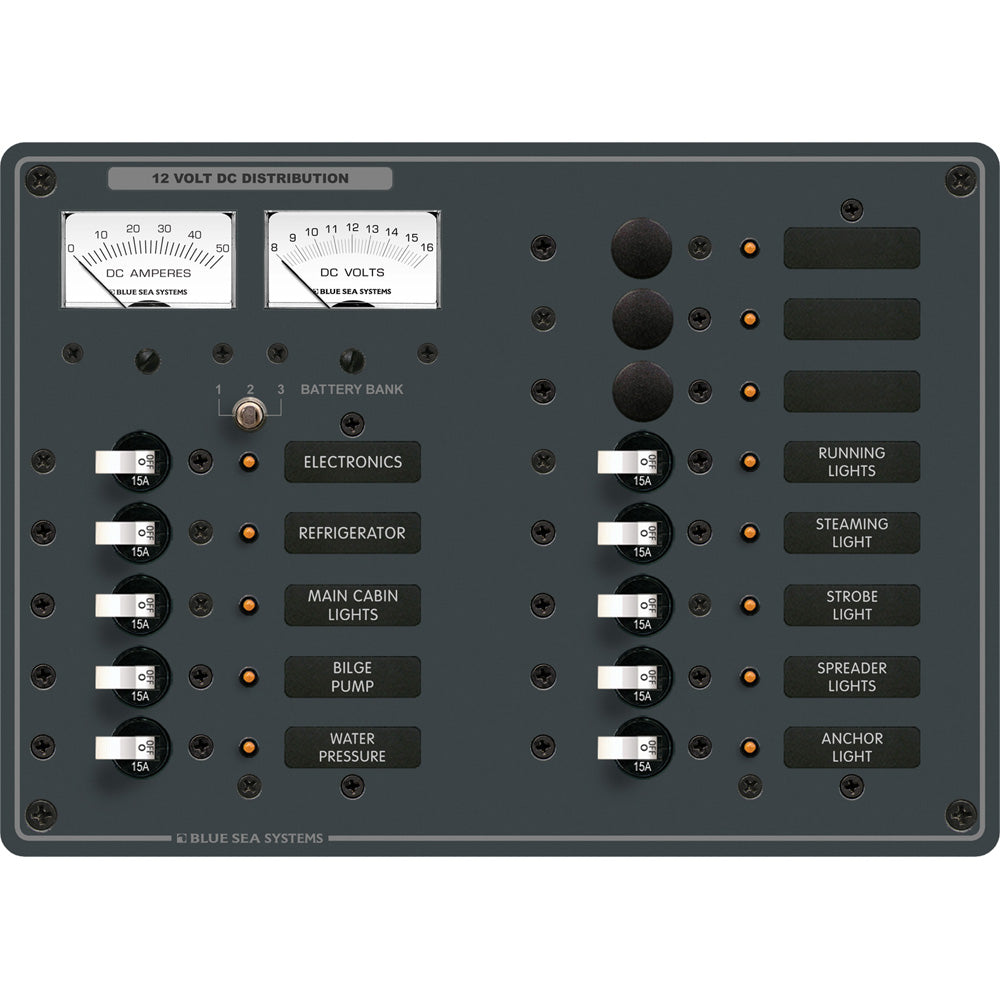

8068 DC 13 Position Toggle Branch Circuit Breaker Panel - White Switches

Features:

• All positive, negative and grounding buses installed, fully pre-wired
• Includes set of 30 common DC labels
• Label backlighting pre-installed
• All LEDs installed
• Detailed installation instructions and cutout template
• 8028, 8-16 Volt DC Micro Voltmeter
• 8041, 0-50 Amp DC Micro Ammeter
• 10 15A Single Pole Circuit Breakers
• Toggle Branch Circuit Breaker Panel

Specifications:

• Positions: 13
• Nominal Voltage: 12v DC
• Maximum Amperage: 50A
• Height: 7.5"
• Width: 10.5"
• Depth: 3"
• Weight: 4.2 lbs

Included:

• (10) 7210 A-Series White Toggle Circuit Breaker - Single Pole 15A
• (1) 8030 Basic DC Panel Label Set - 30 Labels
• (1) 8028 DC Micro Voltmeter - 8 to 16v DC (Meter)
• (1) 8041 DC Micro Ammeter - 0 to 50A w/ Shunt (Meter)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• AC/DC: DC
• Max Breaker Quantity: 13
• Voltage: 12v
• Box Dimensions: 5"H x 10"W x 13"L WT: 4.2 lbs
• UPC: 632085080686
