Electrical

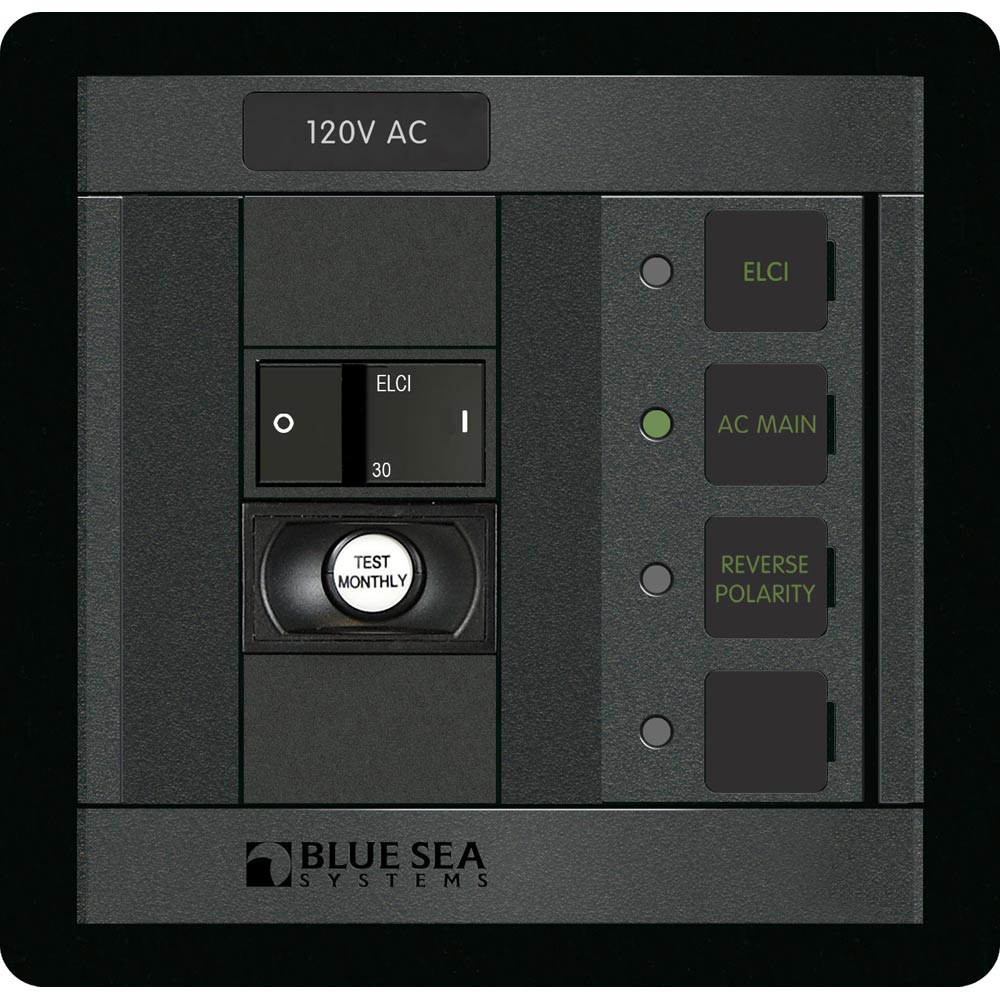

ELCI Main 30A Double Pole Panel

Features:

• One 30A AC ELCI Main Residual Current Circuit Breaker, leakage trip amperate - 30 mA

• ELCI provides overcurrent and leakage protection per ABYC E-11 for whole boat shore power protection

• Red " Reverse Polarity" LED

• All circuit label positions are backlit

• "ON" indicating LEDs

• Positions: 1

• Nominal Voltage: 120V AC

• Height: 4.75" (120.65mm)

• Width: 4.88" (123.95mm)

• Depth: 3.00" (76.2mm)

• Weight: 1.10lb (0.5kg)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• AC/DC: AC
• Box Dimensions: 6"H x 6"W x 9"L WT: 2.2 lbs
• UPC: 632085015022

Freedom SW2524 230V Sine Wave Inverter/Charger - 2500W

The Freedom SW 230V Inverter/Charger is a true sine wave inverter/charger that can be used for mobile, marine and commercial applications. The Freedom SW 230V Inverter/Chargers are designed to operate with a wide variety of generators and are capable of operating in parallel with a generator for short durations to assist with starting large loads. The Freedom SW 230V is a charger, and transfer switch in one electronic device.

Features:

• As an inverter, the Freedom SW 230V provides true sine wave power for your microwave, entertainment system, computer, and other loads. This power is identical to the AC source provided from the utility grid (power company)

• Some of the benefits of true sine wave power include consistent cooking in your microwave, handling of sensitive loads such as your TV set, dimmer switches, and appliances with speed controls

• Highly versatile platform capable parallel stacking to increase power levels

• High efficiency true sine wave output to power sensitive electrical and electronic equipment

• Surge capacity to start difficult loads like well pumps, refrigerators, or A/C compressors

• Power factor-corrected (PFC) input minimizes AC input current required for charging, increasing AC pass-through capacity

• As a 24-volt charger, it has high output, multi-stage charging capability minimizing charging time

WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) which is known to the State of California to cause cancer, and Di-isodecyl Phthalate (DIDP) which is known to the State of California to cause reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Charger Input - Voltage: 230v
• Outlet Qty: Optional
• Charging Banks: 1
• Inverter Output Voltage: 230v
• Inverter Input Voltage: 24v
• Inverter Cont. Output Wattage: 2500w
• Charger Output Voltage: 24v
• Charger Output - Amps: 65a
• Box Dimensions: 13"H x 18"W x 21"L WT: 54 lbs
• UPC: 715535899004

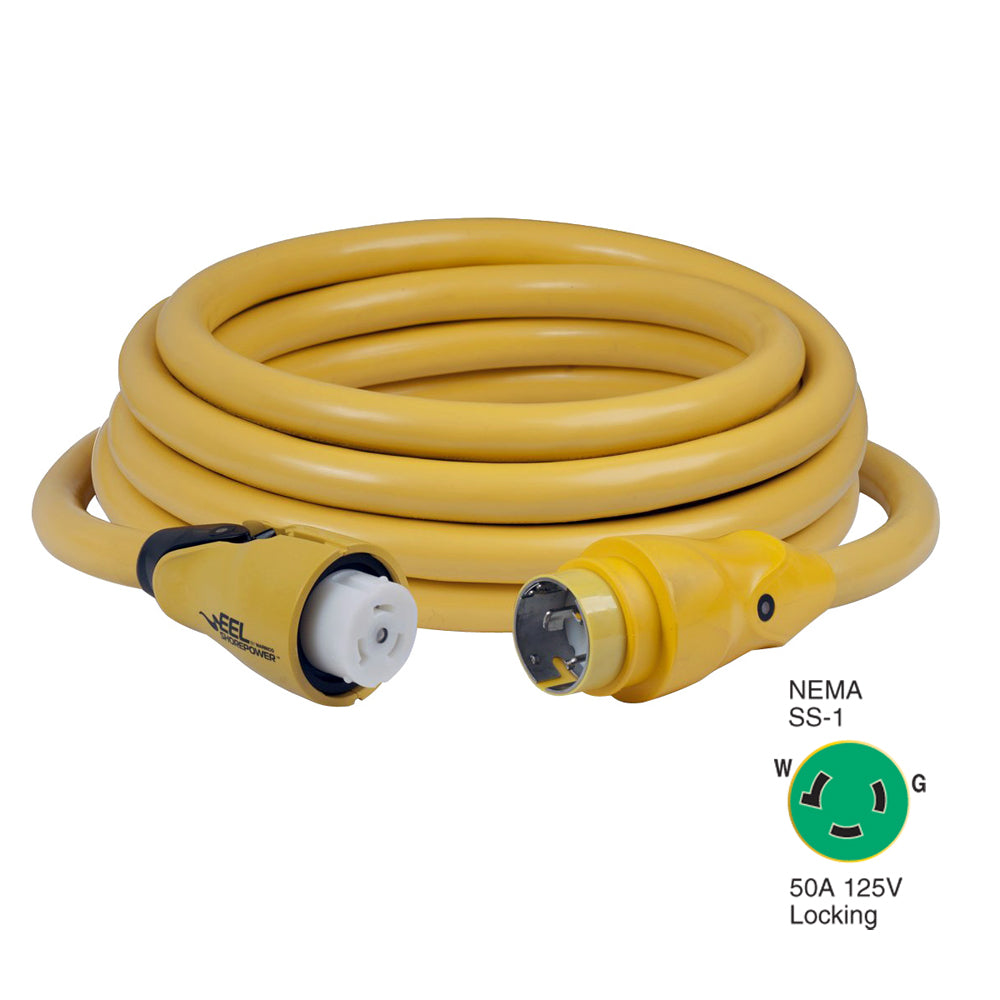

50A 125V Cordset

EEL ShorePower Cordsets
One Hand. A simple twist. Full Power.

The EEL (Easily Engaged Lock) ShorePower Cordset has an industry first, jaw-clamp design providing one-handed operation and a secure waterproof seal which completely eliminates the need for a locking ring. The EEL connection is built for the harshest environments and is UL approved. This easy-to-use cordset features a built-in cord light which serves as an alert to boaters when the cord is left plugged in. And, best of all, it works with your current inlet. In addition to cordsets with the EEL System, Marinco also has a full set of Pigtail and Y adapters all using the new EEL technology.

Features:

• Designed for use with standard inlets (NEMA)
  50A, 125V capacities; 25' length

• Cord sets meet global industry standards including ABYC and UL

• New wing-clamp technology provides a true, watertight connection every time

• Single-handed operation

• Eliminates the need for a sealing ring

• Secondary locking feature for added security

• Built-in LED cord light guides you to a secure connection every time, even in the dark

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Voltage: 125v
• Type: Cordset
• Length: 25'
• Amperage: 50a
• Box Dimensions: 6"H x 17"W x 20"L WT: 20 lbs
• UPC: 093344051715

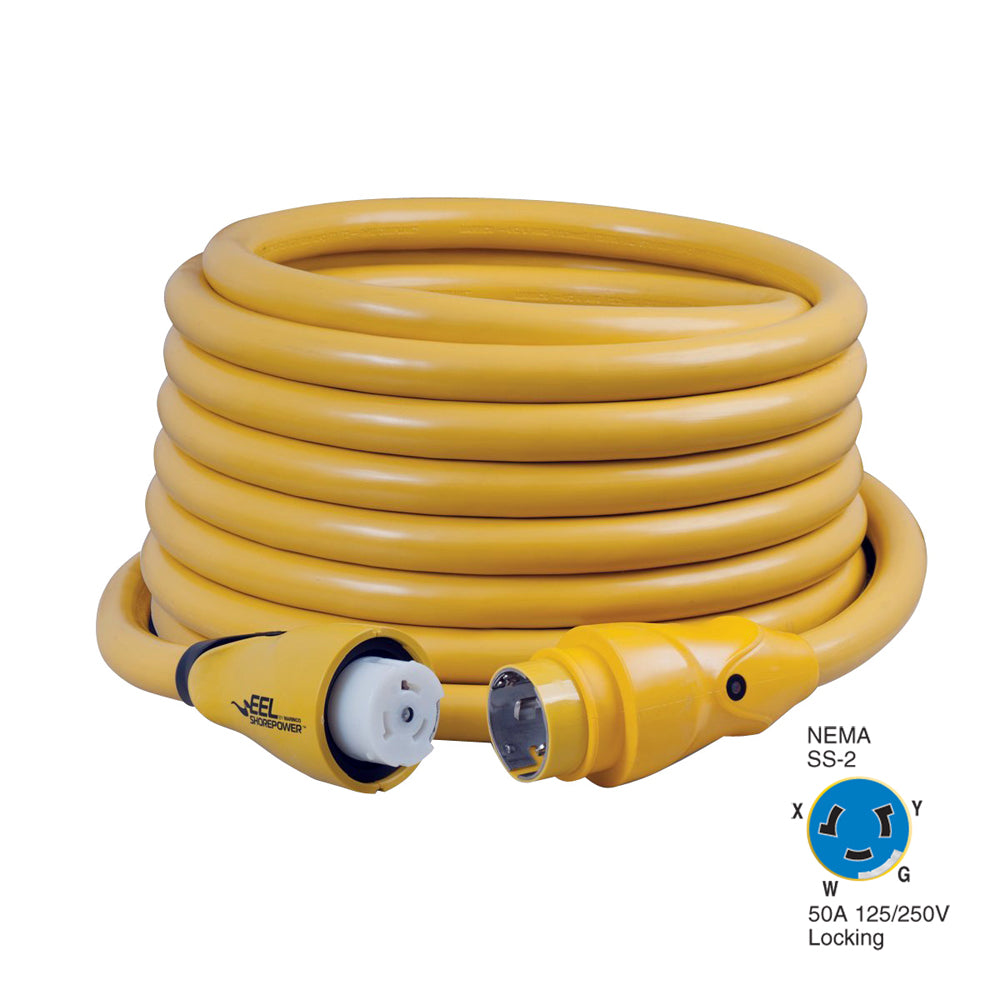

50A 125V/250V Cordset

EEL ShorePower Cordsets
One Hand. A simple twist. Full Power.

The EEL (Easily Engaged Lock) ShorePower Cordset has an industry first, jaw-clamp design providing one-handed operation and a secure waterproof seal which completely eliminates the need for a locking ring. The EEL connection is built for the harshest environments and is UL approved. This easy-to-use cordset features a built-in cord light which serves as an alert to boaters when the cord is left plugged in. And, best of all, it works with your current inlet. In addition to cordsets with the EEL System, Marinco also has a full set of Pigtail and Y adapters all using the new EEL technology.

Features:

• Designed for use with standard inlets (NEMA)
  50A, 125V/250V capacities; 50' length

• Cord sets meet global industry standards including ABYC and UL

• New wing-clamp technology provides a true, watertight connection every time

• Single-handed operation

• Eliminates the need for a sealing ring

• Secondary locking feature for added security

• Built-in LED cord light guides you to a secure connection every time, even in the dark

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Voltage: 125/250v
• Type: Cordset
• Length: 50'
• Amperage: 50a
• Box Dimensions: 8"H x 18"W x 20"L WT: 45 lbs
• UPC: 093344051746

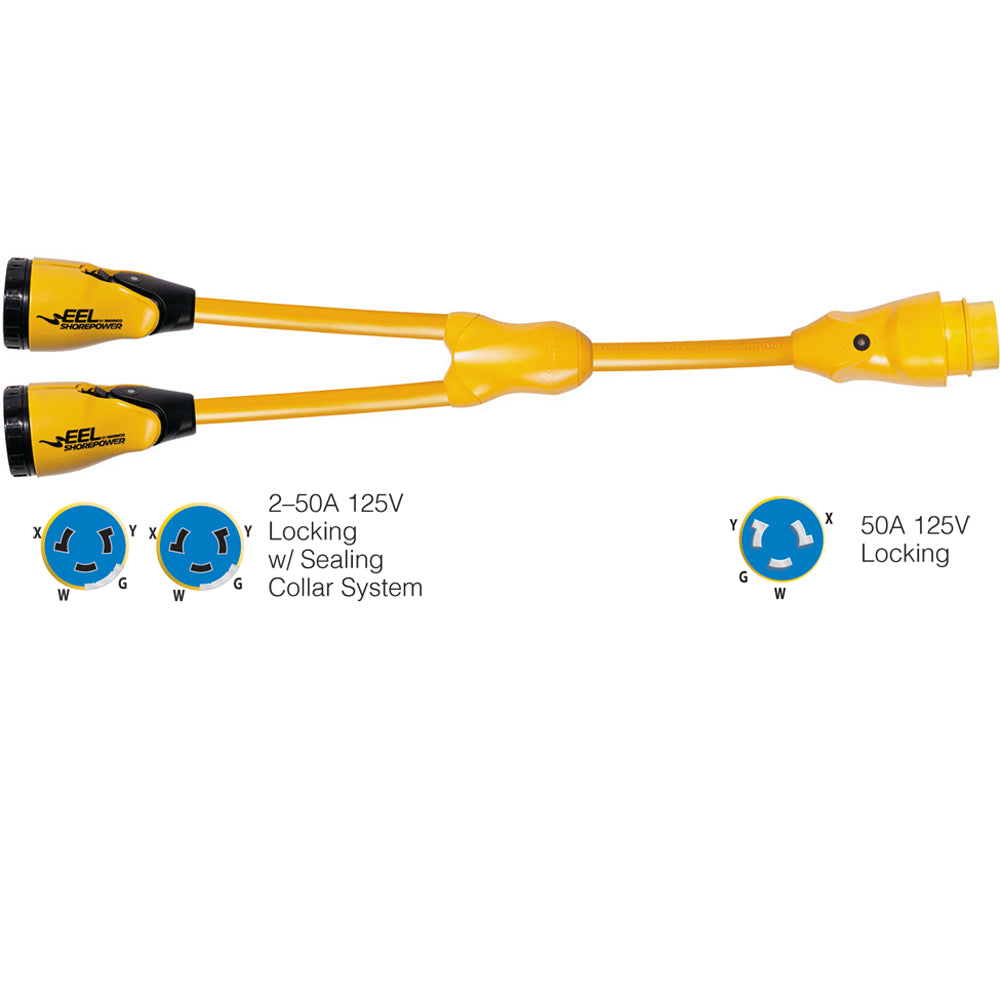

EEL "Y" Adapters

These adapters are equipped with sealing collars and are for use in wet locations.

Boat Side
Female Connector: Attaches to boat inlet or cordset
(2)50A-125/250V Locking w/ Sealing Collar System

Dock Side
Male Plug: Attaches to dockside receptacle or cordset
(1)50A-125/250V Locking

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Type: Y-Adapter
• Box Dimensions: 5"H x 12"W x 13"L WT: 8.5 lbs
• UPC: 093344051876

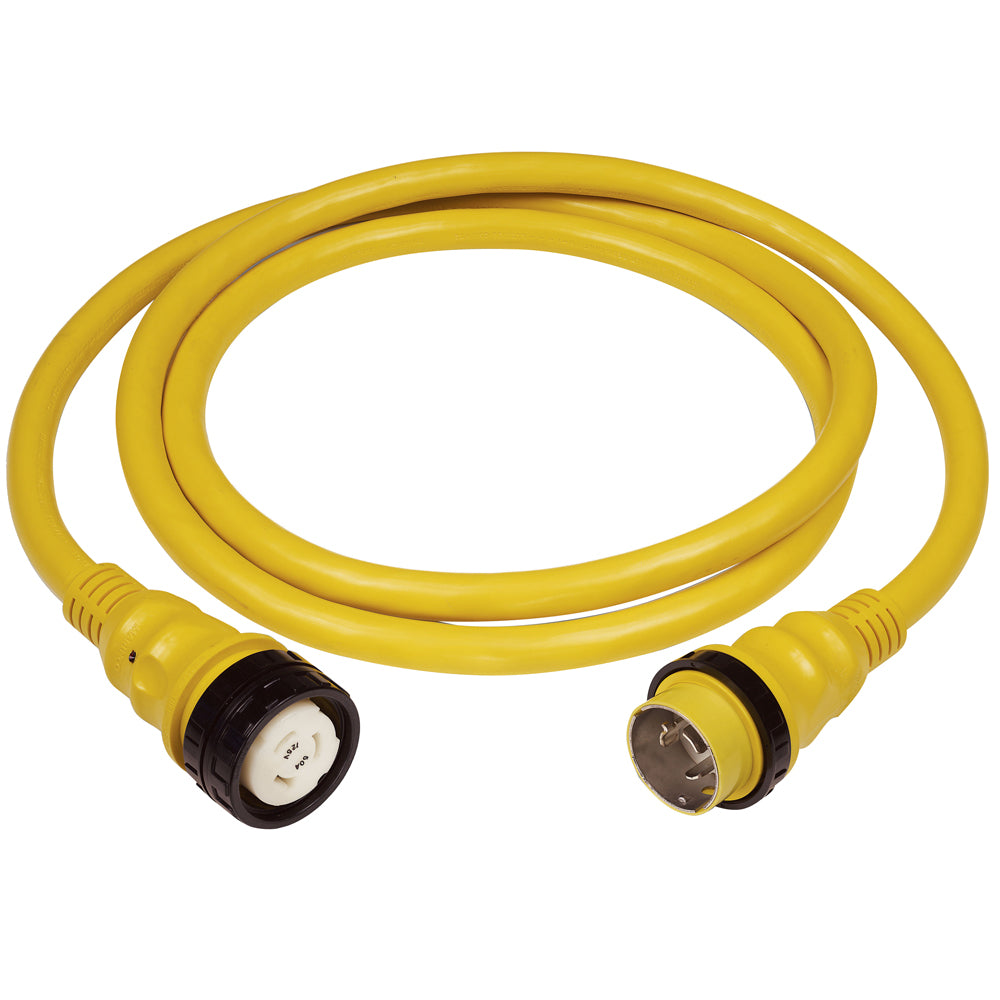

50 Amp 125V 3-Wire Cordset

All Marinco 50A PowerCord Plus™ cordsets are made of the highest quality, marine-grade construction with features you won't find on other power cords:

• Various length and color options for your specific needs

• LED power indicator light - lets you know if you have power

• Watertight molded plug and connector for safety and durability

• Heavy-duty, super flexible 6 gauge conductor cable

• Contoured grip ends with Thumbprint Locator for fast and easy connection

• All models include the Marinco Easy Lock System Ring - a simple 1/8 twist of the ring provides a fast, positive watertight connection

• All models also include a standard threaded ring for hook-up to ordinary threaded inlets

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Amperage: 50a
• Type: Cordset
• Length: 50'
• Voltage: 125v
• Box Dimensions: 9"H x 17"W x 19"L WT: 35.5 lbs
• UPC: 093344309854

Freedom 458 Inverter/Charger

AC Power Inverter with High Surge Capability, 3-Stage Charger
With filtered modified sine wave output, Freedom inverter/chargers run virtually anything, from electrical equipment to appliances and electronics in your RV. Temperature controlled multistage charging ensures that your batteries are recharged quickly, and automatic shutdown and other safety features protect your expensive deep-cycle batteries from excessive depletion.

For inverter/charger control and basic system monitoring, use the Freedom Basic Remote. For advanced battery monitoring and remote control, Freedom 458 systems can be paired with optional Link instrumentation.

Product Features

• MSW AC power inverter with high surge capability

• Automatic 3-stage battery charger

• Temperature compensation with equalization stage provides optimal charging of deep cycle batteries

• Built-in transfer switch automatically transfers between inverter power and incoming AC power

• Power sharing prevents source AC input circuit breaker from tripping

• Customized settings can be programmed with the Freedom Basic Remote or Link 1000 panels

• Includes battery temperature sensor

• 30 month warranty

• Over voltage and under voltage protection

• Over-temperature protection

• Overload protection

• Short circuit protection

• Output power (continuous): 2000W

• Surge power (AC amps): 50A

• Output frequency regulation: 60Hz

• Inverter voltage regulation: 120V +/-5% true RMS

• Output wave form: Modified sine wave

• Efficiency (full load): 85%

• Peak efficiency: 92%

• No load current draw (idle mode): 0.12A

• AC output connections: Dual - 20/15 Circuit Breakers

• AC input connections: Single

• AC transfer switch: 30A

• Charge rate: 100A DC

• AC input voltage range: 90 130 VAC

• Battery voltage (nominal): 12 VDC

• Battery voltage range: 10.0 15.5 VDC

• Low battery cut-out: 10.0 VDC

• AC input (max. charge mode): 21A AC

• Bulk charge voltage: 14.3 VDC***

• Float charge voltage: 13.4 VDC***

• Equalize charge voltage: 16.3 VDC

• Charge control: 3-stage

• Battery type settings: Wet / Gel 1 / Gel 2 / AGM

• Equalization: Yes

• Temperature sensitive charging: Yes

WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) which is known to the State of California to cause cancer, and Di-isodecyl Phthalate (DIDP) which is known to the State of California to cause reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Outlet Qty: None
• Charging Banks: 1
• Inverter Output Voltage: 120v
• Inverter Input Voltage: 12v
• Charger Input - Voltage: 120v
• Inverter Cont. Output Wattage: 2000w
• Charger Output Voltage: 12v
• Charger Output - Amps: 100a
• Box Dimensions: 13"H x 15"W x 19"L WT: 55.7 lbs
• UPC: 647912106149

Yellow 2/0 AWG Battery Cable - 100'

Features:

• ANCOR Marine Grade™ wire is manufactured from tinned copper stranding for maximum protection against corrosion and electrolysis. Ultra flexible (Type 3) stranding resists fatigue due to vibration and flexing.

• ANCORs proprietary premium vinyl insulation stays flexible even in extreme cold and resists salt water, battery acid, oil, gasoline and ultra-violet radiation. Exclusive insulation is rated at 600V, 105°C dry and 75°C wet, and is resistant to heat and abrasion.

• Exceeds all UL 1426, US Coast Guard Charter boat (CFR Title 46) and ABYC standards

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Color: Yellow
• Length (Feet): 100'
• Gauge: 2/0 AWG
• Box Dimensions: 10"H x 11"W x 11"L WT: 53 lbs
• UPC: 091887968071
