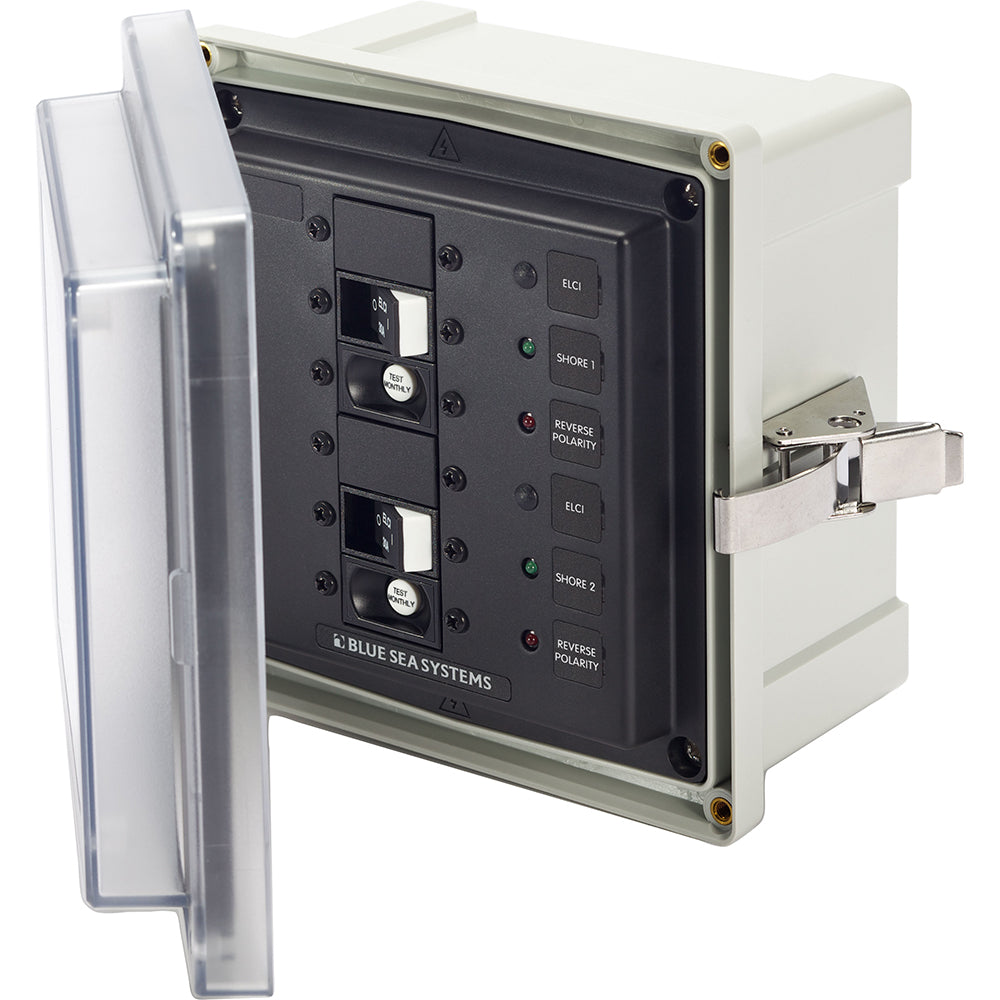

3117 - SMS Panel Enclosure with 2 ELCI (30A) - 120V AC

The 3117 panel enclosure is built for Equipment Leakage Circuit Interrupters (ELCI) main circuit breakers and other large frame devices.  Meets ABYC E-11 when used with an ELCI Main circuit breaker and mounted within 10' of AC shore power inlet.

Features:

• Blank apertures for custom breaker loading
• Glass filled polycarbonate base
• Clear cover allows easy view of circuit breaker status
• Overlapping cover for strength and increased gasket protection
• Oversized, formed in place seamless PUR gasket
• Easily removable stainless steel hinge pin for unobstructed installation
• Stainless steel latch secures cover without penetrating the enclosure
• Blank circuit positions accommodate Carling Technologies™ A and C Series Flat Rocker and ELCI Main circuit breakers
• Includes waterproof glands
• LED lights for back lighting and ON indication

Technical Specifications:

• Circuit Breaker Type - 2 x ELCI (30A) Main 120V
• Dimensions (Overall) (H x W x D) - 7.6" x 7.4"" x 4.7" (192 x 188 x 120mm)
• Dimensions  (Enclosure) (H x W x D) - 6" x 6" x 4" (152 x 152 x 102mm)
• LEDs Installed - 2 x Red (Reverse Polarity - 120V AC and 2 x Green ON (120V AC)

In the Box:

• 3117 Enclosure
• Glands x 6
• Labels
• Mounting hardware
• Instruction manual

*Sold as an Individual

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• AC/DC: AC
• Voltage: 120
• Box Dimensions: 7"H x 10"W x 10"L WT: 4.4 lbs
• UPC: 632085031176

White Triplex Cable - 10/3 AWG - Flat - 300'

Features:

• Ancor Triplex Cable is made to surpass the highest UL Boat Cable standards with ultra flexible (Type 3/Class K) stranding to resist fatigue due to vibration and flexing.

• Outer jacket is made for easy removal and provides the best abrasion resistance available

• Ancors proprietary premium vinyl insulation stays flexible even in extreme cold and resists salt water, battery acid, oil, gasoline and ultra-violet radiation. Exclusive insulation is rated at 600 volts, 105°C dry and 75°C wet, and is resistant to heat and abrasion.

• Features three Marine Grade™ primary conductors (white, black and green) in a white common jacket.

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Length (Feet): 300'
• Gauge: 10/3 AWG
• Color: Black/Green/White
• Box Dimensions: 11"H x 11"W x 11"L WT: 49 lbs
• UPC: 091887132021

30 AMP SmartPlug/Twist Type Cordset w/Black Inlet Cover- 50'

For many years boaters have experienced the safety, security and simplicity of SmartPlug products on the boatside while still dealing with the same old issues created by legacy twist-type products on the dockside.   Those days are changing with the introduction of SmartPlug's new dockside product offering.  SmartPlug has applied decades of experience and customer feedback to create a product that allows you to upgrade your shore power connection with SmartPlug technology.

The 30 AMP 125 V cordset provides a complete weatherproof power solution. The cordset includes the SmartPlug connector for the Boatside and a Twist Type Plug connector for the Dockside.

Features:

• Multi-Point Locking System - Side clips lock the body securely into the inlet, which eliminates any stress on the electrical connection from movement of the power cord.
• Weatherproof Seals - Silicone gaskets installed in the interior of the plug body eliminate any water penetration when plug is connected to inlet.
• LED Power Indicator Light – On the top of all SmartPlug female ends, two LED indicator lights.  One Red and one Blue LED light for Safe/Unsafe Electrical Power Indication under Reverse Polarity Conditions.
• Tinned Wire – All SmartPlug marine cords have tinned wire to minimize corrosion.
• Quick and Easy Installation – Inlet mounting flange holes match existing inlet holes for an installation that is typically finished in 30 minutes.

Technical Specifications:

• Length - 50'
• Cordset Color - Orange
• Inlet Color - Black
• Boatside Connection - 30 AMP/125 V SmartPlug
• Dockside Connection - 30 AMP/125 V Twist Type Plug

In the Box:

• 50' Cordset
• Inlet cover
• Instruction manual

*Sold as an Individual

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Amperage: 30a
• Length: 50'
• Type: Cordset
• Voltage: 125v
• Box Dimensions: 5"H x 13"W x 14"L WT: 15.6 lbs
• UPC: 614458746191

White Triplex Cable - 6/3 AWG - Flat - 100'

Features:

• Ancor Triplex Cable is made to surpass the highest UL Boat Cable standards with ultra flexible (Type 3/Class K) stranding to resist fatigue due to vibration and flexing.

• Outer jacket is made for easy removal and provides the best abrasion resistance available

• Ancors proprietary premium vinyl insulation stays flexible even in extreme cold and resists salt water, battery acid, oil, gasoline and ultra-violet radiation. Exclusive insulation is rated at 600 volts, 105°C dry and 75°C wet, and is resistant to heat and abrasion.

• Features three Marine Grade™ primary conductors (white, black and green) in a white common jacket.

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Length (Feet): 100'
• Gauge: 6/3 AWG
• Color: Black/Green/White
• Box Dimensions: 12"H x 12"W x 19"L WT: 52 lbs
• UPC: 091887101607

TruePower Plus Pure Sine Wave Inverter - 1000W

Designed to convert 12 VDC battery power to 115 VAC and will automatically pass through AC Inlet power when present. TruePower Plus is rich with features including; Innovative dual color digital LCD message center, dual color gauges for AC power output and battery DC input, USB power port, GFCI convenience outlets, DC cable covers, and separate on/off remote. Our integrated AC cable strain reliefs and front screw connection terminal blocks allow for quick and easy installation without the added need for ring terminals for AC power connections. Designed with soft start noise filtered technology and x2 surge capability for powering demanding loads. Shock resistant construction with internal conformal coated electronics for protection in harsh environments. The TruePower Plus PS Series has all the features of our MS series but provides a Pure Sine 115 VAC output ideal for high fidelity audio visual systems in addition to appliances with hysteresis and variable motor speed controls like washing machines and refrigeration etc.

Features:

• Intuitive dual color digital LCD message center

• Dual color gauges for AC power output and battery DC input

• Internal 30 amp AC transfer switch will automatically pass through AC inlet power when present

• USB power port and GFCI convenience outlets

• Compact and lightweight design

• Soft start noise filtered technology with x2 surge capability

• On/Off remote with 9 foot cable and DC cable covers Included

• Integrated AC power cable strain reliefs for ease of installation

• Built-in safety with overload, over temperature, short circuit and reverse polarity protection

• Audible alarm and shut down for low and high DC voltage, overload and over temperature conditions

• Shock resistant construction with internal conformal coated electronics

• 2 year warranty

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Inverter Cont. Output Wattage: 1000w
• AC Connection Type: GFCI Outlet
• DC Connection Type: Hardwire
• GFCI: Yes
• Outlet Qty: 2 Duplex GFCI
• Inverter Surge Rating: 2000w
• Inverter Input Voltage: 12v
• Inverter Output Voltage: 120v
• Waveform: Pure Sine Wave
• Box Dimensions: 7"H x 12"W x 15"L WT: 10.15 lbs
• UPC: 031669071001

Red 4 AWG Tinned Copper Battery Cable - 250'

Ancor Marine Grade wire products are the longest lasting and most rugged available, exceeding UL 1426, ABYC and US Coast Guard Charter boat (CFR Title 46) standards. They are constructed with premium vinyl insulation that is rated at 600V, 105°C dry and 75°C wet, stays flexible even in extreme cold (-40°F/C) and resists salt water, battery acid, oil, gasoline, heat, abrasion and ultra-violet radiation. Highest quality ultra flexible (Type 3) tinned copper stranding provides maximum protection against corrosion and electrolysis while resisting fatigue due to vibration and flexing.

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Length (Feet): 250'
• Gauge: 4 AWG
• Color: Red
• Box Dimensions: 11"H x 11"W x 11"L WT: 44.4 lbs
• UPC: 091887101270

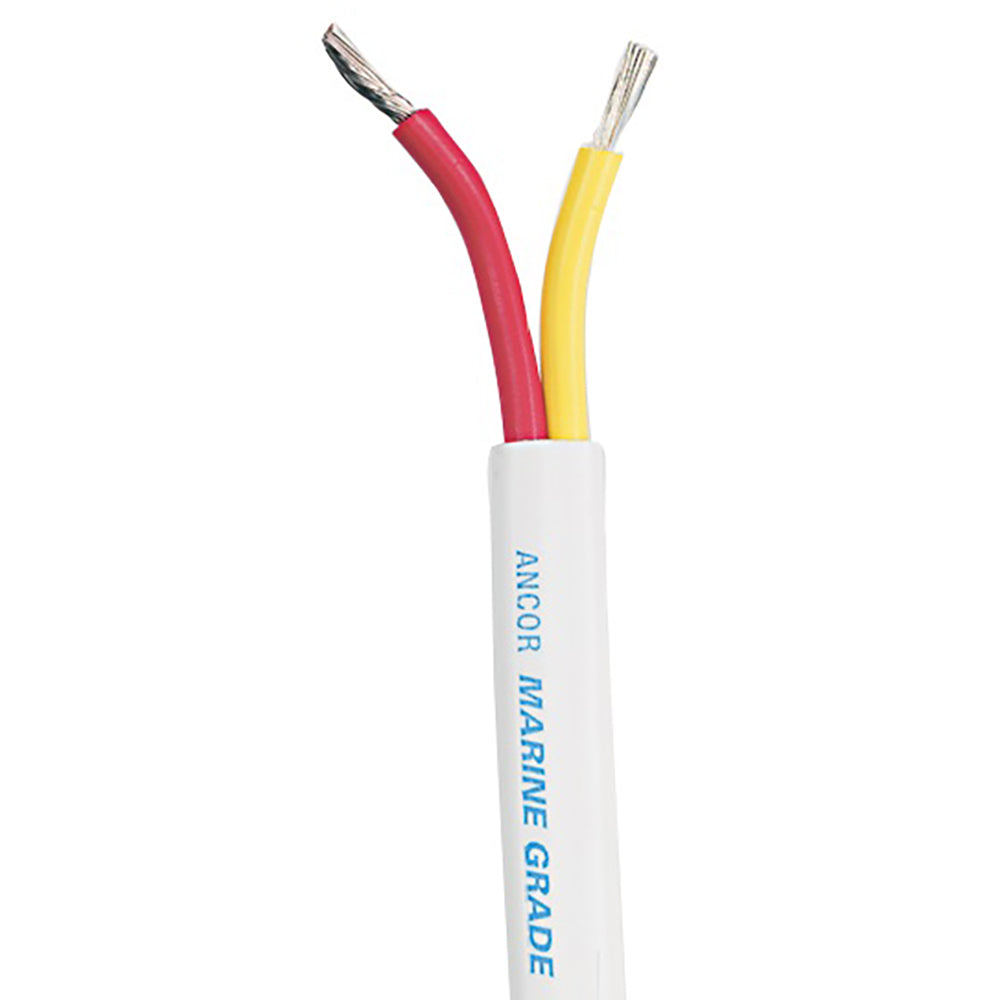

Safety Duplex Cable - 10/2 AWG - Red/Yellow - Flat - 400'

Ancor safety duplex cable features red and yellow Marine Grade primary
conductors (correctly color-coded to ABYC standards) in a white common
jacket that is made for easy removal while providing the best abrasion
resistance available. These cables exceed UL 1426 standards and are made
from the highest quality ultra flexible (Type 3/Class K) tinned copper
stranding that provides maximum protection against corrosion and
electrolysis while resisting fatigue due to vibration and flexing. The
premium vinyl insulation is rated at 600V, 105°C dry and 75°C wet, stays flexible even in extreme cold (-40°F/C) and resists salt water,
battery acid, oil, gasoline, heat, abrasion and ultra-violet radiation.

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Color: Red/Yellow
• Length (Feet): 400'
• Gauge: 10/2 AWG
• Box Dimensions: 11"H x 11"W x 11"L WT: 44 lbs
• UPC: 091887805888

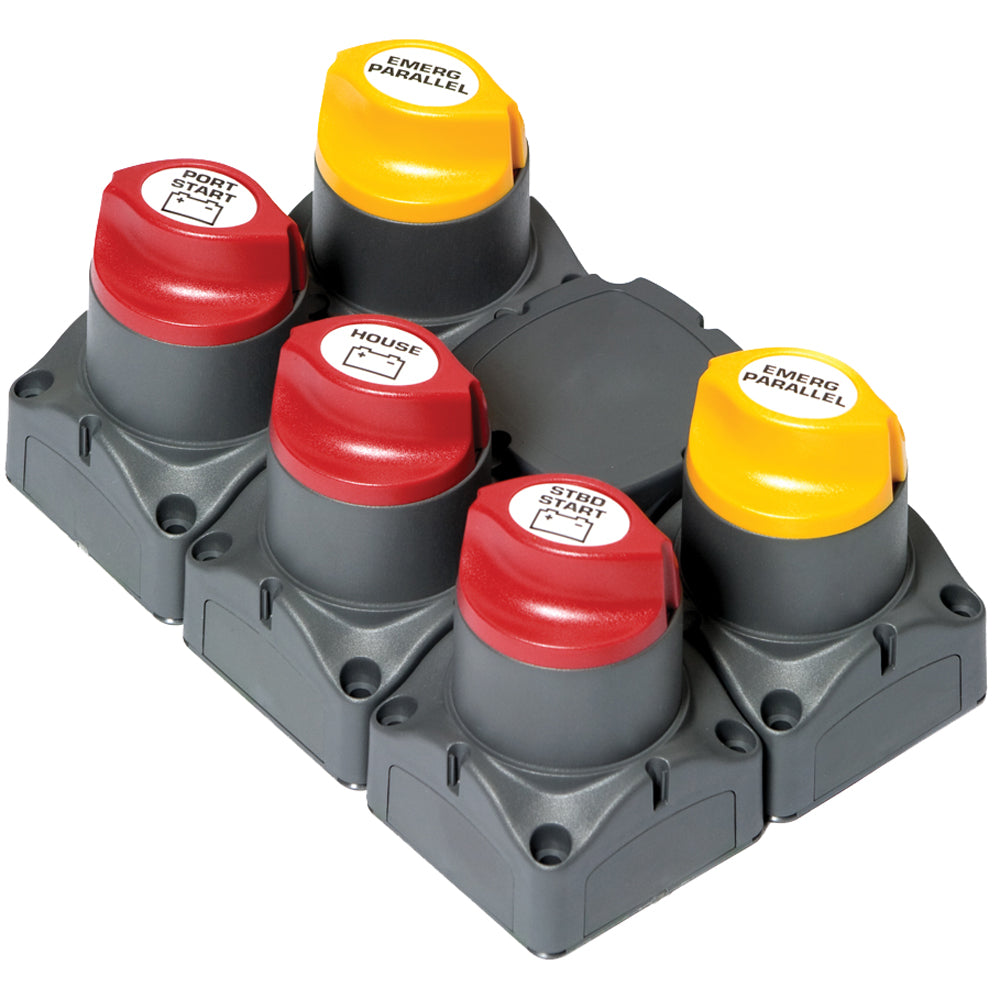

Twin Outboard Engine, Three Battery Banks w/Motorized VSR

The VSR and Emergency parallel switch are combined into one voltage-sensitive switch, and that switch is able to be remote-operated. The layout allows all cables to be attached from the bottom of the cluster.

• Offers the same features as the 717-140A-DVSR
