Electrical

Signature Series Lithium Battery - 16V - 50AH

With a cycle life rated up to 3000 cycles, the Pro-Guide Lithium 16VM50 battery is your new favorite choice for powering your marine electronics

1. When you need power that'll last, the 16VM50 is here to support you.  Get more out of your fish finder, kayak, or other finesse applications

2. With cycle lives rated beyond 3000 cycles @ 80% DOD and a capacity of 50Ah or 800Wh, you get a battery that performs at a high level over its whole lifespan

3. With internal thread (M6) terminals, a secure connection is simple, allowing peace of mind for your time on the water

4. At only 12 lbs, this battery will efficiently power your application without weighing you down!

Power comes in small packages with the Pro-Guide Lithium 16VM50! An energy-dense pack that allows you to power big and small applications on the water!

Specifications:

• Group Size: N/A
• Voltage: 16
• Amp Hours: 50AH
• Watt Hours: 800WH
• Charge Current (Standard/Max): 10A / 25A
• Terminal Type: Internal Thread (M6)
• Weights: 11.68 lbs
• Length: 7.75"
• Width: 6.5"
• Height: 6.9"

Brochure (pdf)

Alpha Series Lithium Battery - 12V - 235AH - Group 31 (Tall)

The Pro-Guide PGL31M235-DP dual-purpose lithium battery provides outstanding performance, featuring a 235 amp-hour capacity (3008 watt-hours), a robust 200-amp BMS, and IP67-rated durability. Enhanced with Bluetooth connectivity for real-time monitoring and Pro-Boost technology that reserves 20% capacity, this battery is optimized for powerful starting and dependable deep-cycle use in marine, RV, and off-grid applications.

Specifications:

• Group Size: 31 (Tall)
• Voltage: 12
• Cold Cranking Amps (CCA): PbEq 1000 CCA
• Marine Cranking Amps (MCA): N/A
• Amp Hours: 235AH
• Watt Hours: 3008WH
• Charge Current (Standard/Max): 10-47A /117.5A
• Terminal Type: 3 x Internal Thread (M8)
• Weights: 52.91 lbs
• Length: 13.07"
• Width: 6.93"
• Height: 10.83"
• Bluetooth: Enabled
• Heating: Enabled
• NMEA2000: Compatible

Brochure (pdf)

White RG 213 Tinned Coaxial Cable - 250'

Coaxial cable is made with a premium tinned copper center conductor and a tinned copper outer braid for corrosion resistance and easy soldering. It features signal loss ratios of up to 50% less than other coaxial cables. 96% braid provides best signal strength and least interference with UV inhibited white jacket for longest life.

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Length (Feet): 250'
• Gauge: RG-213
• Color: White
• Box Dimensions: 11"H x 11"W x 11"L WT: 27.8 lbs
• UPC: 091887152104

10/240V AC  Rotary 65A OFF + 2 Sources 2x120V/1x240V

Features:

• Switches between two 120V AC shore power sources and one 240V AC source to two 120V AC load groups
• Red reverse polarity LED indicators
• Green power available LED indicators

Specifications:

• Source Selection: 2
• Niminal Voltage: 120/240V AC
• Source In: 3
• Height: 4.75"
• Width: 4.88"
• Depth: 4.50"
• Weight: 3.50lbs

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Twisted Pair w/Shield - 14/2 AWG - Round - Red/Black - 250'

Twisted pairs cable with shield are made with premium tinned copper for use in all metal boats and around sensitive electronics.

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Color: Red/Black
• Length (Feet): 250'
• Gauge: 14/2 AWG
• Box Dimensions: 11"H x 11"W x 11"L WT: 24.35 lbs
• UPC: 091887102215

Mass Sine Wave Inverter 24/800 (230V/50Hz)

For the toughest tasks
Mass Sine sine wave inverters are designed for the toughest conditions for professional, semi-professional and recreational purposes. Even under the most extreme conditions the products from the Mass Sine series operate faultlessly, giving you round-the-clock output when necessary. The sustainability and technologies that underpin the Mass concept have long been proven in practice. With an MTBF of 280,000 hours at full capacity and 24/7 use, the Mass products are ideal for the toughest tasks and any situation that requires a reliable power supply.

Making the best even better
The reliability and long lifespan of Mastervolt's sine wave inverters have been established beyond doubt over the past 20 years. While the Mass products have evolved with the latest technological developments, the dimensions and connections have remained the same. As a result it is exceptionally easy to replace one unit with another with only negligible downtime.

Mastervolt Green by Heart
As part of our constant search for eco-friendly and long-lasting solutions, Mastervolt has developed the Green by Heart programme. Its impact on the Mass Sine inverters include:

• An exceptionally effective use of the consumed input current (cos phi) > 0.98!

• Use of top quality components with a long lifespan.

• Savings in weight and space.

• Fewer installation materials.

Powerful selling points

• Capacity between 800 W and 5 kW.

• Suitable for high starting/peak loads, even up to 200% at brief consumption.

• 230V/50Hz pure sine wave voltage; no faults or humming sounds from connected equipment, not even with sensitive communication and measuring equipment.

• Fully MasterBus compatible with AC Power Analyser or MasterBus Inverter Interface.

• All Mastervolt inverters provide pure sine wave voltage to ensure seamless operation of the connected equipment. Mastervolt inverters are the best choice available.

MasterBus compatible
In combination with the MasterBus Inverter Interface or AC Power Analyser, you can easily connect every Mass Sine inverter within a MasterBus network. All you need is a single cable with one connection. Your benefits: Fast and easy installation, plus centralised monitoring, configuration and operation of your system with a MasterView panel.

Easy and safe connection
Mass products are equipped with certified industrial connection technology. The larger inverter models have internal connections, the smaller models use a cable and plug & play socket.

Automatic switching
Easy to install within a mains voltage and/or generator power system, the Mass Sine inverter can switch between sources or combine the supply using the Masterswitch or Systemswitch system.

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Inverter Cont. Output Wattage: 650w
• AC Connection Type: Hardwire
• DC Connection Type: Hardwire
• GFCI: No
• Outlet Qty: None
• Inverter Surge Rating: 1600w
• Inverter Input Voltage: 24v
• Inverter Output Voltage: 230v
• Waveform: True Sine Wave
• Box Dimensions: 8"H x 14"W x 17"L WT: 11.6 lbs
• UPC: 816882020582

Owner's Manual (pdf)
Brochure (pdf)

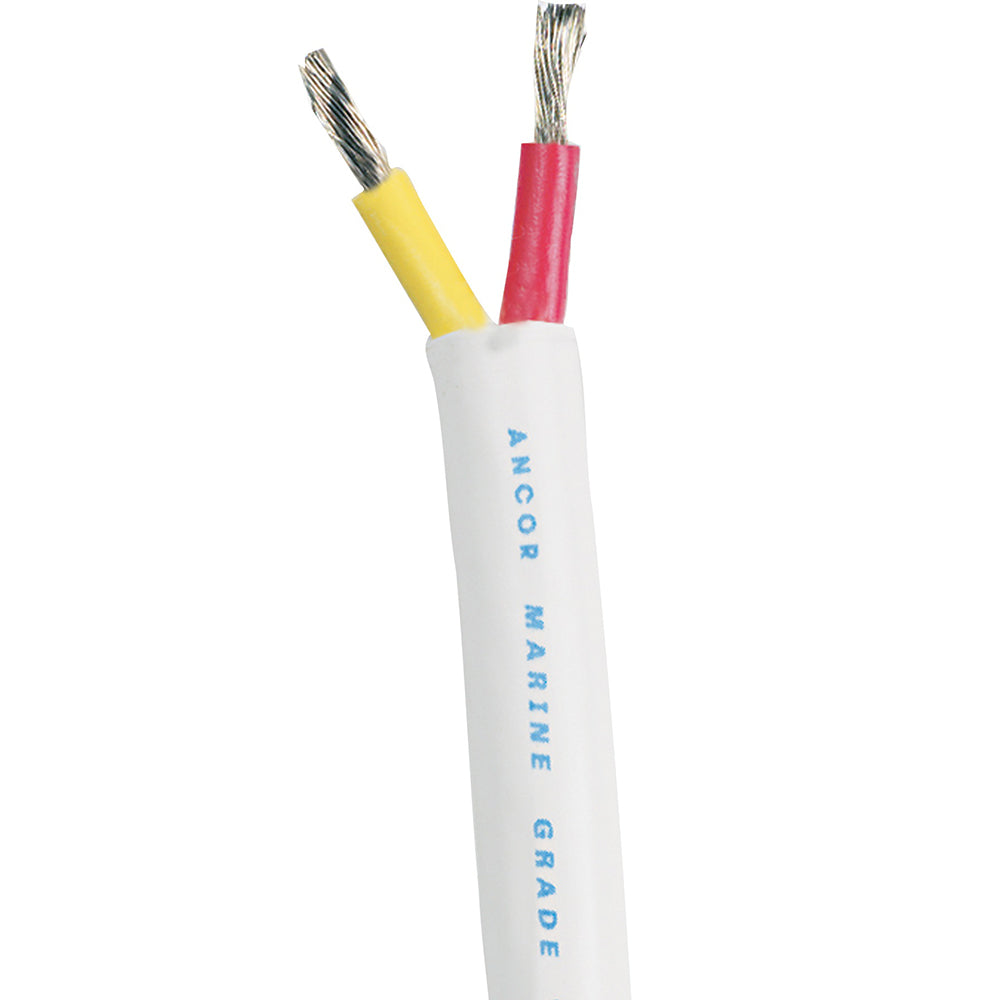

Safety Duplex Cable - 14/2 AWG - Red/Yellow - Round - 500'

Ancor safety duplex cable features red and yellow Marine Grade primary conductors (correctly color-coded to ABYC standards) in a white common jacket that is made for easy removal while providing the best abrasion resistance available. These cables exceed UL 1426 standards and are made from the highest quality ultra flexible (Type 3/Class K) tinned copper stranding that provides maximum protection against corrosion and electrolysis while resisting fatigue due to vibration and flexing. The premium vinyl insulation is rated at 600V, 105°C dry and 75°C wet, stays flexible even in extreme cold (-40°F/C) and resists salt water, battery acid, oil, gasoline, heat, abrasion and ultra-violet radiation.

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Color: Red/Yellow
• Length (Feet): 500'
• Gauge: 14/2 AWG
• Box Dimensions: 8"H x 8"W x 14"L WT: 25 lbs
• UPC: 091887806861

Safety Duplex Cable - 12/2 AWG - Red/Yellow - Round - 500'

Ancor safety duplex cable features red and yellow Marine Grade primary conductors (correctly color-coded to ABYC standards) in a white common jacket that is made for easy removal while providing the best abrasion resistance available. These cables exceed UL 1426 standards and are made from the highest quality ultra flexible (Type 3/Class K) tinned copper stranding that provides maximum protection against corrosion and electrolysis while resisting fatigue due to vibration and flexing. The premium vinyl insulation is rated at 600V, 105°C dry and 75°C wet, stays flexible even in extreme cold (-40°F/C) and resists salt water, battery acid, oil, gasoline, heat, abrasion and ultra-violet radiation.

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Color: Red/Yellow
• Length (Feet): 500'
• Gauge: 12/2 AWG
• Box Dimensions: 12"H x 12"W x 18"L WT: 51 lbs
• UPC: 091887806816
