Electrical

C-Series ELCI Main Circuit Breaker - Double Pole 120V AC 50A

Features:

• Provides over current and leakage protection per ABYC E-11 for whole boat shore power protection
• Meets UL 1500 external ignition protection requirements
• Trips on short circuit, overload, or leakage to ground
• Front panel mount—installed in a power distribution panel

Specifications:

• Amperage: 50A
• Actuator Style: Flat Rocker
• Poles: 2
• Ignition Protected: Yes
• Max Voltage: 120VAC per pole
• Circuit Breaker Type: Magnetic Hydraulic - trip free
• Interrupt Capacity: 5000A
• Minimum Operating Temperature: -35 degrees C
• Max Operating Temperature: 66 degrees C
• Leakage Trip Amps: 30mA

PowerCombi Pure Sine Wave Inverter/Charger - 12V - 2000W - 100 Amp Kit

Simple. Independent. Flexible.

The PowerCombi is a pure sine wave inverter/charger offering grid quality AC power and battery charging in one low profile design. Designed to be an independent inverter/charger, it yet can easily be integrated into a MasterBus network (with additional interface).

With a built-in transfer switch, 2x surge for 3 seconds and on-site dipswitch programming—the PowerCombi offers simple installation with multiple operating modes, and can charge various battery chemistries—including a custom profile for use with Li-ion.

Full certifications make it perfect for use in RV's, boats, and specialty vehicles. Add a battery temperature sensor (BTS), remote display and a communication interface for custom applications.

Features:

• Input voltage range: 10-15.5V DC
• Includes temperature sensor and powercombi remote
• Can be used with Flooded, Gel, AGM and custom battery types
• MasterBus compatible via CZone - MasterBus Interface

Specifications:

• Amperage: 100 Amps
• Amperage Draw at Rest: 3 Amps (idle power)
• Multi Bank Chargers: 1 Bank
• Output Wave Form: Pure Sine Wave
• Type: Inverter/Charger
• Voltage: 12V DC

Intellian Skew Assembly S6HD [S2-6331]

Skew Assembly

Intellian's Skew Assembly for S6HD.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Lithium Battery 12VDC 200Ah Smart LiFePO4

Lithium-iron-phosphate (LiFePO4 or LFP) is the safest of the mainstream li-ion battery types. The nominal voltage of an LFP cell is 3,2V (lead-acid: 2V/cell). A 12,8V LFP battery, therefore, consists of 4 cells connected in series; and a 25,6V battery consists of 8 cells connected in series.

Lithium Batteries require additional components during installation to make the system operate properly. These should be professionally installed to help avoid costly non-warranty failures.

Rugged

A lead-acid battery will fail prematurely due to sulfation:

• If it operates in deficit mode for long periods of time (i.e. if the battery is rarely, or never at all, fully charged).
• If it is left partially charged or worse, fully discharged (yacht or mobile home during wintertime). An LFP battery does not need to be fully charged. Service life even slightly improves in case of a partial charge instead of a full charge. This is a major advantage of LFP compared to lead acid.
• Other advantages are the wide operating temperature range, excellent cycling performance, low internal resistance, and high efficiency (see below).
  LFP is therefore the chemistry of choice for very demanding applications.

Efficient

In several applications (especially off-grid solar and/or wind), energy efficiency can be of crucial importance. The round trip energy efficiency (discharge from 100% to 0% and back to 100% charged) of the average lead-acid battery is 80%. The round trip energy efficiency of an LFP battery is 92%. The charge process of lead-acid batteries becomes particularly inefficient when the 80% state of charge has been reached, resulting in efficiencies of 50% or even less in solar systems where several days of reserve energy are required (battery operating in 70% to 100% charged state). In contrast, a LFP battery will still achieve 90% efficiency under shallow discharge conditions.

Size & Weight:

Saves up to 70% in space. Saves up to 70% in weight.

Expensive?

LFP batteries are expensive when compared to lead-acid. But in demanding applications, the high initial cost will be more than compensated by longer service life, superior reliability and excellent efficiency.

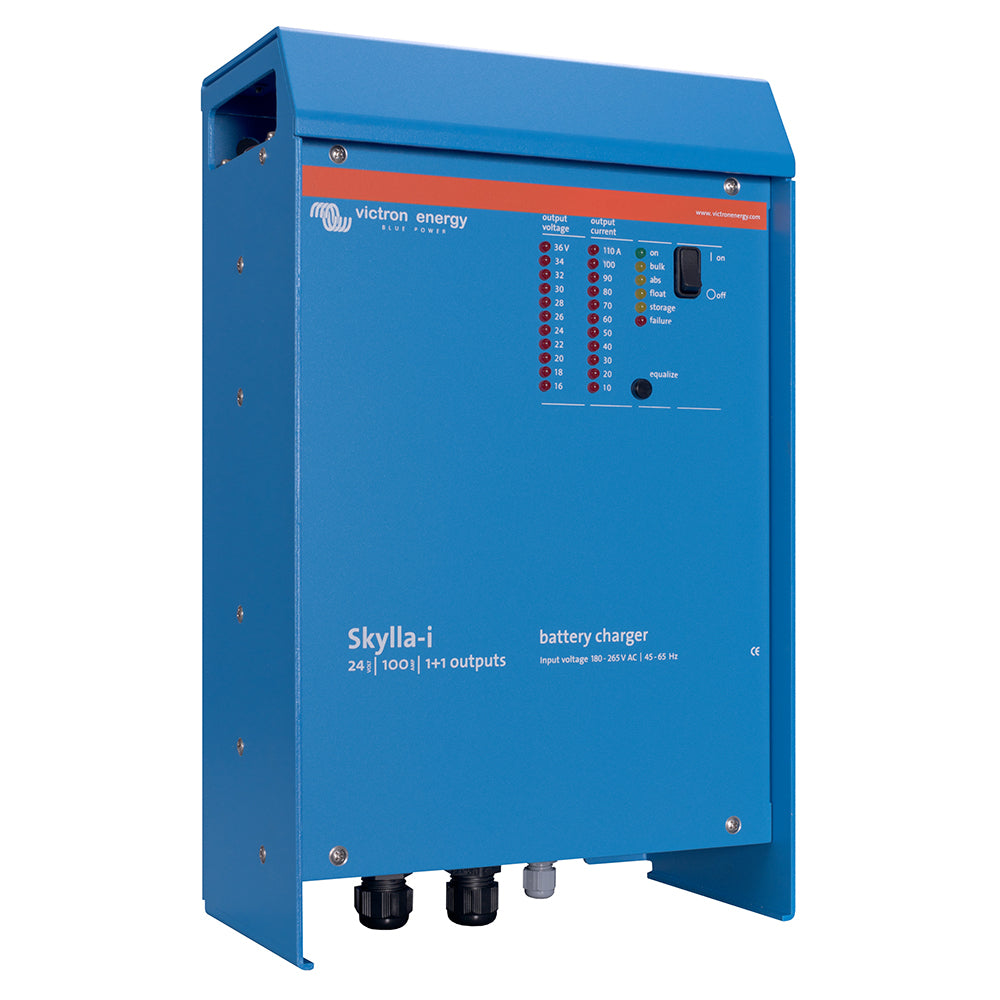

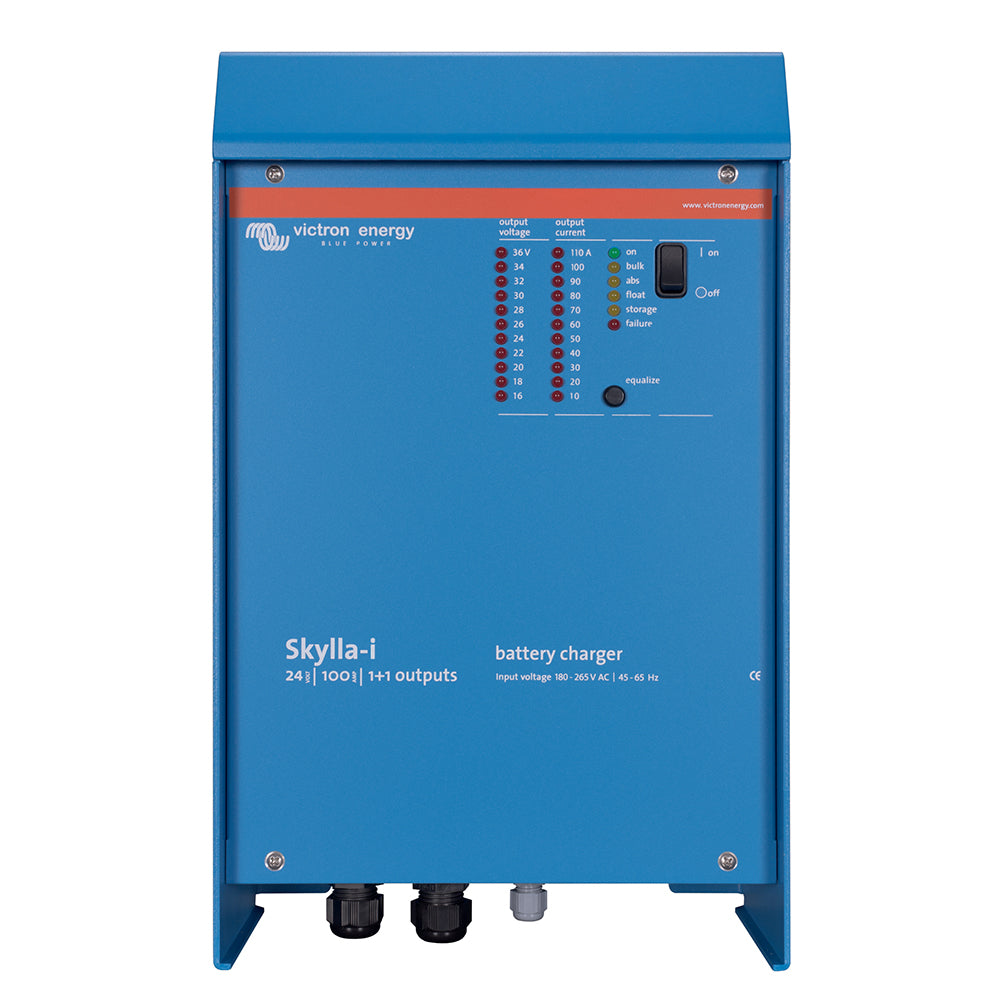

Skylla-i Charger - 24 VDC - 100AMP - 2-Bank - 230 VAC

Features:

• Skylla-i (1+1): two outputs to charge 2 battery banks. The Skylla-i (1+1) features 2 isolated outputs. The second output, limited to approximately 4 A and with a slightly lower output voltage, is intended to top up a starter battery.
• Rugged Aluminium epoxy powder-coated cases with drip shield and stainless steel fixings withstand the rigors of an adverse environment: heat, humidity, and salt air. Circuit boards are protected with an acrylic coating for maximum corrosion resistance. Temperature sensors ensure that power components will always operate within specified limits, if needed by automatic reduction of output current under extreme environmental conditions.
• Flexible Next to a CAN bus (NMEA2000) interface, a rotary switch, DIP switches, and potentiometers are available to adapt the charge algorithm to a particular battery and its conditions of use. Please refer to the manual for a complete overview of the possibilities.
• Synchronized parallel operation. Several chargers can be synchronised with the CAN bus interface. This is achieved by simply interconnecting the chargers with RJ45 UTP cables. Please see the manual for details.
• The right amount of charge for a lead-acid battery: variable absorption time. When only shallow discharges occur, the absorption time is kept short to prevent overcharging of the battery. After a deep discharge, the absorption time is automatically increased to make sure that the battery is completely recharged.
• Preventing damage due to excessive gassing: the BatterySafe mode. If, to quickly charge a battery, a high charge current in combination with a high absorption voltage has been chosen, the Skylla-i will prevent damage due to excessive gassing by automatically limiting the rate of voltage increase once the gassing voltage has been reached.
• To increase battery life: temperature compensation. Every Skylla-i comes with a battery temperature sensor. When connected, the charge voltage will automatically decrease with increasing battery temperature. This feature is especially recommended for sealed lead-acid batteries and/or when important fluctuations of battery temperature are expected.
• Battery voltage sense. In order to compensate for voltage loss due to cable resistance, the Skylla-i is provided with a voltage sense facility so that the battery always receives the correct charge voltage.
• Suitable for AC and DC supply (AC-DC and DC-DC operation). The chargers also accept a DC supply.
• Use as a power supply. As a result of the perfectly stabilized output voltage, the Skylla-i can be used as a power supply if batteries or large buffer capacitors are not available.
• Li-Ion (LiFePO4) ready Simple charger on-off control can be implemented by connecting a relay or open collector optocoupler output from a Li-Ion BMS to the remote control port of the charger. Alternatively, complete control of voltage and current can be achieved by connecting to the galvanically isolated CAN bus port.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Charger Output Voltage: 24v
• Charger Output - Amps: 100a
• Charger Input - Voltage: 185-265v
• Charging Banks: 1+1
• Portable: No
• Box Dimensions: 10"H x 13"W x 20"L WT: 18.5 lbs
• UPC: 8719076026242

Phoenix Inverter 12/3000 - 230V - VE. BUS

Pure sine wave output, high peak power, and high efficiency. Combined high-frequency and line-frequency technologies ensure the best of both worlds.

SinusMax - Superior Engineering

Developed for professional duty, the Phoenix range of inverters is suitable for the widest range of applications. The design criteria have been to produce a true sine wave inverter with optimized efficiency but without compromising in performance. Employing hybrid HF technology, the result is a top-quality product with compact dimensions, light in weight, and capable of supplying power, problem-free, to any load.

Parallel & 3-Phase Operation Capability

Up to 6 Phoenix Inverters can operate in parallel to achieve higher power output. Six 24V 5000VA units, for example, will provide 24kW / 30kVA output power. Operation in a 3-phase configuration is also possible.

Quattro Inverter/Charger 24 VDC - 5000W - 200AMP Battery Charger, 50AMP Transfer Switch

THIS PRODUCT MUST SHIP TRUCK FREIGHT AND DOES NOT QUALIFY FOR ANY SHIPPING PROMOTIONS

Features:

• Two AC Inputs & two AC Outputs - The Quattro can be connected to two independent AC sources, for example shore-side power and a generator, or two generators. The Quattro will automatically connect to the active source. The main output has no-break functionality. In the event of a grid failure, or shore or generator power being disconnected, the Quattro takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption. The second output is live only when AC is available on one of the inputs of the Quattro. Loads that should not discharge the battery, such as air-conditioning or a water heater can be connected to this output.
• Unique PowerAssist feature - The Quattro will prevent overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shore side supply with power taken from the battery.
• Virtually unlimited power thanks to parallel operation -Up to 6 Multis can operate in parallel to achieve higher power output. Three phase or split phase operation is also possible. Please check our datasheets to see which models have paralleling, three phase and split phase capabilities.
• Remote Monitoring and Control - Monitor and control your MultiPlus and system or systems' locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, via the required Color Control GX or Venus GX, from adjusting your MultiPlus to setting a Geofence for hire vehicles and more...

Warranty Info

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Outlet Qty: None
• Inverter Output Voltage: 120v
• Inverter Input Voltage: 19-33v
• Inverter Cont. Output Wattage: 5000w
• Charger Output Voltage: 24v
• Charger Output - Amps: 120a
• Charger Input - Voltage: 94-140v
• Charging Banks: 1+1
• Box Dimensions: 14"H x 17"W x 21"L WT: 78 lbs
• UPC: 8719076024187

SmartPlug SmartPlug/15 AMP Cordset - 50 [C15503]

SmaetPlug/15 AMP Cordset - 50'

This 30 AMP Female SmartPlug to 15 AMP Male Standard Wall Plug (3-pin connector) cordset comes with a Cool Blue LED Power indicator light that glows when power is on.  This cord set provides a super flexible cord that can be tightly coiled even in cold weather.

Features:

• Multi-Point Locking System – Side clips lock the plug body securely into the inlet which eliminates any stress on the electrical connection from the movement of the power cord.
• Weatherproof Seals - Silicone gaskets installed in the interior of the plug body eliminate any water penetration when plug is connected to inlet.

Technical Specifications:

• Length - 50'
• Color - Orange
• Boatside Connection - 30 AMP/115 V Female SmartPlug
• Dockside Connection - 15 AMP/115 V Male Standard Wall Plug

*Sold as an Individual

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Voltage: 115v
• Type: Cordset
• Length: 50'
• Amperage: 30/15a
• Box Dimensions: 6"H x 13"W x 13"L WT: 13.8 lbs
• UPC: 682500440076

Owner's Manual (pdf)
