Electrical

Zeus A225S 3.15 Alternator with Isolated Ground & Terminal Block

The highest power output alternator in its size/class.

Features:

• Engineered for high energy production.
• Suitable for marine, RV, military, and commercial applications.
• Rapidly charges large battery banks.
• Coolest operating temperatures for increased performance, running 8-20% cooler than incumbent alternators due to:
• Heat shedding coatings
• Rectifier located on housing exterior
• Dual cooling fans
• OEM components
• Optimized for performance at idle speeds.
• Reduces the need for a generator by creating additional power with your engine.
• Unleash peak performance with E-Coat/Cerakote. Our advanced coating absorbs less heat, keeping the A225S cooler for sustained amperage output.
• Use the ARCO Zeus Bluetooth Alternator Regulator for maximum performance or lithium battery charging.
• SAE J1171 Certified.
• Models are available with an internal/external voltage regulator.
• Proudly made in the U.S.A.

Technical Specifications:

• Voltage - 12v
• Field Type - P
• Rotor Poles - 16
• Stator Size - 130mm
• Frame Size - Small
• Weight - 12 lbs/5.4 kg
• Regulation - Internal/External (Internally regulated with adaptor for optional external regulation.)
• Output Voltage - 14.1v (Default)
• Finish - (Black) Cerakote or E-coating
• Cut-In RPM - 1,061 Alternator RPM
• Maximum Alt RPM - 19,000
• Battery Post - M8 Thread Post, Side Mount
• Standard Pulley - 49K6 (6-groove, 49mm)
• Pulley Mount - 17mm diameter shaft, 25mm long, threaded M17 x 1.5
• Pulley Hardware - M17 x 1.5 x 24mm nut, w/ 18mm ID x 29mm OD washer (Included)
• Diodes - 6 positive, 6 negative, 50A Rated, Avalanche
• Max Output (Cold, 9,000 RPM) - 254 Amps
• Sustained Cruising Output (Hot, 6,000 RPM) - 187 Amps
• Sustained Idle Output (Hot, 3,000 RPM) - 157 Amps
• Max Continuous Operating Temperature - 110°C / 230°F

Mounting Application:

• Replaces most small case styles using a 3.15" saddle style mount (e.g., Hitachi, Lucas, Mitsubishi). Most Yanmars. Requires Standard single "V" belt upgrading to a Serpentine System

SmartPlug 50 AMP Dual Configuration Cordset - 25  [C50254]

50 AMP Dual Configuration Cordset - 25'

For many years boaters have experienced the safety, security and simplicity of SmartPlug products on the boatside while still dealing with the same old issues created by legacy twist-type products on the dockside.  Those days are changing with the introduction of SmartPlug's new dockside product offering.  SmartPlug has applied decades of experience and customer feedback to create a product that allows you to upgrade your shore power connection with SmartPlug technology.

The 50 AMP 125/250 V cordset provides a complete weatherproof power solution. The cordset includes the SmartPlug connector for the Boat Side and a Twist Type Dockside connector.

Features:

• Multi-Point Locking System - Side clips lock the body securely into the inlet, which eliminates any stress on the electrical connection from movement of the power cord.
• Weatherproof Seals - Silicone gaskets installed in the interior of the plug body eliminate any water penetration when plug is connected to inlet.
• LED Power Indicator Light – On the top of all SmartPlug female ends, two LED indicator lights.  One Red and one Blue LED light for Safe/Unsafe Electrical Power Indication under Reverse Polarity Conditions.
• Tinned Wire – All SmartPlug marine cords have tinned wire to minimize corrosion.

Technical Specifications:

• Length - 25'
• Color - Orange
• Boatside Connection - 50 AMP/125/250 V SmartPlug
• Dockside Connection - 50 AMP/125/250 V Twist Type Plug

*Sold as an Individual

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Amperage: 50a
• Length: 25'
• Type: Cordset
• Voltage: 125/250v
• Box Dimensions: 9"H x 19"W x 19"L WT: 23 lbs
• UPC: 682500440151

Owner's Manual (pdf)

12 kVA Isolation Transformer

ASEA’s Isolation Transformer is a drop-in replacement for Charles IsoG2, designed to protect vessel under-fittings from galvanic corrosion and to shield onboard electronics from reverse polarity and shore power fluctuations. It also ensures safety by preventing the boat from sending unintended electric currents into the surrounding water.

Features:

• Ignition-protected, safe for gasoline-powered vessels
• Complete Electrical Isolation prevents dockside ELCI breaker trips
• Maintains a safer marine environment by mitigating the risk of ESD
• Ensures clean and stable AC power for on-board equipment
• Reduces galvanic corrosion
• Meets the latest NEC 555.35 marina code that ensures GFPE limits are not exceeded

Specifications:

• Input Voltage: 240VAC
• Input Current: 50 A
• Output Voltage: 240VAC
• Output Current: 50 A
• Output Frequency: 60 Hz
• Weight 160 lbs
• Height: 27cm / 10.6 in
• Width: 26cm / 10.2 in
• Width (with flange): 33 cm / 13 in
• Depth: 26.7 cm / 10.5 in

Certifications:

• ABYC E-11 Compliant
• ABYC C-1500 (for ignition protection)
• UL 1500 (for ignition protection)
• UL 1561

MultiPlus Compact 12/2000/80-150 120V VE.Bus UL Approved

The MultiPlus, as the name suggests, is a combined inverter and charger in one elegant package. Its many features include a true sine wave inverter, adaptive charging, hybrid PowerAssist technology, plus multiple system integration features.

Unique PowerAssist Feature

The MultiPlus will prevent the overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shoreside supply with power taken from the battery.

Uninterrupted AC Power (UPS Function)

In the event of a grid failure, or when shore or generator power is disconnected, the inverter within the Multi is automatically activated and takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption.

Virtually Unlimited Power Thanks To Parallel Operation

Up to 6 Multis can operate in parallel to achieve higher power output. Three-phase or split-phase operation is also possible. Please check our datasheets to see which models have paralleling, three-phase, and split-phase capabilities.

Remote Monitoring & Control

When coupled with a GX device (e.g. Cerbo GX) you can monitor and control your Multi and system or systems locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop, or PC for multiple operating systems. There is no end to the level of control, from adjusting your Multi to auto-starting a backup generator and more…

Samlex 25A Battery Charger - 24V - 2-Bank - 3-Stage w/Dip Switch  Lugs - Includes Temp Sensor [SEC-2425UL]

25A Battery Charger - 24V - 2-Bank - 3-Stage w/Dip Switch & Lugs - Includes Temp Sensor

This advanced fully automatic three-stage 25 Amp battery charger is ideal for charging all types of 24 Volt lead-acid batteries ( Flooded / Absorbed Glass Mat (AGM) / Gel Cell) from a 120 V, 60 Hz or 230 V, 50 Hz AC source. By means of a DIP switch setting, conversion to a two-stage algorithm is possible to charge batteries connected to a DC load (DC UPS). The unit can also be used as a DC Power Supply. Features include overload, short-circuit, reverse polarity and thermal overload protection. The unit allows charging of up-to 2 separate battery banks.

Features:

• Switch mode technology for high efficiency, lightweight and quiet operation
• Automatic operation for ALL Lead Acid Batteries Flooded, AGM or Gel Cell
• Can charge 2 banks of batteries simultaneously, no isolator necessary
• Can be used as a power supply or DC UPS when used in conjunction with a battery
• User Configurable AC Input voltage 120 or 230 VAC, 50 / 60 Hz
• User Selectable ( by DIP Switch) for 2 or 3 stage, rapid and safe charging of standalone and loaded Lead Acid Batteries
• “Half Power Mode” reduces maximum charging current to half the rated capacity, allows for safe charging of lower capacity batteries
• Voltmeter and Ammeter for monitoring
• Fan cooled based on output current
• Protections: Short circuit, overload, reverse battery connection and over temperature
• Includes temperature sensor to prevent under/overcharging of battery if temperature varies extensively

Specifications:

• Input: 120 VAC or 230 VAC
• Output: 24 VDC
• Amps: 25
• Remote Control: 900-RC
• Weight: 9 (lbs)
• Weight: 4.1 (kg)
• Dimensions: 13.03 x 9.6 x 3.82 (in)
• Dimensions: 331 x 244 x 97 (mm)
• Safety: Listed to UL Standard UL-1564, EMI Compliant to FCC Part 15(B), Class B
• Warranty: 2 Year Limited

Applications:

• Test bench
• Automotive
• Marine
• Communications sites
• Battery back-up systems
• Hobby

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Charger Output Voltage: 24v
• Charger Output - Amps: 25a
• Charging Banks: 2
• Portable: No
• Charger Input - Voltage: 120/240v
• Box Dimensions: 6"H x 11"W x 17"L WT: 11 lbs
• UPC: 622988083068

Owner's Manual (pdf)
Brochure (pdf)

These inverters provide AC power source onboard trucks, RVs and boats. Featuring high surge capability, they are ideal for users who may need to power multiple loads such as appliances, power tools and other onboard electronics at the same time. The NEW XPower Inverters are certified to CSA standard C22.2 No. 107.1-01 and UL 458.

Mobile Power for Trucks, RVs and Boats

XPower Inverters connect easily to 12 volt batteries to provide AC power for a variety of medium to heavy duty applications. Designed for easy installation and operation, the XPower inverters provide a reliable source of power onboard trucks, RVs and boats to run home appliances, consumer electronics, entertainiment systems, power tools, office equipment and much more. They are also suitable for small contractors who need to operate handheld power tools from their van or pick-up truck. All models meet the stringent UL458 regulatory requirements.

Product Features:

• Portable power for AC products

• Two GFCI AC receptacles for connecting multiple loads

• High surge capacity for products that require more power to start

• High efficiency - converts virtually all the battery's available power to AC

• Mounting brackets for convenient installation

• Heavy duty stud connectors

• Remote on/off switch included


• Overload and over temperature shutdown

• Over voltage protection (15.0 VDC)

• Low voltage alarm (11.0 VDC)

• Low voltage cut-out (10.5 VDC)


• Household Appliances: compact microwave ovens, bread makers, food processors, small bar refrigerators, small vacuum cleaners, fluorescent and incandescent lights, sewing machines and fans

• Handheld Power Tools: drills, jigsaws, sanders and buffers

• Entertainment Electronics: televisions, VCRs, video games, stereos, musical instruments and satellite equipment

• Office Equipment: computers with 17" monitors, facsimile machines


  WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) which is known to the State of California to cause cancer, and Di-isodecyl Phthalate (DIDP) which is known to the State of California to cause reproductive harm. For more information go to P65Warnings.ca.gov.

  Specifications:

  • DC Connection Type: Hardwire
  • GFCI: Yes
  • Outlet Qty: 2 Duplex GFCI
  • Inverter Surge Rating: 5000w
  • Inverter Input Voltage: 12v
  • Waveform: Modified Sine Wave
  • Inverter Output Voltage: 115v +/- 5%
  • AC Connection Type: Hardwire
  • Inverter Cont. Output Wattage: 2500w
  • Box Dimensions: 8"H x 12"W x 24"L WT: 15.75 lbs
  • UPC: 715535896553

  Quick Guide (pdf)
  Owner's Manual (pdf)

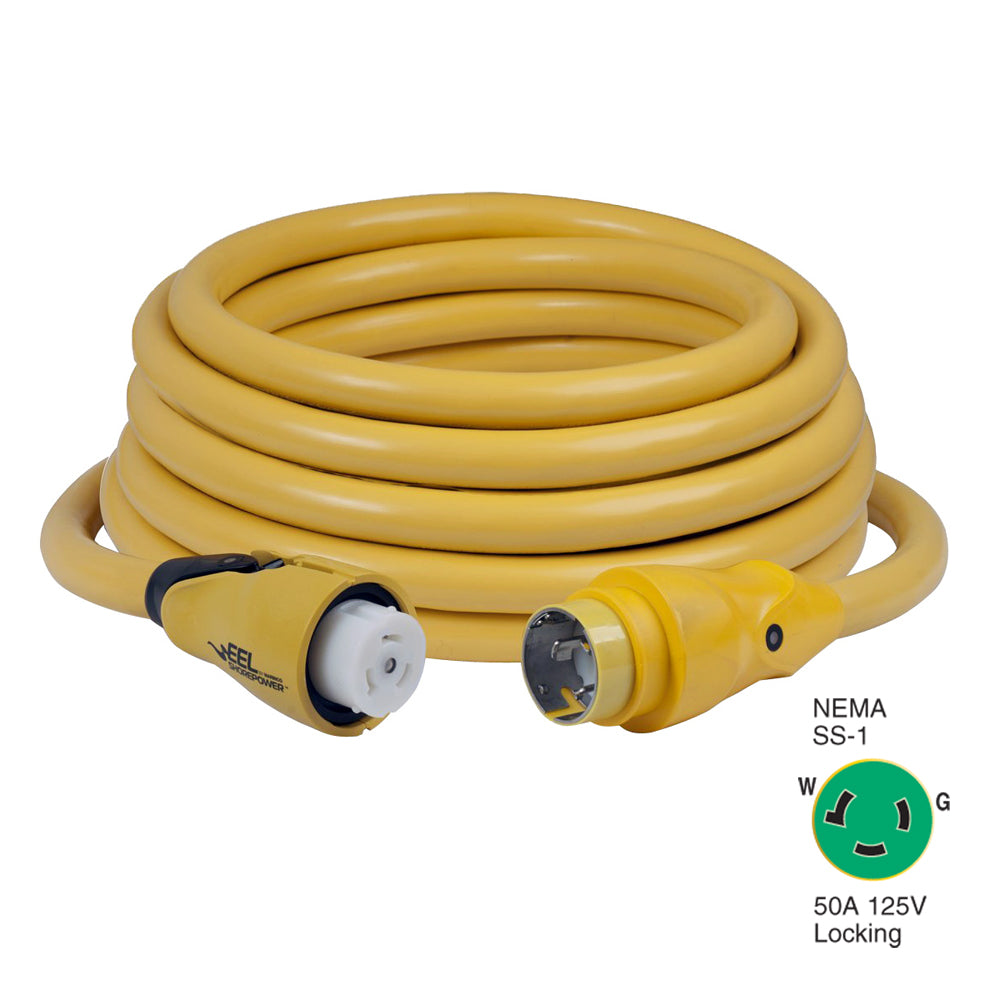

50A 125V Cordset

EEL ShorePower Cordsets
One Hand. A simple twist. Full Power.

The EEL (Easily Engaged Lock) ShorePower Cordset has an industry first, jaw-clamp design providing one-handed operation and a secure waterproof seal which completely eliminates the need for a locking ring. The EEL connection is built for the harshest environments and is UL approved. This easy-to-use cordset features a built-in cord light which serves as an alert to boaters when the cord is left plugged in. And, best of all, it works with your current inlet. In addition to cordsets with the EEL System, Marinco also has a full set of Pigtail and Y adapters all using the new EEL technology.

Features:

• Designed for use with standard inlets (NEMA)
  50A, 125V capacities; 50' length

• Cord sets meet global industry standards including ABYC and UL

• New wing-clamp technology provides a true, watertight connection every time

• Single-handed operation

• Eliminates the need for a sealing ring

• Secondary locking feature for added security

• Built-in LED cord light guides you to a secure connection every time, even in the dark

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Voltage: 125v
• Type: Cordset
• Length: 50'
• Amperage: 50a
• Box Dimensions: 9"H x 17"W x 19"L WT: 35.4 lbs
• UPC: 093344051722

4/0 AWG Black Battery Cable - 25'

Tinned Copper Stranded Wire

Battery Cable is available in all colors in accordance with ABYC standard. 600V 105°C DRY (75°C WET) and oil resistant. UL Listed Boat Cable. Made in the U.S.A.

All 4 AWG- 4/0 AWG cables are designed and manufactured for marine use with tinned copper wire for corrosion resistance and improved conductivity. The copper is annealed and finely stranded to offer flexibility and resistance to vibration to ensure reliable performance over time.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Color: Black
• Gauge: 4/0 AWG
• Length (Feet): 25'
• Box Dimensions: 6"H x 11"W x 11"L WT: 19.9 lbs
• UPC: 035514804028
