Electrical

Zeus A275L J180 4" Alternator with Isolated Ground & Terminal Block

The highest power output alternator in its size/class.

Features:

• Engineered for high energy production.
• Suitable for marine, RV, military, and commercial applications.
• Rapidly charges large battery banks.
• Coolest operating temperatures for increased performance.
• Heat shedding coatings
• Rectifier located on housing exterior
• Dual cooling fans
• OEM components
• Optimized for performance at idle speeds.
• Reduces the need for a generator by creating additional power with your engine.
• Unleash peak performance with E-Coat/Cerakote, keeping the A275L cooler for sustained amperage output.
• Use the ARCO Zeus Bluetooth Alternator Regulator for maximum performance or lithium battery charging.
• SAE J1171 Certified.
• Models available with internal/external voltage regulator.
• Proudly made in the U.S.A.

Technical Specifications:

• Voltage - 12v
• Field Type - P
• Rotor Poles - 16
• Stator Size - 138mm
• Frame Size - Large
• Weight - 14.9 lbs/6.7 kg
• Regulation - Internal/External (Internally regulated with adaptor for optional external regulation.)
• Output Voltage - 14.1v (Default)
• Finish - (Black) Cerakote or E-coating
• Cut-In RPM - 1,061 Alternator RPM
• Maximum Alt RPM - 19,000
• Battery Post - M8 Thread Post, Side Mount
• Standard Pulley - 49K6 (6-groove, 49mm)
• Pulley Mount - 17mm diameter shaft, 25mm long, threaded M17 x 1.5
• Pulley Hardware - M17 x 1.5 x 24mm nut, w/ 18mm ID x 29mm OD washer (Included)
• Diodes - 6 positive, 6 negative, 50A Rated, Avalanche
• Max Output (Cold, 9,000 RPM) - 311 Amps
• Sustained Cruising Output (Hot, 6,000 RPM) - 227 Amps
• Sustained Idle Output (Hot, 3,000 RPM) - 198 Amps
• Max Continuous Operating Temperature - 110°C / 230°F

Mounting Applications:

• Replaces most Volvo Penta alternators using a 4” J180 saddle-style mount

Black 4 AWG Battery Cable - 250'

Pacer's 4 AWG Marine Battery Cable meets and exceeds the most stringent specifications. This UL-approved marine cable is manufactured in the USA to ensure high quality.

Oftentimes, marine applications are in enclosed areas with sharp turns. Installation can become difficult. Pacer simplified this process by developing flexible yet tough marine cables. This 4 AWG marine battery cable is built to handle the harshest conditions. All our marine cable is made from Type III tinned copper. The copper resists corrosion and ensures the longevity of the cable.  It is then insulated with a durable and pliable PVC jacket. These things together make it the highest quality marine battery cable available.

Features:

• Easy to strip, bend, and route
• Excellent flexibility with the durable properties of PVC

Technical Specifications:

• Conductor - Annealed fine stranded tinned copper ASTM B172 Class K
• Insulation  -20 °C to 105 °C Flexible, Color Coded PVC
• Temperature Rating - 105 °C Dry, 75 °C Wet, 60 °C Oil
• Voltage Rating - 600V
• Resistant to - Acid, Alkali, Abrasion, Flame, Gasoline, Oil, and Moisture

*Sold as an Individual

Specifications:

• Color: Black
• Gauge: 4 AWG
• Length (Feet): 250'
• Box Dimensions: 9"H x 10"W x 10"L WT: 43.15 lbs
• UPC: 840248203814

Black 2 AWG Battery Cable - 250'

Pacer's 2 AWG Marine Battery Cable meets and exceeds the most stringent specifications. This UL-approved marine cable is manufactured in the USA to ensure high quality.

Oftentimes, marine applications are in enclosed areas with sharp turns. Installation can become difficult. Pacer simplified this process by developing flexible yet tough marine cables. This 2 AWG marine battery cable is built to handle the harshest conditions. All our marine cable is made from Type III tinned copper. The copper resists corrosion and ensures the longevity of the cable.  It is then insulated with a durable and pliable PVC jacket. These things together make it the highest quality marine battery cable available.

Features:

• Easy to strip, bend, and route
• Excellent flexibility with the durable properties of PVC

Technical Specifications:

• Conductor - Annealed fine stranded tinned copper ASTM B172 Class K
• Insulation  -20 °C to 105 °C Flexible, Color Coded PVC
• Temperature Rating - 105 °C Dry, 75 °C Wet, 60 °C Oil
• Voltage Rating - 600V
• Resistant to - Acid, Alkali, Abrasion, Flame, Gasoline, Oil, and Moisture

*Sold as an Individual

Specifications:

• Color: Black
• Gauge: 2 AWG
• Length (Feet): 250'
• Box Dimensions: 12"H x 14"W x 14"L WT: 70.4 lbs
• UPC: 840248203968

Red 2 AWG Battery Cable - 250'

Pacer's 2 AWG Marine Battery Cable meets and exceeds the most stringent specifications. This UL-approved marine cable is manufactured in the USA to ensure high quality.

Oftentimes, marine applications are in enclosed areas with sharp turns. Installation can become difficult. Pacer simplified this process by developing flexible yet tough marine cables. This 2 AWG marine battery cable is built to handle the harshest conditions. All our marine cable is made from Type III tinned copper. The copper resists corrosion and ensures the longevity of the cable.  It is then insulated with a durable and pliable PVC jacket. These things together make it the highest quality marine battery cable available.

Features:

• Easy to strip, bend, and route
• Excellent flexibility with the durable properties of PVC

Technical Specifications:

• Conductor - Annealed fine stranded tinned copper ASTM B172 Class K
• Insulation  -20 °C to 105 °C Flexible, Color Coded PVC
• Temperature Rating - 105 °C Dry, 75 °C Wet, 60 °C Oil
• Voltage Rating - 600V
• Resistant to - Acid, Alkali, Abrasion, Flame, Gasoline, Oil, and Moisture

*Sold as an Individual

Specifications:

• Color: Red
• Gauge: 2 AWG
• Length (Feet): 250'
• Box Dimensions: 12"H x 14"W x 14"L WT: 71.7 lbs
• UPC: 840248204002

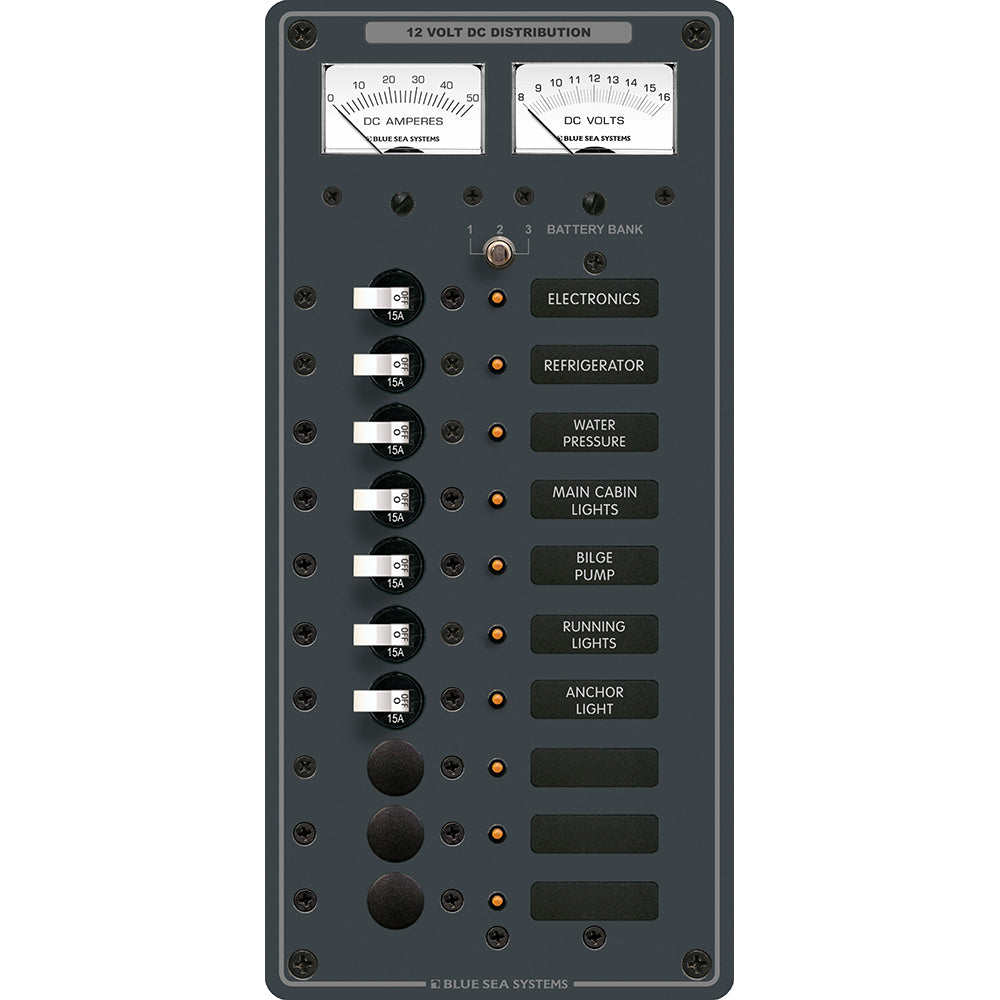

8082 DC 10 Position Toggle Branch Circuit Breaker Panel

Features:

• All positive, negative and grounding buses installed, fully pre-wired
• Includes set of 30 common DC labels
• Label backlighting pre-installed
• All LEDs installed
• Detailed installation instructions and cutout template
• 8028, 8-16 Volt DC Micro Voltmeter
• 8041, 0-50 Amp DC Micro Ammeter
• Owner upgradeable to 24 Volts DC with 8243, 10-32 Volt DC Micro Voltmeter
• 7 15A Single Pole circuit Breakers

Specifications:

• Positions: 10
• Nominal Voltage: 12v DC
• Maximum Amperage: 50A
• Height: 11.25"
• Width: 5.25"
• Depth: 2.5"
• Weight: 3.35 lbs

Included:

• (7) 7210 A-Series White Toggle Circuit Breaker - Single Pole 15A
• (1) 8030 Basic DC Panel Label Set - 30 Labels
• (1) 8028 DC Micro Voltmeter - 8 to 16V DC (Meter)
• (1) 8041 DC Micro Ammeter - 0 to 50A w/ Shunt (Meter)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Max Breaker Quantity: 10
• AC/DC: DC
• Voltage: 12v
• Box Dimensions: 5"H x 10"W x 13"L WT: 3.3 lbs
• UPC: 632085080822

Power Inverters
PROsine 1800

PROsine™ Inverters deliver true sine wave output that is identical to AC power supplied by your utility. This clean output makes PROsine™ Inverters ideal for handling sensitive loads, while also improving AC equipment performance. Designed for recreational and industrial applications, expect the best performances from televisions, audio systems, speed tools, and any other electronics where you want nothing but the most optimal performance.

Product Description
Providing 1800 watts of sine wave AC power from a DC source

Offering superior quality true sine wave output, the Prosine 1800 stand-alone power inverters are ideally suited for electrical systems that already have a quality multistage battery charger. Designed for recreational and industrial applications, their 120-volt, 60 Hz AC power output is capable of handling both heavy duty and smaller, multiple AC loads. Prosine inverters include a backlit LCD display panel, which can be mounted remotely.

Product Features:
1800W inverter (2900 watt surge capability)
True sine wave AC output (crystal controlled)
Removable LCD display can be mounted remotely for control and monitoring
Unique DC terminals offer 180-degree connections for easy installation in tight places
Powersave mode draws only 1.5 watts under no load
Two year warranty

Protection Features:
Over temperature shutdown and automatic overload protection
Over voltage and under voltage protection
Short circuit and AC backfeed protection

Options:
Available in 24 volt model
Models available with GFCI AC outlet or AC hardwire terminal strip for permanent installation into an electrical system (optional 15 A transfer switch available with hardwire option)
Remote interface kit for remote mounting of display module
Ultra-clean true sine wave power

With less than 3% total harmonic distortion, Prosine 1800 inverters deliver true sine wave output that is identical to AC power supplied by your utility. This clean output makes Prosine inverters ideal for handling sensitive loads and improves AC equipment performance. Expect trouble-free true sine wave electricity for televisions, audio systems, variable speed tools, and more.

Light and Compact

PROsine power inverters are lighter and more compact than other power inverters with similar power ratings because they use high-frequency switching technology in the power conversion process.

WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) which is known to the State of California to cause cancer, and Di-isodecyl Phthalate (DIDP) which is known to the State of California to cause reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Inverter Output Voltage: 120v
• AC Connection Type: Hardwire
• DC Connection Type: Hardwire
• GFCI: Yes
• Outlet Qty: 1 Duplex GFCI
• Inverter Surge Rating: 3600w
• Inverter Input Voltage: 24v
• Waveform: True Sine Wave
• Inverter Cont. Output Wattage: 1800w
• Box Dimensions: 7"H x 13"W x 19"L WT: 18.8 lbs
• UPC: 715535618513

Newmar NP-24 Nav-Pac - 24V [NP-24]

NP-24 Nav-Pac - 24V

Marine communication and navigation electronics such as programmable data transceivers, GPS, and other microprocessor-controlled devices require clean and steady DC input power. Their sensitive circuitry is highly vulnerable to voltage drops from engine starts, noise and line spikes from alternators and motors, and noise from various other electronic devices. NAV-PAC prevents these conditions from affecting electronics.

Features:

• Prevents voltage “drop-out” during engine start and/or other high intermittent loads such as Thrusters
• Absorbs line “spikes”
• Filters out electrical interference
• Provides supplemental voltage and battery backup for up to 15 min.
• Optional remote panel (773-5037-0)

Specifications:

• Output: 24 Volt @ 15 amps max.
• Battery: Sealed Rechargeable 5.0 Amp-Hour, 5-7 years of typical life, can be replaced. A low-voltage disconnect circuit protects the battery from total discharge. Certified by DOT and IATA for shipment by air.
• Noise Filtering: Audio through 200 MHZ
• Voltage Spike Protection: Transient energy capability; 100 Joules, 4,000 amps Max (8 x 20 microseconds)
• Back-Up Power: 8A for 15 minutes, 12A for 8 minutes, and 18A for 2 minutes
• Size: 6.0 x 6.75 x 7.5 inches (13.3 X 17.14 X 19 cm)
• Weight: 8 lbs. (3.6 kg)

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Black 1/0 AWG Battery Cable - 250'

Pacer's 1/0 AWG Marine Battery Cable is designed to exceed stringent specifications. This UL-approved cable is manufactured in-house in Sarasota, FL, USA, which ensures high quality. Marine installations can occur in tight, enclosed spaces that have sharp turns where the installation process can quickly become difficult. Pacer makes the installation process easier. This is achieved by creating a flexible yet tough marine cable.

This 1/0 AWG marine battery cable can handle the toughest environments. This marine battery cable is made from Type III Class K tinned copper. The copper resists corrosion and helps to extend the life of the marine cable. Then, the cable is insulated with a durable and flexible proprietary PVC jacket. These things all come together to make the highest quality marine cable available.

Features:

• Easy to strip, bend, and route
• Excellent flexibility with the durable properties of PVC

Applications:

• Connecting battery or generator to a starter, ground, switch, windlass, inverter, or other high-amperage equipment

Characteristics:

• Conductor: Annealed stranded tinned copper ASTM B172 Class K
• Insulation: -20 °C to 105 °C Flexible, Color-Coded PVC
• Temperature Rating: 105 °C Dry, 75 °C Wet, 60 °C Oil
• Voltage Rating: 600-V
• Resistant to: Acid, Alkali, Abrasion, Flame, Gasoline, Oil and Moisture

Specifications:

• AWG: 1/0
• Color: Black
• Length: 250 ft.
• Conductor Stranding: 19x 56/0.0100
• Nom. Ins. Thickness: 0.080
• Nom. O.D.: 0.600
• Nom. Circular Mils: 106400
• Nom. MM2: 53.9
• Approximate Weight: 450 lb/m

Compliances:

• UL Standard 1426 BC-5W2
• AWM 1232/1284
• MTW
• CSA: TEW
• ABYC: E-11.15
• Coast Guard: 33 CFR part 183 Subpart 1

Specifications:

• Color: Black
• Gauge: 1/0 AWG
• Length (Feet): 250'
• Box Dimensions: 12"H x 14"W x 14"L WT: 112 lbs
• UPC: 840248204170
