Electrical - Wire

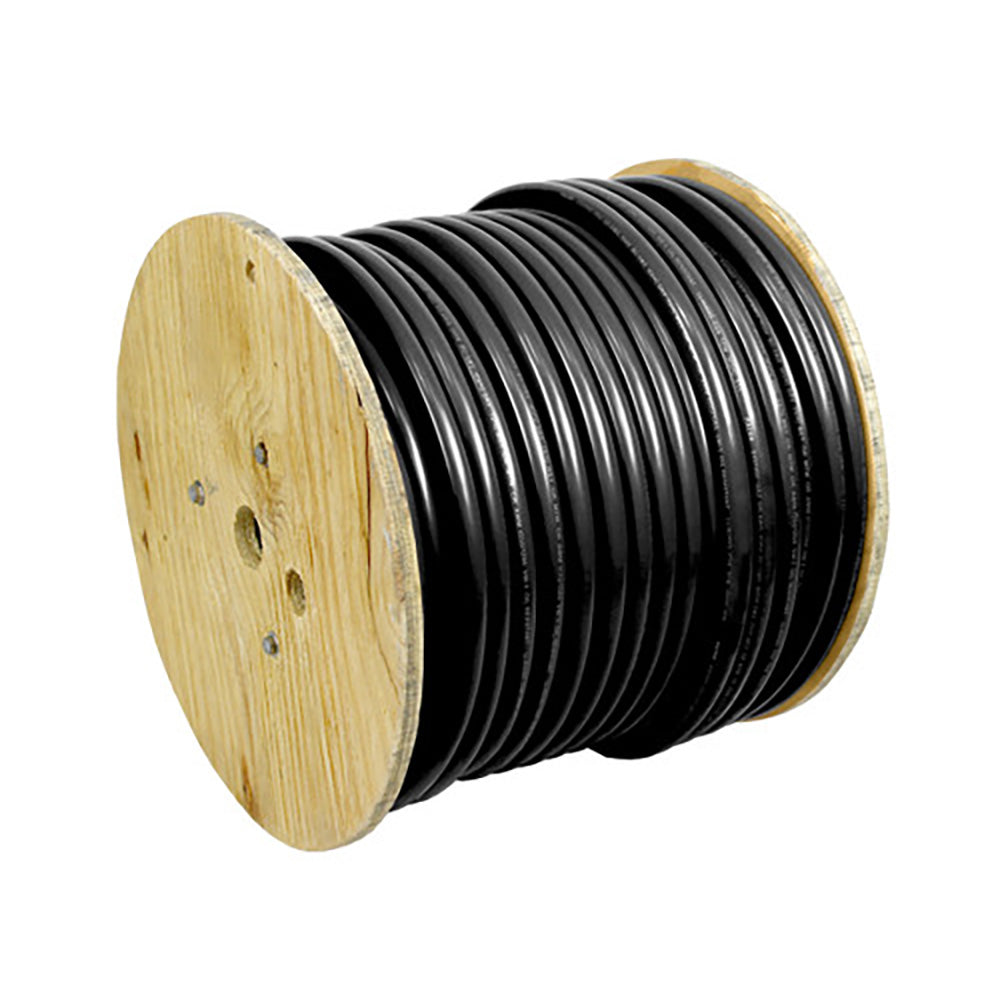

Black 1/0 AWG Battery Cable - 250'

Pacer's 1/0 AWG Marine Battery Cable is designed to exceed stringent specifications. This UL-approved cable is manufactured in-house in Sarasota, FL, USA, which ensures high quality. Marine installations can occur in tight, enclosed spaces that have sharp turns where the installation process can quickly become difficult. Pacer makes the installation process easier. This is achieved by creating a flexible yet tough marine cable.

This 1/0 AWG marine battery cable can handle the toughest environments. This marine battery cable is made from Type III Class K tinned copper. The copper resists corrosion and helps to extend the life of the marine cable. Then, the cable is insulated with a durable and flexible proprietary PVC jacket. These things all come together to make the highest quality marine cable available.

Features:

• Easy to strip, bend, and route
• Excellent flexibility with the durable properties of PVC

Applications:

• Connecting battery or generator to a starter, ground, switch, windlass, inverter, or other high-amperage equipment

Characteristics:

• Conductor: Annealed stranded tinned copper ASTM B172 Class K
• Insulation: -20 °C to 105 °C Flexible, Color-Coded PVC
• Temperature Rating: 105 °C Dry, 75 °C Wet, 60 °C Oil
• Voltage Rating: 600-V
• Resistant to: Acid, Alkali, Abrasion, Flame, Gasoline, Oil and Moisture

Specifications:

• AWG: 1/0
• Color: Black
• Length: 250 ft.
• Conductor Stranding: 19x 56/0.0100
• Nom. Ins. Thickness: 0.080
• Nom. O.D.: 0.600
• Nom. Circular Mils: 106400
• Nom. MM2: 53.9
• Approximate Weight: 450 lb/m

Compliances:

• UL Standard 1426 BC-5W2
• AWM 1232/1284
• MTW
• CSA: TEW
• ABYC: E-11.15
• Coast Guard: 33 CFR part 183 Subpart 1

Specifications:

• Color: Black
• Gauge: 1/0 AWG
• Length (Feet): 250'
• Box Dimensions: 12"H x 14"W x 14"L WT: 112 lbs
• UPC: 840248204170

8/2 AWG Duplex Cable - Flat Cable - Red/Black - 250'

Duplex Boat Cable is used in low voltage AC applications as well as DC circuits.  Pacer manufactures 8 AWG Duplex boat cable in house in the USA for the best quality.  First, the cable is built from finely stranded, Type III tinned copper conductors.  These conductors allow for flexibility and help to prevent corrosion.

The PVC jacket helps 8 AWG Duplex Boat Cable to be flexible while preventing moisture from accumulating.  How does it do that?  During the extrusion process, the spaces between wires are filled.  This leaves no space for moisture or air to accumulate.  After that, a talcum powder coating is given to the interior wires. This coating is used to allow the outer jacket to be easily removed.  Just another reason 8 AWG Duplex boat cable is perfect for marine use.

Pacer's marine wire exceeds the requirements and standards of UL, ABYC, and NMMA.

Features:

• Extruded exterior cable insulation with no gaps
• Highly flexible color coded wire insulation
• Stranded, tinned copper conductors
• Annealed Finely Stranded Tinned Copper ASTM B172 Class K
• Resistant to - Acid, Alkali, Abrasion, Flame, Gasoline, Oil, Moisture

Compliances:

• UL Standard - 1426
• U.S.C.G - 33 CFR part 183
• ABYC - E-11.14

Technical Specifications:

• Conductor - Type III annealed finely stranded tinned copper ASTM B172 Class K
• Insulation -20 °C to 105 °C flexible, color-coded PVC
• Voltage Rating - 600-V
• Resistant to - Acid, Alkali, Abrasion, Flame, Gasoline, Oil and Moisture
• No. of Conductors - 2
• Type of Cable - Duplex

*Sold as an Individual

Specifications:

• Color: Red/Black
• Gauge: 8/2 AWG
• Length (Feet): 250'
• Box Dimensions: 12"H x 14"W x 14"L WT: 54 lbs
• UPC: 840248200486

Yellow 2/0 AWG Battery Cable - 100'

Pacer's 2/0 AWG Marine Battery Cable meets and exceeds the most stringent specifications. This UL-approved marine cable is manufactured in the USA to ensure high quality.

Marine installations can occur in tight, enclosed spaces that have sharp turns where the installation process can quickly become difficult. Pacer makes the installation process easier.  How?  By creating a flexible yet tough marine cable.  This 2/0 AWG marine battery cable can handle the toughest environments.  This marine battery cable is made from Type III tinned copper.  The copper resists corrosion and helps to extend the life of the marine cable. Then, the cable is insulated with a durable and flexible PVC jacket.  These things all come together to make the highest quality marine cable available.

Features:

• Easy to strip, bend, and route
• Excellent flexibility with the durable properties of PVC

Technical Specifications:

• Conductor - Annealed fine stranded tinned copper ASTM B172 Class K
• Insulation  -20 °C to 105 °C Flexible, Color Coded PVC
• Temperature Rating - 105 °C Dry, 75 °C Wet, 60 °C Oil
• Voltage Rating - 600V
• Resistant to - Acid, Alkali, Abrasion, Flame, Gasoline, Oil, and Moisture

*Sold as an Individual

Specifications:

• Color: Yellow
• Gauge: 2/0 AWG
• Length (Feet): 100'
• Box Dimensions: 12"H x 14"W x 14"L WT: 61.2 lbs
• UPC: 840248204330

Red 2/0 AWG Battery Cable - 100'

Pacer's 2/0 AWG Marine Battery Cable meets and exceeds the most stringent specifications. This UL-approved marine cable is manufactured in the USA to ensure high quality.

Marine installations can occur in tight, enclosed spaces that have sharp turns where the installation process can quickly become difficult. Pacer makes the installation process easier.  How?  By creating a flexible yet tough marine cable.  This 2/0 AWG marine battery cable can handle the toughest environments.  This marine battery cable is made from Type III tinned copper.  The copper resists corrosion and helps to extend the life of the marine cable. Then, the cable is insulated with a durable and flexible PVC jacket.  These things all come together to make the highest quality marine cable available.

Features:

• Easy to strip, bend, and route
• Excellent flexibility with the durable properties of PVC

Technical Specifications:

• Conductor - Annealed fine stranded tinned copper ASTM B172 Class K
• Insulation  -20 °C to 105 °C Flexible, Color Coded PVC
• Temperature Rating - 105 °C Dry, 75 °C Wet, 60 °C Oil
• Voltage Rating - 600V
• Resistant to - Acid, Alkali, Abrasion, Flame, Gasoline, Oil, and Moisture

*Sold as an Individual

Specifications:

• Color: Red
• Gauge: 2/0 AWG
• Length (Feet): 100'
• Box Dimensions: 12"H x 14"W x 14"L WT: 57.1 lbs
• UPC: 840248204309

Black 2/0 AWG Battery Cable - 100'

Features:

• ANCOR Marine Grade™ wire is manufactured from tinned copper stranding for maximum protection against corrosion and electrolysis. Ultra flexible (Type 3) stranding resists fatigue due to vibration and flexing.

• ANCORs proprietary premium vinyl insulation stays flexible even in extreme cold and resists salt water, battery acid, oil, gasoline and ultra-violet radiation. Exclusive insulation is rated at 600V, 105°C dry and 75°C wet, and is resistant to heat and abrasion.

• Exceeds all UL 1426, US Coast Guard Charter boat (CFR Title 46) and ABYC standards

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Color: Black
• Length (Feet): 100'
• Gauge: 2/0 AWG
• Box Dimensions: 10"H x 11"W x 11"L WT: 54 lbs
• UPC: 091887117509

Red 2/0 AWG Battery Cable - 100'

Features:

• ANCOR Marine Grade™ wire is manufactured from tinned copper stranding for maximum protection against corrosion and electrolysis. Ultra flexible (Type 3) stranding resists fatigue due to vibration and flexing.

• ANCORs proprietary premium vinyl insulation stays flexible even in extreme cold and resists salt water, battery acid, oil, gasoline and ultra-violet radiation. Exclusive insulation is rated at 600V, 105°C dry and 75°C wet, and is resistant to heat and abrasion.

• Exceeds all UL 1426, US Coast Guard Charter boat (CFR Title 46) and ABYC standards

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Color: Red
• Length (Feet): 100'
• Gauge: 2/0 AWG
• Box Dimensions: 10"H x 11"W x 11"L WT: 49.5 lbs

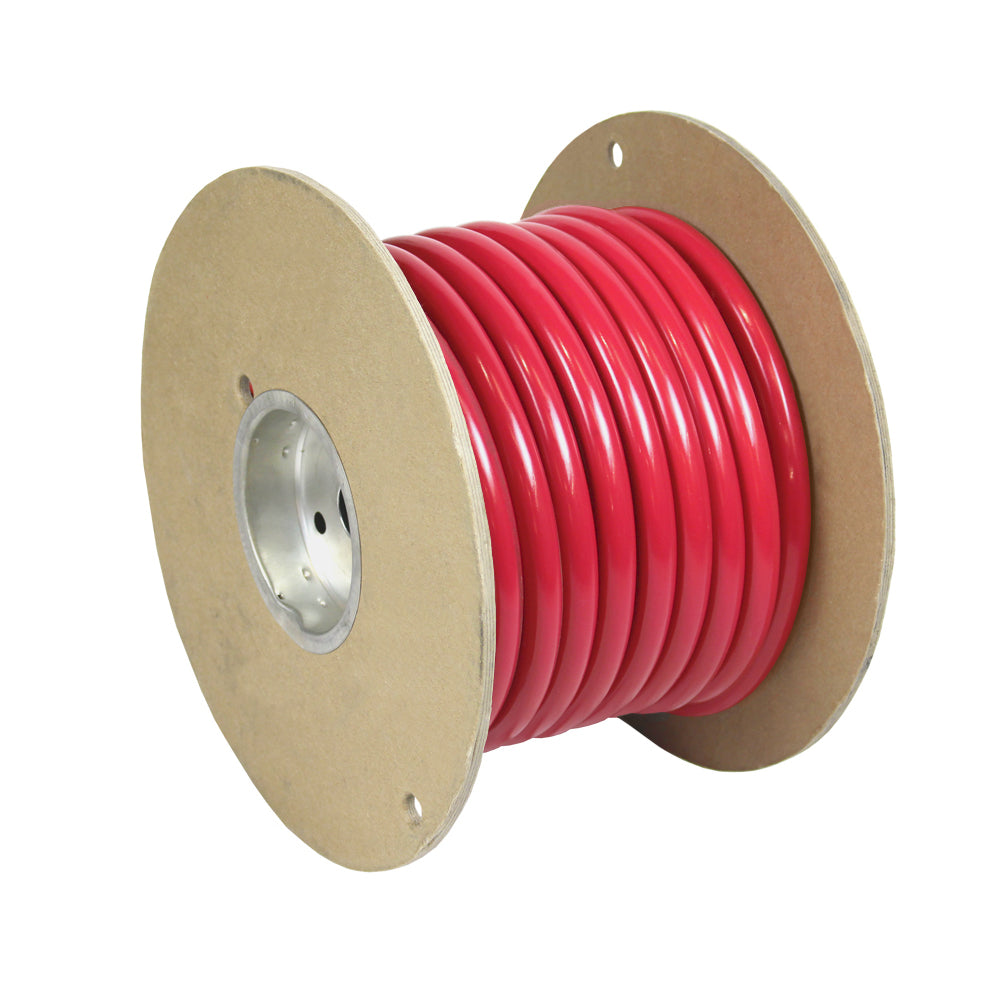

Red 4/0 AWG Battery Cable - 100'

Pacer's 4/0 AWG Marine Battery Cable meets and exceeds the most stringent specifications. This UL-approved marine cable is manufactured in the USA to ensure high quality.

Marine installations can occur in tight, enclosed spaces that have sharp turns where the installation process can quickly become difficult. Pacer makes the installation process easier.  How?  By creating a flexible yet tough marine cable.  This 4/0 AWG marine battery cable can handle the toughest environments.  This marine battery cable is made from Type III tinned copper.  The copper resists corrosion and helps to extend the life of the marine cable. Then, the cable is insulated with a durable and flexible PVC jacket.  These things all come together to make the highest quality marine cable available.

Features:

• Easy to strip, bend, and route
• Excellent flexibility with the durable properties of PVC

Technical Specifications:

• Conductor - Annealed fine stranded tinned copper ASTM B172 Class K
• Insulation  -20 °C to 105 °C Flexible, Color Coded PVC
• Temperature Rating - 105 °C Dry, 75 °C Wet, 60 °C Oil
• Voltage Rating - 600V
• Resistant to - Acid, Alkali, Abrasion, Flame, Gasoline, Oil, and Moisture

*Sold as an Individual

Specifications:

• Color: Red
• Gauge: 4/0 AWG
• Length (Feet): 100'
• Box Dimensions: 12"H x 14"W x 14"L WT: 85.5 lbs
• UPC: 840248204491

Black 4/0 AWG Battery Cable - 100'

Pacer's 4/0 AWG Marine Battery Cable meets and exceeds the most stringent specifications. This UL-approved marine cable is manufactured in the USA to ensure high quality.

Marine installations can occur in tight, enclosed spaces that have sharp turns where the installation process can quickly become difficult. Pacer makes the installation process easier.  How?  By creating a flexible yet tough marine cable.  This 4/0 AWG marine battery cable can handle the toughest environments.  This marine battery cable is made from Type III tinned copper.  The copper resists corrosion and helps to extend the life of the marine cable. Then, the cable is insulated with a durable and flexible PVC jacket.  These things all come together to make the highest quality marine cable available.

Features:

• Easy to strip, bend, and route
• Excellent flexibility with the durable properties of PVC

Technical Specifications:

• Conductor - Annealed fine stranded tinned copper ASTM B172 Class K
• Insulation  -20 °C to 105 °C Flexible, Color Coded PVC
• Temperature Rating - 105 °C Dry, 75 °C Wet, 60 °C Oil
• Voltage Rating - 600V
• Resistant to - Acid, Alkali, Abrasion, Flame, Gasoline, Oil, and Moisture

*Sold as an Individual

Specifications:

• Color: Black
• Gauge: 4/0 AWG
• Length (Feet): 100'
• Box Dimensions: 12"H x 14"W x 14"L WT: 87.6 lbs
• UPC: 840248204453
