Blue Sea 1504 - 360 Panel - ELCI + 5 Position 120V AC Flat Rocker w/M2 AC Multimeter [1504]

1504 - 360 Panel - ELCI + 5 Position 120V AC Flat Rocker with M2 AC Multimeter

Part of the Blue Sea Systems Battery Management Panels.  This one standard panel features Equipment Leakage Circuit Interrupter (ELCI) protection with branch breakers and will reduce the risk of fire and shock hazards caused by defects in appliances and circuit wiring.

Features:

• Provides Main circuit protection with branch circuits
• Green ON indicating LEDs
• Backlit label positions

Technical Specifications:

• Positions - Five (5) + ELCI
• Amperage - 30A AC trip reference
• Actuator Style - Flat Rocker
• Meter - M2 AC Multimeter
• Nominal Voltage - 120V
• Circuit Breaker Type - A-Series: 5 Branch (15A) and ELCI Main (30A)
• Leakage Trip Amps - 30mA
• Dimensions (H x W x D) - 10.75" x 4.88" x 3.99" (273 x 124 x 101mm)

In the Box:

• 1504 Panel
• Instruction Manual

*Sold as an Individual

Blue Sea 1503 - 360 Panel - ELCI + 5 Position 120V AC Flat Rocker [1503]

1503 - 360 Panel - ELCI + 5 Position 120V AC Flat Rocker

Part of the Blue Sea Systems Battery Management Panels.  This one standard panel features Equipment Leakage Circuit Interrupter (ELCI) protection with branch breakers and will reduce the risk of fire and shock hazards caused by defects in appliances and circuit wiring.

Features:

• Provides Main circuit protection with branch circuits
• Green ON indicating LEDs
• Backlit label positions

Technical Specifications:

• Positions - Five (5) + ELCI
• Amperage - 30A AC trip reference
• Actuator Style - Flat Rocker
• Maximum Voltage - 120V
• Circuit Breaker Type - A-Series: 5 Branch (15A) and ELCI Main (30A)
• Leakage Trip Amps - 30mA
• Dimensions (H x W x D) - 7.75" x 4.88" x 3.99" (197 x 124 x 101mm)

In the Box:

• 1503 Panel
• Instruction Manual

*Sold as an Individual

Blue Sea 1496 - 360 Panel - 12 Position 12V Flat Rocker M2 Multimeter w/SOC [1496]

1496 - 360 Panel - 12 Position 12V Flat Rocker M2 Multimeter with SOC

Part of the Blue Sea Systems Battery Management Panels. This DC Branch Circuit Breaker panel will distribute current from a high amperage source to lower amperage circuits.

Features:

• ON-indicating LEDs
  • Backlit label positions

Technical Specifications:

• Positions - 12
• Meter - M2 Multimeter w/SOC
• Nominal Voltage - 12/24V DC
• Maximum Amperage - 100A
• Circuit Breaker Type - 12 A-Series (15A)
• Dimensions - (H x W x D) - 7.75" x  9.25"" x 4" (197 x 235 x 102mm)

In the Box:

• 1496 Panel
• Instruction Manual

*Sold as an Individual

Specifications:

• AC/DC: DC
• Color: Black
• Max Breaker Quantity: 12
• Voltage: 12

Quick Guide (pdf)

Blue Sea 1497 - 360 Panel - 8 Position 12V Flat Rocker M2 Multimeter w/SOC  Dual USB/12V Socket [1497]

1497 - 360 Panel - 8 Position 12V Flat Rocker M2 Multimeter with SOC & Dual USB/12V Socket

Part of the Blue Sea Systems Battery Management Panels.  This DC Branch Circuit Breaker panel will distribute current from a high amperage source to lower amperage circuits.

DC sockets and USB charging are integrated into a popular sized circuit protection panel.

Features:

• ON-indicating LEDs
• Backlit label positions

Technical Specifications:

• Positions - Eight (8)
• Meter - M2 Multimeter w/SOC
• Nominal Voltage - 12V DC
• Maximum Amperage - 100A
• Circuit Breaker Type - 8 A-Series (15A)
• USB Output - 12/24V Dual USB
• Socket Output - 12V Dash socket
• Dimensions - (H x W x D) - 7.75" x 9.25" x 4" (197 x 235 x 102mm)

In the Box:

• 1497 Panel
• Instruction Manual

*Sold as an Individual

Blue Sea 1505 - 360 Panel - Main + 6 Position 120V AC Flat Rocker w/M2 AC Multimeter [1505]

1505 - 360 Panel - ELCI + 6 Position 120V AC Flat Rocker with M2 AC Multimeter

Part of the Blue Sea Systems Battery Management Panels.  This one standard panel features protection with branch breakers and will reduce the risk of fire and shock hazards caused by defects in appliances and circuit wiring.

Features:

• Provides Main circuit protection with branch circuits
• Green ON indicating LEDs
• Backlit label positions

Technical Specifications:

• Positions - Six (6) + Main
• Actuator Style - Flat Rocker
• Meter - M2 AC Multimeter
• Nominal Voltage - 120V
• Circuit Breaker Type - A-Series: 6 Branch (15A) and Main (30A)
• Dimensions (H x W x D) - 10.75" x 4.88" x 3.99" (273 x 124 x 101mm)

In the Box:

• 1505 Panel
• Instruction Manual

*Sold as an Individual

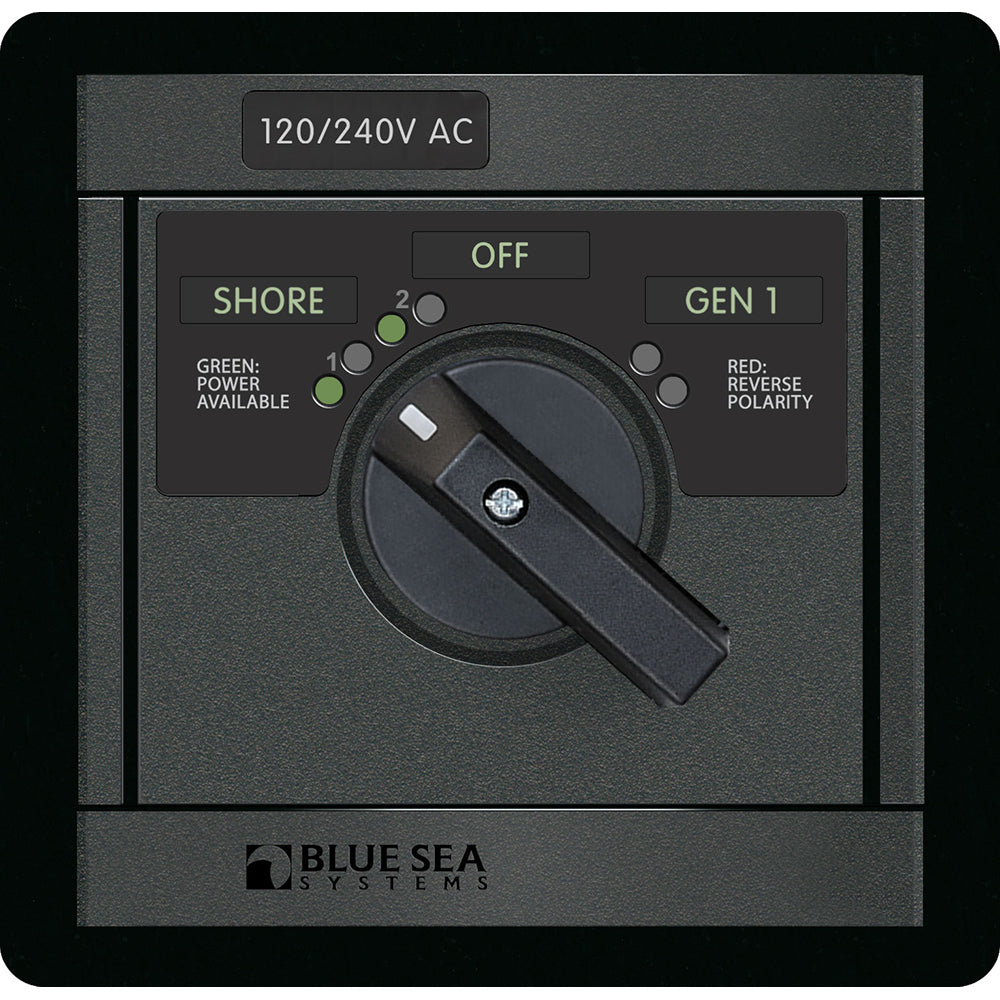

Blue Sea 1480 10/240V AC  Rotary 65A OFF + 2 Sources 2x120V/1x240V [1480]

10/240V AC  Rotary 65A OFF + 2 Sources 2x120V/1x240V

Features:

• Switches between two 120V AC shore power sources and one 240V AC source to two 120V AC load groups
• Red reverse polarity LED indicators
• Green power available LED indicators

Specifications:

• Source Selection: 2
• Niminal Voltage: 120/240V AC
• Source In: 3
• Height: 4.75"
• Width: 4.88"
• Depth: 4.50"
• Weight: 3.50lbs
