Electrical - Shore Power

SmartPlug 50 AMP Angled RV Dual Configuration Cordset - 30' [R50304A]

50 AMP Angled RV Dual Configuration Cordset - 30'

The angled cordsets produced by SmartPlug are the culmination of extensive research and valuable customer feedback.

Features:

• Easy one-handed engagement and disengagement of your shore power connection
• Relieves stress on the structure to protect your Boat/RV
• Cord rests close to the side, reducing run-over risk and trip hazards
• Easier to store and coil
• Available in 30A and 50A configurations

Specifications:

• Amperage: 50a
• Length: 30'
• Type: Cables
• Voltage: 125/250v
• Box Dimensions: 7"H x 16"W x 16"L WT: 26.45 lbs
• UPC: 682500442490

SmartPlug 50 AMP Dual Configuration Cordset - 25  [C50254]

50 AMP Dual Configuration Cordset - 25'

For many years boaters have experienced the safety, security and simplicity of SmartPlug products on the boatside while still dealing with the same old issues created by legacy twist-type products on the dockside.  Those days are changing with the introduction of SmartPlug's new dockside product offering.  SmartPlug has applied decades of experience and customer feedback to create a product that allows you to upgrade your shore power connection with SmartPlug technology.

The 50 AMP 125/250 V cordset provides a complete weatherproof power solution. The cordset includes the SmartPlug connector for the Boat Side and a Twist Type Dockside connector.

Features:

• Multi-Point Locking System - Side clips lock the body securely into the inlet, which eliminates any stress on the electrical connection from movement of the power cord.
• Weatherproof Seals - Silicone gaskets installed in the interior of the plug body eliminate any water penetration when plug is connected to inlet.
• LED Power Indicator Light – On the top of all SmartPlug female ends, two LED indicator lights.  One Red and one Blue LED light for Safe/Unsafe Electrical Power Indication under Reverse Polarity Conditions.
• Tinned Wire – All SmartPlug marine cords have tinned wire to minimize corrosion.

Technical Specifications:

• Length - 25'
• Color - Orange
• Boatside Connection - 50 AMP/125/250 V SmartPlug
• Dockside Connection - 50 AMP/125/250 V Twist Type Plug

*Sold as an Individual

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Amperage: 50a
• Length: 25'
• Type: Cordset
• Voltage: 125/250v
• Box Dimensions: 9"H x 19"W x 19"L WT: 23 lbs
• UPC: 682500440151

Owner's Manual (pdf)

SmartPlug 50 AMP Dual SmartPlug Cordset - 25 [CM50254]

50 AMP Dual SmartPlug Cordset - 25'

For many years boaters have experienced the safety, security and simplicity of SmartPlug products on the boatside while still dealing with the same old issues created by legacy twist-type products on the dockside.  Those days are changing with the introduction of SmartPlug's new dockside product offering.  SmartPlug has applied decades of experience and customer feedback to create a product that allows you to upgrade your shore power connection with SmartPlug technology.

The 50 AMP 125 V cordset provides a complete weatherproof power solution. The cordset includes the SmartPlug connector for the Boat Side and a SmartPlug connector for the power pedestal.

Features:

• Multi-Point Locking System - Side clips lock the body securely into the inlet, which eliminates any stress on the electrical connection from movement of the power cord.
• Weatherproof Seals - Silicone gaskets installed in the interior of the plug body eliminate any water penetration when plug is connected to inlet.
• LED Power Indicator Light – On the top of all SmartPlug female ends, two LED indicator lights.  One Red and one Blue LED light for Safe/Unsafe Electrical Power Indication under Reverse Polarity Conditions.
• Tinned Wire – All SmartPlug marine cords have tinned wire to minimize corrosion.

Technical Specifications:

• Length - 25'
• Color - Orange
• Boatside Connection - 50 AMP/125 V SmartPlug
• Dockside Connection - 50 AMP/125 V SmartPlug

*Sold as an Individual

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Voltage: 125v
• Type: Cordset
• Length: 25'
• Amperage: 50a
• Box Dimensions: 9"H x 16"W x 16"L WT: 21.65 lbs
• UPC: 682500441172

Owner's Manual (pdf)
Brochure (pdf)

SmartPlug SmartPlug/15 AMP Cordset - 50 [C15503]

SmaetPlug/15 AMP Cordset - 50'

This 30 AMP Female SmartPlug to 15 AMP Male Standard Wall Plug (3-pin connector) cordset comes with a Cool Blue LED Power indicator light that glows when power is on.  This cord set provides a super flexible cord that can be tightly coiled even in cold weather.

Features:

• Multi-Point Locking System – Side clips lock the plug body securely into the inlet which eliminates any stress on the electrical connection from the movement of the power cord.
• Weatherproof Seals - Silicone gaskets installed in the interior of the plug body eliminate any water penetration when plug is connected to inlet.

Technical Specifications:

• Length - 50'
• Color - Orange
• Boatside Connection - 30 AMP/115 V Female SmartPlug
• Dockside Connection - 15 AMP/115 V Male Standard Wall Plug

*Sold as an Individual

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Voltage: 115v
• Type: Cordset
• Length: 50'
• Amperage: 30/15a
• Box Dimensions: 6"H x 13"W x 13"L WT: 13.8 lbs
• UPC: 682500440076

Owner's Manual (pdf)

Marinco 100 Amp 120/208V 4-Pole, 5-Wire Shore Power Cable - No Neutral Wire - One-Ended Male Only Cord - Blunt Cut - 100 [CW100IT5]

Ships Direct From Manufacturer

100 Amp 120/208V 4-Pole, 5-Wire Shore Power Cable - No Neutral Wire - One-Ended Male Only Cord - Blunt Cut - 100'

All Marinco cordsets are made of the highest quality, marine grade construction with features you won’t find on other power cords.

Features:

• For use with 100 amp 120V/208V shore power systems
• High visibility, 2 AWG, flexible yellow STOW cable is oil, water, UV resistant, and rated to 221°F (105°C)
• Ergonomic non-slip TPE coated gripping surfaces
• IEC pin and sleeve plugs and connectors are designed for harsh environments, watertight, and corrosion resistant.  Feature integrated locking rings.
• Internal frame terminals provide high clamping force for safe and secure contact
• Options for use with on-board isolation transformers and male plug only power supply purposes
• UL and ABYC approved components

Specifications:

• Length: 100'
• Neutral Wire: No
• Female End: No, Blunt Cut
• Application: Cable Winch with Isolation Transformer
• Color: Yellow

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Amperage: 100a
• Length: 100'
• Type: Cordset
• Voltage: 120/208v
• Box Dimensions: 25"H x 25"W x 25"L WT: 164 lbs
• UPC: 093344065477

Marinco 100A Inlet - 125/208V [M5100B9R]

100A Inlet - 125/208V

Gray Amaplast shore power inlet has gasketed, spring-loaded cover providing an IP67 watertight rating (withstands temporary immersion) when tightened.

Features:

• 100A
• 3 phase Y120/208
• 4 Pole 5-Wire

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Amperage: 100a
• Type: Inlets
• Voltage: 125/208v
• UPC: 093344500602

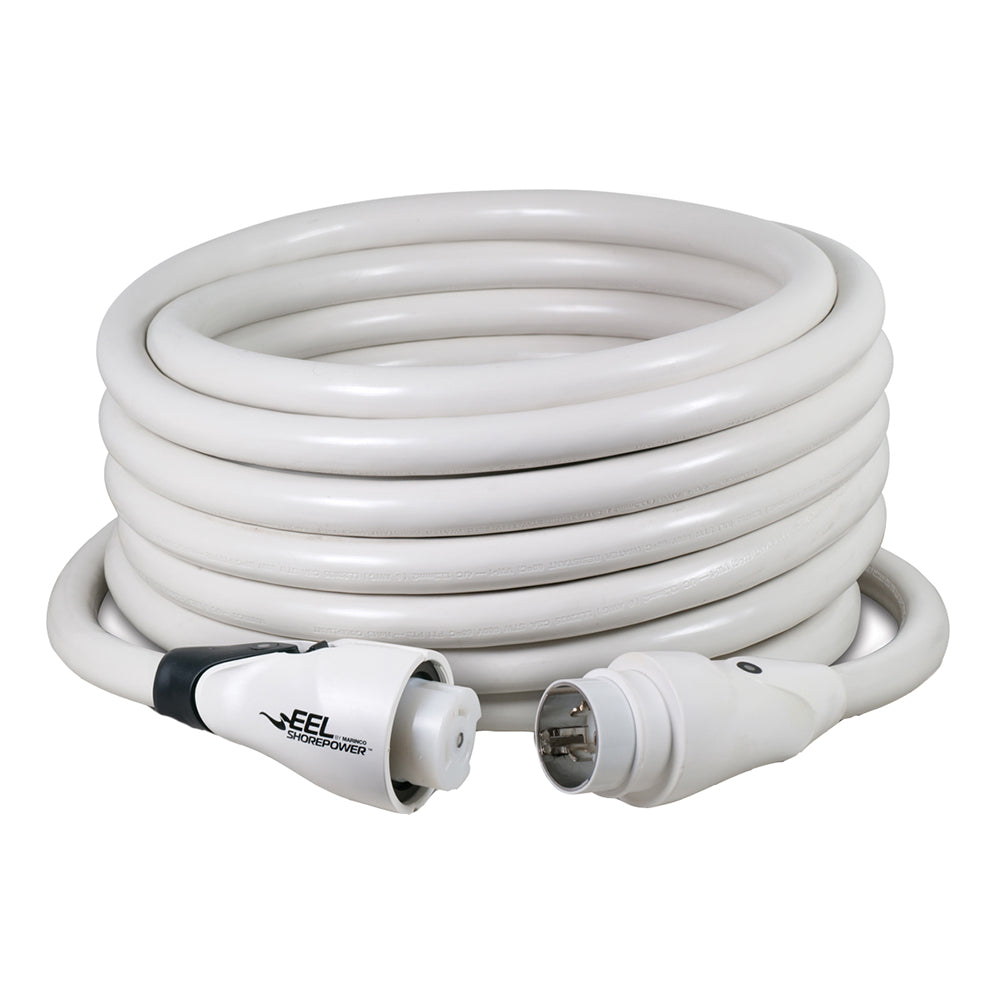

Marinco EEL 50A White Cordset - 125/250V - 50 [CS504-50W]

EEL 50A White Cordset - 125/250V - 50'

The EEL (Easily Engaged Lock) ShorePower Cordset has a patented, industry first, jaw-clamp design providing one-handed operation and a secure waterproof seal which completely eliminates the need for a locking ring. The EEL connection is built for the harshest environments and is UL approved. This easy-to-use cordset features a built-in cord light which serves as an alert to boaters when the cord is left plugged in. And, best of all, it works with your current inlet. In addition to cordsets with the EEL System, Marinco also has a full set of Pigtail and Y adapters all using the new EEL technology.

Features:

• Designed for use with standard inlets (NEMA)
• Single-handed operation
• No sealing ring required
• Patented jaw-clamp technology provides a watertight seal every time
• Built-in cord light for added safety - alert light indicates if you are plugged into the dock and cord is powered
• Power indicator light on both ends informs you full power is flowing through the cord
• Meets and exceeds rigorous UL testing standards
• EEL product line includes connectors, pigtail, straight and "Y" adapters

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Amperage: 50a
• Length: 50'
• Type: Cordset
• Voltage: 125/250v
• Box Dimensions: 9"H x 17"W x 20"L WT: 41 lbs
• UPC: 093344051753

Brochure (pdf)

Marinco 100A Receptacle - 120/208V [M5100R9]

100A Receptacle - 120/208V

Spring loaded cover provides an IP67 watertight rating when tightened.

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Type: Receptacles
• UPC: 093344501005
