BMV-700H High Voltage Battery Monitor (60-385VDC)

The BMV-700H is a high-precision battery monitor that has been specially designed for systems with a high battery voltage ranging from 60 to 385 volts.

These battery monitors calculate the state of charge of a battery and keep track of the ampere-hours consumed from the battery by integrating the current flowing in or out of the battery.

They both come with a round head unit, a square bezel overlay, a screw ring for mounting, a 10m UTP RJ12 cable, a fused power supply cable, and a 500 A/50 mV shunt. Because of the high voltage application, the shunt is housed in a special enclosure.

Battery ‘fuel gauge’, time-to-go indicator, and much more

The remaining battery capacity depends on the ampere-hours consumed, discharge current, temperature, and the age of the battery. Complex software algorithms are needed to take all these variables into account.

Next to the basic display options, such as voltage, current, and ampere-hours consumed, the BMV-700 series also displays the state of charge, time to go, and power consumption in Watts.

Easy to Install

All electrical connections are to the quick-connect PCB on the current shunt. The shunt connects to the monitor with a standard RJ12 telephone cable. Included: RJ12 cable (10m) and battery cable with fuse (2m); No other components are needed.

Also included is a separate front bezel for a square or round display appearance and a securing ring for the rear mounting and screws for the front mounting.

BMV-700H: 60 to 385 VDC Voltage Range

No additional parts are needed. Note: This is suitable for systems with grounded negative only (the battery monitor is not isolated from the shunt).

Features:

• Battery voltage, current, power, ampere-hours consumed, and state of charge
• Remaining time at the current rate of discharge
• Programmable visual and audible alarm
• Programmable relay, to turn off noncritical loads or run a generator when needed
• 500 Amp quick connect shunt and connection kit
• Shunt selection capability up to 10,000 amps
• VE.Direct communication port
• Stores a wide range of historical events, which can be used to evaluate usage patterns and battery health
• Wide input voltage range: 6.5 – 95V
• High current measurement resolution: 10 mA (0.01A)
• Low current consumption: 2.9Ah per month (4mA) @12V and 2.2Ah per month (3mA) @ 24V

BMV-700H Specifications:

• Supply Voltage Range: 60 – 385 VDC
• Current Draw, Back Light Off: < 4mA
• Input Voltage Range, Auxiliary Battery:  n. a.
• Battery Capacity (Ah): 1 - 9999 Ah
• Operating Temperature Range: -40 +50°C (-40 - 120°F)
• Measures Voltage of Second Battery, or Temperature, or Midpoint: No
• Temperature Measurement Range: n. a.
• VE.Direct Communication Port: Yes
• Relay: 60V / 1A normally open (function can be inverted)

Resolution & Accuracy (with a 500 A shunt):

• Current: ± 0.01A
• Voltage: ± 0.01V
• Amp Hours: ± 0.1 Ah
• State of Charge: (0 – 100%) ± 0.1%
• Time to Go: ± 1 min
• Temperature: n. a.
• Accuracy of Current Measurement: ± 0.4%
• Accuracy of Voltage Measurement: ± 0.3%

Installations & Dimensions:

• Installation: Flush mount
• Front: 63mm diameter
• Front Bezel: 69 x 69 mm (2.7 x 2.7 inch)
• Shunt Connection Bolts: M10 (0.3937 inches)
• Body Diameter and Depth: 52 mm (2.0 inch) and 31 mm (1.2 inch)
• Protection Category: IP55 (not intended for outdoor use)

Standards:

• Safety: EN 60335-1
• Emission / Immunity: EN 55014-1 / EN 55014-2
• Automotive: ECE R10-4 / EN 50498

Accessories:

• Shunt (included): 500A / 50mV
• Cables (included): 10 meters 6 core UTP with RJ12 connectors, and cable with 1Amp slow blow fuse for ‘+’ connection
• Temperature Sensor: Optional (ASS000100000)

Please contact your dealer for any returns, repairs, or support issues related to this product.

Ekrano GX

The Ekrano GX represents the next generation in the GX product family. With its complete range of connections and interfaces as well as its integrated 7-inch touchscreen display, it is the most powerful GX device to date and allows you to always have perfect control over your system from wherever you are and to maximize its performance. Simply access your system via our Victron Remote Management (VRM) portal, or access it directly, using the built-in touchscreen, a Multi-Functional Display (MFD), or our VictronConnect app thanks to its Bluetooth capability. The Ekrano GX is also the successor to the Color Control GX.

Perfect Monitoring & Control

Instantly monitor the battery state of charge, power consumption, and power harvest from PV, generator, and mains, or check tank levels and temperature measurements. Easily control the shore power input current limit, (auto)start/stop generator(s) or change any setting to optimize the system. Follow up on alerts, perform diagnostic checks, and resolve challenges remotely. The Ekrano GX turns any power challenge into an effortless experience.

Expand Your View

The integrated 7-inch touchscreen allows you to have an instant overview of your system and adjust settings in the blink of an eye. Its super slim waterproof design offers a lot of flexibility in designing a crisp and clean dashboard. The touch function can be disabled (or enabled) via a recessed button on the back to prevent unauthorized use.

Simple Mounting & Configuration

The Ekrano GX is optimized for flush panel or blind hole mounting and has all the necessary mounting material supplied. Screw-on terminal blocks keep everything securely in place.

Outsmart Any Power Challenge

The Ekrano GX serves endless purposes, extending perfect control to the most diverse applications. For solutions including generators, such as Marine, or Offgrid & Backup, it will auto-start/stop your generator, or delays ignition until the end of ‘quiet’ periods. For Energy Storage Systems it keeps backup batteries at 100%, kicks in during power cuts, and diverts excess (solar) power to self-consumption, saving you money. For RV and Emergency vehicles, it keeps vital systems functioning flawlessly. But that’s just to name a few...

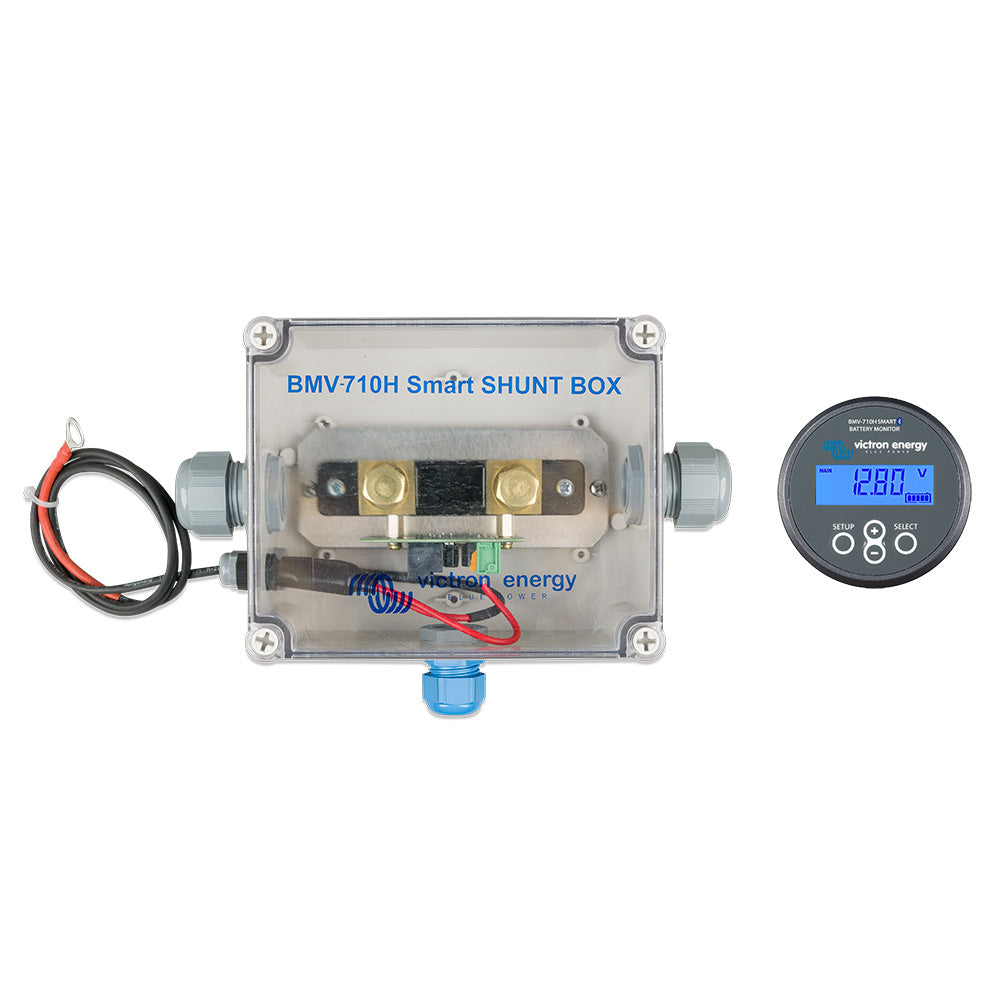

BMV-710H Smart High Voltage Battery Monitor (60-385VDC)

The BMV-710H Smart has Bluetooth built-in and can connect wirelessly to your phone (or tablet) via the VictronConnect App to conveniently read out all monitored battery parameters, like state of charge, time to go, historical information and much more.

This battery monitor can calculate the state of charge of a battery and keep track of the ampere hours consumed from the battery by integrating the current flowing in or out of the battery.

The monitor comes with a round head unit, a square bezel overlay, a screw ring for mounting, a 10m UTP RJ12 cable, a fused power supply cable, and a 500 A/50 mV shunt. Because of the high voltage application, the shunt is housed in a special enclosure.

Battery ‘fuel gauge’, time-to-go indicator, and much more

The remaining battery capacity depends on the ampere-hours consumed, discharge current, and temperature and the age of the battery. Complex software algorithms are needed to take all these variables into account.

Next to the basic display options, such as voltage, current, and ampere-hours consumed, the BMV-700 series also displays the state of charge, time to go, and power consumption in Watts.

Bluetooth Smart

Use the Bluetooth Smart dongle to monitor your batteries on Apple or Android smartphones, tablets, Macbooks and other devices.

Easy to Install

All electrical connections are to the quick connect PCB on the current shunt. The shunt connects to the monitor with a standard RJ12 telephone cable. Included: RJ12 cable (10m) and battery cable with fuse (2m); No other components are needed.

Also included are a separate front bezel for a square or round display appearance and a securing ring for the rear mounting and screws for the front mounting.

Easy to Program (with your smartphone!)

A quick install menu and a detailed setup menu with scrolling texts assist the user when going through the various settings.

Alternatively, choose the fast and easy solution: Download the smartphone app (Bluetooth Smart Dongle needed)

Features:

• Battery voltage, current, power, ampere-hours consumed, and state of charge
• Remaining time at the current rate of discharge
• Programmable visual and audible alarm
• Programmable relay, to turn off non critical loads or run a generator when needed
• 500 Amp quick connect shunt and connection kit
• Shunt selection capability up to 10,000 amps
• VE.Direct communication port
• Stores a wide range of historical events, which can be used to evaluate usage patterns and battery health
• Wide input voltage range: 6.5 – 95V
• High current measurement resolution: 10 mA (0.01A)
• Low current consumption: 2.9Ah per month (4mA) @12V and 2.2Ah per month (3mA) @ 24V

BMV-710H Specifications:

• Supply Voltage Range: 60 – 385 VDC
• Current Draw, Back Light Off: < 4mA
• Input Voltage Range, Auxiliary Battery:  n. a.
• Battery Capacity (Ah): 1 - 9999 Ah
• Operating Temperature Range: -40 +50°C (-40 - 120°F)
• Measures Voltage of Second Battery, or Temperature, or Midpoint: No
• Temperature Measurement Range: n. a.
• VE.Direct Communication Port: Yes
• Relay: 60V / 1A normally open (function can be inverted)

Resolution & Accuracy (with a 500 A shunt):

• Current: ± 0.01A
• Voltage: ± 0.01V
• Amp Hours: ± 0.1 Ah
• State of Charge: (0 – 100%) ± 0.1%
• Time to Go: ± 1 min
• Temperature: n. a.
• Accuracy of Current Measurement: ± 0.4%
• Accuracy of Voltage Measurement: ± 0.3%

Installations & Dimensions:

• Installation: Flush mount
• Front: 63mm diameter
• Front Bezel: 69 x 69 mm (2.7 x 2.7 inch)
• Shunt Connection Bolts: M10 (0.3937 inch)
• Body Diameter and Depth: 52 mm (2.0 inch) and 31 mm (1.2 inch)
• Protection Category: IP55 (not intended for outdoor use)

Standards:

• Safety: EN 60335-1
• Emission / Immunity: EN 55014-1 / EN 55014-2
• Automotive: ECE R10-4 / EN 50498

Accessories:

• Shunt (included): 500A / 50mV
• Cables (included): 10 meter 6 core UTP with RJ12 connectors, and cable with 1Amp slow blow fuse for ‘+’ connection
• Temperature Sensor: Optional (ASS000100000)
• Please contact your dealer for any returns, repairs or support issues related to this product.
