Electrical - Inverters

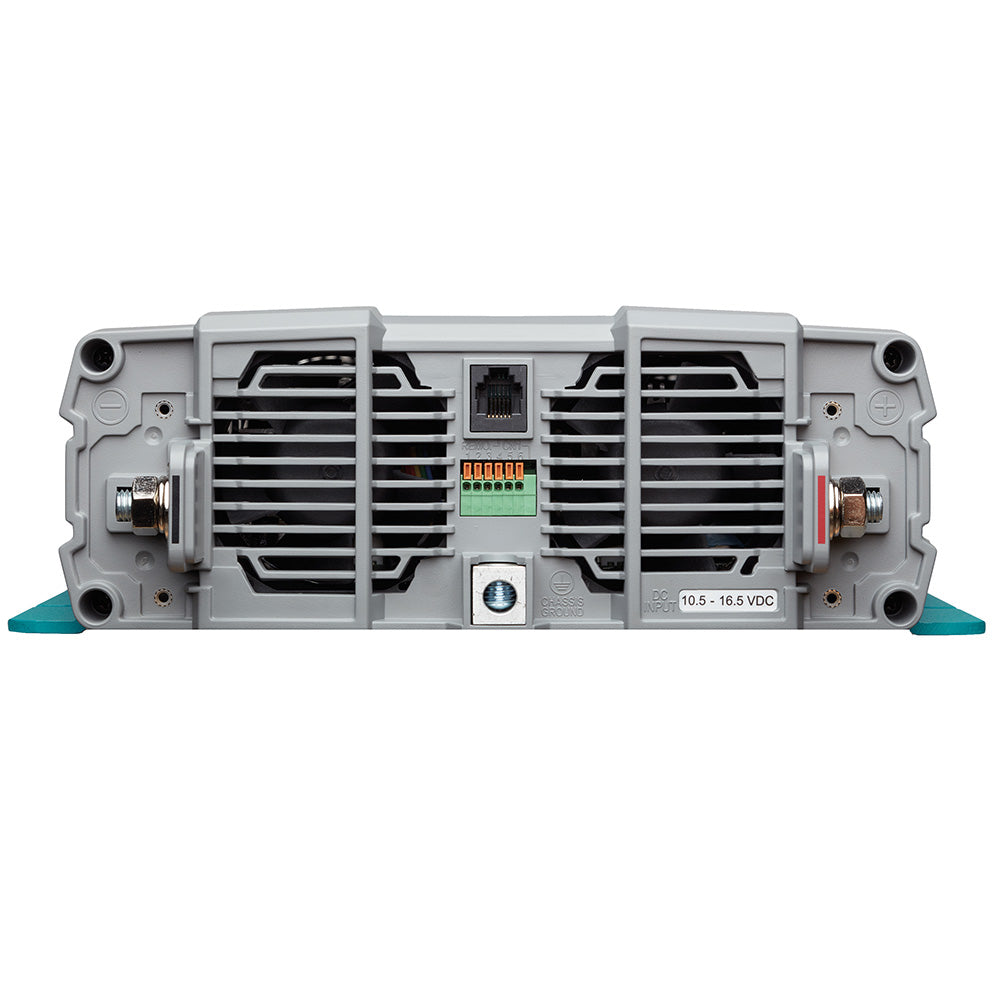

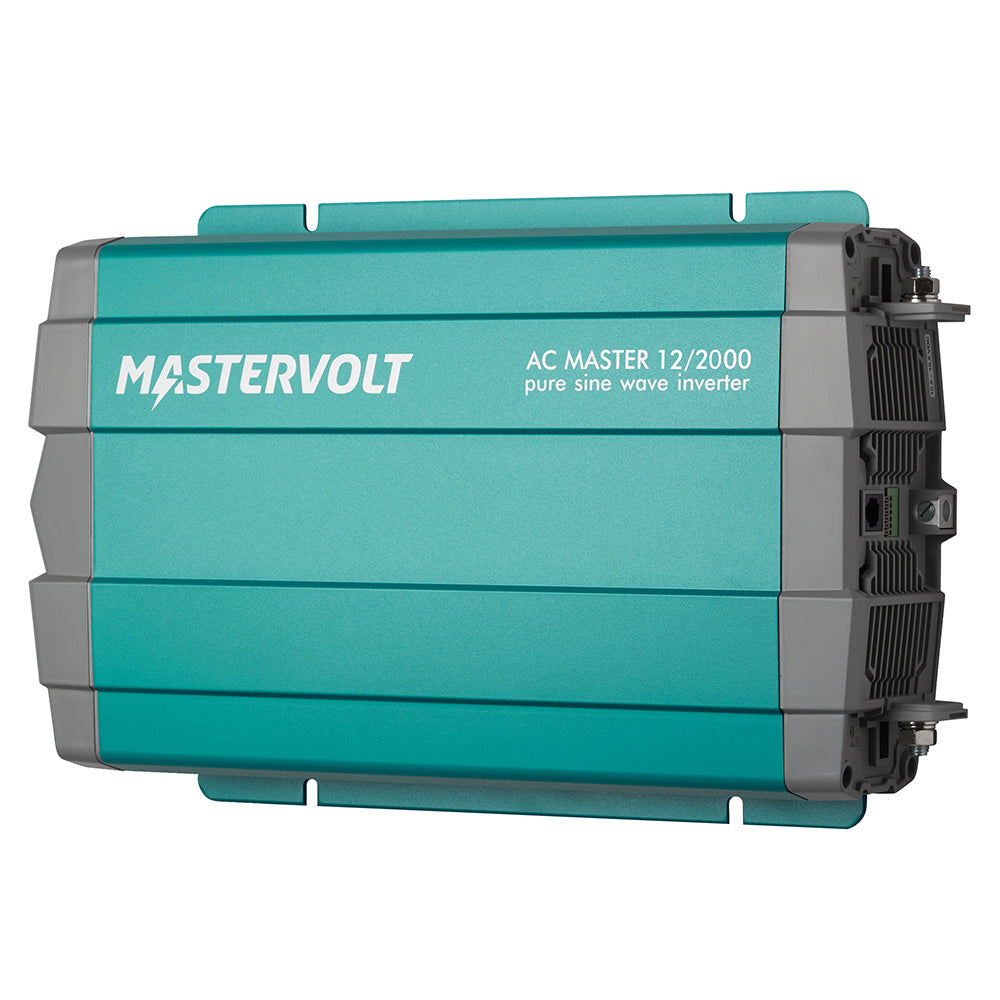

Mastervolt AC Master 12/2000 (230V) Inverter [28012000]

AC Master 12/2000 (230V) Inverter

Reliable AC power for recreational and semi-professional use.

These affordable sine wave inverters convert 12 or 24 V battery voltage into reliable 230 V 50/60 Hz or 120 V 50/60 Hz grid power, making them ideal for recreational and semi-professional applications. The AC Master series is easy to install and delivers full output, even under the most demanding conditions. Pure sine wave technology provides an outstanding power quality, ensuring the correct functioning of sensitive equipment. The usage of high-frequency switching technology eliminates any annoying humming and buzzing sounds.

Representing complete value for money, these ruggedly built inverters provide essential home comforts when you’re far from the nearest grid connection.

Features:

• Pure sine wave technology protects sensitive equipment.
• Delivers full output at high peak power under the most demanding conditions.
• Automatic power-saving system for extended runtime.
• Compact and lightweight design, saving valuable installation time.
• Reliable and safe operation; protected against over-temperature, overload, short circuit, high or low battery voltage.
• Variable-speed fan for quiet operation at low power.
• Optional remote control for instant switch-off of the inverter and all connected equipment (not available for the 300 and 500 W models).
• Convenient plug connection for all models, 2500/3500 Watt models also hard-wired.

Applications:

• Both recreational and semi-professional use, where grid power varies or is unavailable. Applications include lighting, appliances, electric cooking, and power tools. For (mobile) applications in your home, office, or service vehicle, or during your holidays.

General Specifications:

• Output voltage: 230/240 V 50/60 Hz (selectable)
• Output waveform: True sine
• Nominal battery voltage:12V
• Recommended battery capacity: ≥ 200 Ah
• Continuous power at 25 °C / 77 °F, cos phi 1: 2000 W
• Continuous power at 40 °C / 104 °F, cos phi 1: 2000 W
• Peak load (1 min.): < 2300 W
• Peak load (1 s): < 4000 W
• AC connection: Plug connection EU (Schuko)
• Galvanic isolation: Yes
• Efficiency: 94%
• Display/read-out: LED indication: battery voltage, load level, status
• Alarms: Potential free alarm contact
• Dimensions, hxwxd: 248 x 443 x 83 mm/9.8 x 17.4 x 3.3 inch
• Weight: 5.2 kg/11.5 lb
• Compliance: Safety: CE, E-mark, RCM

Technical Specifications:

• Technology: high frequency, input & output fully isolated
• Low battery voltage, switches off at 10.5 V
• Low battery voltage, switches on at 12.5 V
• High battery voltage, switches off at 16.5 V
• High battery voltage, switches on at 14.5 V
• Input current (nominal load): 200 A
• No-load power consumption (ON mode): < 1.8 A
• No-load power consumption (energy saving mode): < 0.1 A
• Minimal DC fuse (slow blow): 250 A
• Minimal cable size: 70 mm²
• Harmonic distortion typical: < 3 %
• Cos phi: All power factors allowed
• Temperature range (ambient temp.): -20 °C to 60 °C, derating power > 40 °C/-4 °F to 140 °F
• Cooling: Temperature and load controlled fan
• Protection degree: IP21, horizontal wall mounting
• Protections: Over-temperature, overload, short circuit, high/low voltage, reverse polarity (fuse)
• MasterBus compatible: Yes, using a MasterBus AC Master Interface

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Owner's Manual (pdf)
Brochure (pdf)

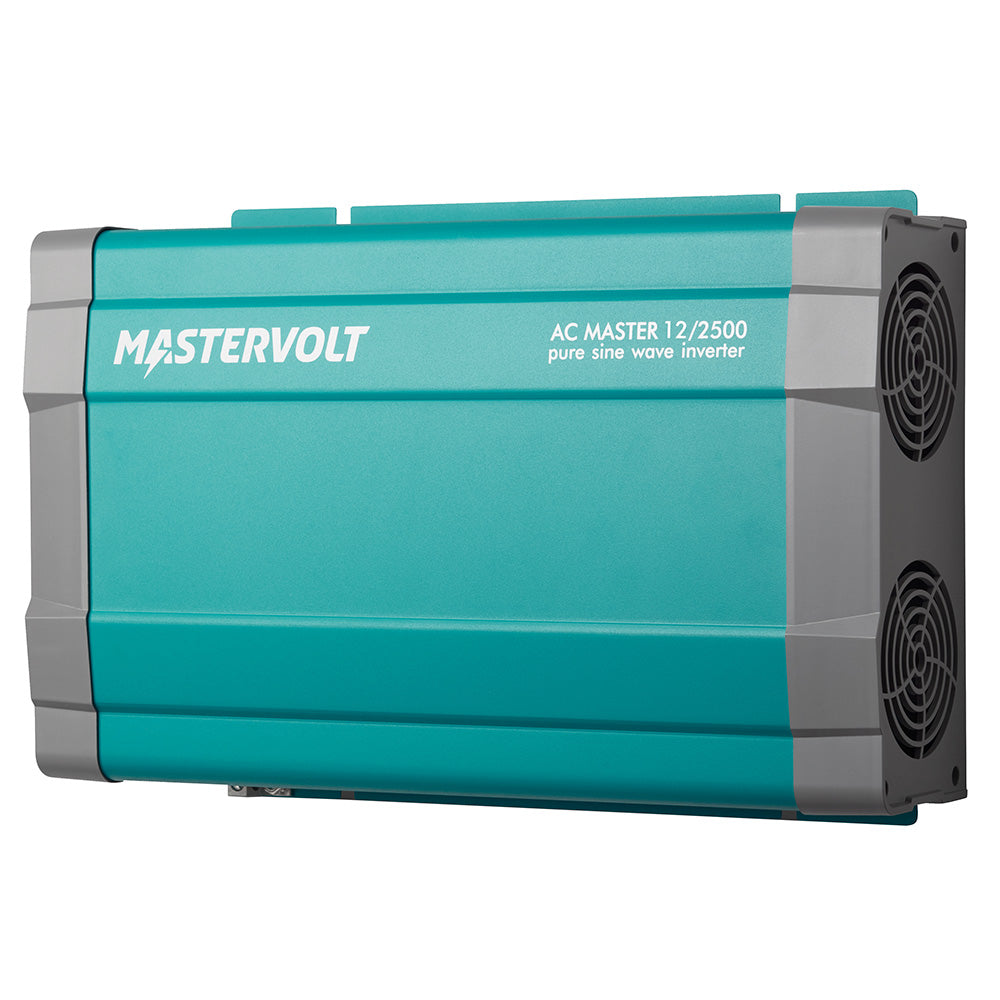

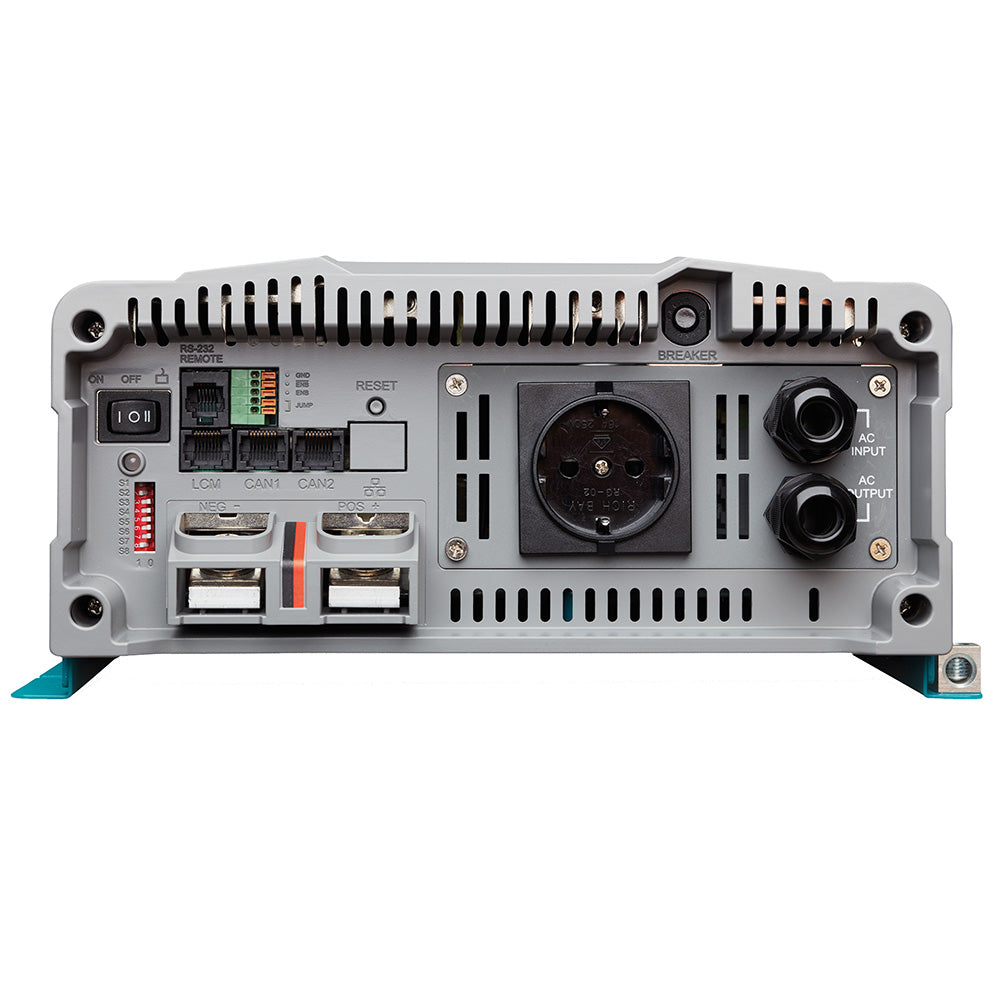

Mastervolt AC Master 12/2500 (230V) Inverter [28012500]

Ships Direct From Manufacturer

AC Master 12/2500 (230V) Inverter

Reliable AC power for recreational and semi-professional use.

These affordable sine wave inverters convert 12 or 24 V battery voltage into reliable 230 V 50/60 Hz or 120 V 50/60 Hz grid power, making them ideal for recreational and semi-professional applications. The AC Master series is easy to install and delivers full output, even under the most demanding conditions. Pure sine wave technology provides an outstanding power quality, ensuring the correct functioning of sensitive equipment. The usage of high-frequency switching technology eliminates any annoying humming and buzzing sounds.

Representing complete value for money, these ruggedly built inverters provide essential home comforts when you’re far from the nearest grid connection.

Features:

• Pure sine wave technology protects sensitive equipment.
• Delivers full output at high peak power under the most demanding conditions.
• Automatic power-saving system for extended runtime.
• Compact and lightweight design, saving valuable installation time.
• Reliable and safe operation; protected against over-temperature, overload, short circuit, high or low battery voltage.
• Variable-speed fan for quiet operation at low power.
• Optional remote control for instant switch-off of the inverter and all connected equipment (not available for the 300 and 500 W models).
• Convenient plug connection for all models, 2500/3500 Watt models also hard-wired.

In addition, the 2500/3500 Watt models offer:

• Combine 2 up to 15 units to obtain high power or 3-phase systems.
• Integrated transfer system, switches automatically between AC power sources.

Applications:

• Both recreational and semi-professional use, where grid power varies or is unavailable. Applications include lighting, appliances, electric cooking, and power tools. For (mobile) applications in your home, office, or service vehicle, or during your holidays.

General Specifications:

• Output voltage: 230/240 V 50/60 Hz (selectable)
• Output waveform: True sine
• Nominal battery voltage: 12V
• Recommended battery capacity: ≥ 270 Ah
• Continuous power at 25 °C / 77 °F, cos phi 1: 2500 W
• Continuous power at 40 °C / 104 °F, cos phi 1: 2500 W
• Peak load (1 min.): < 3000 W
• Peak load (1 s): < 4000 W
• AC connection: Hardwired + plug connection EU (Schuko), with UK plug (code 28212500) or NZ/AU plug (code 28412500)
• Galvanic isolation: Yes
• Efficiency: 88%
• Parallel configuration: Yes, up to 15 units
• 3-Phase configuration: Yes, 3 units
• Display/read-out: LED indication: battery voltage, load level, status
• Alarms: Potential free alarm contact
• Dimensions, hxwxd: 283 x 436 x 128 mm/11.1 x 17.2 x 5.0 inch
• Weight: 8 kg/17.6 lb
• Compliance: Safety: CE, E-mark, RCM

Technical Specifications:

• Technology: High frequency, input & output fully isolated
• Low battery voltage, switches off at 10.5 V
• Low battery voltage, switches on at 12.5 V
• High battery voltage, switches off at 16.5 V
• High battery voltage, switches on at 14.5 V
• Input current (nominal load): 250 A
• No-load power consumption (ON mode): < 3.6 A
• No-load power consumption (energy saving mode): < 1.1 A
• Minimal DC fuse (slow blow): 300 A
• Minimal cable size: 95 mm²
• Harmonic distortion typical: < 5 %
• Cos phi: All power factors allowed
• Temperature range (ambient temp.): -20 °C to 60 °C, derating power > 40 °C/-4 °F to 140 °F
• Cooling: Temperature and load controlled fan
• Protection degree: IP21, horizontal wall mounting
• Protections: Over-temperature, overload, short circuit, high/low voltage, reverse polarity (fuse)
• MasterBus compatible: Yes, using a MasterBus AC Master Interface

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Owner's Manual (pdf)
Brochure (pdf)

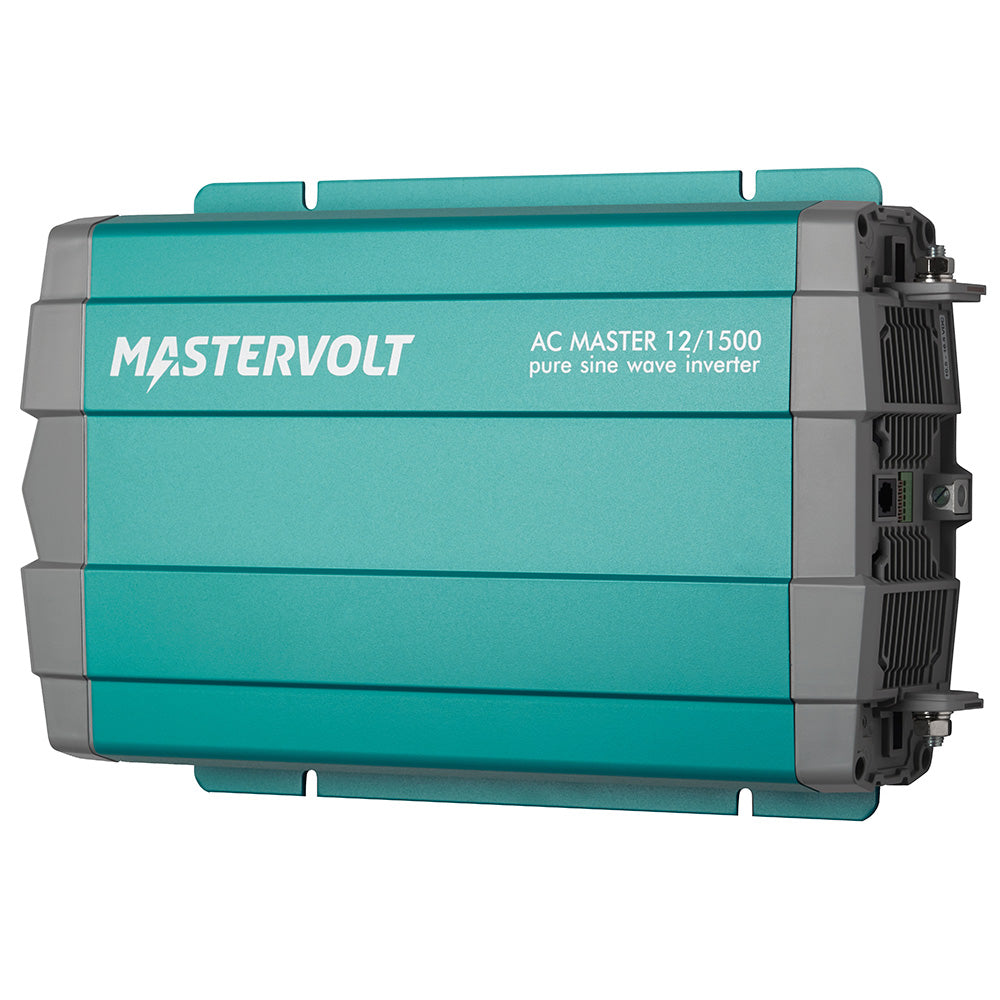

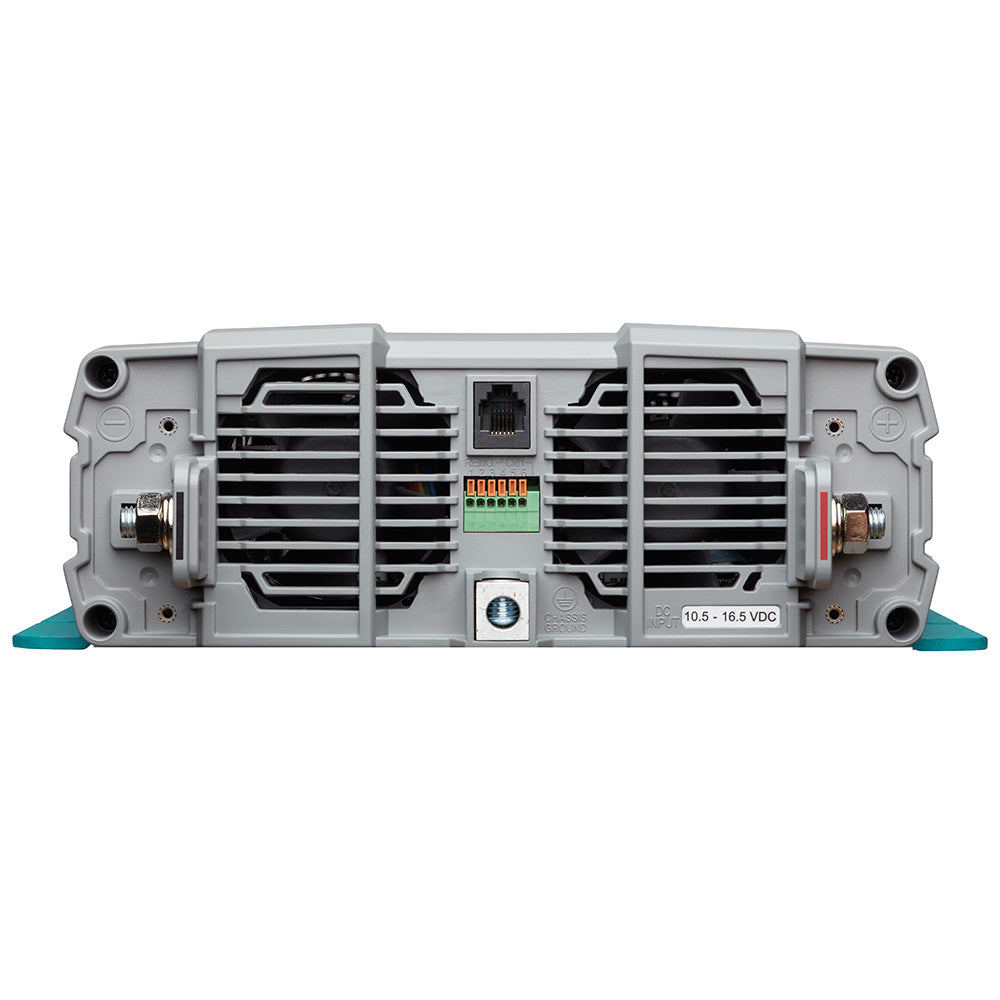

Mastervolt AC Master 12/1500 (230V) Inverter [28011500]

AC Master 12/1500 (230V) Inverter

Reliable AC power for recreational and semi-professional use.

These affordable sine wave inverters convert 12 or 24 V battery voltage into reliable 230 V 50/60 Hz or 120 V 50/60 Hz grid power, making them ideal for recreational and semi-professional applications. The AC Master series is easy to install and delivers full output, even under the most demanding conditions. Pure sine wave technology provides an outstanding power quality, ensuring the correct functioning of sensitive equipment. The usage of high-frequency switching technology eliminates any annoying humming and buzzing sounds.

Representing complete value for money, these ruggedly built inverters provide essential home comforts when you’re far from the nearest grid connection.

Features:

• Pure sine wave technology protects sensitive equipment.
• Delivers full output at high peak power under the most demanding conditions.
• Automatic power-saving system for extended runtime.
• Compact and lightweight design, saving valuable installation time.
• Reliable and safe operation; protected against over-temperature, overload, short circuit, high or low battery voltage.
• Variable-speed fan for quiet operation at low power.
• Optional remote control for instant switch-off of the inverter and all connected equipment (not available for the 300 and 500 W models).
• Convenient plug connection for all models, 2500/3500 Watt models also hard-wired.

Applications:

• Both recreational and semi-professional use, where grid power varies or is unavailable. Applications include lighting, appliances, electric cooking, and power tools. For (mobile) applications in your home, office, or service vehicle, or during your holidays.

General Specifications:

• Output voltage: 200/220/230/240 V – 50/60 Hz (selectable)
• Output waveform: True sine
• Nominal battery voltage:12V
• Recommended battery capacity: ≥ 160 Ah
• Continuous power at 25 °C / 77 °F, cos phi 1: 1500 W
• Continuous power at 40 °C / 104 °F, cos phi 1: 1500 W
• Peak load (1 min.): < 1730 W
• Peak load (1 s): < 2650 W
• AC connection: Plug connection EU (Schuko), with UK plug (code 28211500) or with NZ/AU plug (code 28411500)
• Galvanic isolation: Yes
• Efficiency: 93%
• Display/read-out: LED indication: battery voltage, load level, status
• Alarms: Potential free alarm contact
• Dimensions, hxwxd: 248 x 421 x 83 mm/9.8 x 16.6 x 3.3 inch
• Weight: 4.2 kg/9.3 lb
• Compliance: Safety: CE, E-mark, RCM

Technical Specifications:

• Technology: high frequency, input & output fully isolated
• Low battery voltage, switches off at 10.5 V
• Low battery voltage, switches on at 12.5 V
• High battery voltage, switches off at 16.5 V
• High battery voltage, switches on at 14.5 V
• Input current (nominal load): 150 A
• No-load power consumption (ON mode): < 1.8 A
• No-load power consumption (energy saving mode): < 0.1 A
• Minimal DC fuse (slow blow): 175 A
• Minimal cable size: 50 mm²
• Harmonic distortion typical: < 3 %
• Cos phi: All power factors allowed
• Temperature range (ambient temp.): -20 °C to 60 °C, derating power > 40 °C/-4 °F to 140 °F
• Cooling: Temperature and load controlled fan
• Protection degree: IP21, horizontal wall mounting
• Protections: Over-temperature, overload, short circuit, high/low voltage, reverse polarity (fuse)
• MasterBus compatible: Yes, using a MasterBus AC Master Interface

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Owner's Manual (pdf)
Brochure (pdf)

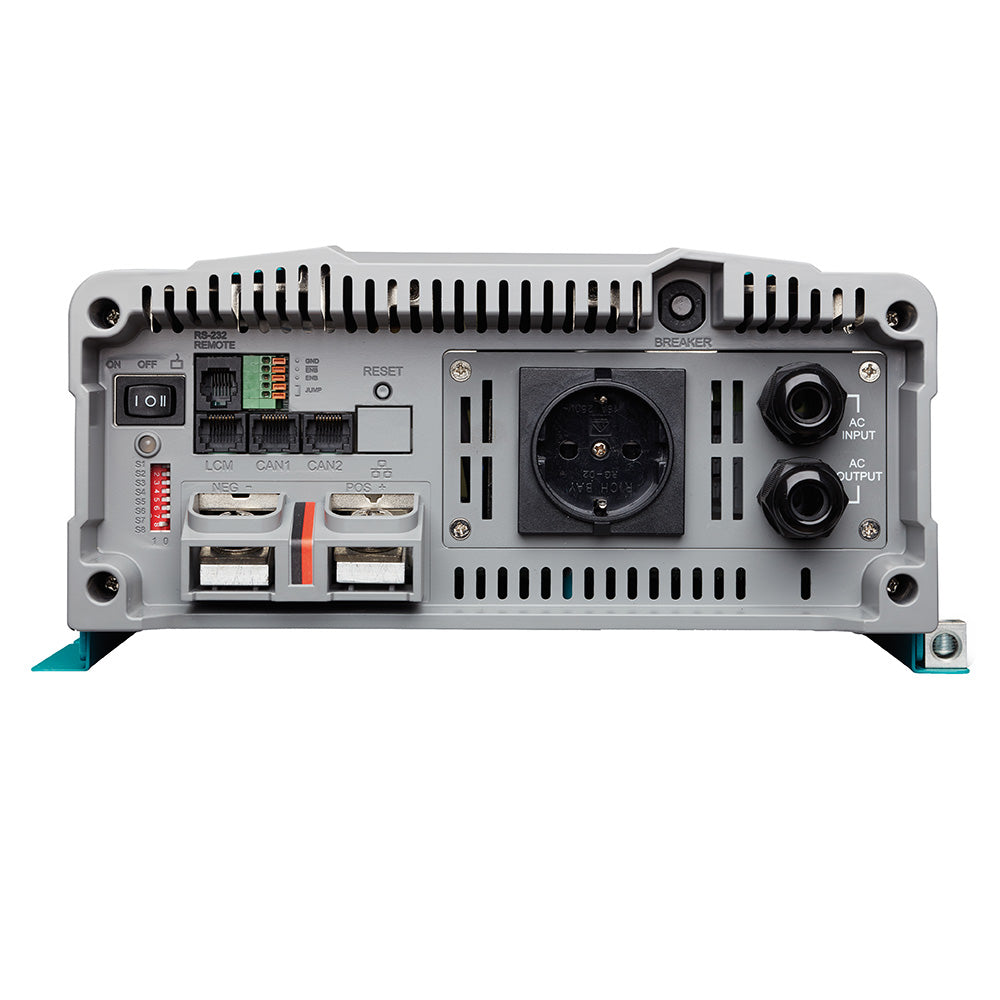

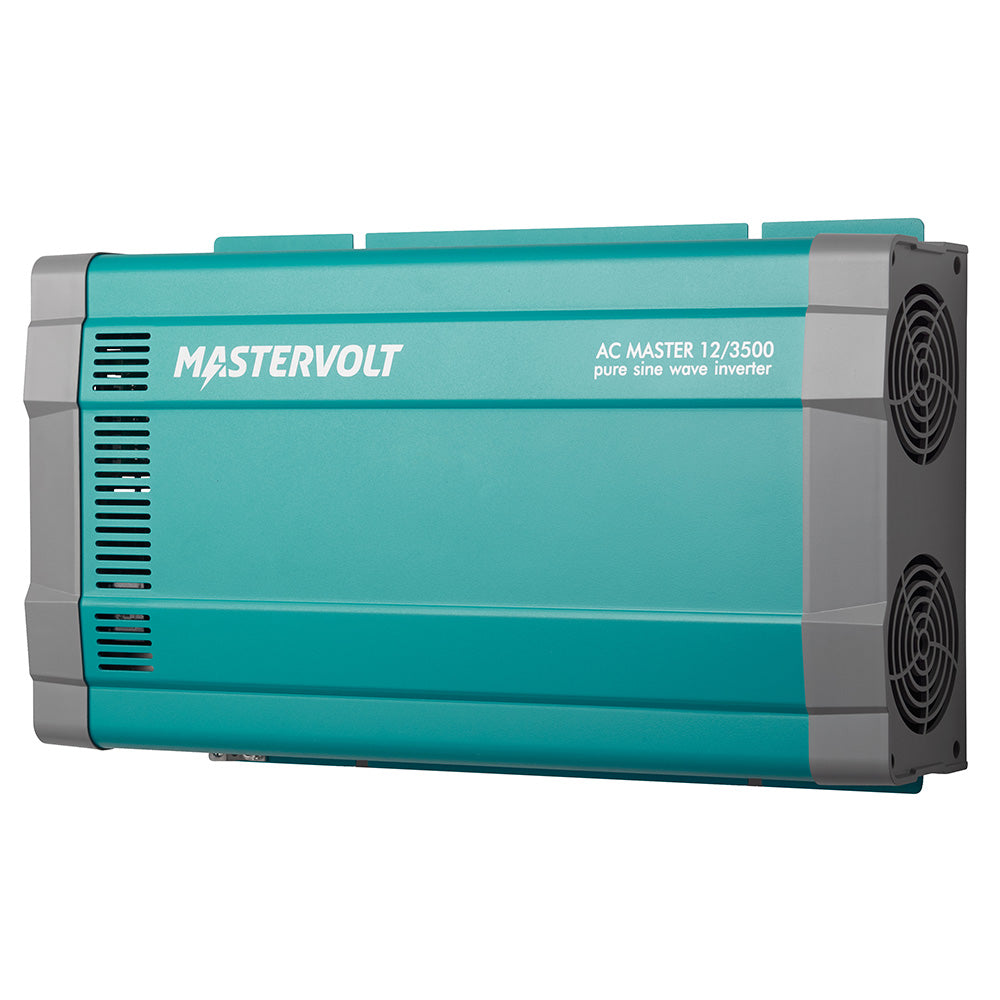

Mastervolt AC Master 12/3500 (230V) Inverter [28013500]

Ships Direct From Manufacturer

AC Master 12/3500 (230V) Inverter

Reliable AC power for recreational and semi-professional use.

These affordable sine wave inverters convert 12 or 24 V battery voltage into reliable 230 V 50/60 Hz or 120 V 50/60 Hz grid power, making them ideal for recreational and semi-professional applications. The AC Master series is easy to install and delivers full output, even under the most demanding conditions. Pure sine wave technology provides an outstanding power quality, ensuring the correct functioning of sensitive equipment. The usage of high-frequency switching technology eliminates any annoying humming and buzzing sounds.

Representing complete value for money, these ruggedly built inverters provide essential home comforts when you’re far from the nearest grid connection.

Features:

• Pure sine wave technology protects sensitive equipment.
• Delivers full output at high peak power under the most demanding conditions.
• Automatic power-saving system for extended runtime.
• Compact and lightweight design, saving valuable installation time.
• Reliable and safe operation; protected against over-temperature, overload, short circuit, high or low battery voltage.
• Variable-speed fan for quiet operation at low power.
• Optional remote control for instant switch-off of the inverter and all connected equipment (not available for the 300 and 500 W models).
• Convenient plug connection for all models, 2500/3500 Watt models also hard-wired.

In addition, the 2500/3500 Watt models offer:

• Combine 2 up to 15 units to obtain high power or 3-phase systems.
• Integrated transfer system, switches automatically between AC power sources.

Applications:

• Both recreational and semi-professional use, where grid power varies or is unavailable. Applications include lighting, appliances, electric cooking, and power tools. For (mobile) applications in your home, office, or service vehicle, or during your holidays.

General Specifications:

• Output voltage: 230/240 V 50/60 Hz (selectable)
• Output waveform: True sine
• Nominal battery voltage: 12V
• Recommended battery capacity: ≥ 360 Ah
• Continuous power at 25 °C / 77 °F, cos phi 1: 3500 W
• Continuous power at 40 °C / 104 °F, cos phi 1: 3500 W
• Peak load (1 min.): < 4500 W
• Peak load (1 s): < 6000 W
• AC connection: Hardwired + plug connection EU (Schuko), UK plug (code 28213500), or NZ/AU plug(code 28413500)
• Galvanic isolation: Yes
• Efficiency: 90%
• Parallel configuration: Yes, up to 15 units
• 3-Phase configuration: Yes, 3 units
• Display/read-out: LED indication: battery voltage, load level, status
• Alarms: Potential free alarm contact
• Dimensions, hxwxd: 283 x 496 x 128 mm/11.1 x 19.5 x 5.0 inch
• Weight: 10 kg/22.0 lb
• Compliance: Safety: CE, E-mark, RCM

Technical Specifications:

• Technology: High frequency, input & output fully isolated
• Low battery voltage, switches off at 10.5 V
• Low battery voltage, switches on at 12.5 V
• High battery voltage, switches off at 16.5 V
• High battery voltage, switches on at 14.5 V
• Input current (nominal load): 350 A
• No-load power consumption (ON mode): < 3.6 A
• No-load power consumption (energy saving mode): < 1.1 A
• Minimal DC fuse (slow blow): 400 A
• Minimal cable size: 120 mm²
• Harmonic distortion typical: < 3 %
• Cos phi: All power factors allowed
• Temperature range (ambient temp.): -20 °C to 60 °C, derating power > 40 °C/-4 °F to 140 °F
• Cooling: Temperature and load controlled fan
• Protection degree: IP21, horizontal wall mounting
• Protections: Over-temperature, overload, short circuit, high/low voltage, reverse polarity (fuse)
• MasterBus compatible: Yes, using a MasterBus AC Master Interface

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Owner's Manual (pdf)
Brochure (pdf)

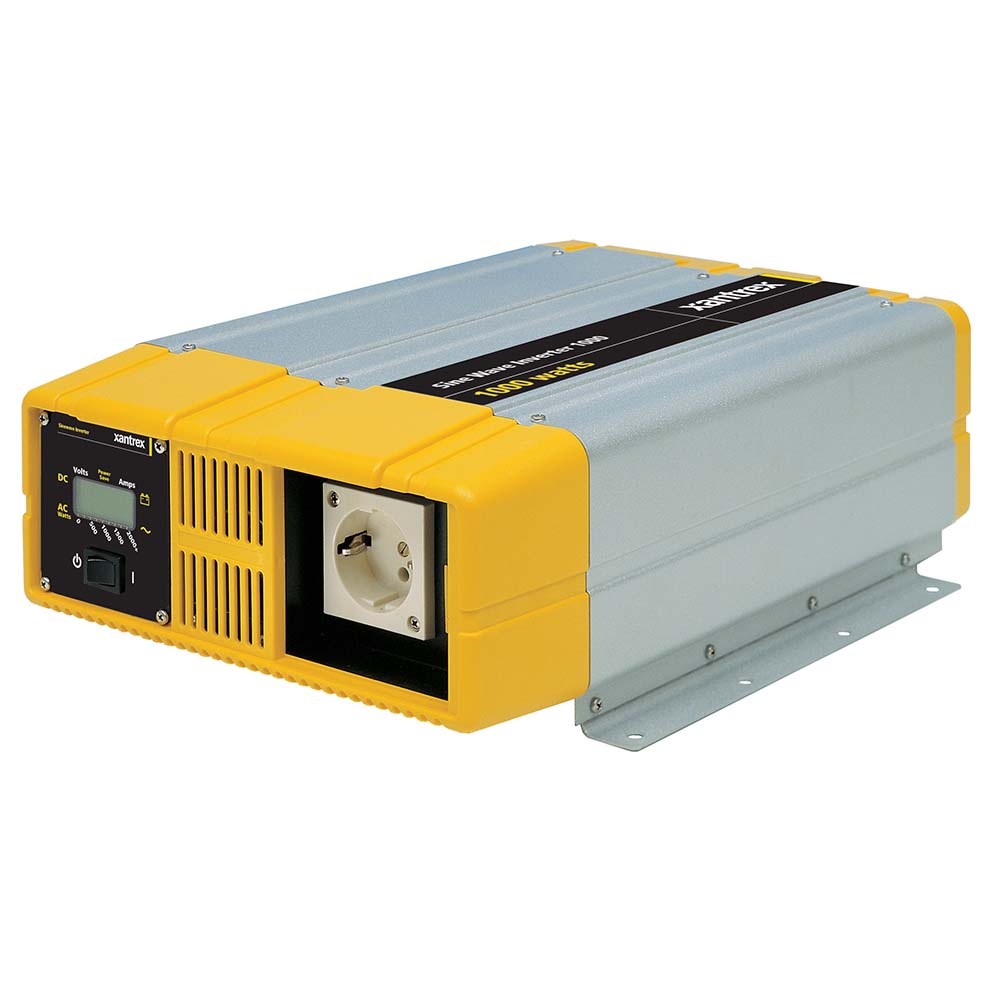

Xantrex PROsine 1800 Inverter Trusine 1800W 230AC/12DC [806-1883]

Ships Direct From Manufacturer

PROsine™ 1800 Inverter Trusine 1800W 230AC/12DC

PROsine™ Inverters deliver true sine wave output that is identical to AC power supplied by your utility. This clean output makes PROsine™ Inverters ideal for handling sensitive loads, while also improving AC equipment performance. Designed for recreational and industrial applications, expect the best performances from televisions, audio systems, speed tools, and any other electronics where you want nothing but the most optimal performance.

Provides pure sine wave AC power from a DC source

Offering superior quality true sine wave output, the Prosine 1000 and 1800 stand-alone inverters are ideally suited for electrical systems that already have a quality multistage battery charger. Designed for recreational and industrial applications, their 120-volt, 60 Hz AC power output is capable of handling both heavy duty and smaller, multiple AC loads. Prosine inverters include a backlit LCD display panel, which can be mounted remotely.

Ultra-Clean Pure Sine Wave Power

With less than 3% total harmonic distortion, the Prosine delivers true sine wave output that is identical to AC power supplied by your utility. Expect trouble-free true sine wave electricity for televisions, audio systems, variable speed tools, and more.

Features:

• Two models available: 1000 watt (1500 watt surge) and 1800 watt (2900 watt surge)
• True sine wave output
• Removable LCD display can be mounted remotely for control and monitoring
• Unique DC terminals offer 180-degree connections for easy installation in tight places
• Efficient power save mode draws only 1.5 watts under no-load condition
• Two year warranty

Protection Features:

• Over temperature shutdown and automatic overload protection
• Over voltage and under voltage protection
• Short circuit and AC backfeed protection

Options:

• Available in 12 and 24 volt models
• Schuko AC receptacle
• Remote interface kit for remote mounting of display module
• Models available with Schuko, hardwire, or hardwire with transfer switch

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

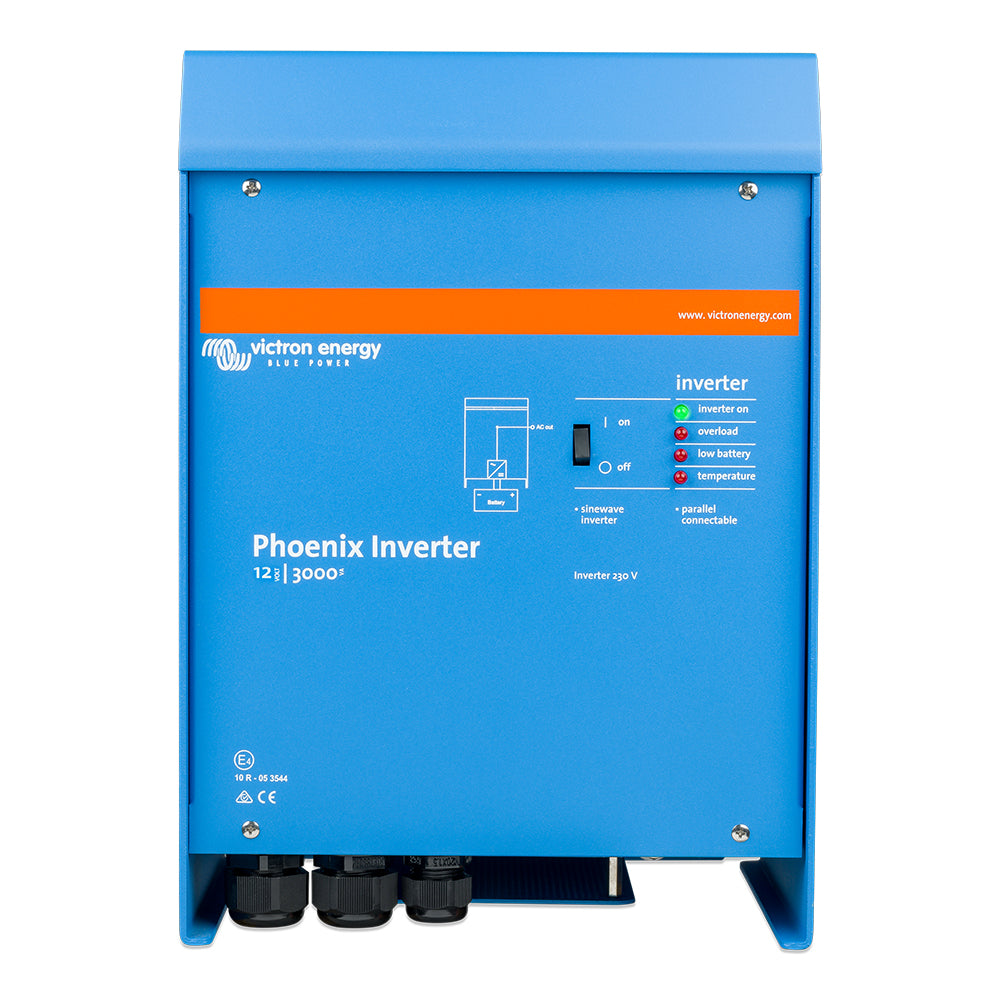

Phoenix Inverter 12/3000 - 230V - VE. BUS

Pure sine wave output, high peak power, and high efficiency. Combined high-frequency and line-frequency technologies ensure the best of both worlds.

SinusMax - Superior Engineering

Developed for professional duty, the Phoenix range of inverters is suitable for the widest range of applications. The design criteria have been to produce a true sine wave inverter with optimized efficiency but without compromising in performance. Employing hybrid HF technology, the result is a top-quality product with compact dimensions, light in weight, and capable of supplying power, problem-free, to any load.

Parallel & 3-Phase Operation Capability

Up to 6 Phoenix Inverters can operate in parallel to achieve higher power output. Six 24V 5000VA units, for example, will provide 24kW / 30kVA output power. Operation in a 3-phase configuration is also possible.

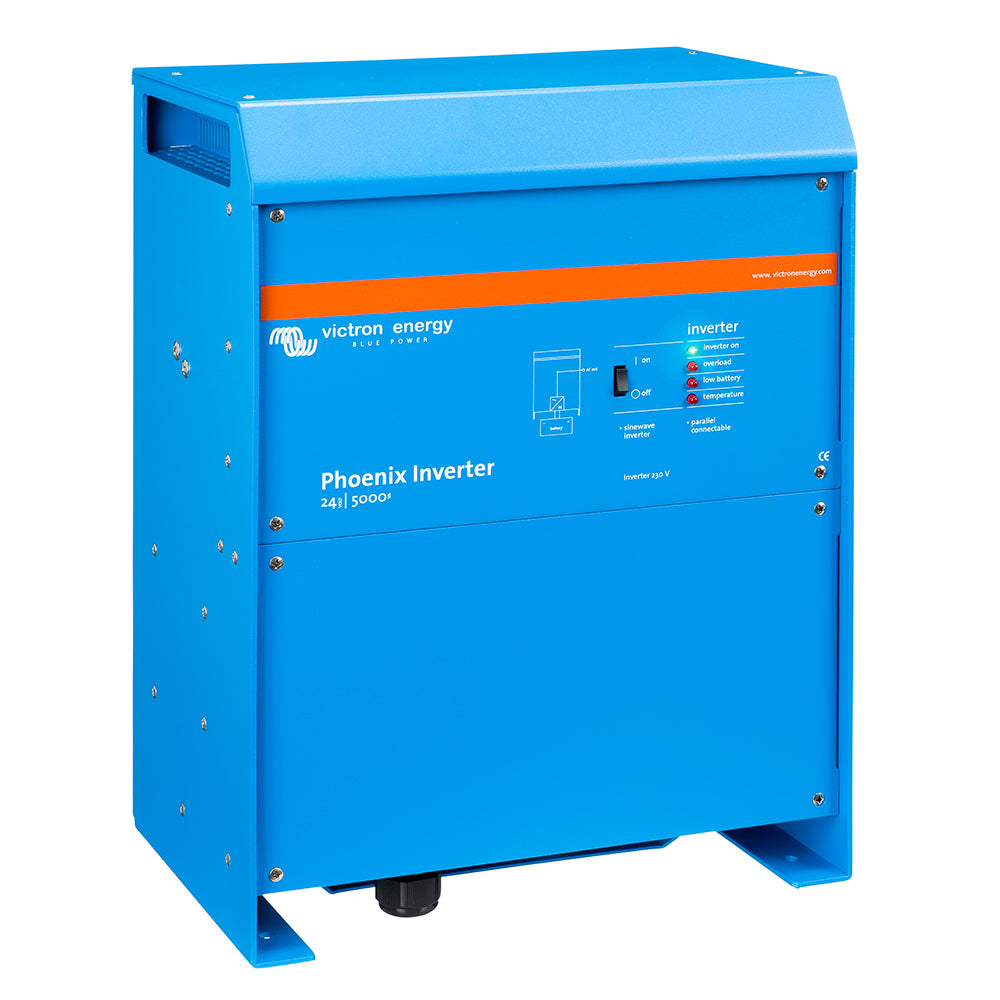

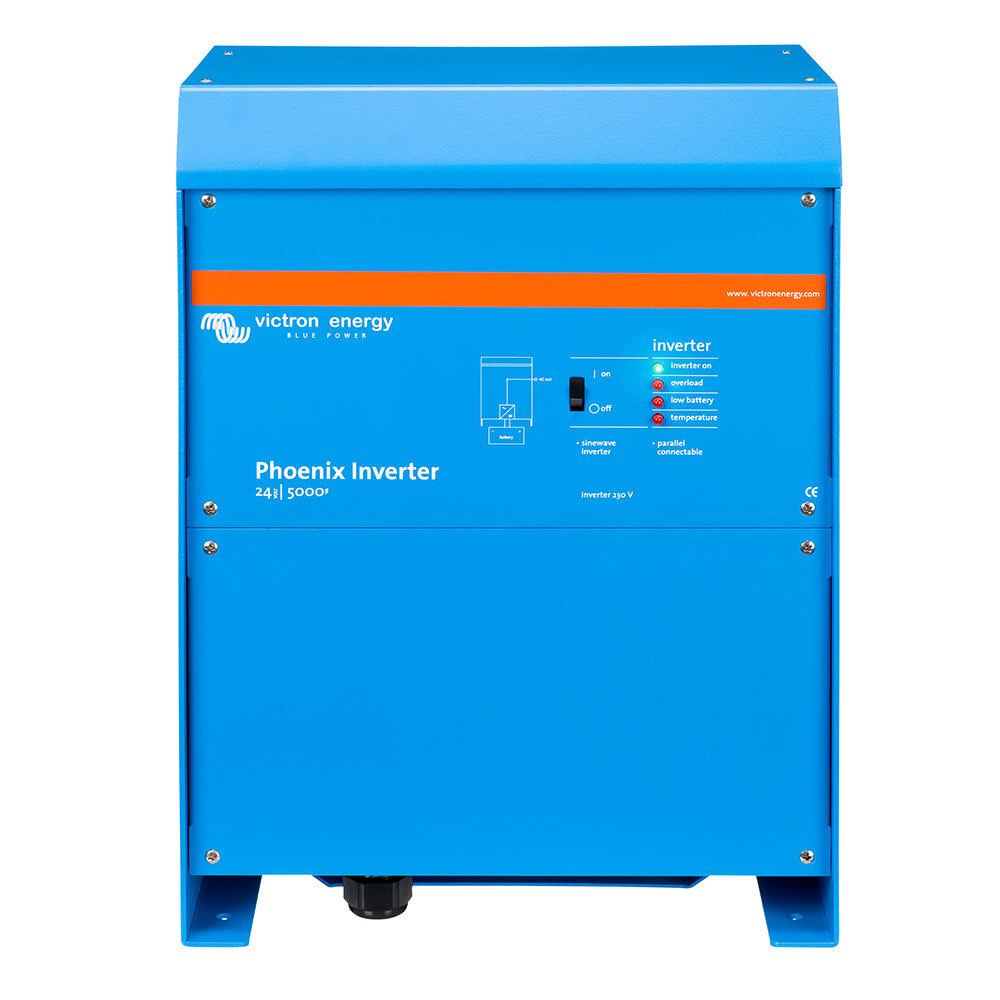

Phoenix Inverter 24 VDC - 5000W - 230 VAC - 50Hz

Pure sine wave output, high peak power and high efficiency. Combined high frequency and line frequency technologies ensure the best of both worlds.

SinusMax - Superior Engineering

Developed for professional duty, the Phoenix range of inverters is suitable for the widest range of applications. The design criteria have been to produce a true sine wave inverter with optimised efficiency but without compromise in performance. Employing hybrid HF technology, the result is a top quality product with compact dimensions, light in weight and capable of supplying power, problem free, to any load.

Parallel and 3-phase operation capability

Up to 6 Phoenix Inverters can operate in parallel to achieve higher power output. Six 24V 5000VA units, for example, will provide 24kW / 30kVA output power. Operation in 3-phase configuration is also possible.

Warranty Info

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• AC Connection Type: Hardwire
• Inverter Output Voltage: 230v
• Waveform: Pure Sine Wave
• Inverter Surge Rating: 10000w
• Inverter Input Voltage: 19-33v
• Inverter Cont. Output Wattage: 5000w
• DC Connection Type: Hardwire
• Outlet Qty: None
• GFCI: No
• Box Dimensions: 13"H x 17"W x 21"L WT: 73 lbs
• UPC: 8719076023760

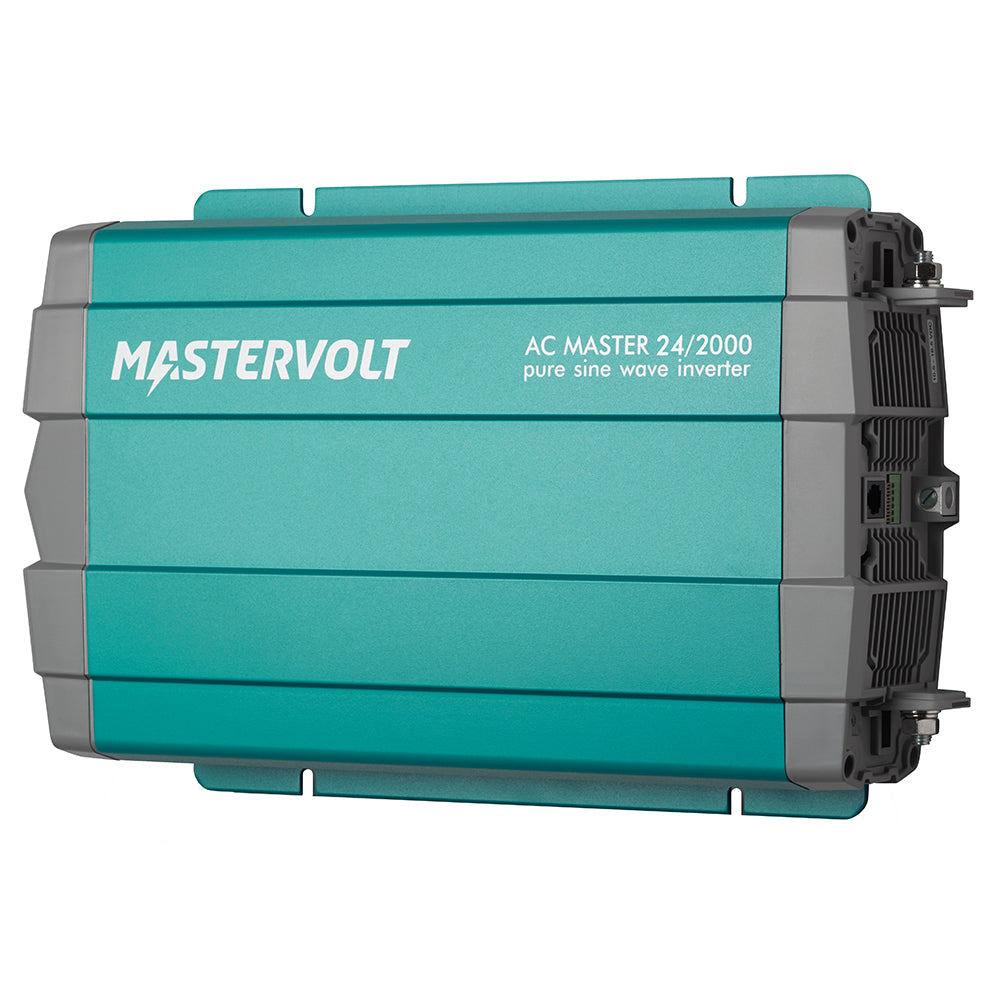

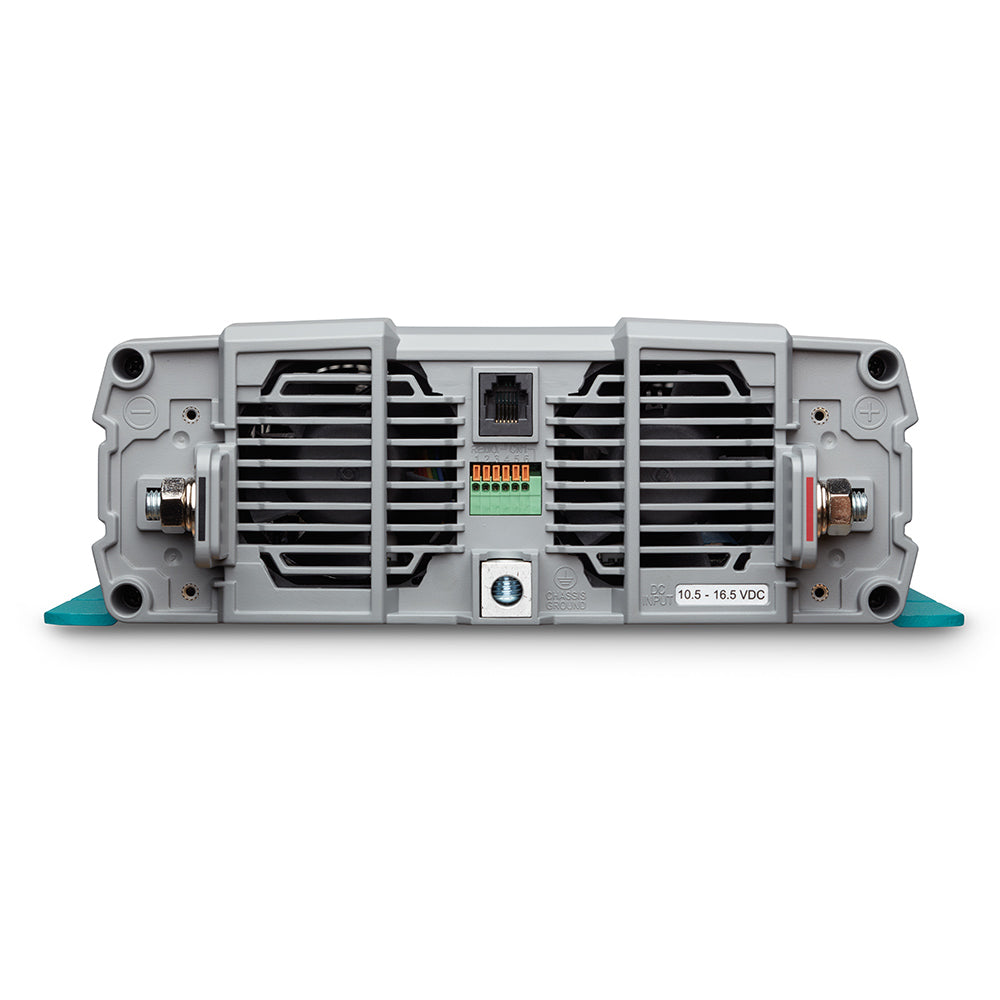

Mastervolt AC Master 24V/2000W Inverter - 120V [28522000]

AC Master 24V/2000W Inverter - 120V

Mastervolt sine wave inverters have proven themselves under the most extreme conditions for over 25 years. Our inverter family consists of AC Master, Mass Sine and Mass Sine Ultra models, ranging from 300 watt up to 40 kW. The AC Master is ideal for small and medium-sized applications, while Mass Sine and the advanced Mass Sine Ultra inverters are mainly intended for larger systems and for professional purposes.

AC Master series: Reliable AC power for recreational and semi-professional use

These affordable sine wave inverters convert 12 or 24 V battery voltage into reliable 230 V 50/60 Hz or 120 V 50/60 Hz grid power, making them ideal for recreational and semi-professional applications. The AC Master series is easy to install and delivers full output, even under the most demanding conditions. The pure sine wave technology provides an outstanding power quality, ensuring the correct functioning of sensitive equipment. The usage of high frequency switching technology eliminates any annoying humming and buzzing sounds.

Representing complete value for money, these ruggedly built inverters provide essential home comforts when you’re far from the nearest grid connection.

Features:

• Pure sine wave technology protects sensitive equipment.
• Delivers full output at high peak power under the most demanding conditions.
• Automatic power saving system for extended runtime.
• Compact and lightweight design, saving valuable installation time.
• Reliable and safe operation; protected against over-temperature, overload, short circuit, high or low battery voltage.
• Variable speed fan for quiet operation at low power.
• Optional remote control for instant switch off of the inverter and all connected equipment (not available for the 300 and 500 W models).
• Convenient plug connection for all models, 2500/3500 Watt models also hard wired.

In addition, the 2500/3500 Watt models offer:

• Combine 2 up to 15 units to obtain high power or 3-phase systems.
• Integrated transfer system, switches automatically between AC power sources.

Applications:

Both recreational and semi-professional use, where grid power varies or is unavailable. Applications include lighting, appliances, electric cooking and power tools. For (mobile) applications in your home, office or service vehicle, or during your holidays.

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Inverter Cont. Output Wattage: 2000w
• AC Connection Type: Hardwire
• DC Connection Type: Hardwire
• GFCI: Yes
• Outlet Qty: 2 Duplex GFCI
• Inverter Surge Rating: 3500w
• Inverter Input Voltage: 24v
• Inverter Output Voltage: 120v
• Waveform: True Sine Wave
• Box Dimensions: 12"H x 12"W x 12"L WT: 13 lbs
• UPC: 816882021336

Owner's Manual (pdf)
