Electrical - Charger/Inverter Combos

Quattro 12/5000/220-100/100 120V VE.Bus (UL458)

Multifunctional

Similar to the MultiPlus, the Quattro is also a combined inverter and charger. Additionally, it can accept two AC inputs and automatically connect to the active source. Its many features include a true sine wave inverter, adaptive charging, hybrid PowerAssist technology, plus multiple system integration features such as three or split-phase operation and parallel operation.

Two AC Inputs & Two AC Outputs

The Quattro can be connected to two independent AC sources, for example, shore-side power and a generator, or two generators. The Quattro will automatically connect to the active source. The main output has no-break functionality. In the event of a grid failure, or shore or generator power being disconnected, the Quattro takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption. The second output is live only when AC is available on one of the inputs of the Quattro. Loads that should not discharge the battery, such as air-conditioning or a water heater can be connected to this output.

Unique PowerAssist Feature

The Quattro will prevent overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shore side supply with power taken from the battery.

Virutually Unlimited Power Thanks to Parallel Operation

Up to 6 Quattros can operate in parallel to achieve higher power output. Three phase or split phase operation is also possible. Please check our datasheets to see which models have paralleling, three phase and split phase capabilities.

Remote Monitoring & Control

When coupled with a GX device (e.g. Cerbo GX) you can monitor and control your Quattro and system or systems' locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, from adjusting your Quattro to auto starting a backupgenerator and more.

Specifications:

• Charger Input - Voltage: 120 VAC
• Charger Output - Amps: 220A
• Charger Output Voltage: 120 VAC
• Charging Banks: 2 x 100A
• Inverter Cont. Output Wattage: 5000VA/4000W
• Inverter Input Voltage: 9.5 VDC - 17VDC
• Inverter Output Voltage: 120VAC
• Outlet Qty: None
• Box Dimensions: 15"H x 19"W x 22"L WT: 91.75 lbs
• UPC: 8719076072065

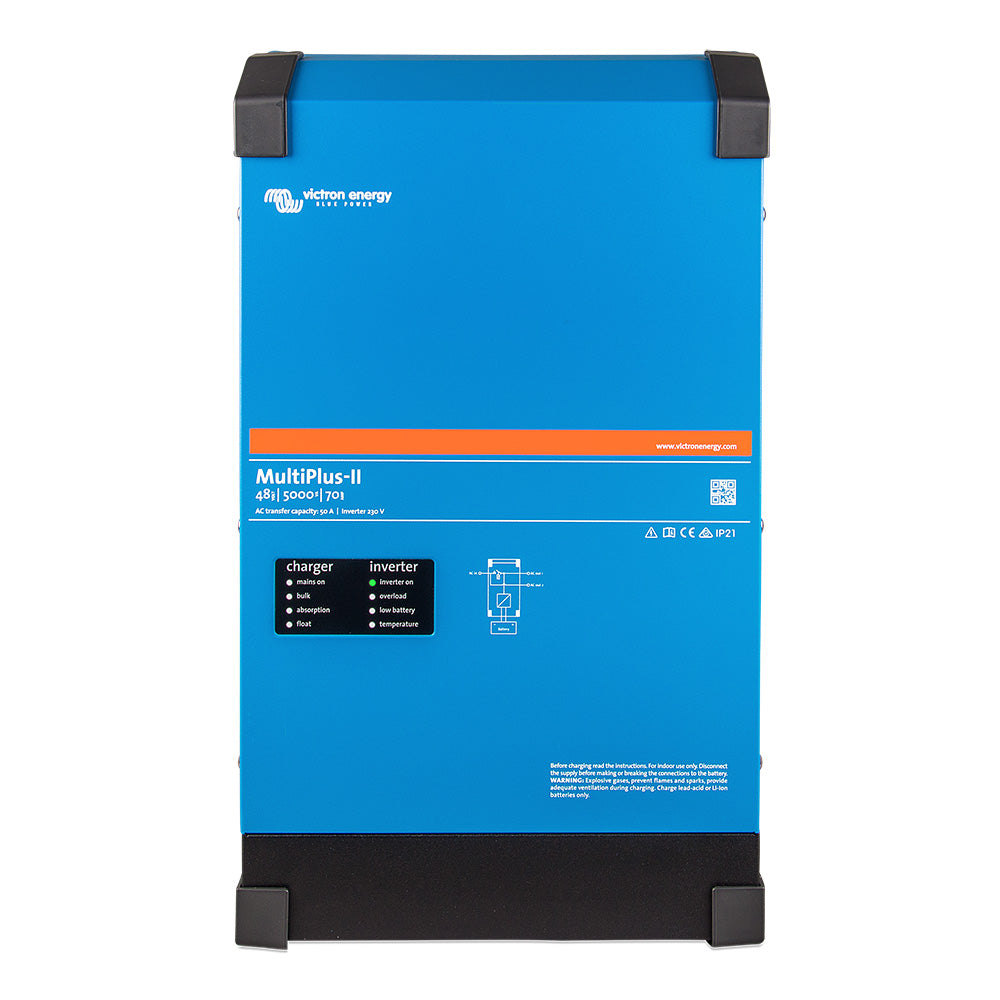

Victron MultiPlus-II 48/5000 70-95 120V 50/60Hz [PMP482505300]

MultiPlus-II 48/5000 70-95 120V 50/60Hz

The MultiPlus-II combines the functions of the MultiPlus and the MultiGrid.

Evolved Inverter/Charger

It has all the features of the MultiPlus, plus an external current transformer option to implement PowerControl and PowerAssist and to optimize self-consumption with external current sensing (max. 32A). It also has all the features of the MultiGrid with built-in anti-islanding and an increasingly long list of country approvals.

PowerAssist

The MultiPlus-II will prevent overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shore side supply with power taken from the battery.

ESS: Energy Storage Systems

The robust MultiPlus-II is the key component in a Victron Energy Storage System. Our new Dynamic ESS feature takes ESS to the next level. It automatically switches between - or combines - grid, battery and solar energy based on live-pricing, predicted energy-use and solar yield so it's always consuming the cheapest energy.

Uninterrupted AC Power (UPS Function)

In the event of a grid failure, or when shore or generator power is disconnected, the inverter within the Multi is automatically activated and takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption.

Remote Monitoring & Control

When coupled with a GX device (e.g. Cerbo GX) you can monitor and control your Multi and system or systems' locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, from adjusting your Multi to auto starting a backupgenerator and more…"

Please contact your dealer for any returns, repairs or support issues related to this product.

Specifications:

• Charger Input - Voltage: 120VAC
• Charger Output - Amps: 70A
• Charger Output Voltage: 48VDC
• Charging Banks: 1
• Inverter Cont. Output Wattage: 4000W
• Inverter Input Voltage: 48VDC
• Inverter Output Voltage: 120VAC
• Outlet Qty: Hardwire
• Box Dimensions: 11"H x 17"W x 30"L WT: 72.5 lbs
• UPC: 8719076075295

Quick Guide (pdf)
Owner's Manual (pdf)
Brochure (pdf)

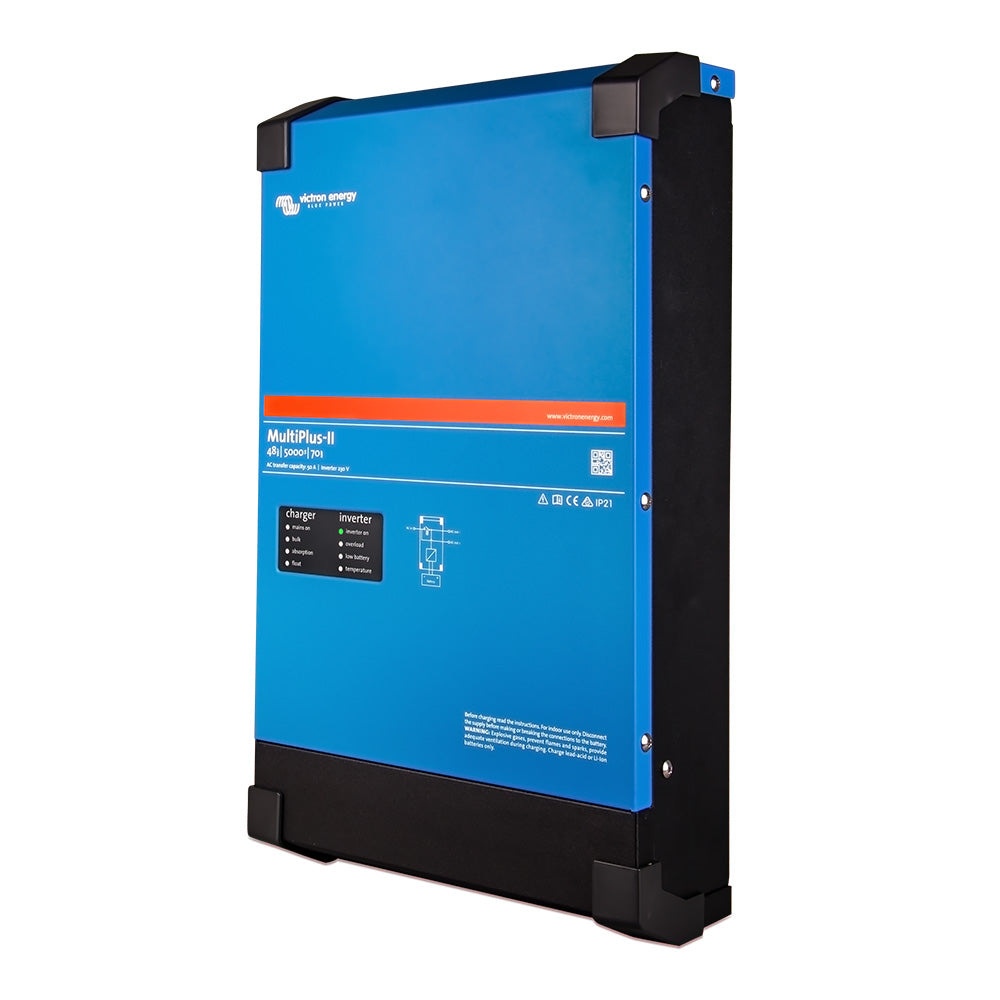

MultiPlus-II 48/5000 70-95 120V (UL1741)

The MultiPlus-II combines the functions of the MultiPlus and the MultiGrid.

Evolved Inverter/Charger

It has all the features of the MultiPlus, plus an external current transformer option to implement PowerControl and PowerAssist and to optimize self-consumption with external current sensing (max. 32A). It also has all the features of the MultiGrid with built-in anti-islanding and an increasingly long list of country approvals.

PowerAssist

The MultiPlus-II will prevent overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shore side supply with power taken from the battery.

ESS: Energy Storage Systems

The robust MultiPlus-II is the key component in a Victron Energy Storage System. Our new Dynamic ESS feature takes ESS to the next level. It automatically switches between - or combines - grid, battery and solar energy based on live-pricing, predicted energy-use and solar yield so it's always consuming the cheapest energy.

Uninterrupted AC Power (UPS Function)

In the event of a grid failure, or when shore or generator power is disconnected, the inverter within the Multi is automatically activated and takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption.

Remote Monitoring & Control

When coupled with a GX device (e.g. Cerbo GX) you can monitor and control your Multi and system or systems' locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, from adjusting your Multi to auto starting a backupgenerator and more…"

Specifications:

• Charger Input - Voltage: 120VAC
• Charger Output - Amps: 50A
• Charger Output Voltage: 48VDC
• Charging Banks: 1
• Inverter Cont. Output Wattage: 4000W
• Inverter Input Voltage: 48VDC
• Inverter Output Voltage: 120VAC
• Outlet Qty: Hardwire
• Box Dimensions: 10"H x 17"W x 30"L WT: 70.15 lbs
• UPC: 8719076072041

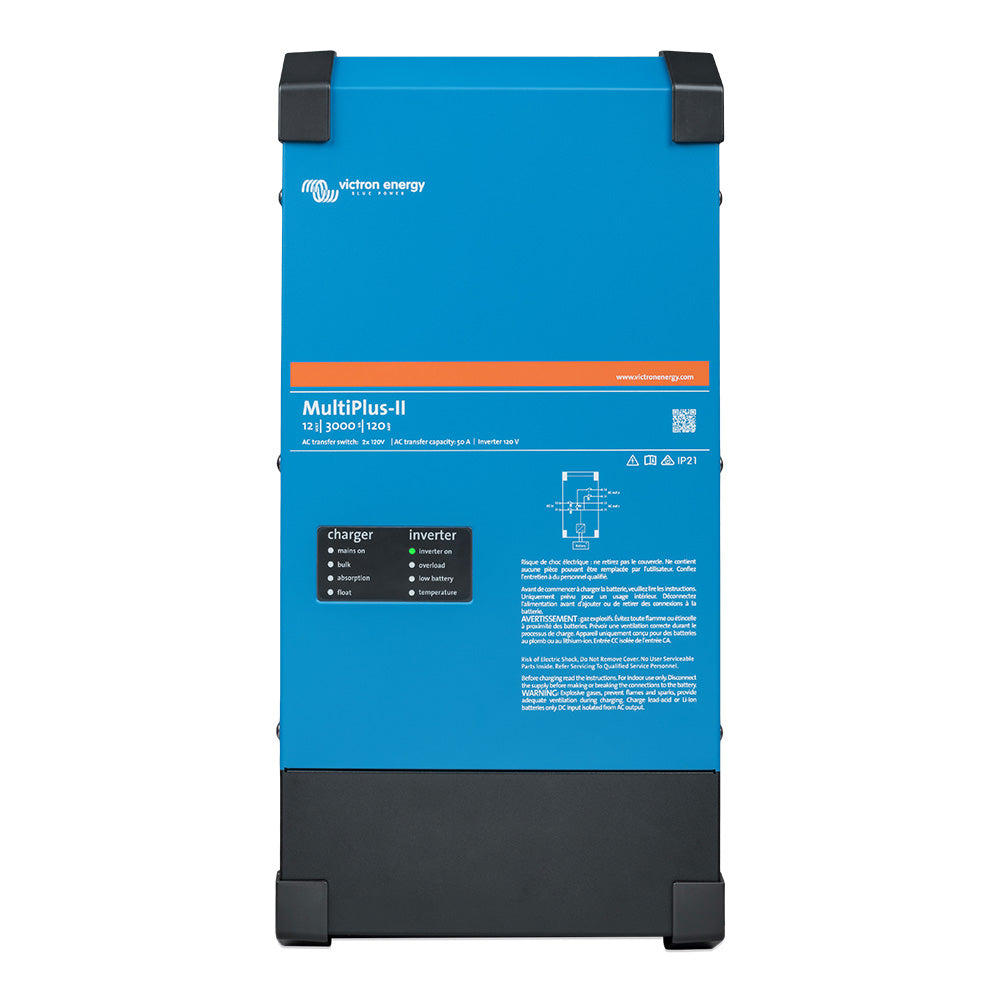

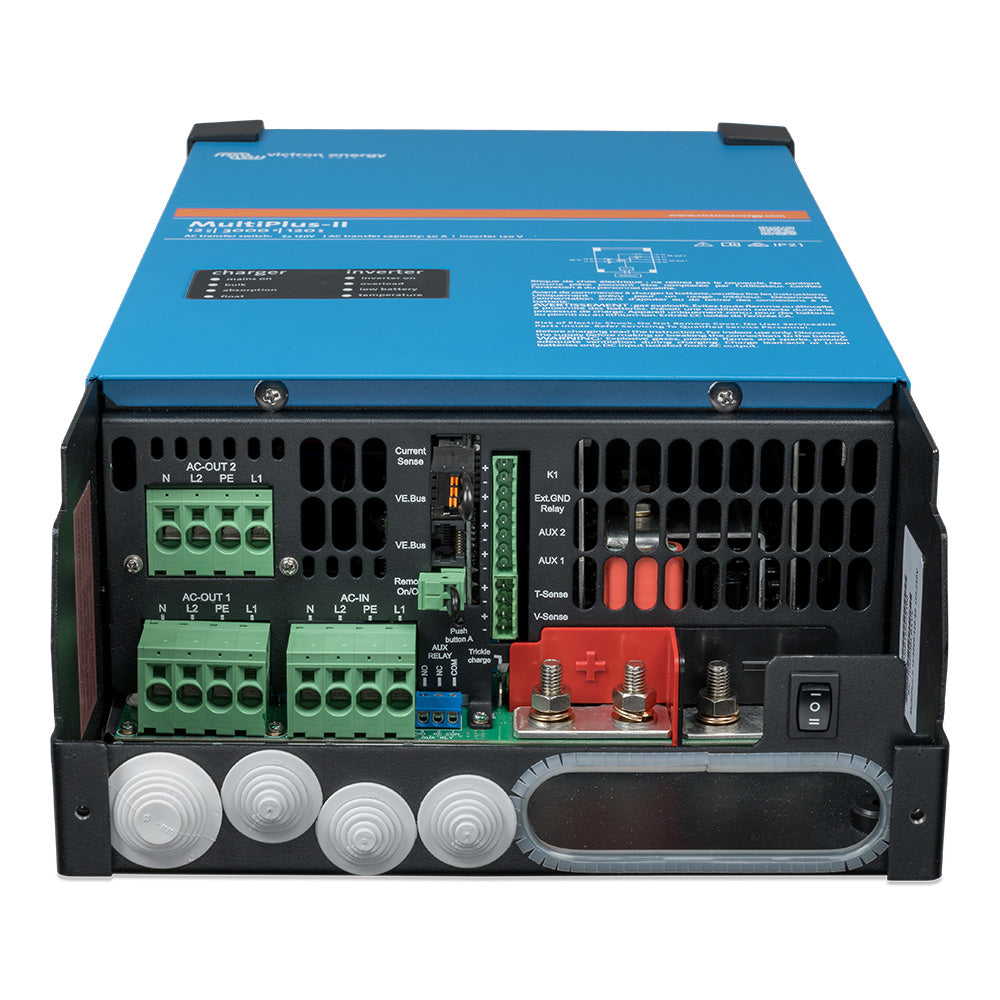

MultiPlus-II 24/3000 70-50 2x120V (UL458)

The MultiPlus-II is a multifunctional inverter/charger with two AC outputs. Suitable for professional marine, yachting, vehicle, and land-based off-grid systems, it also provides the isolation and redundancy required for ESS setups. PowerControl allows the MultiPlus-II to prevent grid or generator overload, while PowerAssist boosts AC power during peak demand. In the event of an outage, the inverter switches over in milliseconds, keeping computers and sensitive electronics running without interruption. The battery charger combines speed with efficiency through a smart adaptive algorithm that extends battery life. Ready for expansion, the MultiPlus-II supports parallel and three-phase configurations when a system needs to scale.

PowerAssist

The MultiPlus-II will prevent overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shore side supply with power taken from the battery.

ESS: Energy Storage Systems

The robust MultiPlus-II is the key component in a Victron Energy Storage System. Our new Dynamic ESS feature takes ESS to the next level. It automatically switches between - or combines - grid, battery and solar energy based on live-pricing, predicted energy-use and solar yield so it's always consuming the cheapest energy.

Uninterrupted AC Power (UPS Function)

In the event of a grid failure, or when shore or generator power is disconnected, the inverter within the Multi is automatically activated and takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption.

Remote Monitoring & Control

When coupled with a GX device (e.g. Cerbo GX) you can monitor and control your Multi and system or systems' locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, from adjusting your Multi to auto starting a backupgenerator and more…"

*Note: For a short period of time this product was called MultiGrid-II.

Specifications:

• Charger Input - Voltage: 120VAC
• Charger Output - Amps: 70A-50A
• Charger Output Voltage: 24VDC
• Charging Banks: 1
• Inverter Cont. Output Wattage: 2400W
• Inverter Input Voltage: 24VAC
• Inverter Output Voltage: 120VAC
• Outlet Qty: Hardwire
• Box Dimensions: 10"H x 14"W x 25"L WT: 51.4 lbs
• UPC: 8719076059219

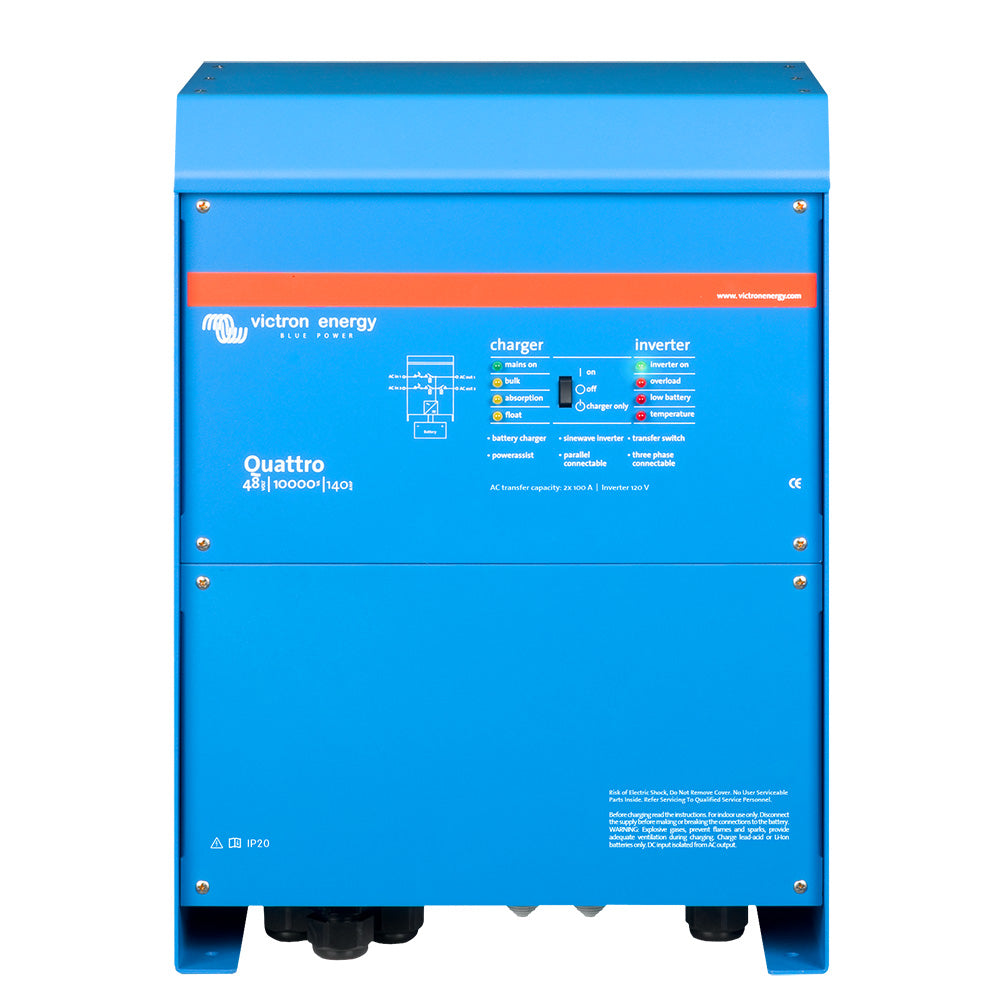

Quattro 48/10000 140-100/100 120V VE.Bus 50/60Hz

Multifunctional

Similar to the MultiPlus, the Quattro is also a combined inverter and charger. Additionally, it can accept two AC inputs and automatically connect to the active source. Its many features include a true sine wave inverter, adaptive charging, hybrid PowerAssist technology, plus multiple system integration features such as three or split-phase operation and parallel operation.

Two AC Inputs & Two AC Outputs

The Quattro can be connected to two independent AC sources, for example, shore-side power and a generator, or two generators. The Quattro will automatically connect to the active source. The main output has no-break functionality. In the event of a grid failure, or shore or generator power being disconnected, the Quattro takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption. The second output is live only when AC is available on one of the inputs of the Quattro. Loads that should not discharge the battery, such as air-conditioning or a water heater can be connected to this output.

Unique PowerAssist Feature

The Quattro will prevent overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shore side supply with power taken from the battery.

Virutually Unlimited Power Thanks to Parallel Operation

Up to 6 Quattros can operate in parallel to achieve higher power output. Three phase or split phase operation is also possible. Please check our datasheets to see which models have paralleling, three phase and split phase capabilities.

Remote Monitoring & Control

When coupled with a GX device (e.g. Cerbo GX) you can monitor and control your Quattro and system or systems' locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, from adjusting your Quattro to auto starting a backupgenerator and more.

Specifications:

• Charger Input - Voltage: 120VAC
• Charger Output - Amps: 100A
• Charger Output Voltage: 48VDC
• Charging Banks: 1
• Inverter Cont. Output Wattage: 800W
• Inverter Input Voltage: 48VDC
• Inverter Output Voltage: 120VAC
• Outlet Qty: Hardwire
• Box Dimensions: 25"H x 25"W x 27"L WT: 187 lbs
• UPC: 8719076075301

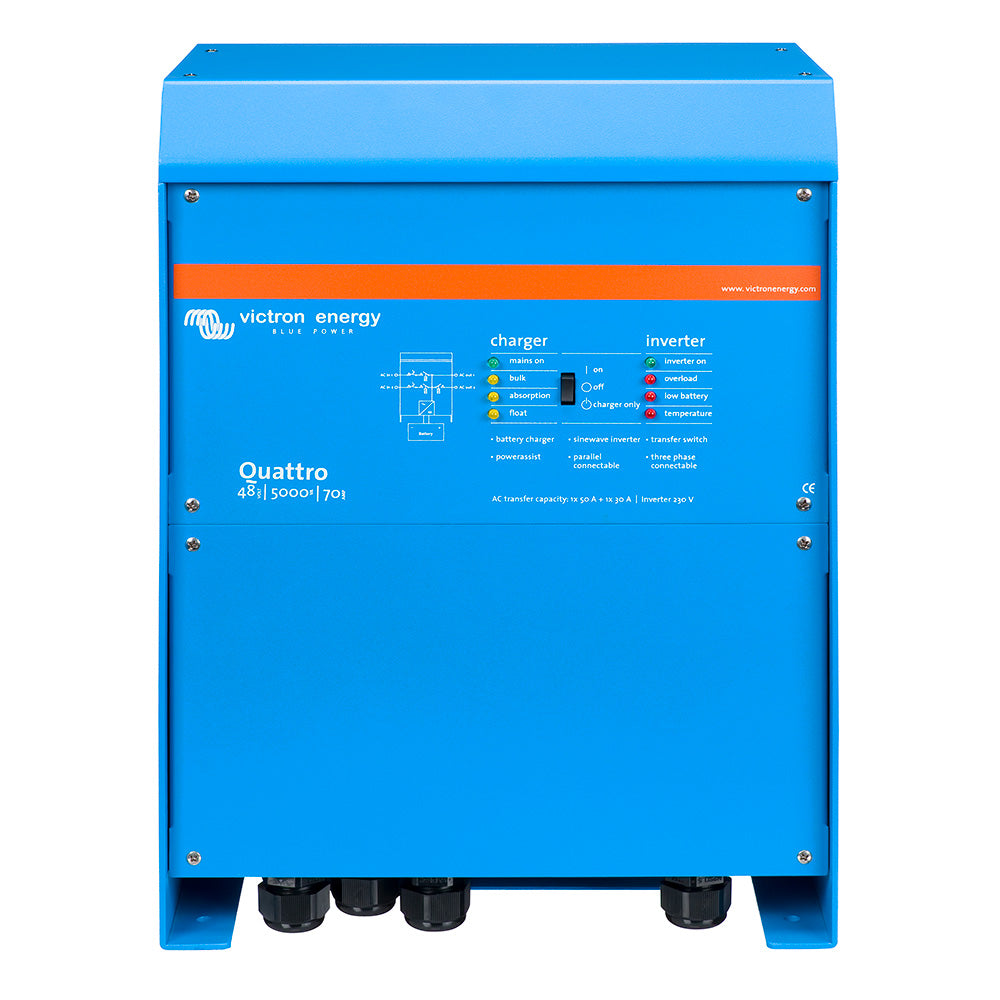

Quattro 48/5000/70 100/100 120V VE.Bus UL-Listed

Multifunctional

Similar to the MultiPlus, the Quattro is also a combined inverter and charger. Additionally, it can accept two AC inputs and automatically connect to the active source. Its many features include a true sine wave inverter, adaptive charging, hybrid PowerAssist technology plus multiple system integration features such as three or split-phase operation and parallel operation.

Two AC Inputs & Two AC Outputs

The Quattro can be connected to two independent AC sources, for example, shore-side power and a generator, or two generators. The Quattro will automatically connect to the active source. The main output has no-break functionality. In the event of a grid failure, or shore or generator power being disconnected, the Quattro takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption. The second output is live only when AC is available on one of the inputs of the Quattro. Loads that should not discharge the battery, such as air-conditioning or a water heater can be connected to this output.

Unique PowerAssist Feature

The Quattro will prevent overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shore side supply with power taken from the battery.

Virutually Unlimited Power Thanks to Parallel Operation

Up to 6 Quattros can operate in parallel to achieve higher power output. Three phase or split phase operation is also possible. Please check our datasheets to see which models have paralleling, three phase and split phase capabilities.

Remote Monitoring & Control

When coupled with a GX device (e.g. Cerbo GX) you can monitor and control your Quattro and system or systems' locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, from adjusting your Quattro to auto starting a backupgenerator and more.

Specifications:

• Charger Input - Voltage: 120VAC
• Charger Output - Amps: 70A
• Charger Output Voltage: 57.4VDC
• Charging Banks: 2 x 100A
• Inverter Cont. Output Wattage: 5000VA / 4000W
• Inverter Input Voltage: 38 VDC - 66VDC
• Inverter Output Voltage: 120VAC
• Outlet Qty: None
• Box Dimensions: 13"H x 17"W x 21"L WT: 76 lbs
• UPC: 8719076068389

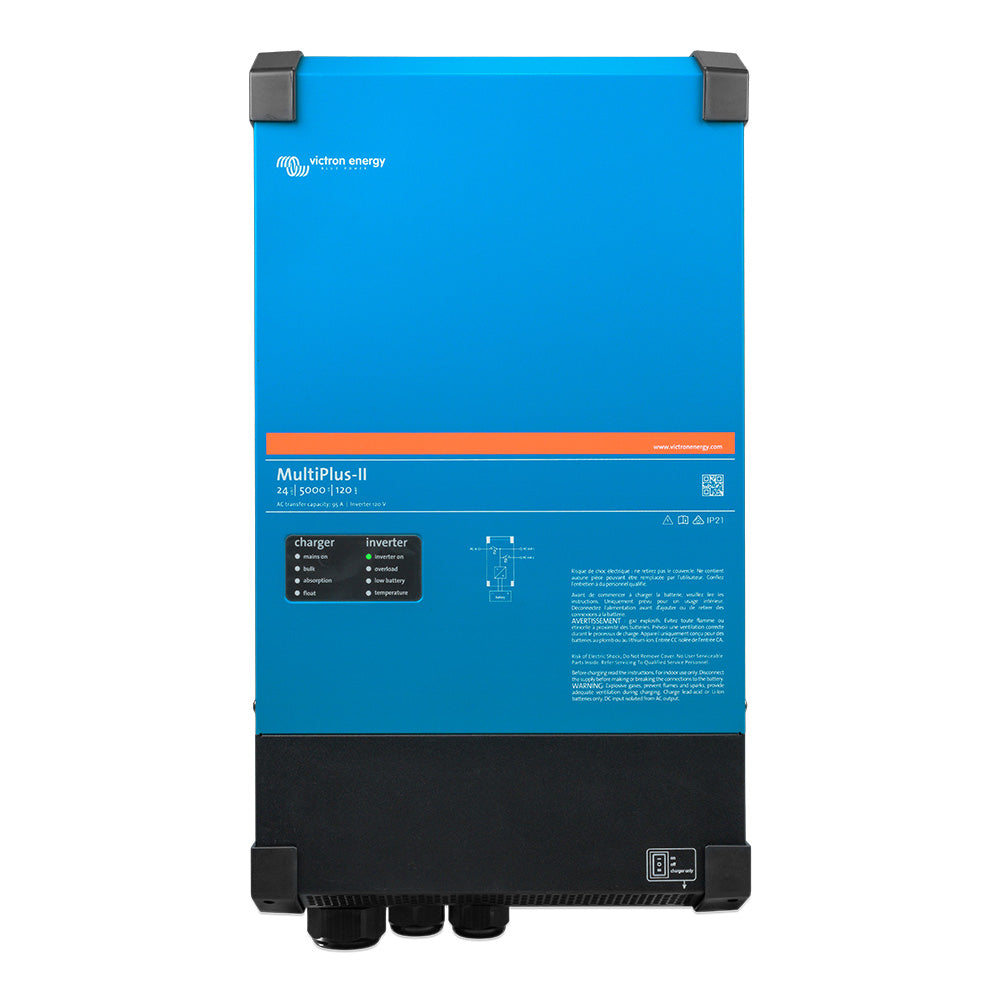

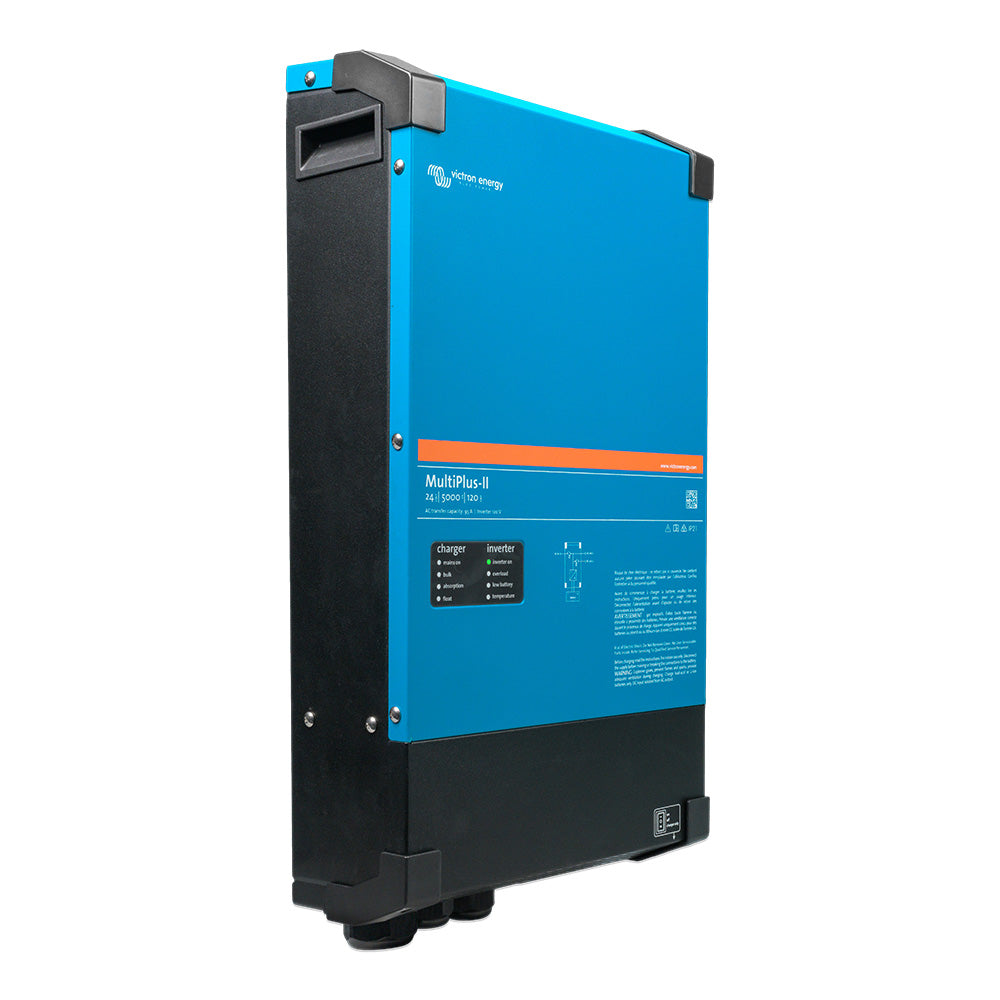

MultiPlus-II 24/5000 120-95 120V

The MultiPlus-II combines the functions of the MultiPlus and the MultiGrid.

Evolved Inverter/Charger

It has all the features of the MultiPlus, plus an external current transformer option to implement PowerControl and PowerAssist and to optimize self-consumption with external current sensing (max. 32A). It also has all the features of the MultiGrid with built-in anti-islanding and an increasingly long list of country approvals.

PowerAssist

The MultiPlus-II will prevent overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shore side supply with power taken from the battery.

ESS: Energy Storage Systems

The robust MultiPlus-II is the key component in a Victron Energy Storage System. Our new Dynamic ESS feature takes ESS to the next level. It automatically switches between - or combines - grid, battery and solar energy based on live-pricing, predicted energy-use and solar yield so it's always consuming the cheapest energy.

Uninterrupted AC Power (UPS Function)

In the event of a grid failure, or when shore or generator power is disconnected, the inverter within the Multi is automatically activated and takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption.

Remote Monitoring & Control

When coupled with a GX device (e.g. Cerbo GX) you can monitor and control your Multi and system or systems' locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, from adjusting your Multi to auto starting a backupgenerator and more…"

Note: For a short period this product was called MultiGrid-II.

Specifications:

• Charger Input - Voltage: 120VAC
• Charger Output - Amps: 95A
• Charger Output Voltage: 24VDC
• Charging Banks: 2
• Inverter Cont. Output Wattage: 5000VA / 4000W
• Inverter Input Voltage: 24VDC
• Inverter Output Voltage: 120VAC
• Box Dimensions: 10"H x 17"W x 28"L WT: 70.1 lbs
• UPC: 8719076060314

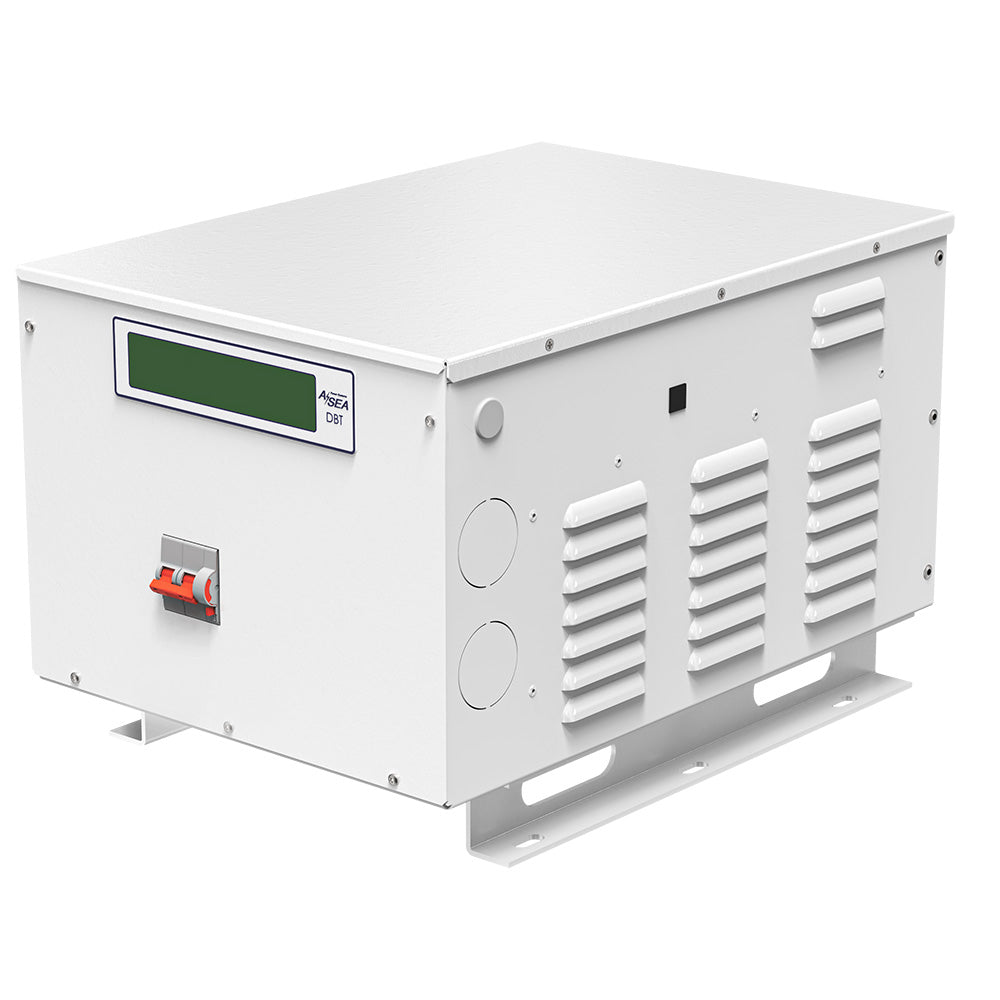

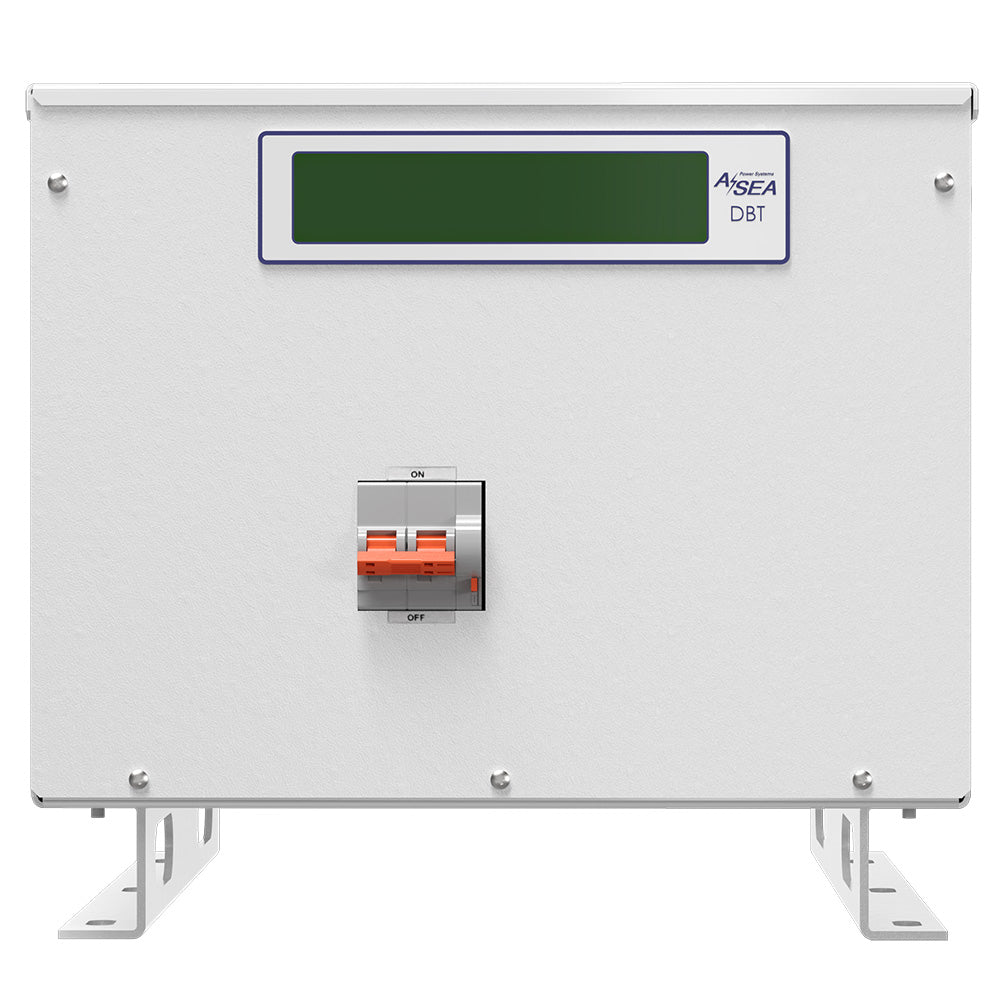

ASEA Power Systems DBT12 Dock Boost Transformer - Single Phase Output [628019-001]

Ships Direct From Manufacturer

DBT12 Dock Boost Transformer - Single Phase Output

The smart isolation boosting transformer. The Dock Boost Transformer (DBT) provides precision voltage regulation to the vessel, delivering complete protection from the most common shore power problems, including brownouts, spikes, sags, and low-line or high-line voltage conditions from the dock power pedestal. The DBT also provides three levels of boost to keep your ship powered even when input voltages sag by 35%.

The DBT features a compact and lightweight footprint. By providing an industry-recognized mounting pattern, it will fit as the perfect replacement for new construction or retrofit applications (direct replacement for the Charles Iso-Boost).

The DBT12/15 accepts any input voltage ranging from 167 V-270 V (47-70 Hz) and provides a Split phase 120/240V or 115/230 V output nominal. The DBT24 accepts nominal voltages of 230, 400V, and 480V - each with the same wide range – to provide a 115/230V Split phase output.

Features:

• Drop-in replacement for the Charles Iso-boost
• 3 boosting levels utilizing a smart tap system
• Lightweight and compact at 127lbs
• Industry-recognized mounting pattern
• The wide input range of 167-270 VAC
• Parallelable for advanced applications

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Brochure (pdf)
