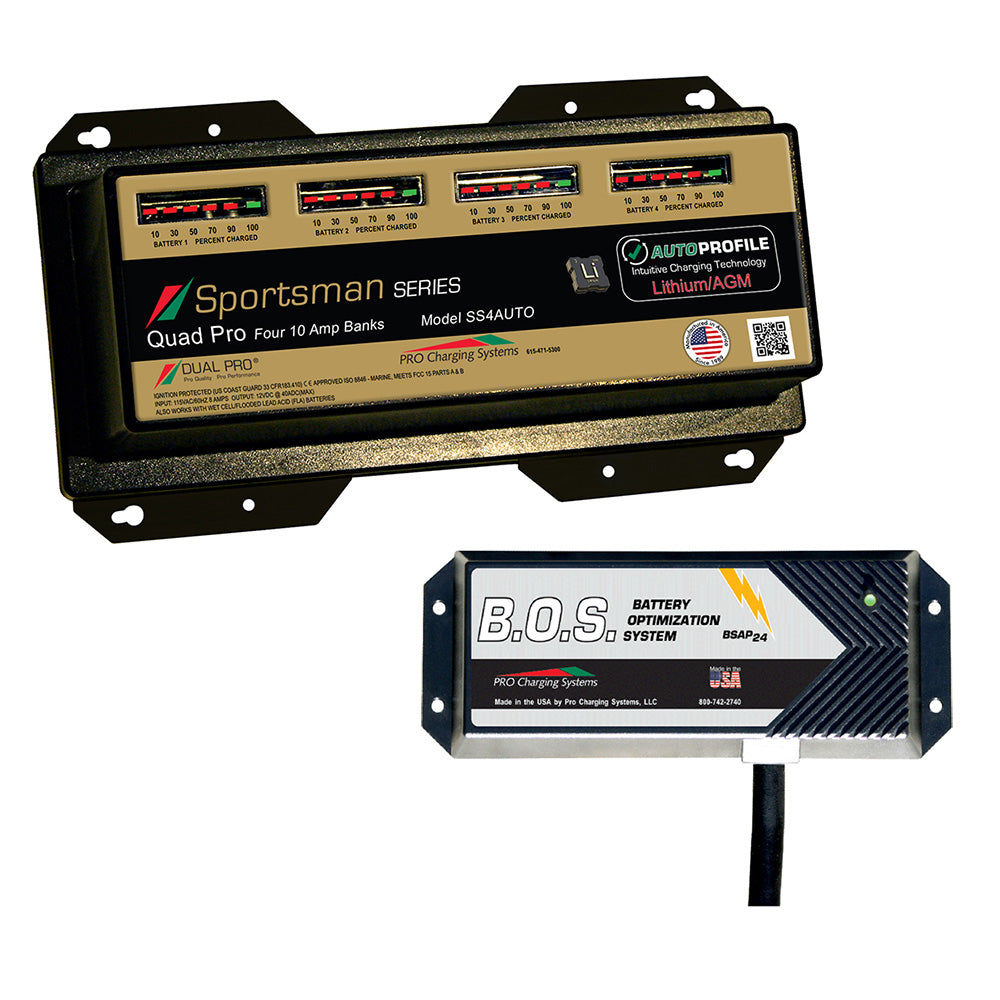

SS4 Auto 40A - 4-Bank Lithium/AGM Battery Charger

Latest Technology:

• Detects if your battery is Lithium or AGM
• Automatically charges both Lithium and AGM batteries for optimal performance
• Fully automatic. Completely and safely charges both Lithium and AGM batteries
• Algorithms designed and validated with battery manufacturers for a 100% charge
• Startup feature will wake up batteries that have turned off due to low voltage protection
• Auto return to charge feature
• Quickest charge times in its class
• Unbeatable performance, reliability, safety, and quality delivered by DUAL PRO®

Features:

• Waterproof - Use on land and in fresh and saltwater
• TROUBLE-FREE—Just Plug It In and Forget It!
• Independent outputs
• Fully automatic/multi-stage charging
• On-board diagnostic codes
• FCC 15 Parts A & B interference compliant
• Approved and meets ISO 8846 Marine standards
• Ignition protected (US Coast Guard 33 CFR 183.410)
• 3-Year Warranty

AutoProfile Intuitive Charging Technology Lithium/AGM

Professional and Sportsman Series chargers have set the standard in the marine industry for more than two decades, known as the safest, most reliable, and best performing chargers in the industry.

AutoProfile Intuitive Charging Technology provides flexibility for your charging system, ready for the ever-changing lithium battery technologies. No matter if you choose Lithium or AGM batteries for your boat, Dual Pro is ready to keep your boat on the water longer, enhancing battery performance and extending battery life.

Specifications:

• Charger Input - Voltage: 120v
• Charger Output - Amps: 40a
• Charger Output Voltage: 12/24/36/48v
• Charging Banks: 4
• Portable: No
• Box Dimensions: 10"H x 11"W x 17"L WT: 23 lbs
• UPC: 738562002933

SS3 Auto 30A - 3-Bank Lithium/AGM Battery Charger

Latest Technology:

• Detects if your battery is Lithium or AGM
• Automatically charges both Lithium and AGM batteries for optimal performance
• Fully automatic. Completely and safely charges both Lithium and AGM batteries
• Algorithms designed and validated with battery manufacturers for a 100% charge
• Startup feature will wake up batteries that have turned off due to low voltage protection
• Auto return to charge feature
• Quickest charge times in its class
• Unbeatable performance, reliability, safety, and quality delivered by DUAL PRO®

Features:

• Waterproof - Use on land and in fresh and saltwater
• TROUBLE-FREE—Just Plug It In and Forget It!
• Independent outputs
• Fully automatic/multi-stage charging
• On-board diagnostic codes
• FCC 15 Parts A & B interference compliant
• Approved and meets ISO 8846 Marine standards
• Ignition protected (US Coast Guard 33 CFR 183.410)
• 3-Year Warranty

AutoProfile Intuitive Charging Technology Lithium/AGM

Professional and Sportsman Series chargers have set the standard in the marine industry for more than two decades, known as the safest, most reliable, and best performing chargers in the industry.

AutoProfile Intuitive Charging Technology provides flexibility for your charging system, ready for the ever-changing lithium battery technologies. No matter if you choose Lithium or AGM batteries for your boat, Dual Pro is ready to keep your boat on the water longer, enhancing battery performance and extending battery life.

Specifications:

• Charger Input - Voltage: 120v
• Charger Output - Amps: 30a
• Charger Output Voltage: 12/24/36v
• Charging Banks: 3
• Portable: No
• Box Dimensions: 10"H x 10"W x 14"L WT: 17.5 lbs
• UPC: 738562002926

Professional Series Battery Charger - 45A - 3-15A-Banks - 12V-36V

The Professional Series chargers have set the standard in the marine industry for more than a decade. They are known as the safest, most reliable, and best performing battery chargers in the industry. Across a broad range of fishing and recreational boats, Pro Charging Systems keeps boaters on the water longer while extending the life of their batteries. Dual ProTM charging technology has been and continues to be the choice of over 50 boat manufacturers and professional fishermen on the B.A.S.S. and FLW tournament circuit.

Battery Charging System Designed for Use On Land and in Fresh and Salt Water

• The “Green” Charger: Totally “Repairable” Not a Throw-Away
• Unmatched Performance, Reliability, Safety and Quality
• TROUBLE FREE – Just Plug It In and Forget It!
• Join Over 750,000 of Our Satisfied Customers!
• Fully Automatic and Totally Waterproof

Features:

• Approved for Wet Cell and AGM batteries
• Models also available for Gelled Electrolyte batteries
• Designed for use in fresh and saltwater
• DeltaVolt® Intuitive Charging Technology
• Waterproof, dependable, rugged construction
• Independent outputs
• Fully automatic / multi stage charging
• Zero spark technology
• Battery maintenance mode
• On-board diagnostic codes
• Temperature compensated
• Advanced microprocessor controlled
• Battery systems available: 12V – 48V
• LED lights indicate the state of charge
• Reverse polarity protected
• No installation restrictions
• FCC Parts A & B interference compliant
• DC charge cables = 5' AC power cord = 3'
• Approved and meets ISO 8846 Marine standards
• Ignition protected (US Coast Guard 33 CFR 183.410

May be used in many types of sporting applications including:

• Inland Watercraft
• Salt Water Watercraft
• Motorcycles
• Golf Carts
• Utility Vehicles…

Specifications:

• Charger Output Voltage: 12/24/36v
• Charger Output - Amps: 45a
• Charging Banks: 3
• Portable: No
• Charger Input - Voltage: 120v
• Box Dimensions: 10"H x 11"W x 17"L WT: 25.4 lbs
• UPC: 738562000045

Package Contents:

All Digital Electronic Charging

Industry recognized with the 2010 IBEX Innovation Award, ProNauticP employs our ProMar Digital Performance Charging Platform which combines all digital control and software-based power conversion technology with global energy management features. ProNauticP addresses the trend of incorporating and using more 12-volt electronics on-board today's power, sail, cruising and sport fishing boats. Boasting twelve digitally-controlled performance charging profiles with finger tip selection, ProNauticP fully charges, conditions, maintains and re-conditions batteries while extending battery life and maximizing battery reserve power performance. ProNauticP is Power Factor Corrected with auto-ranging global AC input allowing all models to operate off a standard household power connection. Featuring dual digital displays for real-time display of actual charging voltage and amperage and AC power-on diagnostics with pass or fail status in addition to discreet fault indication for mis-wiring or adverse battery bank conditions. Designed to provide more time on the water enjoying what you like most... boating.

ProMar Digital Performance Charging

ProMar Digital Charging Performance - 12 Selectable Profiles

Up to 12 performance & precision 4-stage charging profiles: Charge, Condition, Maintain and Re-condition. Automatic dockside power mode for 12 Volt DC lighting and appliances. Factory set for Flooded (Lead Acid) batteries. AGM, GEL selectable.

Power Factor Correction - Global AC Input

Auto-ranging (100-250VAC/50-60Hz) global AC input with reduced harmonic distortion allowing all models to operate off a household power outlet connection. ProNauticP consumes less power so more AC power is available on board.

Distributed On Demand Technology

Automatically senses and distributes 100% of available charging amps to any one bank or combination of all banks.

Digital Self-Calculating Absorption and Battery Health Re-Conditioning Mode

Automatically programs conditioning time based on discharge state of batteries. Automatically de-sulfates batteries after 21 days in the maintain mode, improving reserve power performance & extending battery life.

Conservation Energy Saver Mode

After 72 hours of not seeing a load greater than 5 amps, float voltage will be lowered consuming less energy during storage periods. (for flooded & sealed charge profiles)

Service and Fault Mode LED Indicators

Real time indication of wiring faults or adverse conditions that may impact the operation of a boat's charging system.

Automatic Fan Speed Control

Quiet operation. Innovative front exhaust prevents restriction of air flow and cooling.

Automatic Temperature Compensation and Built-in Safety

Remote temperature probe included - Ignition protected and current limiting. Designed and constructed to: Marine ULc 1236, CE, CTick and FCC Class B.

Package Contents:

ProNautic Charger

Parts package including:.

a. Owners/Installation Manual

b. Warranty Card

c. Temperature Probe

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Charger Output - Amps: 20a
• Charging Banks: 3
• Portable: No
• Charger Input - Voltage: 120/240v
• Charger Output Voltage: 12v
• Box Dimensions: 6"H x 11"W x 13"L WT: 6.35 lbs
• UPC: 031669631205

ChargeMaster Battery Charger - 12 Amp - 3 Bank - 24V

Power You Can Rely On

Make the most of your batteries with the ChargeMaster, plugging in and charging anywhere in the world. Mastervolt’s ChargeMaster guarantees fast and complete charging of your batteries no matter where you are. The ChargeMaster can charge multiple battery banks simultaneously thanks to its combined functionality. Moreover, all ChargeMasters can be easily connected to a MasterBus network with only one cable and one connection (not available on ChargeMaster 24/6). You also have the option of central, local or remote monitoring, configuration and control of your system. The ChargeMaster is available in various models to guarantee you the ideal battery charger for any situation and demand.

Charging Your Batteries With Every Voltage

The Mastervolt ChargeMaster supplies a maximum capacity wherever you are via auto-ranging. Auto-ranging ensures perfect fully automatic operation anywhere in the world, regardless of the available mains voltage (90-265 V AC, 50 or 60 Hz). The 3-step+ charging technology guarantees fast and complete charging, while the cos phi 1 regulation gets the most out of limited generator capacity.

Sturdy Connections

Metal-on-metal fitting gives a firm connection, and prevents corrosion or overheating of contact surfaces.

Charging Multiple Battery Banks

The ChargeMaster series has three equal charge outputs. Those of the smaller ChargeMaster models are pre-installed with two meters of cable for a plug & play solution, while the heavier models have one full output (for example for your service battery) and two outputs of 10 A, ideal for your starter batteries.

Features:

• 3-Step+ charging technology for fast and complete charging.
• Safe and complete charging due to standard safety features.
• Memory function prevents overcharging in case of an unstable power supply.
• Clear control panel.
• Easy to install.
• Built-in system functionality (MasterBus) in combination with other Mastervolt products (not available on ChargeMaster 24/6).

General Specifications

• Nominal output voltage: 24 V
• Total charge current:12 A
• Number of battery outlets: 3
• Charge current second output: 12 A
• Charge current third output:12 A
• Battery capacity range: 24-120 Ah
• Nominal input voltage: 120/230 V (90-265 V), 50/60 Hz
• AC connection: 2M AC cable
• Power supply mode: yes
• Display/read-out: LED display
• Fastening: 4x screw
• Dimensions, H x W x D: 234 x 132 x 60 mm / 9.2 x 5.2 x 2.4 inch
• Weight: 1.8 kg / 4.0 lb
• Approvals:CE, ABYC A-31, SAE J1171/ISO8846 ignition protected

Technical Specifications

• Charge characteristic: IUoUo, automatic / 3-step+ for gel/AGM/wet/Lithium Ion
• Charge voltage Bulk: 28.8 V
• Charge voltage Absorption: 28.5 V
• Absorption time: 4 hours
• Charge voltage Float (wet batteries): 26.5 V
• Charge voltage Float (gel/AGM batteries): 27.6 V
• Temperature compensation: -60 mV/ °C -33 mV/ °F
• Voltage compensation: automatic
• Power consumption (DC side): < 2 mA
• Full load consumption (230 V AC): 435 W
• Current Control function: no
• Power factor control: ≥ 0.98
• Temperature range (ambient temp.): -25 °C to 60 °C, derating > 25 °C -13 °F to 140 °F
• Sound level: < 52 dBA at 1M
• Protection degree: IP23
• Protections: over temperature, over load, short circuit, high/low battery voltage
• Cooling: vario fan
• MasterBus compatible: yes

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Charger Output Voltage: 24v
• Charger Output - Amps: 12a
• Charging Banks: 3
• Portable: No
• Charger Input - Voltage: 120/230v
• Box Dimensions: 5"H x 7"W x 11"L WT: 4.65 lbs
• UPC: 816882020100

Dolphin Charger Premium Series Dolphin Battery Charger - 24V, 30A [99041]

Premium Series Dolphin Battery Charger - 24V, 30A

The Premium range of chargers is perfect for most of today’s battery technologies, with a load capacity of up to 400 amps at 12V. These compact chargers are ideally suited to recharging batteries in light vehicles, ambulances, repair vehicles, and motorhomes. The Premium charger is perfect for workshops, pleasure boats, computer cabinets, and starter batteries for gen-sets.

The robust compact housing is lighter and easier to install than ever thanks to better mounting design and electrical speed connections. Outstanding features include the latest battery charging technology and a new charging program for lithium-ion-iron-phosphate batteries. These chargers come in a nice package, making them ideal for retailers.

Features:

• 24V, 30A
• Digital management with up-to-date RISC micro-controller
• 4 charging programs, including one for Lithium-Ion-Iron-Phosphate with integrated BMS.
• Charging program selection by internal dip switch.
• Thanks to the Winsta (Wago) and Phoenix contact connectors, wiring, and connections are easy and user-friendly.
• 3 completely isolated battery outputs.
• Automatic 115/230V switch-over
• Touchview controller connection

Specifications:

• Charger Input - Voltage: 115/230v
• Charger Output - Amps: 30a
• Charger Output Voltage: 24v
• Portable: No
• Box Dimensions: 5"H x 10"W x 13"L WT: 7.65 lbs
• UPC: 786142990415

Owner's Manual (pdf)

TRUECHARGE™3 30A 3 Bank Battery Charger - 24V

TRUEcharge3 battery chargers lead the industry with a small footprint and ultra-compact design. In addition to meeting global safety and regulatory standards, TRUEcharge3 battery chargers feature low electrical interference and efficient power factor-corrected multistage charging. Thanks to their inherent drip-proof design characteristics, the TRUEcharge3 Chargers can be mounted in multiple positions. Unlike its predecessors, TRUEcharge3 is lithium-ion battery compatible.

Designed for recreational and commercial applications worldwide, TRUEcharge3 accepts 90–265 Vac, and 47–63 Hz, which makes traveling abroad and handling poor-quality power a breeze. The easy-to-read display of the TRUEcharge3 24 V models can be enhanced with an optional remote panel. Each model comes with built-in protection against surges and spikes on the AC power line.

Features:

• Microprocessor-controlled, multistage charging algorithms
• Settings for two and three-stage charging
• Battery-equalization feature
• Settings for flooded, gel, AGM, or lithium-ion batteries
• Equipped with parallel stacking (remote panel required)
• Ability to charge batteries drained to extremely low voltage
• Added quiet mode

Protection Features:

• Reverse-battery polarity protection
• Drip-proof design
• DC over-voltage protection
• Over-temperature protection
• Circuit breaker protection

Three-Stage Charging

Multistage charging ensures batteries receive optimum charging, but with minimal wear and tear, regulating the voltage and current delivered to the batteries in three automatic stages:

• Bulk: Replaces 70–80% of the battery’s state-of-charge at the fastest possible rate
• Absorption: Replenishes the remaining 20–30% of charge, bringing the battery to a full charge at a slow, safe rate
• Float: Voltage is reduced and held constant to prevent damage and maintain batteries at a full charge for the remaining 20–30% of charge, bringing the battery to a full charge at a slow, safe rate

Power Factor Corrected (PFC) Charging

Less shore power is required for charging batteries, freeing up more usable AC power for running electrical devices and appliances and reducing the likelihood of tripping shore power breakers.

Electrical Specifications (@ 25 degrees C unless otherwise noted):

• Output Current (nominal): 30 A
• Output Voltage (nominal, depending on settings): Charge 28.4–31.0 Vdc; Float 26.8–27.6 Vdc; 32 V
• DC Output Connections: Three
• AC Input Voltage: 90–265 Vac; 47–63 Hz 120 Vac, 230 Vac, 240 Vac nominal
• Temperature Compensation: Three settings
• Charger Efficiency: > 80%
• Battery Type: Gel, Flooded, AGM, LiFePO4
• Minimum Recommended Battery Bank Size: 60 Ah

General Specifications:

• Operating Temperature Range: 0–60°C (32–140°F)
• Storage Temperature -40–80°C (-40–176°F)
• Battery Connection: Three positive terminals and one negative terminal
• Dimensions (H x W x L): 90 x 170 x 340 mm (3.5 x 6.7 x 13.4”)
• Weight 4.5 kg (9.9 lb)

 Regulatory Approvals

Meets CSA 60335-2-29, UL1564, IEC 60335-2-29, IP32 per EN.IEC 60529, FCC Part 158, Canada ICES-003 Class B emissions limits, ABYC A-31, and DOE/CEC energy efficiency compliant.

Specifications:

• Charger Input - Voltage: 120/240v
• Charger Output - Amps: 30a
• Charger Output Voltage: 24v
• Charging Banks: 3
• Portable: No
• Box Dimensions: 6"H x 11"W x 17"L WT: 9 lbs
• UPC: 715535920975

Samlex 40A Battery Charger - 24V - 2-Bank - 3-Stage w/Dip Switch  Lugs - Includes Temp Sensor [SEC-2440UL]

40A Battery Charger - 24V - 2-Bank - 3-Stage w/Dip Switch & Lugs - Includes Temp Sensor

This advanced fully automatic three-stage 40 Amp battery charger is ideal for charging all types of 24 Volt lead-acid batteries ( Flooded / Absorbed Glass Mat (AGM) / Gel Cell) from a 120 V, 60 Hz or 230 V, 50 Hz AC source. By means of a DIP switch setting, conversion to a two-stage algorithm is possible to charge batteries connected to a DC load (DC UPS). The unit can also be used as a DC Power Supply. Features include overload, short-circuit and over-temperature protection. The unit allows charging of up-to 2 separate battery banks.

Features:

• Switch mode technology for high efficiency, lightweight and quiet operation
• Automatic operation for ALL Lead Acid Batteries Flooded, AGM or Gel Cell
• Can charge 2 banks of batteries simultaneously, no isolator necessary
• Can be used as a power supply or DC UPS when used in conjunction with a battery
• User Configurable AC Input voltage 120 or 230 VAC, 50 / 60 Hz
• User Selectable ( by DIP Switch) for 2 or 3 stage, rapid and safe charging of standalone and loaded Lead Acid Batteries
• “Half Power Mode” reduces maximum charging current to half the rated capacity, allows for safe charging of lower capacity batteries
• Voltmeter and Ammeter for monitoring
• Fan cooled based on output current
• Protections: Short circuit, overload, reverse battery connection and over temperature
• Includes temperature sensor to prevent under/overcharging of battery if temperature varies extensively

Specifications:

• Input: 120 VAC or 230 VAC
• Output: 24 VDC
• Amps: 40
• Remote Control: 900-RC
• Weight: 9 (lbs)
• Weight: 4.1 (kg)
• Dimensions: 15 x 9.61 x 3.82 (in)
• Dimensions: 381 x 244 x 97 (mm)
• Safety: Listed to UL Standard UL-1564, EMI Compliant to FCC Part 15(B), Class B
• Warranty: 2 Year Limited

Applications:

• Automotive
• Recreational vehicles
• Marine
• Communications sites
• Battery back-up systems

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Charger Output Voltage: 24v
• Charger Output - Amps: 40a
• Charging Banks: 2
• Portable: No
• Charger Input - Voltage: 120/240v
• Box Dimensions: 6"H x 11"W x 19"L WT: 13.8 lbs
• UPC: 622988083075

Owner's Manual (pdf)
Brochure (pdf)
