Electrical - Battery Chargers

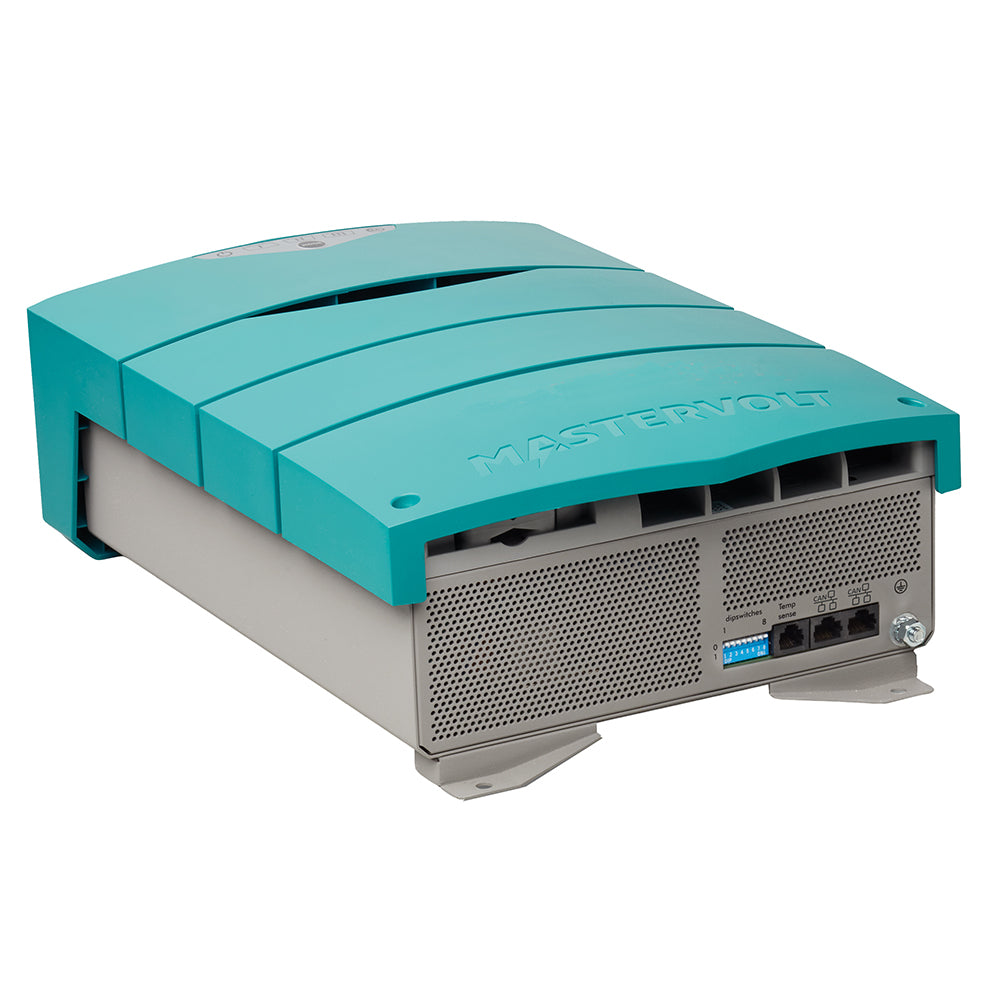

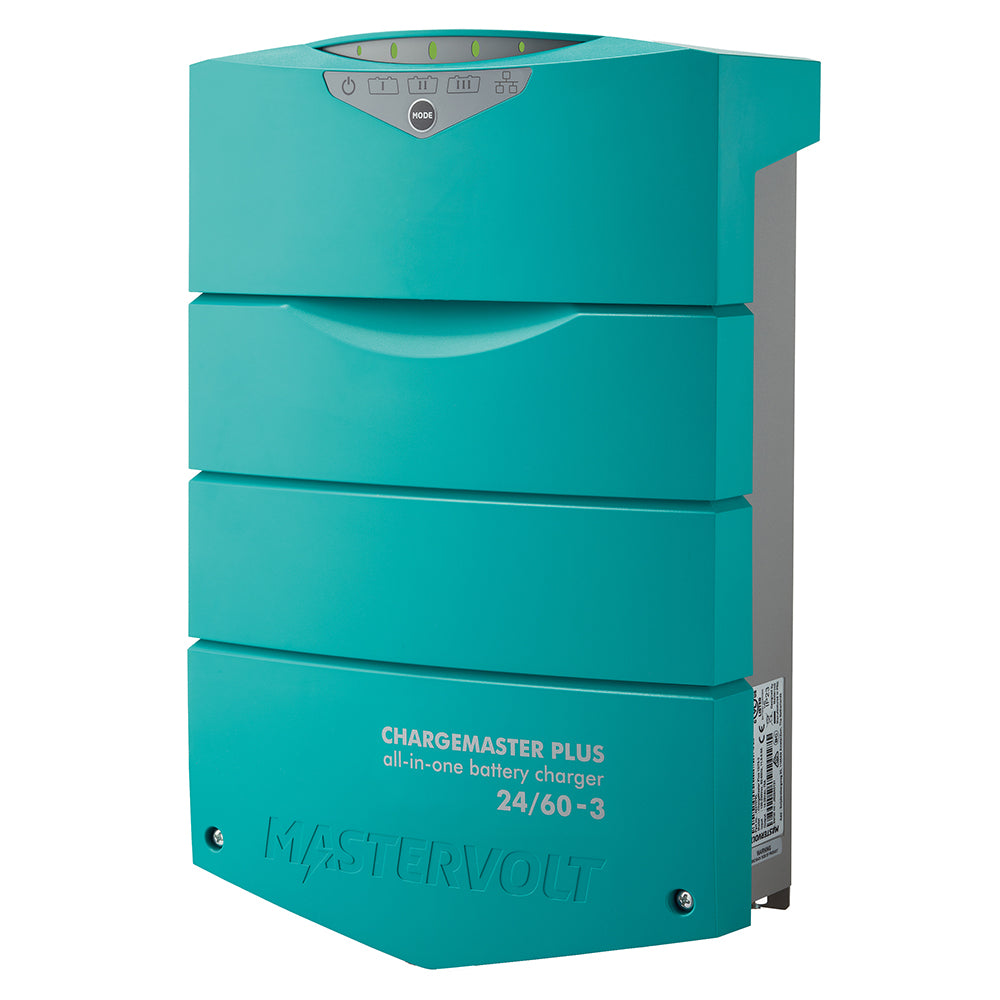

ChargeMaster Plus 24V, 60A, 3-Bank, NMEA2000 - CZone

ChargeMaster Plus 24/60-3 CZone

All-in-one solution for faster and safer charging

ChargeMaster Plus is the next generation of battery chargers that integrates multiple functions into one single device. Replacing auxiliary chargers, battery isolators and VSR, ChargeMaster Plus reduces system complexity and cost. Designed for versatility, it charges virtually any combination of two or three batteries in a fast and safe way and works anywhere in the world.

With the new Battery’s Best Friend architecture, ChargeMaster Plus is capable of charging a multitude of battery chemistries, sizes and voltages. All batteries are charged with the fast and safe 3-step+ charge method. Other unique features are:

• Revival mode: automatically revives even fully depleted batteries.
• Multi voltage: charge 12 V starter battery in a 24 V system, without additional components.
• Priority Charge: redirect available power to the lowest battery, for faster charging.
• Smart Input: charge all three batteries from one single alternator for continuous charging on the go.

Global Charging

The ChargeMaster Plus handles worldwide AC voltages and frequencies. Resisting large voltage fluctuations and high temperatures, it keeps working in harsh environments. For marine and mobile markets, the ChargeMaster Plus is CE, ABYC, UL, SAE, CEC/DOE and RCM/C-Tick compliant.

System Simplicity

Nowadays, equipment must be self-explaining. The ChargeMaster Plus displays the charge phase of all outputs in an understandable way. Robust and ergonomic connections save installation time. An integrated VSR eliminates the need for additional components and ensures that the alternators energy is funnelled through to the batteries.

Powerful Communications thanks to CZone integration

In modern applications, all electrical components work together. The CAN-based MasterBus enables the ChargeMaster Plus to communicate with displays, shunts and power systems including communication standards like CZone®, NMEA 2000 and CANopen (through additional interfaces).

Models with the addition CZone do not only support MasterBus, but also support CZone and NMEA 2000 communication, without the need of additional interfaces. This ChargeMasters Plus series can be configured via MasterBus or will accept a CZone configuration file just like any other CZone device. Other communication standards like ModBus, CANopen, LinBus, etc. are supported via additional interfaces.

This wide range of communication interfaces makes the ChargeMaster Plus ideally suited for system integration. In addition, the ChargeMaster Plus can operate as a power supply for delicate communication equipment, or during the construction phase of a boat.

Features:

• Multicharger with two outputs, one in/output, DC-DC converter, current limiter and VSR.
• Combine Lithium Ion, Gel or AGM, and large or small battery banks on a single battery charger.
• Charges multiple batteries while being underway.
• Extended specifications: offers 20 % more output at 14.4 V and 80 % charging power at 60 °C.
• Safe Charge: quickly recognize the State of Charge for extended battery life.
• Very wide operating range of 80-275 V AC, 35-70 Hz.
• Compact, easy to connect and quick to install

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Portable: No
• Charging Banks: 3
• Charger Output Voltage: 24v
• Charger Output - Amps: 60a
• Charger Input - Voltage: 120/240v
• Box Dimensions: 7"H x 13"W x 18"L WT: 16.75 lbs
• UPC: 816882022524

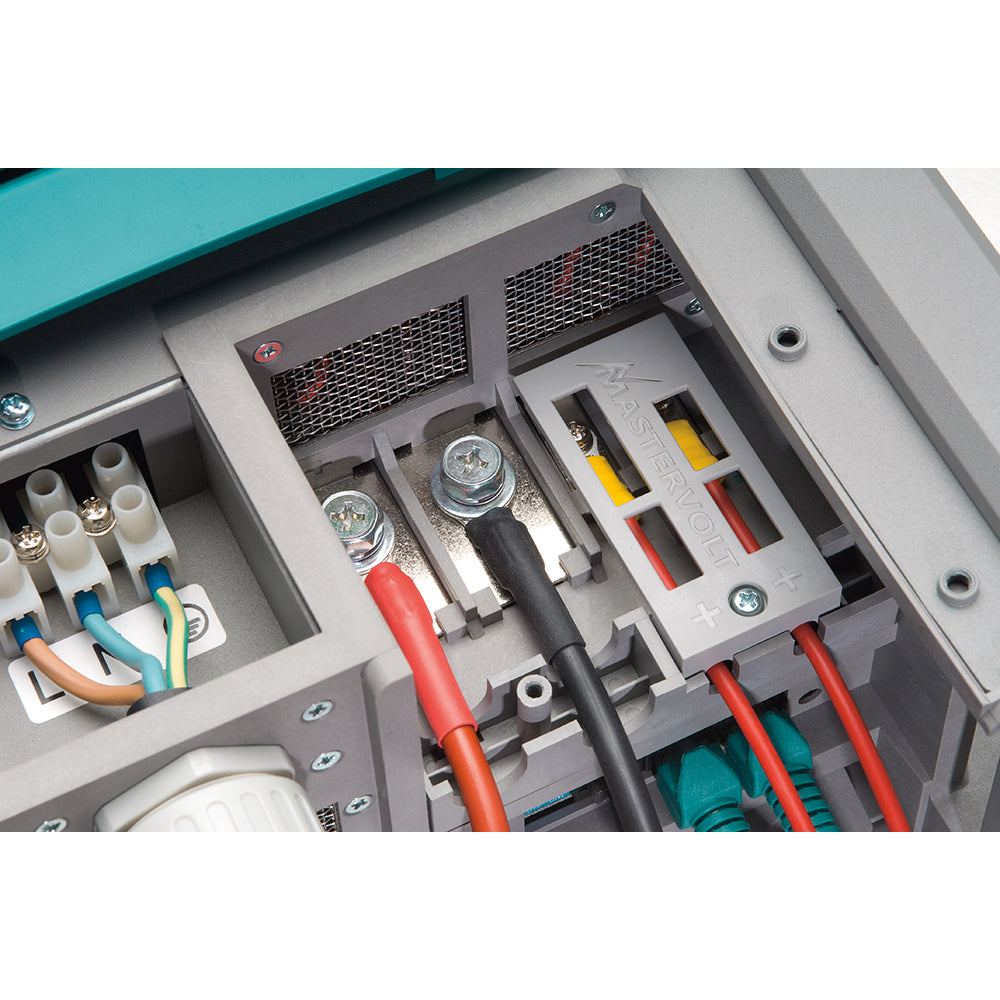

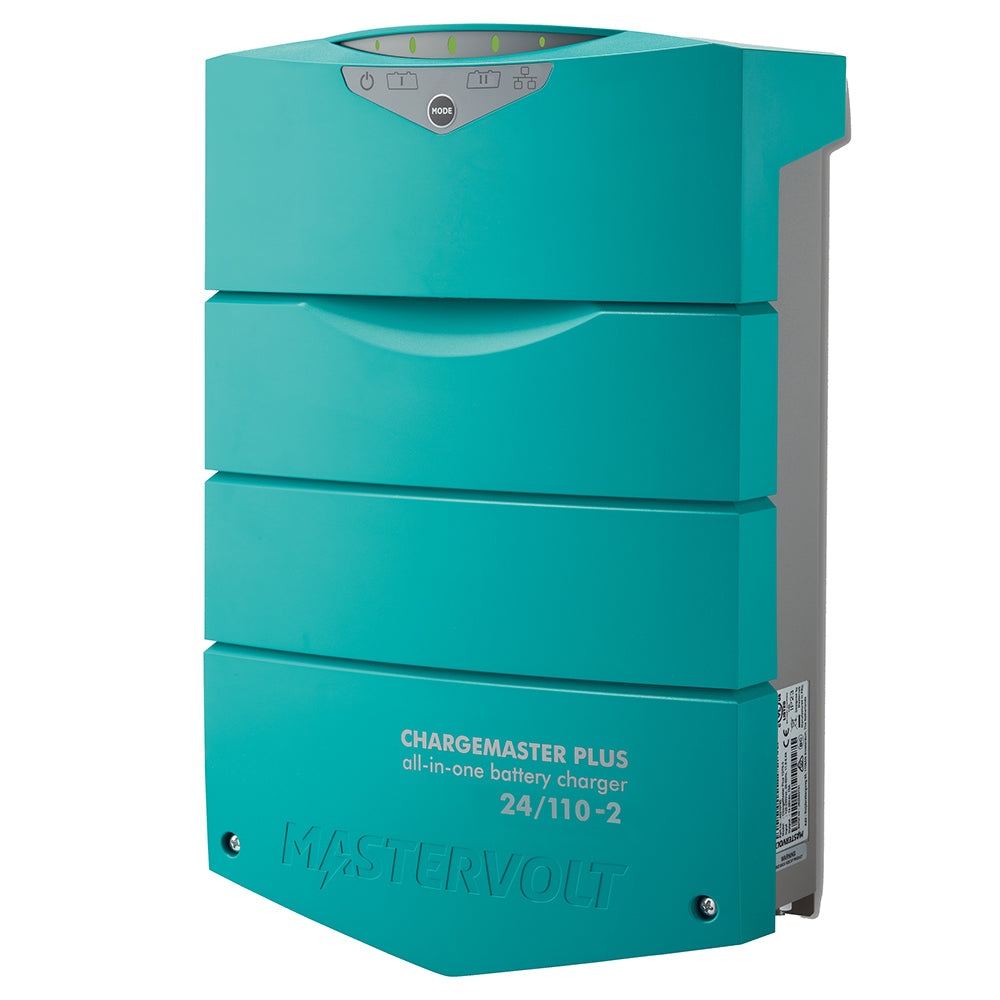

ChargeMaster Plus - 24V - 110 Amp - 2 Bank

All-in-one solution for faster and safer charging

ChargeMaster Plus is the next generation of battery chargers that integrates multiple functions into one single device. Replacing auxiliary chargers, battery isolators, and VSR, ChargeMaster Plus reduces system complexity and cost. Designed for versatility, it charges virtually any combination of two batteries in a fast and safe way and works anywhere in the world.

With the Battery’s Best Friend architecture, ChargeMaster Plus is capable of charging a multitude of battery chemistries, sizes, and voltages. All batteries are charged with the fast and safe 3-step+ charge method. Other unique features are:

• Revival mode: automatically revives even fully depleted batteries.
• Multi-voltage: charge 12 V starter battery in a 24 V system, without additional components.
• Priority Charge: redirect available power to the lowest battery, for faster charging

Global Charging

The ChargeMaster Plus handles worldwide AC voltages and frequencies. Resisting large voltage fluctuations and high temperatures, it keeps working in harsh environments. For marine and mobile markets, the ChargeMaster Plus is CE, ABYC, UL, SAE, CEC/DOE, and RCM/C-Tick compliant.

System Simplicity

Nowadays, equipment must be self-explaining. The ChargeMaster Plus displays the charge phase of all outputs in an understandable way. Robust and ergonomic connections save installation time.

Powerful Communications thanks to CZone integration

In modern applications, all electrical components work together. The CAN-based MasterBus enables the ChargeMaster Plus to communicate with displays, shunts, and power systems including communication standards like CZone®, NMEA 2000, and CANopen (through additional interfaces).

Models with the addition CZone do not only support MasterBus but also support CZone and NMEA 2000 communication, without the need for additional interfaces. This ChargeMasters Plus series can be configured via MasterBus or will accept a CZone configuration file just like any other CZone device. Other communication standards like Modbus, CANopen, LinBus, etc. are supported via additional interfaces.

This wide range of communication interfaces makes the ChargeMaster Plus ideally suited for system integration. In addition, the ChargeMaster Plus can operate as a power supply for delicate communication equipment, or during the construction phase of a boat.

Features

• Multicharger with two outputs, DC-DC converter, current limiter, and VSR
• Combine Lithium Ion, Gel or AGM, and large or small battery banks on a single battery charger
• Extended specifications: offers 20 % more output at 14.4 V and 80 % charging power at 60 °C
• Safe Charge: quickly recognize the State of Charge for extended battery life
• Very wide operating range of 80-275 V AC, 35-70 Hz
• Compact, easy to connect, and quick to install

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Charger Output - Amps: 110a
• Charger Output Voltage: 12/24v
• Charging Banks: 2
• Charger Input - Voltage: 120/240v
• Box Dimensions: 7"H x 13"W x 18"L WT: 12.25 lbs
• UPC: 816882022432

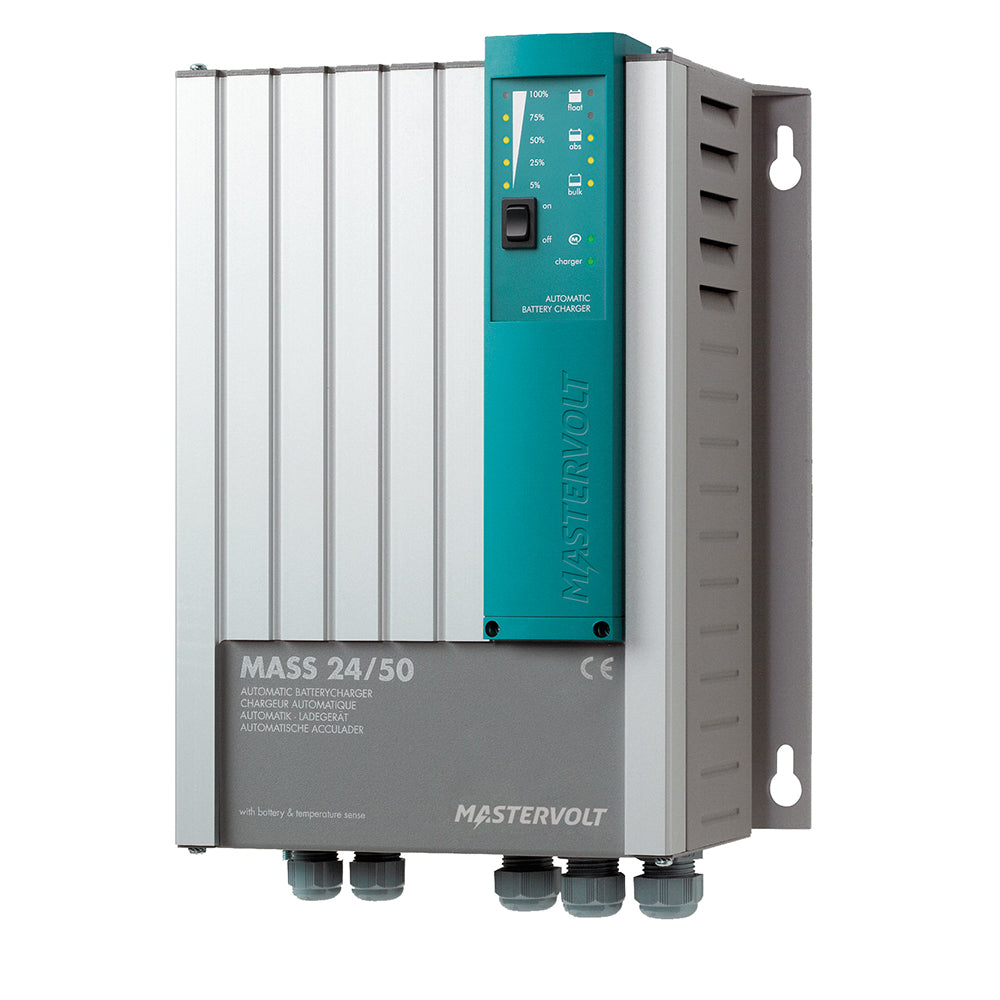

Mass 24/50-2

Mass battery chargers are designed for the toughest conditions for professional, semi-professional and recreational purposes. Even under the most extreme conditions the products from the Mass series operate faultlessly, giving you round-the-clock output when necessary. The sustainability and technologies that underpin the Mass concept have long been proven in practice. With an MTBF of 180,000 hours at full capacity and 24/7 use, the Mass products are ideal for the toughest tasks and any situation that requires a reliable power supply.

Powerful selling points:

• Designed for the most difficult conditions
• Lightweight, stainless steel, anodized aluminium casing
• Coating of internal components prevents damage from damp or condensation to ensure a longer lifespan
• Insensitive to electromagnetic effects from other devices
• Suitable for every type of battery, also charges entirely empty batteries
• Delivered as standard with temperature sensor
• Full power at temperatures of up to 45 ˚C
• Load capacities from 80 to 1000 Ah or more
• Stable and ripple free 24 and 48 V power supply, even without batteries
• The Current Control function prevents the breakdown of fuses when the voltage drops
• Parallel switching possible using multiple battery chargers
• Connections in accordance with CE, ABYC A-31 and IEC60945
• Certified by RRR, RMRS (does not apply to 24/75 120 V)
• Certified by DNV GL (only 24/25, 24/50, 24/75, 24/75 (120 V, 24/100 models)
• Certified by Lloyd (only 24/75, 24/100 models)

For professional use: GMDSS

Professional users will benefit from a front display with GMDSS alarm functions GMDSS stands for Global Maritime Distress and Safety System, an internationally agreed-upon set of safety procedures, types of equipment, and communication protocols that is a requirement for the SOLAS (Safety Of Life At Sea) convention and uses DSC and satellite communication.

This front display is only available for Mass 24/25-2 DNV, Mass 24/50-2, Mass 24/75, Mass 24/75 (120 V), Mass 24/100 and Mass 24/100-3ph.

Charging Lithium Ion batteries

Although Lithium Ion batteries are increasingly popular, there can be a lack of clarity when it comes to the charging process. This is not a problem with Mastervolt as the Mastervolt battery chargers communicate directly with the Lithium Ion battery via the integrated MasterBus (or have been adapted to the required charging voltages).

MasterBus compatible

Mass battery chargers can be easily connected to a MasterBus network with only one cable and one connection. You can also choose central, local or remote monitoring, configuration and control of your system.

Made tough by smart design

The certified Mass battery chargers are very strong, designed to withstand heavy vibrations and shocks. Their premium quality components meet the highest possible specifications, while the smart and extra robust mounting adds to the professional end result.

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

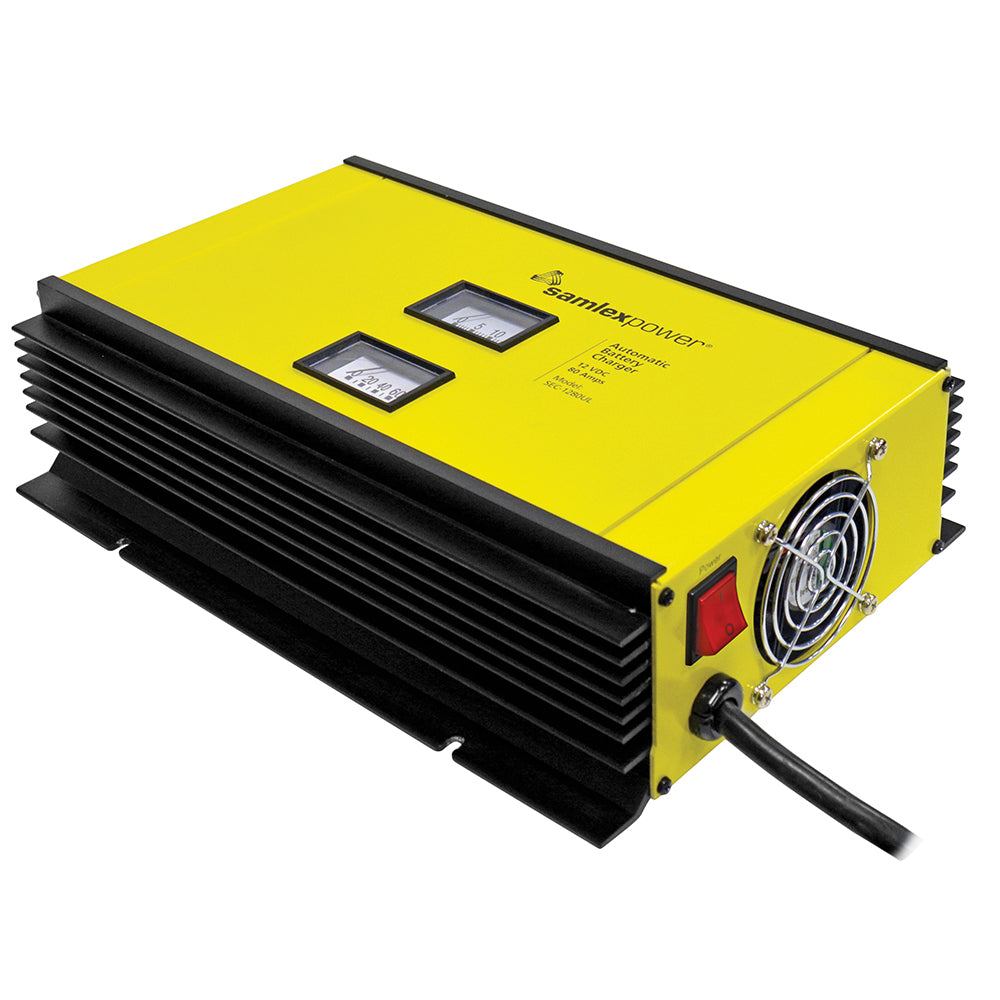

Samlex 80A Battery Charger - 12V - 2-Bank - 3-Stage w/Dip Switch  Lugs - Includes Temp Sensor [SEC-1280UL]

80A Battery Charger - 12V - 2-Bank - 3-Stage w/Dip Switch & Lugs - Includes Temp Sensor

This advanced fully automatic three-stage 80 Amp battery charger is ideal for charging all types of 12 Volt lead-acid batteries ( Flooded / Absorbed Glass Mat (AGM) / Gel Cell) from a 120 V, 60 Hz or 230 V, 50 Hz AC source. By means of a DIP switch setting, conversion to a two-stage algorithm is possible to charge batteries connected to a DC load (DC UPS). The unit can also be used as a DC Power Supply. Features include overload, short-circuit and over-temperature protection. The unit allows charging of up-to 2 separate battery banks.

Features:

• Switch mode technology for high efficiency, lightweight and quiet operation
• Automatic operation for ALL Lead Acid Batteries Flooded, AGM or Gel Cell
• Can charge 2 banks of batteries simultaneously, no isolator necessary
• Can be used as a power supply or DC UPS when used in conjunction with a battery
• User Configurable AC Input voltage 120 or 230 VAC, 50 / 60 Hz
• User Selectable ( by DIP Switch) for 2 or 3 stage, rapid and safe charging of standalone and loaded Lead Acid Batteries
• “Half Power Mode” reduces maximum charging current to half the rated capacity, allows for safe charging of lower capacity batteries
• Voltmeter and Ammeter for monitoring
• Fan cooled based on output current
• Protections: Short circuit, overload, reverse battery connection and over temperature
• Includes temperature sensor to prevent under/overcharging of battery if temperature varies extensively

Specifications:

• Input: 120 VAC 60 Hz or 230 VAC 50 Hz
• Output: 12 VDC
• Amps: 80
• Remote Control: 900-RC
• Weight: 9 (lbs)
• Weight: 4.1 (kg)
• Dimensions: 15 x 9.61 x 3.82 (in)
• Dimensions: 381 x 244 x 97 (mm)
• Safety: Listed to UL Standard UL-1564, EMI Compliant to FCC Part 15(B), Class B
• Warranty: 2 Year Limited

Applications:

• Automotive
• Recreational vehicles
• Marine
• Communications sites
• Battery back-up systems

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Charger Output Voltage: 12v
• Charger Output - Amps: 80a
• Charging Banks: 2
• Portable: No
• Charger Input - Voltage: 120/240v
• Box Dimensions: 6"H x 11"W x 19"L WT: 14 lbs
• UPC: 622988083044

Owner's Manual (pdf)
Brochure (pdf)

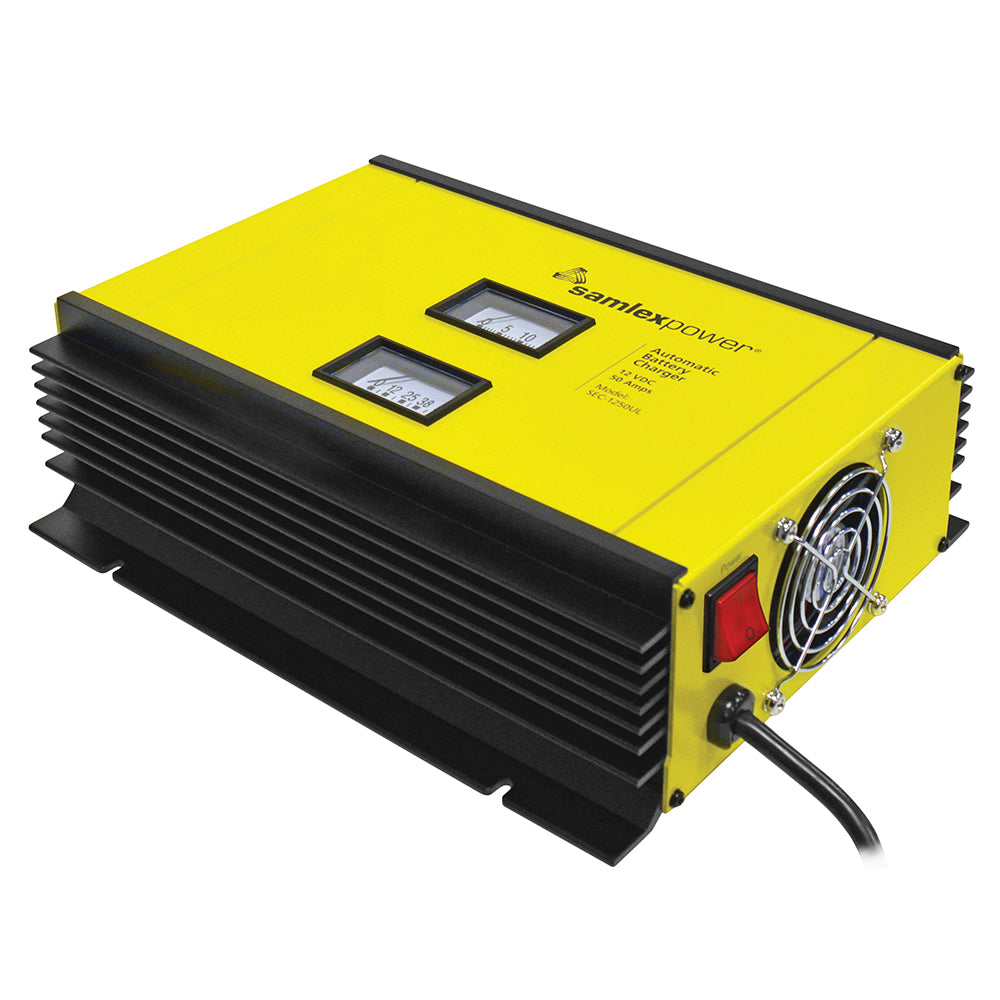

Samlex 50A Battery Charger - 12V - 2-Bank - 3-Stage w/Dip Switch  Lugs - Includes Temp Sensor [SEC-1250UL]

50A Battery Charger - 12V - 2-Bank - 3-Stage w/Dip Switch & Lugs - Includes Temp Sensor

This advanced fully automatic three-stage 50 Amp battery charger is ideal for charging all types of 12 Volt lead-acid batteries ( Flooded / Absorbed Glass Mat (AGM) / Gel Cell) from a 120 V, 60 Hz or 230 V, 50 Hz AC source. By means of a DIP switch setting, conversion to a two-stage algorithm is possible to charge batteries connected to a DC load (DC UPS). The unit can also be used as a DC Power Supply. Features include overload, short-circuit and over-temperature protection. The unit allows charging of up-to 2 separate battery banks.

Features:

• Switch mode technology for high efficiency, lightweight and quiet operation
• Automatic operation for ALL Lead Acid Batteries Flooded, AGM or Gel Cell
• Can charge 2 banks of batteries simultaneously, no isolator necessary
• Can be used as a power supply or DC UPS when used in conjunction with a battery
• User Configurable AC Input voltage 120 or 230 VAC, 50 / 60 Hz
• User Selectable ( by DIP Switch) for 2 or 3 stage, rapid and safe charging of stand-alone and loaded Lead Acid Batteries
• “Half Power Mode” reduces maximum charging current to half the rated capacity, allows for safe charging of lower capacity batteries
• Voltmeter and Ammeter for monitoring
• Fan cooled based on output current
• Protections: Short circuit, overload, reverse battery connection and over temperature
• Includes temperature sensor to prevent under/overcharging of battery if temperature varies extensively

Specifications:

• Input: 120 VAC 60 Hz or 230 VAC 50 Hz
• Output: 12 VDC
• Amps: 50
• Remote Control: 900-RC
• Weight: 9.0 (lbs)
• Weight: 4.1 (kg)
• Dimensions: 13.03 x 9.60 x 3.82 (in)
• Dimensions: 331 x 244 x 97 (mm)
• Safety: Listed to UL Standard UL-1564, EMI Compliant to FCC Part 15(B), Class B
• Warranty: 2 Year Limited

Applications:

• Automotive
• Recreational vehicles
• Marine
• Communications sites
• Battery back-up systems

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Charger Output Voltage: 12v
• Charger Output - Amps: 50a
• Charging Banks: 2
• Portable: No
• Charger Input - Voltage: 120/240v
• Box Dimensions: 6"H x 11"W x 17"L WT: 11 lbs
• UPC: 622988083037

Owner's Manual (pdf)
Brochure (pdf)

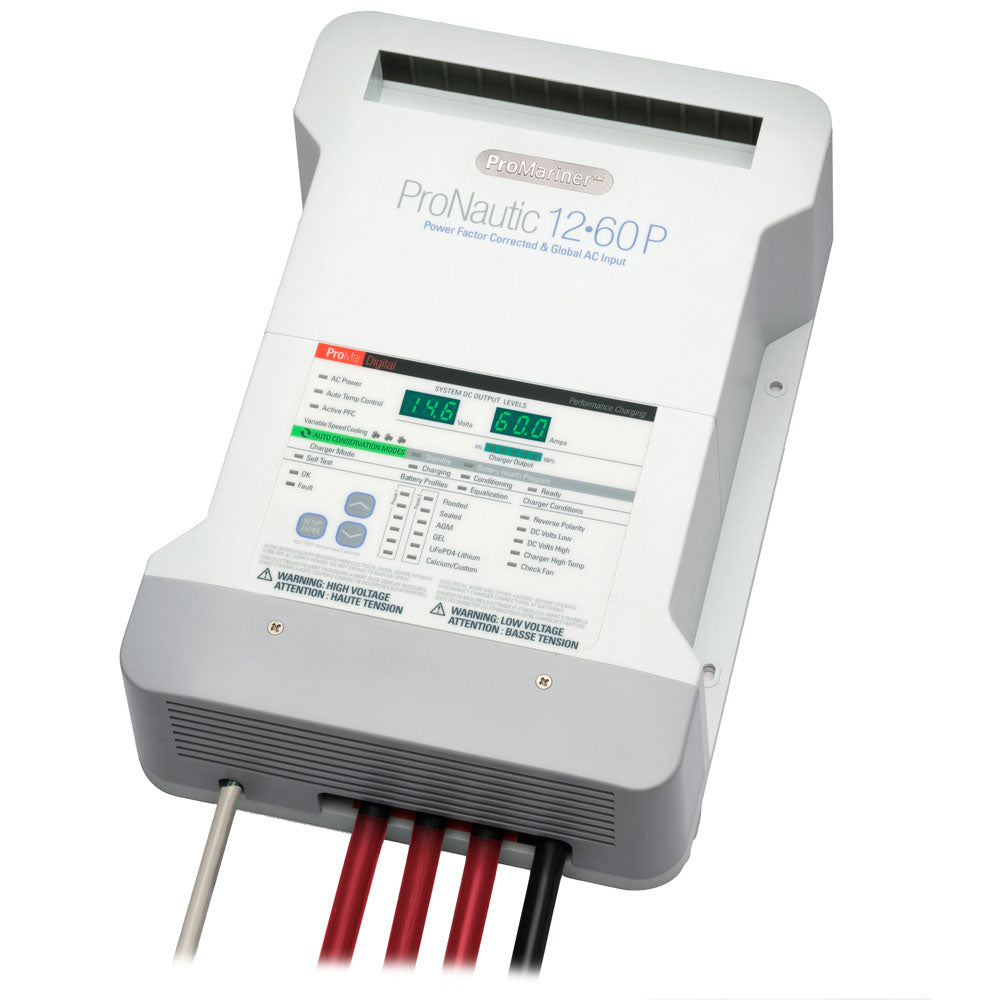

All Digital Electronic Charging
Industry recognized with the 2010 IBEX Innovation Award, ProNauticP employs our ProMar Digital Performance Charging Platform which combines all digital control and software-based power conversion technology with global energy management features. ProNauticP addresses the trend of incorporating and using more 12-volt electronics on-board today's power, sail, cruising and sport fishing boats. Boasting twelve digitally-controlled performance charging profiles with finger tip selection, ProNauticP fully charges, conditions, maintains and re-conditions batteries while extending battery life and maximizing battery reserve power performance. ProNauticP is Power Factor Corrected with auto-ranging global AC input allowing all models to operate off a standard household power connection. Featuring dual digital displays for real-time display of actual charging voltage and amperage and AC power-on diagnostics with pass or fail status in addition to discreet fault indication for mis-wiring or adverse battery bank conditions. Designed to provide more time on the water enjoying what you like most... boating.

ProMar Digital Performance Charging

ProMar Digital Charging Performance - 12 Selectable Profiles
Up to 12 performance & precision 4-stage charging profiles: Charge, Condition, Maintain and Re-condition. Automatic dockside power mode for 12 Volt DC lighting and appliances. Factory set for Flooded (Lead Acid) batteries. AGM, GEL selectable.

Power Factor Correction - Global AC Input
Auto-ranging (100-250VAC/50-60Hz) global AC input with reduced harmonic distortion allowing all models to operate off a household power outlet connection. ProNauticP consumes less power so more AC power is available on board.

Distributed On Demand Technology
Automatically senses and distributes 100% of available charging amps to any one bank or combination of all banks.

Digital Self-Calculating Absorption and Battery Health Re-Conditioning Mode
Automatically programs conditioning time based on discharge state of batteries. Automatically de-sulfates batteries after 21 days in the maintain mode, improving reserve power performance & extending battery life.

Conservation Energy Saver Mode
After 72 hours of not seeing a load greater than 5 amps, float voltage will be lowered consuming less energy during storage periods. (for flooded & sealed charge profiles)

Service and Fault Mode LED Indicators
Real time indication of wiring faults or adverse conditions that may impact the operation of a boat's charging system.

Automatic Fan Speed Control
Quiet operation. Innovative front exhaust prevents restriction of air flow and cooling.

Automatic Temperature Compensation and Built-in Safety
Remote temperature probe included - Ignition protected and current limiting. Designed and constructed to: Marine ULc 1236, CE, CTick and FCC Class B.

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Charger Output - Amps: 60a
• Charging Banks: 3
• Portable: No
• Charger Input - Voltage: 120/240v
• Charger Output Voltage: 12v
• Box Dimensions: 6"H x 11"W x 15"L WT: 8.7 lbs
• UPC: 031669631601

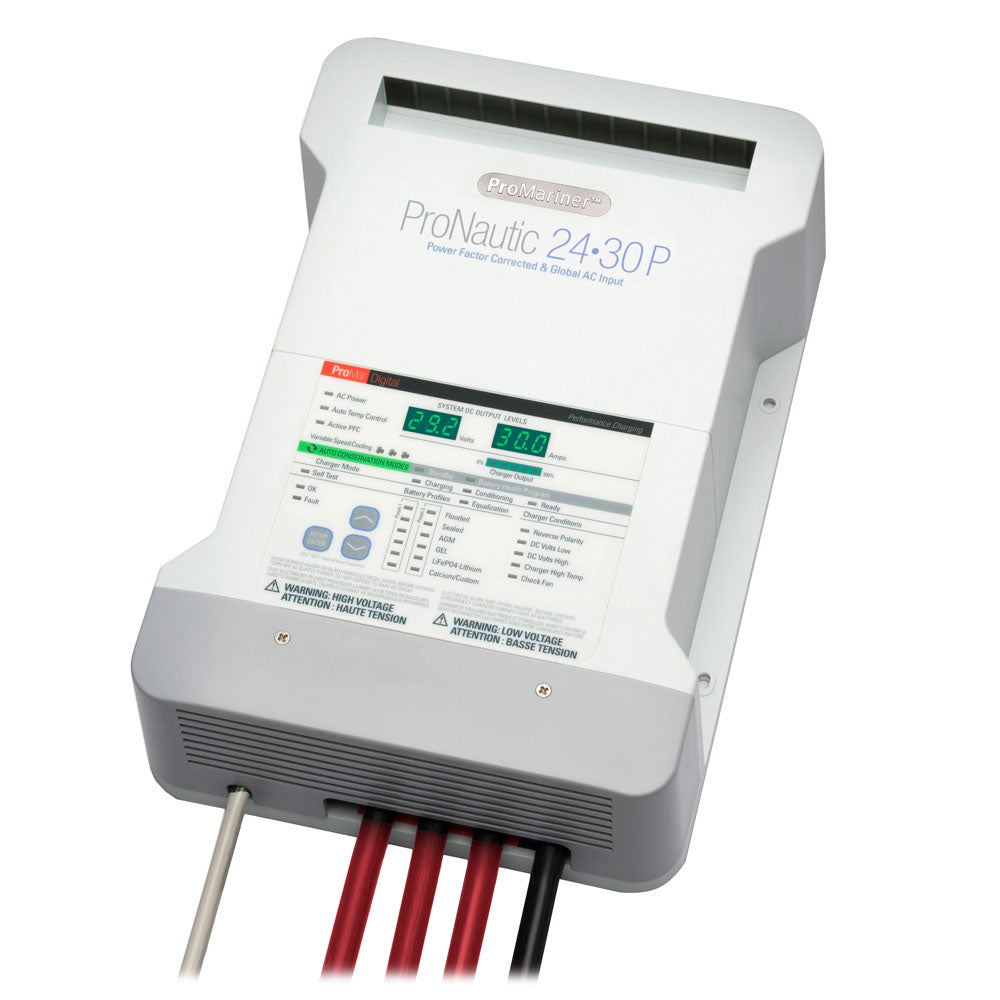

All Digital Electronic Charging
Industry recognized with the 2010 IBEX Innovation Award, ProNauticP employs our ProMar Digital Performance Charging Platform which combines all digital control and software-based power conversion technology with global energy management features. ProNauticP addresses the trend of incorporating and using more 12-volt electronics on-board today's power, sail, cruising and sport fishing boats. Boasting twelve digitally-controlled performance charging profiles with finger tip selection, ProNauticP fully charges, conditions, maintains and re-conditions batteries while extending battery life and maximizing battery reserve power performance. ProNauticP is Power Factor Corrected with auto-ranging global AC input allowing all models to operate off a standard household power connection. Featuring dual digital displays for real-time display of actual charging voltage and amperage and AC power-on diagnostics with pass or fail status in addition to discreet fault indication for mis-wiring or adverse battery bank conditions. Designed to provide more time on the water enjoying what you like most... boating.

ProMar Digital Performance Charging

ProMar Digital Charging Performance - 12 Selectable Profiles
Up to 12 performance & precision 4-stage charging profiles: Charge, Condition, Maintain and Re-condition. Automatic dockside power mode for 12 Volt DC lighting and appliances. Factory set for Flooded (Lead Acid) batteries. AGM, GEL selectable.

Power Factor Correction - Global AC Input
Auto-ranging (100-250VAC/50-60Hz) global AC input with reduced harmonic distortion allowing all models to operate off a household power outlet connection. ProNauticP consumes less power so more AC power is available on board.

Distributed On Demand Technology
Automatically senses and distributes 100% of available charging amps to any one bank or combination of all banks.

Digital Self-Calculating Absorption and Battery Health Re-Conditioning Mode
Automatically programs conditioning time based on discharge state of batteries. Automatically de-sulfates batteries after 21 days in the maintain mode, improving reserve power performance & extending battery life.

Conservation Energy Saver Mode
After 72 hours of not seeing a load greater than 5 amps, float voltage will be lowered consuming less energy during storage periods. (for flooded & sealed charge profiles)

Service and Fault Mode LED Indicators
Real time indication of wiring faults or adverse conditions that may impact the operation of a boat's charging system.

Automatic Fan Speed Control
Quiet operation. Innovative front exhaust prevents restriction of air flow and cooling.

Automatic Temperature Compensation and Built-in Safety
Remote temperature probe included - Ignition protected and current limiting. Designed and constructed to: Marine ULc 1236, CE, CTick and FCC Class B.

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Charger Output - Amps: 30a
• Charging Banks: 3
• Portable: No
• Charger Input - Voltage: 120/240v
• Charger Output Voltage: 24v
• Box Dimensions: 6"H x 11"W x 15"L WT: 8.65 lbs
• UPC: 031669631809

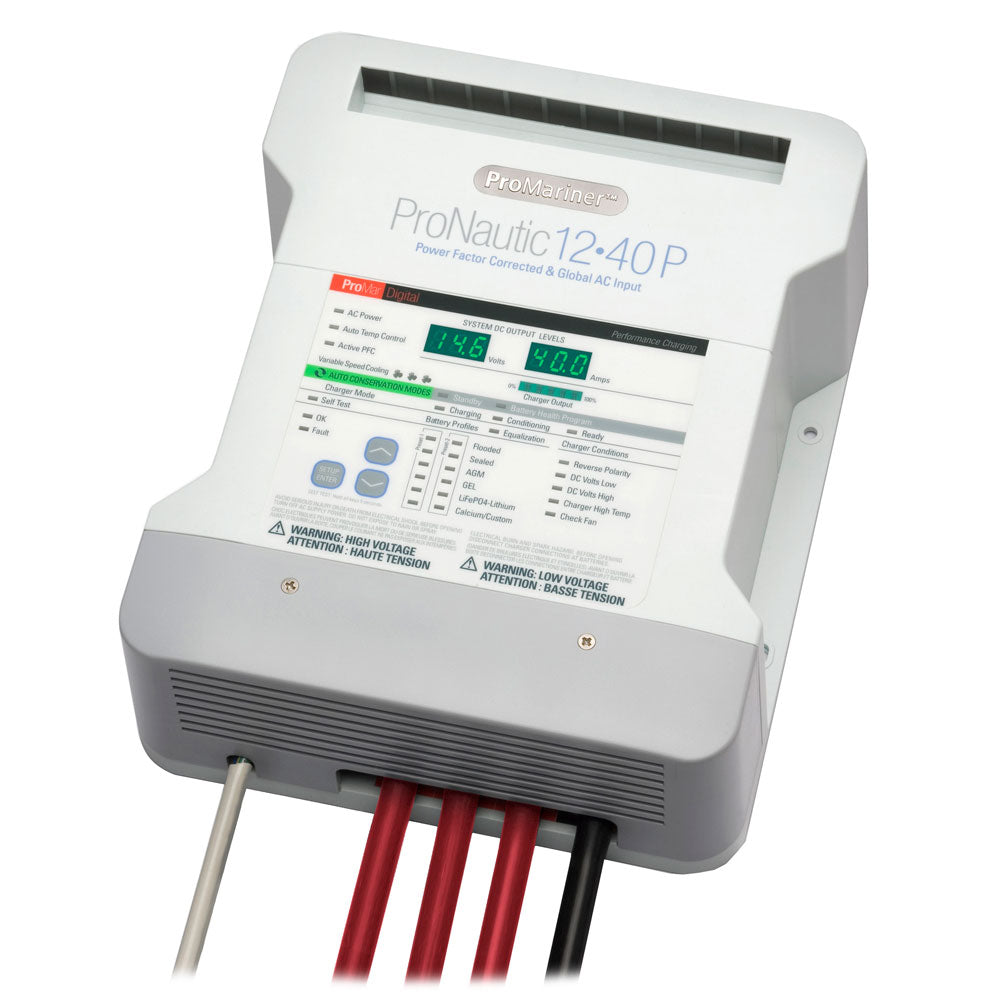

ProMariner ProNautic 1240P 40 Amp 3 Bank Battery Charger [63140]

All Digital Electronic Charging
Industry recognized with the 2010 IBEX Innovation Award, ProNauticP employs our ProMar Digital Performance Charging Platform which combines all digital control and software-based power conversion technology with global energy management features. ProNauticP addresses the trend of incorporating and using more 12-volt electronics on-board today's power, sail, cruising and sport fishing boats. Boasting twelve digitally-controlled performance charging profiles with finger tip selection, ProNauticP fully charges, conditions, maintains and re-conditions batteries while extending battery life and maximizing battery reserve power performance. ProNauticP is Power Factor Corrected with auto-ranging global AC input allowing all models to operate off a standard household power connection. Featuring dual digital displays for real-time display of actual charging voltage and amperage and AC power-on diagnostics with pass or fail status in addition to discreet fault indication for mis-wiring or adverse battery bank conditions. Designed to provide more time on the water enjoying what you like most... boating.

ProMar Digital Performance Charging

ProMar Digital Charging Performance - 12 Selectable Profiles
Up to 12 performance & precision 4-stage charging profiles: Charge, Condition, Maintain and Re-condition. Automatic dockside power mode for 12 Volt DC lighting and appliances. Factory set for Flooded (Lead Acid) batteries. AGM, GEL selectable.

Power Factor Correction - Global AC Input
Auto-ranging (100-250VAC/50-60Hz) global AC input with reduced harmonic distortion allowing all models to operate off a household power outlet connection. ProNauticP consumes less power so more AC power is available on board.

Distributed On Demand Technology
Automatically senses and distributes 100% of available charging amps to any one bank or combination of all banks.

Digital Self-Calculating Absorption and Battery Health Re-Conditioning Mode
Automatically programs conditioning time based on discharge state of batteries. Automatically de-sulfates batteries after 21 days in the maintain mode, improving reserve power performance & extending battery life.

Conservation Energy Saver Mode
After 72 hours of not seeing a load greater than 5 amps, float voltage will be lowered consuming less energy during storage periods. (for flooded & sealed charge profiles)

Service and Fault Mode LED Indicators
Real time indication of wiring faults or adverse conditions that may impact the operation of a boat's charging system.

Automatic Fan Speed Control
Quiet operation. Innovative front exhaust prevents restriction of air flow and cooling.

Automatic Temperature Compensation and Built-in Safety
Remote temperature probe included - Ignition protected and current limiting. Designed and constructed to: Marine ULc 1236, CE, CTick and FCC Class B.

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Charger Output - Amps: 40a
• Charging Banks: 3
• Portable: No
• Charger Input - Voltage: 120/240v
• Charger Output Voltage: 12v
• Box Dimensions: 6"H x 11"W x 13"L WT: 6.8 lbs
• UPC: 031669631403

Owner's Manual (pdf)
Brochure (pdf)
