Lithium Battery SuperPack 12V/100Ah NG

The Lithium SuperPack NG batteries are Lithium Iron Phosphate (LiFePO4 or LFP) batteries available in various capacities with nominal voltages of 12,8V, 25,6V, and 51,2V. They are designed as drop-in replacements for lead-acid batteries in mobile, marine, and industrial applications. Designed for extended off -grid use, it provides ample capacity to power the complete electrical system, including high -demand appliances. Its form factor and terminal layout ensure easy installation across a wide range of mobile and industrial applications, including commercial and recreational vehicles.

The Lithium SuperPack batteries are extremely easy to install, not needing any additional components. The internal switch will disconnect the battery in case of over-discharge or high temperature.

The Lithium SuperPack batteries can be connected in parallel. A series connection is not allowed.

Embedded protection: The integrated Battery Management System (BMS) provides a layer of protection that ensures energy flow remains within the safe operating limits of the battery and the overall system.

Energy flow management: Capable of interrupting charging and discharging independently through its self-resetting circuit breaker.

Continuous current capability: Supports continuous discharge currents up to 2C and continuous charge currents up to 1C, reducing the need to oversize the battery pack.

Internal cell balancing: Allows the battery to maintain optimal voltage balance at the end of the charging process.

Bluetooth monitoring and control: Integrated Bluetooth interface for real-time monitoring and control of the battery via VictronConnect.

On/Off push button: Push button for switching the battery on or off, disabling both charging and discharging. The on/off procedure can also be used to reset certain protection or lock-in conditions. When switched off, the battery enters a storage mode with a self-discharge rate of less than 3% per month.

LED status indication: Two integrated LEDs indicate Bluetooth connectivity, warning and alarm conditions, and firmware update status.

External Feedback Signal (EFS): Provides a battery voltage signal limited to 250 mA. The EFS signal serves as an External Disconnection Signal (EDS) to trigger an event for redundant system protection. Additionally, the EFS can be configured as an External Charging Signal (ECS), based on the low SoC pre-alarm threshold, to activate a charger start signal.

Self -heating function: Maintains the battery temperature above the minimum safe charging limit to ensure reliable operation in cold environments. Two heating modes are available:

• Charger mode – the heater is powered by the connected charger and activates automatically when the cell temperature drops below 0 °C during charging (default setting).
• Auto mode – the battery powers the heater to keep the cells above 0 °C for immediate charging. This is limited by the battery’s internal energy; if SoC falls below the Low SoC threshold, the heater is disconnected, and charging remains unavailable.

The internal heat balancer supports optimised thermal management and a wide operating range.

Parallel connection: Supports parallel connection of an unlimited number of batteries to increase total energy capacity. The total system current should not exceed the maximum current that a single battery can safely interrupt (refer to Battery Specification [28] for details.

BCI Group 49 compatibility: Height dimension is compatible with the BCI Group 49 standard, allowing easy replacement in standard battery compartments.

Mounting brackets: Mounting brackets are included to ensure safe and stable fixing in all three axes.

Ingress protection (IP65): The battery enclosure is rated IP65, providing protection against dust ingress and low-pressure water jets from any direction.

Self-restoring protection: Certain protection events are automatically cleared without user intervention. The battery allows multiple automatic recovery attempts for short-circuit and over-current conditions, reducing the need for manual reset in the case of occasional or transient faults.

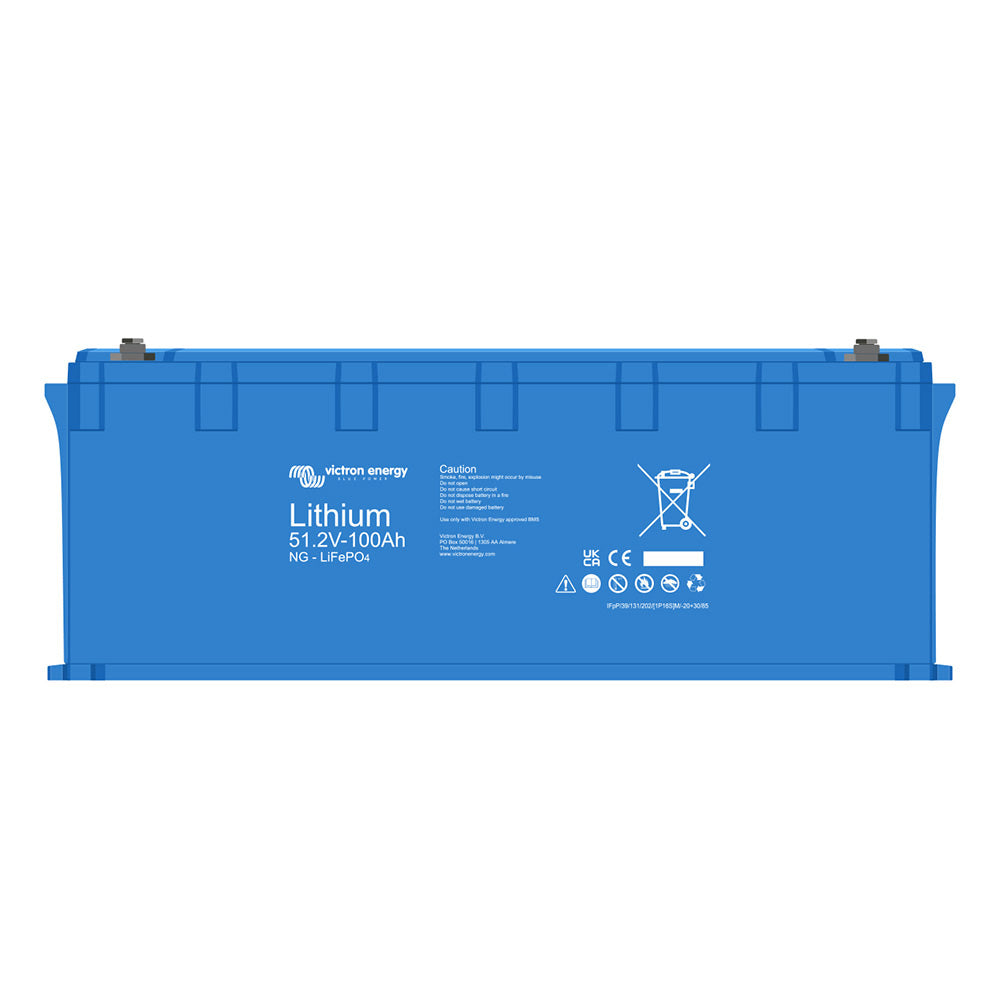

Lithium Battery 48VDC 100Ah NG Smart LifePO4

The NG (Next Generation) series builds on the achievements of the Lithium Smart Series, featuring substantial improvements. Designed for individuals in need of sophisticated and dependable energy storage solutions, the Lithium NG series represents a crucial development in our product range, prepared to address the challenges of the future.

Victron Energy Lithium NG batteries are Lithium Iron Phosphate (LiFePO4 or LFP) batteries available with nominal voltages of 12.8V, 25.6V, and 51.2V in various capacities. They can be connected in series, parallel, and series/parallel so that a battery bank can be built for system voltages of 12V, 24V, or 48V. The maximum number of batteries in one system is 50, which results in a maximum energy storage of 192 kWh in a 12V system and up to 384 kWh in a 24V and 48V system.

Integrated shunt

The battery data (battery voltage, current, and temperature) are transmitted to the BMS and evaluated there, i.e. to calculate the state of charge, which can then be read out via VictronConnect or a GX communication center, or to create and issue specific warnings and alarms.

Automatic setup, monitoring, and control via VictronConnect App or a GX device and the VRM Portal

All battery parameters are managed by the BMS automatically. The BMS automatically detects the system voltage and the number of batteries in parallel, series, and series/parallel connections. The BMS (from now on Lynx Smart BMS NG 500 A/1000 A, further models to follow) is mandatory and must be purchased separately.

Monitoring and control take place via VictronConnect (every BMS model has Bluetooth), a GX communication center, or the VRM Portal. You can view battery parameters such as cell status, cell voltages, battery current, and temperatures in real time. The battery firmware is automatically updated by the BMS.

Easy bracket mounting

Mounting brackets make the installation easier and ensure that the battery is optimally secured against slipping and tipping over.

Increased ingress protection (IP-rating)

The Lithium NG batteries are effectively sealed against dust and can withstand low-pressure water jets, making them suitable for environments where exposure to dust and water is a concern.

Low self-discharge rate

The self-discharge rate has been significantly improved and is now a maximum of 2 % of the battery capacity per month. A low self-discharge rate contributes to the overall performance, longevity, and reliability of the NG batteries.

Features:

• Multiple improvements including added read-out of cell voltages and temperatures
• Maximum single bank size increased to 385kWh
• Modules available in 12, 24 and 48V
• Protection class IP65
• Bracket mounting and strap mounting

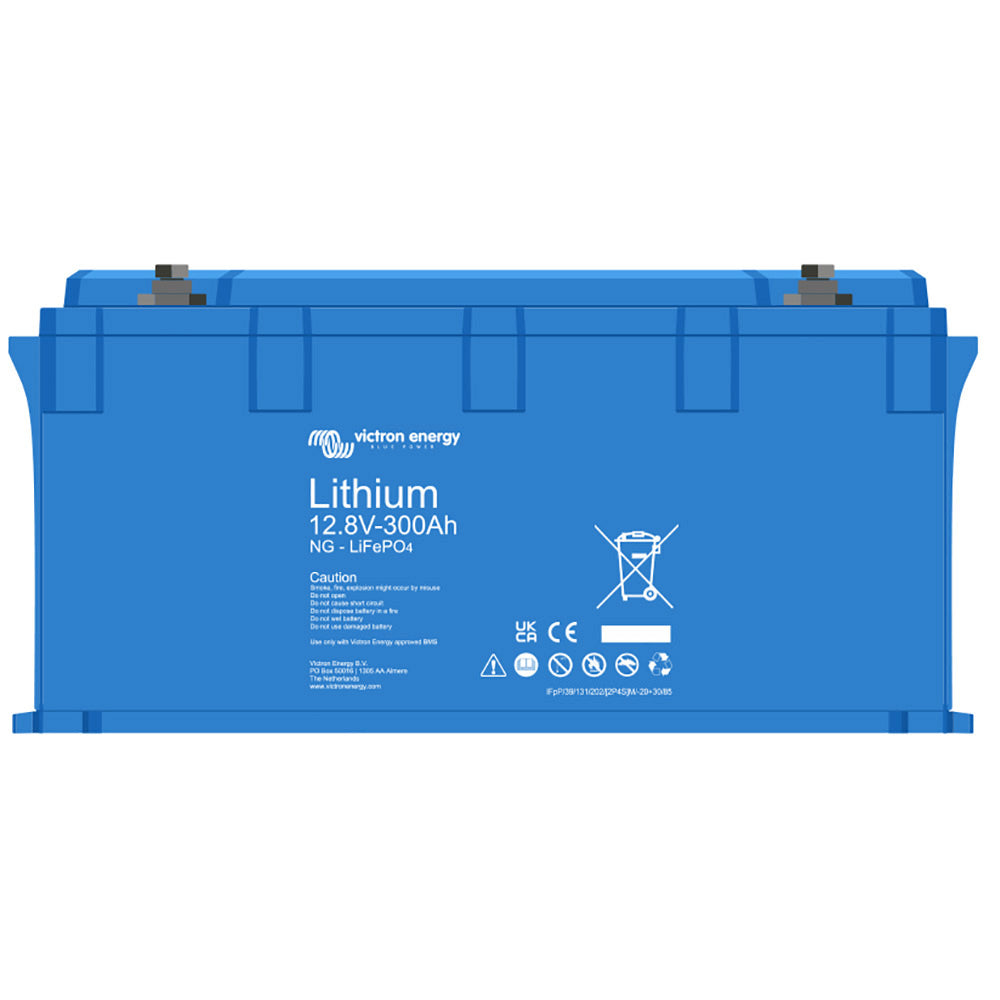

Lithium Battery 12VDC 300Ah NG Smart LiFePO4

The NG (Next Generation) series builds on the achievements of the Lithium Smart Series, featuring substantial improvements. Designed for individuals in need of sophisticated and dependable energy storage solutions, the Lithium NG series represents a crucial development in our product range, prepared to address the challenges of the future.

Victron Energy Lithium NG batteries are Lithium Iron Phosphate (LiFePO4 or LFP) batteries available with nominal voltages of 12.8V, 25.6V, and 51.2V in various capacities. They can be connected in series, parallel, and series/parallel so that a battery bank can be built for system voltages of 12V, 24V, or 48V. The maximum number of batteries in one system is 50, which results in a maximum energy storage of 192 kWh in a 12V system and up to 384 kWh in a 24V and 48V system.

Integrated shunt

The battery data (battery voltage, current, and temperature) are transmitted to the BMS and evaluated there, i.e. to calculate the state of charge, which can then be read out via VictronConnect or a GX communication center, or to create and issue specific warnings and alarms.

Automatic setup, monitoring, and control via VictronConnect App or a GX device and the VRM Portal

All battery parameters are managed by the BMS automatically. The BMS automatically detects the system voltage and the number of batteries in parallel, series, and series/parallel connections. The BMS (Lynx Smart BMS NG 500A and 1000 A, further models to follow) is mandatory and must be purchased separately.

Monitoring and control take place via VictronConnect (every BMS model has Bluetooth), a GX communication center, or the VRM Portal. You can view battery parameters such as cell status, cell voltages, battery current, and temperatures in real time. The battery firmware is automatically updated by the BMS.

Easy bracket mounting

Mounting brackets make the installation easier and ensure that the battery is optimally secured against slipping and tipping over.

Increased ingress protection (IP-rating)

The Lithium NG batteries are effectively sealed against dust and can withstand low-pressure water jets, making them suitable for environments where exposure to dust and water is a concern.

Low self-discharge rate

The self-discharge rate has been significantly improved and is now a maximum of 2 % of the battery capacity per month. A low self-discharge rate contributes to the overall performance, longevity, and reliability of the NG batteries.

Features:

• Multiple improvements including added read-out of cell voltages and temperatures
• Maximum single bank size increased to 385kWh
• Modules available in 12, 24 and 48V
• Protection class IP65
• Bracket mounting and strap mounting

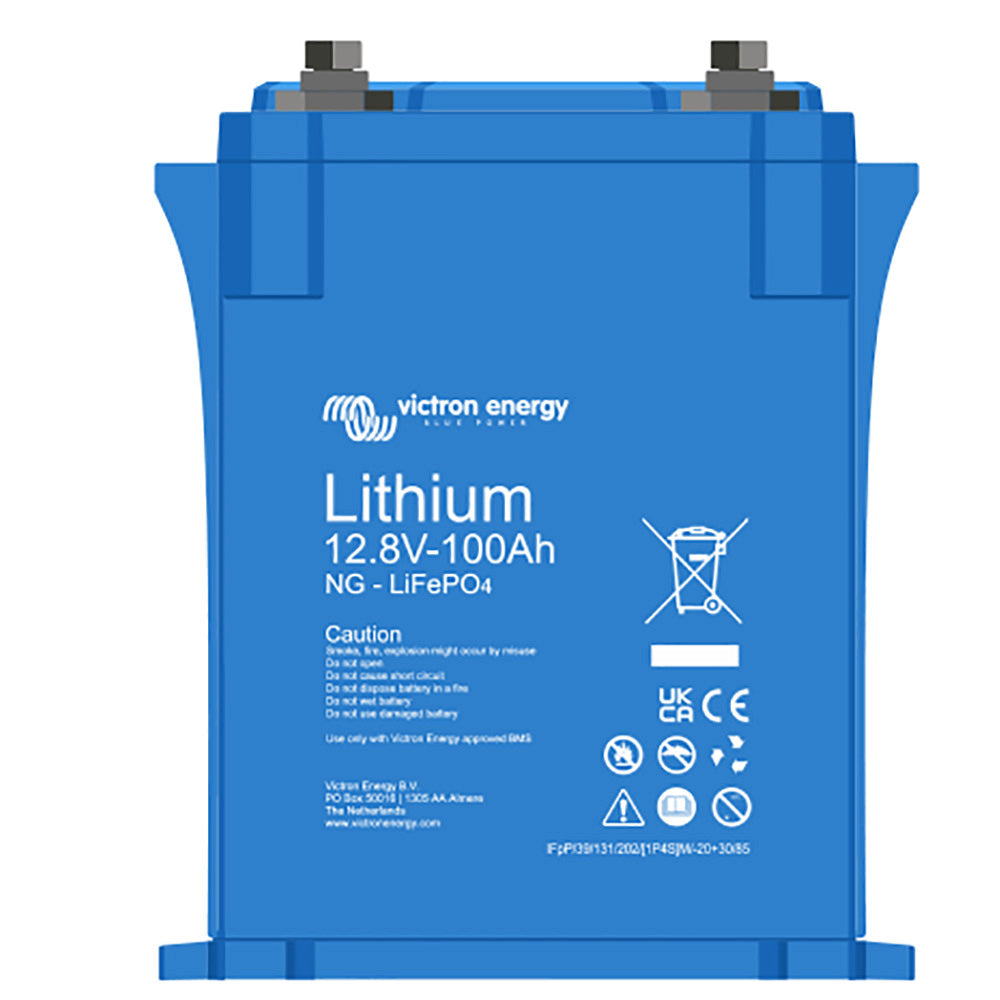

Lithium Battery 12VDC 100Ah NG Smart LifePO4 UL2054

The NG (Next Generation) series builds on the achievements of the Lithium Smart Series, featuring substantial improvements. Designed for individuals in need of sophisticated and dependable energy storage solutions, the Lithium NG series represents a crucial development in our product range, prepared to address the challenges of the future.

Victron Energy Lithium NG batteries are Lithium Iron Phosphate (LiFePO4 or LFP) batteries available with nominal voltages of 12.8V, 25.6V, and 51.2V in various capacities. They can be connected in series, parallel, and series/parallel so that a battery bank can be built for system voltages of 12V, 24V, or 48V. The maximum number of batteries in one system is 50, which results in a maximum energy storage of 192 kWh in a 12V system and up to 384 kWh in a 24V and 48V system.

Integrated shunt

The battery data (battery voltage, current, and temperature) are transmitted to the BMS and evaluated there, i.e. to calculate the state of charge, which can then be read out via VictronConnect or a GX communication center, or to create and issue specific warnings and alarms.

Automatic setup, monitoring, and control via VictronConnect App or a GX device and the VRM Portal

All battery parameters are managed by the BMS automatically. The BMS automatically detects the system voltage and the number of batteries in parallel, series, and series/parallel connections. The BMS (from now on Lynx Smart BMS NG 500 A/1000 A, further models to follow) is mandatory and must be purchased separately.

Monitoring and control take place via VictronConnect (every BMS model has Bluetooth), a GX communication center, or the VRM Portal. You can view battery parameters such as cell status, cell voltages, battery current, and temperatures in real time. The battery firmware is automatically updated by the BMS.

Easy bracket mounting

Mounting brackets make the installation easier and ensure that the battery is optimally secured against slipping and tipping over.

Increased ingress protection (IP-rating)

The Lithium NG batteries are effectively sealed against dust and can withstand low-pressure water jets, making them suitable for environments where exposure to dust and water is a concern.

Low self-discharge rate

The self-discharge rate has been significantly improved and is now a maximum of 2 % of the battery capacity per month. A low self-discharge rate contributes to the overall performance, longevity, and reliability of the NG batteries.

Features:

• Multiple improvements including added read-out of cell voltages and temperatures
• Maximum single bank size increased to 385kWh
• Modules available in 12, 24 and 48V
• Protection class IP65
• Bracket mounting and strap mounting

Ships $150.00 commercial address

Ships $300.00 residential address

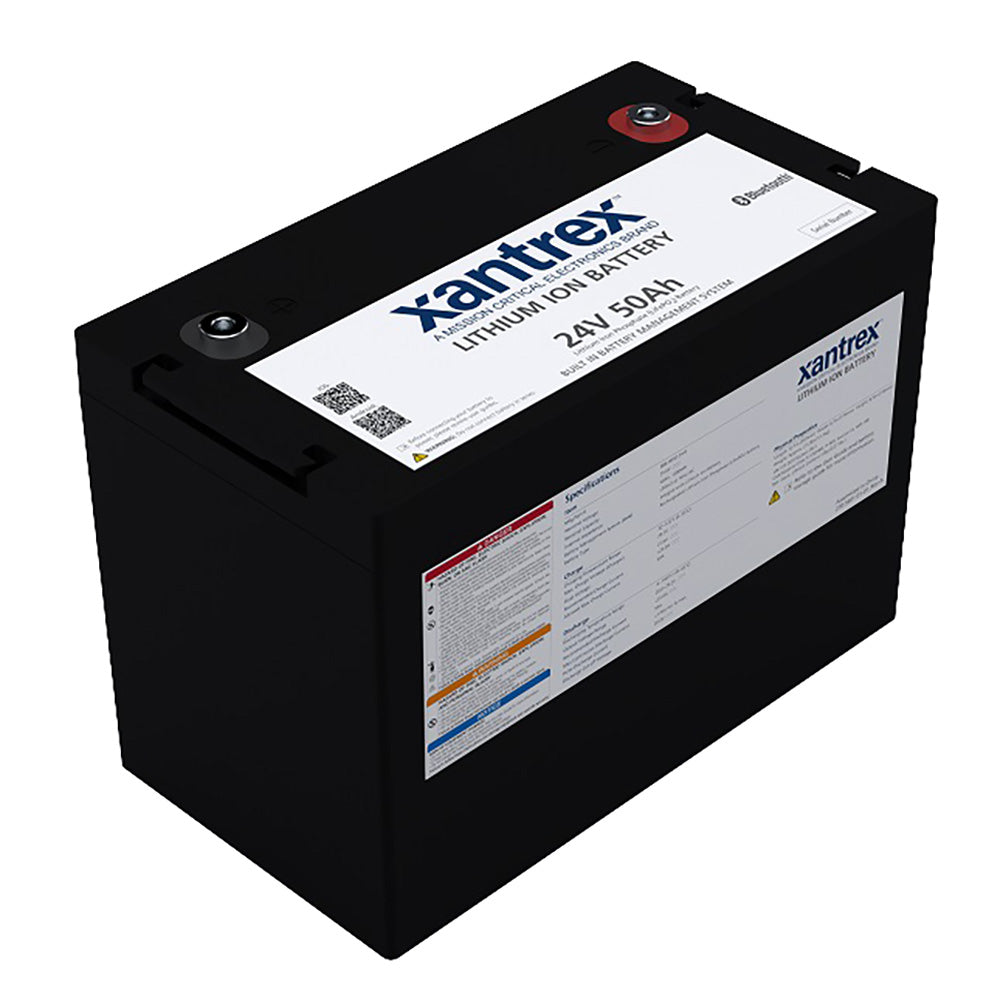

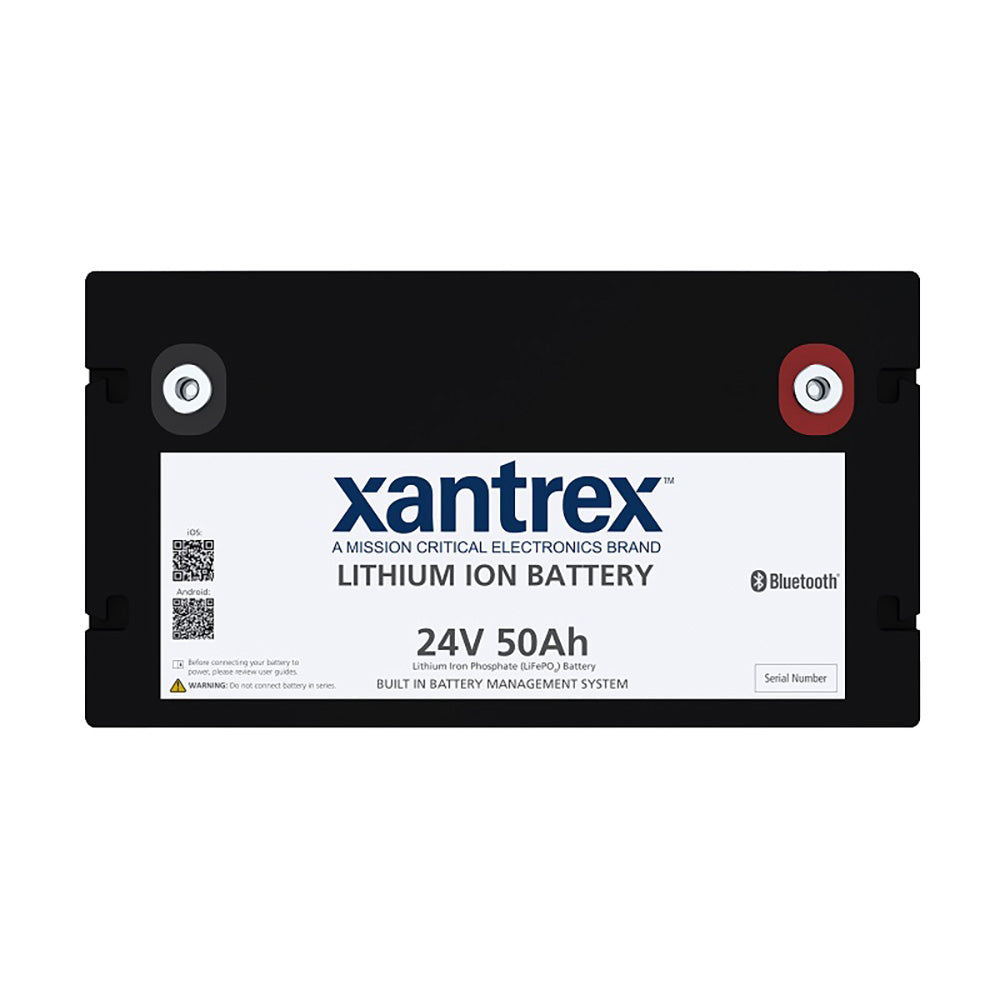

24V 50Ah Lithium-Ion Battery (LiFePO4) Battery

High cycle Lithium-Ion (LiFePO4) battery designed to fit into existing lead acid Group 31 battery scenarios such as powering trolling motors for fishing boats.

More Power in Less Space

The Xantrex Lithium-Ion Iron Phosphate (LiFePO4) battery used UL1642-certified cells. Equipped with redundant safety features, it is the safest in the market today. Specifically designed to withstand the harsh operating environments of mobile and marine applications, the battery lasts up to 4,000 cycles compared to a traditional lead acid or AGM battery, which typically lasts 400-500 cycles. It offers exceptional power density and is also available with a heating blanket option if the installation is outside the main cabin.

Sleep Mode: Xantrex Lithium-Ion Iron Phosphate batteries self-discharge at 12.5% State of Charge (SOC) per month during regular use. After 10 consecutive days of inactivity, the battery switches to a low-power mode, reducing the self-discharge rate to 3% SOC per month. Any charge or discharge activity will reactivate the battery, resetting the 10-day counter. This extends the battery life during periods of non-use.

Sleep Mode

Reduces self-discharge to 3% from 12.5% State of Charge per month after 10 days of inactivity, enhancing battery life.

High Temperature Rating

Capable of being charged up to 55°C/131°F allows extreme environment recharge without damage to the battery.

Bluetooth Connectivity

Connect to the Xantrex App to see the battery status from your smart device.

Lithium Iron Phosphate vs. Lead Acid

With the advances in technology, you can get more charge cycles and more energy per cycle from a LiFePO4 battery than a traditional AGM or Gel Cell lead acid battery.

Features:

• View SOX and faults directly
• Extreme high and low temperatures
• Remote on/off and fault
• Self-protection BMS included

Applications:

• Recreational Vehicles
• Heavy Duty Trucks
• Work Trucks
• Marine
• Specialty Vehicles

Certifications:

• UN/DOT 38.3 Lithium Ion

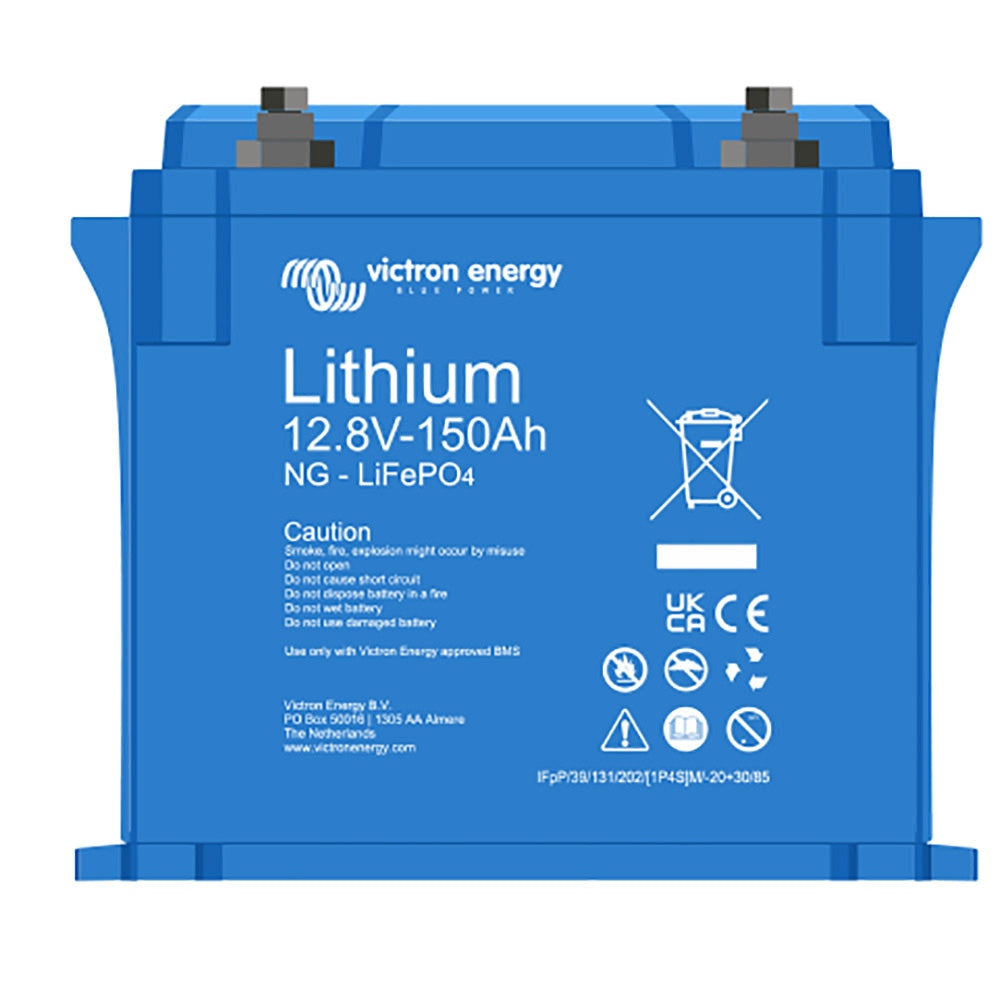

Lithium Battery 12VDC 150Ah NG Smart LifePO4

The NG (Next Generation) series builds on the achievements of the Lithium Smart Series, featuring substantial improvements. Designed for individuals in need of sophisticated and dependable energy storage solutions, the Lithium NG series represents a crucial development in our product range, prepared to address the challenges of the future.

Victron Energy Lithium NG batteries are Lithium Iron Phosphate (LiFePO4 or LFP) batteries available with nominal voltages of 12.8V, 25.6V, and 51.2V in various capacities. They can be connected in series, parallel, and series/parallel so that a battery bank can be built for system voltages of 12V, 24V, or 48V. The maximum number of batteries in one system is 50, which results in a maximum energy storage of 192 kWh in a 12V system and up to 384 kWh in a 24V and 48V system.

Integrated shunt

The battery data (battery voltage, current, and temperature) are transmitted to the BMS and evaluated there, i.e. to calculate the state of charge, which can then be read out via VictronConnect or a GX communication center, or to create and issue specific warnings and alarms.

Automatic setup, monitoring, and control via VictronConnect App or a GX device and the VRM Portal

All battery parameters are managed by the BMS automatically. The BMS automatically detects the system voltage and the number of batteries in parallel, series, and series/parallel connections. The BMS (from now on Lynx Smart BMS NG 500 A/1000 A, further models to follow) is mandatory and must be purchased separately.

Monitoring and control take place via VictronConnect (every BMS model has Bluetooth), a GX communication center, or the VRM Portal. You can view battery parameters such as cell status, cell voltages, battery current, and temperatures in real time. The battery firmware is automatically updated by the BMS.

Easy bracket mounting

Mounting brackets make the installation easier and ensure that the battery is optimally secured against slipping and tipping over.

Increased ingress protection (IP-rating)

The Lithium NG batteries are effectively sealed against dust and can withstand low-pressure water jets, making them suitable for environments where exposure to dust and water is a concern.

Low self-discharge rate

The self-discharge rate has been significantly improved and is now a maximum of 2 % of the battery capacity per month. A low self-discharge rate contributes to the overall performance, longevity, and reliability of the NG batteries.

Features:

• Multiple improvements including added read-out of cell voltages and temperatures
• Maximum single bank size increased to 385kWh
• Modules available in 12, 24 and 48V
• Protection class IP65
• Bracket mounting and strap mounting

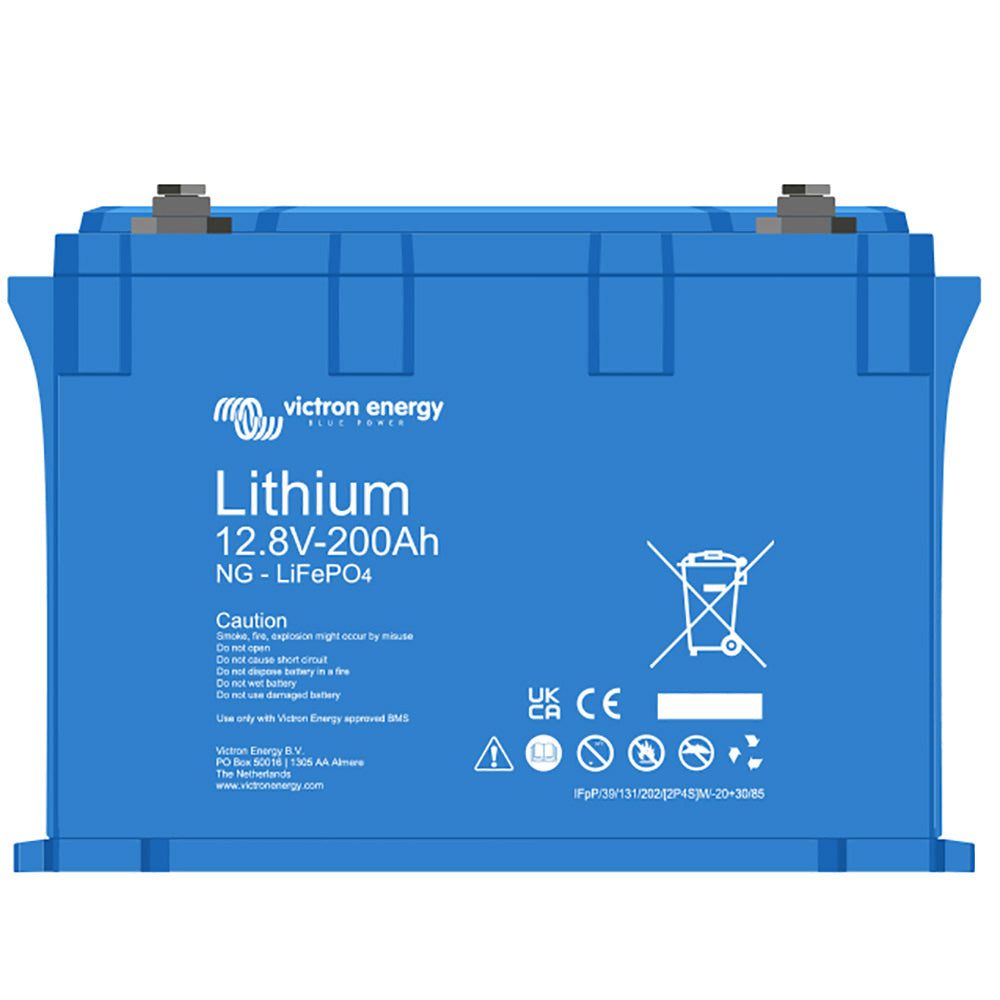

Lithium Battery 12VDC 200Ah NG Smart LifePO4 (UL 2054)

The NG (Next Generation) series builds on the achievements of the Lithium Smart Series, featuring substantial improvements. Designed for individuals in need of sophisticated and dependable energy storage solutions, the Lithium NG series represents a crucial development in our product range, prepared to address the challenges of the future.

Victron Energy Lithium NG batteries are Lithium Iron Phosphate (LiFePO4 or LFP) batteries available with nominal voltages of 12.8V, 25.6V, and 51.2V in various capacities. They can be connected in series, parallel, and series/parallel so that a battery bank can be built for system voltages of 12V, 24V, or 48V. The maximum number of batteries in one system is 50, which results in a maximum energy storage of 192 kWh in a 12V system and up to 384 kWh in a 24V and 48V system.

Integrated shunt

The battery data (battery voltage, current, and temperature) are transmitted to the BMS and evaluated there, i.e. to calculate the state of charge, which can then be read out via VictronConnect or a GX communication center, or to create and issue specific warnings and alarms.

Automatic setup, monitoring, and control via VictronConnect App or a GX device and the VRM Portal

All battery parameters are managed by the BMS automatically. The BMS automatically detects the system voltage and the number of batteries in parallel, series, and series/parallel connections. The BMS (from now on Lynx Smart BMS NG 500 A/1000 A, further models to follow) is mandatory and must be purchased separately.

Monitoring and control take place via VictronConnect (every BMS model has Bluetooth), a GX communication center, or the VRM Portal. You can view battery parameters such as cell status, cell voltages, battery current, and temperatures in real time. The battery firmware is automatically updated by the BMS.

Easy bracket mounting

Mounting brackets make the installation easier and ensure that the battery is optimally secured against slipping and tipping over.

Increased ingress protection (IP-rating)

The Lithium NG batteries are effectively sealed against dust and can withstand low-pressure water jets, making them suitable for environments where exposure to dust and water is a concern.

Low self-discharge rate

The self-discharge rate has been significantly improved and is now a maximum of 2 % of the battery capacity per month. A low self-discharge rate contributes to the overall performance, longevity, and reliability of the NG batteries.

Features:

• Multiple improvements including added read-out of cell voltages and temperatures
• Maximum single bank size increased to 385kWh
• Modules available in 12, 24 and 48V
• Protection class IP65
• Bracket mounting and strap mounting

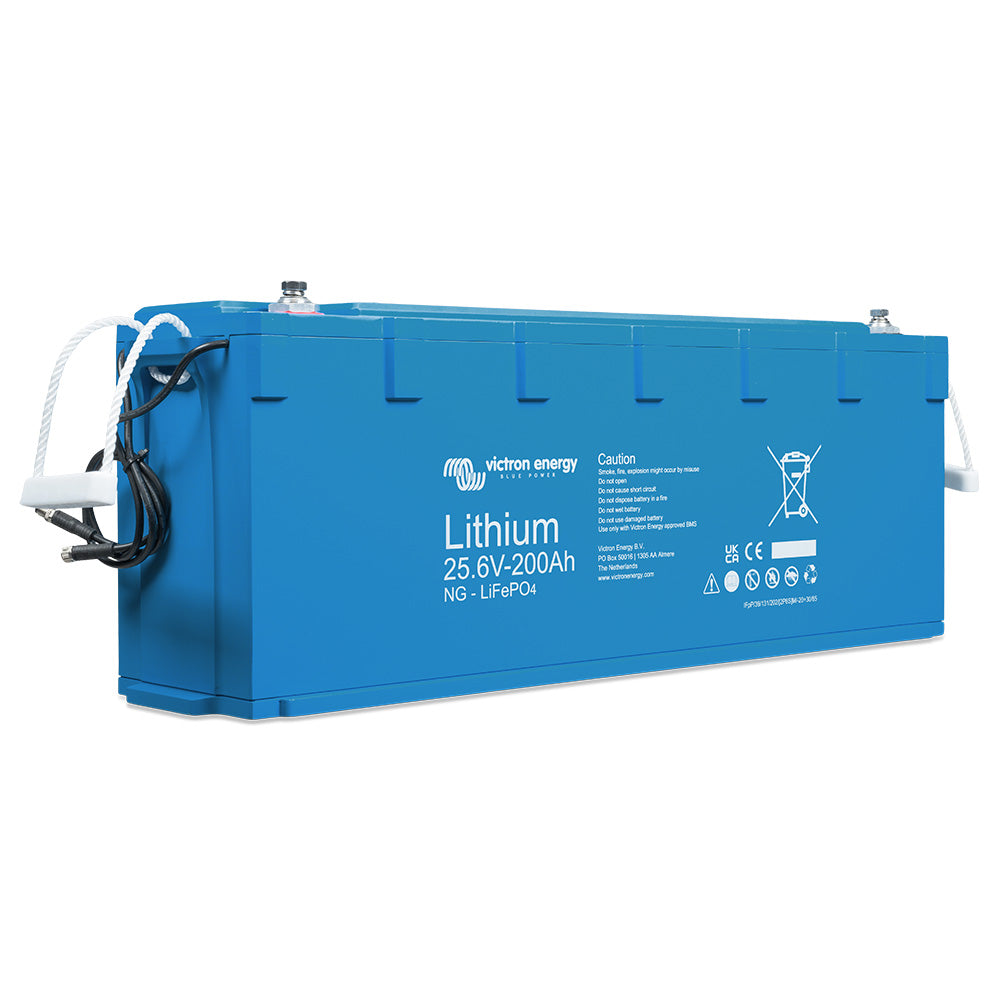

Lithium NG Smart Battery 24VDC - 200AH - Smart LifePO4 - 24V

Victron Energy Lithium NG batteries are Lithium Iron Phosphate (LiFePO4 or LFP) batteries available in various capacities with nominal voltages of 12.8V, 25.6V, and 51.2V. They can be connected in series, parallel, and series/parallel so that a battery bank can be built for system voltages of 12V, 24V, or 48V. The maximum number of batteries in one system is 50, which results in a maximum energy storage of 192kWh in a 12V system and up to 384kWh in a 24V and 48V system.

Integrated Shunt

The battery data (battery voltage, current, and temperature) are transmitted to the BMS and evaluated there, i.e., to calculate the state of charge, which can then be read out via VictronConnect or a GX communication center, or to create and issue specific warnings and alarms.

Automatic Setup, Monitoring, and Control via the VictronConnect App or a GX Device and the VRM Portal

The BMS automatically manages all battery parameters. The BMS automatically detects the system voltage and the number of batteries in parallel, series, and series/parallel connections. The BMS (from now on, Lynx Smart BMS NG 500 A/1000 A; further models to follow) is mandatory and must be purchased separately. Monitoring and control take place via VictronConnect (every BMS model has Bluetooth), a GX communication center, or the VRM Portal. Users can view battery parameters such as cell status, cell voltages, battery current, and temperatures in real-time. The battery firmware is automatically updated by the BMS.

Easy Bracket Mounting

Mounting brackets make the installation easier and ensure that the battery is optimally secured against slipping and tipping over.

Increased Ingress Protection (IP-rating)

The lithium-ion NG batteries are effectively sealed against dust and can withstand low-pressure water jets, making them suitable for environments where exposure to dust and water is a concern.

Low Self-Discharge Rate

The self-discharge rate has been significantly improved and is now a maximum of 2% of the battery capacity per month. A low self-discharge rate contributes to the overall performance, longevity, and reliability of the NG batteries.

Victon’s lithium-ion NG batteries have integrated cell balancing and cell monitoring. The cell balancing/monitoring cables can be daisy-chained and must be connected to a Battery Management System (BMS).

Battery Management System (BMS) BMS will:

• Generate a pre-alarm whenever the voltage of a battery cell decreases to less than 3.0 V
• Disconnect or shut down the load whenever the voltage of a battery cell decreases to less than 2.8 V
• Stop the charging process whenever the voltage of a battery cell increases to more than 3.6 V or when the temperature becomes too high or too low

Other Features:

• Victron Smart products can connect through Bluetooth, USB/Wifi/LAN, or remotely via the internet

Specifications:

Voltage & Capacity:

• Nominal Voltage: 25.6 V
• Nominal Capacity @ 25 °C: 200 Ah
• Nominal Energy @ 25 °C: 5120 Wh
• Discharge Current ≤1C: N/A

Cycle Life (capacity ≥ 80 % of nominal):

• 80 % DoD: 2,500 cycles
• 70 % DoD: 3,000 cycles
• 50 % DoD: 5,000 cycles

Discharge:

• Max Continuous Discharge Current: 200 A
• Max Pulse Discharge Current (10s): 400 V
• End of Discharge Voltage: 22.4
• Internal Resistance: 2 mΩ

Charge:

• Charge Voltage: Between 14 V / 28 V / 56 V and 14,4 V / 28,8 V / 56,8 V
• Float Voltage: 13,5 V / 27 V 54 V
• Max Continuous Charge Current: 100 A
• Max Pulse Charge Current (10s): 200 A

General:

• BMS-es: Lynx Smart BMS NG 500 A / 1000 A (M10 busbars), must be purchased separately
• Cell Measurements: Cell voltages and temperatures, battery current
• Battery BMS Interface: Male + female cable with M8 circular connector with high-speed digital communication, length 50 cm M8 extension cables are available separately for purchase in various lengths between 1 and 5 meters
• Alarm Feature: Pre-alarm contact on BMS
• Bluetooth: In the BMS
• Max Batteries Per BMS: 50 (384 kWh per BMS 3))
• Battery Firmware Updates: Battery firmware automatically updated by BMS
• Repairable: Yes (cover can be removed with screws)

Operating Conditions:

• Operating Temperature: Discharge: -20 °C to +50 °C | Charge: +5 °C to +50 °C
• Storage Temperature: -45 °C to +70 °C
• Humidity (non-condensing): Max. 95 %
• Protection Class: IP65

Mounting:

• Mounting Options: Strap or mounting brackets
• Can be Placed on Their Sides: Yes

Other:

• Self-Discharge Rate: ≤ 3 % per month @ 25 °C
• Power Connection: M8 (threaded inserts and bolts)
• Dimensions (H x W x D) mm: 235 x 648 x 162
• Weight (est.): 37 kg

Standards:

• Safety: Cells: UL1973 UL9540A IEC62619
• EMC: Battery: IEC  62619 (pending)
• Automotive: EN 61000-6-3, EN 61000-6-2
• Performance: IEC 62620 (pending)
