Analytic Systems AC Power Supply 20/25A, 12V Out, 85-265V In [PWI320-12]

AC Power Supply 20/25A, 12V Out, 85-265V In

The PWI320 Intelligent Power Supply delivers a full 300 watts of output power for communications, control or a wide variety of other devices. It is fully Digital Signal Processor controlled and feature Universal Input Voltage from 85 to 265 VAC at 50 or 60 Hz with Active Power Factor Correction for the most efficient use of AC power.

The Power Supply is preset to the same voltage as a fully charged battery of the nominal output voltage (ie. 13.6V for a 12V model, etc.). The voltage can be adjusted over a reasonable range using the front panel controls, or the PowerWizard software that is free to download from www.analyticsystems.com.

Seven dual color LEDs clearly indicate output current levels as well as indicating faults with the Power Supply. Safety features include Power Supply over temperature shutdown, current limiting, short circuit protection, input under voltage shutdown and output overvoltage protection all with automatic recovery.  PWI320MW model available with MIL connectors, extra input and output filtering and sealed to IP66

Features:

• Digital Signal Processor controlled
• Universal worldwide AC input
• Computer programmable
• Simple front panel controls
• Easy connection to loads
• High Vibration Rugged Duty
• Dry Contact Output Fail Relay Carrying Handle
• Canbus / RS232 / Remote Control port
• Five year parts and labour warranty

Specifications:

• Charger Input - Voltage: 85-265v
• Charger Output - Amps: 20-25a
• Charger Output Voltage: 12v
• Box Dimensions: 7"H x 11"W x 12"L WT: 8.3 lbs

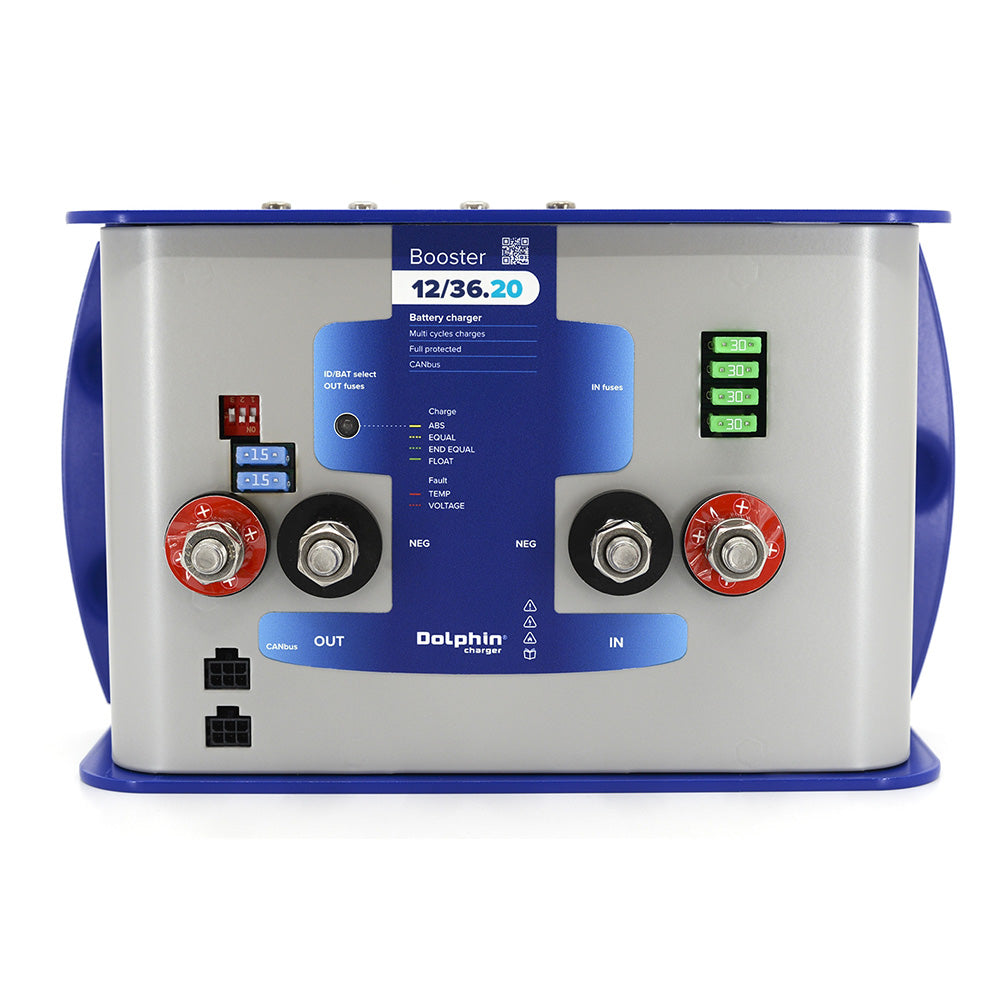

Dolphin Charger DC-DC Converter - 12/36V - 20A [99204]

DC-DC Converter - 12/36V - 20A

Your boat has a 12V alternator, and you need to charge a 24V or 36V battery “on the run”? Dolphin has the solution. Our boosters are true DC/DC chargers with a 3-stage smart charge feature. Compatible with 4 different technologies, including Gel, AGM, or Lithium LIFEPO4. Dolphin booster is the perfect choice to charge your bow thruster or trolling motor batteries!

Flexibility & Versatility

BOOSTER units are designed to charge a 24V, 36V, or 48V auxiliary battery from a single 12V or 24V power system, ideal for new installations or for updating older systems. Thanks to recharging during navigation, auxiliary batteries are always available. No need to wait until you’re connected to the shore to recharge. This product range extends from 12/24V (charging at 30A), 12/36V (charging at 20A) up to 24/48V (charging at 15A).

Efficient Power Conversion

Small is beautiful: our engineers have made it compact. BOOSTER is only half the size of a conventional charger of equivalent power!

Faster Charging Times

BOOSTERS are intelligent marine battery chargers featuring an advanced and unique 4-stage charging program. This reduces charging time by 50% compared with charging from a basic alternator. with different battery chemistry settings (Lead, Gel, AGM, Lithium, LifeFO4).

Compatibility with Different Voltages

BOOSTERS are smart battery chargers featuring four different battery profile, Lead, Gel, AGM, and Lithium LifeFO4.

Protection Features

BOOSTER units include automatic protection against battery source drainage, over-current, over-voltage and reverse polarity and built-in fuses protections.

As for all other Dolphin® charger products, the BOOSTER’s assembly process includes conformal coating of the electronic board (PCB) to guarantee an extended lifecycle of your battery charger.

Quick Guide (pdf)

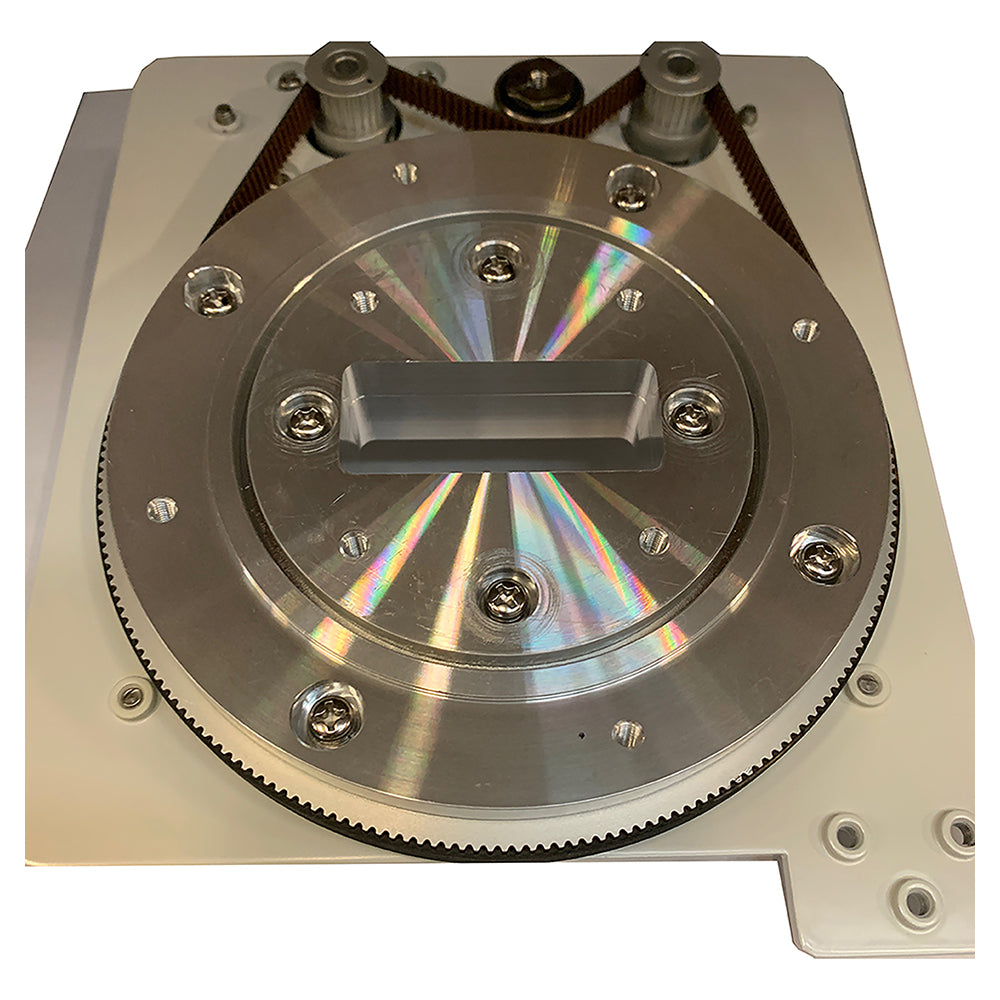

Skew Assembly

Intellian's Skew Assembly for S6HD.

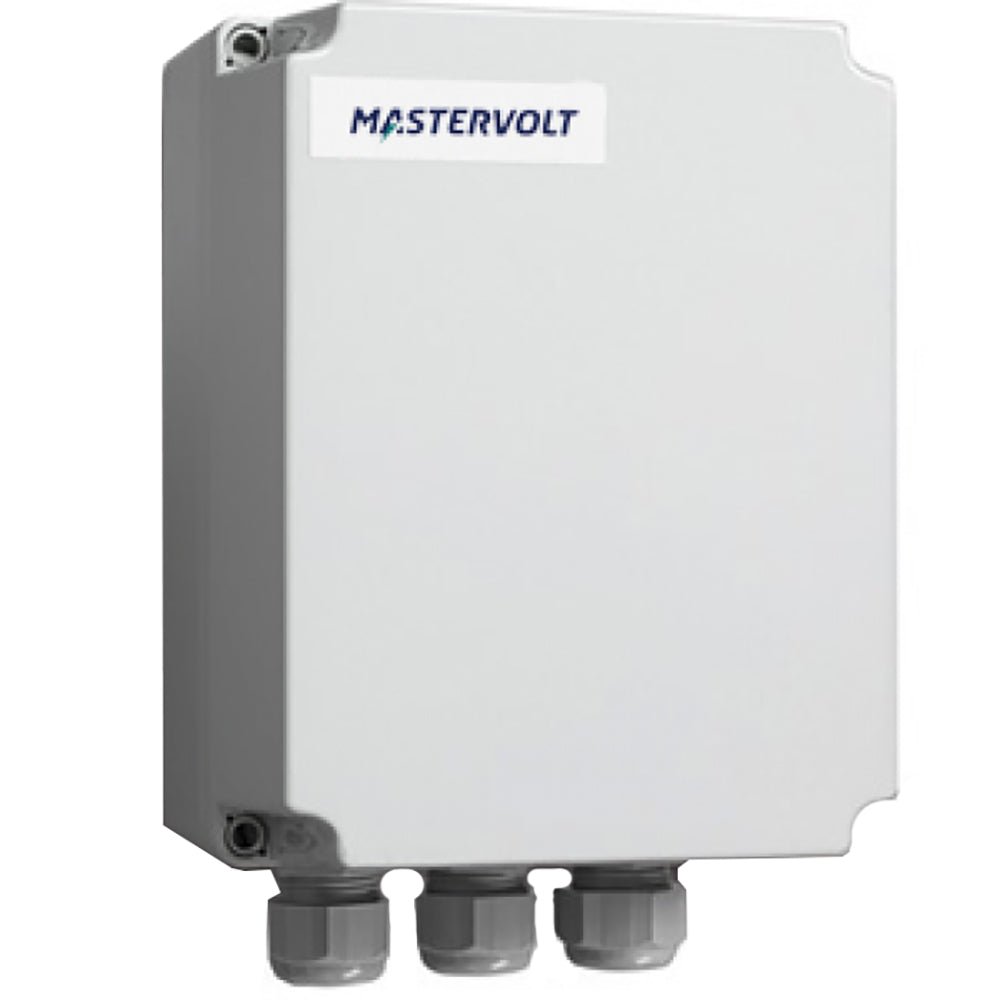

Masterswitch 7kW - 120V

Features:

• Two AC inputs, for example grid power and generator
• One outlet to AC power group
• Automatic switching
• Power transfer up to 25 kW, input/output from 20 to 125 A
• The Masterswitch Fuses version includes circuit breakers

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

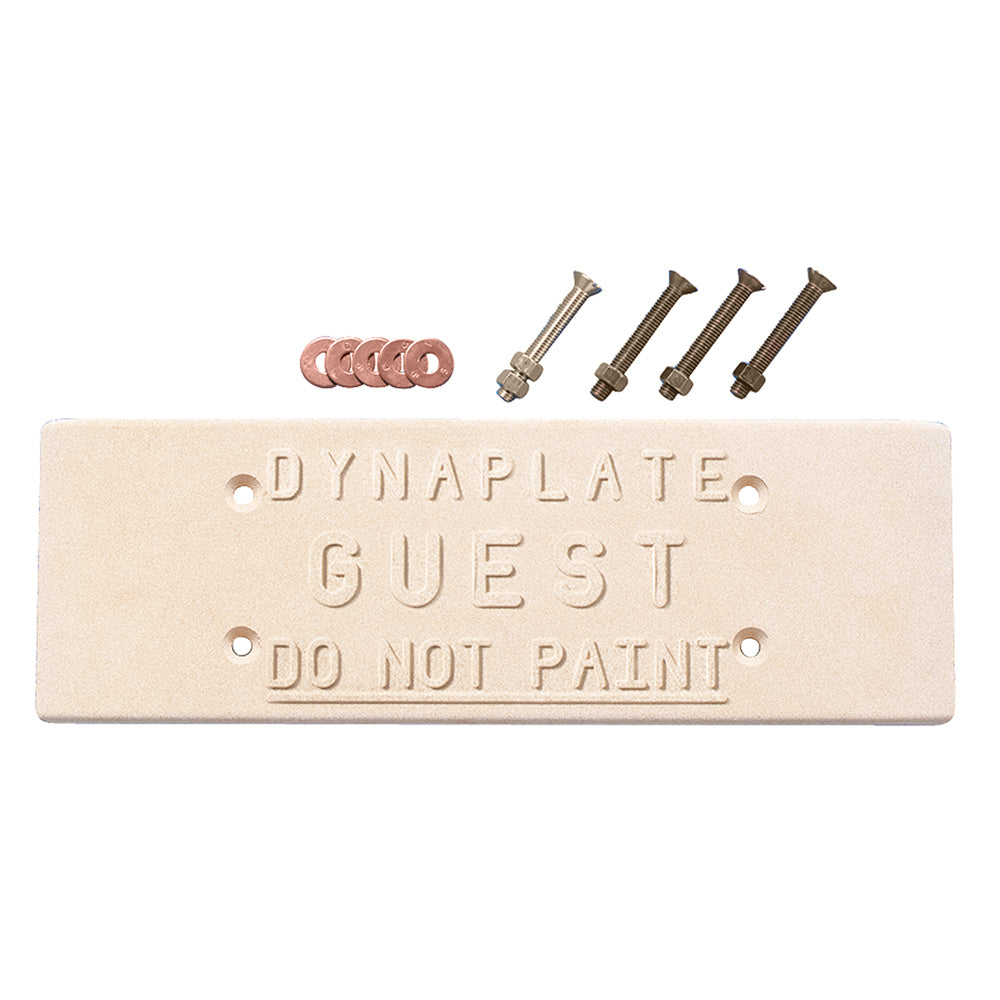

Super Dynaplate f/SSB Radio - 18" x 6" x 1/2"

Create a proper bonding and grounding system using Dynaplate grounding shoes to reduce the risk of serious hull damage and electrical shock associated with boat lightning strikes by providing a direct, controlled high-capacity path for lightning dissipation. SSB and AM radio transmitters rely upon a proper size ground to operate to their designed capacity. A Dynaplate grounding shoe helps provide a large solid surface (the water surrounding the boat) to "push off" from. This is technically known as "counterpoise" and is the other necessary half of the antenna system. The bronze Dynaplate material also serves as the next sacrificial metal on the galvanic scale after the zincs, providing another buffer against corrosion of stainless steel parts.

Features:

• Easy to clean with wire brush

• Conforms to ABYC standards

• Mounting hardware included

• Gold plated mounting bolt

• Bronze mounting nuts

• Copper washers

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

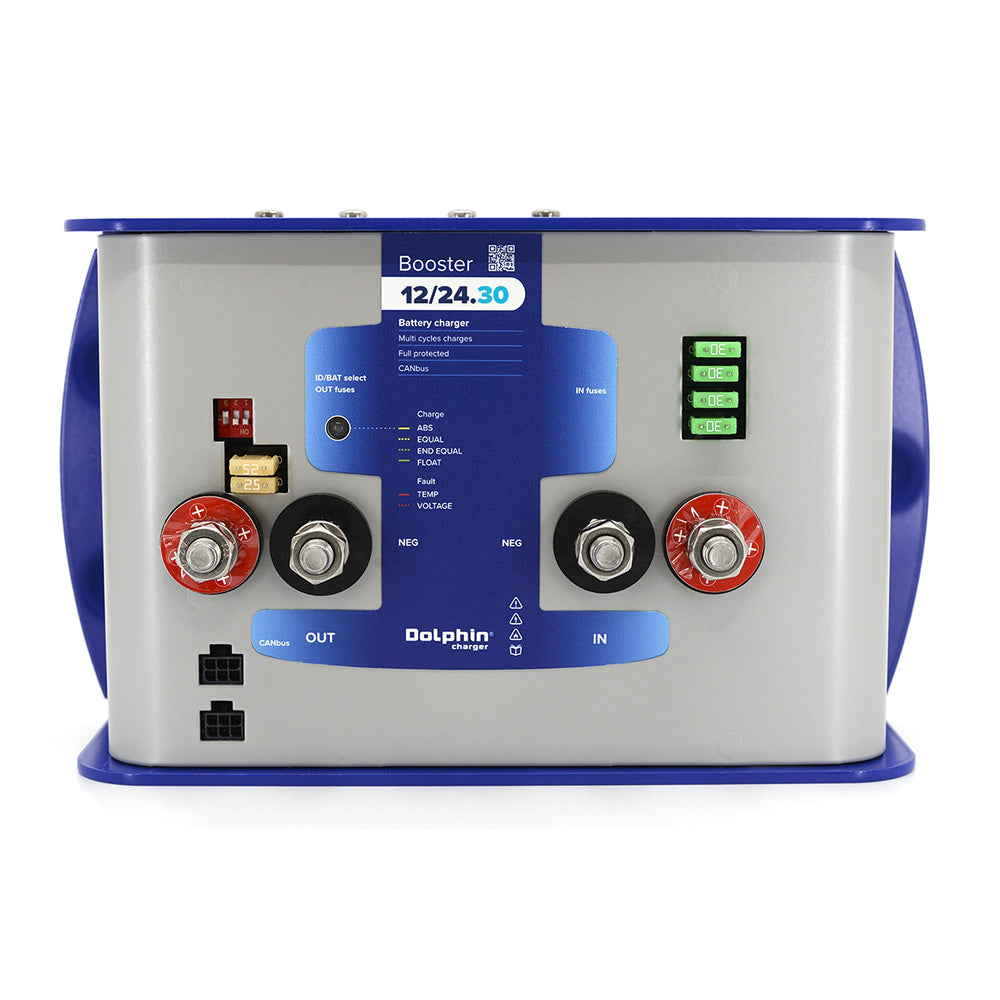

Dolphin Charger DC-DC Converter - 12/24V - 30A [99201]

DC-DC Converter - 12/24V - 30A

Your boat has a 12V alternator, and you need to charge a 24V or 36V battery “on the run”? Dolphin has the solution. Our boosters are true DC/DC chargers with a 3-stage smart charge feature. Compatible with 4 different technologies, including Gel, AGM, or Lithium LIFEPO4. Dolphin booster is the perfect choice to charge your bow thruster or trolling motor batteries!

Flexibility & Versatility

BOOSTER units are designed to charge a 24V, 36V or 48V auxiliary battery from a single 12V or 24V power system, ideal for new installations or for updating older systems. Thanks to recharging during navigation, auxiliary batteries are always available. No need to wait until you’re connected to the shore to recharge. This product range extends from 12/24V (charging at 30A), 12/36V (charging at 20A) up to 24/48V (charging at 15A).

Efficient Power Conversion

Small is beautiful: our engineers have made it compact. BOOSTER is only half the size of a conventional charger of equivalent power!

Faster Charging Times

BOOSTERS are intelligent marine battery chargers featuring an advanced and unique 4-stage charging program. This reduces charging time by 50% compared with charging from a basic alternator. with different battery chemistry settings (Lead, Gel, AGM, Lithium, LifeFO4).

Compatibility with Different Voltages

BOOSTERS are smart battery chargers featuring four different battery profile, Lead, Gel, AGM, and Lithium LifeFO4.

Protection Features

BOOSTER units include automatic protection against battery source drainage, over-current, over-voltage and reverse polarity and built-in fuses protections.

As for all other Dolphin® charger products, the BOOSTER’s assembly process includes conformal coating of the electronic board (PCB) to guarantee an extended lifecycle of your battery charger.

Quick Guide (pdf)

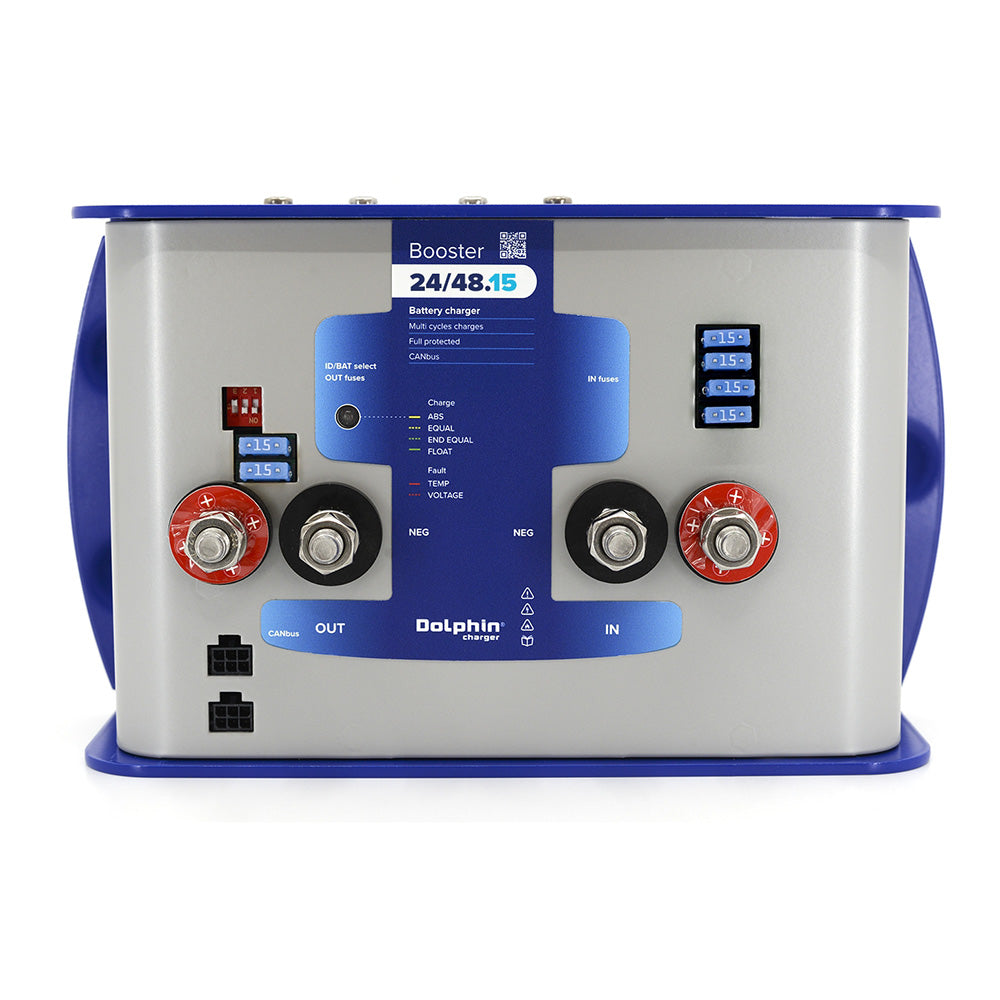

DC-DC Converter - 24/48V - 15A

Your boat has a 12V alternator, and you need to charge a 24V or 36V battery “on the run”? Dolphin has the solution. Our boosters are true DC/DC chargers with a 3-stage smart charge feature. Compatible with 4 different technologies, including Gel, AGM, or Lithium LIFEPO4. Dolphin booster is the perfect choice to charge your bow thruster or trolling motor batteries!

Flexibility & Versatility

BOOSTER units are designed to charge a 24V, 36V, or 48V auxiliary battery from a single 12V or 24V power system, ideal for new installations or for updating older systems. Thanks to recharging during navigation, auxiliary batteries are always available. No need to wait until you’re connected to the shore to recharge. This product range extends from 12/24V (charging at 30A), 12/36V (charging at 20A) up to 24/48V (charging at 15A).

Efficient Power Conversion

Small is beautiful: our engineers have made it compact. BOOSTER is only half the size of a conventional charger of equivalent power!

Faster Charging Times

BOOSTERS are intelligent marine battery chargers featuring an advanced and unique 4-stage charging program. This reduces charging time by 50% compared with charging from a basic alternator. with different battery chemistry settings (Lead, Gel, AGM, Lithium, LifeFO4).

Compatibility with Different Voltages

BOOSTERS are smart battery chargers featuring four different battery profile, Lead, Gel, AGM, and Lithium LifeFO4.

Protection Features

BOOSTER units include automatic protection against battery source drainage, over-current, over-voltage and reverse polarity and built-in fuses protections.

As for all other Dolphin® charger products, the BOOSTER’s assembly process includes conformal coating of the electronic board (PCB) to guarantee an extended lifecycle of your battery charger.

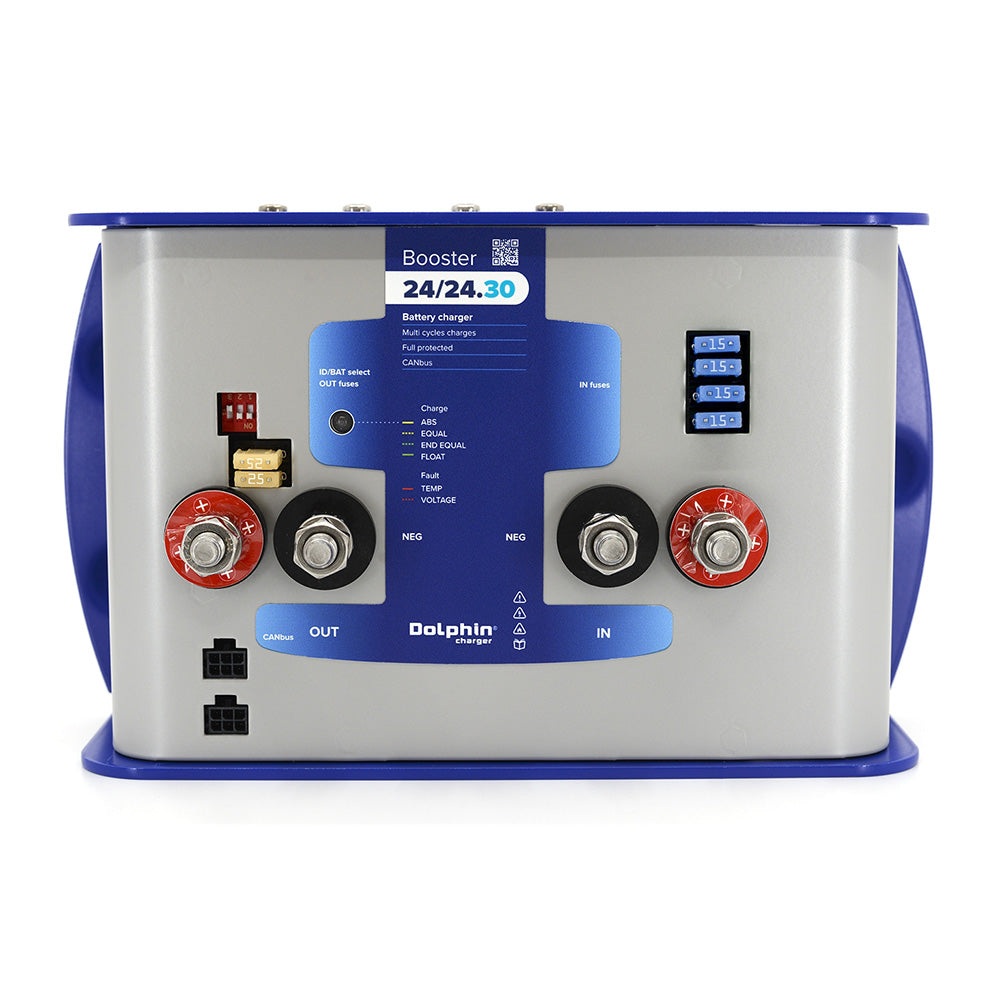

DC-DC Converter - 24/24V - 30A

Your boat has a 12V alternator, and you need to charge a 24V or 36V battery “on the run”? Dolphin has the solution. Our boosters are true DC/DC chargers with a 3-stage smart charge feature. Compatible with 4 different technologies, including Gel, AGM, or Lithium LIFEPO4. Dolphin booster is the perfect choice to charge your bow thruster or trolling motor batteries!

Flexibility & Versatility

BOOSTER units are designed to charge a 24V, 36V or 48V auxiliary battery from a single 12V or 24V power system, ideal for new installations or for updating older systems. Thanks to recharging during navigation, auxiliary batteries are always available. No need to wait until you’re connected to the shore to recharge. This product range extends from 12/24V (charging at 30A), 12/36V (charging at 20A) up to 24/48V (charging at 15A).

Efficient Power Conversion

Small is beautiful: our engineers have made it compact. BOOSTER is only half the size of a conventional charger of equivalent power!

Faster Charging Times

BOOSTERS are intelligent marine battery chargers featuring an advanced and unique 4-stage charging program. This reduces charging time by 50% compared with charging from a basic alternator. with different battery chemistry settings (Lead, Gel, AGM, Lithium, LifeFO4).

Compatibility with Different Voltages

BOOSTERS are smart battery chargers featuring four different battery profile, Lead, Gel, AGM, and Lithium LifeFO4.

Protection Features

BOOSTER units include automatic protection against battery source drainage, over-current, over-voltage and reverse polarity and built-in fuses protections.

As for all other Dolphin® charger products, the BOOSTER’s assembly process includes conformal coating of the electronic board (PCB) to guarantee an extended lifecycle of your battery charger.
