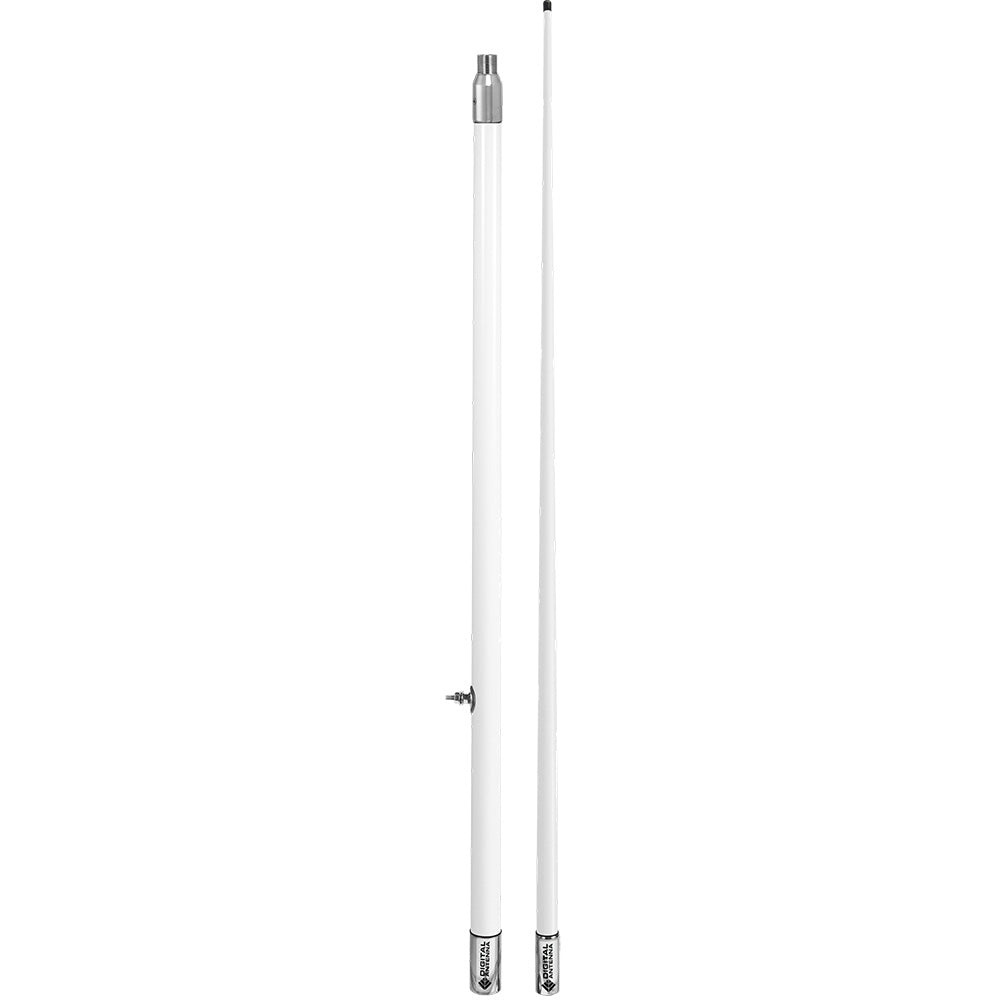

Digital Antenna 544-SSW-S 16' Single Side Band Antenna [544-SSW-S]

544-SSW-S 16' Single Side Band Antenna

When VHF range isn't enough, step up to Digital Antenna’s 16' SSB (Single Side Band) antenna - trusted by serious offshore operators for long-range, high-frequency communication. Built tough for offshore adventures, this hand-tuned, American-made antenna combines unbeatable performance, durability, and a sleek look. (Tuner and side support required.)

Features:

• Powerful Brass radiators maximize signal strength and conductivity
• Soldered connections enhance durability, electrical efficiency, and long-term reliability
• Internal Foam insulators stabilize elements and reduce vibration
• High-gloss urethane finish ensures UV resistance and durability
• 316 Stainless Steel Ferrules offer corrosion resistance for harsh environments
• Hand-built, tested, and tuned in the USA for optimal performance
• Mounts to standard 1"-14 threaded bases for universal compatibility
• Backed by a 5-year warranty for long-term reliability

Specifications:

• Radiation Pattern: Omni-Directional
• VSWR: <1.5:1 = .5 - 30 MHz with Tuner
• Max Input Power: 1000 watts
• Dimensions:  8’ x 1.5” OD (bottom section) 8’ x 1” tapered OD (top section)
• Exterior Finish: White, UV stable polyurethane coating
• Ferrules: 316 Stainless Steel
• RF Termination: 1/4”- 20 stainless steel stud
• Wind Rating:  95 mph
• Installation: 1”-14 female threads
• Wire (not included): Use 10-12 AWG high-voltage insulated wire

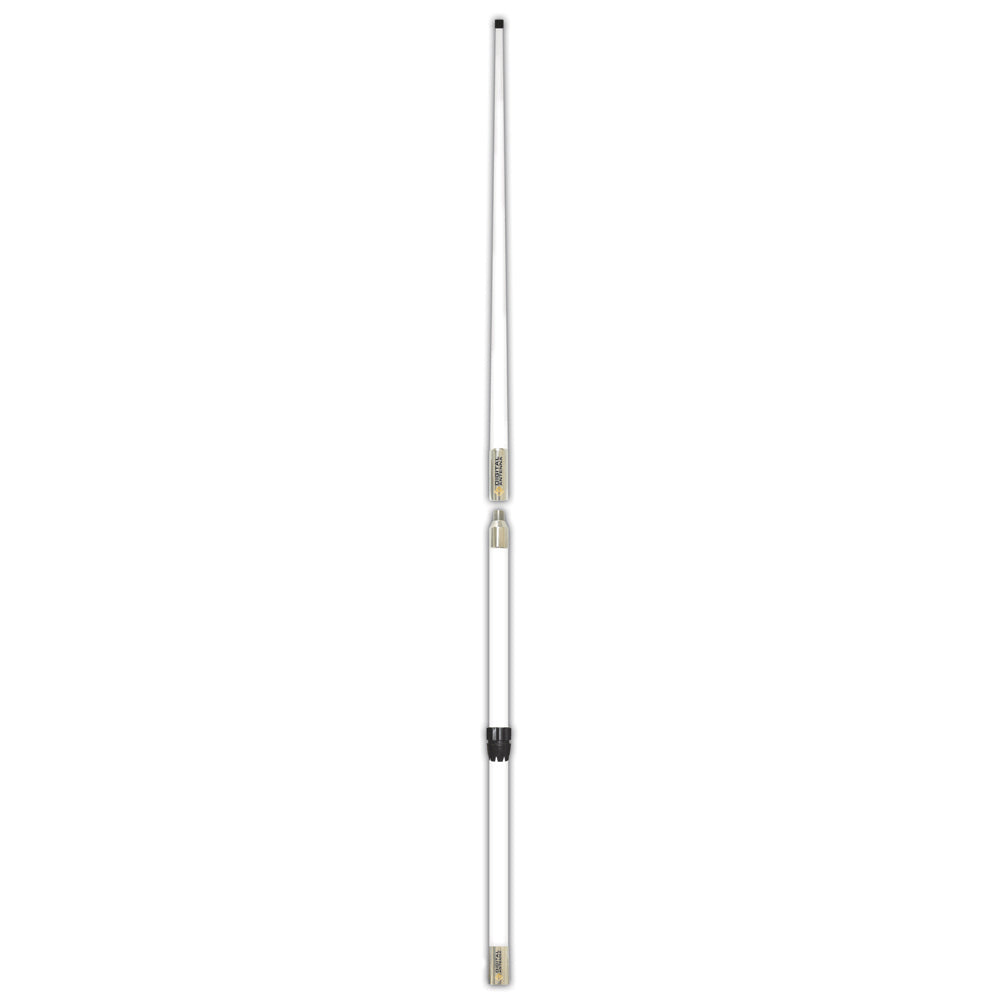

Digital Antenna 544-SSW-RS 16 Single Side Band Antenna w/RUPP Collar - White [544-SSW-RS]

Ships Direct From Manufacturer

544-SSW-RS Single Side Band Antenna w/RUPP Collar - White

** Designed to be used with RUPP Antenna Mounts **

When the range of a VHF radio just won’t do, offshore vessel operators choose Digital Antenna’s high performance Single Side Band antennas for exceptional communication over the entire HF frequency range. Heavy duty construction for use in the roughest seas, Digital Antenna SSB antennas are a popular choice for boaters when durability, performance and great looks are prerequisites. Available in 16’ or 24’ lengths to accommodate even the most pristine of motor yachts.

Features:

• Powerful brass radiators
• Soldered connections
• Centering foam insulator
• High gloss urethane finish
• Mount: Standard 1”–14 threaded base
• RF Termination: 1/4”- 20 stainless steel stud
• Cable: Not included

Specifications:

• Radiation Pattern: Omni-Directional
• Max Input Power: 1000W
• Exterior Finish: White, UV stable poly-urethane coating
• Ferrule: 316 Stainless Steel
• Installation: 1"-14 female threads
• Wire (not included): Use 10-12 AWG high voltage insulated wire

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

• Length (Inches): 190"
• Ferrule Type: Stainless Steel
• Construction: Fiberglass
• Color: White
• Antenna Band: SSB
• Box Dimensions: 4"H x 4"W x 96"L WT: 10.65 lbs
• UPC: 839494002227

Quick Guide (pdf)

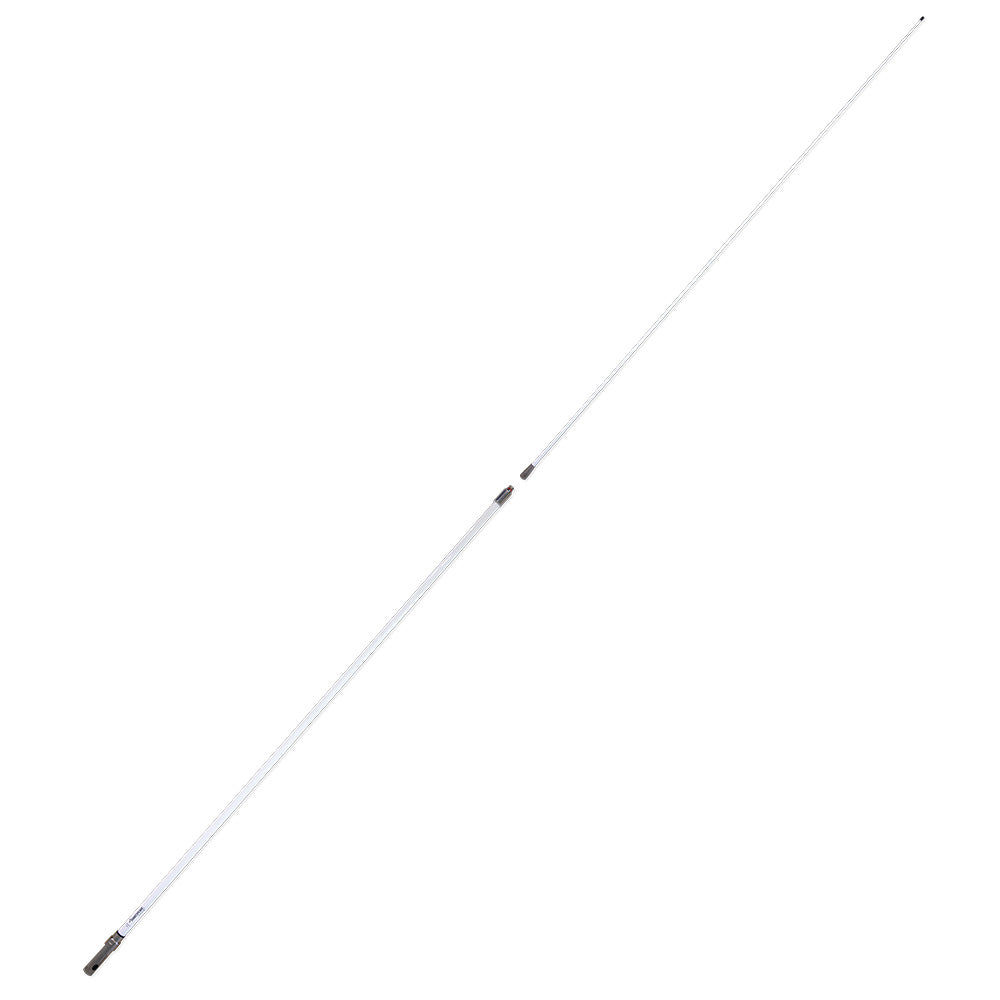

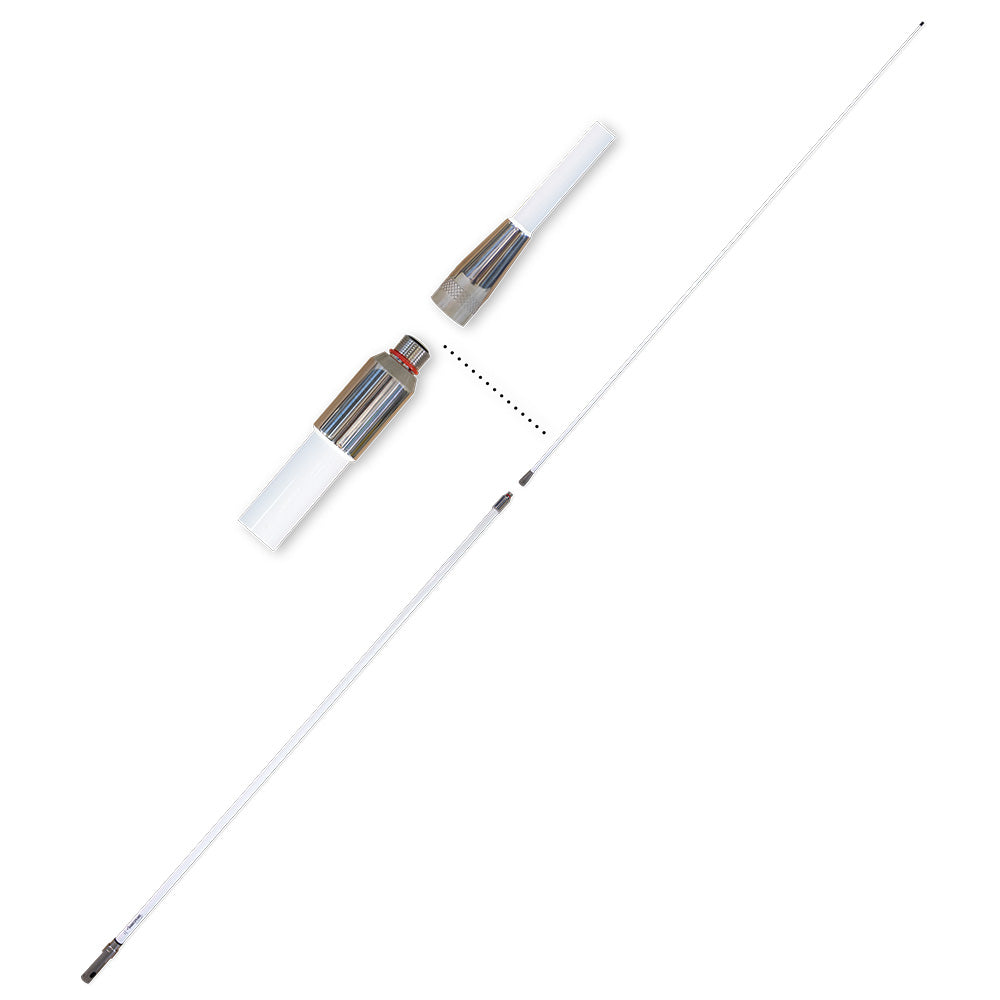

Shakespeare 6018-R Phase III VHF Antenna - 17 6 (5.3M) VHF Marine Band 9dB Gain [6018-R]

6018-R Phase III VHF Antenna - 17′ 6″ (5.3M) VHF Marine Band 9dB Gain

Good communication over the VHF Marine Band depends on antenna height, quality and dB Gain. This high performing Phase III™ marine antenna is a powerhouse providing all of those necessities in our rugged, high-strength, foam-filled fiberglass radome for stability in high seas, high winds and high speeds.

Features:

• Silver-plated outer conductor, copper inner conductor

  • Stainless steel mounting sleeve

  • Type SO-239 connector inside mounting sleeve for easy mounting and dismounting for stowage

  • Suggested mount: Shakespeare® Style 409-R or 410-R Mounting Kit

  • Two sections: Base 110″, Tip 110″

Specifications:

• Design: Collinear-phased 1/2-wave elements with choking sleeve
• Height: 18' (5.48m)
• Weight: 20lbs (9kg)
• Gain: 8dB
• Connector Type: SO-239
• Suggested Mounting: 409-R or 410-R
• Impedance: 50 ohms
• Max Input Power: 150W
• DC Grounding: No
• Shakespeare Limited Warranty: 8 years

Specifications:

• Antenna Band: VHF
• Color: White
• Construction: Fiberglass
• Ferrule Type: Stainless Steel
• Length (Inches): 210"
• Box Dimensions: 4"H x 4"W x 117"L WT: 13 lbs
• UPC: 719441200657

Quick Guide (pdf)

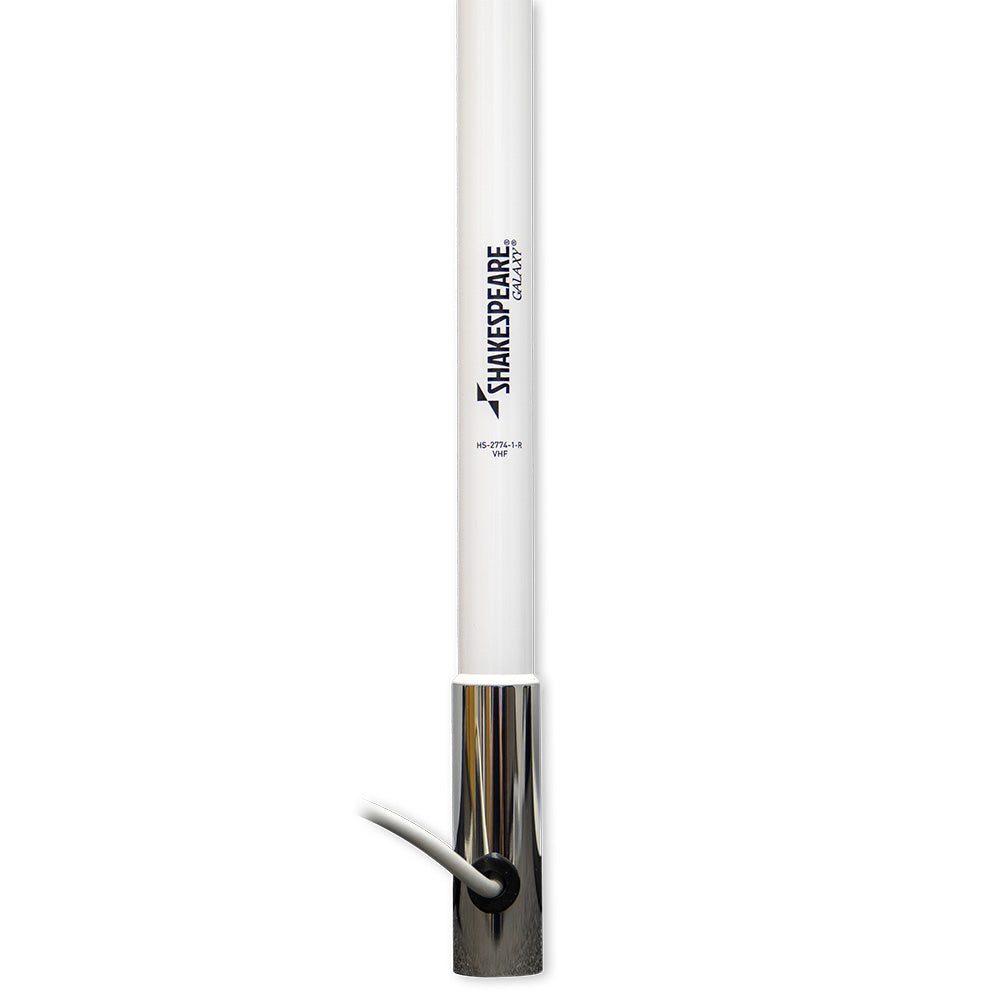

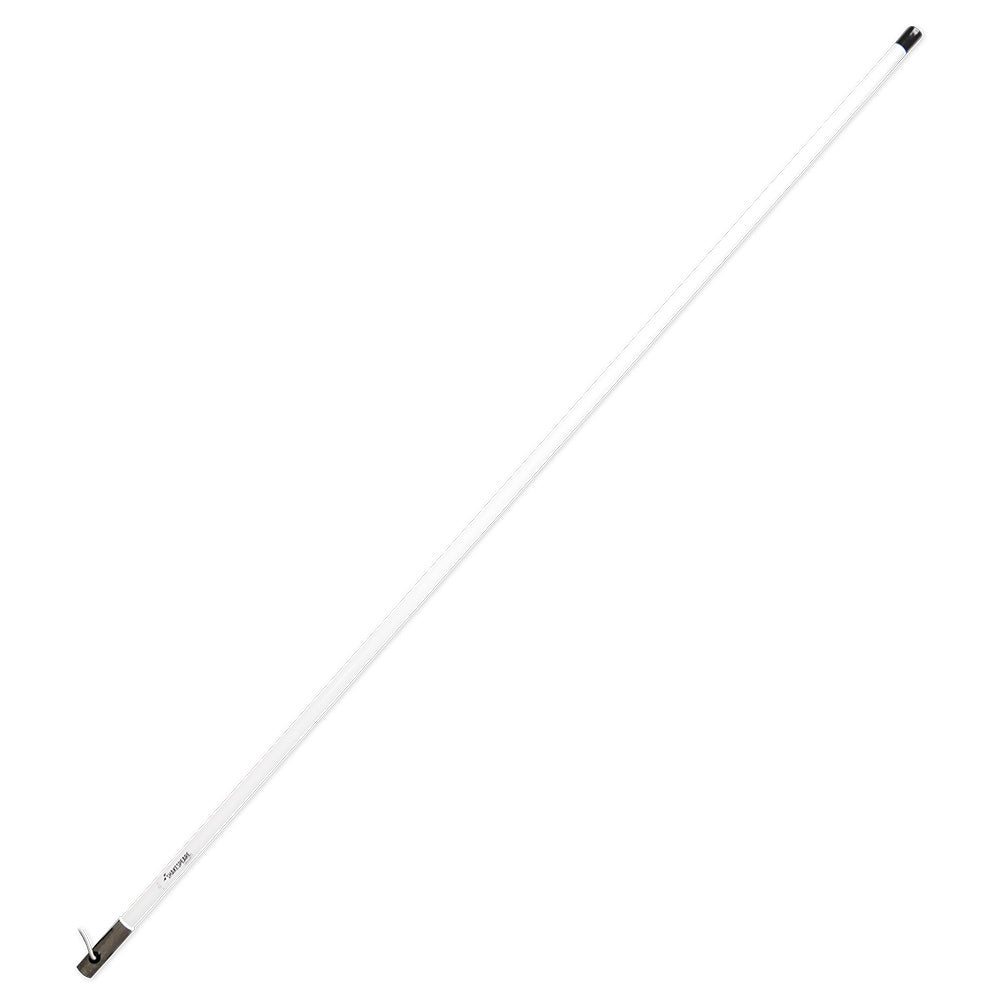

Shakespeare Galaxy 6.5' Broadband Antenna [HS-2774-1-R]

Galaxy 6.5' Broadband Antenna

The HS 2774-1 is a highly sophisticated antenna with performance maximized from 136 to 174 MHz. It will handle continuous duty at maximum input power. The self-supporting antenna is designed for military, commercial, law enforcement, and disaster preparedness. No tuning or ground plane required.

Features:

• 136-174 MHz Broadband
• Soldered brass elements for maximum range and efficiency
• Stainless steel ferrules, standard 1in-14 threads
• Includes 20 feet of RG-8/X low-loss cable plus a PL-259 connector
• Suggested mount: Use only Shakespeare Style 4187-HD for self-supporting applications. Use a Style 410-R if an upper support bracket installation is preferred.
• Covers: 136-174 MHz
• One section
• Includes FME Cables

Specifications:

• Antenna Length: 6.5ft.

Specifications:

• Antenna Band: VHF
• Color: White
• Construction: Fiberglass
• Ferrule Type: Stainless Steel
• Length (Inches): 78"
• Box Dimensions: 3"H x 3"W x 86"L WT: 6 lbs
• UPC: 719441171049

Quick Guide (pdf)

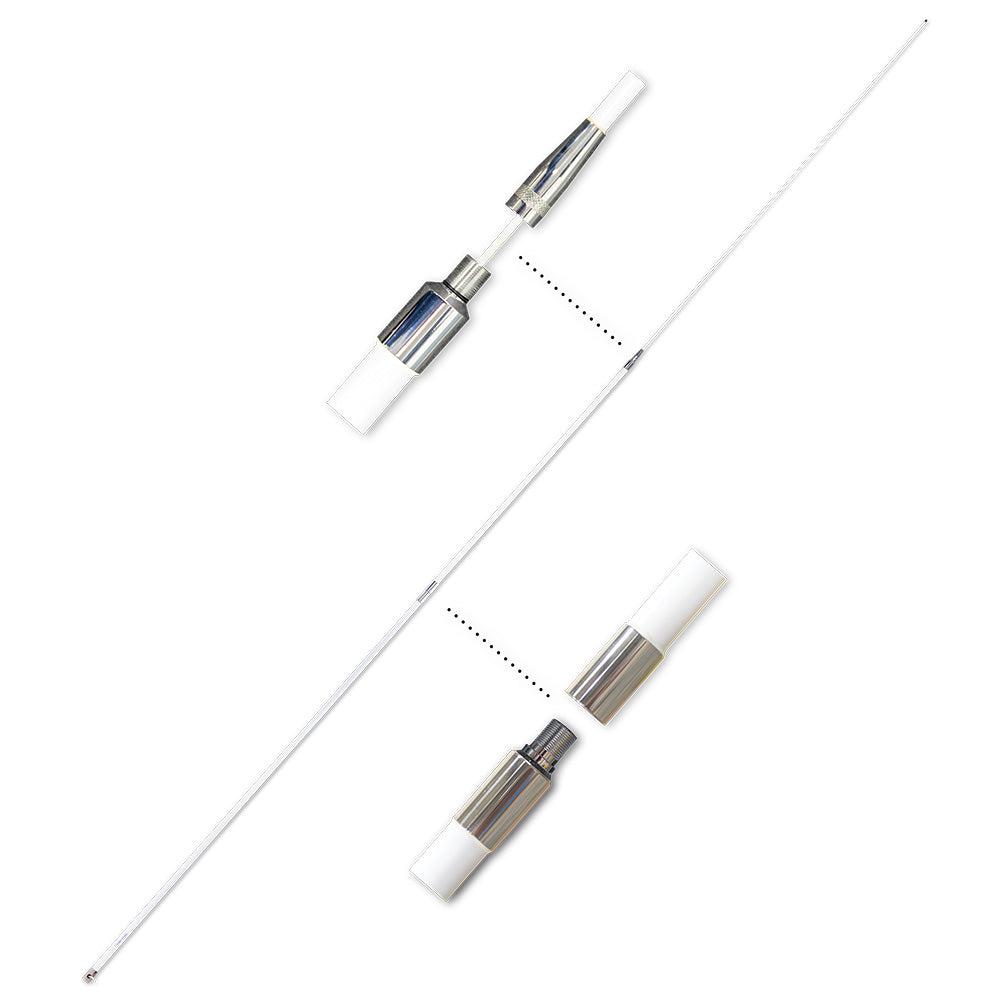

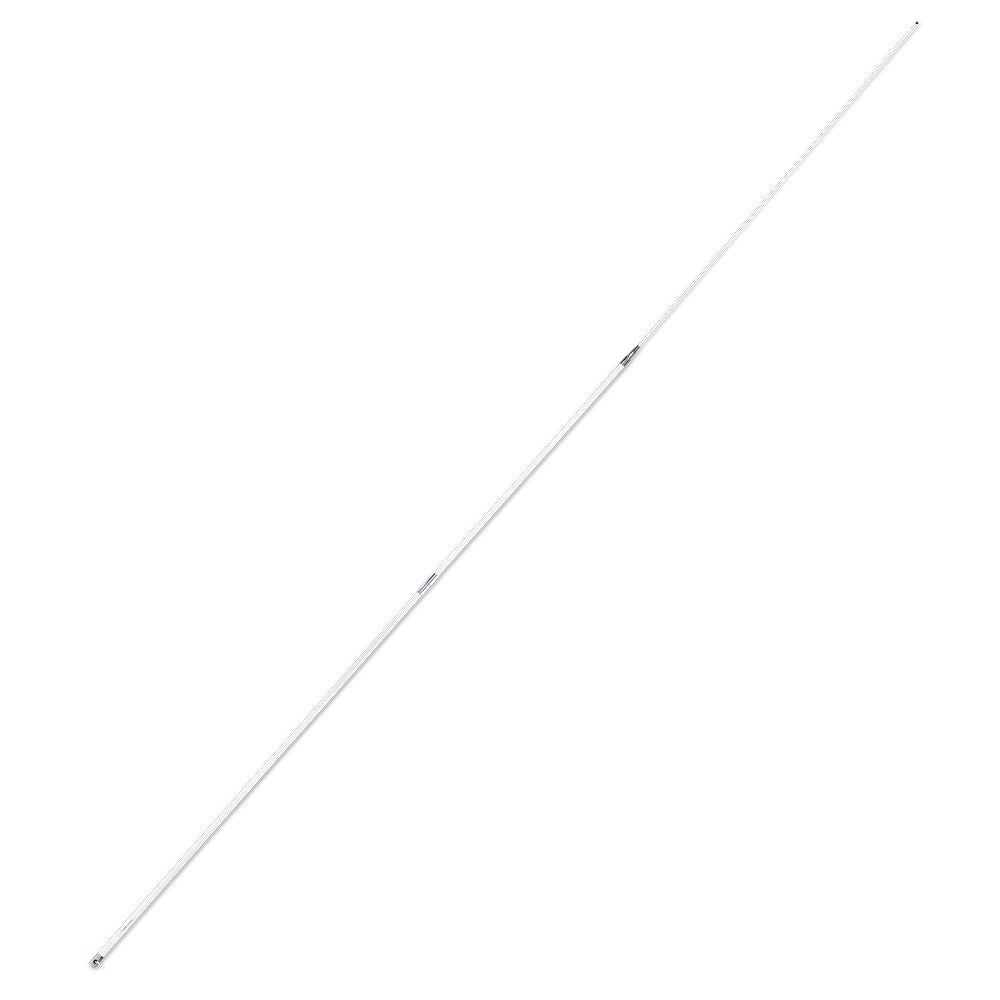

Shakespeare 5309-R 23' Galaxy VHF Antenna - 9dB Gain [5309-R]

5309-R 23' Galaxy VHF Antenna - 9dB Gain

THIS PRODUCT MUST SHIP TRUCK FREIGHT AND DOES NOT QUALIFY FOR ANY SHIPPING PROMOTIONS

This design invokes all the antenna engineers tricks to produce the clearest possible transmission and reception over the longest range.

Features:

• Phased 1/2 wave elements in collinear array with a band spread matching sleeve and a choking stub to suppress cable radiation
• Brass and copper elements
• Stainless steel ferrule with standard 1"-14 thread
• Includes 20' RG-8/X cable and a PL-259 connector
• Suggested mount: Shakespeare Style 409-R or 410-R Mounting Kit (pictured mount not included)
• Two sections: Base 172", Tip 105"
• Twin to: Galaxy Style 5310-A HF/SSB
• Shakespeare Limited Warranty: 5 years
• Includes FME Cables

Technical Specifications:

Frequency: VHF Marine Band

Bandwidth: 5 MHz within 2.0:1 VSWR

SWR: Nominally 1.5:1 at 156.8 MHz

Gain: 9 dB

Max Input (Watts): 150 watts

DC Ground: NO

Height (feet): 23'

Polarization: Vertical

Specifications:

• Antenna Band: VHF
• Color: White
• Construction: Fiberglass
• Ferrule Type: Stainless Steel
• Length (Inches): 144"
• Box Dimensions: 5"H x 5"W x 147"L WT: 15.8 lbs
• UPC: 719441200121

Quick Guide (pdf)

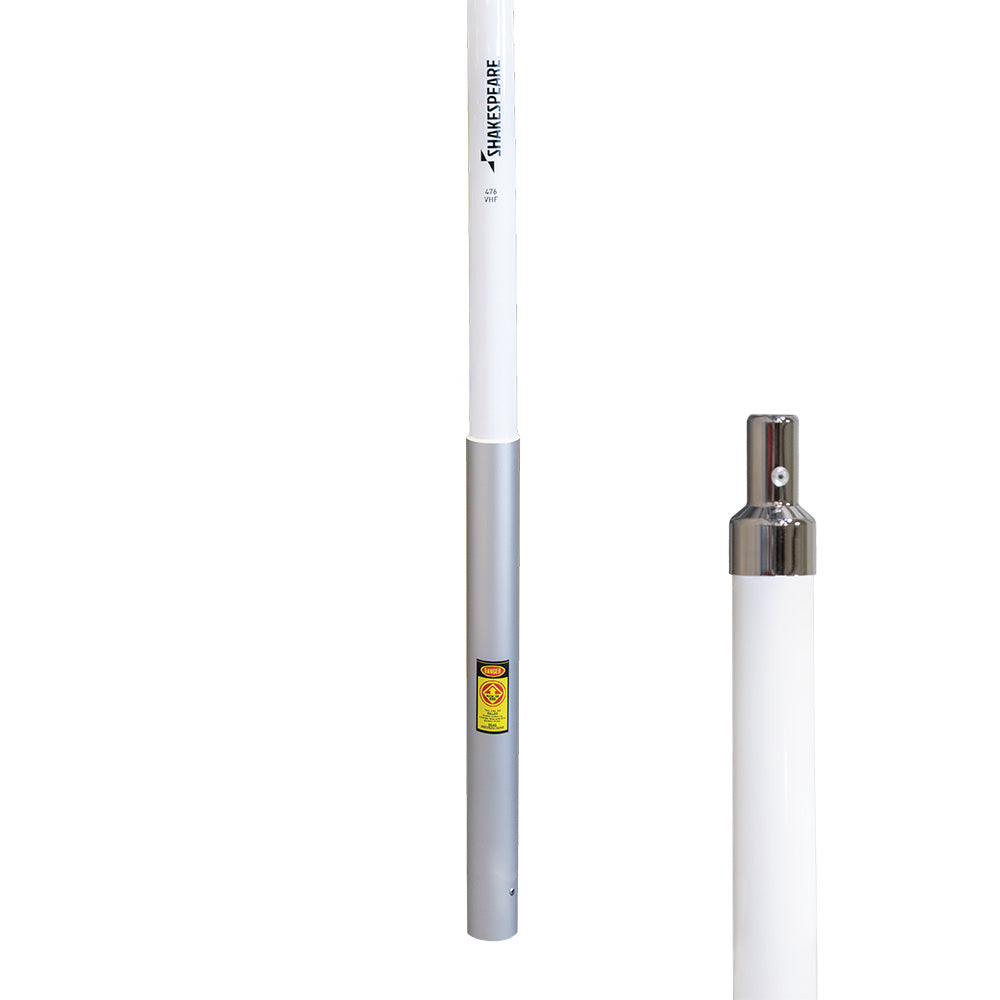

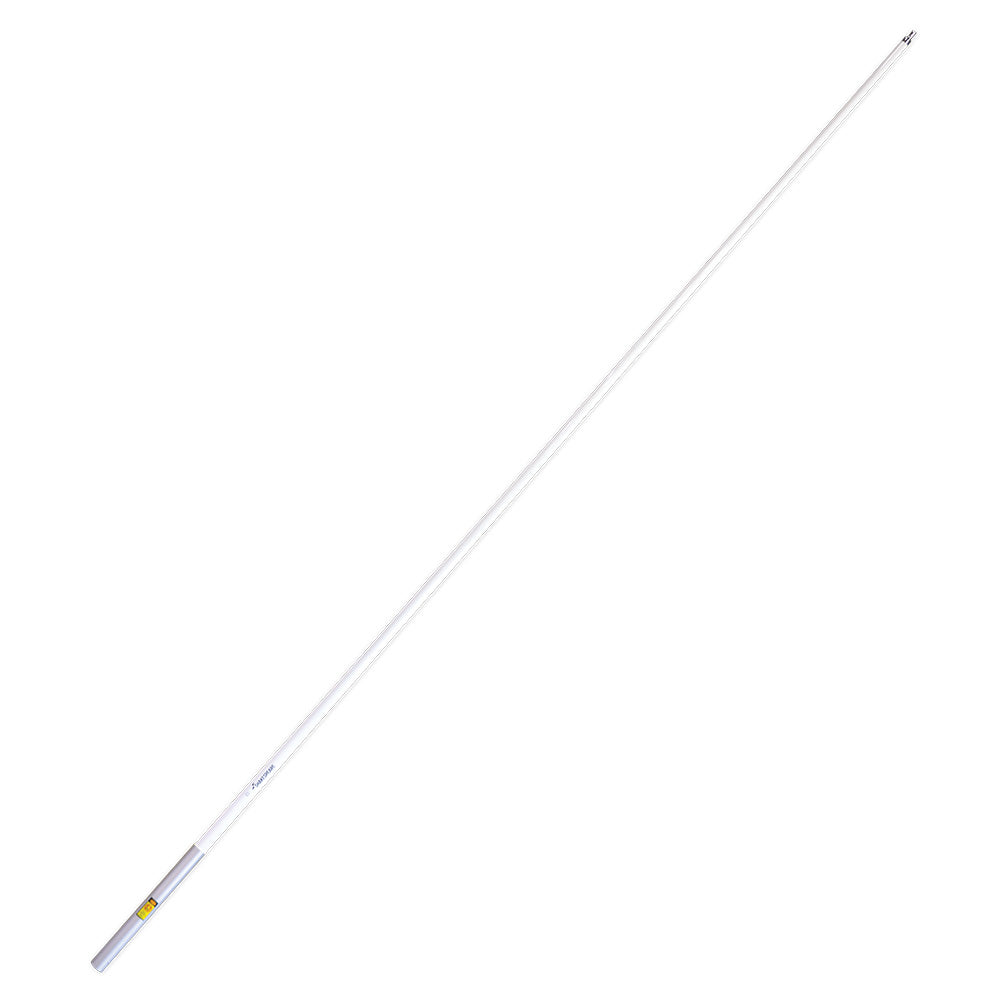

Shakespeare 476 18.5 Classic VHF Antenna [476]

Ships Direct From Manufacturer

476 18.5' Classic VHF Antenna

*THIS PRODUCT MUST SHIP TRUCK FREIGHT AND DOES NOT QUALIFY FOR ANY SHIPPING PROMOTIONS

The Shakespeare 476 antenna is a one-section, phased 1/2-wave collinear array, commercial VHF 10dB marine antenna. Designed to get the message through when all others fail, this unique antenna puts the signal on the horizon, providing gain in all directions. For heavy-duty seagoing applications, such as workboats, tugs, tital well service boats, etc. The reduced-length version (now 18'5") has been shortened to maintain performance while making it easier to ship both internationally and domestically.

Built for value without compromising performance or durability, the Classic Series covers the widest variety of vessels in the Shakespeare® family. These antennas keep you connected and meet essential communication needs while offshore.

Features:

• Brass and copper elements provide a standard range and reception
• Chrome-plated brass or nylon ferrule with standard 1: -14 thread provides for a basic install
• Smooth, durable, high-gloss white/fiberglass finish prevents yellowing
• VSWR of <1.5:1 at 156.8 MHz
• Utilizes 15’ RG 58 cable, PL-259 connector type, unless otherwise noted below*
• 2-year warranty

Specifications:

• Frequency: VHF Marine band
• Bandwidth: (within 2.0:1 SWR): 10 MHz
• SWR: 1.5:1 at 156.8 MHz
• Impedance (ohms): 50 ohms
• Gain: 10 dB
• Max Input (Watts): 350W
• DC Ground: Yes - Read Shorted
• Termination: SO-239 connector
• Height (feet): 18.5'
• Polarization: Vertical
• Radiation Pattern: Omni-directional
• Suggested Mount: 483 Mast Bracket

WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Antenna Band: VHF
• Color: White
• Construction: Fiberglass
• Ferrule Type: Aluminum
• Length (Inches): 222"
• Box Dimensions: 3"H x 3"W x 252"L WT: 40 lbs
• UPC: 719441100063

Quick Guide (pdf)

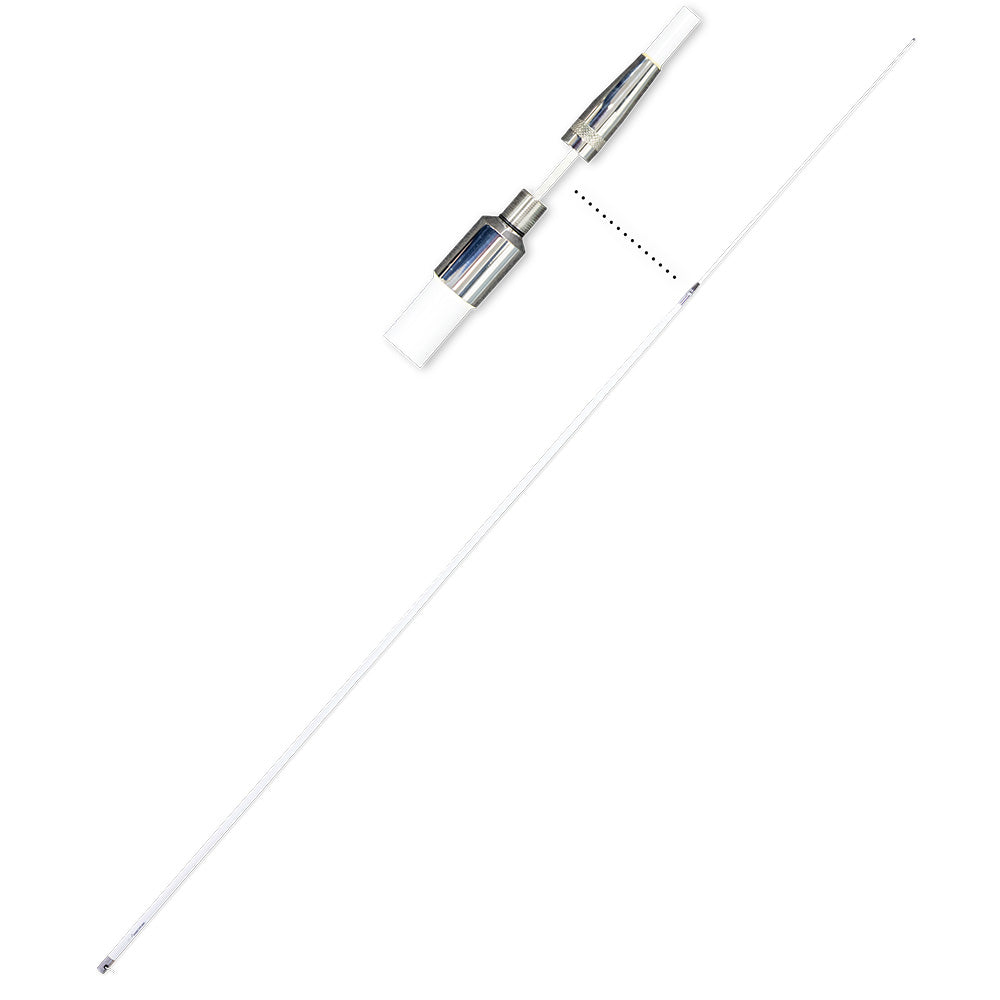

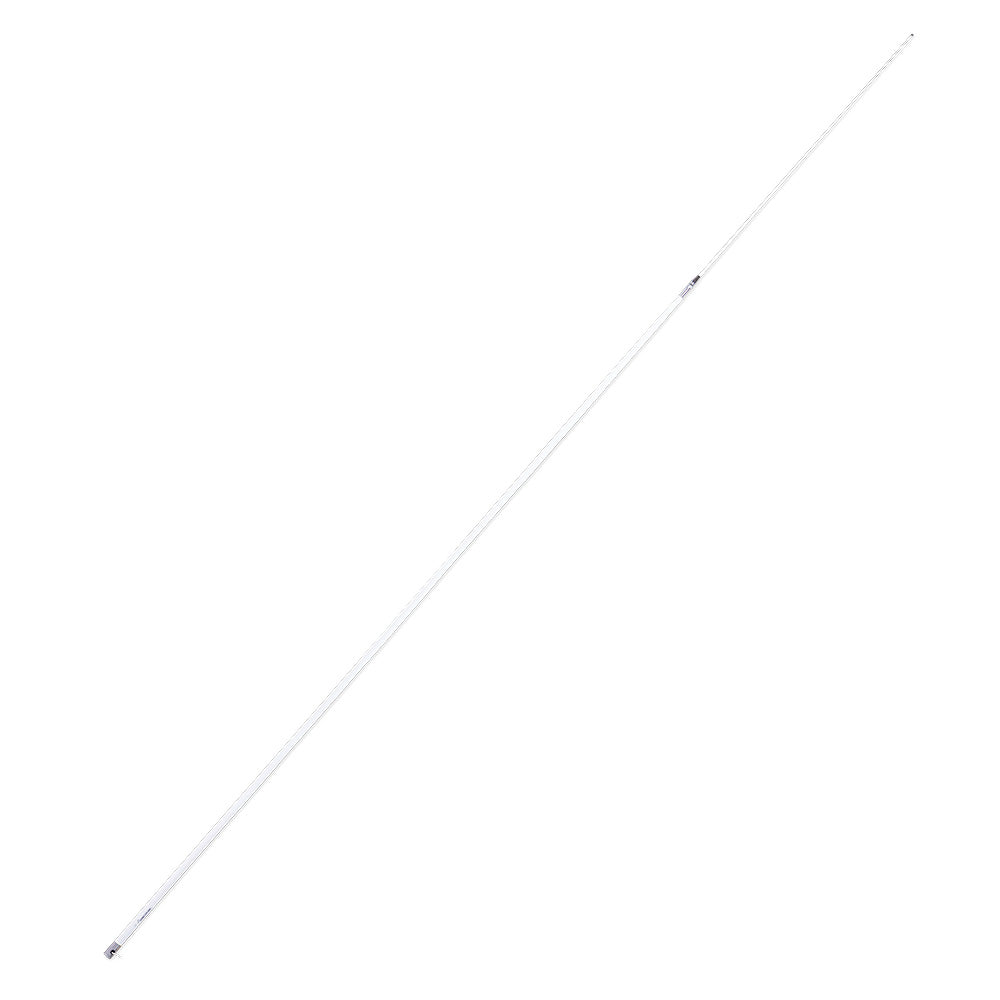

Shakespeare 4018 19' VHF Antenna [4018]

Style 4018 VHF 9dB

Phased 1/2-wave elements in a collinear array with a coaxial choking sleeve to suppress cable radiation

The top choice for charter boat captains and experienced sport fishing enthusiasts. This long-distance VHF antenna is rigid enough to stay erect in rough seas, yet exceptionally lightweight.

• Brass and copper elements
• Chrome-plated brass ferrules
• Includes 20' RG-58 cable and a PL-259 connector
• Suggested mount: Style 409-R or 410-R Mounting Kit for deck or side mounting
• Two sections: base 162", tip 66"

Technical Specifications:

Specifications:

• Antenna Band: VHF
• Color: White
• Construction: Fiberglass
• Ferrule Type: Chrome Plated
• Length (Inches): 228"
• Box Dimensions: 2"H x 2"W x 174"L WT: 25 lbs
• UPC: 719441100100

Quick Guide (pdf)

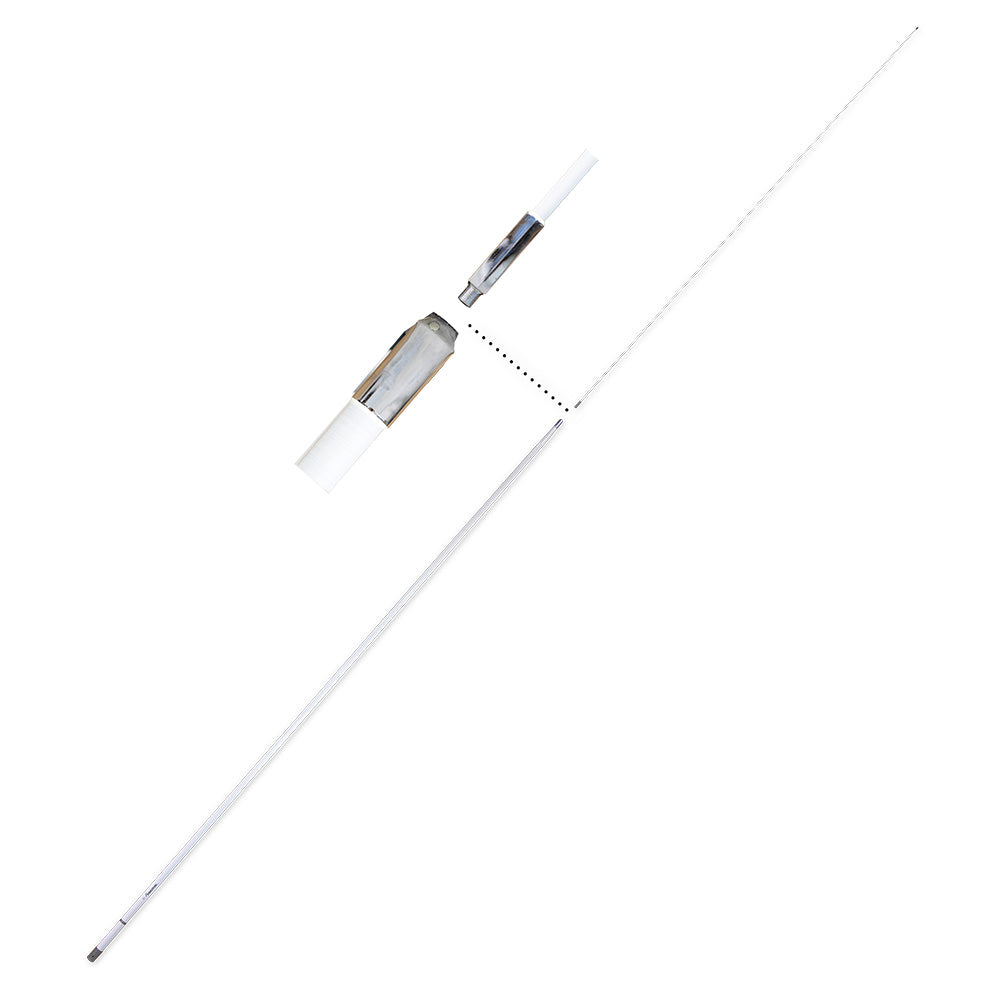

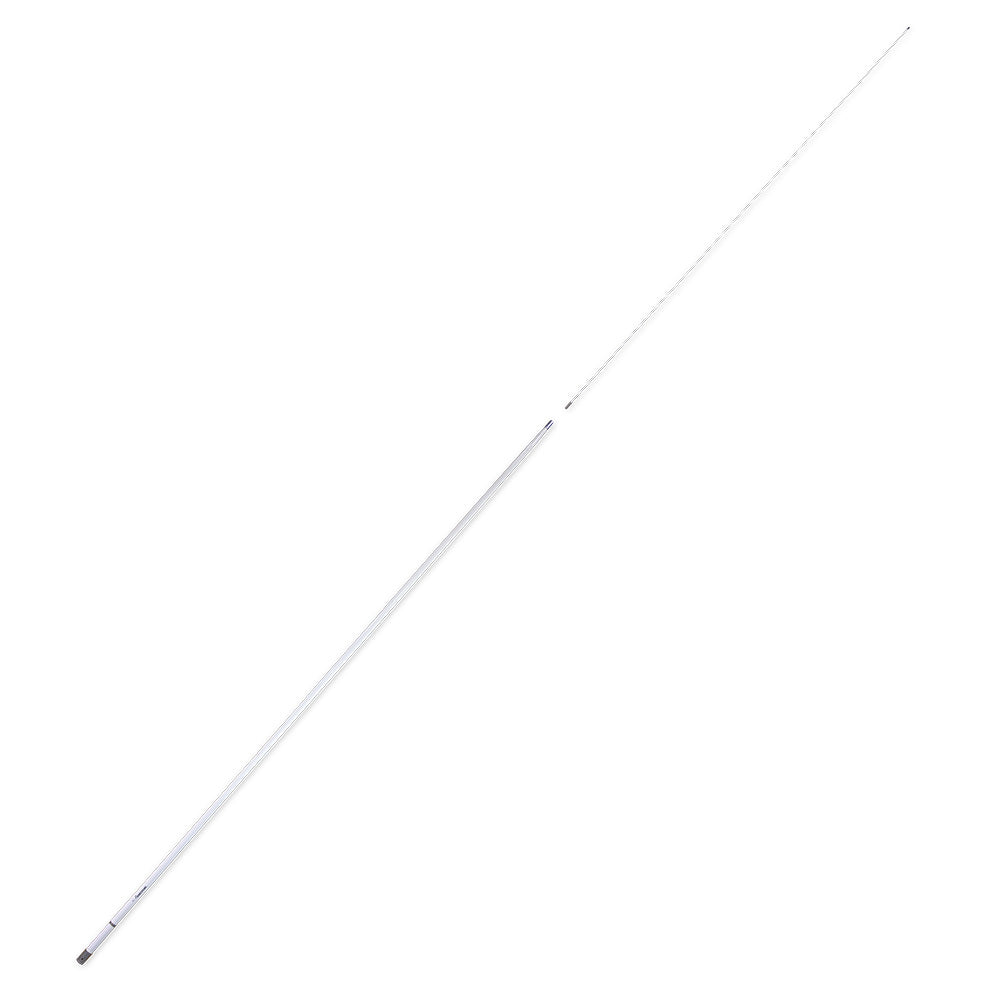

Shakespeare 390 23' Single Side Band Antenna NOT UPS SHIPPABLE [390]

THIS PRODUCT MUST SHIP TRUCK FREIGHT AND DOES NOT QUALIFY FOR ANY SHIPPING PROMOTIONS

Shakespeare Style 390 SSB
23' LENGTH

WHIP ANTENNA WITH CONDUCTORS RUNNING FULL-LENGTH (NO LOADING COIL)

This award-winning performer is often referred to as "the standard of the industry" by virtue of its capabilities and popularity. Reinforced insulating qualities allow input power up to 1 kw. Conductors are permanently sealed in Shakespeare white fiberglass.

• Chrome-plated brass ferrules, bottom ferrule has 1"-14 thread

• Side feed termination band

• Suggested mount: Shakespeare Style 409-R or 410-R Mounting Kit for deck or side mounting

• Two sections: Base 162"; Tip 112"

• Shakespeare Limited Warranty: 2 years

Technical Specifications:

WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Antenna Band: SSB
• Color: White
• Construction: Fiberglass
• Ferrule Type: Chrome Plated
• Length (Inches): 144"
• Box Dimensions: 3"H x 3"W x 168"L WT: 20 lbs
• UPC: 719441600013
