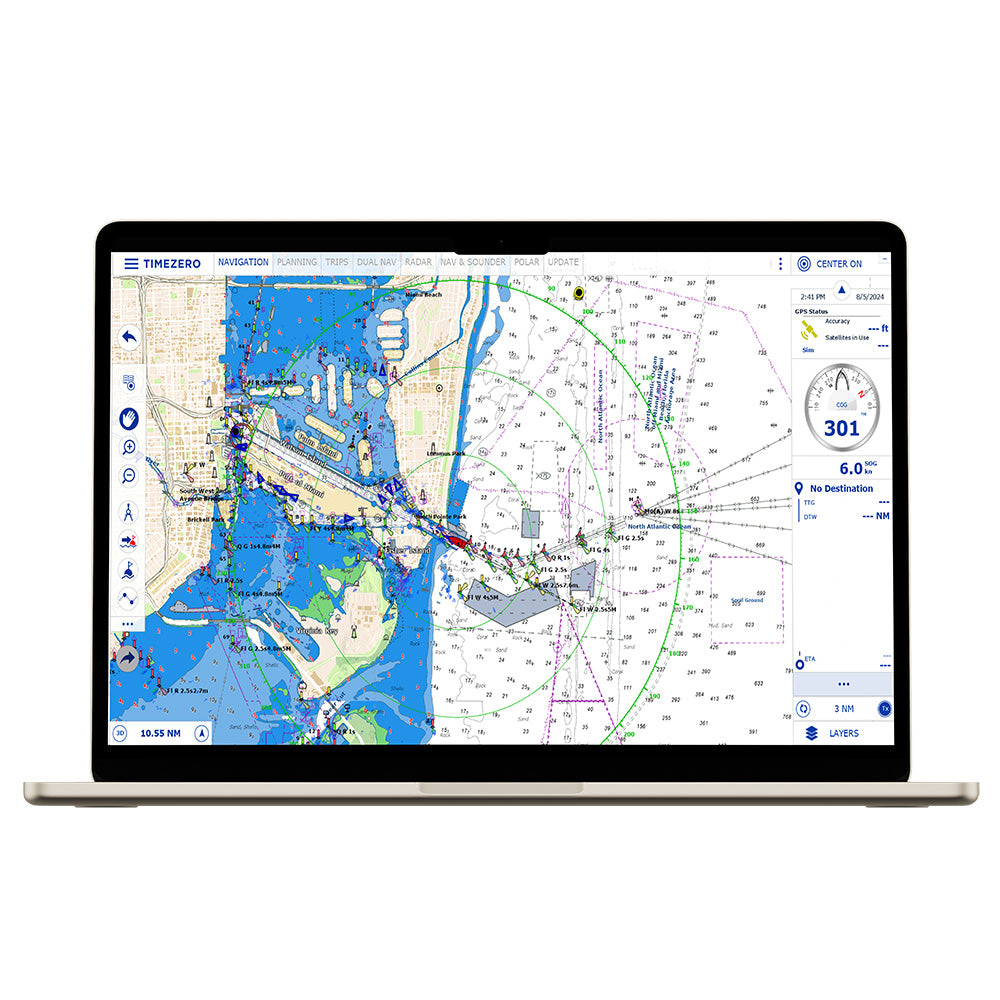

Nobeltec Furuno Radar Module Download [RADAR]

Furuno Radar Module Download

INTEGRATE TIMEZERO SOFTWARE WITH BEST-IN-CLASS FURUNO RADARS AND MFDS

The Furuno Radar Plus Pack allows the user to make the most of compatible FURUNO radars and MFDs. Combine FURUNO hardware with TIMEZERO for a powerful navigation solution.

The commercial-grade FAR 2xx7 series of radars can be integrated with TIMEZERO software, responding to professional user needs.

Recreational users, on the other hand, will be impressed by the advanced integration available with the acclaimed NavNet 3D and TZtouch MFDs. The FURUNO DRS (Digital Radar Sensors) that are on the NavNet network can be fully integrated with TIMEZERO software, enabling the display, control, and overlay of the radar from within the software.

TIMEZERO software connects to the NavNet network and receives navigation data directly from the network. Combining the NavNet and TIMEZERO software systems results in an extremely fast and user-friendly solution.

Features:

When the FURUNO Radar Plus Pack is added to your TIMEZERO software, a range of functionalities is unlocked between your FURUNO radar or MFD and the software.

TIMEZERO navigation software can be connected to a Furuno NavNet3D or TZtouch network, allowing full control of the DRS radars (with an MFD present on the network). This means that you can display the radar image directly in TIMEZERO software, enjoy full control of the software from your software, and overlay the radar image on your charts. Radar overlay is an effective safety tool that allows you to understand your surroundings about your current position.

When TIMEZERO is connected to a NavNet3D network, the following capabilities are enabled:

• Reception of all navigation information (Position, COG/SOG, Heading, Wind, AIS, etc.) from the NavNet3D Network
• Real-Time synchronization of the Active Route among the PC and every NavNet3D MFD display on the network
• Exchange Routes and Waypoints from the PC to NavNet3D MFD(s) over the network
• Share charts between the NavNet3D and TIMEZERO software
• Enable the Chart Server for the NavNet3D MFD(s)
• View and control the DRS Radar (*)

When TIMEZERO is connected to a NavNet TZtouch network, the following capabilities are enabled:

• Reception of all navigation information (Position, COG/SOG, Heading, Wind, AIS, etc.) from the NavNet TZtouch Network
• Real-Time synchronization of the Active Route between the PC and every TZtouch MFD display on the networkShare charts between the NavNet3D and TIMEZERO software
• Display and control of the DRS Radar (*)

(*) MFD must be present on the network

The Plus Pack also enables connection to a Furuno FAR2XX7 series radar when this optional Furuno Radar Plus Pack is unlocked. These commercial-grade radars have an Ethernet connection that makes the connection to TIMEZERO possible, and enables the following capabilities:

• View and control the Furuno 2XX7 Radar from your PC
• Acquire and display ARPA targets
• Receive Position, COG/SOG, Heading data from the FAR2XX7 Network

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

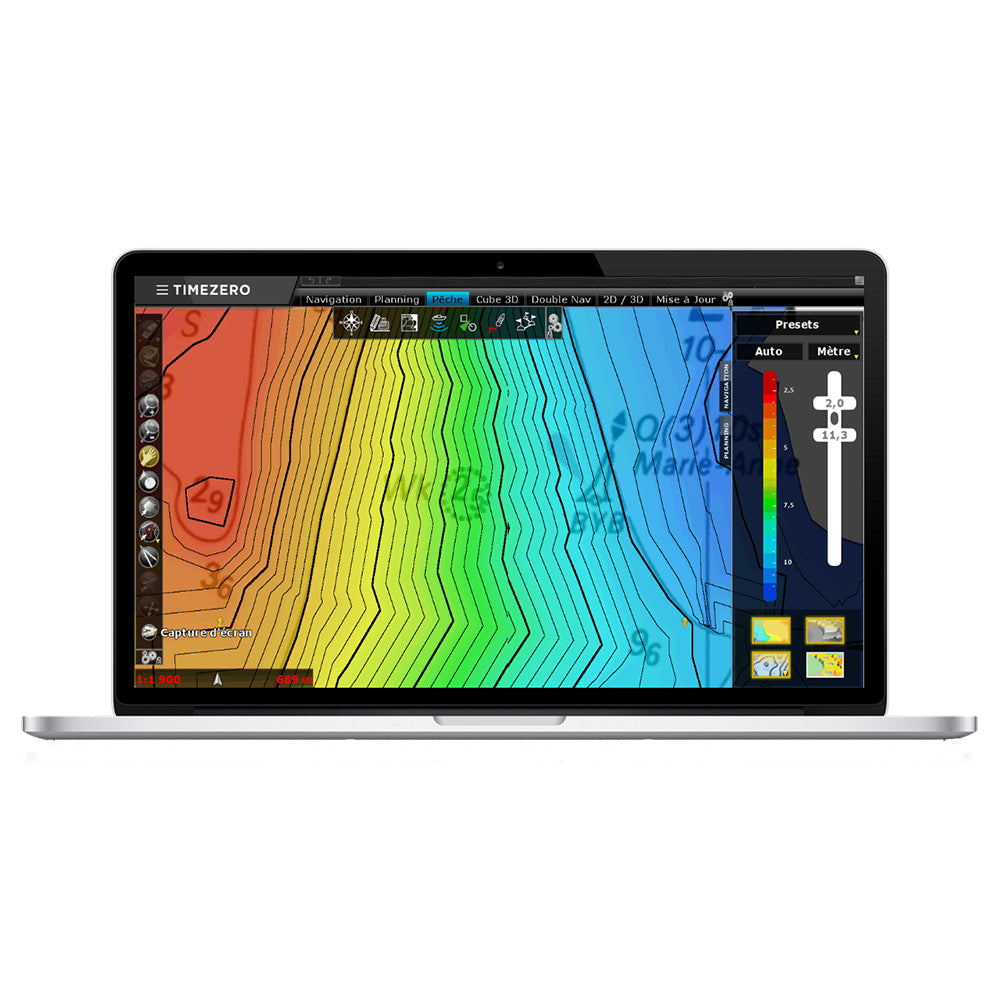

Nobeltec PBG Module Download [PBG]

Ships Direct From Manufacturer

PBG Module Download

The latest version of the PBG module will allow you to create charts of the seafloor even more clearly and realistically. The 2D and 3D imaging will now have customizable color coding scales, which will allow for instantaneous precision research.

The 3D view will make the visualization of data even simpler and intuitive.

PBG Module:

• Resolution has been doubled (now 1.5m x 1.5m)
• Automatic and real-time extrapolation (no delay when customizing brush size)
• "PBG Soundings" allows for PBG data to be displayed using soundings on the chart on all scales
• Updated function allowing to detect and removal automatically bad PBG data automatically
• It is also possible to edit the 3D imported database (not limited anymore to the user data)

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

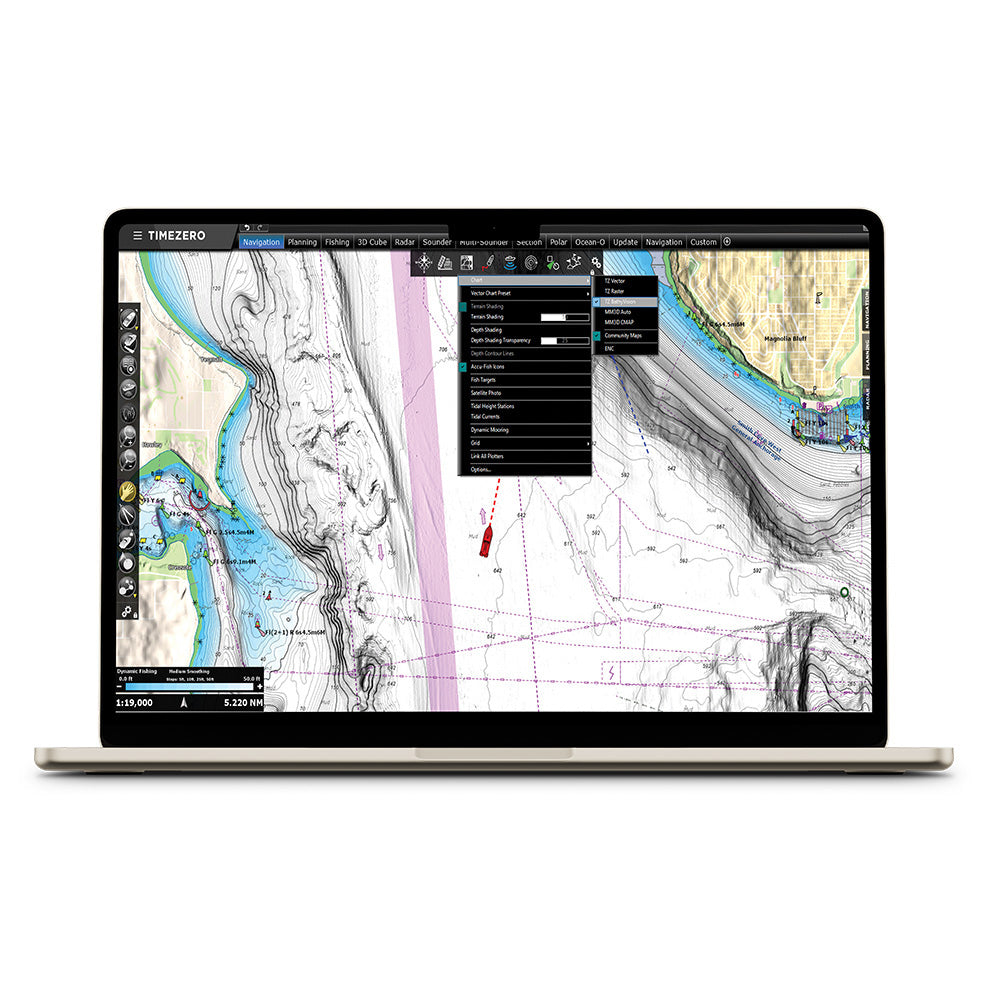

Nobeltec Upgrade From TZ Navigator to TZ Professional Valid 1-Year [TZPROUGNAV]

Ships Direct From Manufacturer

Upgrade From TZ Navigator to TZ Professional Valid 1-Year

This is a digital download. Please include your existing TZ Navigator serial number along with your email address, and the new unlock code will be sent via email.

Whether for Commercial Fishing or for a Workboat TZ Professional is the latest version of our marine navigation software and the one sole product that suits all the needs of professionals at sea. Close to 25,000 vessels currently use our TIMEZERO software. This version offers an incredible amount of features specifically designed for both professional fishermen and workboats.

Optional PBG Module

The latest version of the PBG module will allow you to create charts of the seafloor even more clearly and realistically. The 2D and 3D imaging will now have customizable color coding scales, which will allow for instantaneous precision research. The 3D view will make visualization of data even simpler and intuitive.

Optional Profile window is a remarkable tool!

Instantaneously display a point-to-point depth profile window. This 2D view will allow you to identify the depth variations with unparalleled precision (rocks, shipwrecks, etc.).

Fishing Workspace

A workspace exclusively dedicated to professional fishermen will allow for personalization of 2D/3D so that accessing most pertinent information is shown first.

Compatibility with S57/S63 charts

Keeping up-to-date charts is an essential element to ensure the safety of all those at sea. TZ Professional is now compatible with the official S57/S63 formats. The official S57/S63 charts are updated every week. These maps respect the S52 standard developed by the International Maritime Organization (IMO). The iconography offers a simplified display in order to improve the readability of the marine charts on screens.

Advanced Route Management

Route Planning is of the utmost importance for all professions at sea. Our new technology assures the security of a route upon creation: Through color codes (green/red), it is instantaneously possible to know if the depth is sufficient for the safe passing of your boat. An automatic route wizard will provide you with information regarding the optimal departure and arrival time, taking into account tides and currents.

AIS Features

The configuration of AIS can sometimes prove to be complex. Our new AIS module allows for complete configuration of all information directly within TZ Professional (Status, Destination, etc.). Furthermore, it is now possible to receive and send AIS text messages from TZ Professional. This system will allow for simplified communication, free and individual, with all boats that are equipped with AIS.

Security Cone

The new security cone is a feature in adherence with the official rules of the IMO. It takes into account the information of vector charts in order to detect isolated dangers and shallow areas. If an obstacle is detected inside this cone in front of the boat's trajectory, an anti-grounding alarm will automatically be triggered.

Optional Voyage Data Recorder Module

This new module that comes as an option, offers the possibility to save all the information received from the connected sensors to TZ Professional (GPS, radar, AIS, etc.). It is particularly useful in the case of an incident as it allows one to look back at all the available information relative to the surrounding environment of the boat at that given date and time.

System Requirements:

• Microsoft Windows 7 SP1, Windows 8.1, or Windows 10
• CPU 2 GHz
• 4GB of RAM
• Video Board:
• Minimum - Integrated Intel Graphic Chipset (i5 4th generation with HD4400 or above)
• Recommended - (for PBG and Multi monitor) Dedicated Video Board with 1GB VRAM
• Screen Resolution: 1024 X 600 or higher
• Hard Disk: 20 GB of free memory
• USB or Serial Port for connecting instruments, or Serial Port for connecting instruments, 100 Base-T Network Adapter for Furuno Ethernet Sensors

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

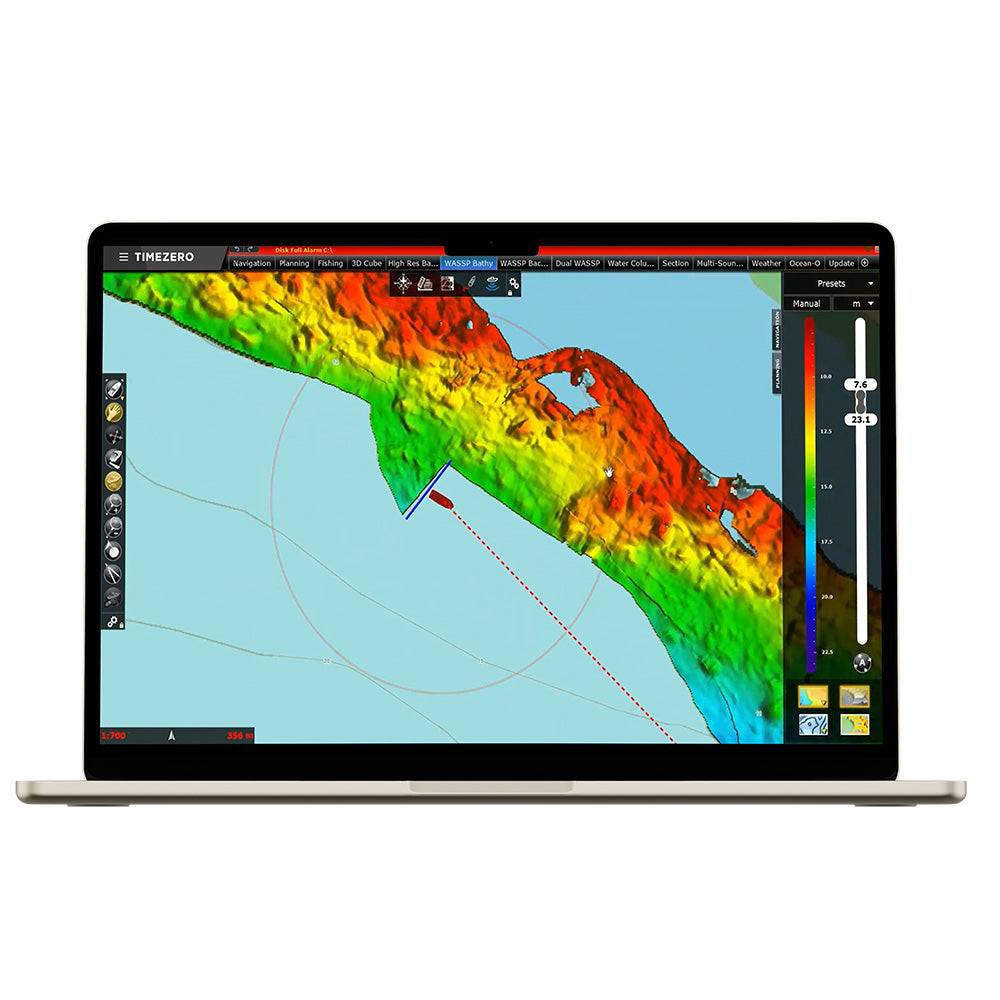

Nobeltec WASSP Module Digital Download [WASSP]

Ships Direct From Manufacturer

WASSP Module Digital Download

The Unprecedented Commercial Fishing Solution

The TZ WASSP Plus Pack allows you to integrate the cutting-edge WASSP Sounder with TZ Professional for an unrivaled commercial fishing system.

This sounder sends out beams in multiple directions so that it can detect 120 individual points at a time. Instead of just recording the depth of your boat's position like mono-beam sounders, WASSP also registers the depth of the area surrounding your boat.

Create a highly accurate and detailed bathymetry faster than you ever imagined!

Create your Bathy Chart Faster than Ever

Connect the WASSP Sounder via Ethernet to your computer. Once you add the TZ WASSP Plus Pack to your software, a range of powerful integration features are unlocked between the two systems.

Unlike sounders that detect only the depth directly beneath the boat, the WASSP Sounder registers 120 different points in multiple directions around your vessel. This means that your TIMEZERO software can create a bathymetric chart for a much wider area after just one pass.

WASSP detects 120 points at a time, allowing recording of a very wide area in one pass.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

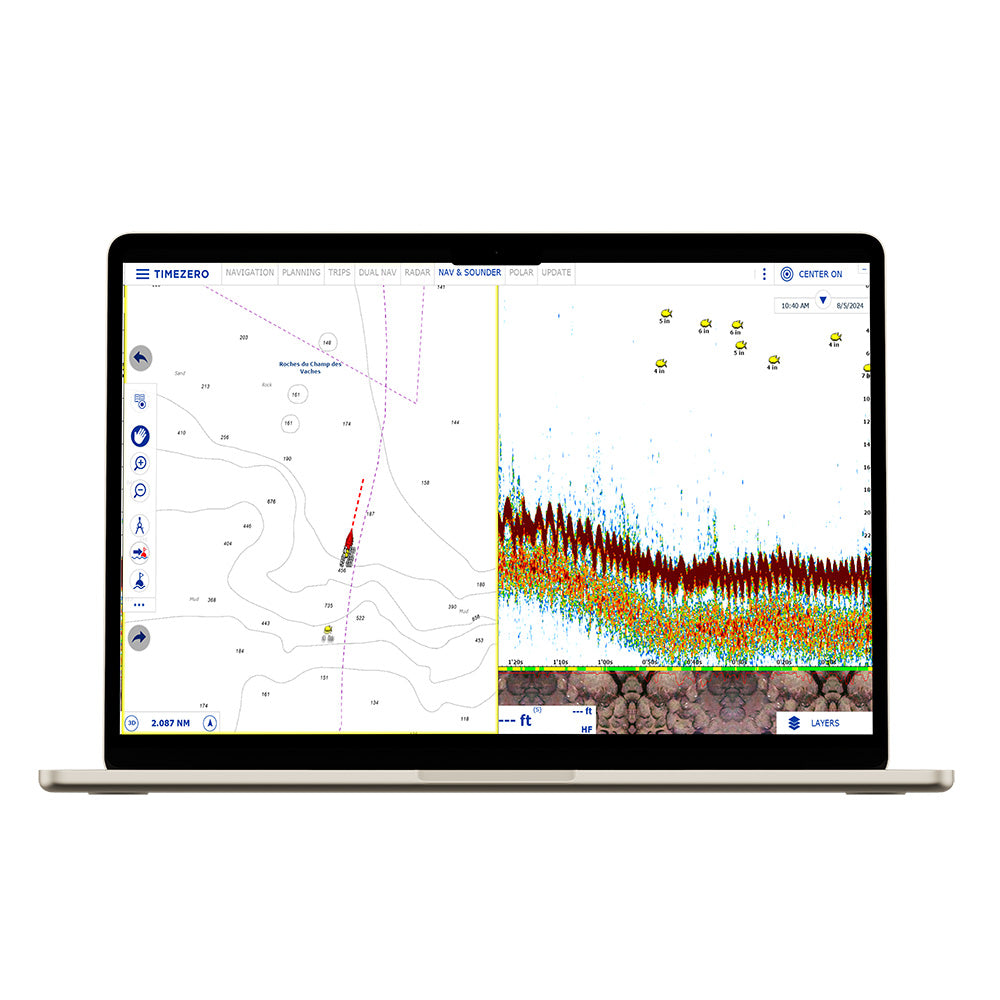

Nobeltec Furuno Sounder Module Download [SOUNDER]

Furuno Sounder Module Download

Maximize navigation security and your fishing potential by integrating TIMEZERO software with an Ethernet-based Furuno Sounder. The Furuno sounder models DFF1, DFF3, DFF1-UHD, BBDS1, or FCV1150 are natively compatible with TIMEZERO software and offer many functions that act as real aids to navigation and fishing, for both professional and recreational users.

Recreational users will appreciate the ability to display the sounder image directly on their computer screen and have full control of the sounder from their computer.

This hardware integration is critical to professional fishermen, allowing them to locate fish and save marks to the sounder image.

Features:

By adding the Furuno Sounder Plus Pack to TIMEZERO software*, the PC display is turned into a powerful, dual-frequency digital fish finder. The following FURUNO Ethernet Sounders models are natively compatible with TIMEZERO software: DFF1, DFF3, BBDS1, DFF1-UHD, or FCV1150.

• Enjoy full control of the Furuno sounder directly from the software, with a dedicated sounder Tool Bar in the User Interface
• Historic data: The user can scroll backwards to view sounder data received within the past 3 minutes (approximately) to identify interesting echoes
• Add a mark: By double-clicking on the sounder image, a mark will automatically be created at the corresponding point on the navigation chart, too
• Geolocation: By clicking the Event Tool in the Sounder workspace, a mark will be instantly created at the boat's current location

Historic Data

TIMEZERO stores the data received in the past 3 minutes (approximately). You can then easily go back and identify echoes that seem interesting.

Bottom Discrimination feature available with the FURUNO BBDS1 and DFF1-UHD only:

The bottom discrimination window can be displayed from the Sounder workspace. This information is helpful in spotting the rich fishing ground where you can boost your catch of the day.

Bottom components:

The BBDS1 and DFF1-UHD sounders classify the sea bottom into the following categories of sediment: mud, sand, gravel, and rock. This is achieved by analyzing echo characteristics from the bottom components such as particle size and hardness. In addition to providing the seabed information, they also display its level of certainty in relation to the type of sediment that is shown in your software. This information appears in the discrimination window and lets you know how reliable the data is in particular areas.

Bottom Component Localization:

Rolling the cursor over the bottom discrimination window will automatically display a _red cross_ cursor on the Chart allowing the user to geo-localize any bottom component.

Bottom Hardness:

As the BBDS1 and DFF1-UHD receive bottom hardness data, it is also possible to record this information within the software, along with the bottom depth. You can then display bottom hardness on your chart using a color spectrum, or just in black and white. These colors will indicate the softest bottom (mud) to the hardest bottom sediment (rock).

Connection of these sounder models is very simple - the compact network sounder unit connects directly to your PC via a single Ethernet cable.

(*)Without adding the Furuno Sounder Plus Pack to TIMEZERO software, you will only be able to share standard NMEA0183 or NMEA2000 digital depth data between the Sounder and TIMEZERO.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

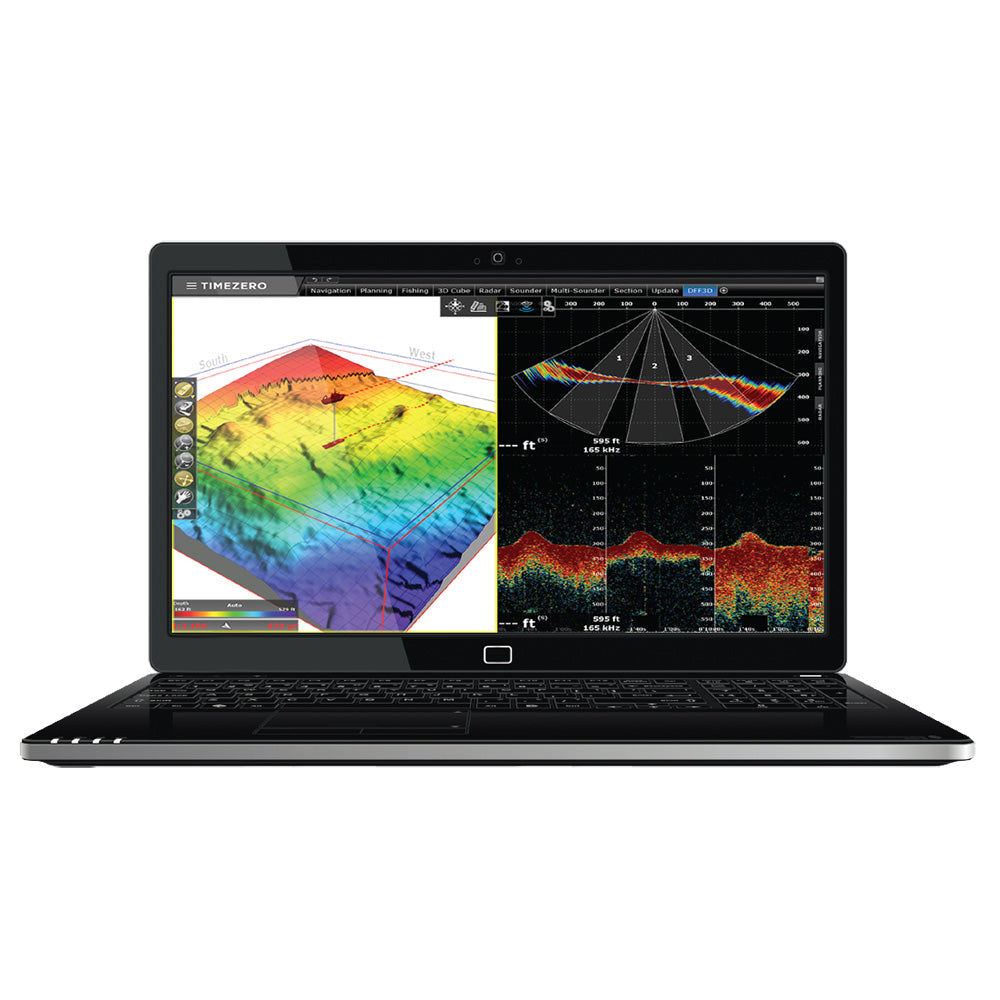

Nobeltec Furuno DFF3D Sounder Module Download - PBG Module Required [DFF3D]

Ships Direct From Manufacturer

Furuno DFF3D Sounder Module Download - PBG Module Required

Map the seafloor of your fishing area in just a few passes. 50 depth points per second, your time has never been so valuable!

Instead of spending hours gathering PBG recordings, you can now collect PBG recordings in just a few sweeps. By adding the optional DFF3D Module together with the PBG Module to your TZ Professional software, you can connect this Furuno Multi-Beam Sonar to your computer and unlock powerful integration features. The DFF3D Sonar is the first entry level Multi-Beam Sonar able to reliably create PBG up to 200 meters. This data is sent directly to TZ Professional and used to create a highly detailed PBG map faster than ever before.

The DFF3D is a MultiBeam sonar. It allows you to use features such as Down Sounder, Port and Starboard Sounder, Real time wide angle A-Scope (Section), Fish Target History (Water Column) and Side Scan Sonar. The DFF3D can generate up to 50 depth points per second. To put this into perspective, 300 football fields can be covered in less than 20 minutes with the DFF3D!

TZ Professional (with the optional PBG and DFF3D modules) can be connected to the new Furuno DFF3D Multi Beam sonar. Creating your bathymetric (PBG) map becomes as fast as ever with TZ Professional. Multiple beams are constantly sent out by the sonar returning quality information for each depth point.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

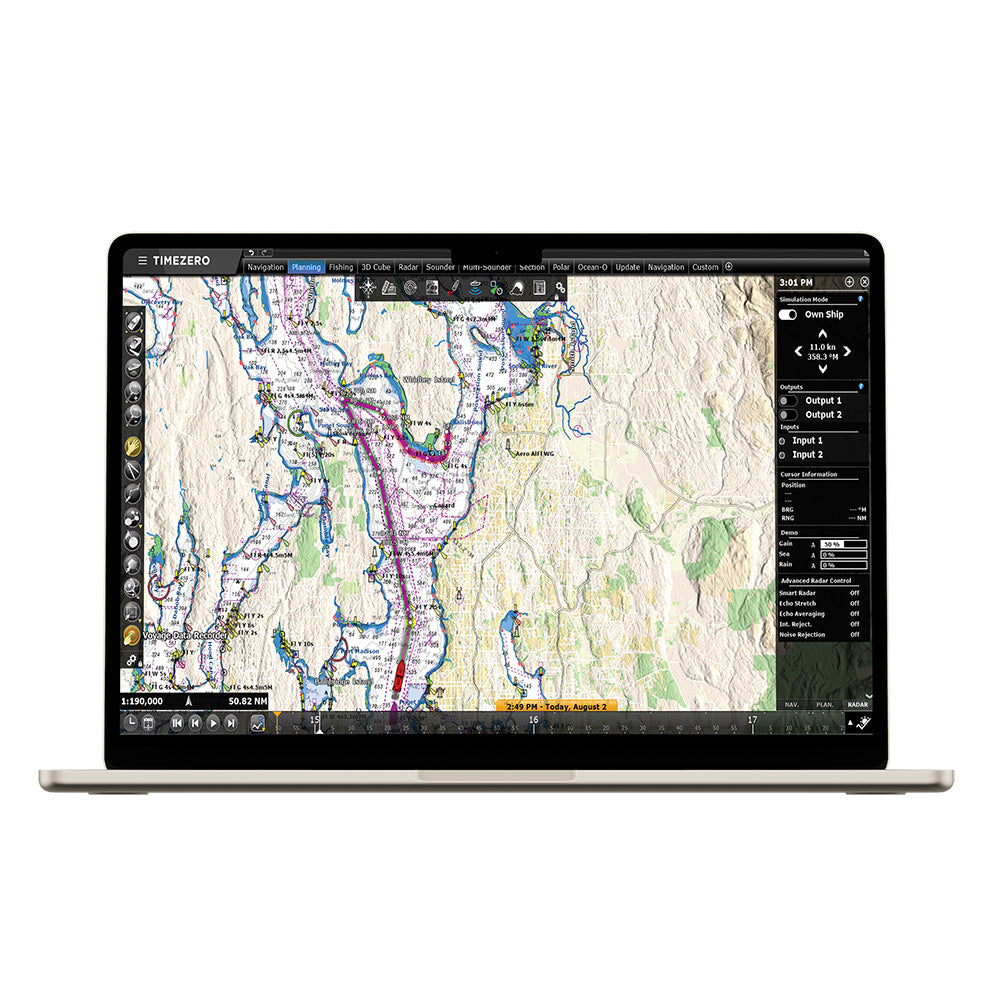

Nobeltec VDR Module Digital Download [VDR]

Ships Direct From Manufacturer

VDR Module Digital Download

Data recording made simple. Save your data from previous trips up to one month.

The Voyage Data Recorder Module, which comes as an option, offers the possibility to save all the information received from the connected sensors to TZ Professional (GPS, radar, and AIS/ARPA). It is particularly useful in the case of an incident as it allows one to look back at all the available information relative to the surrounding environment of the boat at that given date and time.

What can the VDR module do for you?

VDR offers the possibility to save all the information received from the connected sensors to TZ Professional (GPS, Radar, AIS, etc.) It is particularly useful in the case of an incident as it allows one to look back at all the available information relative to the surrounding environment of the boat at that given date and time.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

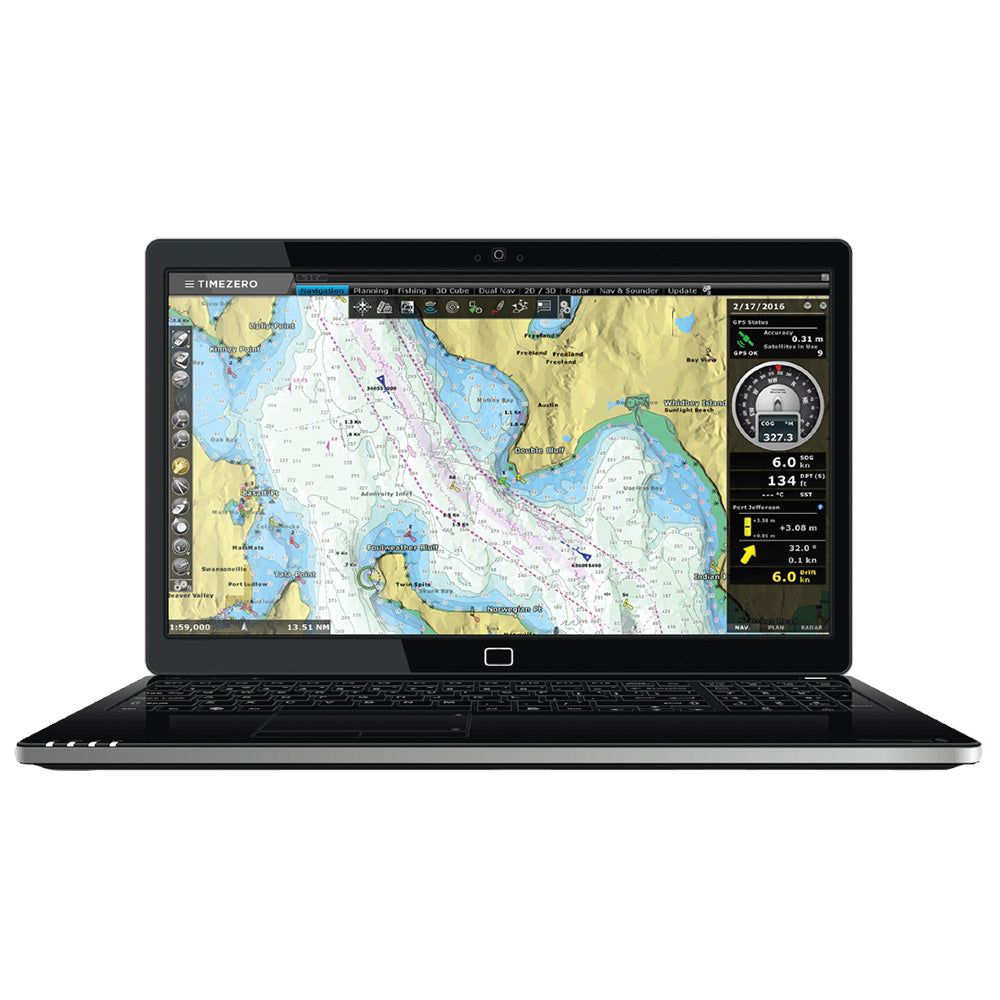

Nobeltec S57/S63 Module Digital Download [S63]

S57/S63 Module Digital Download

Keeping up-to-date charts is an essential element to ensure the safety of all those at sea. TZ Professional is now compatible with the official S57/S63 formats.

The official S57/S63 charts are updated every week. These maps respect the S52 standard developed by the International Maritime Organization (IMO). The iconography offers a simplified display to improve the readability of the marine charts on screens.

ENC S57/S63 Compatibility:

• Import and display of S57 native charts directly in TZ Professional
• S63 module is now available to read official ENC charts (from Primar, UKHO, or Chartworld, for example)
• S57/S63 chart catalogue including advanced management of chart display

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
