Boat Outfitting

Yamaha Jet Boat Custom 21' - 725 Pound Ballast Bag - Grey

Add 725 lbs to the rear of your Yamaha with the FatSac Yamaha Jet Boats Custom 21 for 21' Yamaha boat models.

The FatSac High Yamaha Jet Boats Custom 21 FatSac is designed to be tied down to the swim platform step of your 21' Yamaha, adding 725 lbs to the rear of your boat so you can get wakesurfing.

Fits 2017 and newer 21' Yamaha Boats

Features:

• Adds 725 lbs of Ballast
• Includes plug and W730 fitting for use with the FATSAC Supa Tsunami Pump
• Includes 4 built-in handles so you can secure this to the platform (tie-downs not included)

In the Box:

• Ballast Bag
• Four Valves/Caps (W731 x 2, W749 x 1 and W730 x 1)

*Sold as an Individual

WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP),Diisononyl Phthalate (DINP) which are known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

Specifications:

• Type: Ballast Bags
• Box Dimensions: 6"H x 13"W x 16"L WT: 8.65 lbs
• UPC: 817177023189

Trolling Motor Saver Set for Deep V Boats

Specially designed for deep "V" boats with extra long trolling motor shafts.  Designed with two straps,  the longer strap is mounted where the trolling motor shaft fastens to the mounting bracket and can mount 24" above the deck.  The second strap is designed to hold down the actual motor.  It wraps around the entire mounting bracket, and the trolling motor shaft, helping to keep the motor from bouncing when traveling down the lake.  Keep your trolling motor tied down securely and undamaged for longer life.

Adjustable 9" to 24".

Scanstrut Scanpod Deck Pod Uncut f/10" to 12" Displays [SPD-13-W]

Scanpod Deck Pod Uncut for 10" to 12" Displays

Solve the challenge of finding a level mounting surface to install your displays onto your powerboat, RIB or sailboat wheelhouse.

For Displays and Standard Instruments:

• Fits 10" to 12" Displays
• Usable face 14.7H x 9.7W
• Accomodates 3/4 Standard instruments (e.g. ST60)

Features:

SWIVEL & TILT BASE

One handed quick release action. Simply release the lever, swivel and tilt to suit your requirements before locking back into position.

BEST VIEWING ANGLE

An adjustable ball joint allows range of movement and multiple mounting angles.

ADDED STRENGTH

Inner bracing plate secures the Deck Pod base to the pod and gives increased rigidity to the assembly eliminating potential damaged from shock and vibration.

OVERHEAD MOUNTING

Deck Pod models can be overhead mounted. Refer to part number guide for compatibility.

HASSLE FREE INSTALL & SERVICE

Fixings fit from back to front cutting their threads into injection moulded ABS inserts designed into the Pod front. This design allows for a quick and safe install and repeat servicing.

INCREASED PROTECTION

Pod seal is manufactured from a high tear strength silicone, it has a very high resistance to heat and UV so you can have confidence that it won’t deteriorate over time.

SUPPLIED UNCUT

As standard you will receive your Scanpod uncut (for tips on cutting, please view the FAQ tab). For larger orders, a factory cutting service is available.

Specifications:

• Usable Face: 14.7"W x 9.7"H
• Mounting Style: Deck
• Cut/Uncut: Uncut
• Box Dimensions: 9"H x 12"W x 17"L WT: 8.85 lbs
• UPC: 5060114797284

NaviTech™ Power Steer Assembly

Now you can get the same technology used to drive the most powerful and best handling cars for your boat.

Taking the latest technology from the automotive industry, Ultraflex has combined Electronic Power Steering (EPS) used in the most popular cars in the world with the latest mechanical steering helms and Mach 90 high efficiency steering cable to deliver unprecedented performance.

Perfectly silent, the system draws minimal power and furtheremore is very easy to install.

The NaviTechTM also has Integrated System Monitoring (ISM) which detects certain operating conditions including the number of cycles and notifies the end user with a vibration signal in the steering wheel if the cable needs to be changed. Never before has a steering system monitored it’s own operating conditions and given the driver diagnostic feedback.

For specific applications Ultraflex can use programmable software to dial in the hand wheel effort and steering output to meet specific performance objectives of boat builders.

A Complete Steering System Consists of:

• Power assisted steering helm:  T91NAV - 43207S - single cable steering helm
• Tilt mechanism: X66 - 40613M - Tilt mechanism for NaviTechTM tilt mount helms. Tilt range of 48° and five locking positions
• Steering cable: M90 Nav (patented)
• ATTENTION: M90 Nav steering cable is suitable for use also with T71FC, T72FC, T73NRFC, T81FC, T82FC, T83NRFC, T91, T93ZT, T101, T103ZT. Ultraflex steering helms. M66 will not fit the following Uflex helms: T91, T93ZT, T101, T103ZT.
• Optional steering wheel

 Features and Technical Specifications:

• Automotive steering effort and response
• 100% Balanced steering - Port to Starboard / Starboard to Port
• Silent Operation
• Monitoring software with integrated cycle counter, for a correct cable replacement.
• By haptic feedback on the wheel, the system is able to signal anomalies, such as:
• Excessive cable load
• Stuck cable alarm
• Field tested for over 3 years
• 16 Nm of assist torque capability
• Able to tune on center and end of travel torque effort
• Consistent steering assist through all vessel speed ranges
• Applied in leading automotive application since 2011. Nowadays automotive production is over 1 million units per year
• 10 - 15 VDC
• 8 - 15 A nominal current during steering maneuvers
• Supplied with 10 ft electrical harness. It needs a 40 A fuse (to be ordered separately).
• Validation for Marine application is per CE, ABYC P17, P27, and ISO 25197
• NMMA Type Acceptance Completed

Limit of Applications:

• Outboard engines:
• Up to 150 hp, maximum 50 mph, no jackplates

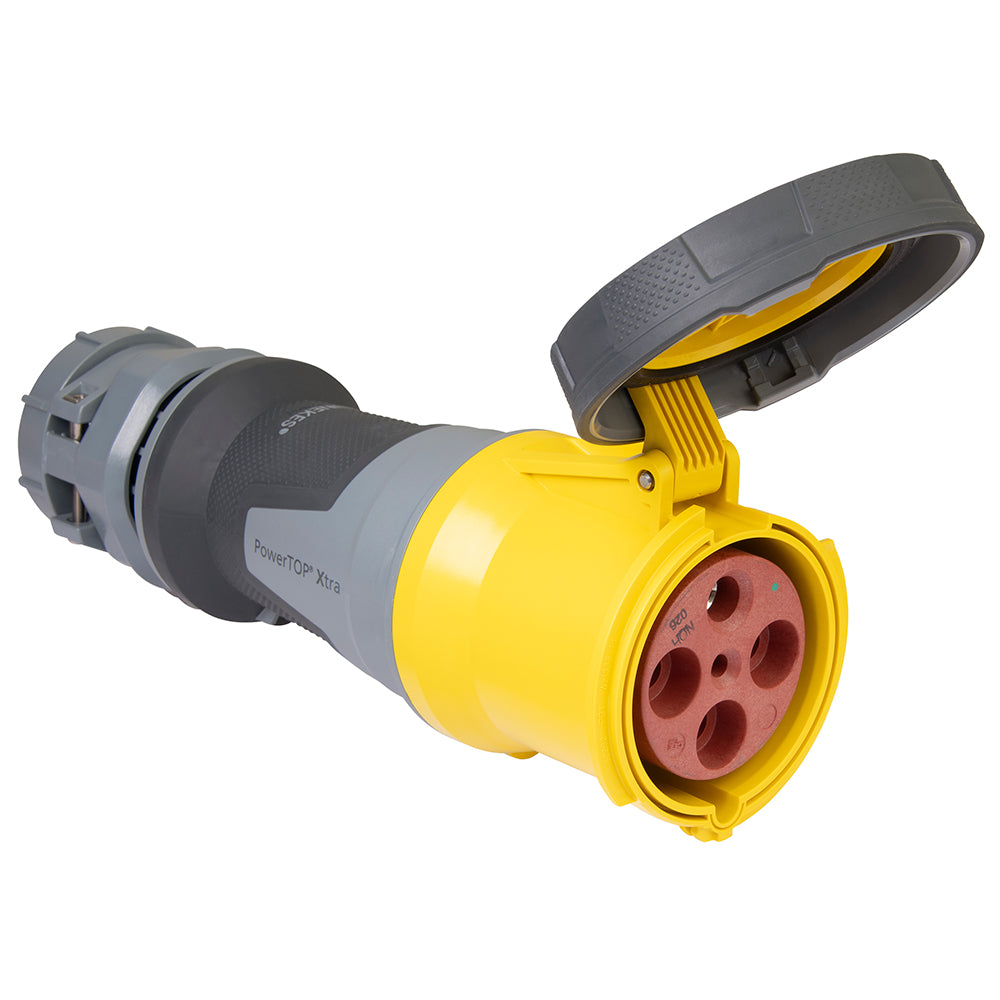

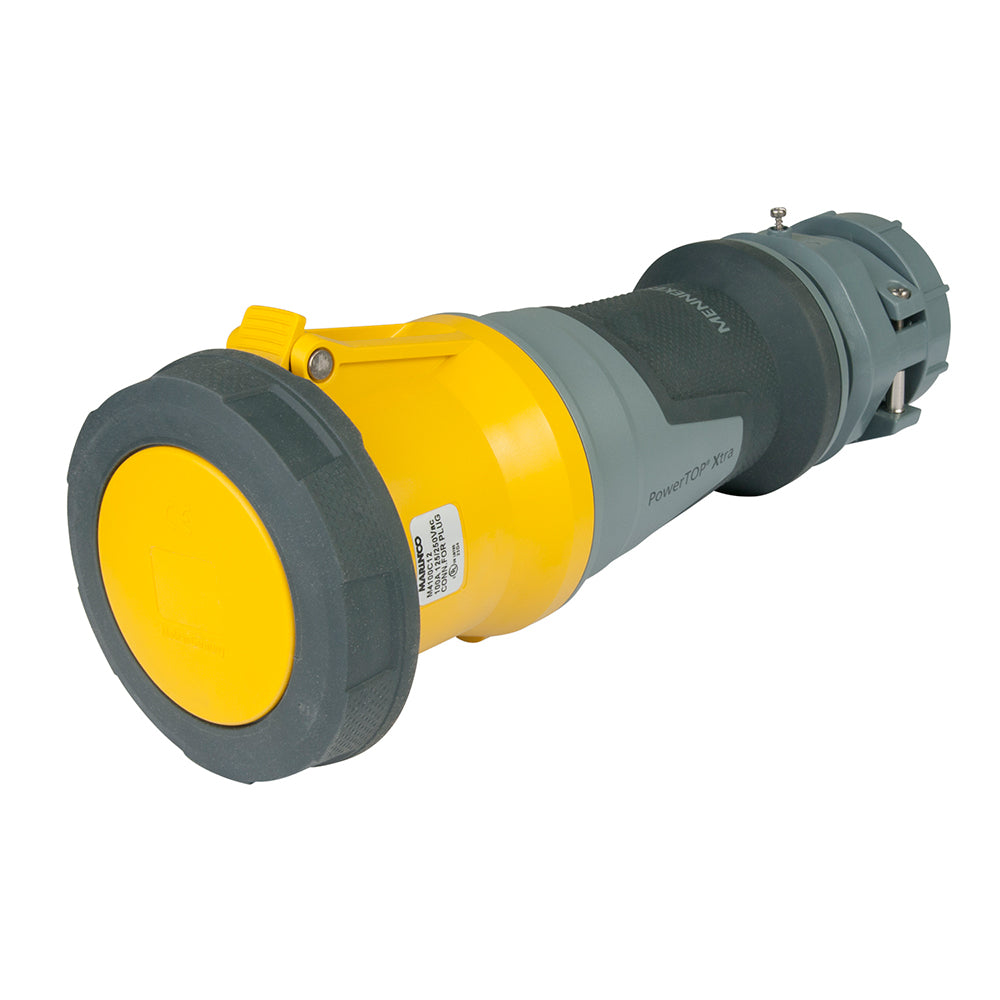

100A Connector for Plug - 125/250V

Mate with plug on extension cords or adapters.

*Note: It does not mate with shore power inlet.

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Type: Plugs
• Box Dimensions: 6"H x 6"W x 15"L WT: 4 lbs
• UPC: 093344500206

SilverSteer™ Front Mount Outboard Hydraulic Steering System w/ UC130-SVS-1 Cylinder

Specifically designed for high performance and high torque applications, the SilverSteer features a 1,500 psi helm and keyed bullhorns on the cylinder for maximum durability and minimal lost motion.

Whether a bass boat, flats boat or tournament-style offshore fishing boat, the SilverSteer™ will deliver smooth, responsive, and precise steering.

Adjustable boss style fittings allow precise hose routing without the risk of breaking the fittings by over-tightening or leaking fittings from loosening during installation, a common problem on competing cylinders.

UC130-SVS-1 Cylinder is ideal for applications with limited space or potential pinch-points between the cylinder and transom (i.e., when tilting the motor all the way up or motors mounted on a jack plate).  The end-mounted fittings keep the hydraulic hoses free and clear.

SilverSteer™ Package Kit Contains:

• UC130-SVS-1 Cylinder (fittings face out from the ends of the cylinder)

SilverSteer™ Outboard Hydraulic Tilt Steering System - UC130 V2

Specifically designed for high performance and high torque applications, the SilverSteer features a 1,500 psi helm and keyed bullhorns on the cylinder for maximum durability and minimal lost motion.

Whether a bass boat, flat boat or tournament style offshore fishing boat, the SilverSteer™ will deliver smooth, responsive and precise steering.

Adjustable boss style fittings allow precise hose routing without the risk of breaking the fittings by overtightening or leaking fittings from loosening during installation, a common problem on competing cylinders.

*This system includes the UP25T-SVS and the X70-SVS

Yamaha 150-200 Zero Torque Feedback Tiller

The four stroke outboard engines are generating high torque loads which can make tiller steered boats difficult to steer. The Uflex® ZTF Tiller systems eliminate propeller torque at the tiller handle when the driver is not actively changing direction.

Using a hydraulic valve, the propeller torque is locked from reaching the tiller handle unless the driver pushes or pulls on the end of the handle, at which point the valve opens and allows for active steering movements.

Now you can drive your tiller steered boat in comfort, saving your energy for reeling in fish rather than effort to just get to your favorite fishing spot.
