Boat Outfitting

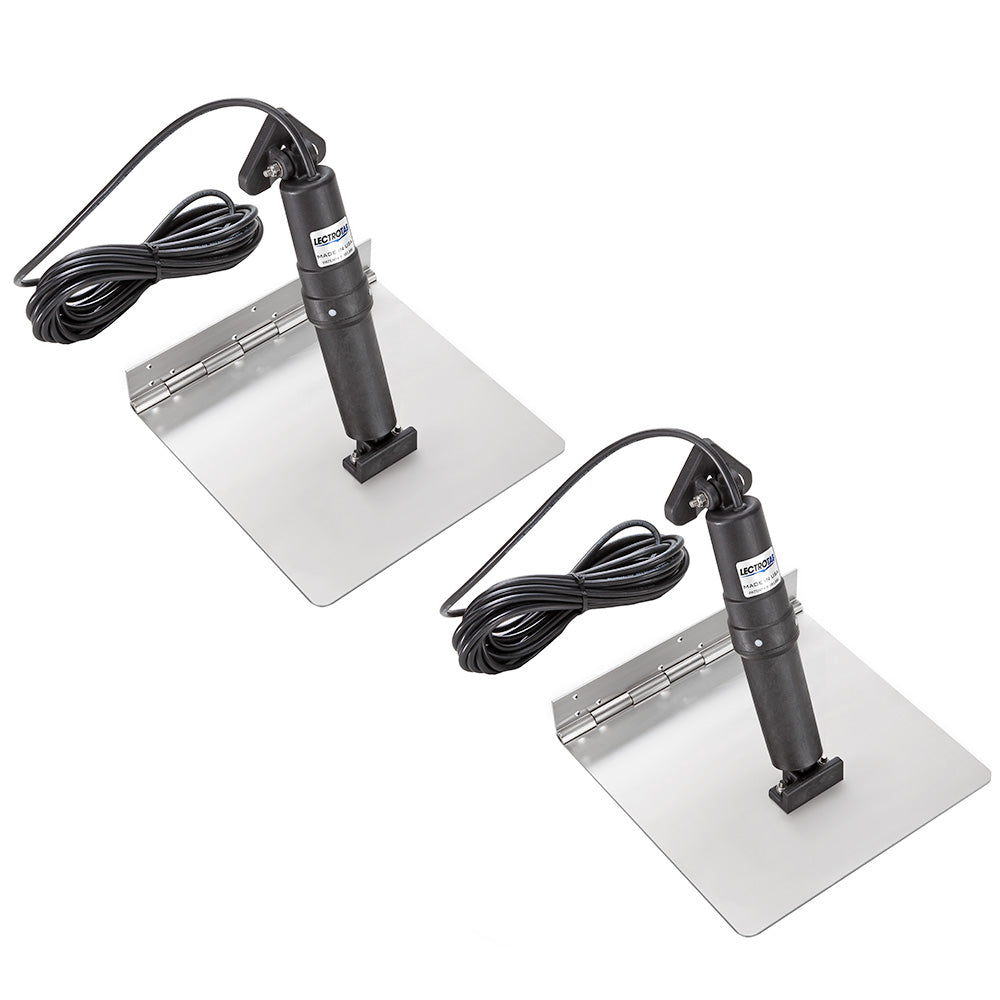

Lectrotab XKA Stainless Steel Trim Tab - 9 x 9 [XKA9X9]

XKA Stainless Steel Trim Tab - 9 x 9

The Lectrotab stainless steel trim tab design provides unmatched strength and reliability.  All stainless steel tabs are fabricated with a continuous rolled and pinned hinge.  This design eliminates the need for welding.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design.  The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation.  The actuator assembly is packaged in a non-metallic permanently sealed housing.  No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out.  The actuator incorporates either a standard or low profile transom mounting bracket.

*Control switch not included

Features:

• Continuous rolled and pinned hinge provides added strength and eliminates the need for welding
• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
• Utilizes internal pressure equalization system
• Internal brake system prevents unwanted tab movement when under way or backing down
• Quiet operation
• Actuators are fully load tested to push 1000 lbs of force
• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:

• Trim Tab Size (L x W) - 9" x 9" (23 x 23 cm)
• Boat Length - 14' to 19' (4 to 6 M)
• Trim Tab Material - 12 gauge, 304 Stainless Steel
• Actuator DC Voltage - 12 V
• Actuator Stroke Length - 2.25" (57 mm)
• Actuator Cable Length  - 23' (7 M)
• Actuator Vertical Height - 11.875" (302 mm)

In the Box:

• Two (2) Stainless Steel tabs
• Two (2) actuators w/23' (7 M) cables
• Instruction Manual

*Sold as an Individual

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

• Actuator Type: Electro-Mechanical
• Construction: Stainless Steel
• Box Dimensions: 6"H x 15"W x 15"L WT: 15.2 lbs
• UPC: 850046155437

Quick Guide (pdf)
Owner's Manual (pdf)
Brochure (pdf)

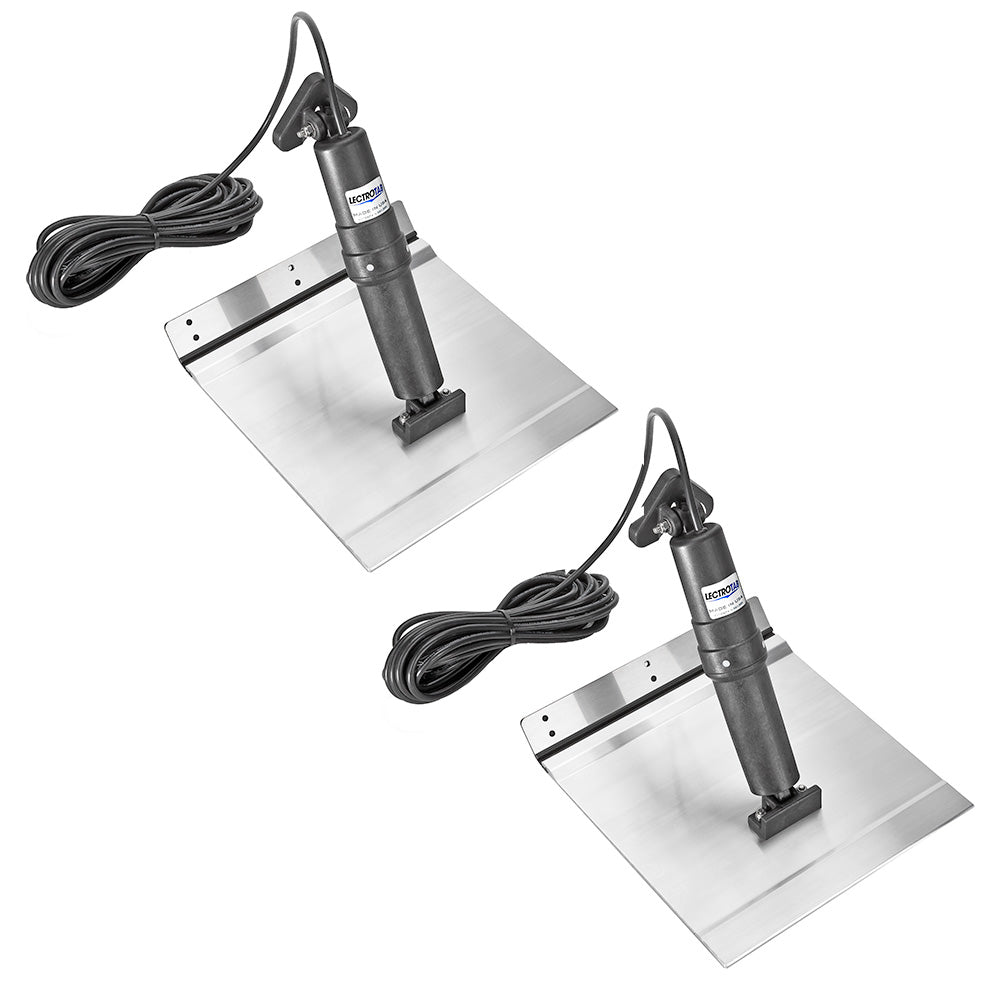

Lectrotab XKA Aluminum Alloy Trim Tab - 12x9 [XKA12X9A]

XKA Aluminum Alloy Trim Tab - 12 x 9

The Lectrotab Aluminum Alloy trim tabs are uniquely designed to meet the needs of Aluminum hulled boats and are an economical option for all boats.  All Aluminum Alloy tabs are fabricated with an extremely strong "no-break" polypropylene hinge.  All Aluminum tabs are sealed with a corrosion resistant epoxy coating.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design.  The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation.  The actuator assembly is packaged in a non-metallic permanently sealed housing.  No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out.  The actuator incorporates either a standard or low profile transom mounting bracket.

*Control switch not included

Features:

• All Tabs sealed with a corrosive resistant epoxy coating
• Equivalent strength to 10 gauge stainless steel
• "No Break" polypropylene hinge tested over 300,000 cycles to a 90° bend without failure
• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
• Utilizes internal pressure equalization system
• Internal brake system prevents unwanted tab movement when under way or backing down
• Quiet operation
• Actuators are fully load tested to push 1000 lbs of force
• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:

• Trim Tab Size (L x W) - 12" x 9" (30 x 23 cm)
• Boat Length - 18' to 29' (5.5 to 8.5 M)
• Trim Tab Material - Marine grade 6005-T5 Aluminum Alloy
• Actuator DC Voltage - 12 V
• Actuator Stroke Length - 2.25" (57 mm)
• Actuator Cable Length  - 23' (7 M)
• Actuator Vertical Height - 11.875" (302 mm)

In the Box:

• Two (2) Aluminum Alloy tabs
• Two (2) actuators w/23' (7 M) cables
• Instruction Manual

*Sold as an Individual

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

• Actuator Type: Electro-Mechanical
• Construction: Aluminum Alloy
• Box Dimensions: 6"H x 15"W x 15"L WT: 14.1 lbs
• UPC: 850046155611

Quick Guide (pdf)
Owner's Manual (pdf)
Brochure (pdf)

UC128TS Version 2 Hydraulic Cylinder 1.38" Bore 7.8" Stroke Front #2 Link Arm Front Mount

Features:

• The replaceable triple-sealed 1 3/4" cylinder end cartridges offer industry-leading longevity and durability
• Designed for up to 600HP in certain applications
• 304 electropolished and passivated link assembly for peak corrosion resistance
• Carbon-steel piston allows less internal bypass and provides greater efficiency
• Ultrabolt high-strength stainless steel tiller bolt

Specifications:

• Application: Outboard
• Dimensions: 3"H x 6"D x 27"L
• Horsepower: Up to 300 Horsepower

PROTECH 1.1 Front Mount OB Hydraulic System - Includes UP28 FM Helm, Oil & UC128-TS/1 Cylinder - No Hoses

Durability and performance define the Protech front mount outboard steering package. From the stainless steel helm shaft, heavy duty shaft seals, carbon steel piston and 304 electropolished and passivated stainless link assemblies, the Protech is built for maximum longevity and peak performance. Adjustable boss style fittings allow precise hose routing without the risk of breaking the fittings by overtightening or leaking fittings from loosening during installation, a common problem on competing cylinders.

Kit Contains:

• UP28FM - Front mount helm pump
• UC128-TS/1 Cylinder
• OIL 15 - Hydraulic oil - 2 quarts
• Hoses & Wheel Not Included

Yamaha Jet Boat Custom 25' – 850lb Ballast Bag - Grey

Add 850lbs to the rear of your Yamaha with the FatSac Yamaha Jet Boats Custom for 25' Yamaha boat models.

The FatSac High Yamaha Jet Boats Custom 25 FatSac is designed to be tied down to the swim platform step of your 25' Yamaha, adding 850lbs to the rear of your boat so you can get wake surfing.

Fits 2017 and newer 25' Yamaha Boats

Features:

• Adds 850lbs of Ballast
• Includes plug and W730 fitting for use with the FATSAC Supa Tsunami Pump
• Includes 4 built-in anchor points so you can secure this to the platform (tie-downs not included)

In the Box:

• Ballast Bag
• Four Valves/Caps (W731 x 2, W749 x 1 and W730 x 1)

*Sold as an Individual

WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

Specifications:

• Type: Ballast Bags
• Box Dimensions: 7"H x 11"W x 15"L WT: 9.75 lbs
• UPC: 817177024216

12x12 Sport Tab System with One Box Indication

Hydraulic trim tabs are known for power, precision, and durability. Get the most from your boat, no matter what the load, speed, or sea conditions. Using the helm control, you can adjust the tabs individually or in unison to create the perfect cruising attitude. Increase speed and fuel economy, smooth a rough ride, and get on plane faster.

Features:

• Get on plane fast, and stay on plane at intermediate speeds
• Correct listing and uneven loads
• Improve visibility and safety
• Reduce pounding and eliminate porpoising
• Low maintenance, long-term value, and ease of service
• Exclusive transom mount interlocking tab design
• Sport batwing option (M80/ M120) provides 30% more lift for limited-space installations
• Bottom and piano hinge mounts are available for custom order

Kit Includes:

• (2) Trim plane assemblies
• (2-4) Hydraulic actuators (A1101A)
• (1) Hydraulic power unit (V351HPU1)
• Hydraulic tubing and hardware
• one box indicator helm control

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

FATSAC Yamaha Jet Boat Custom 27 - 1,200lb Ballast Bag - Grey [C1326]

Yamaha Jet Boat Custom 27' – 1,200lb Ballast Bag - Grey

Add 1,200lbs to the rear of your Yamaha with the FatSac Yamaha Jet Boats Custom for 27' Yamaha boat models.

The FatSac High Yamaha Jet Boats Custom 27 FatSac is designed to be tied down to the swim platform step of your 27' Yamaha, adding 1,200 lbs. to the rear of your boat so you can get wake surfing.

Fits 2017 and newer 27' Yamaha Boats

Features:

• Adds 1,200lbs of Ballast
• Includes plug and W730 fitting for use with the FATSAC Supa Tsunami Pump
• Includes 4 built-in anchor points so you can secure this to the platform (tie-downs not included)

In the Box:

• Ballast Bag
• Four Valves/Caps (W731 x 2, W749 x 1 and W730 x 1)

*Sold as an Individual

WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

Specifications:

• Type: Ballast Bags
• Box Dimensions: 7"H x 13"W x 16"L WT: 11.8 lbs
• UPC: 817177024230

Brochure (pdf)

UC128 Version 1 Hydraulic Cylinder

Compatible with competing helms, hoses, and oil, the UC128 cylinder is built to last with heavy-duty stainless steel cylinder rods, seals, and link assemblies. Constructed of top-grade materials this cylinder is simple to install and fits almost every two and four-stroke outboard engine in the market.
