Boat Outfitting

Suzuki 150-200hp Zero Torque Feedback Tiller

Today’s four-stroke outboard engines are generating high torque loads which can make tiller-steered boats difficult to steer. The Uflex® ZTF Tiller systems eliminate propeller torque at the tiller handle when the driver is not actively changing direction.

Using a patented hydraulic valve, the propeller torque is locked from reaching the tiller handle unless the driver pushes or pulls on the end of the handle, at which point the valve opens and allows for active steering movements.

Now you can drive your tiller-steered boat in comfort, saving your energy for reeling in fish rather than an effort to just get to your favorite fishing spot.

Features:

• For use with Suzuki® DF150A, DF175A, DF200A
• Includes Uflex® UC130 - ZTF Cylinder, Uflex® Conversion Yoke with integrated ZTF Tiller Valve, and Uflex® Engine Tiller Arm Adapter
• Rated up to 200 hp Four Stroke
• Easy steering
• Reduced operator fatigue

Pedestal for 3-Stage Table

Air-powered pedestal with 12-1/2″ table mount and 12″ dia. floor base with 11″ hole pattern for added stability.

Features:

• Made from high-strength aluminum, available in a variety of heights and finishes
• 3-stage table pedestals are designed to bring maximum strength and support to your dining experience
• Air powered adjustments
• Adjusts to 12-3/4, 20, & 28 inches
• Can support up to 120 lbs
• Warranty: 5 years

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

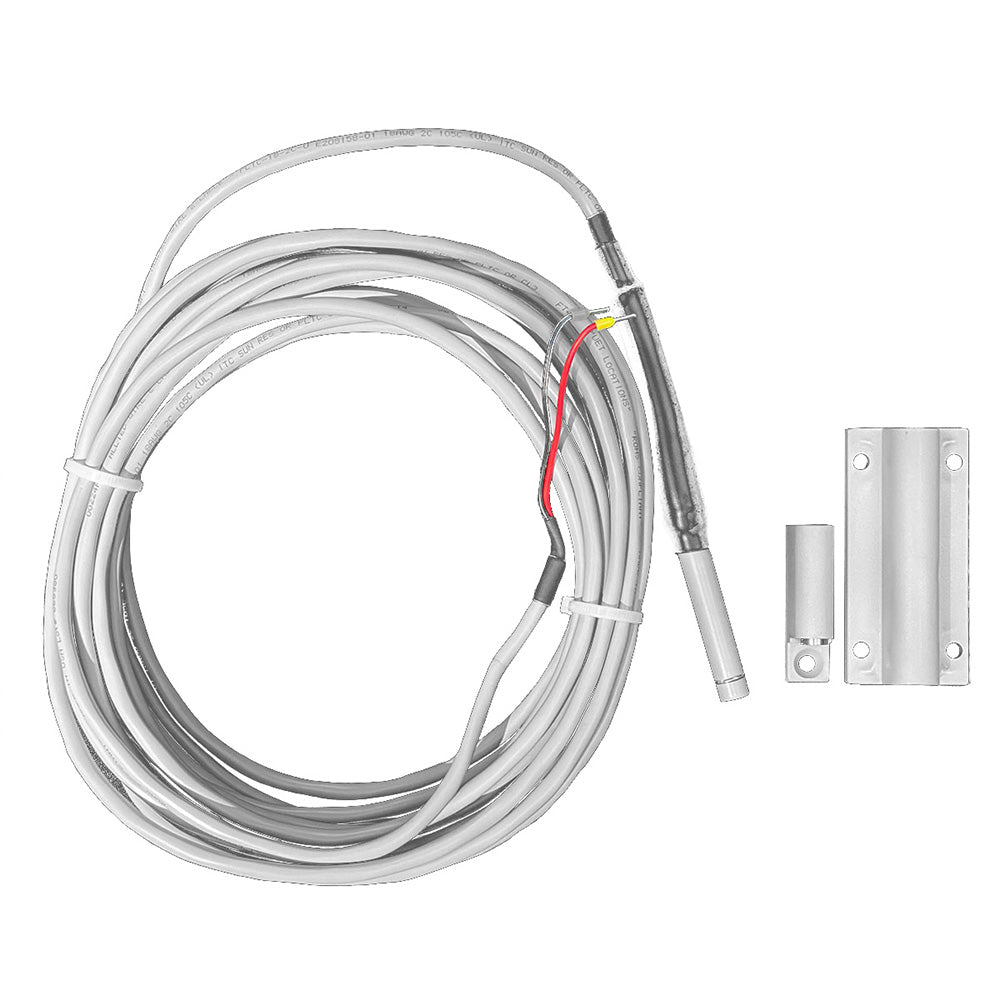

Detachment Pull Sensor with 25' Lead

Water Resistant Detachment Sensor with 25′ Lead.

Nav-Tracker 1.0 with 30' Cable - Insurance Package

GOST Nav-Tracker 1.0 IDP was developed to offer a hardwired marine grade, water resistant, monitoring and tracking system that provides global arm/disarm over satellite from anywhere in the world.

GOST Satellite NAV-Tracking delivers total peace of mind. The award-winning satellite tracking packages, powered by Inmarsat’s geostationary satellites constellation, provide you with the option to securely monitor your boat from anywhere in the world with 99.99% reliability.

Features:

• Satellite Antenna IDP
• Push-Button Arming Switch
• Remote Access & Monitoring
• Standard 30ft GPS Cable Included

Package Includes:

• Nav-Tracker 1.0 IDP SAT/GPS Tracking Device
• 30' Antenna cable
• GNT-L-Bracket Antenna Gunwale/Bulkhead Mount
• GNT-1.0-Push Button arm/disarm

Infrared Beam Sensor with 33' Cable

The Infrared Beam Sensor can be mounted near entry points or in a cabin. These sensors use a true photoelectric beam, not an infrared field of view like our ePIR or Infrared Motion Sensor, which ensures protection against false alarms due to shadows, sunlight, etc.

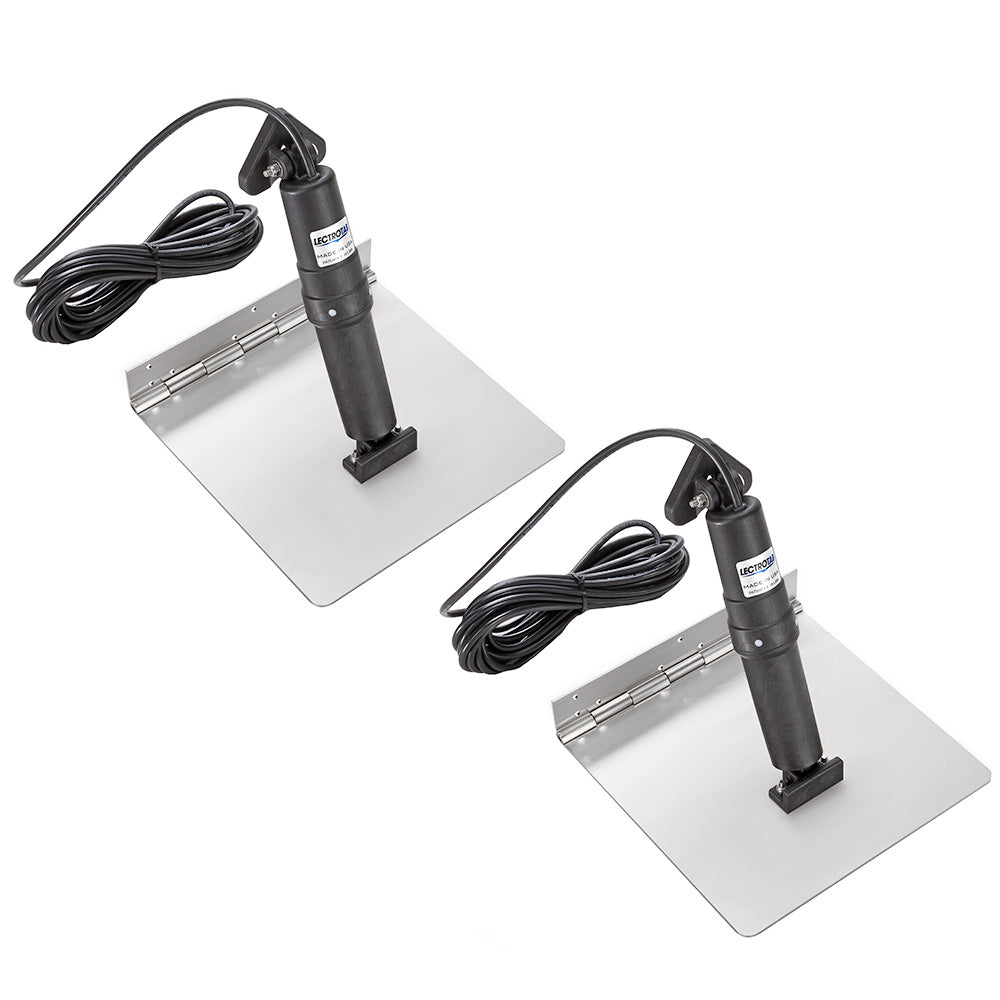

Lectrotab XKA Stainless Steel Trim Tab - 12 x 9  [XKA12X9]

XKA Stainless Steel Trim Tab - 12 x 9

The Lectrotab stainless steel trim tab design provides unmatched strength and reliability.  All stainless steel tabs are fabricated with a continuous rolled and pinned hinge.  This design eliminates the need for welding.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design.  The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation.  The actuator assembly is packaged in a non-metallic permanently sealed housing.  No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out.  The actuator incorporates either a standard or low profile transom mounting bracket.

*Control switch not included

Features:

• Continuous rolled and pinned hinge provides added strength and eliminates the need for welding
• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
• Utilizes internal pressure equalization system
• Internal brake system prevents unwanted tab movement when under way or backing down
• Quiet operation
• Actuators are fully load tested to push 1000 lbs of force
• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:

• Trim Tab Size (L x W) - 12" x 9" (30 x 23 cm)
• Boat Length - 18' to 29' (5.5 to 8.5 M)
• Trim Tab Material - 12 gauge, 304 Stainless Steel
• Actuator DC Voltage - 12 V
• Actuator Stroke Length - 2.25" (57 mm)
• Actuator Cable Length  - 23' (7 M)
• Actuator Vertical Height - 11.875" (302 mm)

In the Box:

• Two (2) Stainless Steel tabs
• Two (2) actuators w/23' (7 M) cables
• Instruction Manual

*Sold as an Individual

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

• Actuator Type: Electro-Mechanical
• Construction: Stainless Steel
• Box Dimensions: 6"H x 15"W x 15"L WT: 16.8 lbs
• UPC: 850046155406

Quick Guide (pdf)
Owner's Manual (pdf)
Brochure (pdf)

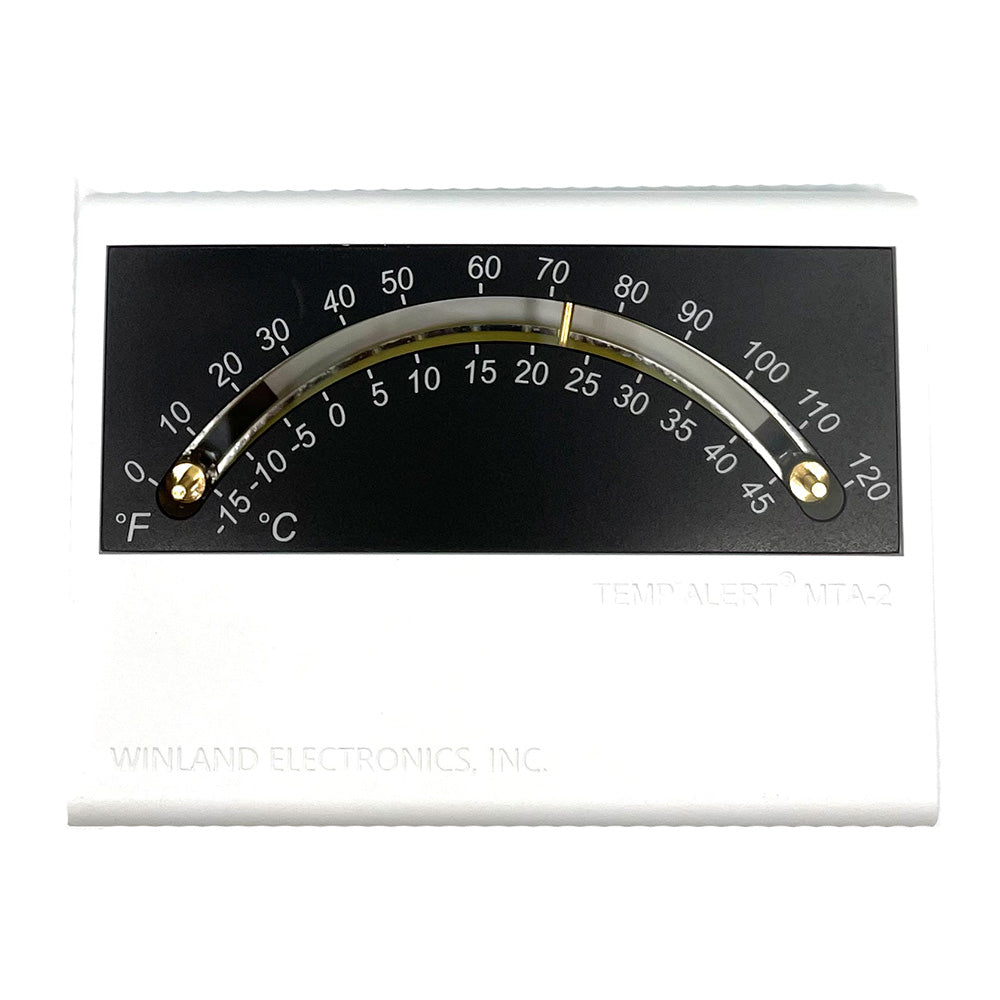

Wireless Analog Temperature Sensor

Monitor the temperature of the engine room. Place the Wireless Module in the area that needs to be monitored, link the module to the GOST Universal Control Unit, and receive alerts if the temperature drops below a preset level.

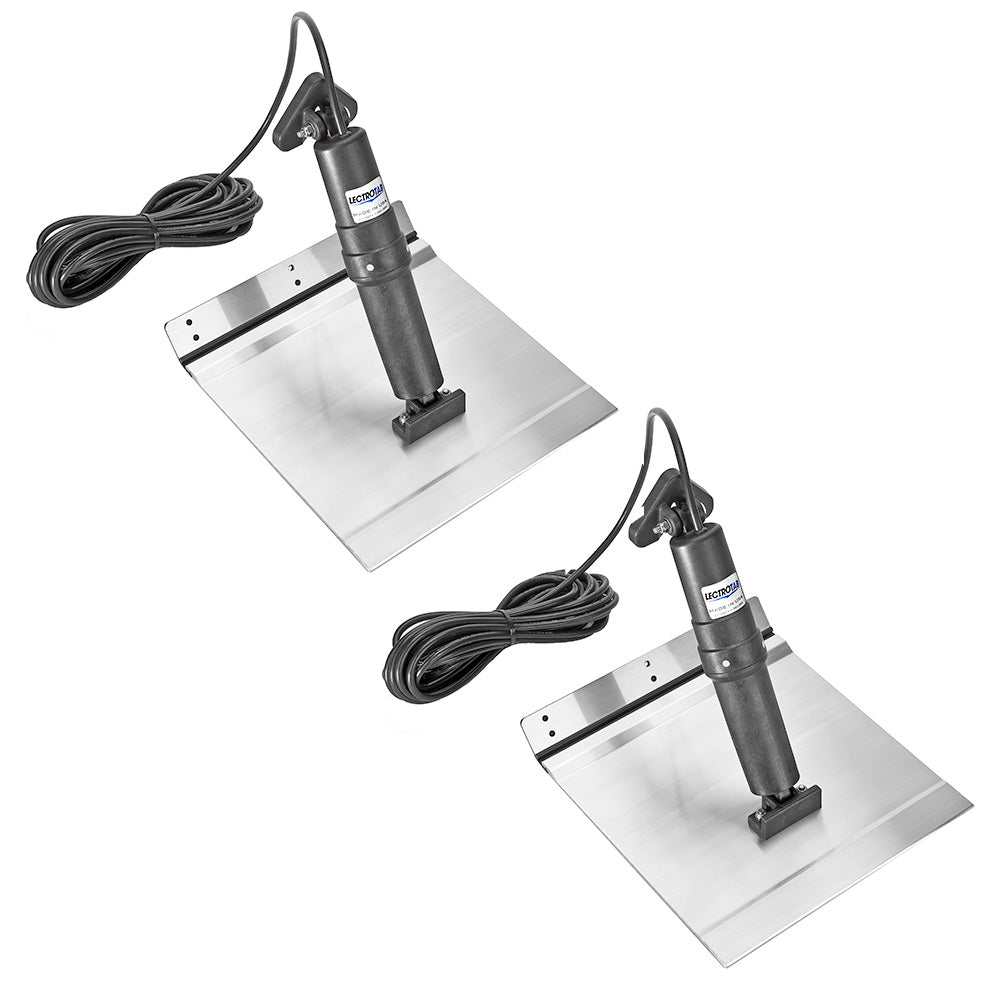

Lectrotab XKA Aluminum Alloy Trim Tab - 12x24 [XKA12X24A]

XKA Aluminum Alloy Trim Tab - 12 x 24

The Lectrotab Aluminum Alloy trim tabs are uniquely designed to meet the needs of Aluminum hulled boats and are an economical option for all boats.  All Aluminum Alloy tabs are fabricated with an extremely strong "no-break" polypropylene hinge.  All Aluminum tabs are sealed with a corrosion resistant epoxy coating.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design.  The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation.  The actuator assembly is packaged in a non-metallic permanently sealed housing.  No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out.  The actuator incorporates either a standard or low profile transom mounting bracket.

*Control switch not included

Features:

• All Tabs sealed with a corrosive resistant epoxy coating
• Equivalent strength to 10 gauge stainless steel
• "No Break" polypropylene hinge tested over 300,000 cycles to a 90° bend without failure
• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
• Utilizes internal pressure equalization system
• Internal brake system prevents unwanted tab movement when under way or backing down
• Quiet operation
• Actuators are fully load tested to push 1000 lbs of force
• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:

• Trim Tab Size (L x W) - 12" x 24" (30 x 61 cm)
• Boat Length - 28' to 48' (8.5 to 14.5 M)
• Trim Tab Material - Marine grade 6005-T5 Aluminum Alloy
• Actuator DC Voltage - 12 V
• Actuator Stroke Length - 2.25" (57 mm)
• Actuator Cable Length  - 23' (7 M)
• Actuator Vertical Height - 11.875" (302 mm)

In the Box:

• Two (2) Aluminum Alloy tabs
• Two (2) actuators w/23' (7 M) cables
• Instruction Manual

*Sold as an Individual

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

• Actuator Type: Electro-Mechanical
• Construction: Aluminum Alloy
• Box Dimensions: 5"H x 16"W x 24"L WT: 23.7 lbs
• UPC: 850046155604

Quick Guide (pdf)
Owner's Manual (pdf)
Brochure (pdf)
