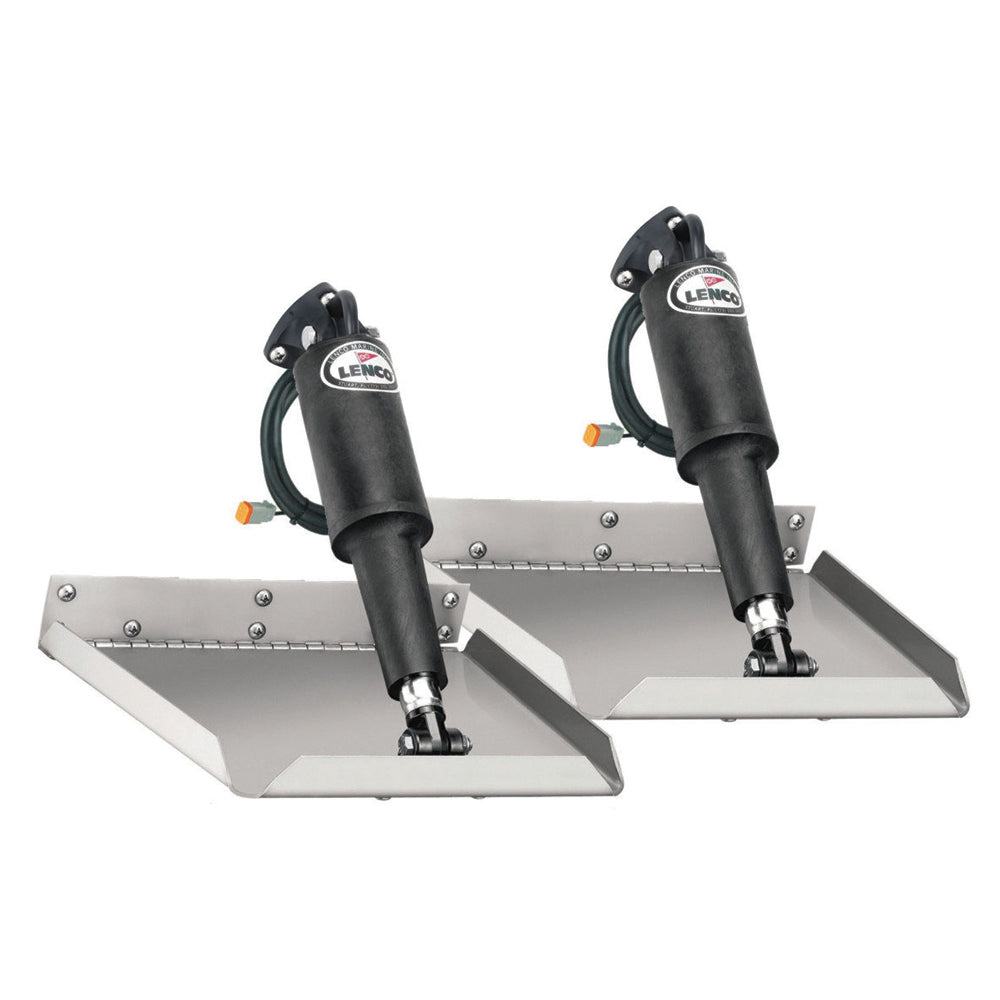

9" x 12" Edge Mount Trim Tab Kit without Switch Kit -12V

Lenco Electric Edge Mount Trim Tab Kits make your boat ride smoother, dryer, faster and with increased safety whether on a small skiff or a large yacht. The Lenco ball screw design is more reliable, three times more powerful and features an instant response, which makes them very user friendly compared to typical hydraulics. Lenco fast response electric actuators are fully submersible with all plug & play waterproof Deutsch connections. Edge Mount actuators mount at the trailing edge of the plane, requiring 4" (10.16 cm) less transom height than Lenco standard mount trim tabs.

Kit Contents:

• 2 each of 12-gauge stainless steel trim tab blades
• 2 each of #15054-001 actuator with 6' leads & Deutsch plugs
• 2 each of #30133-103 20' actuator extension wiring harnesses
• 2 each of #15085-001 (116) upper mounting brackets with gland seal
• 2 each of #50014-001 (119) lower mounting brackets
• 1 each of the Lenco owner’s / installation manual
• All necessary stainless steel mounting hardware

Specifications:

• Suggested Boat Length: 16' to 25'
• Length of Tab: 9"
• Width of Tab: 12"
• Hinge Height: 2"
• Minimum Transom Height: 13.5"
• Blades: 12 Gauge Stainless Steel
• Finish: Smooth
• Switch Kit: Sold Separately
• Class: Fuel Efficient
• Compliance: CE Certified
• Compatibility: Any Boat
• Actuators: 12-volt

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Construction: Stainless Steel
• Box Dimensions: 5"H x 13"W x 14"L WT: 17.65 lbs
• UPC: 874847004367

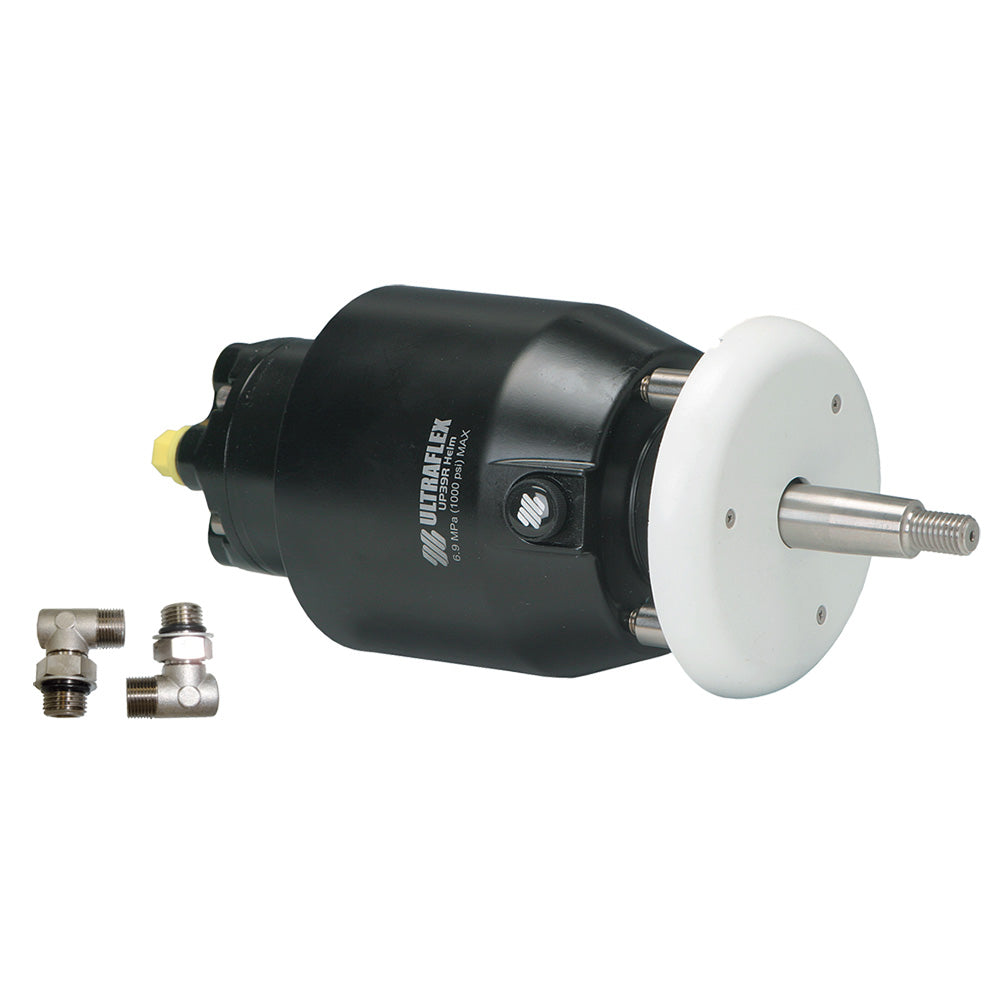

Uflex UP39 Rear Mount Helm [UP39R]

UP39 Rear Mount Helm

Specifications:

• Mounting: Rear Mount
• Displacement/Revolution: 39 cc - 2.4 cubic inches
• No. of Pistons: 7
• Relief Valve Setting: 70 Bar - 1000 PSI
• Maximum Wheel Diameter: 710mm - 28"
• Weight: 5 kg - 11 lbs.

UC95OBF-1 Hydraulic Cylinder 175HP or Less

Intended for single engine applications of 175 HP and under, the UC95 OBF-1 cylinder is compatible with competing helms, hoses, and oil, and is built to last with heavy-duty stainless steel cylinder rods, seals, and link assemblies.

Features:

• Balanced the number of turns lock-to-lock is the equal port to starboard or vice-versa
• Adjustable boss style fittings for easy installation High resistance stainless steel connection bolt (ULTRABOLT)
• Constructed of top-grade materials this cylinder is simple to install and fits almost every two and four-stroke outboard engine on the market our engine
• Split and pinned mounting rod for easy installation and bushings to prevent friction with engine

Uflex UC128 Version 1 Hydraulic Cylinder - Port [UC128TS-1P]

UC128 Version 1 Hydraulic Cylinder - Port

The UC128TS-1P is the Port version of the Protech Front Mount Steering Cylinder. It is used along with the standard cylinder in high horsepower dual engine applications. It shares all of the innovation and attributes of the standard Protech cylinder. Durability and performance define the Protech Front Mount Outboard Steering Cylinders.

Features:

• The replaceable triple sealed 1 3/4" cylinder end cartridges offer industry-leading longevity and durability
• Designed for up to 600HP in certain applications
• 304 electropolished and passivated link assembly for peak corrosion resistance
• Carbon-steel piston allows less internal bypass and provides greater efficiency
• Ultrabolt high-strength stainless steel tiller bolt

UPMD MasterDrive Power Unit

1 UPMD Power Unit, 15' (4.5M) wiring harness included

Features:

• 12VDC Motor
• 45° swiveling fittings for easy installation
• Semitransparent 0,5 liter (0.11gal) tank gives immediate oil level vision
• Vented filler plug
• Suitable for applications with autopilot
• Bulkhead or floor mount
• Black galvanized motor case, saltwater resistant
• 4,5 m (15’) Wiring Harness included
• IP67 waterproof
• Ignition protected (SAE J-1171 and UNI EN 28846)

UP28R Rear Mount Helm 1.7 cu. 3/4" Tapered Stainless Steel Shaft

Features:

• Available in four different displacement sizes
• Compact design
• Ball bearing piston race
• Built-in lock valve for positive rudder lock
• Integral relief valve for over-pressure protection
• 3/4” tapered stainless steel shaft
• Easily accessible lock valve and shaft seal for replacement
• Cast iron cylinder rotor for greater durability and longer life
• 1/4" NPT fitting for 3/8" tube
• Includes 90° adjustable fittings for 3/8” tube and white bezel
• UP45R pump is ideal for double cylinder outboard applications
• UP45 pump is available also for inboard application
• X68 (optional) - 40894Z Chrome bezel
• KITF (optional) - 39664Y Remote fill adapter

Specifications:

• Mounting: Retro-cruscotto
• Displacement/Revolution: 28 cc-1.7 cu in
• # of Pistons: 5
• Relief Valve Setting: 70 Bar - 1000 PSI
• Maximum Wheel Diameter: 710mm - 28"
• Weight: 5kg - 11 lbs.

UP33FM Helm Pump 2.0 Cubic Inches

Features:

• Compact design
• Built-in lock valve for positive rudder lock
• Integral relief valve for over-pressure protection
• Compatible with Teleflex SeaStar cylinders, hoses and oil
• 3/4" tapered stainless steel shaft
• Easily accessible lock valve and shaft seal for replacement
• Convenient front of dash fill
• Adjustable Boss Fittings compatible with Kit OB and Kit OBSVS hose kits and SeaStar hoses
• Relief valve pressure: 1000 PSI

Specifications:

• Mounting: Front Mount
• Displacement/Revolution: 33cc-2.0 cubic inches
• Number of Pistons: 7
• Relief Valve Setting: 70 Bar - 1,000 PSI
• Maximum Wheel Diameter: 710mm - 28"
• Weight: 5kg-11lbs

Power A MM12T - Electronic Control Package

• Private Protocol can bus for data transmission

• Connection of multiple stations up to 4 controls

• Modular System

• Direct communication w/electronic engines(SAE J 1939 or NMEA 2000)

• Plug'N Play connectivity

• Automatic engines synchronization

• Dock Assist

• Fully programmable shift delays

• 42010R - (2) PA2-B1T - Single Lever Control w/Trim

• 42017F - (1) PA2-CU - Control Unit w/LED Diagnostc & Programming Screen

• 42027J - (2) PA2-MA - Electro Mechanical Actuatorf/Shift and/or Throttle

• 42028L - (1) PA2-NT - Network Terminator

• 42053K - (1) M-P3 - Main Power Supply Cable 9.8'

• 71021K - (2) CAN-10 - Network Connection Cable 33'

• 73639T - (2) CAN-1 - Network Connection Cable 3'

• 42026G - (1) PA2-PU - Power Supply Unit f/12V Systems

• 42056S - (2) M-PE1 - Power Extension Cable 3.3'
