Lectrotab XKA Aluminum Alloy Trim Tab Kit w/Rocker Switch - 9 x 9 [XKAF9X9A]

XKA Aluminum Alloy Trim Tab Kit with Rocker Switch - 9 x 9

The Lectrotab Aluminum Alloy trim tabs are uniquely designed to meet the needs of Aluminum hulled boats and are an economical option for all boats.  All Aluminum Alloy tabs are fabricated with an extremely strong "no-break" polypropylene hinge.  All Aluminum tabs are sealed with a corrosion resistant epoxy coating.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design.  The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation.  The actuator assembly is packaged in a non-metallic permanently sealed housing.  No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out.  The actuator incorporates either a standard or low profile transom mounting bracket.

Lectrotab's new flat rocker switch has improved sealing to prevent water entry and recessed rocker to prevent breaking.  Specially designed to provide and "instant stop" circuit when the switches are released, thus preventing actuator over-run.

Features:

• All Tabs sealed with a corrosive resistant epoxy coating
• Equivalent strength to 10 gauge stainless steel
• "No Break" polypropylene hinge tested over 300,000 cycles to a 90° bend without failure
• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
• Utilizes internal pressure equalization system
• Internal brake system prevents unwanted tab movement when under way or backing down
• Quiet operation
• Actuators are fully load tested to push 1000 lbs of force
• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:

• Trim Tab Size (L x W) - 9" x 9" (23 x 23 cm)
• Boat Length - 14' to 19' (4 to 6 M)
• Trim Tab Material - Marine grade 6005-T5 Aluminum Alloy
• Actuator DC Voltage - 12 V
• Actuator Stroke Length - 2.25" (57 mm)
• Actuator Cable Length  - 23' (7 M)
• Actuator Vertical Height - 11.875" (302 mm)
• Rocker Switch Dimensions (W x H) - 3.125" x 3.25" (79.4 x 82.5 mm)
• Rocker Switch Mounting Hole Cutout (H x W) - 2.25" x 2" (57.5 x 50 mm)
• Rocker Switch Operating Voltage - 12 or 24 V

In the Box:

• One (1) Flat Rocker Switch
• Two (2) Aluminum Alloy tabs
• Two (2) actuators w/23' (7 M) cables
• Instruction Manual

*Sold as a Kit

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

• Actuator Type: Electro-Mechanical
• Construction: Aluminum Alloy
• Box Dimensions: 4"H x 5"W x 6"L WT: 13.05 lbs

Owner's Manual (pdf)
Brochure (pdf)

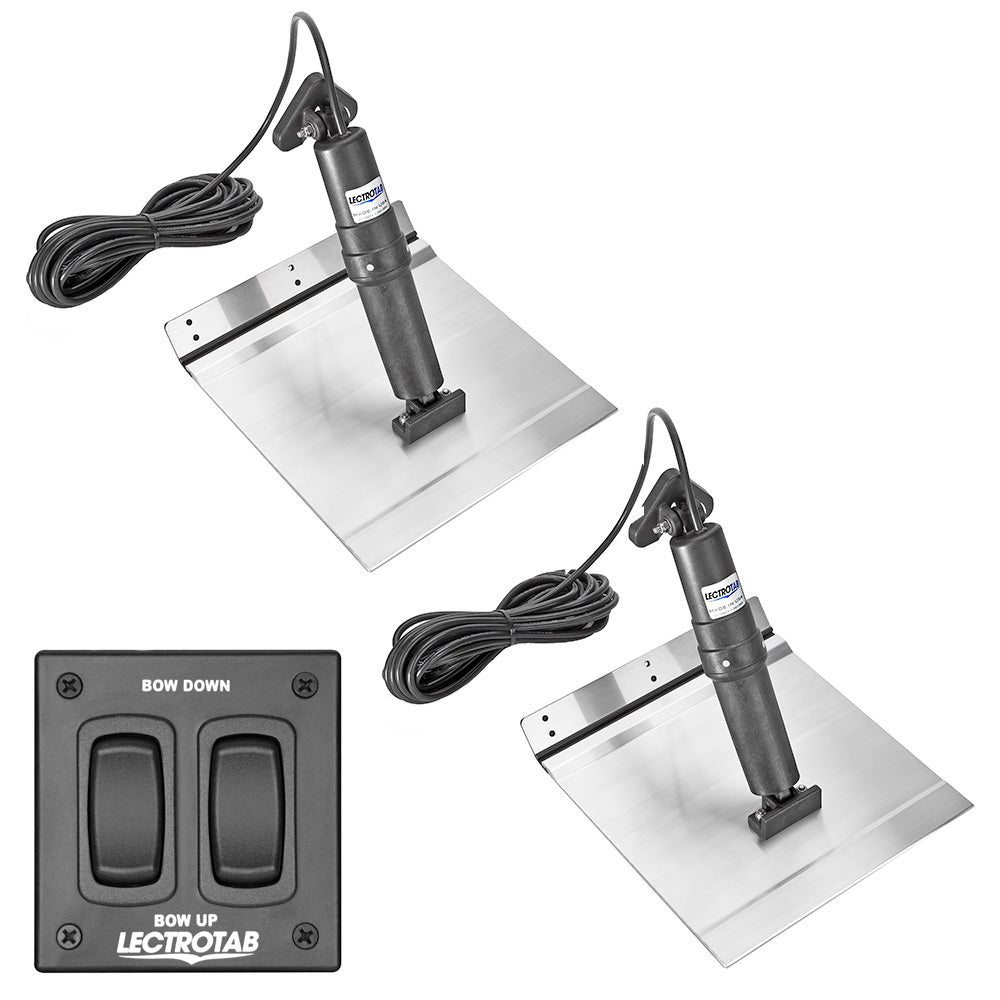

Lectrotab XKA Aluminum Alloy Trim Tab Kit w/Rocker Switch - 12 x 18 [XKAF12X18A]

XKA Aluminum Alloy Trim Tab Kit with Rocker Switch  - 12 x 18

The Lectrotab Aluminum Alloy trim tabs are uniquely designed to meet the needs of Aluminum hulled boats and are an economical option for all boats.  All Aluminum Alloy tabs are fabricated with an extremely strong "no-break" polypropylene hinge.  All Aluminum tabs are sealed with a corrosion resistant epoxy coating.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design.  The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation.  The actuator assembly is packaged in a non-metallic permanently sealed housing.  No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out.  The actuator incorporates either a standard or low profile transom mounting bracket.

Lectrotab's new flat rocker switch has improved sealing to prevent water entry and recessed rocker to prevent breaking.  Specially designed to provide and "instant stop" circuit when the switches are released, thus preventing actuator over-run.

Features:

• All Tabs sealed with a corrosive resistant epoxy coating
• Equivalent strength to 10 gauge stainless steel
• "No Break" polypropylene hinge tested over 300,000 cycles to a 90° bend without failure
• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
• Utilizes internal pressure equalization system
• Internal brake system prevents unwanted tab movement when under way or backing down
• Quiet operation
• Actuators are fully load tested to push 1000 lbs of force
• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:

• Trim Tab Size (L x W) - 12" x 18" (30 x 46 cm)
• Boat Length - 20' to 40' (6 to 12 M)
• Trim Tab Material - Marine grade 6005-T5 Aluminum Alloy
• Actuator DC Voltage - 12 V
• Actuator Stroke Length - 2.25" (57 mm)
• Actuator Cable Length  - 23' (7 M)
• Actuator Vertical Height - 11.875" (302 mm)
• Rocker Switch Dimensions (W x H) - 3.125" x 3.25" (79.4 x 82.5 mm)
• Rocker Switch Mounting Hole Cutout (H x W) - 2.25" x 2" (57.5 x 50 mm)
• Rocker Switch Operating Voltage - 12 or 24 V

In the Box:

• One (1) Flat Rocker Switch
• Two (2) Aluminum Alloy tabs
• Two (2) actuators w/23' (7 M) cables
• Instruction Manual

*Sold as a Kit

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

• Actuator Type: Electro-Mechanical
• Construction: Aluminum Alloy
• Box Dimensions: 4"H x 5"W x 6"L WT: 20.25 lbs

Owner's Manual (pdf)
Brochure (pdf)

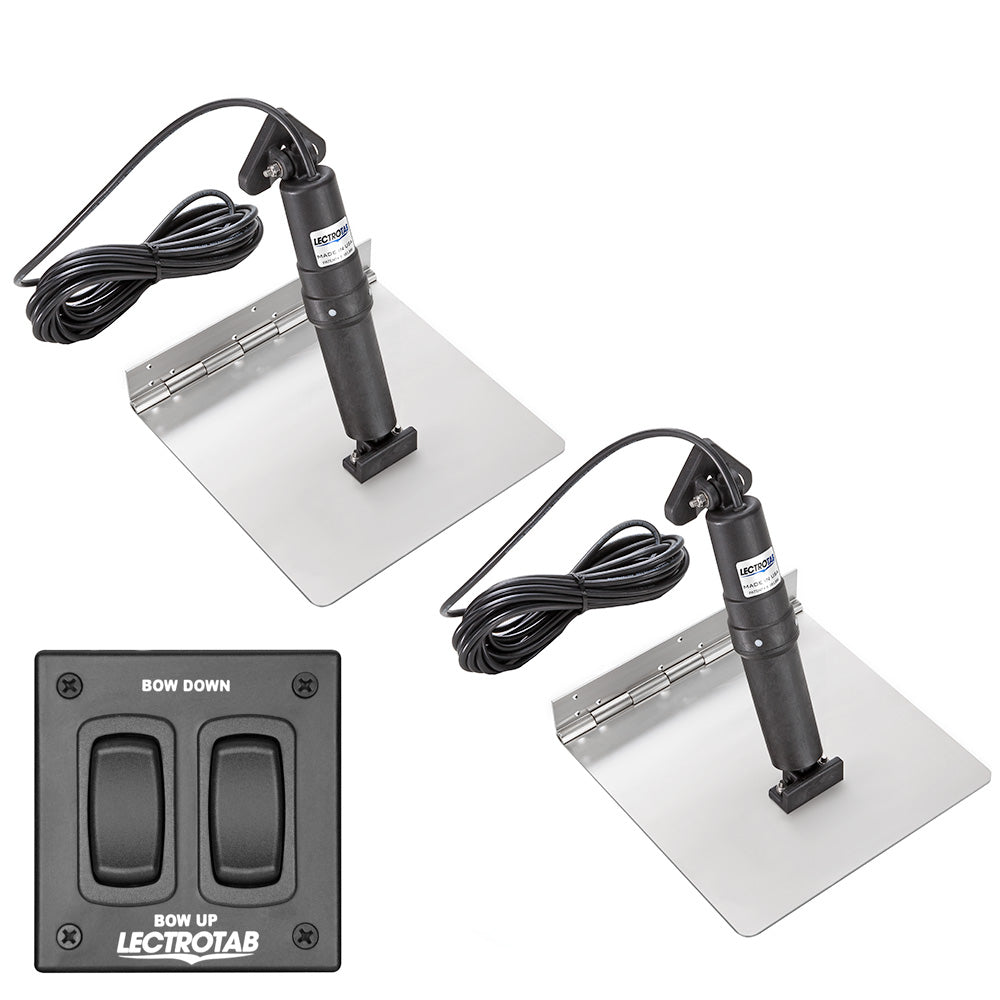

Lectrotab XKA Stainless Steel Trim Tab Kit w/Rocker Switch - 12 x 18 [XKAF12X18]

XKA Stainless Steel Trim Tab Kit with Rocker Switch - 12 x 18

The Lectrotab stainless steel trim tab design provides unmatched strength and reliability.  All stainless steel tabs are fabricated with a continuous rolled and pinned hinge.  This design eliminates the need for welding.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design.  The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation.  The actuator assembly is packaged in a non-metallic permanently sealed housing.  No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out.  The actuator incorporates either a standard or low profile transom mounting bracket.

Lectrotab's new flat rocker switch has improved sealing to prevent water entry and recessed rocker to prevent breaking.  Specially designed to provide and "instant stop" circuit when the switches are released, thus preventing actuator over-run.

Features:

• Continuous rolled and pinned hinge provides added strength and eliminates the need for welding
• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
• Utilizes internal pressure equalization system
• Internal brake system prevents unwanted tab movement when under way or backing down
• Quiet operation
• Actuators are fully load tested to push 1000 lbs of force
• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:

• Trim Tab Size (L x W) - 12" x 18" (30 x 46 cm)
• Boat Length - 20' to 40' (6 to 12 M)
• Trim Tab Material - 12 gauge, 304 Stainless Steel
• Actuator DC Voltage - 12 V
• Actuator Stroke Length - 2.25" (57 mm)
• Actuator Cable Length  - 23' (7 M)
• Actuator Vertical Height - 11.875" (302 mm)
• Rocker Switch Dimensions (W x H) - 3.125" x 3.25" (79.4 x 82.5 mm)
• Rocker Switch Mounting Hole Cutout (H x W) - 2.25" x 2" (57.5 x 50 mm)
• Rocker Switch Operating Voltage - 12 or 24 V

In the Box:

• One (1) Flat Rocker Switch
• Two (2) Stainless Steel tabs
• Two (2) actuators w/23' (7 M) cables
• Instruction Manual

*Sold as a Kit

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

• Actuator Type: Electro-Mechanical
• Construction: Stainless Steel
• Box Dimensions: 4"H x 5"W x 6"L WT: 27.05 lbs

Owner's Manual (pdf)
Brochure (pdf)

Lectrotab XKA Stainless Steel Trim Tab Kit w/Rocker Switch - 12 x 9 [XKAF12X9]

XKA Stainless Steel Trim Tab Kit with Rocker Switch - 12 x 9

The Lectrotab stainless steel trim tab design provides unmatched strength and reliability.  All stainless steel tabs are fabricated with a continuous rolled and pinned hinge.  This design eliminates the need for welding.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design.  The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation.  The actuator assembly is packaged in a non-metallic permanently sealed housing.  No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out.  The actuator incorporates either a standard or low profile transom mounting bracket.

Lectrotab's new flat rocker switch has improved sealing to prevent water entry and recessed rocker to prevent breaking.  Specially designed to provide and "instant stop" circuit when the switches are released, thus preventing actuator over-run.

Features:

• Continuous rolled and pinned hinge provides added strength and eliminates the need for welding
• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
• Utilizes internal pressure equalization system
• Internal brake system prevents unwanted tab movement when under way or backing down
• Quiet operation
• Actuators are fully load tested to push 1000 lbs of force
• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:

• Trim Tab Size (L x W) - 12" x 9" (30 x 23 cm)
• Boat Length - 18' to 29' (5.5 to 8.5 M)
• Trim Tab Material - 12 gauge, 304 Stainless Steel
• Actuator DC Voltage - 12 V
• Actuator Stroke Length - 2.25" (57 mm)
• Actuator Cable Length  - 23' (7 M)
• Actuator Vertical Height - 11.875" (302 mm)
• Rocker Switch Dimensions (W x H) - 3.125" x 3.25" (79.4 x 82.5 mm)
• Rocker Switch Mounting Hole Cutout (H x W) - 2.25" x 2" (57.5 x 50 mm)
• Rocker Switch Operating Voltage - 12 or 24 V

In the Box:

• One (1) Flat Rocker Switch
• Two (2) Stainless Steel tabs
• Two (2) actuators w/23' (7 M) cables
• Instruction Manual

*Sold as a Kit

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

• Actuator Type: Electro-Mechanical
• Construction: Stainless Steel
• Box Dimensions: 4"H x 5"W x 6"L WT: 17.05 lbs

Owner's Manual (pdf)
Brochure (pdf)

Bennett Marine One Box Dual Station f/Hydraulic Systems [OBI9000H-DS]

One Box Dual Station for Hydraulic Systems

An attractive and user-friendly, stand-alone helm control without the need for an external control unit. The functionality and “brains” of the control unit are engineered directly into a single, space-saving, and simple-to-install keypad. Reduce bow rise, plane faster, and correct listing.

Features:

• Convenient “All Up” and “All Down” buttons
• Trim tab position LEDs always show you where your tabs are
• Auto tab retraction (tabs retract up when the ignition is powered off)
• Easy-to-install single lock nut design
• Compatible with other trim tab system brands
• Backed by Bennett’s outstanding customer support
• Engineered for Ease of Installation

What's In The Box?

• (1) Integrated Helm Display
• (2) Actuator Upper Hinges with 6′ sensors
• (2) 20′ Extension sensor cables (Deutch to Deutch)
• (1) Installation instructions
• Required hardware for various retrofit options

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Intellian Land Mobile Mount f/OW10HX Compact Panels [OW-6018]

Land Mobile Mount for OW10HX Compact Panels

Land Mobile Mount Adapter for OW10Hx is optimized for quick and efficient vehicle installations, while supporting all major vehicle crossbar systems. Compatible with both the Compact and Enterprise series, this mount adapter will secure your antenna for the roughest of land mobile terrains.

Power A PA2-MA Electro-Mechanical Actuator Shirt/Thro

The electromechanical actuators can control any mechanical interface (throttle shift or trolling) through MACHZero and C8 mechanical cables.

Specifications:

• IP protection: IP66
• Length: 320mm (12.6")

Power A EM11 - Electronic Control Package

Power A Mark II™ Electronics Control Systems

• Private Protocol can bus for data transmission
• Connection of multiple stations up to 4 controls
• Modular System
• Direct communication w/electronic engines (SAE J 1939 or NMEA 2000)
• Plug'N Play connectivity
• Automatic engines synchronization
• Dock Assist
• Fully programmable shift delays

EM11 Package Includes:

• 42009G - (1) PA2-B1 - Single Lever Control w/o Trim
• 42017F - (1) PA2-CU - Control Unit w/LED Diagnostic & Programming Screen
• 42018H - (1) PA2-VT - V-Throttle f/0-5V Interface
• 42027J - (1) PA2-MA - Electro-Mechanical Actuator f/Shift and/or Throttle
• 42028L - (1) PA2-NT - Network Terminator
• 42029N - (1) T-VT2 - Universal V-Throttle Cable 6.5'
• 42053K - (1) M-P3 - Main Power Supply Cable, 9.8'
• 71021K - (1) CAN-10 - Network Connection Cable 33'
• 73639T - (2) CAN-1 - Network Connection Cable 3'
