Flat Foot Recessed Tray for Minn Kota Foot Pedals

This recessed tray for your foot petal control reduces back pain due to better posture.  It also increases safety due to less obstacles to trip over.  Durable 1/8" aluminum tray with a baked on black crinkle powder coat finish. Includes drain line, clamp, stainless steel screws, cutting template and installation instructions.

S245 Portable Vacuum Long Hose Kit with (1) RH356A & (1) RH359A Skorpio Sander

The special structure of the RUPES Professional 45-liter vacuum cleaner ensures resistance and manageability during movement in all kinds of workplaces. Their shape enables maximum expansion of the filter bag.

To ensure maximum suction efficiency in all working conditions, the S2 version extractor has an automatic filter cleaning system. By means of a system of valves, the air flow passing through the filters is inverted in alternation every 30 seconds, thus ensuring efficient cleaning action. This innovative system allows the operator to continue working without any interruption or reduction in the extraction process. All the vacuum cleaners belonging to the S2 Series are equipped with a double panel filter, reaching a total of 1sq. meter of filter surface area.

The main features of S2 vacuum cleaners are:

• Support Plane: all the SYSTAINER T-LOC modular systems. Therefore, the system can be used as a real working station, where it is possible to store tools and related equipment.
• Electric & pneumatic connection: both the S245EP & S245EPL versions are equipped with a double pneumatic connection, to use 1 pneumatic tool.
• All vacuum cleaners, in both the L and M versions, are supplied with a filter made of materials that are certified for class M dust extraction.
• Dust class L - pneumatic tool - Automatic filter cleaning - Liquids sensor

Specifications:

• Power: 1x1200W
• Weight: 13,5kg
• Max Power Socket: 1x2400W
• Vacuum (mmH2O): 2000
• Noise dB(A): 67
• Tank Capacity: 45L
• Air Flow: 3400L/min
• Filter Surface: 1
• Tools: 2
• Working Pressure (bar): 6
• Max Compressed Air Capacity (l/min): 1450
• ID Vacuum Nozzle: 50mm
• Filter: Paper

RH356A Skorpio Sander

The Random orbital palm pneumatic sander with 150mm pad, Available as non-vacuum (RH356), central vacuum (RH356A) or self-generated vacuum (RH356T) models, the 6mm Skorpio III pneumatic dual-action palm sander provides a perfect balance between fast material removal, user comfort, and control. It is RUPES’ most popular dual-action palm sander.

All Skorpio III sanders feature engineered motors designed to maximize torque, even with low or inconsistent airflow.

RH359A Skorpio Sander

The Random orbital palm pneumatic sander with 150mm pad, Available as non-vacuum (RH359), central vacuum (RH359A) or self-generated vacuum (RH359T) models, the 9mm Skorpio III pneumatic dual-action palm sander reduces the time typically needed to sand a surface by up to 50% making it is RUPES’ fastest cutting dual-action palm sander.

All Skorpio III sanders feature engineered motors designed to maximize torque, even with low or inconsistent airflow.

Specifications:

• Type: Tools & Accessories

S245 Portable Vacuum Long Hose Kit

Clean working environments, better results, improved efficiency, reduced abrasive costs, and increased operator safety are just some of the numerous benefits that a professional vacuum dust extraction system by RUPES can provide for your business. With class-leading performance and innovation, the S-Series delivers incredible value for shops of virtually any size.

The Rupes S245 is a professional, high-capacity mobile dust extraction vacuum system designed for sanding applications in environments like auto body shops. It features a 45-liter (11.8-gallon) container, an automatic filter cleaning system, and multiple connections for tools, including electrical and pneumatic outlets. The S245 also integrates with RUPES' SYSTAINER T-LOC modular systems for storage and organization.

Anti-Static Coaxial Hose

Each S245 dustless sanding system comes standard with a highly flexible anti-static coaxial hose for use with pneumatic sanders. At nearly 16.5 feet long, the standard hose provides a generous amount of movement and is well-suited for most shops. Longer hoses and other hose options are available for purchase from your authorized RUPES distributor.

Features:

• High capacity: Holds 45 liters (11.8 gallons) of dust and debris before the filter bag needs to be changed.
• Automatic filter cleaning: An internal system periodically reverses the airflow to clean the filters, ensuring consistent suction without interrupting the workflow.
• Tool connectivity: Includes an electrical outlet for up to two tools (2400W max) and two pneumatic outlets for tools.
• Designed for compatibility with various sanders and systems, using a universal slip-fit vacuum coupler and standard pneumatic connections.
• Modular design: Features a support plane and quick-connection ports for SYSTAINER T-LOC modular systems, allowing for tool and accessory storage.
• Mobility: Has a robust construction and maneuverable design for easy transport around a workplace.
• Dust class: Rated for Dust Class L and M, ensuring a cleaner and safer work environment.

Specifications:

• Type: Tools & Accessories
• Box Dimensions: 20"H x 23"W x 45"L WT: 54 lbs

S245 Portable Vacuum Long Hose Kit with (2) RH356A Skorpio Sander

The special structure of the RUPES Professional 45-liter vacuum cleaner ensures resistance and manageability during movement in all kinds of workplaces. Their shape enables maximum expansion of the filter bag.

To ensure maximum suction efficiency in all working conditions, the S2 version extractor has an automatic filter cleaning system. By means of a system of valves, the air flow passing through the filters is inverted in alternation every 30 seconds, thus ensuring efficient cleaning action. This innovative system allows the operator to continue working without any interruption or reduction in the extraction process. All the vacuum cleaners belonging to the S2 Series are equipped with a double panel filter, reaching a total of 1sq. meter of filter surface area.

The main features of S2 vacuum cleaners are:

• Support Plane: all the SYSTAINER T-LOC modular systems. Therefore, the system can be used as a real working station, where it is possible to store tools and related equipment.
• Electric & pneumatic connection: both the S245EP & S245EPL versions are equipped with a double pneumatic connection, to use 1 pneumatic tool.
• All vacuum cleaners, in both the L and M versions, are supplied with a filter made of materials that are certified for class M dust extraction.
• Dust class L - pneumatic tool - Automatic filter cleaning - Liquids sensor

Specifications:

• Power: 1x1200W
• Weight: 13,5kg
• Max Power Socket: 1x2400W
• Vacuum (mmH2O): 2000
• Noise dB(A): 67
• Tank Capacity: 45L
• Air Flow: 3400L/min
• Filter Surface: 1
• Tools: 2
• Working Pressure (bar): 6
• Max Compressed Air Capacity (l/min): 1450
• ID Vacuum Nozzle: 50mm
• Filter: Paper

RH356A Skorpio Sander

The Random orbital palm pneumatic sander with 150mm pad, Available as non-vacuum (RH356), central vacuum (RH356A) or self-generated vacuum (RH356T) models, the 6mm Skorpio III pneumatic dual-action palm sander provides a perfect balance between fast material removal, user comfort, and control. It is RUPES’ most popular dual-action palm sander.

All Skorpio III sanders feature engineered motors designed to maximize torque, even with low or inconsistent airflow.

Specifications:

• Type: Tools & Accessories

S245 Portable Vacuum Long Hose Kit with RH359A Skorpio Sander

The special structure of the RUPES Professional 45-liter vacuum cleaner ensures resistance and manageability during movement in all kinds of workplaces. Their shape enables maximum expansion of the filter bag.

To ensure maximum suction efficiency in all working conditions, the S2 version extractor has an automatic filter cleaning system. By means of a system of valves, the air flow passing through the filters is inverted in alternation every 30 seconds, thus ensuring efficient cleaning action. This innovative system allows the operator to continue working without any interruption or reduction in the extraction process. All the vacuum cleaners belonging to the S2 Series are equipped with a double panel filter, reaching a total of 1sq. meter of filter surface area.

The main features of S2 vacuum cleaners are:

• Support Plane: all the SYSTAINER T-LOC modular systems. Therefore, the system can be used as a real working station, where it is possible to store tools and related equipment.
• Electric & pneumatic connection: both the S245EP & S245EPL versions are equipped with a double pneumatic connection, to use 1 pneumatic tool.
• All vacuum cleaners, in both the L and M versions, are supplied with a filter made of materials that are certified for class M dust extraction.
• Dust class L - pneumatic tool - Automatic filter cleaning - Liquids sensor

Specifications:

• Power: 1x1200W
• Weight: 13,5kg
• Max Power Socket: 1x2400W
• Vacuum (mmH2O): 2000
• Noise dB(A): 67
• Tank Capacity: 45L
• Air Flow: 3400L/min
• Filter Surface: 1
• Tools: 2
• Working Pressure (bar): 6
• Max Compressed Air Capacity (l/min): 1450
• ID Vacuum Nozzle: 50mm
• Filter: Paper

RH359A Skorpio Sander

The Random orbital palm pneumatic sander with 150mm pad, Available as non-vacuum (RH359), central vacuum (RH359A) or self-generated vacuum (RH359T) models, the 9mm Skorpio III pneumatic dual-action palm sander reduces the time typically needed to sand a surface by up to 50% making it is RUPES’ fastest cutting dual-action palm sander.

All Skorpio III sanders feature engineered motors designed to maximize torque, even with low or inconsistent airflow.

Specifications:

• Type: Tools & Accessories

S245 Portable Vacuum Long Hose Kit with RH356A Skorpio Sander

The special structure of the RUPES Professional 45-liter vacuum cleaner ensures resistance and manageability during movement in all kinds of workplaces. Their shape enables maximum expansion of the filter bag.

To ensure maximum suction efficiency in all working conditions, the S2 version extractor has an automatic filter cleaning system. By means of a system of valves, the air flow passing through the filters is inverted in alternation every 30 seconds, thus ensuring efficient cleaning action. This innovative system allows the operator to continue working without any interruption or reduction in the extraction process. All the vacuum cleaners belonging to the S2 Series are equipped with a double panel filter, reaching a total of 1sq. meter of filter surface area.

The main features of S2 vacuum cleaners are:

• Support Plane: all the SYSTAINER T-LOC modular systems. Therefore, the system can be used as a real working station, where it is possible to store tools and related equipment.
• Electric & pneumatic connection: both the S245EP & S245EPL versions are equipped with a double pneumatic connection, to use 1 pneumatic tool.
• All vacuum cleaners, in both the L and M versions, are supplied with a filter made of materials that are certified for class M dust extraction.
• Dust class L - pneumatic tool - Automatic filter cleaning - Liquids sensor

Specifications:

• Power: 1x1200W
• Weight: 13,5kg
• Max Power Socket: 1x2400W
• Vacuum (mmH2O): 2000
• Noise dB(A): 67
• Tank Capacity: 45L
• Air Flow: 3400L/min
• Filter Surface: 1
• Tools: 2
• Working Pressure (bar): 6
• Max Compressed Air Capacity (l/min): 1450
• ID Vacuum Nozzle: 50mm
• Filter: Paper

RH356A Skorpio Sander

The Random orbital palm pneumatic sander with 150mm pad, Available as non-vacuum (RH356), central vacuum (RH356A) or self-generated vacuum (RH356T) models, the 6mm Skorpio III pneumatic dual-action palm sander provides a perfect balance between fast material removal, user comfort, and control. It is RUPES’ most popular dual-action palm sander.

All Skorpio III sanders feature engineered motors designed to maximize torque, even with low or inconsistent airflow.

Specifications:

• Type: Tools & Accessories
• Box Dimensions: 20"H x 23"W x 45"L WT: 54 lbs

PRO-6 6-Transducer Ultrasonic Antifouling System - 24VDC

The PRO-6 is a six-transducer system that can add antifouling protection to hulls, drives, rudders, stabilizers, and more. This single system can provide ultrasonic antifouling protection for hulls up to 75ft in length or can be combined with additional systems for larger vessels. The PRO-6 is also the perfect solution for vessels under 60' with pods or stern drives to have one system covering the entire vessel.

The PRO-6 Package Includes:

• 1x PRO-6 Control Module with Integrated Power Cable
• 6x Submersible Ultrasonic Transducers with 15ft of Cable
• 3x Additional 15ft Extension Cables
• 2x Epoxy Kits
• 1x Printed Installation and Operation Manual

Specifications:

• Voltage: 24V DC
• Average Power Draw: 1.5Ah
• Transducer Strength: 120W
• Cable Length: 15ft per transducer
• Frequency: Multi-frequency ultrasonic sweep algorithm (20kHz-42kHz)

Installation Overview:

• No Thru-Hulls: The transducers are installed directly on top of your hull surface using the provided epoxy.
• Install Signal Cable: Each transducer has 15ft of connected signal cable. This ensures an easy installation from the transducer to the controller.
• Mounting the Controller: The BPS-1 Controller runs off of your boat's existing house battery. It is a simple 2-wire connection the the battery bank or distribution panel.
• Enjoy Worry-Free Boating: That's it! Your BPS system is done! Let our advanced antifouling protection do its job. Each system is programmed with a multi-frequency sweeping algorithm to ensure that your boat has the best antifouling protection on the market.

How the Technology Works:

• The Mechanism: The system emits high-frequency ultrasonic waves through the hull & drives, creating a microscopic barrier of resonance.
• Targeting the Root Cause: These ultrasound waves repel biofouling from attaching to your hull before they ever have the chance to attach.
• Eco-Friendly: 100% chemical-free. It does not leach pollutants into the water, making it safe for marinas with strict environmental regulations.
• Marine Life Safe: The frequencies used are outside the hearing range of marine mammals and humans.

Benefits:

• Fuel Efficiency: A clean hull creates less drag. Maintaining hull smoothness ensures you get the best possible MPG and top speed.
• Reduced Maintenance Costs: Significantly extends the life of your bottom paint and reduces the frequency of expensive haul-outs.
• Diver Savings: Reduces the need for monthly hull cleaning services.
• Hard-to-Reach Protection: Unlike paint, ultrasonic waves resonate through complex parts that are difficult to paint and clean, such as stern drives, sea strainers, and rudders.
• Fit & Forget: Once installed, the system runs automatically with zero scheduled maintenance required.

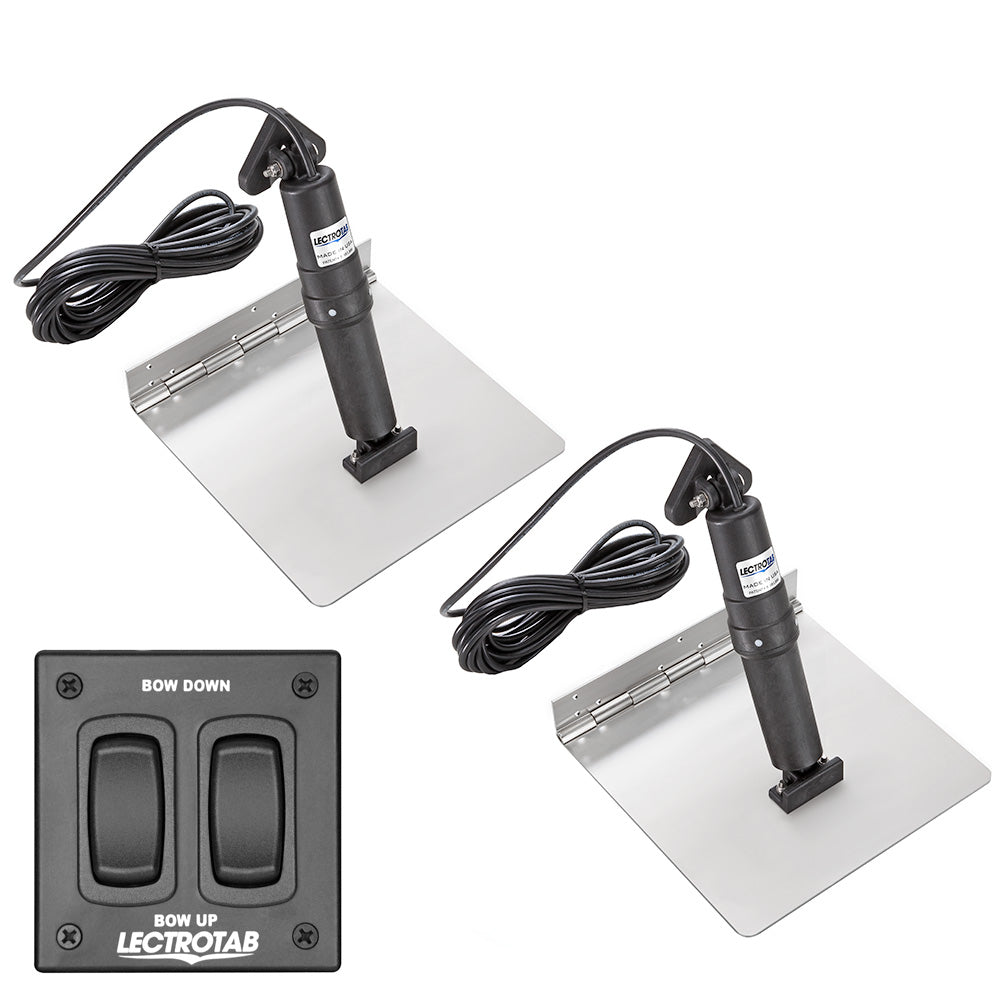

Lectrotab XKA Stainless Steel Trim Tab Kit w/Rocker Switch - 12 x 12 [XKAF12X12]

XKA Stainless Steel Trim Tab Kit with Rocker Switch - 12 x 12

The Lectrotab stainless steel trim tab design provides unmatched strength and reliability.  All stainless steel tabs are fabricated with a continuous rolled and pinned hinge.  This design eliminates the need for welding.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design.  The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation.  The actuator assembly is packaged in a non-metallic permanently sealed housing.  No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out.  The actuator incorporates either a standard or low profile transom mounting bracket.

Lectrotab's new flat rocker switch has improved sealing to prevent water entry and recessed rocker to prevent breaking.  Specially designed to provide and "instant stop" circuit when the switches are released, thus preventing actuator over-run.

Features:

• Continuous rolled and pinned hinge provides added strength and eliminates the need for welding
• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
• Utilizes internal pressure equalization system
• Internal brake system prevents unwanted tab movement when under way or backing down
• Quiet operation
• Actuators are fully load tested to push 1000 lbs of force
• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:

• Trim Tab Size (L x W) - 12" x 12" (30 x 30 cm)
• Boat Length - 18' to 32' (5.5 to 9.5 M)
• Trim Tab Material - 12 gauge, 304 Stainless Steel
• Actuator DC Voltage - 12 V
• Actuator Stroke Length - 2.25" (57 mm)
• Actuator Cable Length  - 23' (7 M)
• Actuator Vertical Height - 11.875" (302 mm)
• Rocker Switch Dimensions (W x H) - 3.125" x 3.25" (79.4 x 82.5 mm)
• Rocker Switch Mounting Hole Cutout (H x W) - 2.25" x 2" (57.5 x 50 mm)
• Rocker Switch Operating Voltage - 12 or 24 V

In the Box:

• One (1) Flat Rocker Switch
• Two (2) Stainless Steel tabs
• Two (2) actuators w/23' (7 M) cables
• Instruction Manual

*Sold as a Kit

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

• Actuator Type: Electro-Mechanical
• Construction: Stainless Steel
• Box Dimensions: 4"H x 5"W x 6"L WT: 19.25 lbs
