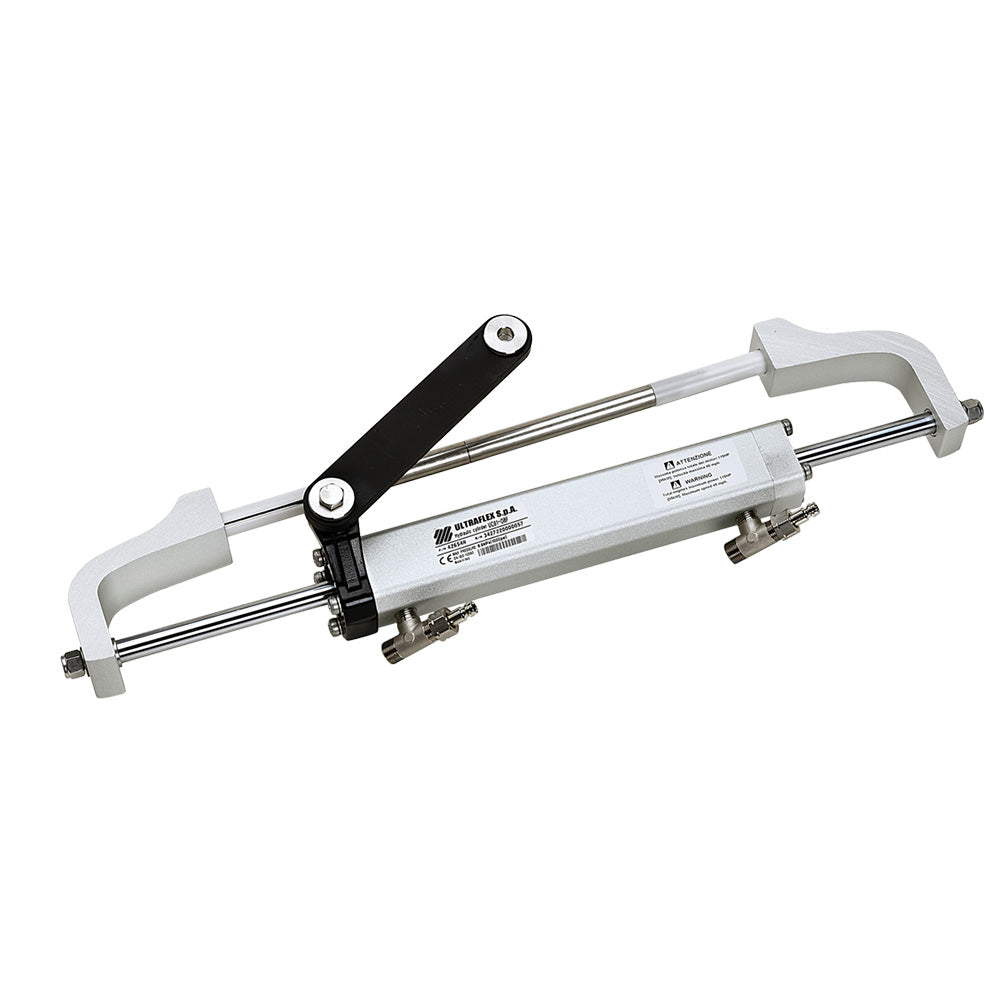

Uflex UC81-OBF Front Mount Outboard Cylinder [UC81-OBF]

UC81-OBF Front Mount Outboard Cylinder

UC81 OBF – Balanced: the number of turns lock-to-lock is equal port to starboard and vice-versa. Front-mount cylinder for outboard engines up to 115 hp. Replaceable end caps.

Specifications:

• Volume: 81 cc - 4.9 cu. in
• Output force: 222 kg (489 lbs)
• Inside diameter: 27,4 mm (1.08")
• Stroke: 186 mm (7.3")
• Fittings for high-pressure flex hose: 3/8"
• Bleed fittings: DN5 quick connect

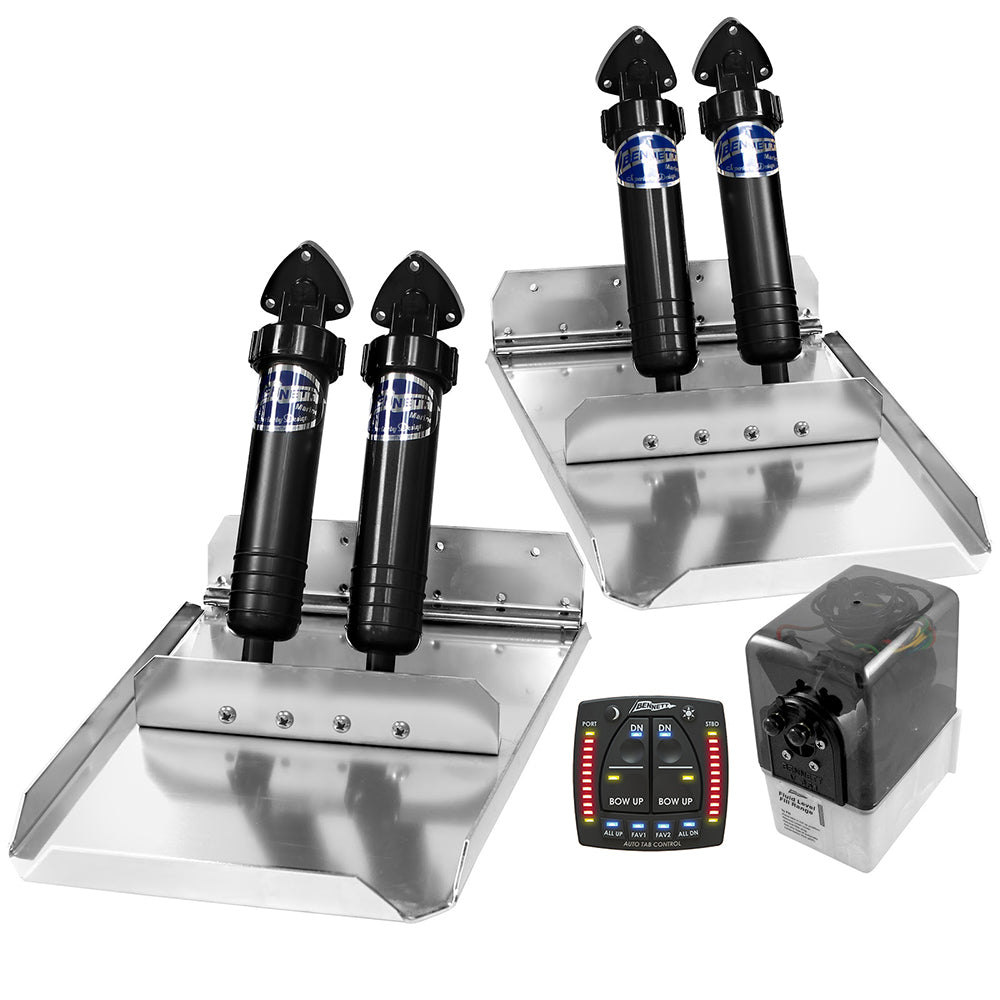

ST16ATP Performance Sport Tab System w/Auto Trim Pro

12" x 16"

Manufactured with heavy-gauge reinforced stainless steel and powerful hydraulic actuators. Performance Tabs combine strength, durability, and good looks to achieve your boat’s maximum potential.

Features Include:

• Get on plane fast and stay on plane at intermediate speeds
• Correct listing and uneven loads
• Reduce pounding and eliminate porpoising
• Improve visibility and safety
• Low maintenance with long-term value

Kits Include:

• (1) Control unit (ATP)
• (2) Trim plane assemblies
• (2-4) Hydraulic actuators
• (1) Hydraulic power unit
• Hydraulic tubing and hardware

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Construction: Stainless Steel
• Actuator Type: Hydraulic
• Box Dimensions: 6"H x 15"W x 32"L WT: 35 lbs

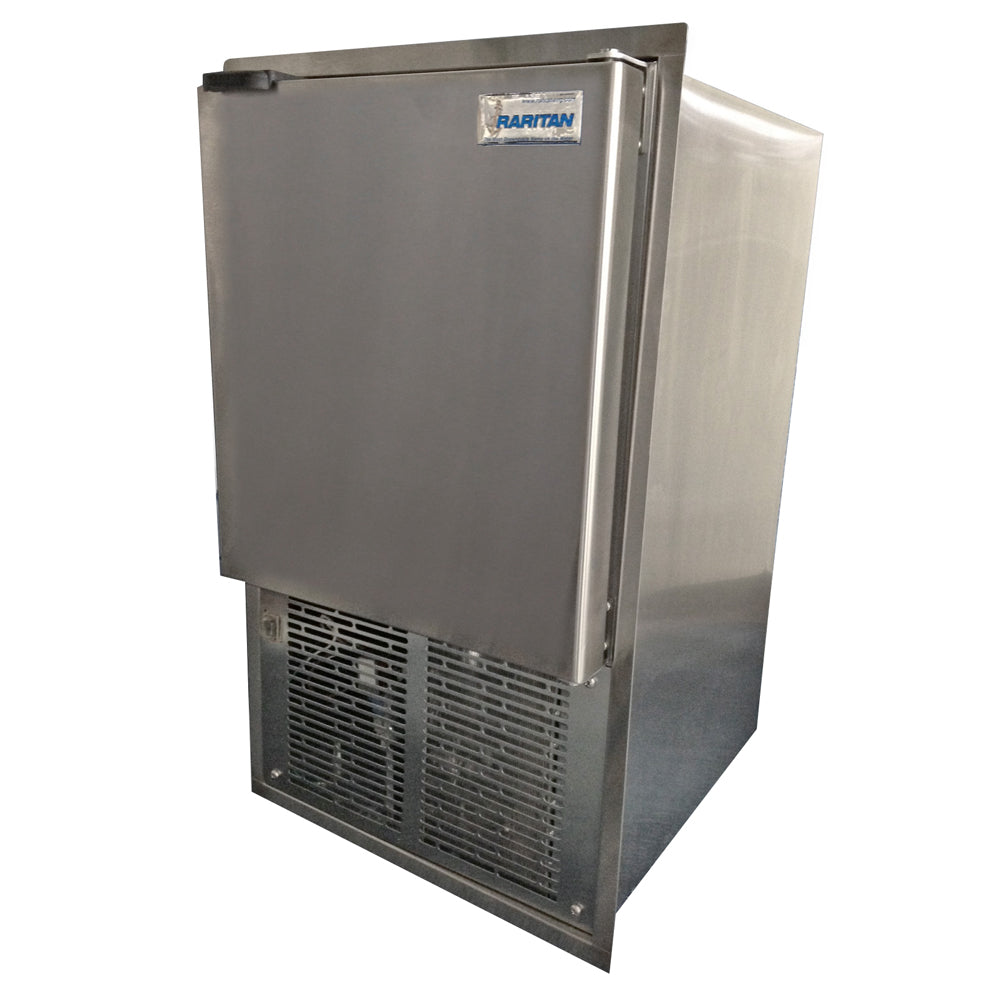

Icerette Automatic Ice Cube Maker - Stainless Steel - 115V

The marine environment is harsh for household-type appliances. Keeping that harshness in mind, Raritan developed and designed our Ice-maker so that it would withstand the vigor of any marine environment. Fully Automatic Ice Making Machine Specifically Designed and Built for the Marine Applications.

Features:

• Heavy duty Solid Stainless Steel cabinet and door built to last in harsh marine environments
• Improved controls for more efficient operation
• Corrosion resistant marine-grade hardware, hinges, fittings, and fasteners
• A positive catch door latch keeps the door closed and allows maximum ice production while keeping harmful bacteria and molds out
• Built-in door prop lets you manually defrost or air dry your unit when power is off
• Produces up to 21 lbs of ice every day using only 2-3/4 gallons of water
• Stores of up to 11 lbs of crescent ice (1/2" W x 3/4" H x 2-1/2" L)
• Each unit is assembled by hand and individually tested
• Back by Raritan's 1-Year Limited Warranty and legendary technical support team

Easy Installation:

• No drain is required makes it easy and inexpensive to install
• Only requires a 1/4" outside diameter water line
• Does not require additional hinge clearance for the door swing
• Includes flange
• No additional side space is required for ventilation

Technical Specifications:

• Voltage Range - 104V - 127V
• Water Pressure Operating Range (PSI) - 20 - 120
• Cutout Dimensions - 14 3/8” W x 24 5/8” H x 15 1/4” D
• Ice Production Capacity - 21lbs/24 hrs
• Ice Storage Capacity - 11lbs removable ice bucket

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Whitecap Cockpit Table w/Folding Leaves  4 Cupholders - Teak [61392C]

Cockpit Table with Folding Leaves & 4 Cupholders - Teak

Features:

• Table top dimensions - Closed - 16"W x 24"L, Open - 32"W x 24"L
• Brass hinges/stainless steel hardware
• The drink holder holds 4 glasses or 2 glasses and pair of binoculars
• Fold-down support leg - 30-1/2" long
• Installs on 7/8" or 1" diameter tubing pedestal steering guards with included nylon steering pedestal clamps (P/N 61395)
• Installs without drilling pedestal guard
• 2-brass barrel bolts (P/N 585B) included securing table leaves when the table is in the folded position
• The unit can be removed for storage by removing clamps
• Natural finish
• Some assembly required

MasterDrive Steering System - Single Station/Twin Cylinder Kit - UC128TS - SVS 1 & UC128TS - SVS 1P Cylinders

The MasterDrive power-assisted outboard steering system delivers effortless steering for the most demanding applications, regardless of speed or torque conditions.

Features:

• Eliminates torque at the steering wheel
• Three different selectable levels of power give the driver the desired feeling on the wheel (PATENTED)
• Automatically reverts to manual mode in case of power loss
• High efficiency, low Amp draw, low noise

Kit Includes:

• UH40-F - MasterDrive 40cc front mount helm
• UCMD - MasterDrive user interface
• UPMD - MasterDrive power unit 12V DC
• UC128TS - SVS 1 front mount cylinder
• UC128TS - SVS 1P front mount cylinder
• OIL 15 - 4 quarts

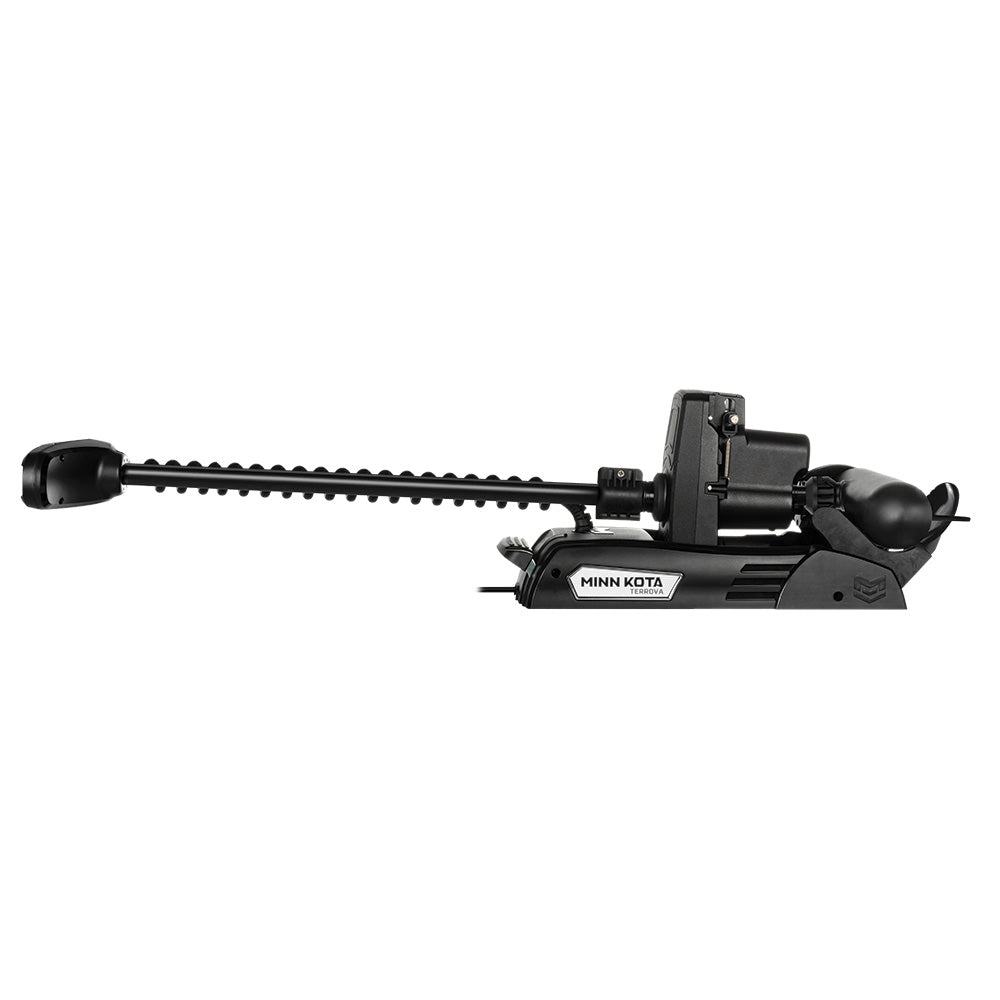

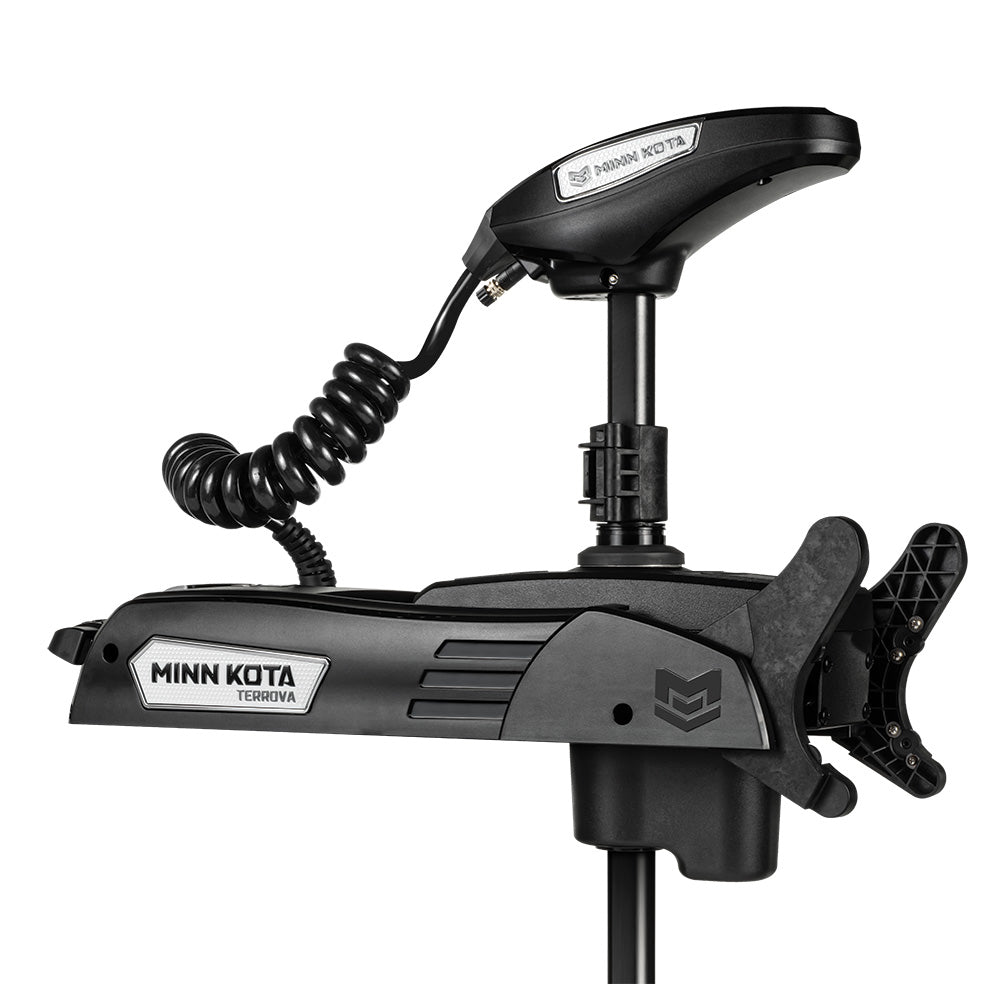

Minn Kota Riptide Terrova QUEST 90/115 Trolling Motor w/Wireless Remote - 24/36V - 90/115LBS - 100" - Black [1363913]

Riptide Terrova is the hardest-working first mate you’ll meet. One that doesn’t take breaks and doesn’t know the meaning of the term "day off". With available shaft lengths up to 100", Riptide Terrova comes ready to go where other trolling motors won't. The QUEST series of dual 24/36 volt brushless trolling motors was designed for anglers who demand the best from their equipment – even in the harshest environments. With a reinforced motor and mount, more advanced GPS functionality than ever, and even an eco mode to extend battery life, Terrova is ready to tackle the elements and feels right at home on bigger boats than ever before.

QUEST Series

This 24/36V dual-voltage brushless motor has been completely re-imagined from the ground up with updates to mounts, propellers, lift assist systems, drive motors, and software – taking the world’s greatest trolling motors and redesigning them to outperform everything else on the water for years to come.

Stow/Deploy Lever

Press this lever on the mount, and fall-away ramps will effortlessly slide your trolling motor into the water. When you're ready to move, Auto Park helps the motor stow effortlessly by orienting the lower unit to the perfect stow position automatically.

Advanced GPS Trolling System

The most trusted navigation system in fishing. Riptide Terrova uses GPS to control your trolling motor with unrivaled features that keep you on the fish. Set Spot-Locks, record paths, control speed and steering, and more. Minn Kota makes boat positioning and controls automatic, and you can take command from the easy-to-read LCD screen of Riptide Terrova's wireless remote.

Part of the One-Boat Network

Out of the box, Minn Kota motors come standard with everything you need to connect to select Humminbird fish finders, unlocking more advanced navigation features without needing to remember additional adapters or complicated setup procedures.

Spot-Lock with Jog

Spot-Lock will hold you in place with unparalleled GPS accuracy. Available on GPS systems that are pre-installed, Spot-Lock gives you the power to stay right on top of any productive fishing spot, without touching your trolling motor. With the included heading sensor, you can use Jog to move your Spot-Lock location five feet in any direction.

Drift Mode

Automatically engages speed and course control simultaneously, meaning anglers no longer need to depend on drift socks, kicker motors, or manual operation to control speed over water – even in the heaviest wind and current.

Real-time Battery Monitoring

Check battery power levels while the motor is in use, a real-time "time until empty" display monitor, with a notification when battery power is reduced to 20% to prompt users to enter "Eco-mode," which can reduce current draw to extend battery life.

Digital Maximizer™

Provides up to 5 times longer run time on a single battery charge. This variable-speed trolling motor lets users dial in the exact speed, and they deliver only as much power as they need, helping to conserve your battery for a full day of fishing.

Indestructible Composite Shaft — Guaranteed for Life

At the core of your Minn Kota trolling motor is an indestructible composite shaft. It's a Minn Kota exclusive, and they guarantee it for life.

Mobile App Compatibility

Control your motor directly from your Apple® or Android™ device with the One-Boat Network app. You get quick command of speed, steering, Spot-Lock, and AutoPilot — plus the ability to update software.

Specifications:

• Trolling Motor Color: Black
• For Use In: Saltwater
• Shaft Length: 100"
• Voltage: 24/36
• One-Boat Network Compatible: Yes
• QUEST Series: Yes
• Spot-Lock: Yes
• Foot Pedal Style: Not included
• Control: Wireless remote
• Auto/Stow Deploy: No
• Power Trim: No
• Power Steering: Yes
• Lift-Assist: No
• Bowguard: No
• Wireless Remote: Yes
• AutoPilot: Yes
• CoPilot: No
• Speeds: Variable
• Digital Maximizer: Yes
• Battery Meter: Yes
• Max Amp Draw: 58
• Mount Style: Bolt-On
• Mounting Location: Bow-mount
• Motor Style: Electric-steer
• Prop: Power Prop (MKP-40)
• Warranty: Two-year warranty

Specifications:

• Autopilot: Yes
• Built-In Transducer: No
• Control Type: Wireless Remote
• Mounting Style: Bow
• Salt Water/Fresh Water: Salt
• Series: Riptide Terrova
• Shaft Length (Inches): 100"
• Thrust (Pounds): 90/115 lbs
• Voltage - Input Range (Volts): 24v or 36v
• Box Dimensions: 15"H x 19"W x 118"L WT: 110 lbs
• UPC: 029402052998

Owner's Manual (pdf)

NavPod StarPod 3 System f/Starlink Gen3 Standard Dish *Starlink Dish Not Included [SPS3000]

StarPod 3 System for Starlink Gen3 Standard Dish *Starlink Dish Not Included

StarPod Systems are designed to provide a strong, sturdy, and attractive mounting solution for Starlink on board large boats with a hardtop, radar arch, or other flat mounting surface. The waterproof housing incorporates a 10-degree polyethylene wedge that is CNC routed to fit the internal swivel tube and allows the dish to be rotated to optimize the view of Starlink satellites if necessary. The angle also facilitates rainwater runoff that can degrade a signal if water accumulates on a flat-mounted Starlink dish. The StarTower base is solidly built with 8 mm thick aluminum and powder coated with a high gloss white finish. The bottom base of the StarTower measures 7″ square.

What are the benefits of mounting a Starlink dish in a StarPod?

StarPod protects Starlink and completely encloses the Starlink antenna in a very sturdy and attractive waterproof housing. Our testing has proven that there is no degradation of the signal while inside the thermoformed acrylic-capped ABS housing.

Mounting a Starlink dish inside a StarPod provides additional protection from water intrusion, just as all NavPods have done for other Marine Electronics for over 25 years.

How do I mount a Starlink dish inside a StarPod?

The kickstand base that comes with a Starlink Gen3 Standard dish is not utilized when mounting inside a StarPod; only the dish itself is used. The initial Starlink setup process should be completed before mounting the dish inside a StarPod (refer to your Starlink setup/installation guide for this process). Once the initial Starlink setup process is complete, the dish can be mounted inside the StarPod housing (using the instructions and hardware included with the StarPod).

Features:

• Structural Rigidity – The Gen3 enhancements now include a thicker gauge acrylic capped ABS material that improves strength and provides better structural rigidity. This thicker material allows for a larger waterproof seal. The better the structural rigidity, the less flexing when tightening, and the more uniform the pressure on the seal. The excellent UV stability of the acrylic is combined with the durability of the ABS. The acrylic cap protects the ABS from UV and its potentially damaging effects on plastic.
• Waterproof Seal – All NavPods are manufactured with a double gasket system providing an excellent watertight seal. This seal provides the best protection for your Marine Electronics. StarPods are made to withstand the harshest wet offshore boating conditions. Gen3 enhancements include a thicker external silicone gasket with an improved flush fit. The internal Poron Microcell Polyurethane gasket is now 50% thicker and is not subject to a “compression set” like many rubber compounds. This is important when you need to open the NavPod in the future to service your electronics. The gasket will continue to do its job.
• Nickel Chrome-Plated Stainless Steel – We use all 316 stainless steel hardware that is supplied with each NavPod. Large round-head tamper-resistant screws have deeper sockets for matching to the NavPod wrench for better holding ability when tightening. The Nickel Chrome-Plated Stainless Steel tamper-resistant screws provide security combined with a little style!
• Commitment to Quality – We stand behind our commitment by offering a 10-year warranty on all new NavPods, including the StarPod.

Specifications:

• Starlink Gen3 Standard dish; 23.04 x 15.07″ dish size
• Starlink Dish Not Included

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

ATLAS™ 8" Set Back Hydraulic Jack Plate Polished

Rated for engines up to 300hp or up to 625 pounds dry weight.

5 REASONS YOU SHOULD CHOOSE THE ATLAS™ HYDRAULIC JACK PLATE

• ATLAS™ is truly the best hydraulic jack plate in the world
• ATLAS™ is factory installed by more boat manufacturers than any other plate
• ATLAS™ is used by more professional fisherman than any other hydraulic jack plate
• ATLAS™ is the #1 selling hydraulic plate in the world – sold & serviced by more outlets
• ATLAS™ hydraulic actuator is made in the U.S.A. vs. our competitors being from China

6 WAYS THE ATLAS™ CHANGED HYDRAULIC JACK PLATES FOREVER

• ATLAS™ is made by T-H Marine/CMC, who were the FIRST to offer an actuator inside the jack plate – the competition copied
• ATLAS™ was the first plate to offer predrilling for shallow water anchors – the competition copied
• ATLAS™ was the first and only plate that did not require regular grease lubrication – the competition design cannot do that
• ATLAS™ was the first plate to include a heavy duty safety cable to protect boaters from engine entering cockpit upon failure
• ATLAS™ was the first plate to offer a very simple actuator replacement in the field
• ATLAS™ was the first major development in hydraulic jack plates in over a decade – spurring hydraulic jack plate improvement

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
