Boat Outfitting - Trim Tab Accessories

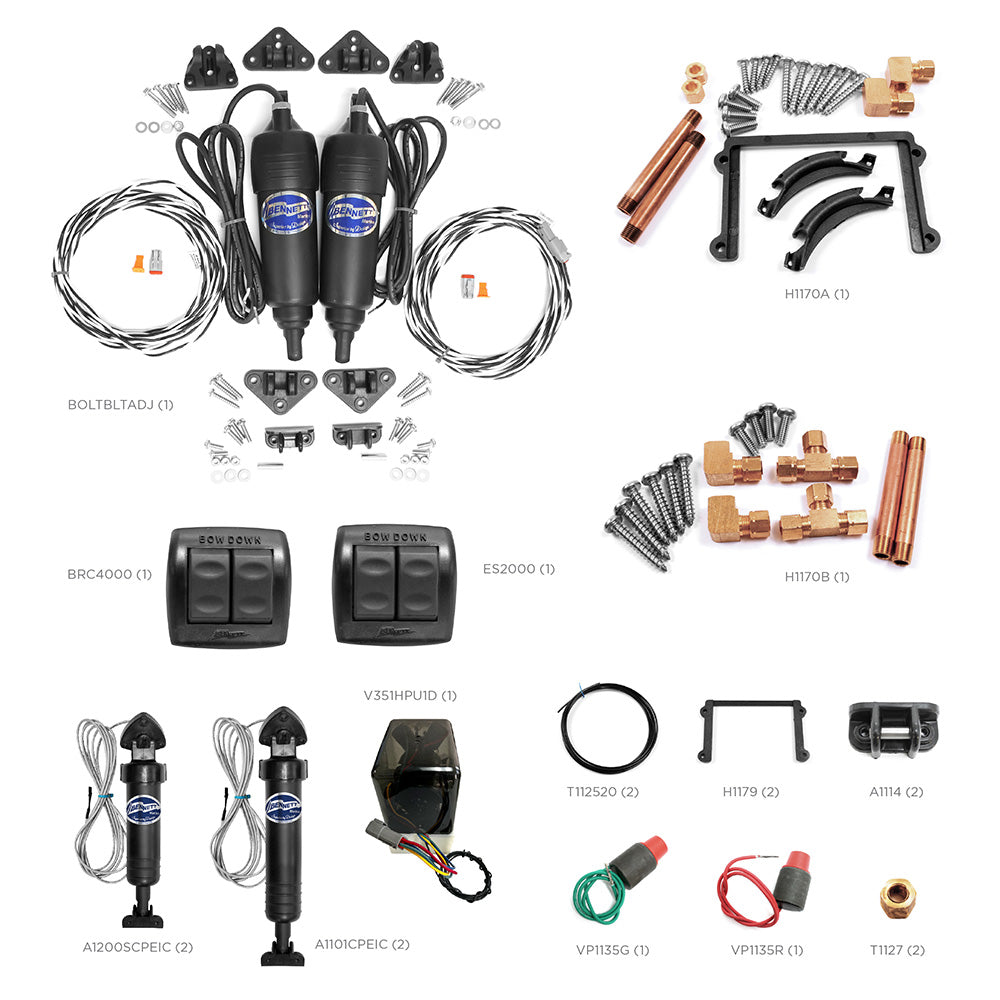

Dealer Service Kit

Exclusively offered to stocking dealers and repair yards, Bennett’s Dealer Service Kit is an affordable way to acquire the most common Bennett trim tab system replacement parts.

What's Included?

• (QTY / 1) BOLTBLTADJ – BOLT Electric System (Not Including Tabs)
• (QTY / 1) BRC4000 – Rocker Switch for Electric Systems
• (QTY / 1) ES2000 – Rocker Switch for Hydraulic Systems
• (QTY / 2) A1101CPEIC – Hydraulic Actuator with Sensor
• (QTY / 2) A1200SCPEIC – Short Hydraulic Actuator with Sensor
• (QTY / 1) V351HPU1D – Hydraulic Power Unit 12V w/Deutsch Connector
• (QTY / 1) H1170A Hardware Kit A
• (QTY / 1) H1170B Hardware Kit B
• (QTY / 2) T112520 20′ Hydraulic Tubing
• (QTY / 2) H1179 Mounting Bracket for HPU
• (QTY / 2) A1114 Lower Hinge with Hinge Pin
• (QTY / 1) VP1135G Solenoid Valve (G)
• (QTY / 1) VP1135R Solenoid Valve (R)
• (QTY / 2) T1127 Nut with Ferrule

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Electric Dual-Station Helm Control

The OBI9000E-DS is Bennett Marine’s electric dual-station helm control system, engineered for boats requiring trim tab operation from two control locations. Designed specifically for dual-station applications, this system includes the integrated control logic needed to ensure seamless communication between upper and lower helm stations.

Unlike the single-station OBI9000E single-station keypad, the OBI9000E-DS is purpose-built for dual-station functionality from the start—eliminating the risks associated with unsupported wiring modifications or aftermarket configurations. When paired with the OBIDISPBRG second station display, it delivers precise, synchronized trim tab control across both helm positions.

Ideal for multi-helm vessels, the OBI9000E-DS provides reliable performance, simplified installation, and full compatibility within the Bennett OBI system ecosystem.

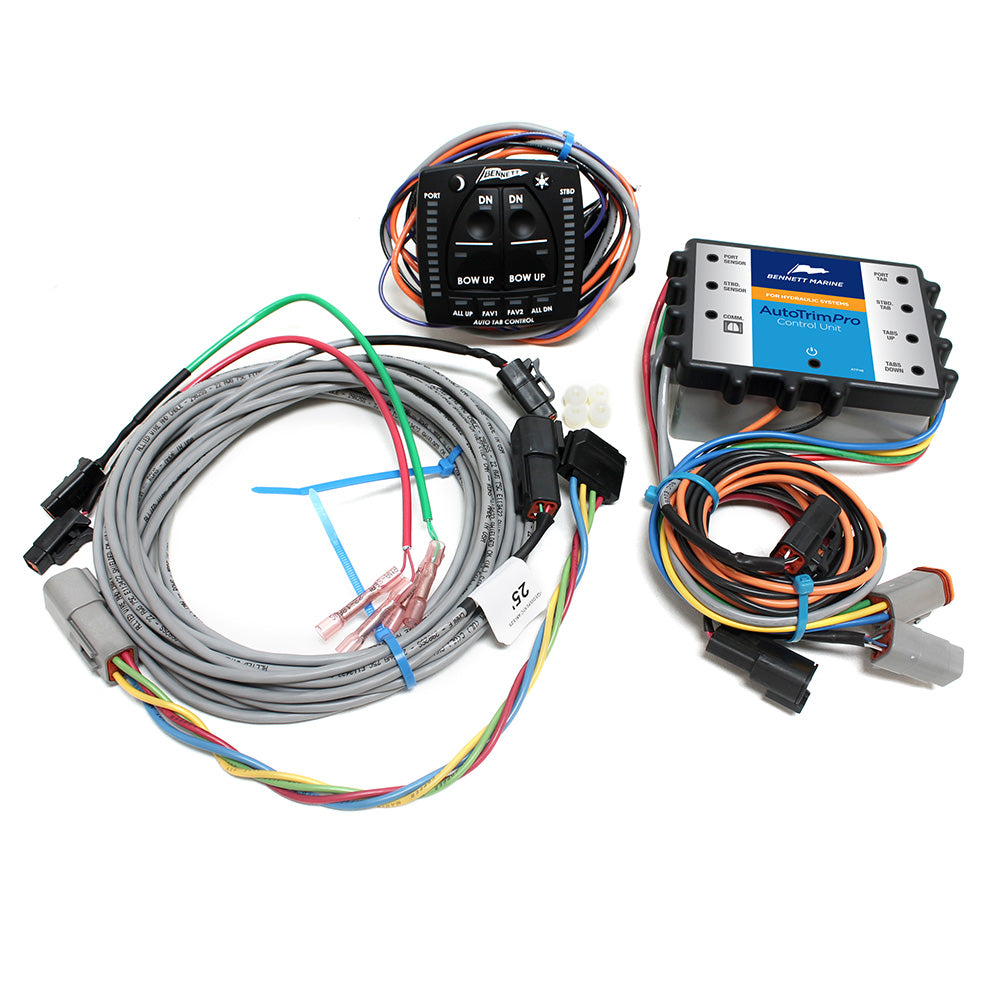

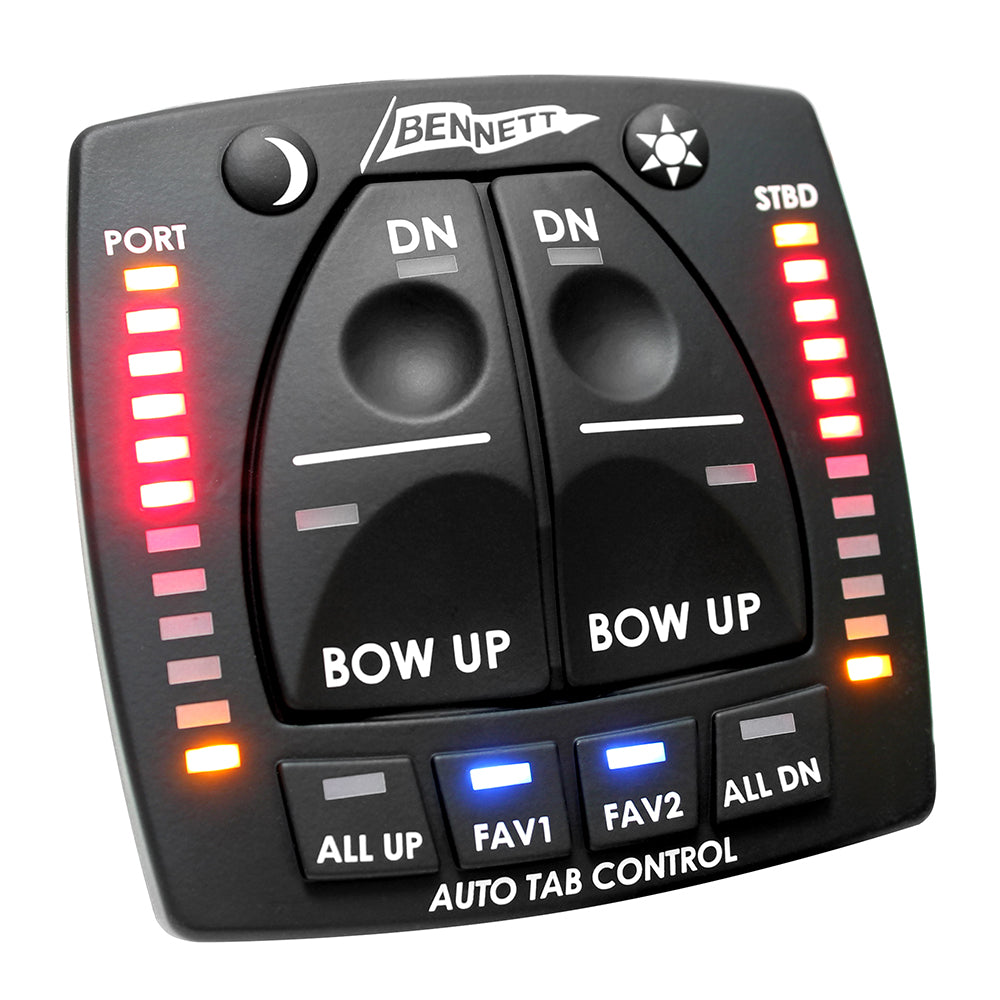

Bennett AutoTrim Pro f/Hydraulic Trim Tabs [AP000A1HA]

AutoTrim Pro for Hydraulic Trim Tabs

An all-in-one trim tab control system combining a myriad of essential features… Automatic Trim Tab Control, Manual Trim Tab Control, and Trim Tab Position Indication… all combined into an easy-use, space-saving keypad. It’s like cruise control for your tabs

AutoTrim Pro automatically levels the pitch and roll of your boat, adjusting your trim tabs to changes in vessel speed, sea conditions and shifting weight. …And you can take full manual control anytime with the touch of a button. It’s like cruise control for your boat.

This affordable solution can be added to most existing trim tab systems – electric or hydraulic. It’s fully compatible with all Bennett systems, and most others. Installation is simple and straight forward.

Features & Benefits

Auto Trim Tab Control: Easily store 2 favorite automatic running attitudes in memory. See real-time AutoTrim Pro adjustments with LED indication

Manual Tab Control with Automatic Override: Just push anywhere on the bow up or down buttons and you’re in full manual command of the trim tabs

OEM Customizable Response Time: Configure response time to engine power, hull type, actuator type or trim tab size

Trim Tab Position Indication: L.E.D. indicators equipped with adjustable light intensity

One-touch Manual Full Up and Full Down Buttons: Down for hole-shot, up for running in a following sea, or coming into the beach

Automatic Tab Retraction: Retract trim tabs to full up position when the boat’s ignition is switched off, protecting tabs during storage and trailering

Includes:

• ATP Display
• 25' Helm Keypad Wire Extension
• ATP Hydraulic Control Box
• Pump Extension Cable
• Port Sensor Extension Cable
• Stbd Sensor Extension Cable
• AutoTrim Pro Installation & Users Guide - Hydraulic
• AutoTrim Pro Quick Start Card - Hydraulic

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

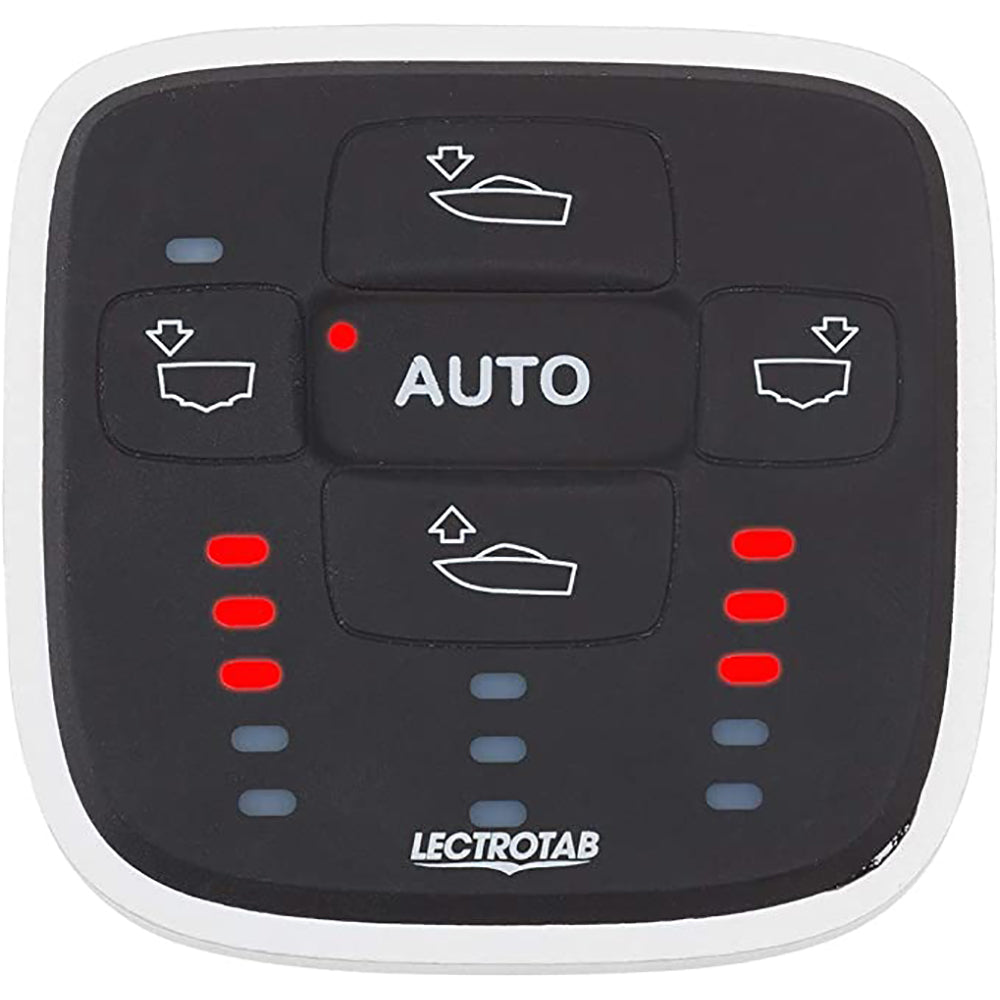

Automatic Leveling Control - Single Actuator

As wind shifts, water conditions change or passengers move about, the Automatic Leveling Control (ALC) will automatically adjust your trim tabs to maintain a level boat for a more comfortable and enjoyable ride.

The ALC automatically corrects the roll from side to side and pitch from fore to aft to enhance your boating experience and improve your fuel economy.

Features:

• Microprocessor based automatic leveling trim tab control with LED tab position indicators
• Controls roll and pitch automatically
• Internal GPS - no GPS antenna or network required
• Automatically adapts to varying sea conditions
• Completely sealed and waterproof (IP68)
• UV protected - will not deteriorate in sunlight
• Prevents automatic corrections while turning
• Designed for planing and semi displacement hulls larger than 20ft
• Actuators connect directly to ALC-1 display panel (no external power module box required)
• Automatically dims LED tab position indicators in darkness and brightens in sunlight
• Automatically retracts trim tabs when boat is off plane or using optional key switch connection

Technical Specifications:

• Display Color - Black
• Actuators per Tab Plate - One (1)
• Dimensions (W x H) - 3.15" x 3.07" (80 x 77 mm)
• Mounting Hole Cutout - 2" (50 mm)
• Operating Voltage - 12 or 24 V

*Sold as an Individual

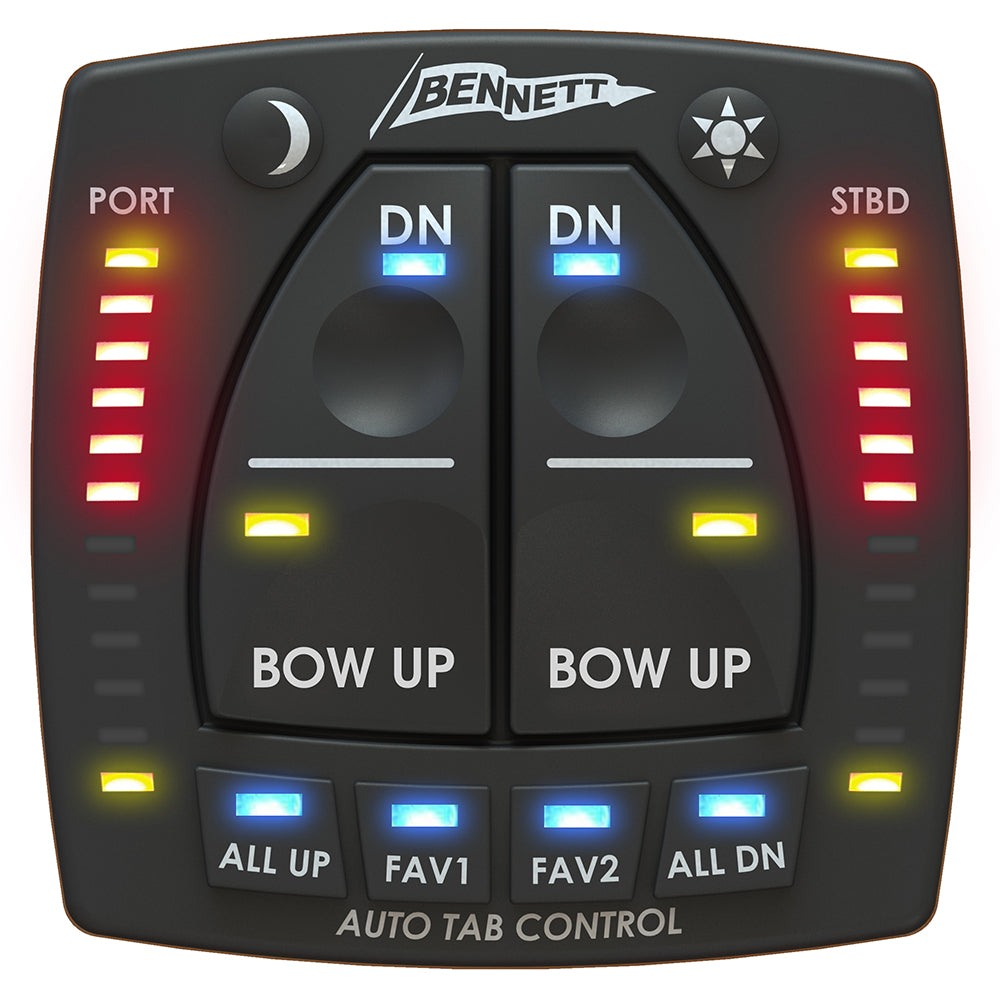

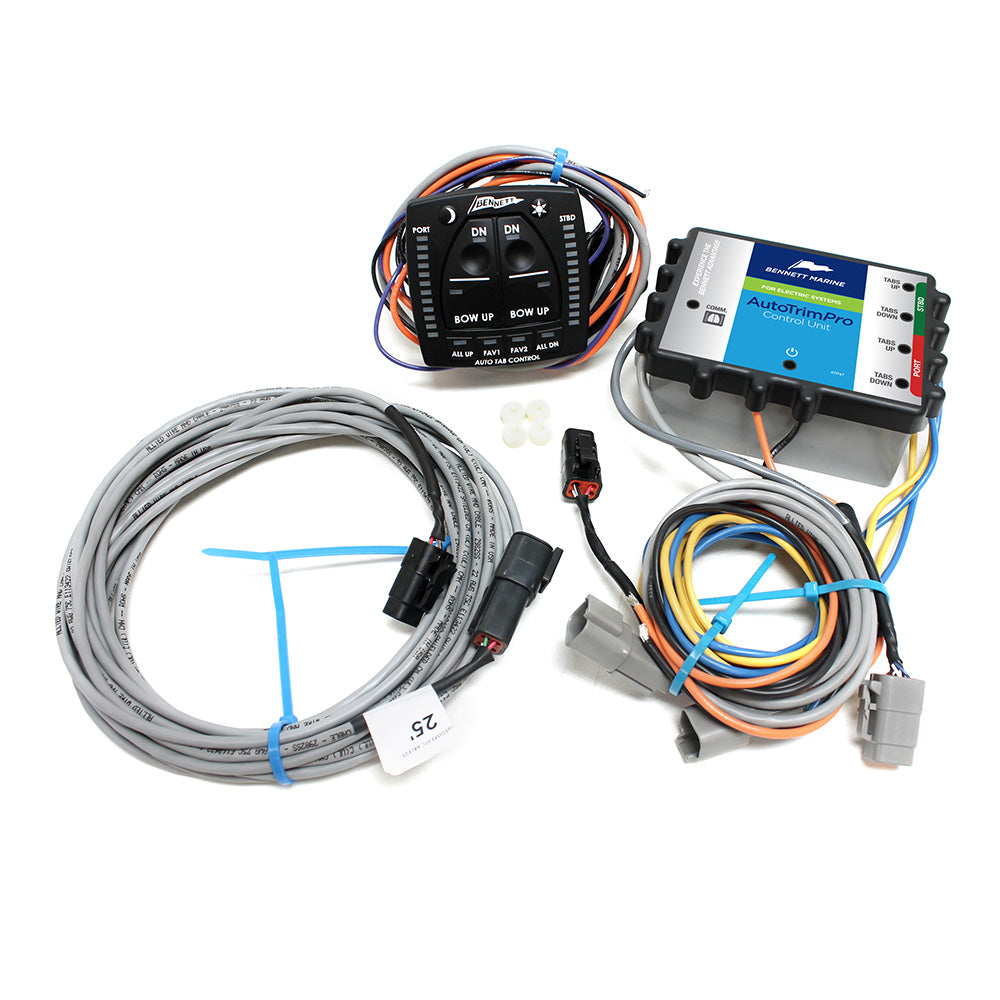

Bennett AutoTrim Pro f/Electric Trim Tabs [AP000A1BC]

AutoTrim Pro for Electric Trim Tabs

An all-in-one trim tab control system combining a myriad of essential features… Automatic Trim Tab Control, Manual Trim Tab Control, and Trim Tab Position Indication… all combined into an easy-use, space-saving keypad. It’s like cruise control for your tabs

AutoTrim Pro automatically levels the pitch and roll of your boat, adjusting your trim tabs to changes in vessel speed, sea conditions and shifting weight. …And you can take full manual control anytime with the touch of a button. It’s like cruise control for your boat.

This affordable solution can be added to most existing Electric trim tab systems. It’s fully compatible with all Bennett systems, and most others. Installation is simple and straightforward.

Features & Benefits

Auto Trim Tab Control: Easily store 2 favorite automatic running attitudes in memory. See real-time AutoTrim Pro adjustments with LED indication

Manual Tab Control with Automatic Override: Just push anywhere on the bow up or down buttons and you’re in full manual command of the trim tabs

OEM Customizable Response Time: Configure response time to engine power, hull type, actuator type or trim tab size

Trim Tab Position Indication: L.E.D. indicators equipped with adjustable light intensity

One-touch Manual Full Up and Full Down Buttons: Down for hole-shot, up for running in a following sea, or coming into the beach

Automatic Tab Retraction: Retract trim tabs to full up position when the boat’s ignition is switched off, protecting tabs during storage and trailering

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Quick Guide (pdf)
Owner's Manual (pdf)

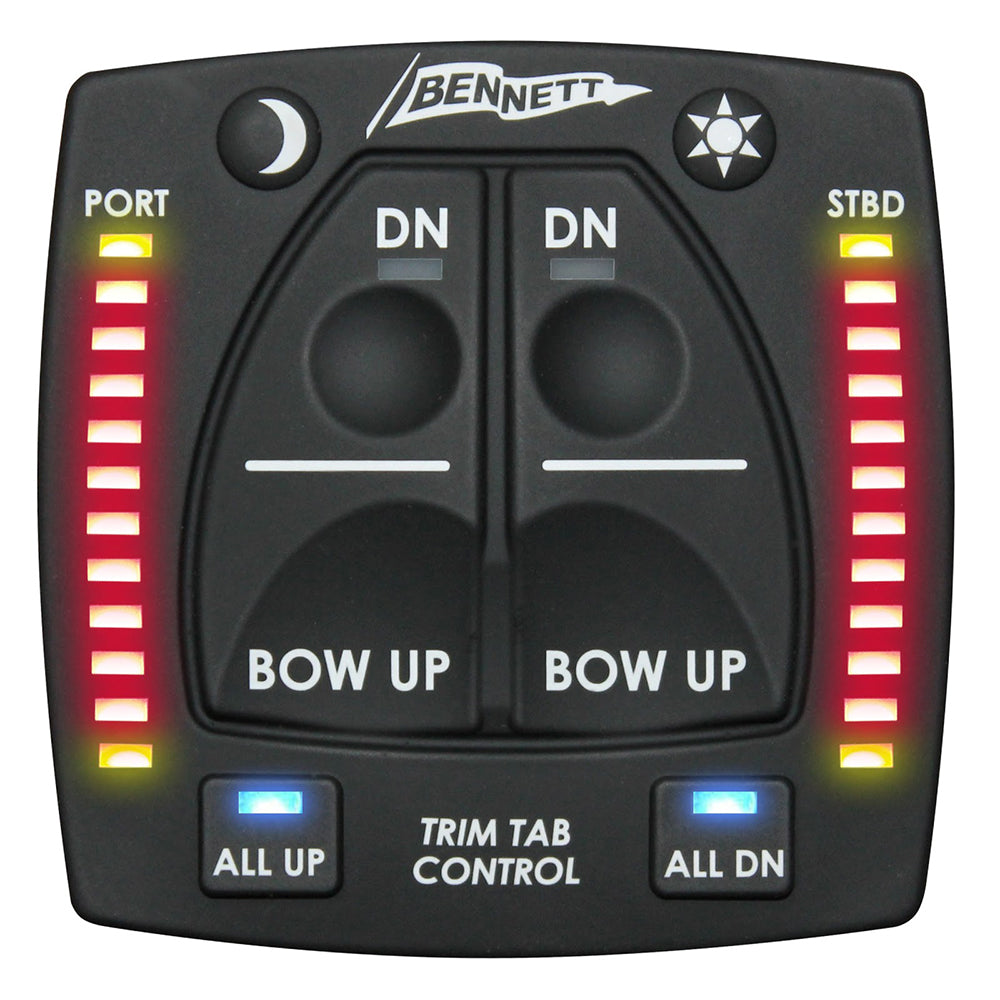

Bennett Marine One Box Dual Station f/Hydraulic Systems [OBI9000H-DS]

One Box Dual Station for Hydraulic Systems

An attractive and user-friendly, stand-alone helm control without the need for an external control unit. The functionality and “brains” of the control unit are engineered directly into a single, space-saving, and simple-to-install keypad. Reduce bow rise, plane faster, and correct listing.

Features:

• Convenient “All Up” and “All Down” buttons
• Trim tab position LEDs always show you where your tabs are
• Auto tab retraction (tabs retract up when the ignition is powered off)
• Easy-to-install single lock nut design
• Compatible with other trim tab system brands
• Backed by Bennett’s outstanding customer support
• Engineered for Ease of Installation

What's In The Box?

• (1) Integrated Helm Display
• (2) Actuator Upper Hinges with 6′ sensors
• (2) 20′ Extension sensor cables (Deutch to Deutch)
• (1) Installation instructions
• Required hardware for various retrofit options

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
