NaviTech™ Power Steer Assembly

Now you can get the same technology used to drive the most powerful and best handling cars for your boat.

Taking the latest technology from the automotive industry, Ultraflex has combined Electronic Power Steering (EPS) used in the most popular cars in the world with the latest mechanical steering helms and Mach 90 high efficiency steering cable to deliver unprecedented performance.

Perfectly silent, the system draws minimal power and furtheremore is very easy to install.

The NaviTechTM also has Integrated System Monitoring (ISM) which detects certain operating conditions including the number of cycles and notifies the end user with a vibration signal in the steering wheel if the cable needs to be changed. Never before has a steering system monitored it’s own operating conditions and given the driver diagnostic feedback.

For specific applications Ultraflex can use programmable software to dial in the hand wheel effort and steering output to meet specific performance objectives of boat builders.

A Complete Steering System Consists of:

• Power assisted steering helm:  T91NAV - 43207S - single cable steering helm
• Tilt mechanism: X66 - 40613M - Tilt mechanism for NaviTechTM tilt mount helms. Tilt range of 48° and five locking positions
• Steering cable: M90 Nav (patented)
• ATTENTION: M90 Nav steering cable is suitable for use also with T71FC, T72FC, T73NRFC, T81FC, T82FC, T83NRFC, T91, T93ZT, T101, T103ZT. Ultraflex steering helms. M66 will not fit the following Uflex helms: T91, T93ZT, T101, T103ZT.
• Optional steering wheel

 Features and Technical Specifications:

• Automotive steering effort and response
• 100% Balanced steering - Port to Starboard / Starboard to Port
• Silent Operation
• Monitoring software with integrated cycle counter, for a correct cable replacement.
• By haptic feedback on the wheel, the system is able to signal anomalies, such as:
• Excessive cable load
• Stuck cable alarm
• Field tested for over 3 years
• 16 Nm of assist torque capability
• Able to tune on center and end of travel torque effort
• Consistent steering assist through all vessel speed ranges
• Applied in leading automotive application since 2011. Nowadays automotive production is over 1 million units per year
• 10 - 15 VDC
• 8 - 15 A nominal current during steering maneuvers
• Supplied with 10 ft electrical harness. It needs a 40 A fuse (to be ordered separately).
• Validation for Marine application is per CE, ABYC P17, P27, and ISO 25197
• NMMA Type Acceptance Completed

Limit of Applications:

• Outboard engines:
• Up to 150 hp, maximum 50 mph, no jackplates

SilverSteer™ Front Mount Outboard Hydraulic Steering System w/ UC130-SVS-1 Cylinder

Specifically designed for high performance and high torque applications, the SilverSteer features a 1,500 psi helm and keyed bullhorns on the cylinder for maximum durability and minimal lost motion.

Whether a bass boat, flats boat or tournament-style offshore fishing boat, the SilverSteer™ will deliver smooth, responsive, and precise steering.

Adjustable boss style fittings allow precise hose routing without the risk of breaking the fittings by over-tightening or leaking fittings from loosening during installation, a common problem on competing cylinders.

UC130-SVS-1 Cylinder is ideal for applications with limited space or potential pinch-points between the cylinder and transom (i.e., when tilting the motor all the way up or motors mounted on a jack plate).  The end-mounted fittings keep the hydraulic hoses free and clear.

SilverSteer™ Package Kit Contains:

• UC130-SVS-1 Cylinder (fittings face out from the ends of the cylinder)

SilverSteer™ Outboard Hydraulic Tilt Steering System - UC130 V2

Specifically designed for high performance and high torque applications, the SilverSteer features a 1,500 psi helm and keyed bullhorns on the cylinder for maximum durability and minimal lost motion.

Whether a bass boat, flat boat or tournament style offshore fishing boat, the SilverSteer™ will deliver smooth, responsive and precise steering.

Adjustable boss style fittings allow precise hose routing without the risk of breaking the fittings by overtightening or leaking fittings from loosening during installation, a common problem on competing cylinders.

*This system includes the UP25T-SVS and the X70-SVS

Yamaha 150-200 Zero Torque Feedback Tiller

The four stroke outboard engines are generating high torque loads which can make tiller steered boats difficult to steer. The Uflex® ZTF Tiller systems eliminate propeller torque at the tiller handle when the driver is not actively changing direction.

Using a hydraulic valve, the propeller torque is locked from reaching the tiller handle unless the driver pushes or pulls on the end of the handle, at which point the valve opens and allows for active steering movements.

Now you can drive your tiller steered boat in comfort, saving your energy for reeling in fish rather than effort to just get to your favorite fishing spot.

SilverSteer™ Universal Front Mount Outboard Hydraulic Tilt Steering System - 1500PSI V2

Specifically designed for high performance and high torque applications, the SilverSteer features a 1,500 psi helm and keyed bullhorns on the cylinder for maximum durability and minimal lost motion.

Whether a bass boat, flat boat or tournament style offshore fishing boat, the SilverSteer™ will deliver smooth, responsive and precise steering.

Adjustable boss style fittings allow precise hose routing without the risk of breaking the fittings by overtightening or leaking fittings from loosening during installation, a common problem on competing cylinders.

SilverSteer™ Package Kit Contains:

• UC130/2-SVS cylinder

SilverSteer™ Universal Front Mount Outboard Hydraulic Steering System w/ UC128-SVS-1 Cylinder

Specifically designed for high performance and high torque applications, the SilverSteer features a 1,500 psi helm and keyed bullhorns on the cylinder for maximum durability and minimal lost motion.

Whether a bass boat, flat boat or tournament style offshore fishing boat, the SilverSteer™ will deliver smooth, responsive and precise steering.

Adjustable boss style fittings allow precise hose routing without the risk of breaking the fittings by over-tightening or leaking fittings from loosening during installation, a common problem on competing cylinders.

SilverSteer™ Package Kit Contains:

• UC128-SVS-1 Cylinder (fittings are on the face of the cylinder, between the cylinder and boat's transom)

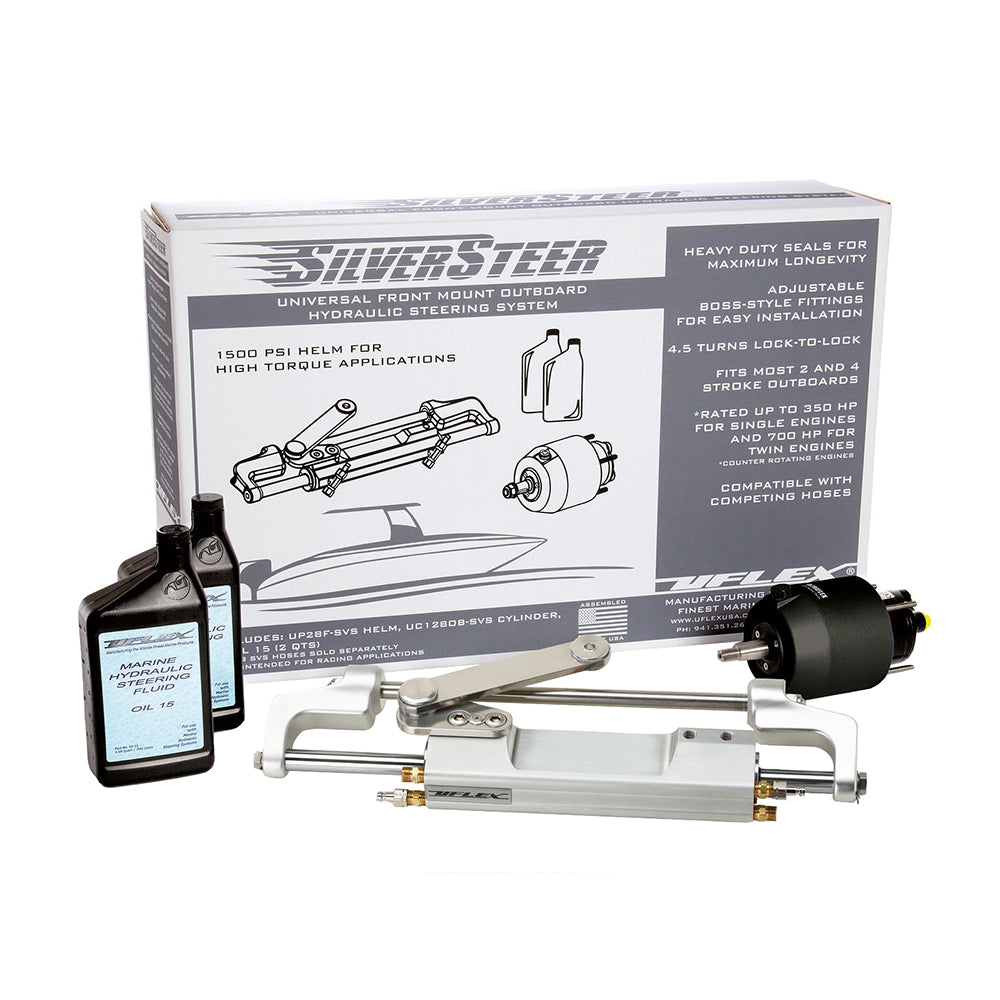

SilverSteer™ 2.0 High-Performance Front Mount Outboard Hydraulic Steering System - 1500PSI FM V2

Specifically designed for high performance and high torque applications, the SilverSteer features a 1,500 psi helm and keyed bullhorns on the cylinder for maximum durability and minimal lost motion.

Whether a bass boat, flat boat or tournament style offshore fishing boat, the SilverSteer™ will deliver smooth, responsive and precise steering.

Adjustable boss style fittings allow precise hose routing without the risk of breaking the fittings by overtightening or leaking fittings from loosening during installation, a common problem on competing cylinders.

Features:

• Horsepower: Single engine, 350hp, dual engine, 600hp
• Helm: 7.3 cu in/120cc
• Hose: 1,500psi
• Turns Lock-to-Lock: 4.3
• Included Equipment: UP25 F-SVS front mount helm pump, UC128/2-SVS front mount outboard cylinder, hydraulic oil (two qts.), Hose kits sold separately
• Steering Wheel: Sold separately
• Steering Wheel Shaft: 3/4" tapered
• Warranty: Two years

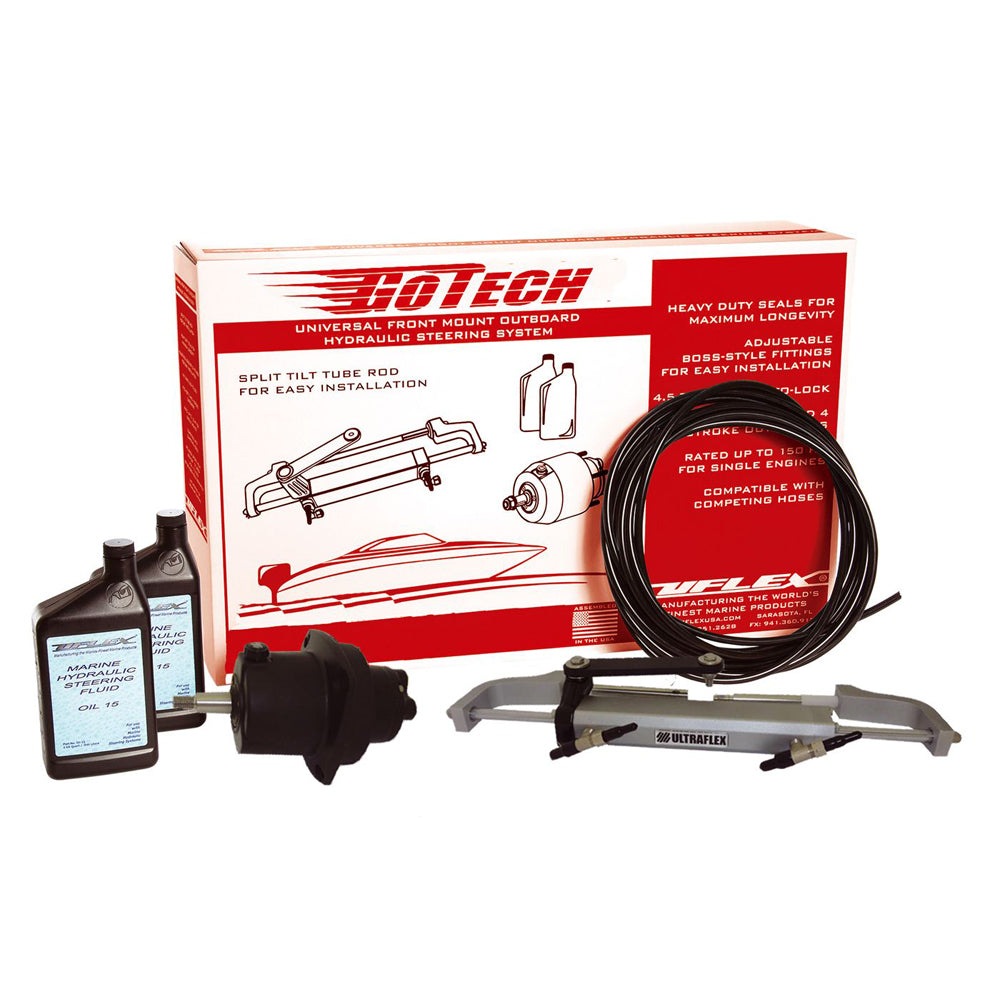

UFlex GoTech 1.0 Universal Front Mount Outboard Hydraulic Steering System [GOTECH 1.0]

GoTech™ 1.0 Universal Front Mount Outboard Hydraulic Steering System

For outboard single engine up to 115hp.

Kit Contains:

• UP18 - Intermediate helm pump
• UC81-OBF - Front mount outboard cylinder
• OL 150 - Hydraulic oil - 2 litres
• KIT OB-GT-60 - Hose kit dia, 1/4" 6M(19.7") length

Brochure (pdf)
