Boat Outfitting - Steering Systems

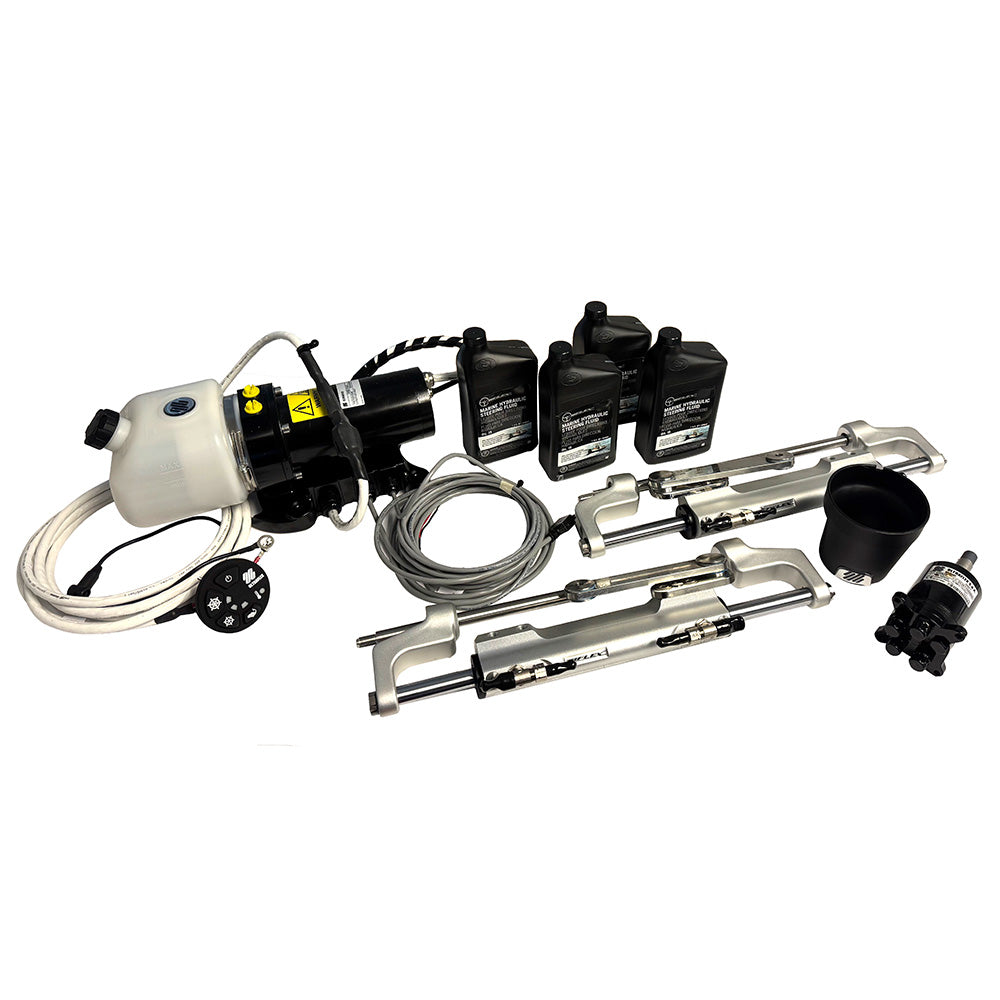

MasterDrive Steering System - Single Station/Twin Cylinder Kit - UC128TS - SVS 1 & UC128TS - SVS 1P Cylinders

The MasterDrive power-assisted outboard steering system delivers effortless steering for the most demanding applications, regardless of speed or torque conditions.

Features:

• Eliminates torque at the steering wheel
• Three different selectable levels of power give the driver the desired feeling on the wheel (PATENTED)
• Automatically reverts to manual mode in case of power loss
• High efficiency, low Amp draw, low noise

Kit Includes:

• UH40-F - MasterDrive 40cc front mount helm
• UCMD - MasterDrive user interface
• UPMD - MasterDrive power unit 12V DC
• UC128TS - SVS 1 front mount cylinder
• UC128TS - SVS 1P front mount cylinder
• OIL 15 - 4 quarts

SilverSteer™ UC128TS V1 Straight Link Arm - Port

Specially designed for high-performance, high-torque applications, the SilverSteer™ UC128TS cylinder is recommended for bass boats, flats boats, and tournament fishing boats.

Compatible with competing helms, hoses, and oil, the UC128TS is built to last with a heavy-duty stainless steel cylinder rod, seals, and link assemblies. Simple to install and fits almost every 2- and 4-stroke outboard engine on the market.

Features:

• V1 Straight link arm

*Please note: The UC128TS-SVS is a direct replacement for UC128-SVS. UC128TS-SVS has the same cylinder, but it's easier to service.

PROTECH 2.1 Front Mount OB Hydraulic System - Includes UP28 FM Helm, Oil & UC128-TS/2 Cylinder - No Hoses

Durability and performance define the Protech front mount outboard steering package. From the stainless steel helm shaft, heavy duty shaft seals, carbon steel piston and 304 electropolished and passivated stainless link assemblies, the Protech is built for maximum longevity and peak performance. Adjustable boss style fittings allow precise hose routing without the risk of breaking the fittings by overtightening or leaking fittings from loosening during installation, a common problem on competing cylinders.

Kit Contains:

• UP28 F Front mount helm pump
• UC128-TS/2 Cylinder Front mount outboard cylinder
• OIL 15 Hydraulic oil - 2 quarts
• The wheel is not included

UPMD MasterDrive Power Unit

1 UPMD Power Unit, 15' (4.5M) wiring harness included

Features:

• 12VDC Motor
• 45° swiveling fittings for easy installation
• Semitransparent 0,5 liter (0.11gal) tank gives immediate oil level vision
• Vented filler plug
• Suitable for applications with autopilot
• Bulkhead or floor mount
• Black galvanized motor case, saltwater resistant
• 4,5 m (15’) Wiring Harness included
• IP67 waterproof
• Ignition protected (SAE J-1171 and UNI EN 28846)

UC95OBF-1 Hydraulic Cylinder 175HP or Less

Intended for single engine applications of 175 HP and under, the UC95 OBF-1 cylinder is compatible with competing helms, hoses, and oil, and is built to last with heavy-duty stainless steel cylinder rods, seals, and link assemblies.

Features:

• Balanced the number of turns lock-to-lock is the equal port to starboard or vice-versa
• Adjustable boss style fittings for easy installation High resistance stainless steel connection bolt (ULTRABOLT)
• Constructed of top-grade materials this cylinder is simple to install and fits almost every two and four-stroke outboard engine on the market our engine
• Split and pinned mounting rod for easy installation and bushings to prevent friction with engine

Panther T4 Through Tilt Tube Electro Steer - Saltwater [550103]

T4 Through Tilt Tube Electro Steer - Saltwater

A unique product to steer a kicker motor. Can be installed on any kicker motor that has a treaded tilt tube. No need to drill holes in your transom. Installs in minutes. 9″ minimum needed between main engine and kicker motor. Controlled by a 24′ cable and two-button handheld remote. Wireless option available.

Uflex Twin Cylinder Adjustable Tiebar 26'-32' - Mercury/Yamaha [A95 M/Y-32]

Twin Cylinder Adjustable Tiebar 26'-32' - Mercury/Yamaha

For twin OB engines/Dual cylinder, Allows to tilt the engines independently, it’s also available in semi-assembled bars and brackets, stainless steel components.

Features:

• 2 different lengths available: From 26” (660,4 mm) to 32” (818,8 mm) twin engine centers and from 32” (818,8 mm) to 37.5” (952,5 mm) twin engine centers
• Suitable for applications with dual UC128– OBF or UC130–SVS front mount cylinder
• Allows the engines to tilt independently
• All stainless steel components
• Electropolished stainless steel ball joints

Uflex UC215-I Cylinder 215cc 9" Stroke Aluminum Uses KITOB SVS Hoses [UC215-I]

UC215-I Cylinder 215CC 9" Stroke Aluminum Uses KITOB SVS Hoses

Balanced: the number of turns lock-to-lock is equal port to starboard or vice-versa.

Specifications:

• Volume: 215cc - 13.12 cubic inches
• Torque: 111 kgm (9652 lbs.in)
• Output force: 673 kg (1483 lbs)
• Internal diameter: 40 mm (1.57")
• Stroke: 228 mm (9")
• Fittings for high-pressure flexible hose: 3/8" (9,5 mm)
