Boat Outfitting - Steering Systems

Yamaha 90-115 Zero Torque Feedback Tiller

The four stroke outboard engines are generating high torque loads which can make tiller steered boats difficult to steer. The Uflex® ZTF Tiller systems eliminate propeller torque at the tiller handle when the driver is not actively changing direction.

Using a hydraulic valve, the propeller torque is locked from reaching the tiller handle unless the driver pushes or pulls on the end of the handle, at which point the valve opens and allows for active steering movements.

Now you can drive your tiller steered boat in comfort, saving your energy for reeling in fish rather than effort to just get to your favorite fishing spot.

Uflex SilverSteer UC128TS High Performance Cylinder V2 - Offset Link Arm [UC128TS-SVS 2]

SilverSteer UC128TS High Performance Cylinder V2 - Offset Link Arm

Specially designed for high-performance, high-torque applications, the SilverSteer™ UC128TS cylinder is recommended for bass boats, flats boats, and tournament fishing boats.

Compatible with competing helms, hoses, and oil, the UC128TS is built to last with a heavy-duty stainless steel cylinder rod, seals, and link assemblies. Simple to install and fits almost every 2- and 4-stroke outboard engine on the market.

Features:

• Type 2 offset link arm

Please note that P/N: UC128TS-SVS 2 is a direct replacement of P/N: UC128-SVS 2. P/N: UC128TS-SVS 2 has the same cylinder, but it's easier to service.

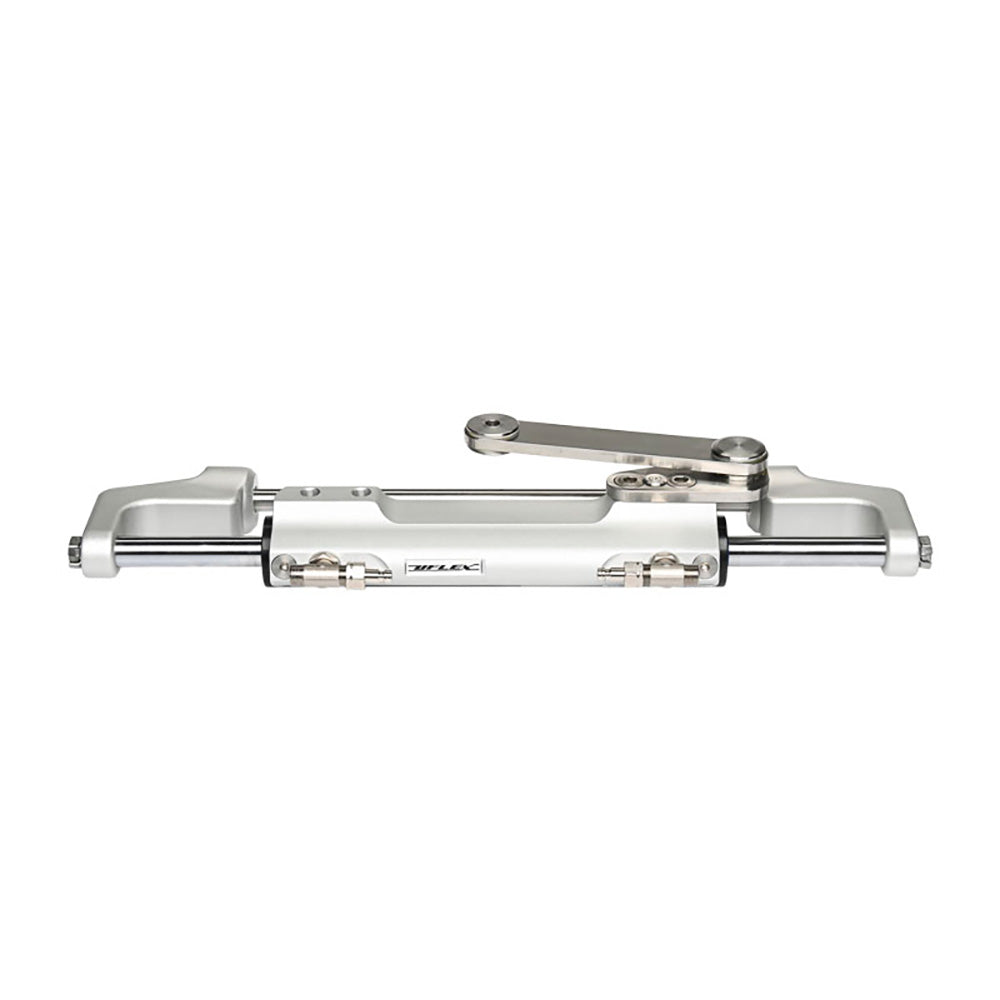

SilverSteer™ UC128TS V1 Straight Link Arm - Port

Specially designed for high-performance, high-torque applications, the SilverSteer™ UC128TS cylinder is recommended for bass boats, flats boats, and tournament fishing boats.

Compatible with competing helms, hoses, and oil, the UC128TS is built to last with a heavy-duty stainless steel cylinder rod, seals, and link assemblies. Simple to install and fits almost every 2- and 4-stroke outboard engine on the market.

Features:

• V1 Straight link arm

*Please note: The UC128TS-SVS is a direct replacement for UC128-SVS. UC128TS-SVS has the same cylinder, but it's easier to service.

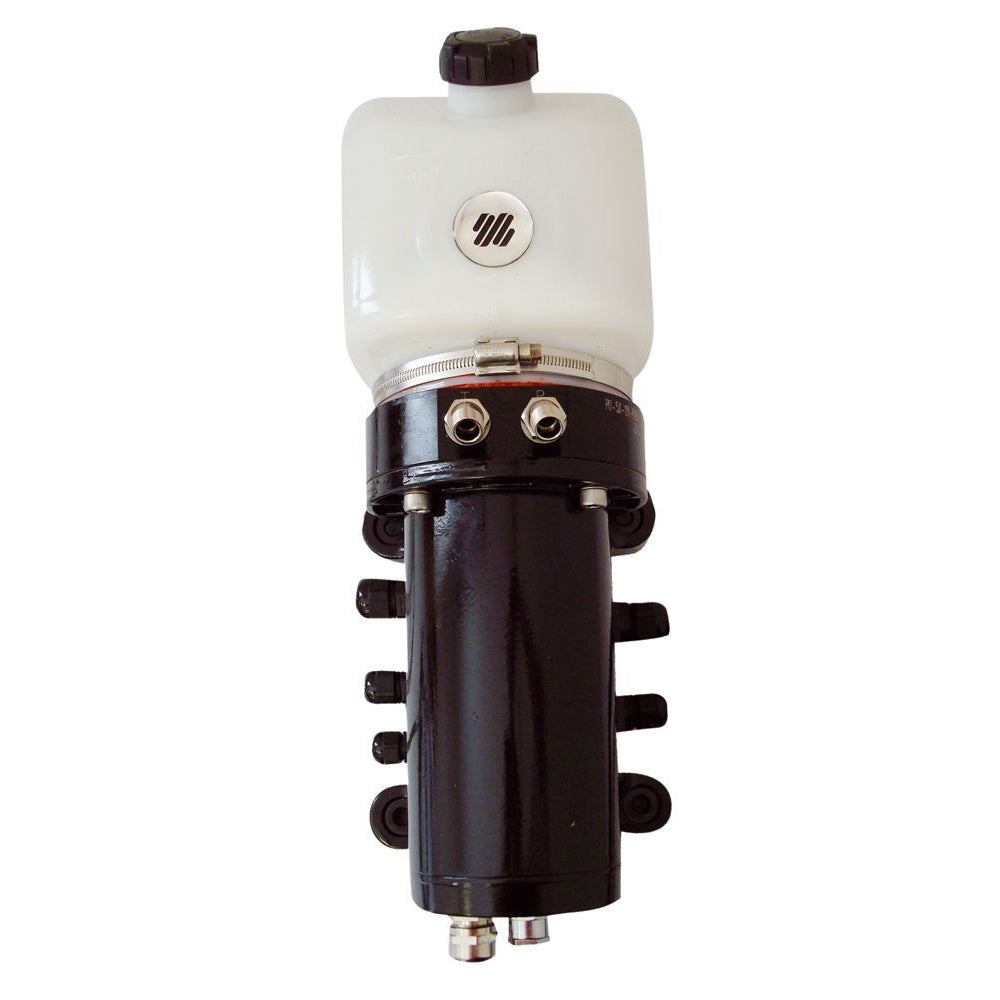

UPMD MasterDrive Power Unit

1 UPMD Power Unit, 15' (4.5M) wiring harness included

Features:

• 12VDC Motor
• 45° swiveling fittings for easy installation
• Semitransparent 0,5 liter (0.11gal) tank gives immediate oil level vision
• Vented filler plug
• Suitable for applications with autopilot
• Bulkhead or floor mount
• Black galvanized motor case, saltwater resistant
• 4,5 m (15’) Wiring Harness included
• IP67 waterproof
• Ignition protected (SAE J-1171 and UNI EN 28846)

UP33FM Helm Pump 2.0 Cubic Inches

Features:

• Compact design
• Built-in lock valve for positive rudder lock
• Integral relief valve for over-pressure protection
• Compatible with Teleflex SeaStar cylinders, hoses and oil
• 3/4" tapered stainless steel shaft
• Easily accessible lock valve and shaft seal for replacement
• Convenient front of dash fill
• Adjustable Boss Fittings compatible with Kit OB and Kit OBSVS hose kits and SeaStar hoses
• Relief valve pressure: 1000 PSI

Specifications:

• Mounting: Front Mount
• Displacement/Revolution: 33cc-2.0 cubic inches
• Number of Pistons: 7
• Relief Valve Setting: 70 Bar - 1,000 PSI
• Maximum Wheel Diameter: 710mm - 28"
• Weight: 5kg-11lbs

Uflex UC128 Version 1 Hydraulic Cylinder - Port [UC128TS-1P]

UC128 Version 1 Hydraulic Cylinder - Port

The UC128TS-1P is the Port version of the Protech Front Mount Steering Cylinder. It is used along with the standard cylinder in high horsepower dual engine applications. It shares all of the innovation and attributes of the standard Protech cylinder. Durability and performance define the Protech Front Mount Outboard Steering Cylinders.

Features:

• The replaceable triple sealed 1 3/4" cylinder end cartridges offer industry-leading longevity and durability
• Designed for up to 600HP in certain applications
• 304 electropolished and passivated link assembly for peak corrosion resistance
• Carbon-steel piston allows less internal bypass and provides greater efficiency
• Ultrabolt high-strength stainless steel tiller bolt

HYCO 1.1T Front Mount OB Tilt Steering up to 150HP

The Hyco 1.1T With Tilt Hydraulic Steering Kit is all you need for a complete steering system. This system is used on all engines up to 150HP or less. If engine H/P exceeds 150 then the Protech packaged system must be used.

Package Kit Includes:

• 1-UP20T Tilt Helm Pump

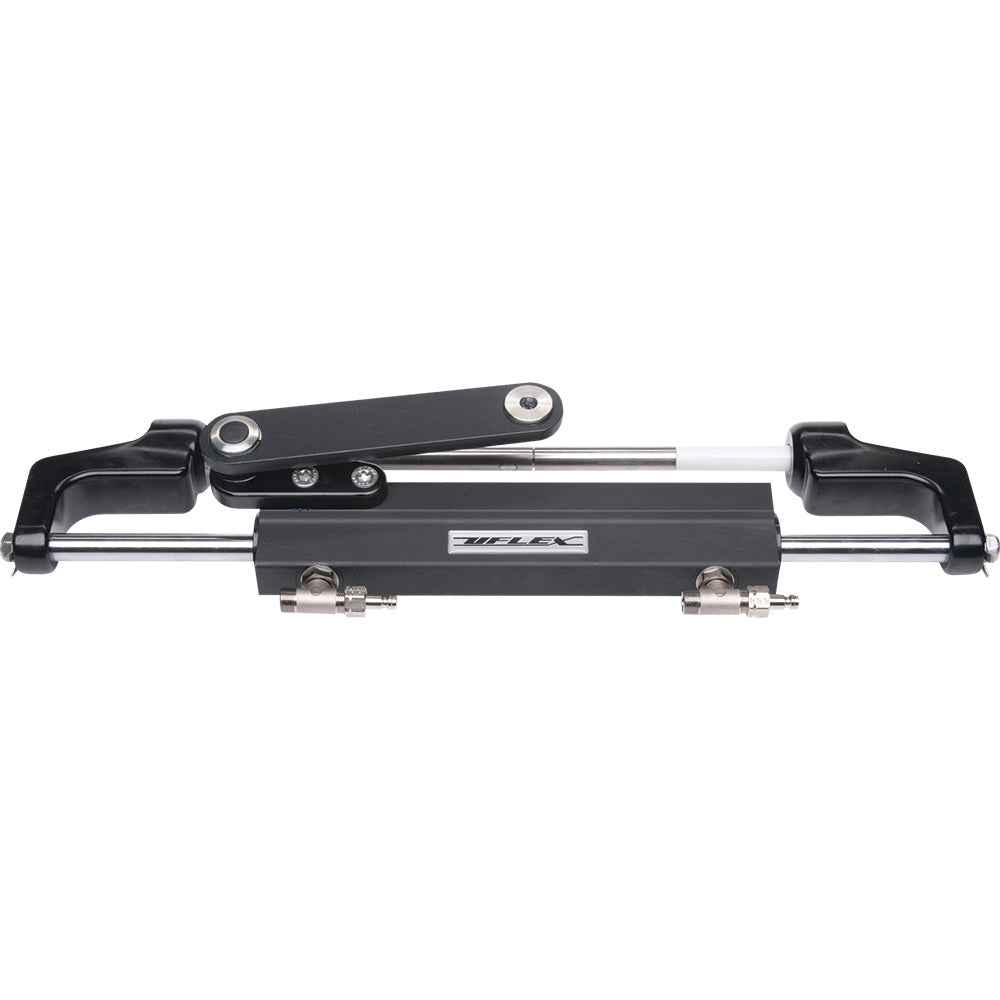

• UC95-OBF/1 Front mount Hydraulic Cylinder
• 2 quarts of Oil-15 Hydraulic Oil
• Installation and Instructions manual included

*Premade Hose Kit 2' to 30' ft. length is not included and steering wheel not included.

Please Note:

There are two Cylinders offered, the UC95-OBF/3 model is for Honda BF115 and BF130 engines and Mercury Optimax 75, 90, and 115 HP engines only, and the UC95-OBF/1 is used on all other O/B models.

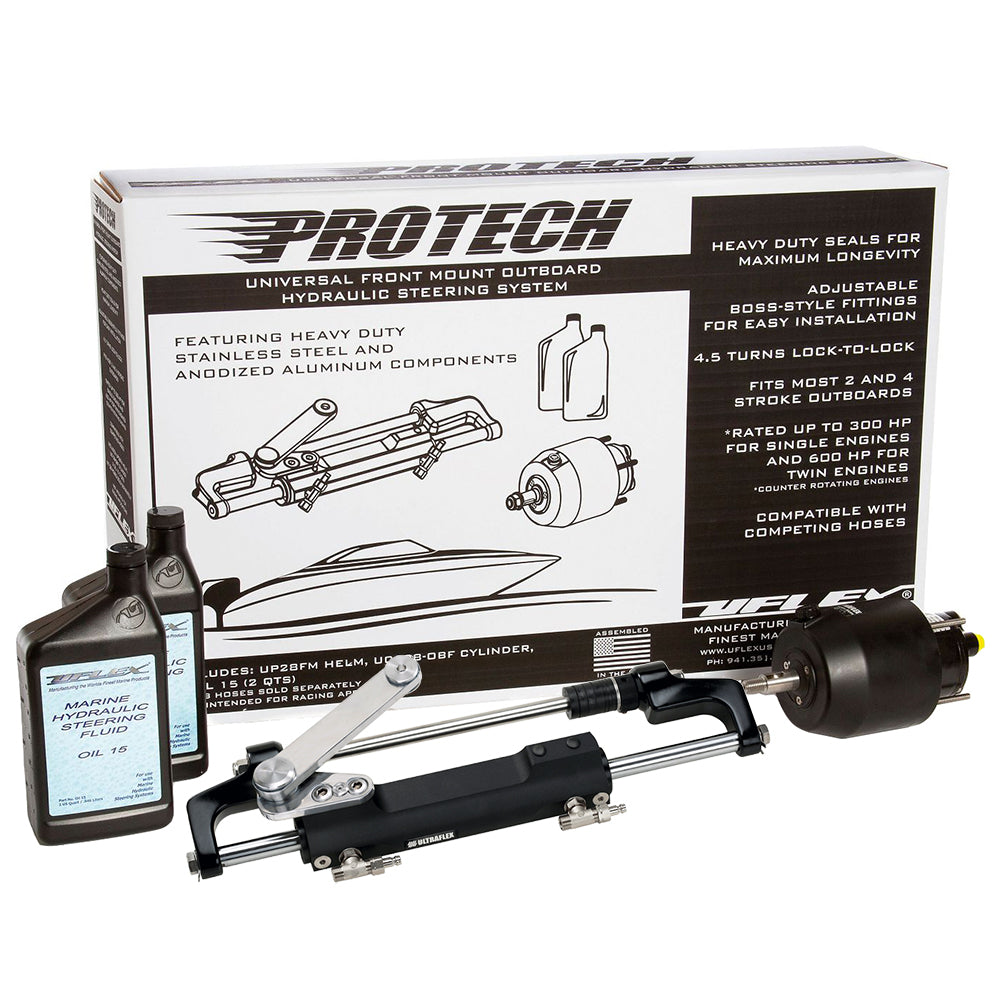

PROTECH 2.1 Front Mount Tilt OB Hydraulic System - Includes UP28T Helm Pump, Oil, UC128TS-2 Cylinder, & X82 Tilt - No Hoses

Durability and performance define the Protech front mount outboard steering package. From the stainless steel helm shaft, heavy-duty shaft seals, carbon steel piston, and 304 electropolished and passivated stainless link assemblies, the Protech is built for maximum longevity and peak performance. Adjustable boss-style fittings allow precise hose routing without the risk of breaking the fittings by overtightening or leaking fittings from loosening during installation, a common problem on competing cylinders.

Kit Contains:

• UP28T helm pump
• X82 Tilt Mechanism
• UC128TS Front Mount Outboard Cylinder
• OIL 15 Hydraulic oil - 2 quarts
• Kit F (remote fill adapter for rear mount and tilt mount pumps)

*Hoses and the wheel are not included
