Boat Outfitting - Security Systems

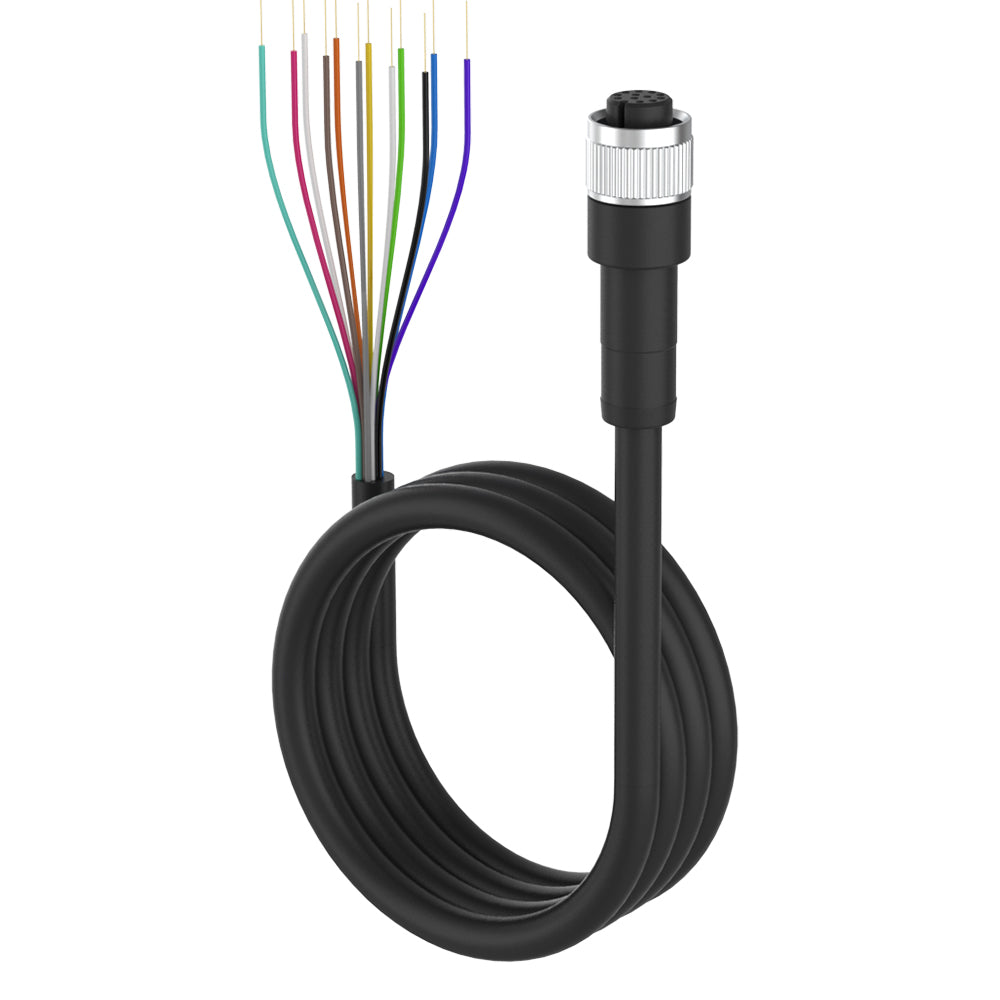

Wiring Cable for Siren 3

The Wiring Cable 2 accessory is used to connect additional wired sensor inputs and to also drive additional outputs to your Siren 3 Pro device. Each wire has unique functionality to support the corresponding sensor.

Features:

• Compatible with Siren 3 Pro only
• Cable length: 3 ft.
• Wire length: 6 in.
• Direct connection to Siren 3 Pro on bottom-right connector on device
• Outputs: 5
• Inputs: 7

Siren 3 Pro Vessel Management Device

Features:

• Providing the ultimate smart boating experience that keeps you connected to your boat 24/7, regardless of boat size, type or use
• The Siren 3 Pro provides the modern boating experience by going beyond basic marine GPS, radar & radio solutions to complement your multi-function display (MFD) with Connected Boat® Technology
• Together with our easy-to-use App plus global cellular & optional satellite connectivity, our smart boat device connects you to your boat anytime, anywhere
• Make your life easier by controlling your boat's lights, A/C & digital switching systems remotely from the palm of your hand
• The Siren 3 Pro provides a better boating experience with remote monitoring, helping your boat stay safe, secure & ready to enjoy

Standard Features:

• Battery Monitoring (Can monitor up to 2 battery banks, if additional banks are required the Siren Marine Battery Sensor will need to be added.)
• GPS Position/Geofence
• NMEA 2000
• Digital Switching
• 4G LTE

Features with Add-On Sensors & Accessories:

• Engine Metrics
• Connected Fluid Tanks
• Security/Entry
• Bilge
• High Water
• Shore Power
• Temperature
• Satellite Compatible
• Wireless Sensors 3.0

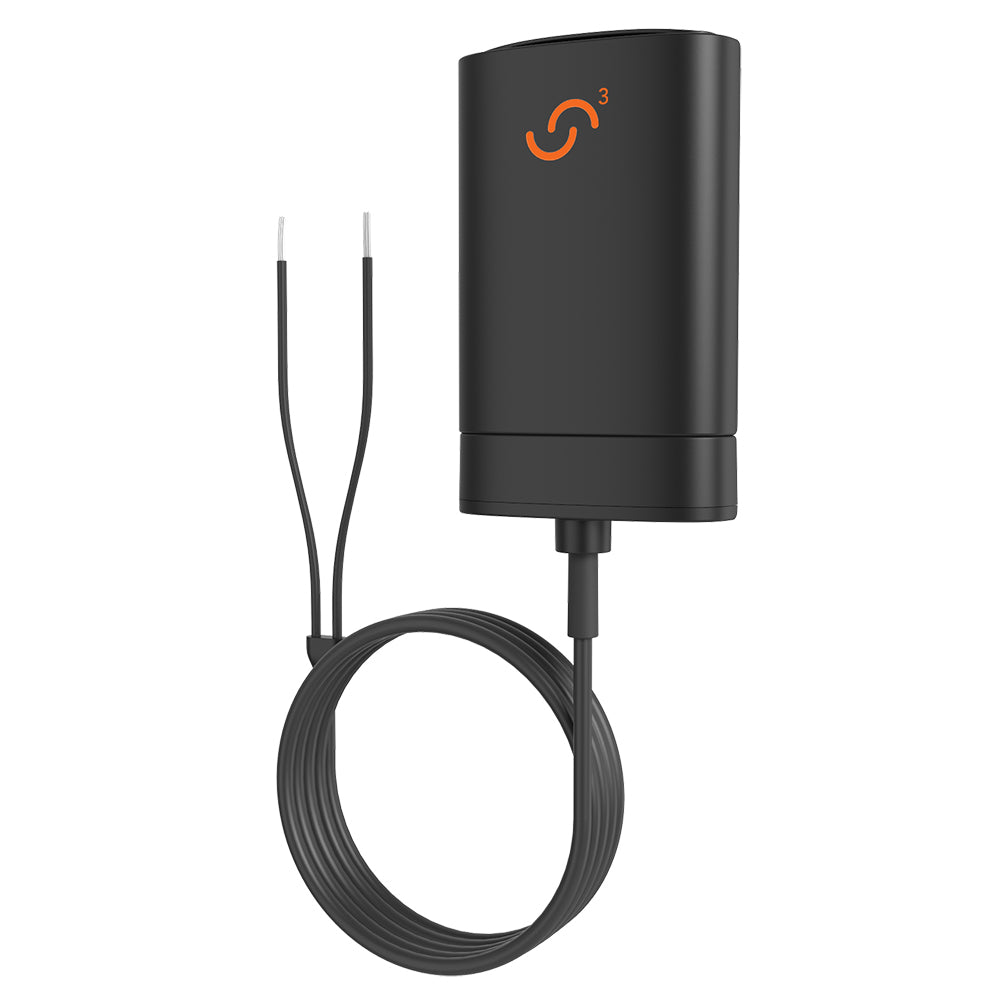

Bilge Pump Sensor for Siren 3

The Wireless Bilge Pump Sensor monitors bilge pump activity, including run time and daily cycles. Attach the Bilge Pump Connector to the bilge pump and plug the other end into the Wireless Module. Link the module to the Siren 3 Pro and receive alerts if the bilge pump exceeds a preset run time or cycle counts.

Features:

• Compatible with Siren 3 Pro only
• Includes Wireless Sensor Module and Bilge Pump Connector with 3 feet of wire

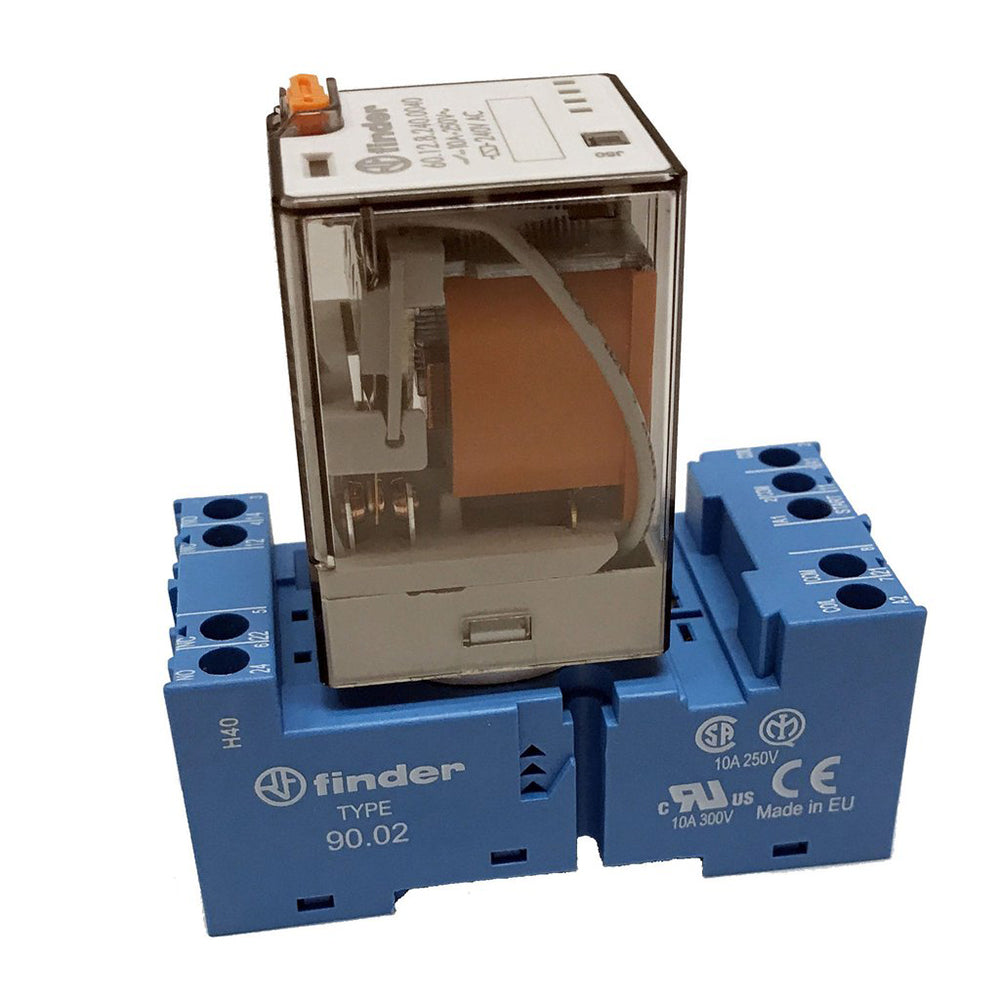

Shore Power Relay - 240V

The 240VAC Shore Power Relay is used to detect presence and loss of AC shore power. The relay is meant to be hardwired directly to your AC distribution panel. This relay is the hard wired alternative to the Siren Marine Shore Power Sensor Plug for boats with 240VAC systems.

Features:

• Coil Voltage: 240VAC
• Contact Current: 10A
• Works with MTC and Siren 3 Pro

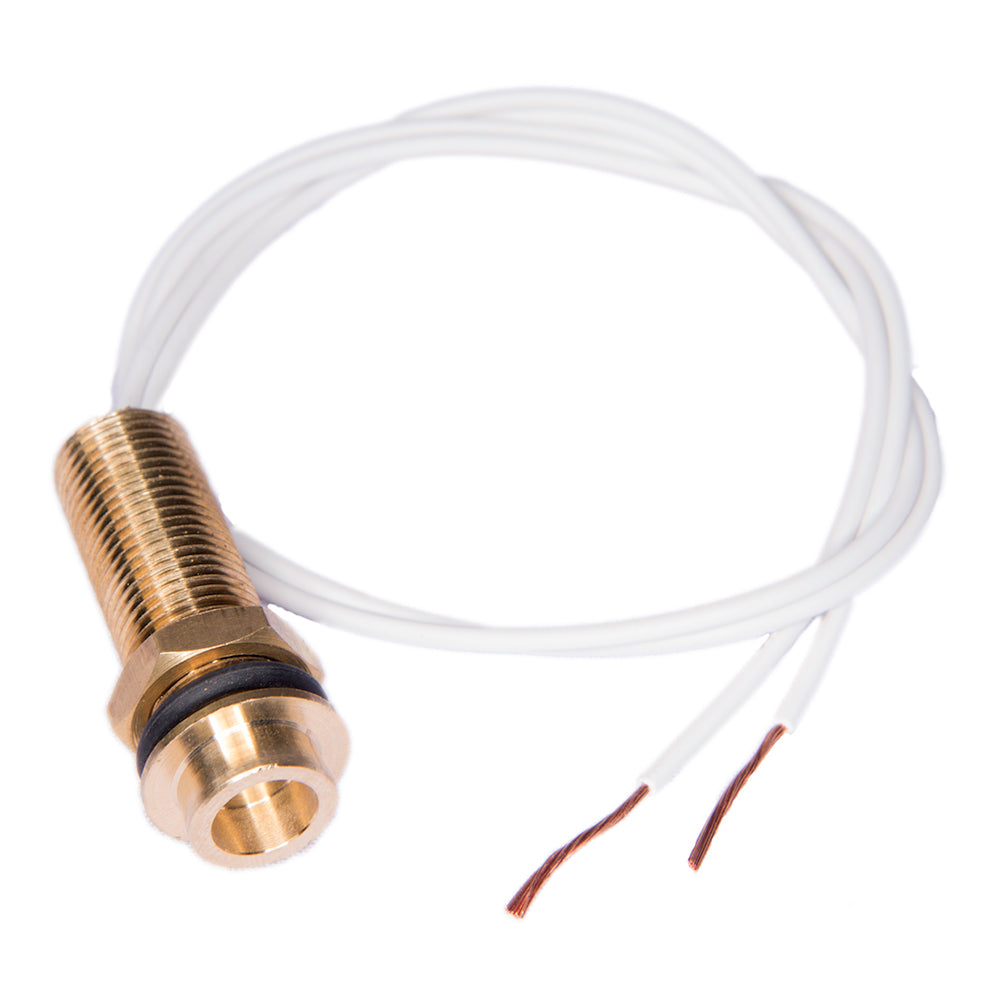

Wired Canvas Snap Cover Sensor

The canvas snap sensor is ideal for boats that have a canvas cover or part cover, and replaces a canvas snap for entry alert. When the normally closed alarm circuit is opened, it triggers an entry alert to the boat owner and can also be rigged to sound an audible alarm. A snap cover sensor is a perfect solution for stopping unwanted access to the boat and expensive parts.

Specifications:

• Dimensions: 1.25in (body) 12in (wire)
• Bronze snap body
• Includes 1 magnet for existing canvas snap
• Grounds directly to security input
• Works with MTC and Siren 3 Pro

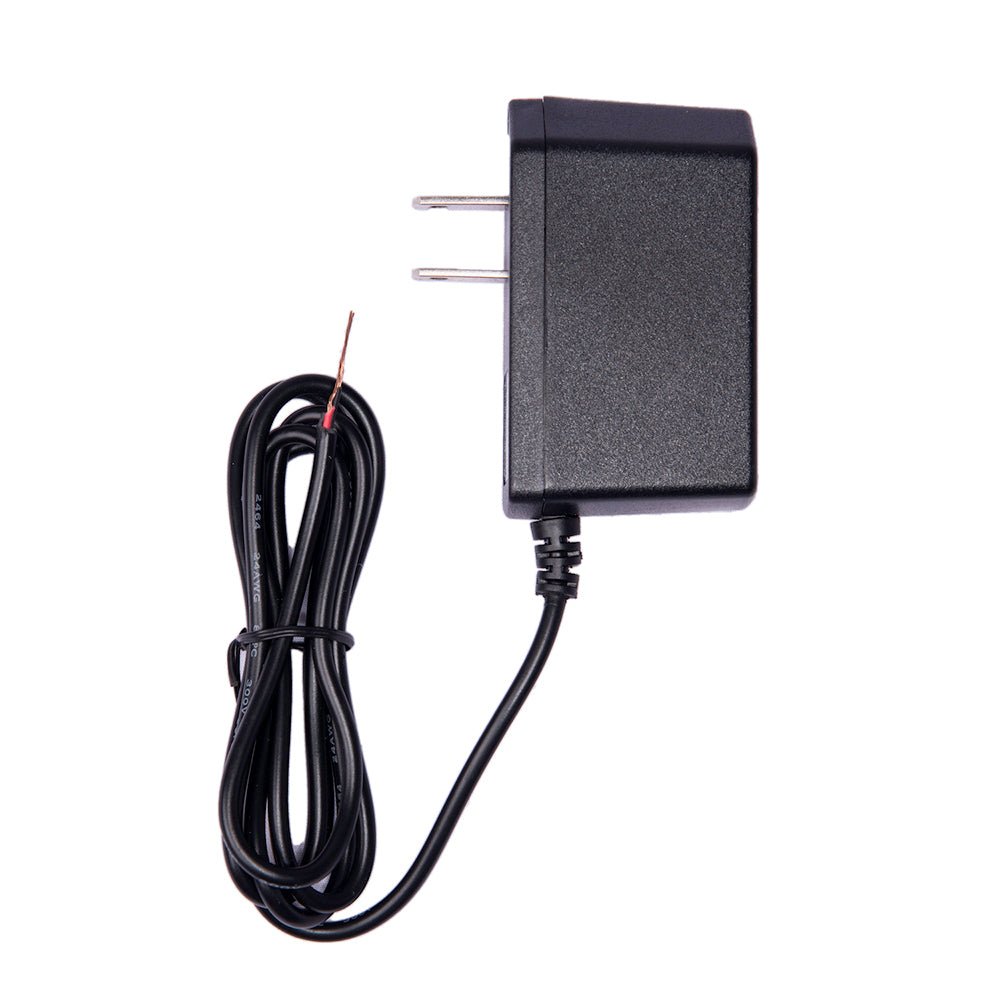

Wired Shore Power Sensor Plug

The Shore Power Sensor Plug allows boaters to monitor system-critical shore power from anywhere. Receive an alert in the event that shore power is lost and avoid costly system shutdown. The Shore Power Sensor Plug is ideal for larger vessels relying on external power sources to run critical systems while on the dock.

Specifications:

• Dimensions: 3ft (wire) 2.5x1.5in (body)
• Standard AC to DC adapter, 3V DC output
• Plugs into AC outlet
• Works with MTC and Siren 3 Pro

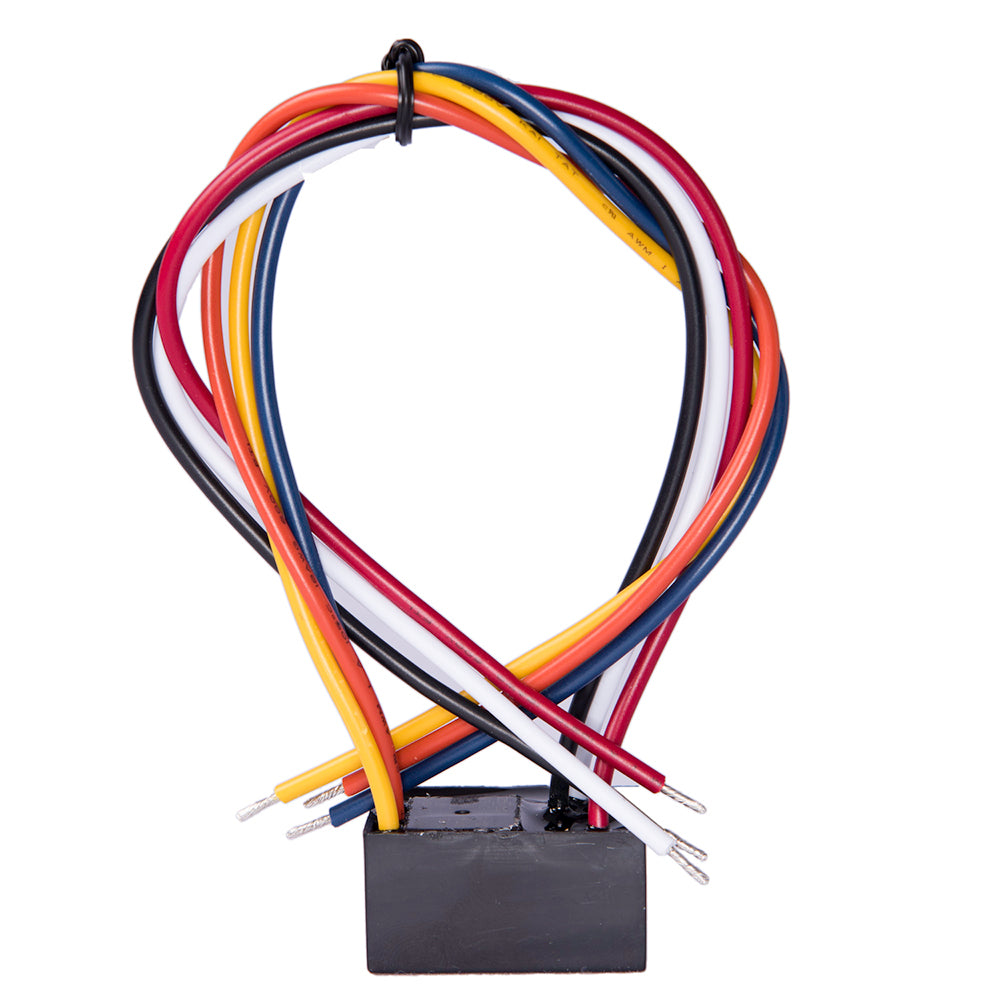

PAM4 Wired DC Relay

The Siren Marine DC Accessory Relay allows users to control any 12v onboard devices, such as A/C, deck or spreader lights, sirens, or strobe lights.

• Dimensions: 1.5x0.75x1.19in (box) 11.3in (wire)
• Relay may be energized across a wide voltage range from 9VDC to 32VDC.
• Ideal for 12VDC and 24VDC circuits.
• 20mA operating current is constant across the operating range.
• Input voltages are polarity-sensitive and diode-protected.
• Relay is required to power or switch 12V systems that draw more than 1 Amp via the internal outputs of the MTC.
• Works with MTC and Siren 3 Pro

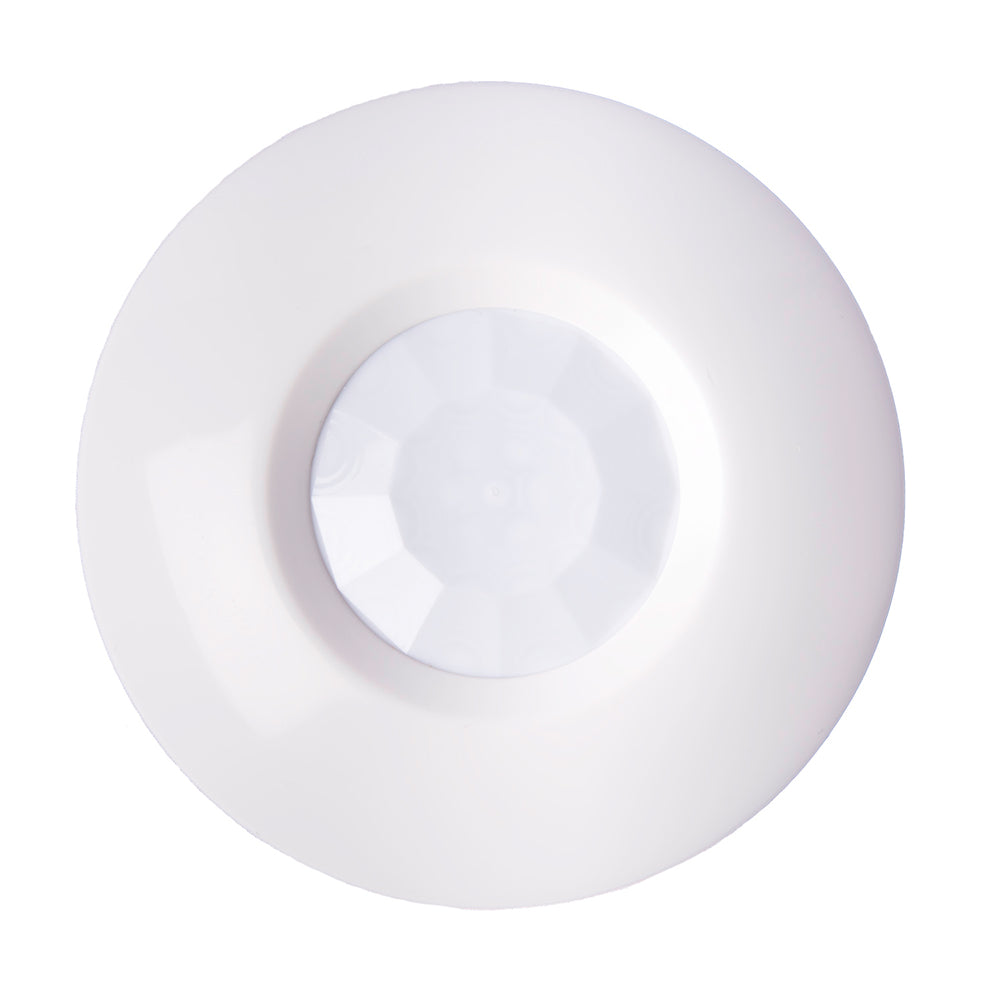

Wired Infrared Motion Sensor

The Visonic 360 Ceiling Dualtech motion sensor offers robust protection against theft. Simply mount this sensor in a cabin or above the main entryway, and receive notification in the event of unauthorized entry. The sensor can also be programmed to sound an audible alarm. Featuring a sleek, compact, and elegant design, the sensor blends seamlessly into any décor. Visonic technology assures high reliability, false alarm immunity, and 360-degree coverage. Ideal for monitoring unexposed areas such as pilothouse, galley, cabin, etc.

Specifications:

• Dimensions: 3.37in (diameter) 1in (depth)
• Ceiling Mount
• Range:  360° detection pattern with floor coverage up to 36ft
• Supply Voltage: 9-12V
• Not recommended for use on weather/exposed decks
• Works with MTC and Siren 3 Pro
