Boat Outfitting - Security Systems

Nav-Tracker 1.0 Elite with 80' Cable

GOST Nav-Tracker ELITE IDP was developed to offer a Hardwired marine grade, water resistant, monitoring and tracking system that provides global arm/disarm over satellite from anywhere in the world with the reassurance of a battery backup which will notify you with a 'Monitoring Alert' if your batteries are either cut off completely or if the battery voltage reaches 10.2VDC so it also functions as a battery low voltage sensor for the battery it is connected to.

The system can be controlled and monitored remotely, no matter where the vessel is located globally, with the exception of the most extreme poles

GOST Satellite NAV-Tracking delivers total peace of mind. The award-winning satellite tracking packages, powered by Inmarsat’s geostationary satellites constellation, provide you with the option to securely monitor your boat from anywhere in the world with 99.99% reliability.

Features:

• Satellite Antenna IDP
• Push-Button Arming Switch
• Remote Access & Monitoring
• Standard 25m/80ft GPS Cable Included (GNT-30)

Package Includes:

• GOST Nav-Tracker 1.0 Elite unit w/ Tamper-proof backup battery
• GOST Nav-Tracker Antenna
• 25-meter Antenna Cable
• 2-meter Power Cable w/ IP67 rated latching Arm/Disarm
• GNT-L-Bracket to mount the antenna

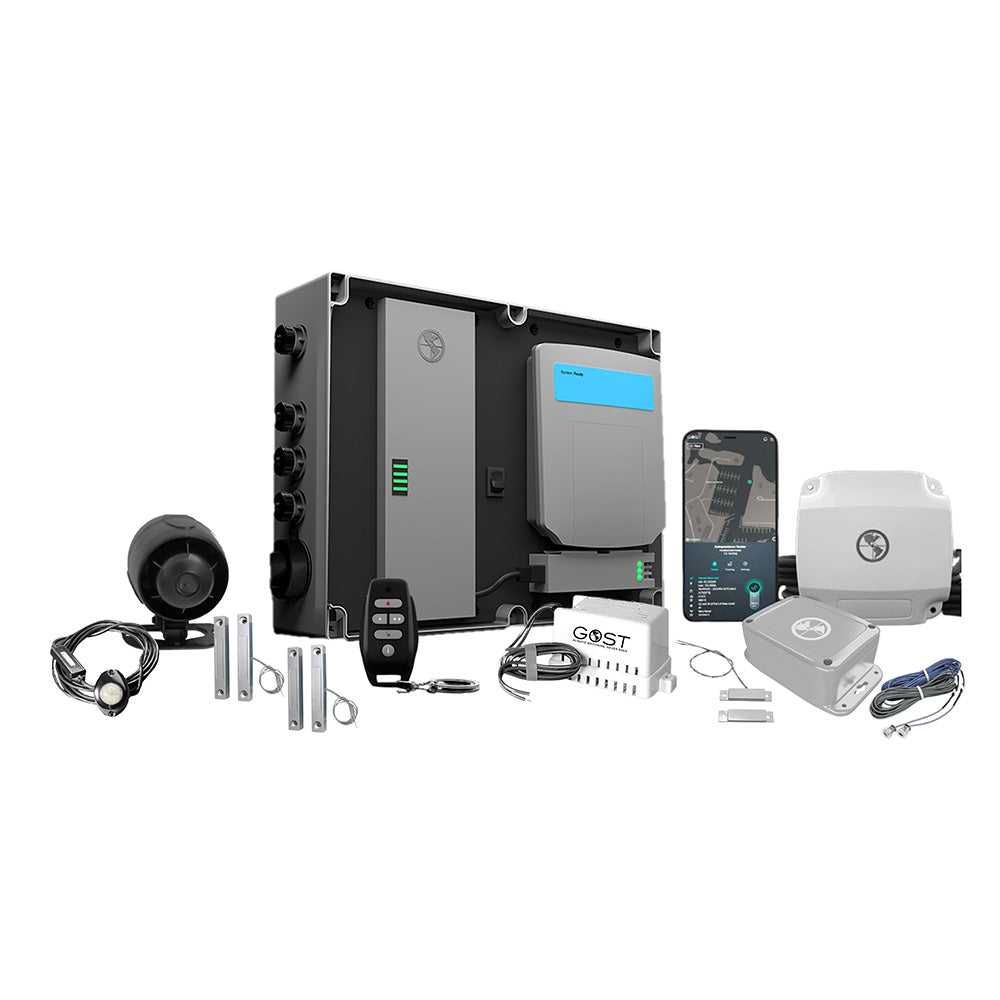

GOST NT-Evolution Security Hard Wired Package w/OB Cowling Sensor [GNT-EVOLUTION-SM-IDP-HW-OB]

Ships Direct From Manufacturer

NT-Evolution Security Hard Wired Package with OB Cowling Sensor

GOST gives users the power to know the location of the boat and whether it's safe, secure, and ready to enjoy. Affordable, easy to install, and simple to use, GOST is the perfect solution for connecting boaters with the vessel.

Features:

• Top-of-the-line, globally capable wired security, monitoring, and satellite tracking system designed specifically for harsh marine environments
• Real-time GPS location tracking
• GOST IDP 100x message size capacity

What's Included

DOOR / HATCH / ENG. COWLING | GDC - EXT - WGHD

Is the GOST standard door and hatch contact used inside the vessel? It is also used for engine cowlings.

Beam Sensor | GNT IBS 1

Is an infrared beam sensor designed to protect the exterior perimeter of the vessel. When the beam between the emitter and receiver is broken, the siren will alarm.

High Water Sensor| GMM HWS

Includes the bracket and the float switch that will be installed in the bilge of the vessel slightly below the vessel factory-installed high water sensor.

Remote Keyfob | GMM KF2

Compact water-resistant design with a backlight for buttons and auditory feedback for arming or disarming a security system. The keyfob performs up to 6 actions per remote control, with a range of up to 150 feet.

Water Resistant Strobe | GA STROBE WHITE

Ultra small, self-contained semi-hemispheric white LED lights Surface or internal mount featuring 25 scan lock flash patterns, including synchronize feature for alternating or synchronous flashing.

Mini Siren | GA-MINI-SIREN

GOST Acoustics mini water-resistant, super-loud multi-tone marine siren, 125 db, 20 watt.

Wired Sensors | Zone

• Hatch | Z2 (NC)
• Beam-Seansor | Z3 (NC)
• Engine Cowling | Z4 (NC)
• High Water | Z5 (NO)
• ComBUS | Four-Wire

Brochure (pdf)

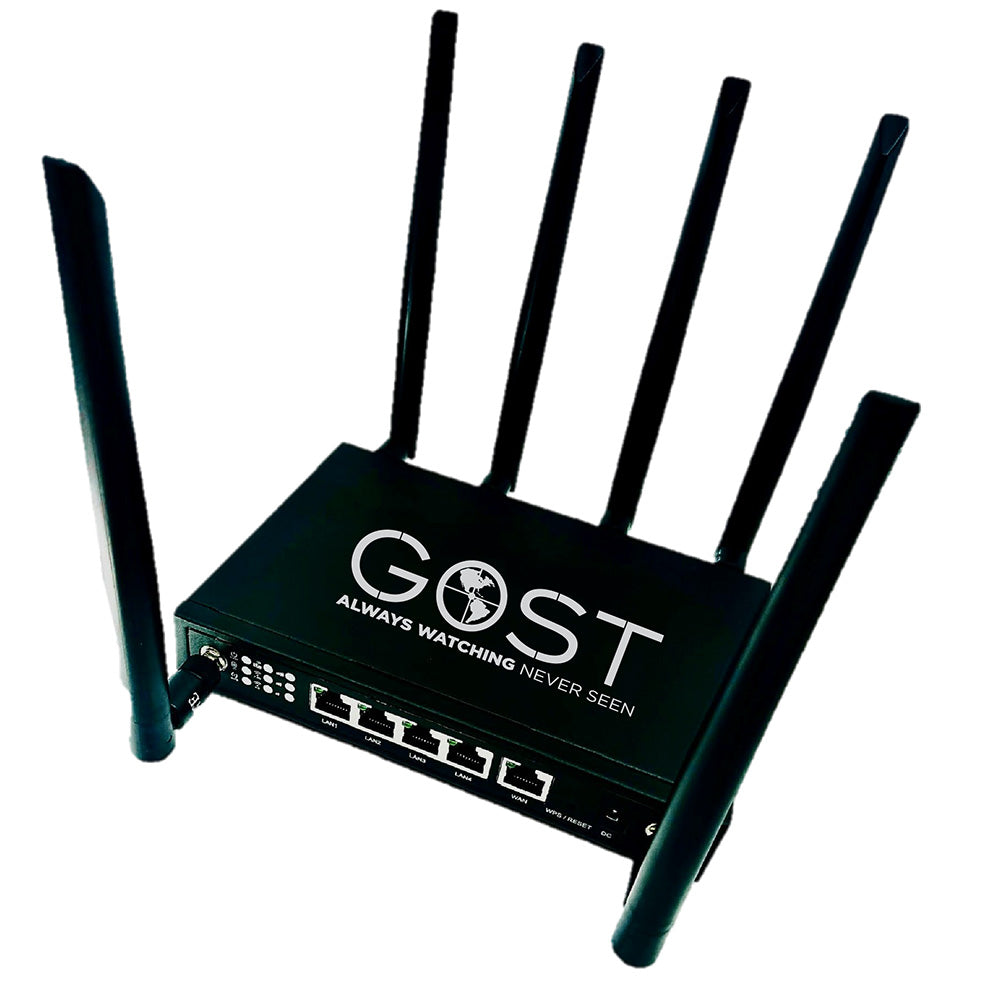

GOST MAXLiNK 4G Multi-Carrier Communicator E-SIM Select Router [GOST-MAXLINK]

Ships Direct From Manufacturer

MAXLiNK 4G Multi-Carrier Communicator E-SIM Select Router

Experience the most reliable cellular data networks through multiple carrier access in North America and the Caribbean. On-demand, always searching, minimal signal loss for better performance and connectivity to your vessel's security and surveillance systems while utilizing four major cellular carriers on one device that automatically switches between providers for the best possible cellular data connection and throughput. Its automatic multicarrier failover capability with faster speeds provides overlapping coverage due to combined networks and has created the most expansive footprint available on the market. Simple, plug-and-play with no APN programming makes installation easy and can also be configured for international capabilities. MAXLiNK is a multi-functional wireless 4G LTE with Cat.7 & Cat.13 capabilities and Wi-Fi, providing LTE through MCS technology.

Hardware:

• Mobile 4G/LTE (Cat 7 & Cat 13)
• Main CPU RTL8197FH-VG5-CG
• Memory 128MB
• Buttons Reset, WPS
• SIM Micro SIM Slot
• Antennas 4 Wi-Fi External Antennas (2 x 2.4GHz; 2 x 5.8GHz); 2 External LTE Antenna
• Ethernet Ports LAN - 4 x RJ45 10M/100M/1000M; WAN - 1 x RJ45 10M/100M/1000M
• MIMO 2*2 MU-MIMO
• Led Power Indicator LED; VSIM Indicator; LTE Indicator;2.4GHz Wi-Fi;
• 5.8GHz Wi-Fi; SIM Indicator; Signal LED (3 LED); WAN/LAN LED
• Temperature Working: 0°C40°C; Storage: -30°C 70°C
• Shell Material Metal
• Dimensions 180*130*30mm
• Weight < 1500 g (including packaging)

Software:

• Configuration Handover between Physical SIM and MCS
• Local WEB GUI Manage the CPE device
• Debug Mode RSSI level; Packet error rate; CINR; Dynamic Tx power; Modulation
• Encryption/Decryption AES; SNOW3G; NULL
• Power Control DL Power Control; UL Power Control
• Admin management Admin setting change; Device reboot, reset; Gateway setting
• Device Info Device model LTE module ID version SN; Vendor
• info SIM carrierï¼›connection statusï¼›Device timeï¼›IP addressï¼›connection time
• Software update Sending and receiving messages; Language setting
• TDD Bands FOTA and local update
• FDD Bands B34/B38/B39/B40/B41
• WCDMA Bands B1/B2/B3/B4/B5/B7/B8/B12/ B13/B17/B18/B19/B20/B25/ B26/B28/B29/B30/B66/B71 B1/B2/B4/B5/B8

Quick Guide (pdf)

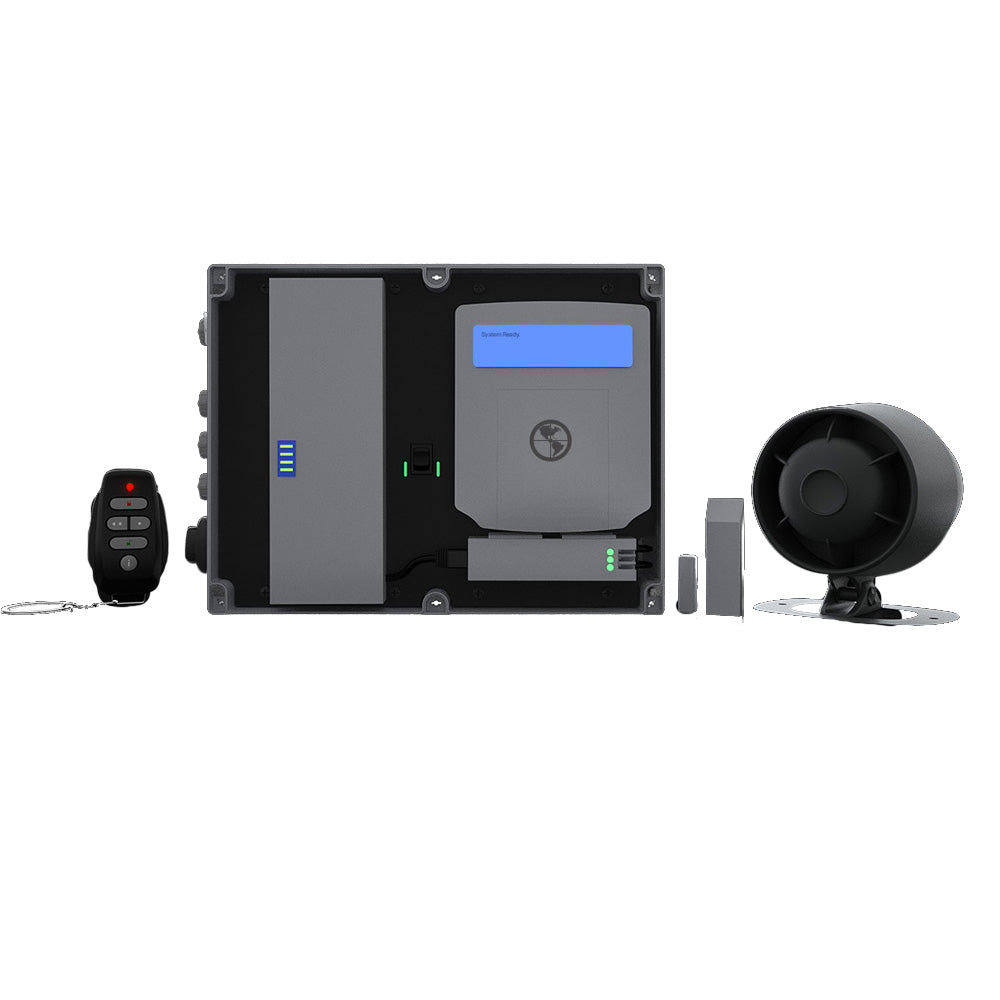

GOST Universal Control Unit Basic Security  Monitoring [GOST-UCU-S]

Ships Direct From Manufacturer

Universal Control Unit Basic Security & Monitoring

From basic insurance requirements to advanced security configurations. The main control unit is the central hub for all security and monitoring devices and sensors. With the ability to monitor up to 196 hard-wired or wireless devices and can be accessed and controlled locally through touchscreens or remotely from any device with an Internet connection.

Base Package Includes:

• Main Control Unit x1
• Door/Hatch Sensor x1
• Mini-siren x1
• Remote Keyfob x1

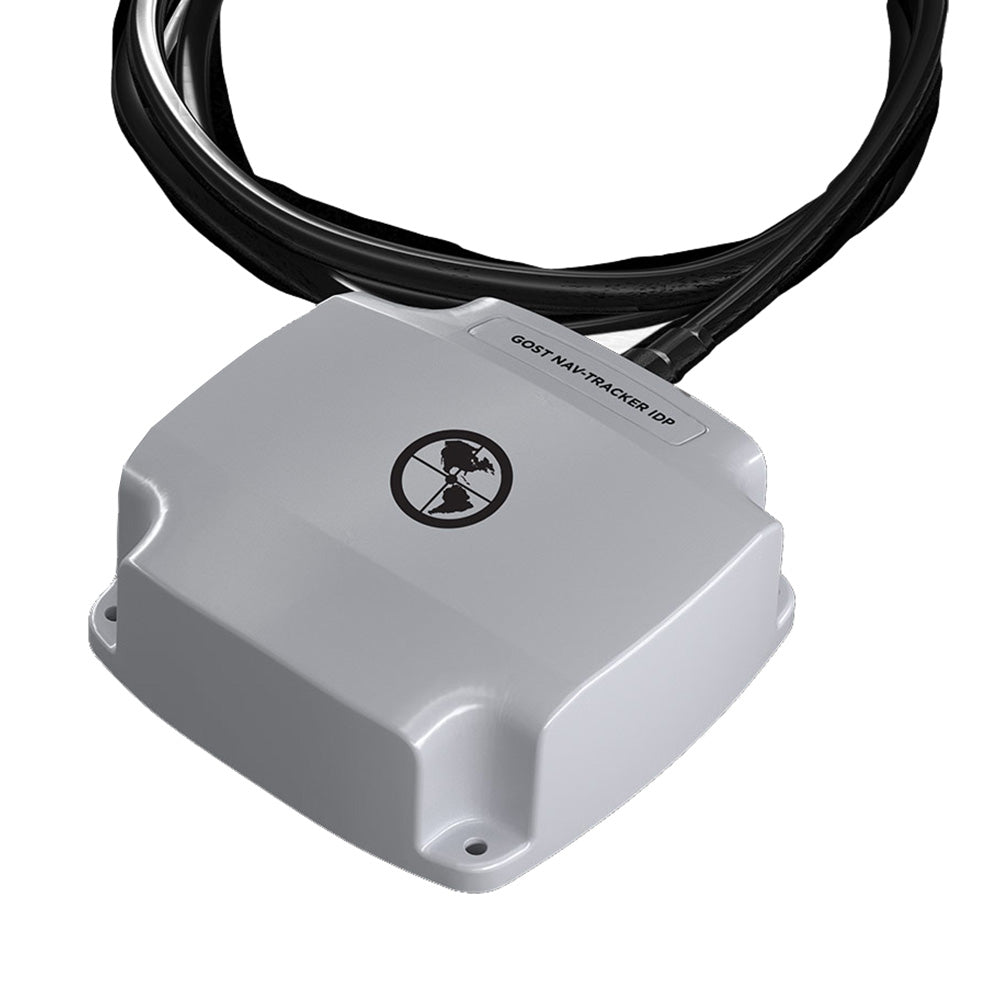

GOST Nav-Tracker 1.0 w/80 Cable - Insurance Package [GNT-1.0-80-INS-IDP]

Ships Direct From Manufacturer

Nav-Tracker 1.0 with 80' Cable - Insurance Package

GOST Nav-Tracker 1.0 IDP was developed to offer a hardwired marine grade, water resistant, monitoring and tracking system that provides global arm/disarm over satellite from anywhere in the world.

GOST Satellite NAV-Tracking delivers total peace of mind. The award-winning satellite tracking packages, powered by Inmarsat’s geostationary satellites constellation, provide you with the option to securely monitor your boat from anywhere in the world with 99.99% reliability.

Features:

• Satellite Antenna IDP
• Push-Button Arming Switch
• Remote Access & Monitoring
• Standard 80ft GPS Cable Included

Package Includes:

• Nav-Tracker 1.0 IDP SAT/GPS Tracking Device
• 80' Antenna cable
• GNT-L-Bracket Antenna Gunwale/Bulkhead Mount
• GNT-1.0-Push Button arm/disarm

Brochure (pdf)

GOST Watch HD XVR Base Package w/4TB Hard Drive f/Up To 8 Cameras [GWHD-XVR]

Ships Direct From Manufacturer

Watch HD XVR Base Package with 4TB Hard Drive for Up To 8 Cameras

The GOST XVR system can stream real-time surveillance video onto any computer or mobile device. This system is compatible with up to eight HD cameras and includes a four-terabyte backup system capable of storing three months of footage accessible on demand. The XVR unit is compact and works seamlessly with a broad range of cameras customizable for any sized boat.

Base Package Includes:

• Connects Up To Eight Cameras
• One HD XVR Unit with 4TB Backup
• Ultra-Fast Data Communicator
• Real-time Video Monitoring

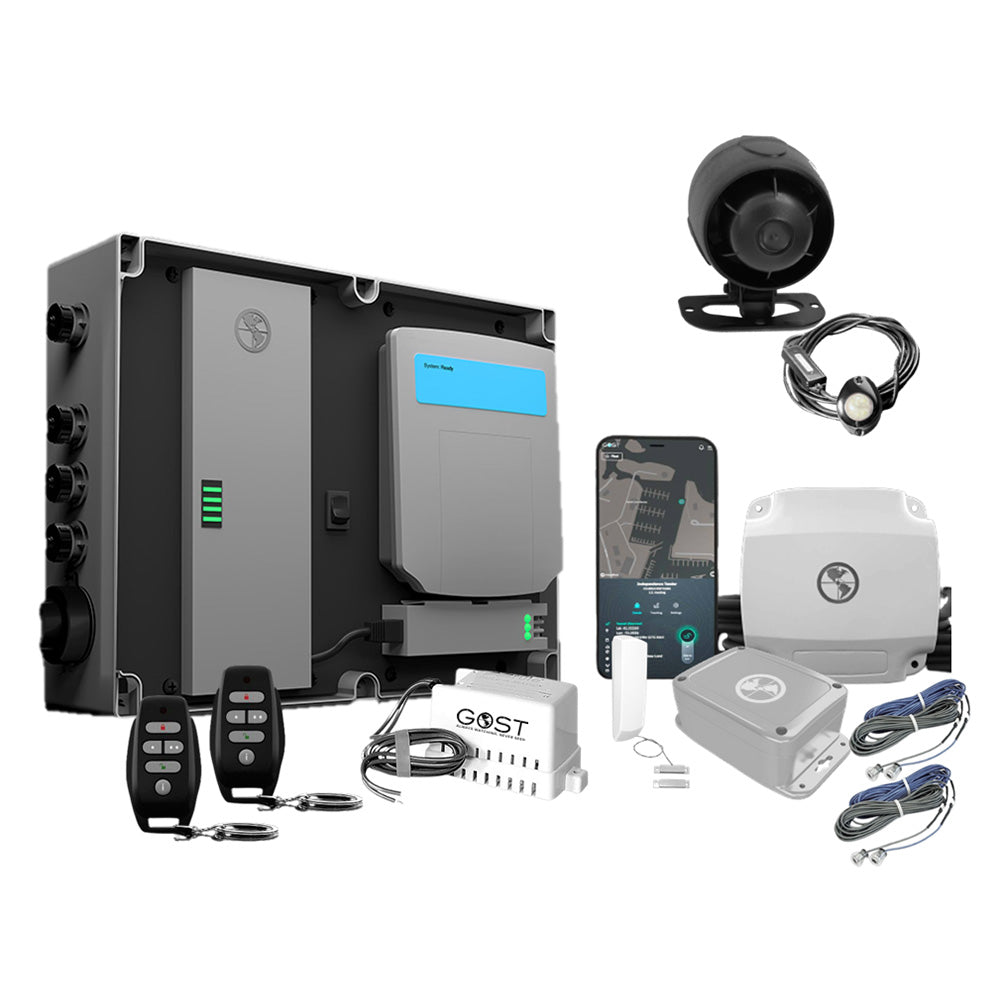

GOST NT-Evolution Package [GNT-EVOLUTION-IDP-SM+]

Ships Direct From Manufacturer

NT-Evolution Package

The GOST NT-Evolution Package includes the GOST NT-Evolution control unit with built-in Marine Magellan core technology, 2 key fob remote controls, the antenna, a 30 ft antenna cable, a 6-foot power cable, and a covert antenna mounting bracket.

NT-Evolution is a hybrid of the GOST Nav-Tracker and core Marine Magellan technology, making it the most sophisticated, all-inclusive Nav-Tracker yet. It uses a third-generation tracking website that incorporates an advanced Google Earth interface and uses the Inmarsat network of satellites for ultra-reliability.

An IP-rated enclosure protects the GOST wireless technology at the core of the system. This allows the NT Evolution to use the extensive range of marine-rated wireless sensors for security and monitoring in combination with the GOST Nav-Tracker satellite tracking product line. The system can accommodate up to 32 wireless sensors, a hardwired zone input, 16 key fob remotes and up to 8 wireless relays which can control AC or DC functions on board the vessel. The wireless relays can be used to flash the lights or sound a siren or alarm and can be controlled from the key fob remotes. For customers who keep their boat docked behind their house, it is possible to tie one of the wireless relays into the house security system to set that off when the boat is being tampered with.

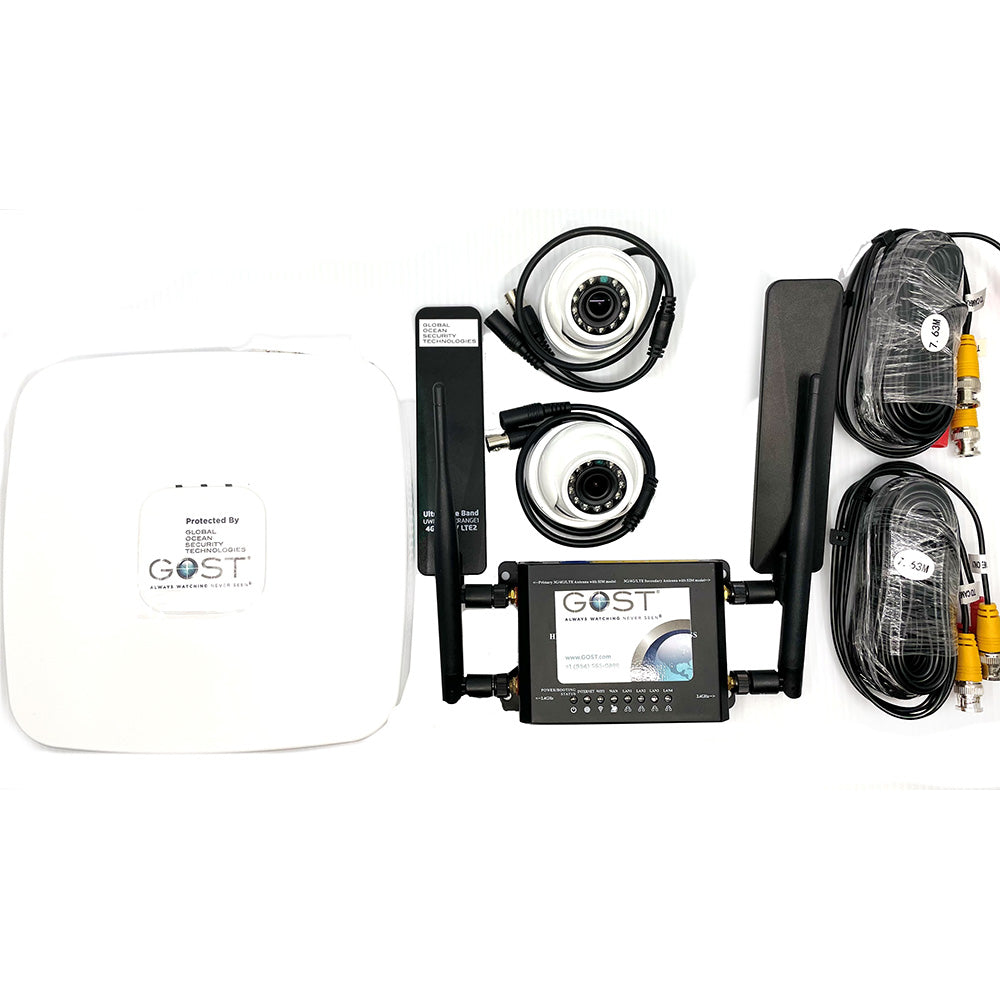

GOST Watch HD XVR Base Package w/4G/LTE f/Up To 8 Cameras [GWHD-XVR-4G]

Ships Direct From Manufacturer

Watch HD XVR Base Package with 4G/LTE for Up To 8 Cameras

The GOST XVR system can stream real-time surveillance video onto any computer or mobile device. This system is compatible with up to eight HD cameras and includes a four-terabyte backup system capable of storing three months of footage accessible on demand. The XVR unit is compact and works seamlessly with a broad range of cameras customizable for any sized boat.

Base Package Includes:

• Connects Up To Eight Cameras
• One HD XVR Unit with 4G/LTE
• Ultra-Fast Data Communicator
• Real-time Video Monitoring
