Boat Outfitting - Gauges

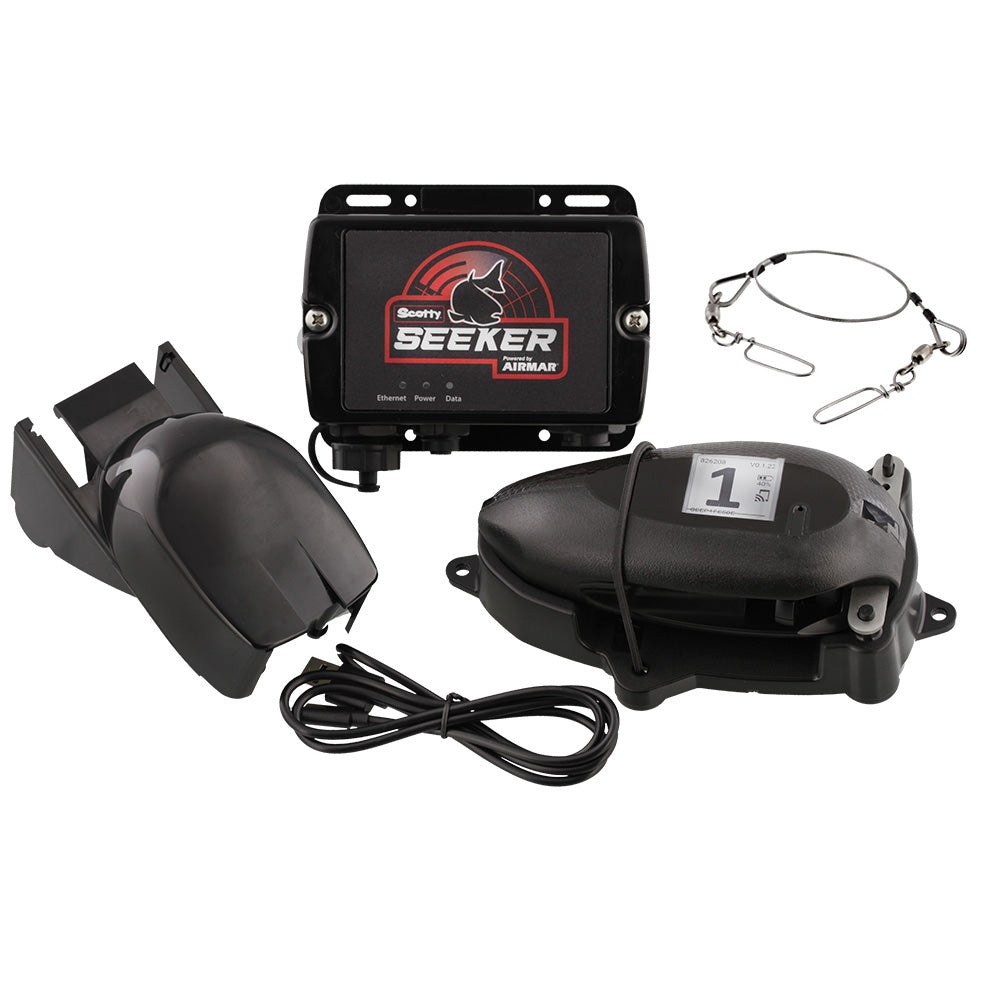

Full Package - Single Probe with Safety Leader, Probe Charging Station, & Probe Safety Leader

Drawing on years of research and decades of combined experience, the Seeker™ offers anglers a level of data precision, speed, and efficacy that is unrivaled in the fishing industry.

Built For The Hunt

The Seeker™ represents an advancement in trolling technology, providing anglers with a clear and powerful method for monitoring water conditions, making it easier than ever to gain insight through the use of real-time metrics.

Data Delivery

Accurate readings of depth, speed, and temperature to facilitate an informed fishing experience. Display data in metric or imperial.

Seeker App

Custom application compatible with most MFDs, as well as mobile devices and tablets running iOS or Android operating systems.

Probe Modes

Quick data refresh rate—updates every 5 seconds in normal mode or every half-second in thermocline mode.

Rapid Charging

Operates on an integrated, fast-charging battery that supplies an impressive 100+ hours of life. Includes a heavy-duty charging station.

Build Quality

Designed and manufactured by Airmar in the USA using premium electronics and build materials.

Expandability

The Seeker™ ecosystem is engineered with expansion in mind—future releases are already in development.

Veratron 85mm (3-3/8") VMH-35S Multifunction Gauge w/Voltage Dependent (0-5V) Sensor Input  Battery Sensor [B00143502]

85mm (3-3/8") VMH-35S Multifunction Gauge with Voltage Dependent (0-5V) Sensor Input & Battery Sensor

The first in its new VMH line of premium marine gauges, the Veratron VMH 35-S was engineered for single inboard or outboard engine applications. The elegant black-glass design displays a wealth of critical boat system data, in a compact package that's perfect for dashboards, consoles, and bulkheads on smaller vessels with limited space.

The Veratron VMH 35-S has an embedded NMEA 2000 gateway that distributes sensor data inputs such as fuel, trim, and tachometer to other devices like chartplotters. This saves the need for an additional external converter. Highly adaptable to a wide range of onboard networks, it's equipped with analog inputs, making it ideal for refitting with older engines. An integrated GPS makes the VMH 35-S the perfect standalone navigation solution. It integrates speed, compass, and position into the engine data information. A dedicated Veratron IBS (Intelligent Battery System) input can provide critical 12V battery monitoring capabilities.

The Veratron VMH 35-S has a mineral glass front that's optically bonded to the sun-readable hybrid display. A sleek brushed stainless steel bezel surrounds the device and fits into classic and modern marine décors. Because small boat consoles are often fully exposed, the round display is waterproof to IPX7 criteria, both front and back. It fits a standard 85mm (3-3/8’’) panel cutout size.

Powered by the latest microprocessor, the Veratron VMH 35-S is blazingly fast. Yet even when set at full brightness, it draws a mere 170mA of power—a fraction of what a comparably-sized TFT screen uses.

The VMH 35-S has the capacity to provide 30 types of data including engine, EcoMode pop-up screen, RPMs up to 8'000 with a programmable overspeed alarm, tank levels, battery status, GPS, and vessel information. It's easily configured using the embedded on-screen menu and soft-touch buttons.

Features:

• Integrated high-performance GNSS receiver
  • Intelligent Battery Sensor (IBS) port
• Analog inputs: 1x 0-5V / 1x resistive / 1x frequency
• Stylish black-glass design with brushed stainless-steel ring
• Front ring: Brushed stainless steel
• Front lens: Mineral glass
• Display: Color IBN + 1.44" TFT optically bonded
• Connectors: Molex MX-150 12 pins / DeviceNet M12 5 pins
  • NMEA 2000 certified with embedded analog gateway

Technical Specifications:

• Nominal voltage: 12V
• Operating voltage: 9-16V
• Current consumption: ≤ 150 mA (normal mode)
• Protection class: IP X7
• Dimensions: 100 mm (outer) and 85 mm (mounting hole)
  • Cable lengths: 6m

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

• Box Set: No
• Gauge Size: 3-3/8"
• Gauge Type: Multifunction
• Series: VMH
• Voltage - Input Range (Volts): 12v
• Box Dimensions: 5"H x 10"W x 14"L WT: 2.8 lbs
• UPC: 7640190290435

Quick Guide (pdf)
Owner's Manual (pdf)

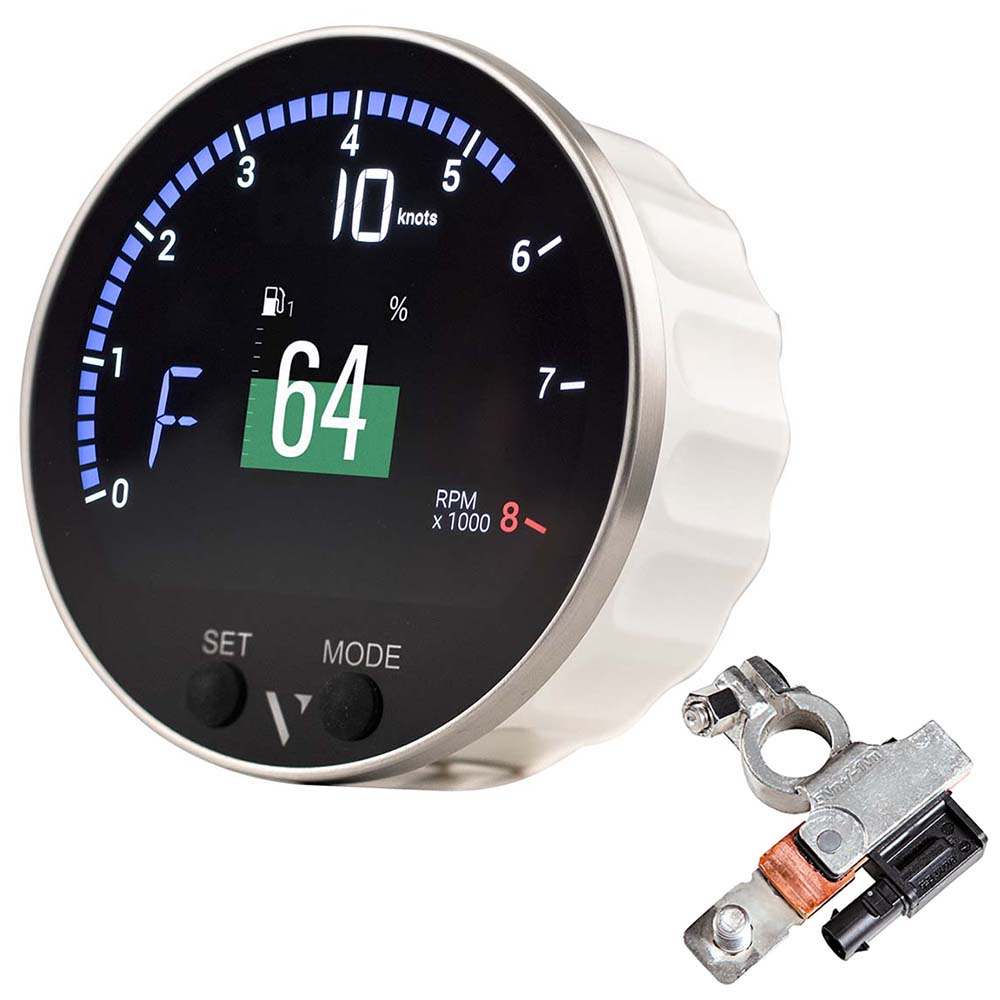

Veratron 85mm (3-3/8") VMH-35 Multifunction Gauge w/Battery Sensor [B00085502]

85mm (3-3/8") VMH-35 Multifunction Gauge with Battery Sensor

The Veratron VMH 35 is engineered for single inboard or outboard engine applications.

The Veratron VMH 35 has an embedded NMEA 2000 gateway that distributes sensor data inputs such as fuel, trim, and tachometer to other devices like chartplotters.  This saves the need for an additional external converter.  Highly adaptable to a wide range of onboard networks, it's equipped with analog inputs, making it ideal for refitting with older engines.

An integrated GPS makes the VMH 35 the perfect standalone navigation solution.  It integrates speed, compass, and position into the engine data information.  A dedicated Veratron IBS (Intelligent Battery System) input can provide critical 12V battery monitoring capabilities.

The Veratron VMH 35 has a mineral glass front that's optically bonded to the sun-readable hybrid display.  A sleek, brushed stainless steel bezel surrounds the device and fits into classic and modern marine décors.  Because small boat consoles are often fully exposed, the round display is waterproof to IPX7 criteria, both front and back.

It fits a standard 3-3/8" panel cutout size.

Features:

• Integrated high-performance GNSS receiver
• Integrated Analog to NMEA 2000 Gateway
• Waterproof to IPX7
• Stylish black-glass design with brushed stainless-steel ring
• New generation sun-readable color hybrid display
• Intelligent Battery Sensor (IBS) port
• NMEA 2000® certified

In the Box:

• VMH35 Gauge
• Wire harness
• Mounting Spinlock
• Outboard Engine Kit w/IBS (B00062402)
• Safety Instructions

*Sold as an Individual

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

• Box Set: No
• Gauge Size: 3-3/8"
• Gauge Type: Multifunction
• Series: VMH-35
• Box Dimensions: 4"H x 8"W x 12"L WT: 1 lbs
• UPC: 7640178729940

Owner's Manual (pdf)
Brochure (pdf)

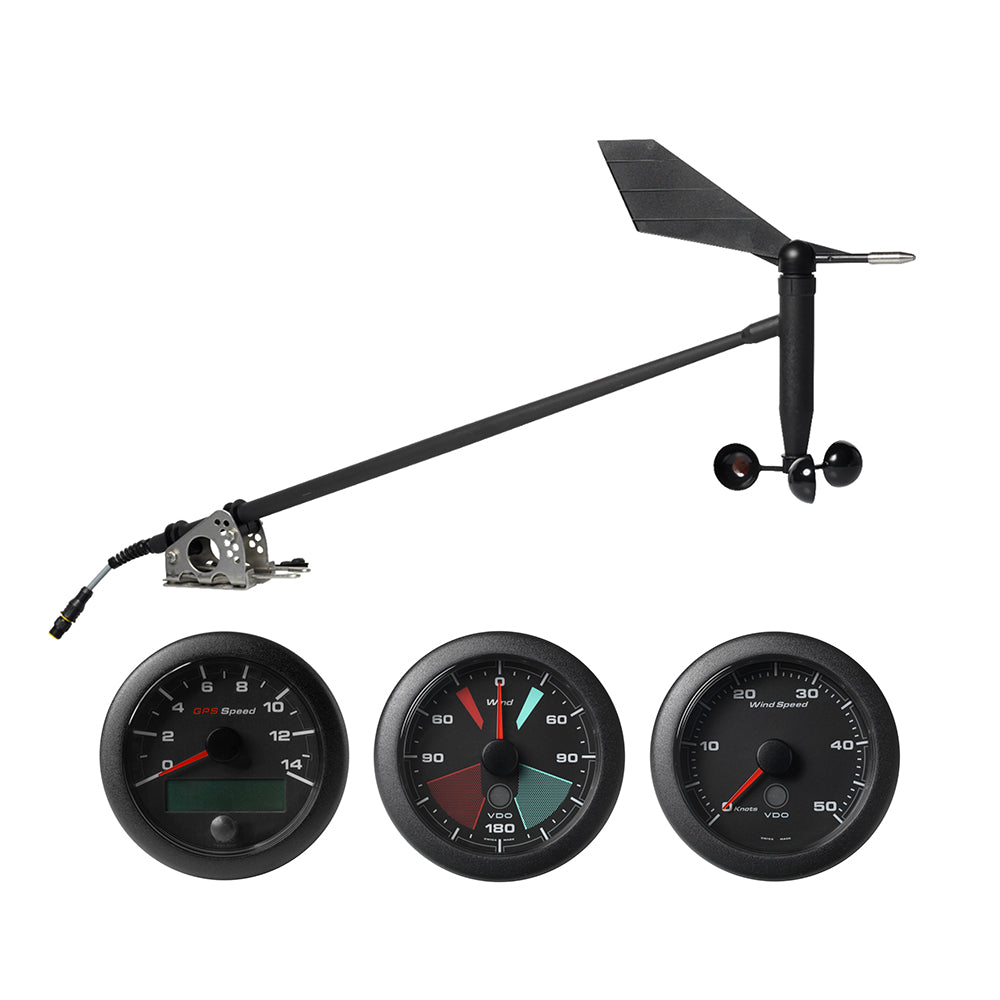

Veratron NMEA 2000 Sailing Kit w/OceanLink GPS Speedometer, Wind Sensor, Wind Angle  Wind Speed Gauge [A2C3935310001]

Ships Direct From Manufacturer

NMEA 2000 Sailing Kit with OceanLink® GPS Speedometer, Wind Sensor, Wind Angle & Wind Speed Gauge

Includes:

• OceanLink® GPS Speedometer
• Wind Sensor
• Wind Angle
• Wind Speed Gauge

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

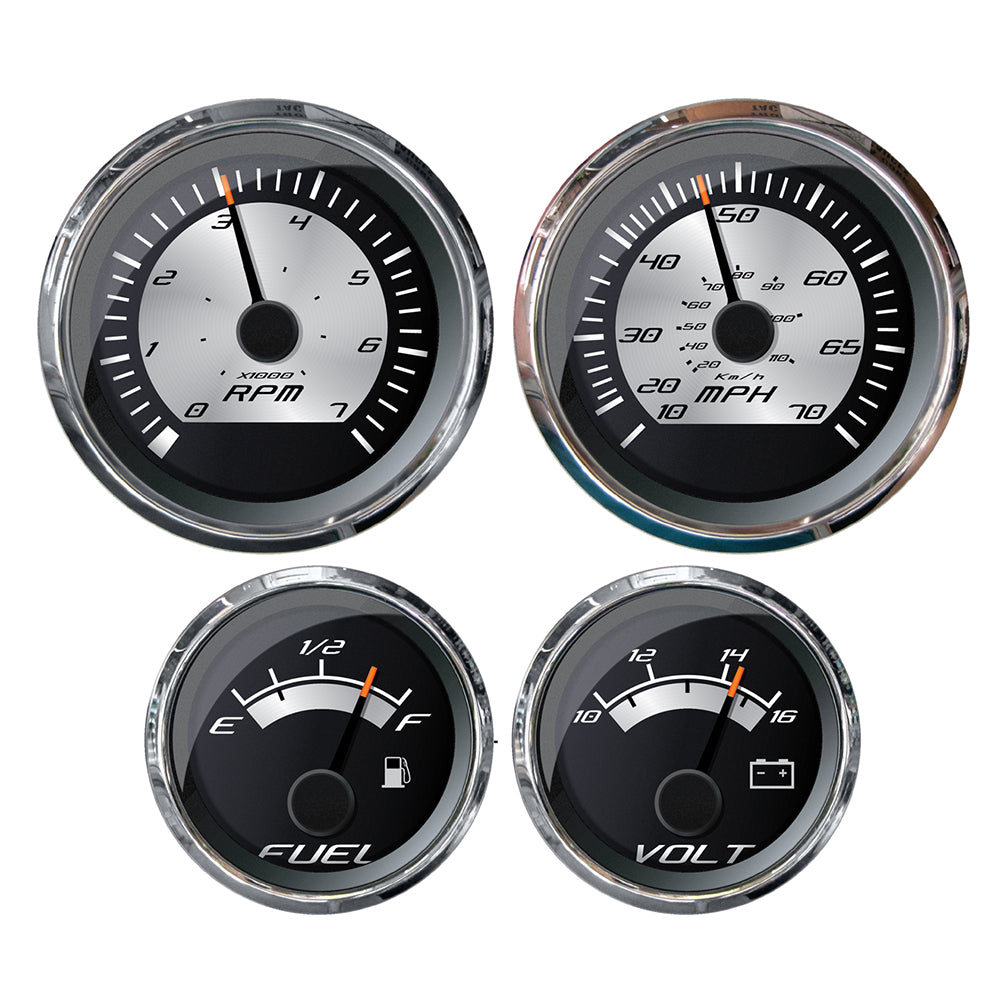

Faria Platinum Series Box Set - Outboard Motors [KTF0185]

Platinum Series Box Set - Outboard Motors

Faria Beede’s Platinum Series Instruments feature spun aluminum gauge dials with custom graphics and a polished stainless steel bezel providing a rugged, elegant look.

All Platinum Series gauges feature Faria's revolutionary domed glass Fog-Resistant lens. These lenses shed condensation and resists scratching and other types of fouling common in the marine environment.

Packaged and ready for the display counter. This 4 Gauge Boxed Sets offer a complete set of gauges ready to install.

Inboard Motors Boxed Set Includes:

• Speedometer (0 to 70 MPH) (Mechanical)
• Tachometer (0 to 7000 RPM)
• Fuel Level (E-1/2-F)
• Voltmeter (10-16 VDC)

Specifications:

• Domed Glass Anti-fog, Scratch Resistant Lens
• Stainless Steel Bezel
• Blue LED Illuminating around the Perimeter of the Dial
• Illuminated Backlit Fire-Orange Tip Pointer

Factory P/N KTF0185

*Sold as a Box Set

**Gauge Covers not Included

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

• Box Set: Yes
• Series: Platinum
• Gauge Type: Box Set
• Gauge Size: Various
• Voltage - Input Range (Volts): 12/24 V
• Box Dimensions: 7"H x 10"W x 21"L WT: 4.25 lbs
• UPC: 759266001855

Brochure (pdf)

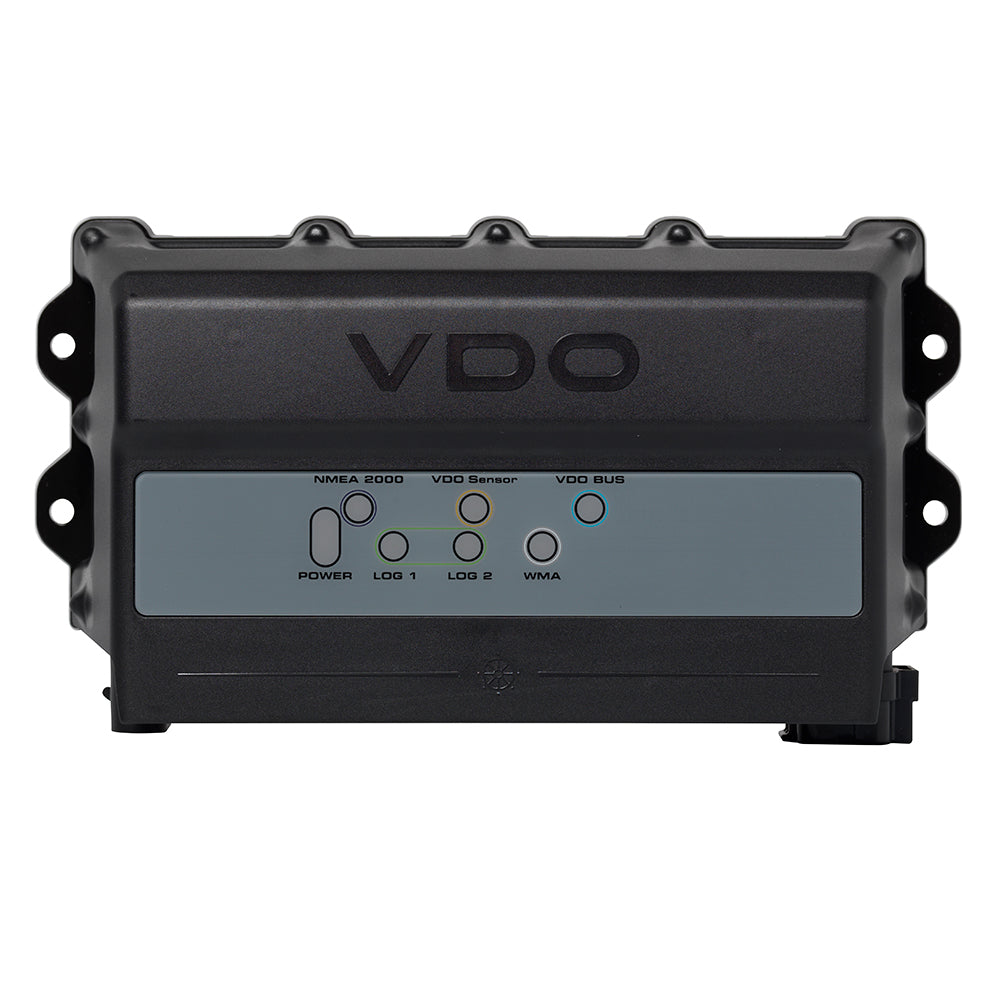

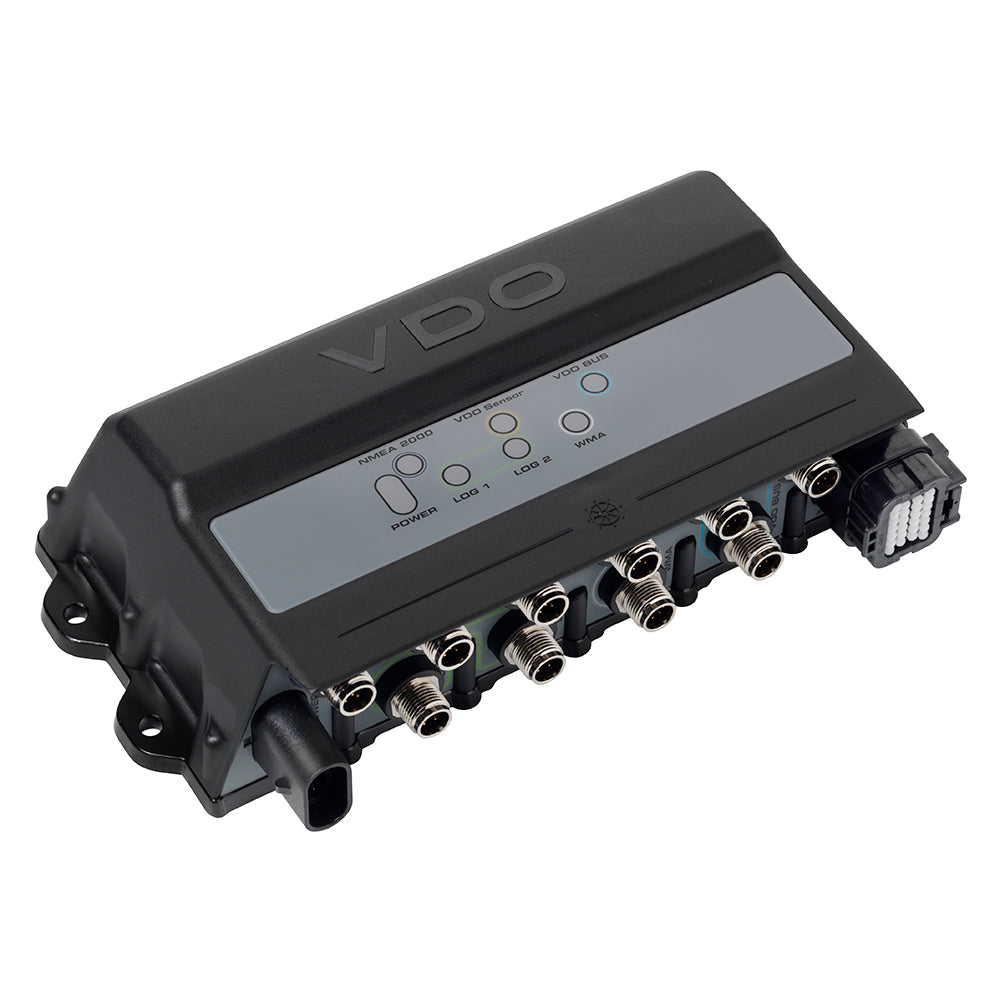

Veratron NavBox Electronic Control Unit [A2C59501979]

NavBox Electronic Control Unit

The AcquaLink® NavBox is the core of the AcquaLink® VDO Marine system. It acts as a CPU and signal interface. The NavBox provides a wide range of digital and analog input possibilities. It supports up to four electronic engines (J1939 or NMEA 2000®) or one analog engine. It also features two VDO Marine Sumlog® paddle wheel sensor and one analog VDO Marine Windsensor connections, so legacy VDO Marine products can be used and brought to the digital age.

NavSensor reads following analog data:

• Engine Oil Pressure
• Engine Oil Temperature
• Engine Coolant Temperature
• Transmission Oil Pressure
• Fresh Water, Waste Water and Fuel Level
• Voltage
• Rudder Angle
• Engine Frequency
• Battery Current
• Pyrometer

It also features a NMEA 0183 input and output port as well as a buzzer output. All received data are converted and sent to the NMEA 2000® network and to the VDO Marine Bus. This gateway function allows displaying engine, liquid level, pressure, temperature and other vital information on any compatible display on the NMEA 2000® network or on designed VDO Marine AcquaLink® gauges or TFT Displays.

The configuration of the NavBox can be done by using an AcquaLink® TFT and NavControl or by using the intuitive VDO Marine diagnostic tool.

• Reverse polarity protection
• NMEA 2000® certified
• LED signal status indication
• Aluminum base plate
• Front & rear side protection rating IPX4
• 3x VDO Marine bus lines
• 1x J1939 CAN bus
• 1x NMEA 2000® bus
• 1x VDO Marine Analog Wind Sensor Input
• 2x VDO Marine Sumlog® Inputs
• AMP Super Seal power input
• 26 pin AUX input (analog signals, NMEA 0183)
• Operating temperature range -20°C/+70°C

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
