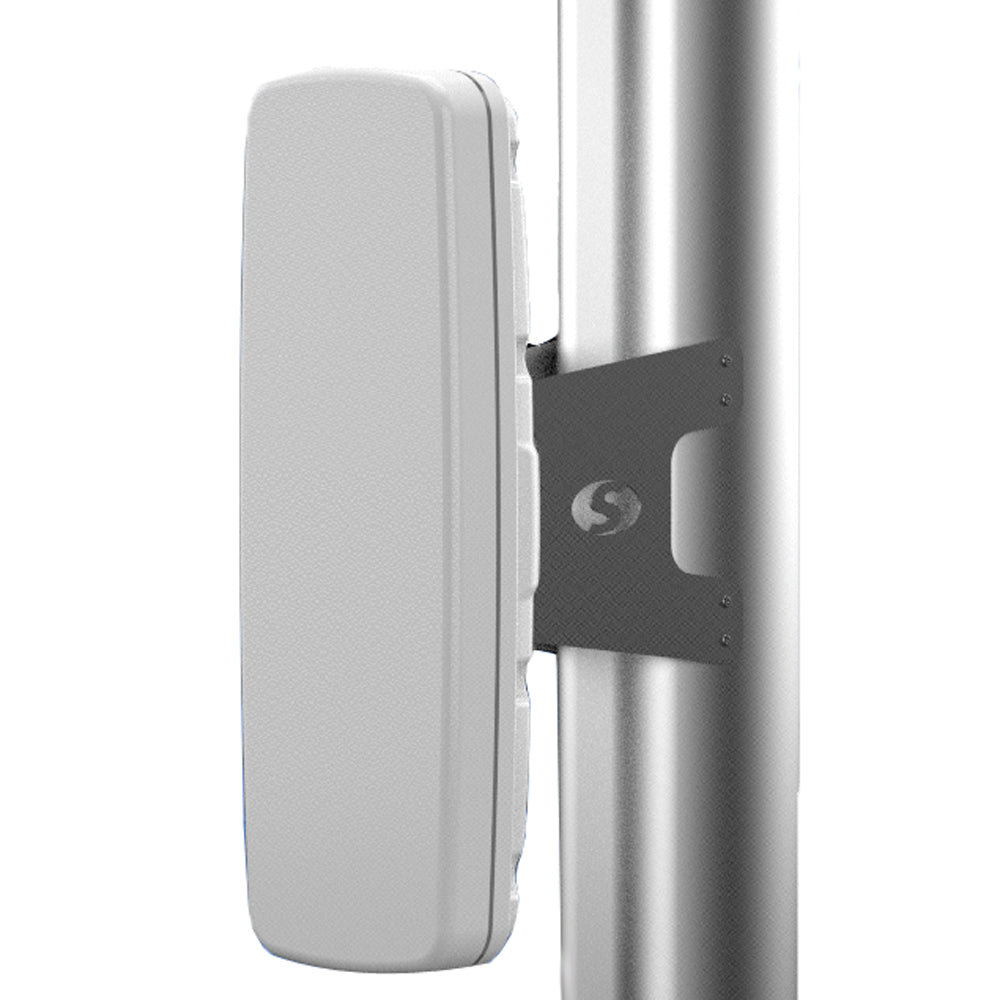

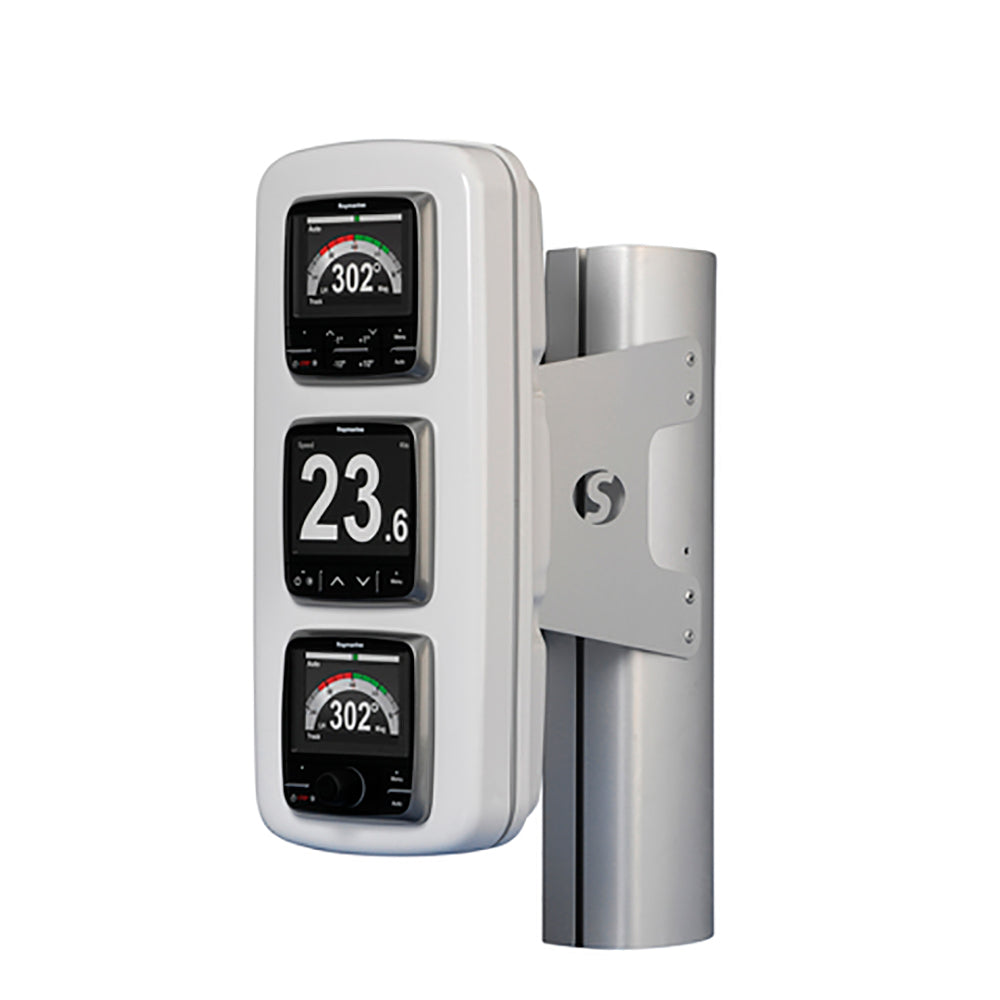

Scanstrut Scanpod Mast Mount 3 Instrument Uncut - Usable Face 4.6" x 14.5" - White [SPM-3I-W]

Scanpod Mast Mount - 3 Instruments

Scanstrut Scanpod Mast Pods allow installation of instruments at the mast. Whether racing or cruising, Mast Pods give you the best view of your instruments.

Features:

• Universal Mount-designed to fit multiple mast sizes
• Mast arms pivot about semicircular washers, an additional cross-brace provides stiffness preventing sideways movement
• The pod seal is manufactured from a high strength silicone, it has a very high resistance to heat and UV so you can be sure it will stand the test of time

Specifications:

• Uncut
• Useable Face: 14.5H" x 4.65W"
• Overall Dimensions: 17.0"W x 7.1H"
• Mast Arm: Length: 7.3", Width on lower end 8.3", Max opening 8.1"
• Fits mast sizes from 3" to 8.8"

Specifications:

• Cut/Uncut: Uncut
• Mounting Style: Bracket
• Usable Face: 4.65"W x 15.35"H
• Box Dimensions: 5"H x 9"W x 18"L WT: 5.15 lbs
• UPC: 5060114793767

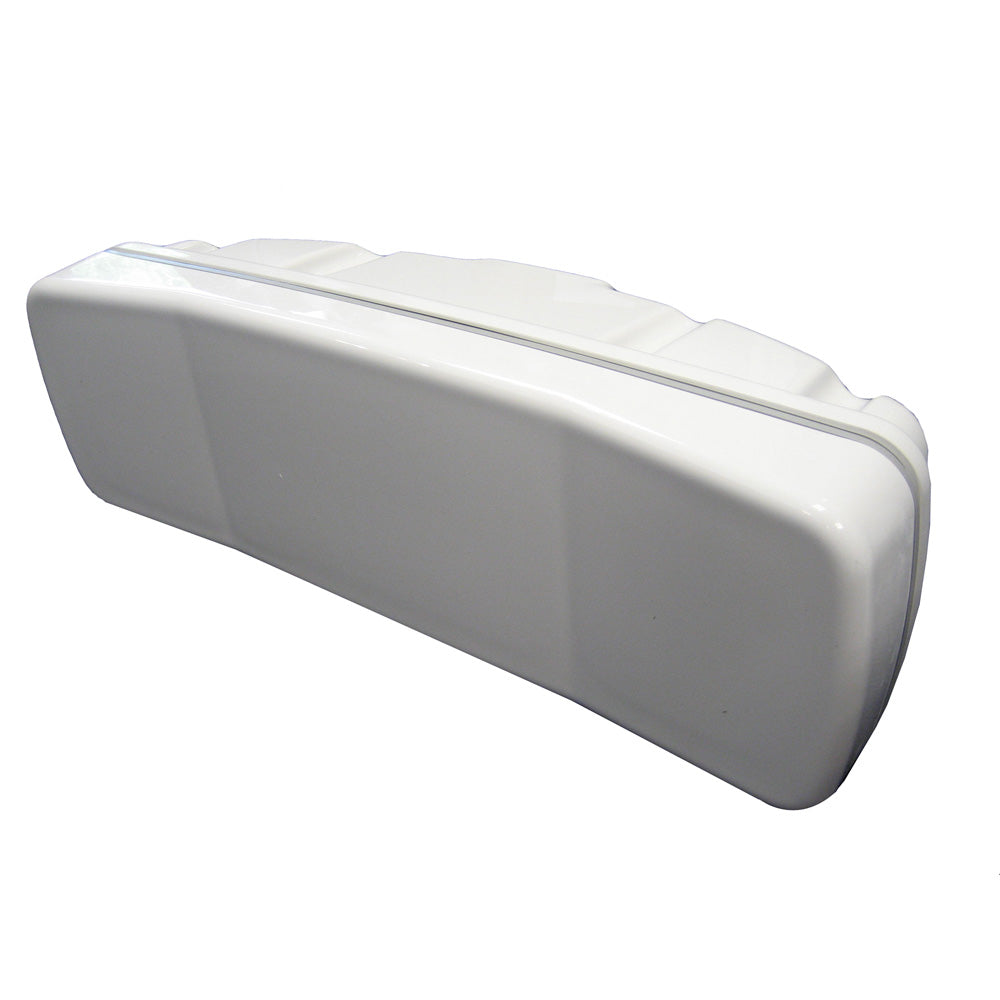

Scanstrut Scanpod Helm Pod Un-Cut for 2 or 4 Instruments [SPH-4XI-W]

Scanpod Helm Pod Un-Cut for 2 or 4 Instruments

Scanstrut's SPH-4XI-W Helm Pod is un-cut to fit  2 standard instruments or 4 standard instruments.

Specifications:

• Cut/Uncut: Uncut
• Mounting Style: Pedestal
• Usable Face: 20"W x 6.2"H
• Box Dimensions: 8"H x 9"W x 23"L WT: 5.9 lbs
• UPC: 5060114794146

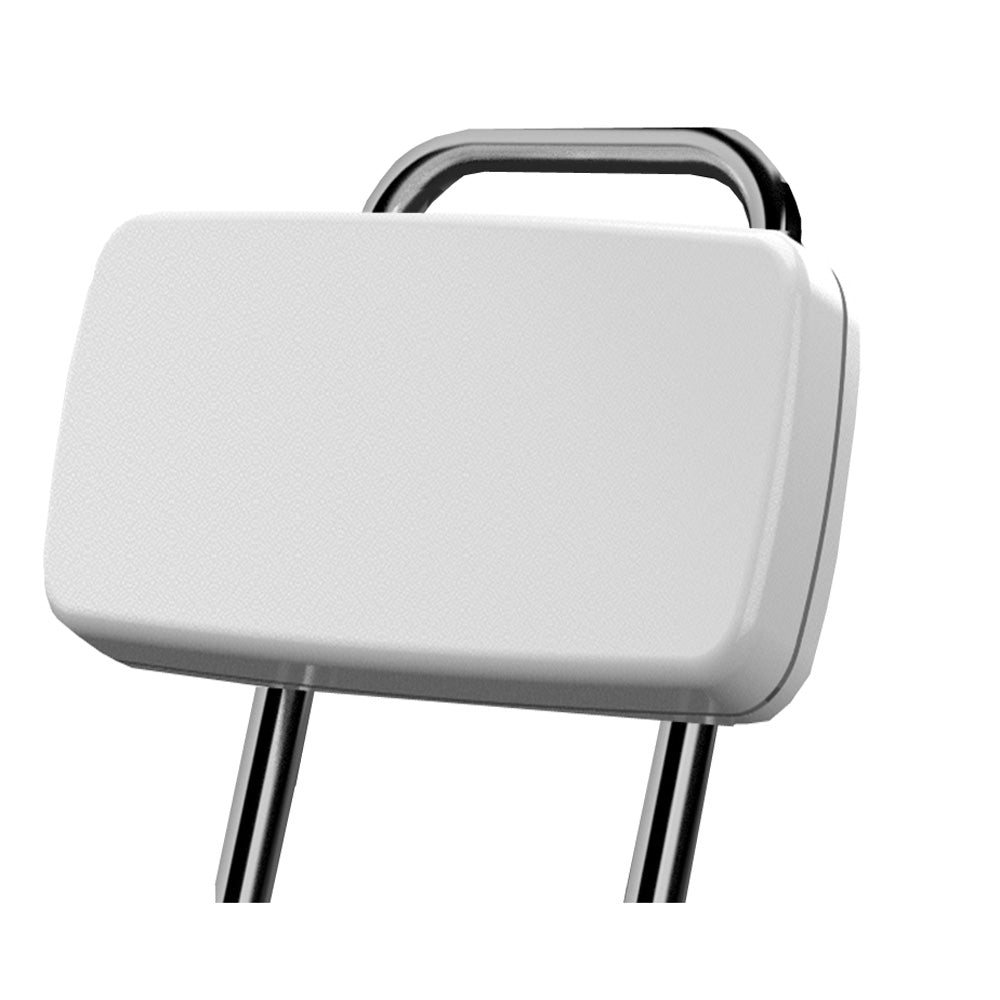

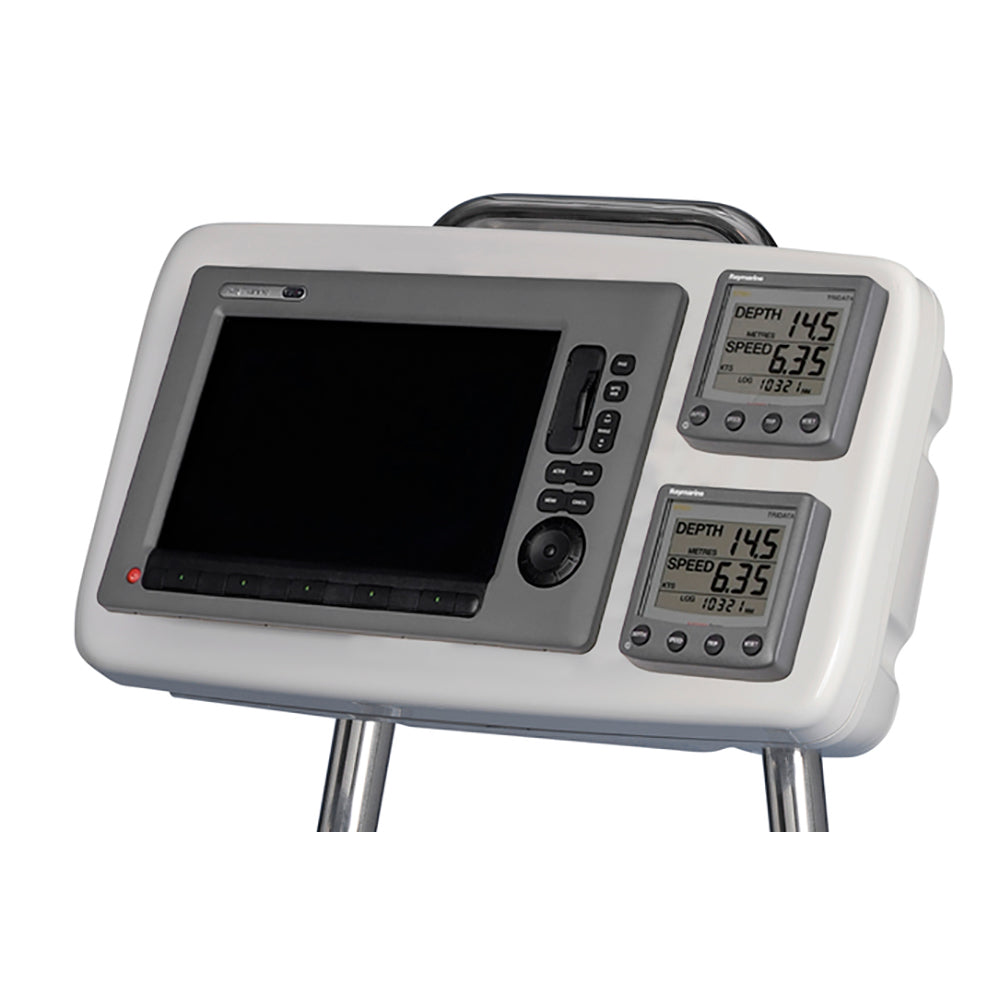

Scanstrut Scanpod Helm Pod System pod for 8" display plus 4 nav instruments or 12" display plus 2 nav instruments [SPH-SYSTEM-W]

Scanpod Helm Pod System - White

With great new design features, the Scanstrut Helm Pod is a perfect choice for all cockpit configurations.

With options to fit radar displays, chartplotters and standard navigation instruments.

Usable face : 21w x 11h

Range of Models

Helm Pod – System Pod for 8" screen + 4 standard nav instruments; or 12" screen + 2 standard nav instruments

Universal Helm Fixing

Fits pedestal rails from 25mm to 33.7mm (0.98" - 1.33"). Using a unique clamping system, the Pod can fit rail widths from 178mm (7") upwards.

Secure & Watertight Install

Saddle system supports the stainless tubing enabling a secure and rigid fit onto any pedestal and also ensures a watertight seal at cable entry

No Drill Fixing Kit

Customised U-bolts fit around rail and through the saddles into the back of the pod eliminating the need for time consuming and awkward drilling of the stainless rail.

Hassle Free Install & Service

Fixings fit from back to front cutting their threads into injection moulded ABS inserts designed into the Pod front. This design allows for a quick and safe install and repeat servicing.

Increased Protection

Pod seal is manufactured from a high tear strength silicone, it has a very high resistance to heat and UV so you can have confidence that it won't deteriorate over time.

Supplied Uncut

As standard you will receive your Scanpod uncut. For larger orders, a factory cutting service is available.

Specifications:

• Cut/Uncut: Uncut
• Mounting Style: Pedestal
• Usable Face: 21"W x 11"H
• Box Dimensions: 9"H x 14"W x 24"L WT: 11.2 lbs
• UPC: 5060114792722

Quick Guide (pdf)

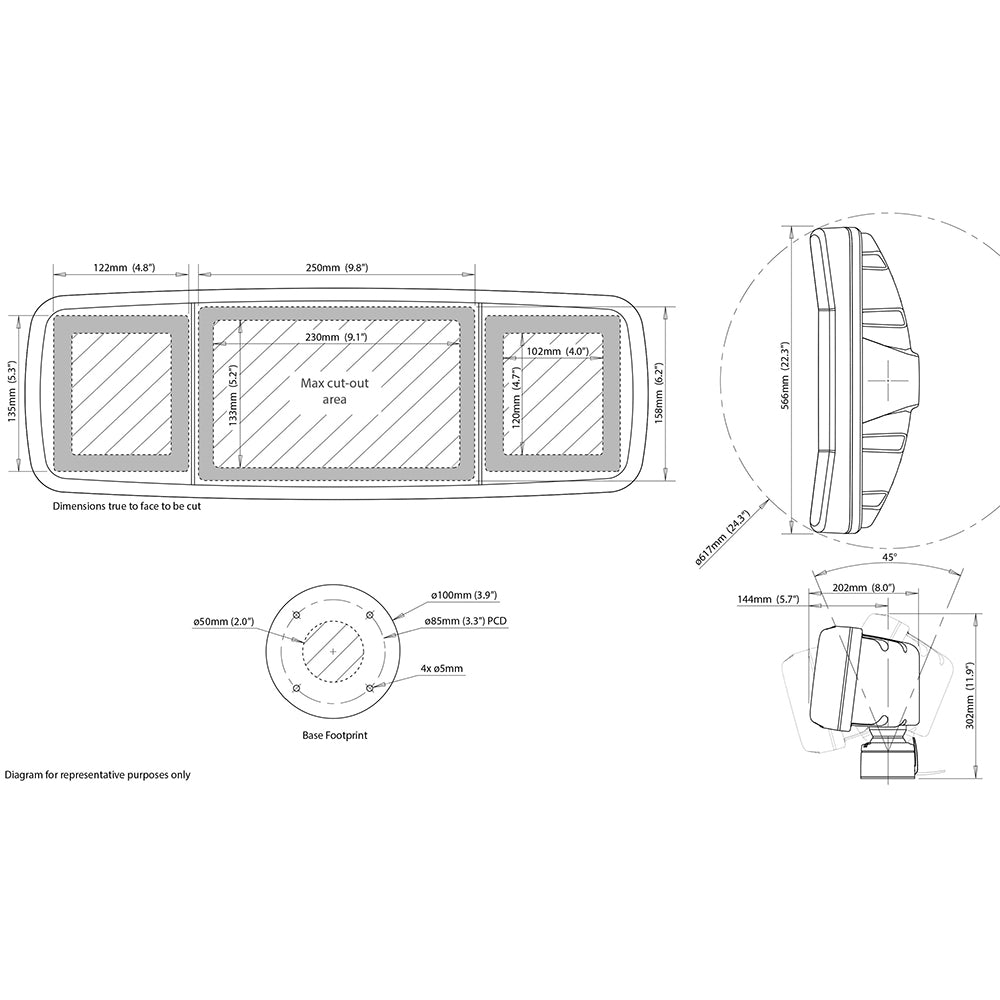

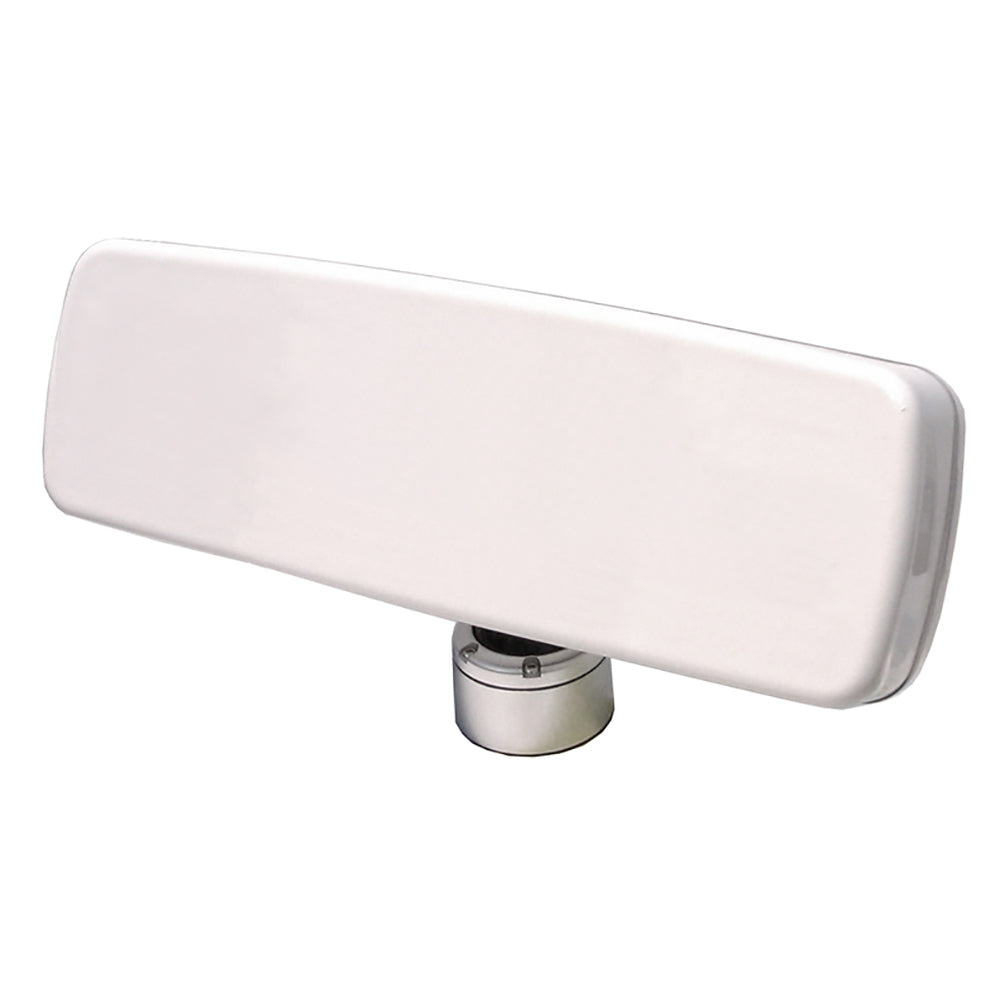

Scanstrut Scanpod Deck Pod Uncut f/7" or 8" Display  2 or 4 Instruments [SPD-4XI-W]

Scanpod Deck Pod Uncut for 7" or 8" Display & 2 or 4 Instruments

Scanstrut's SPD-4XI-W Deck Pod will fit a 7" or 8" screen plus 2 standard instruments or 4 standard instruments.

Can invert the mount above the helm under a T-top or on a fly bridge.

Specifications:

• Cut/Uncut: Uncut
• Mounting Style: Deck
• Usable Face: 20"W x 6.2"H
• Box Dimensions: 8"H x 9"W x 23"L WT: 7.8 lbs
• UPC: 5060114794092

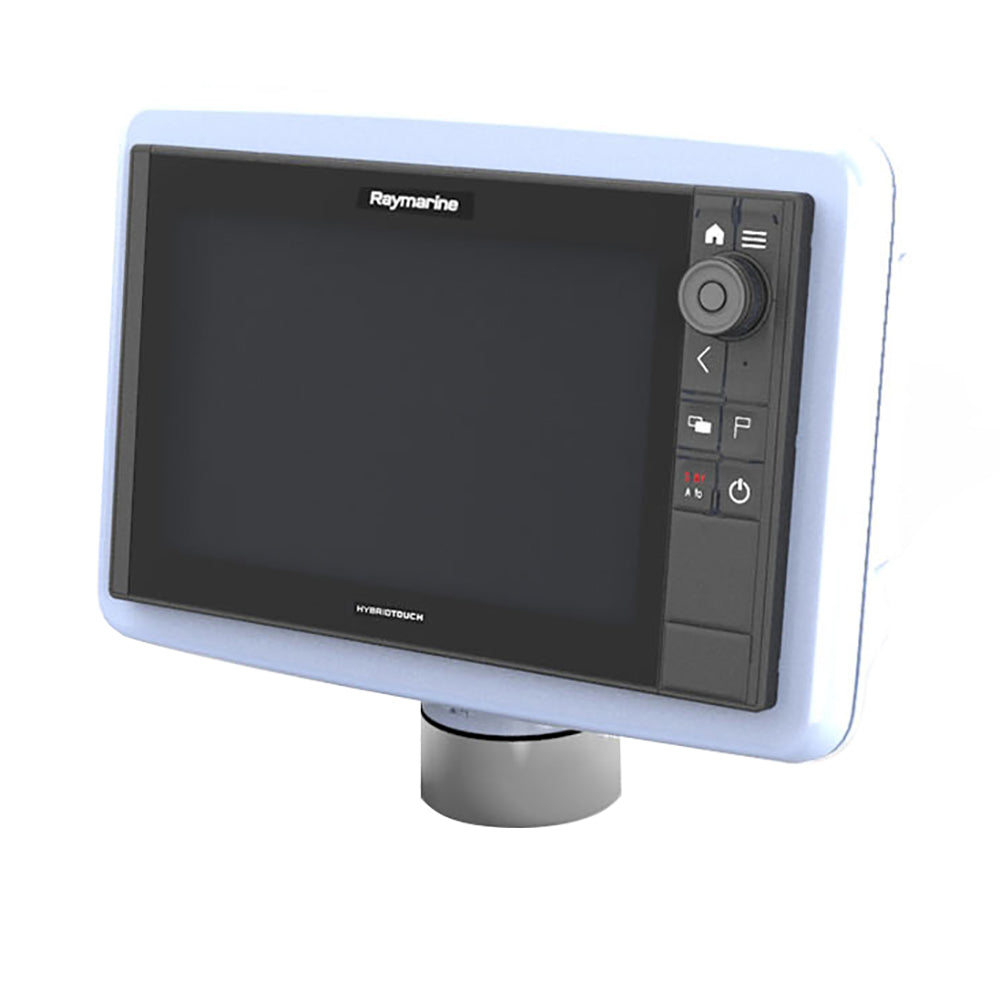

Scanstrut Scanpod Deck Pod Uncut f/10" to 12" Displays [SPD-13-W]

Scanpod Deck Pod Uncut for 10" to 12" Displays

Solve the challenge of finding a level mounting surface to install your displays onto your powerboat, RIB or sailboat wheelhouse.

For Displays and Standard Instruments:

• Fits 10" to 12" Displays
• Usable face 14.7H x 9.7W
• Accomodates 3/4 Standard instruments (e.g. ST60)

Features:

SWIVEL & TILT BASE

One handed quick release action. Simply release the lever, swivel and tilt to suit your requirements before locking back into position.

BEST VIEWING ANGLE

An adjustable ball joint allows range of movement and multiple mounting angles.

ADDED STRENGTH

Inner bracing plate secures the Deck Pod base to the pod and gives increased rigidity to the assembly eliminating potential damaged from shock and vibration.

OVERHEAD MOUNTING

Deck Pod models can be overhead mounted. Refer to part number guide for compatibility.

HASSLE FREE INSTALL & SERVICE

Fixings fit from back to front cutting their threads into injection moulded ABS inserts designed into the Pod front. This design allows for a quick and safe install and repeat servicing.

INCREASED PROTECTION

Pod seal is manufactured from a high tear strength silicone, it has a very high resistance to heat and UV so you can have confidence that it won’t deteriorate over time.

SUPPLIED UNCUT

As standard you will receive your Scanpod uncut (for tips on cutting, please view the FAQ tab). For larger orders, a factory cutting service is available.

Specifications:

• Usable Face: 14.7"W x 9.7"H
• Mounting Style: Deck
• Cut/Uncut: Uncut
• Box Dimensions: 9"H x 12"W x 17"L WT: 8.85 lbs
• UPC: 5060114797284

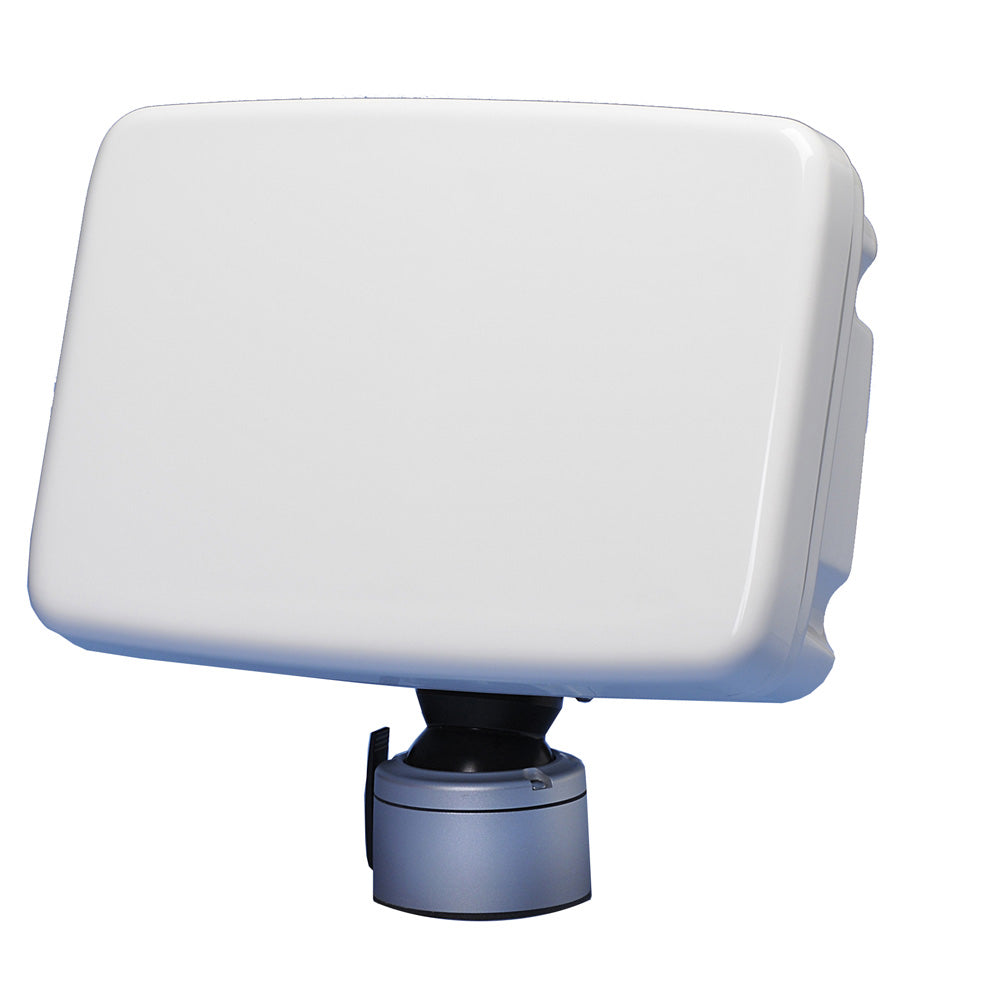

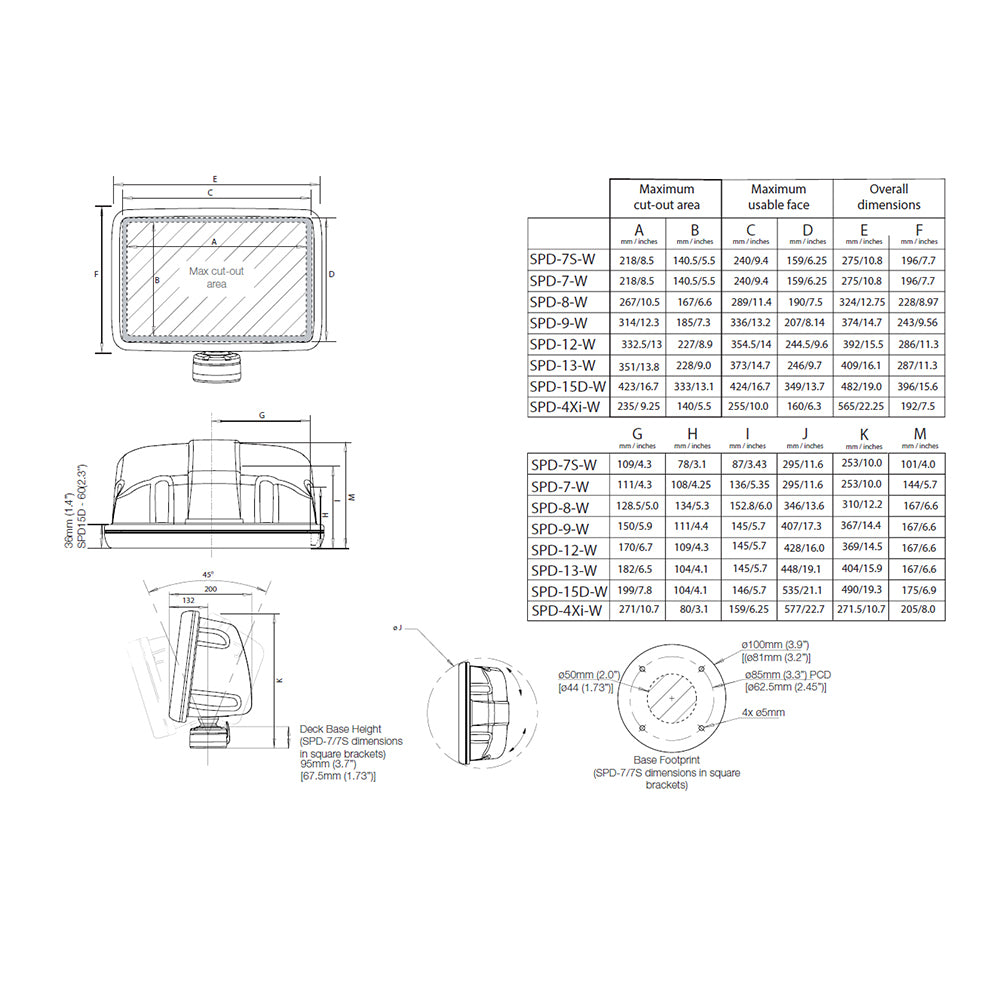

Scanstrut Scanpod Slim Deck Pod - f/10" to 12" Display - White [SPD-12-W]

Scanpod Slim Deck Pod - f/10" to 12" Display - White

Solve the challenge of finding a level mounting surface to install your displays onto your powerboat, RIB or sailboat wheelhouse.

Features:

• Fits 10” to 12” displays
• Usable face 14W x 9.6H
• Swivel & Tilt Base
  One handed quick release action. Simply release the lever, swivel and tilt to suit your requirements before locking back into position
• Best viewing angle
  An adjustable ball joint allows range of movement and multiple mounting angles
• Added Strength
  Inner bracing plate secures the Deck Pod base to the pod and gives increased rigidity to the assembly eliminating potential damaged from shock and vibration
• Overhead mounting
  Deck Pod models can be overhead mounted.
• Hassle Free Install & Service
  Fixings fit from back to front cutting their threads into injection moulded ABS inserts designed into the Pod front. This design allows for a quick and safe install and repeat servicing.
• Increased Protection
  Pod seal is manufactured from a high tear strength silicone, it has a very high resistance to heat and UV so you can have confidence that it wont deteriorate over time.
• Supplied Uncut
  As standard you will receive your Scanpod uncut

Specifications:

• Cut/Uncut: Uncut
• Mounting Style: Deck
• Usable Face: 14"W x 9.6"H
• Box Dimensions: 9"H x 11"W x 16"L WT: 8.5 lbs
• UPC: 5060114794290

Quick Guide (pdf)
