Boat Outfitting - Bow Thrusters

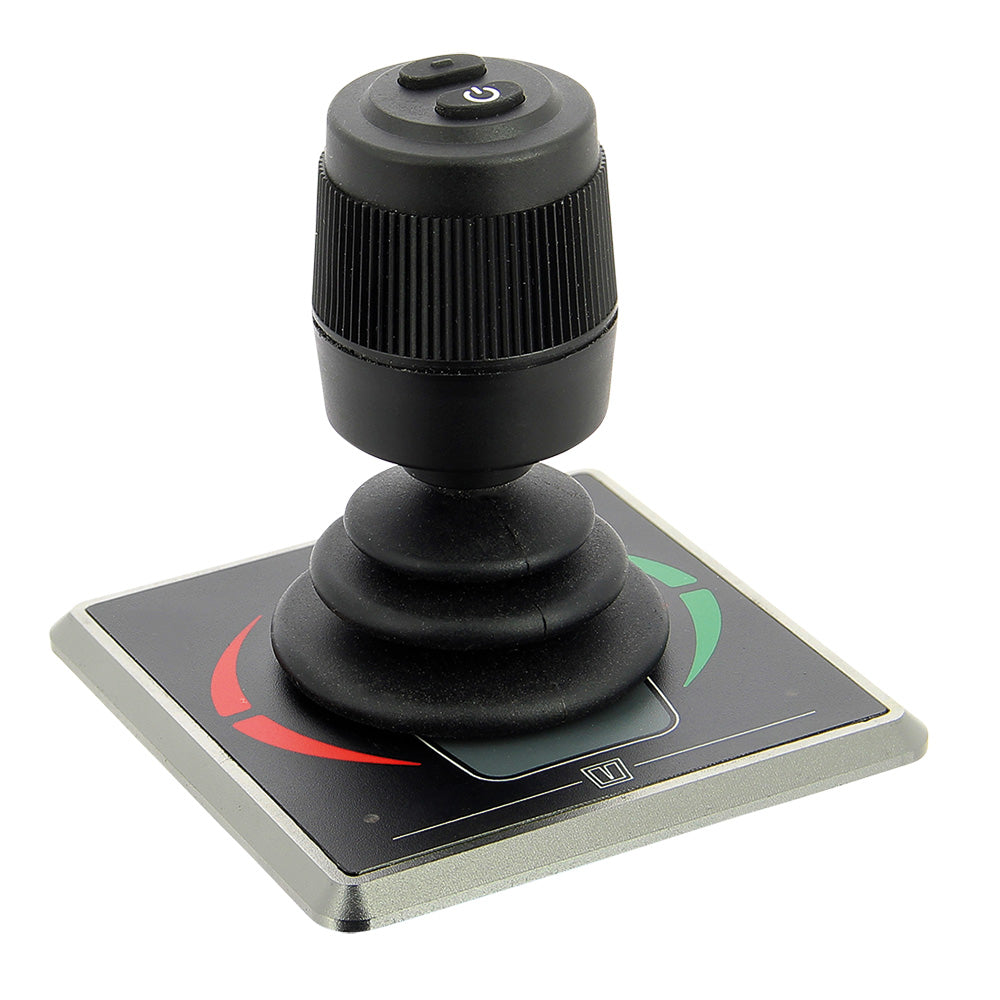

VETUS Double Can Proportional Thruster Panel Joystick [DBPPJA]

Ships Direct From Manufacturer

Double Can Proportional Thruster Panel Joystick

The multi-axial DBPPJA joystick can be used to operate the thrusters either individually or simultaneously. Rotating the joystick will operate them in opposite directions to rotate the boat on its axis. Featuring a lock-and-hold function, the new panel makes docking the simplest of operations. This double control panel features a modern-design waterproof housing complemented by a classy aluminum bezel to integrate flawlessly into every helm position.

Features:

• For BOW PRO (Boosted) thruster only
• Controls both bow and stern thruster
• Unique twist function to rotate the boat
• Proportional control
• The compact design fits in the cut-out of a single-thruster joystick
• Lock and-hold function for easy docking
• LED indication feedback
• Modern styling
• V-CAN compliant
• Waterproof housing (IP65)
• Dock safely, surely, and with confidence

Specifications:

• Child Protection: Yes
• Voltage (V): 12
• Purpose: Thruster control
• Sort Control: Joystick
• Proportional Control: Yes
• V-CAN: Yes
• Build-In Depth: 120 mm
• Bezel: Aluminium
• Function: 0
• Width: 85 mm
• Cut-Out Diameter: 76 mm
• Height: 85 mm

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Owner's Manual (pdf)

VETUS BOW PRO 761 Bow Thruster 76KGF - 12V [BOWA0761]

Ships Direct From Manufacturer

BOW PRO 761 Bow Thruster 76KGF - 12V

The BOW PRO thrusters are fitted with proven induction technology. This system makes the use of carbon brushes obsolete. As a result, the bow thruster is very quiet and has indefinite* run-time! The (AC) induction motor is controlled by the VETUS MCV motor controller. This in-house-engineered motor controller can handle both 12V, 24V and AC motors, making the new bow thruster suitable for almost all boats!

The BOW PRO thruster is controlled by a proprietary CANBUS protocol. There are two different panels available for this thruster; one fully-proportional basic panel and one fully-proportional panel with lock-function. This allows the boat to be moored without the use of ropes. Letting passengers board your vessel have never been this easy! Evolution is to continue on a set of good properties, so there are similarities with its predecessors: remained are the very silent propeller blades and the streamlined tailpiece. Retrofitting a BOW PRO thruster, therefore, is a piece of cake as the new motor is interchangeable with the tailpiece and flange of our thruster range.

Features:

• Range of Boat Size: 35ft - 39ft
• Thrust in pounds force: 167 lbs
• Motor horse power: 6
• Tunnel- center line below the waterline: 185MM
• Voltage: 24V
•  Precision proportional control
• Endurance Rated Run-time - up to 10 minutes (dependant on model) at full power
• Maintenance-free brushless motor
• Sealed ingression protection construction - motor sealed for improved corrosion resistance in damp bilge environments
• Built-in over-temp and low battery voltage protection
• Suitable for high demanding applications (e.g. for use in rental & charter vessels)

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

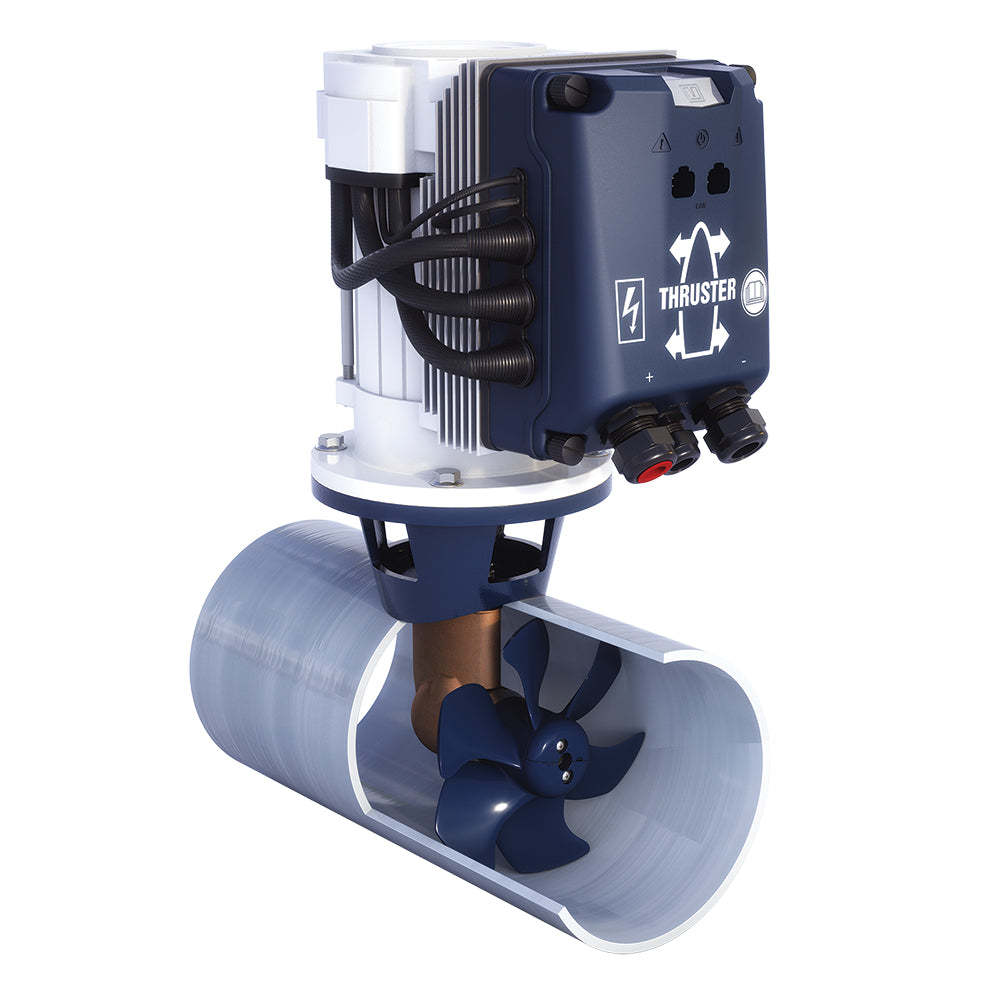

VETUS BOW PRO 651 Bow Thruster 65KGF - 12V [BOWA0651]

Ships Direct From Manufacturer

BOW PRO 651 Bow Thruster 65KGF - 12V

Our BOW PRO thrusters are fitted with proven induction technology. This system makes the use of carbon brushes obsolete. As a result, the bow thruster is very quiet and has indefinite* run-time! The (AC) induction motor is controlled by the VETUS MCV motor controller. This in-house-engineered motor controller can handle both 12V, 24V and AC motors, making the new bow thruster suitable for almost all boats!

The BOW PRO thruster is controlled by a proprietary CANBUS protocol. There are two different panels available for this thruster; one fully-proportional basic panel and one fully-proportional panel with lock-function. This allows the boat to be moored without the use of ropes. Letting passengers board your vessel have never been this easy! Evolution is to continue on a set of good properties, so there are similarities with its predecessors: remained are the very silent propeller blades and the streamlined tailpiece. Retrofitting a BOW PRO thruster, therefore, is a piece of cake as the new motor is interchangeable with the tailpiece and flange of our thruster range.

Features:

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

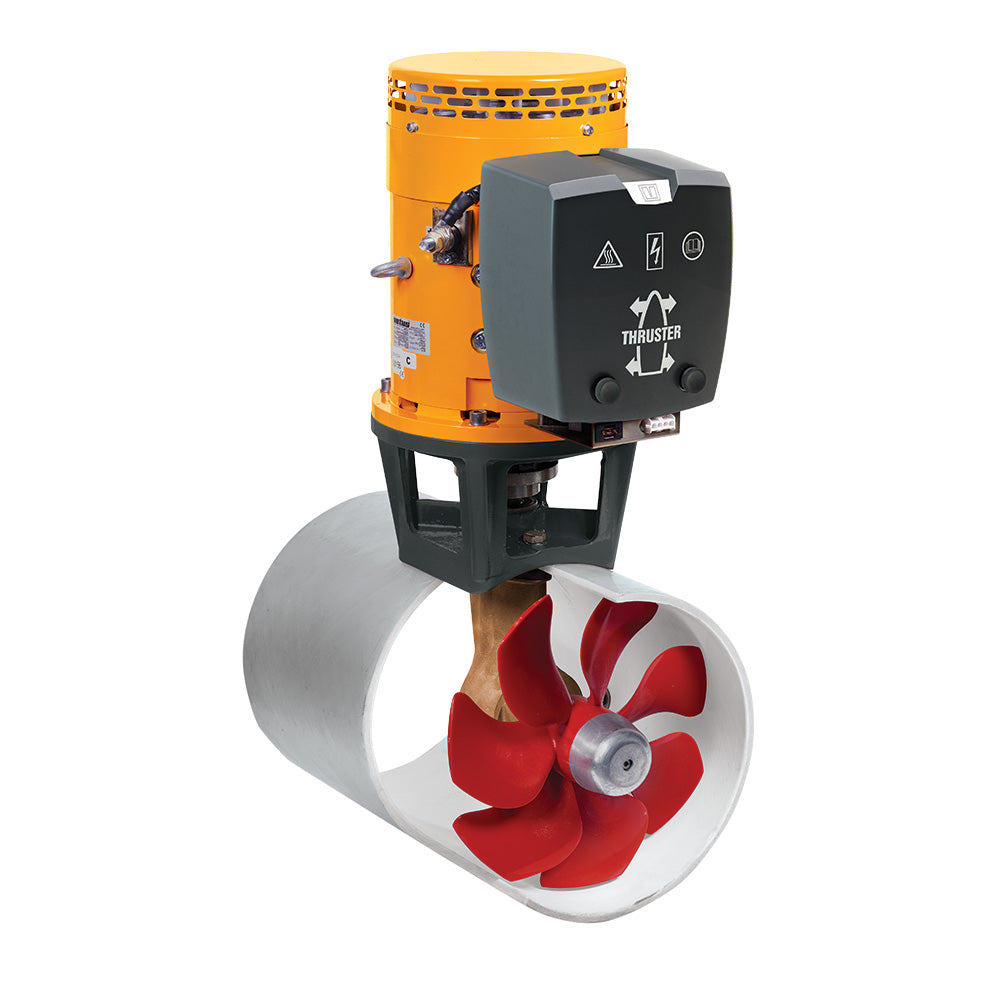

Bow Thruster - 220 KGF & 24V

VETUS bow thruster with 220 KGF thrust force, suitable for boats from 19.5 to 26 meters in length. 24 Volt version.

Features:

• Advantages of VETUS bow thrusters
• A single propeller creates less flow disturbance in the tunnel
• The VETUS unique propeller blade design minimizes cavitation noise
• Spiral gears minimize transmission noise
• The use of a flexible coupling between the tailpiece and motor eliminates vibration
• All VETUS systems use a streamlined tailpiece for optimum flow
• A strong synthetic propeller eliminates corrosion and reduces weight
• Systems are easy to install and are supplied with clear installation and operation instructions
• VETUS systems use a new line of high-quality aluminum control panels that are interchangeable with older panels
• All VETUS maneuvering systems meet the EMC requirements

Specifications:

• Thrust (KGF): 220
• Power (kW): 11
• Internal Tunnel Diameter (mm): 300
• Weight (kg): 68
• Voltage (V): 24
• Current Consumption (A): 760
• Continuous Operating Time (min): 2,5
• Ignition Protected: No
• Proportional: No
• Retractable: No
• Extended Runtime: No

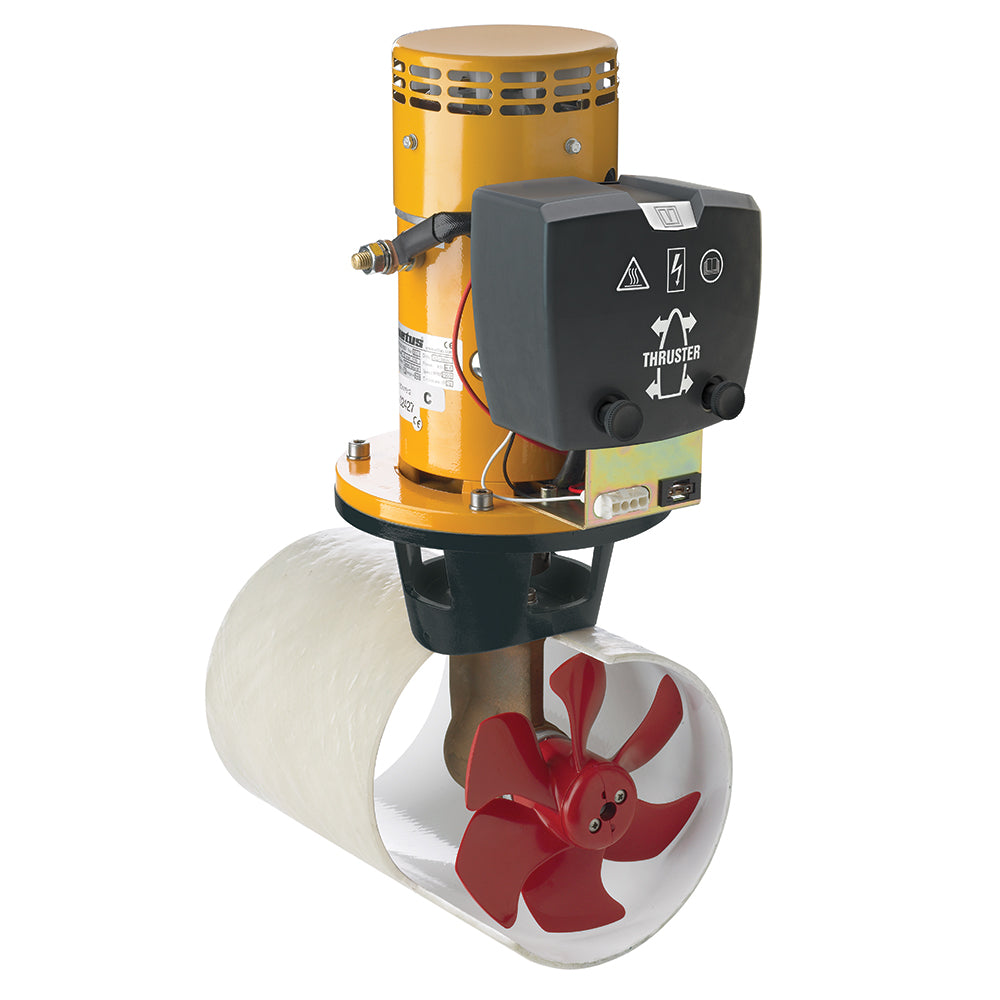

VETUS Bow Thruster 7512D 75KGF-12V-D185MM [BOW7512D]

Ships Direct From Manufacturer

Bow Thruster 7512D 75KGF-12V-D185MM

VETUS bow thruster with 75 kgf thrust force, suitable for boats from 10.5M to 15M in length.

12V version.

Features

• A single propeller creates less flow disturbance in the tunnel
• The VETUS unique propeller blade design minimizes cavitation noise
• The use of a flexible coupling between tail piece and motor eliminates vibration
• All VETUS systems use a streamlined tail piece for optimum flow
• A strong synthetic propeller eliminates corrosion and reduces weight
• Systems are easy to install, supplied with clear installation and operation instructions
• VETUS systems use a new line of high quality aluminium control panels which are interchangeable with older panels
• All VETUS manoeuvring systems meet the EMC requirements

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Quick Guide (pdf)
Owner's Manual (pdf)

VETUS BOW PRO 421 Bow Thruster 42KGF - 12V [BOWA0421]

Ships Direct From Manufacturer

BOW PRO 421 Bow Thruster 42KGF - 12V

The BOW PRO thrusters are fitted with proven induction technology. This system makes the use of carbon brushes obsolete. As a result, the bow thruster is very quiet and has indefinite* run-time! The (AC) induction motor is controlled by the VETUS MCV motor controller. This in-house-engineered motor controller can handle both 12V, 24V and AC motors, making the new bow thruster suitable for almost all boats!

The BOW PRO thruster is controlled by a proprietary CANBUS protocol. There are two different panels available for this thruster; one fully-proportional basic panel and one fully-proportional panel with lock-function. This allows the boat to be moored without the use of ropes. Letting passengers board your vessel have never been this easy! Evolution is to continue on a set of good properties, so there are similarities with its predecessors: remained are the very silent propeller blades and the streamlined tailpiece. Retrofitting a BOW PRO thruster, therefore, is a piece of cake as the new motor is interchangeable with the tailpiece and flange of our thruster range.

Features:

• Range of Boat Size: 25ft - 30ft
• Thrust in pounds force: 93 lbs
• Motor horse power: 4
• Tunnel- center line below the waterline: 125MM
• Voltage: 12V
•  Precision proportional control
• Endurance Rated Run-time - up to 10 minutes (dependant on model) at full power
• Maintenance-free brushless motor
• Sealed ingression protection construction - motor sealed for improved corrosion resistance in damp bilge environments
• Built-in over-temp and low battery voltage protection
• Suitable for high demanding applications (e.g. for use in rental & charter vessels)

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Brochure (pdf)

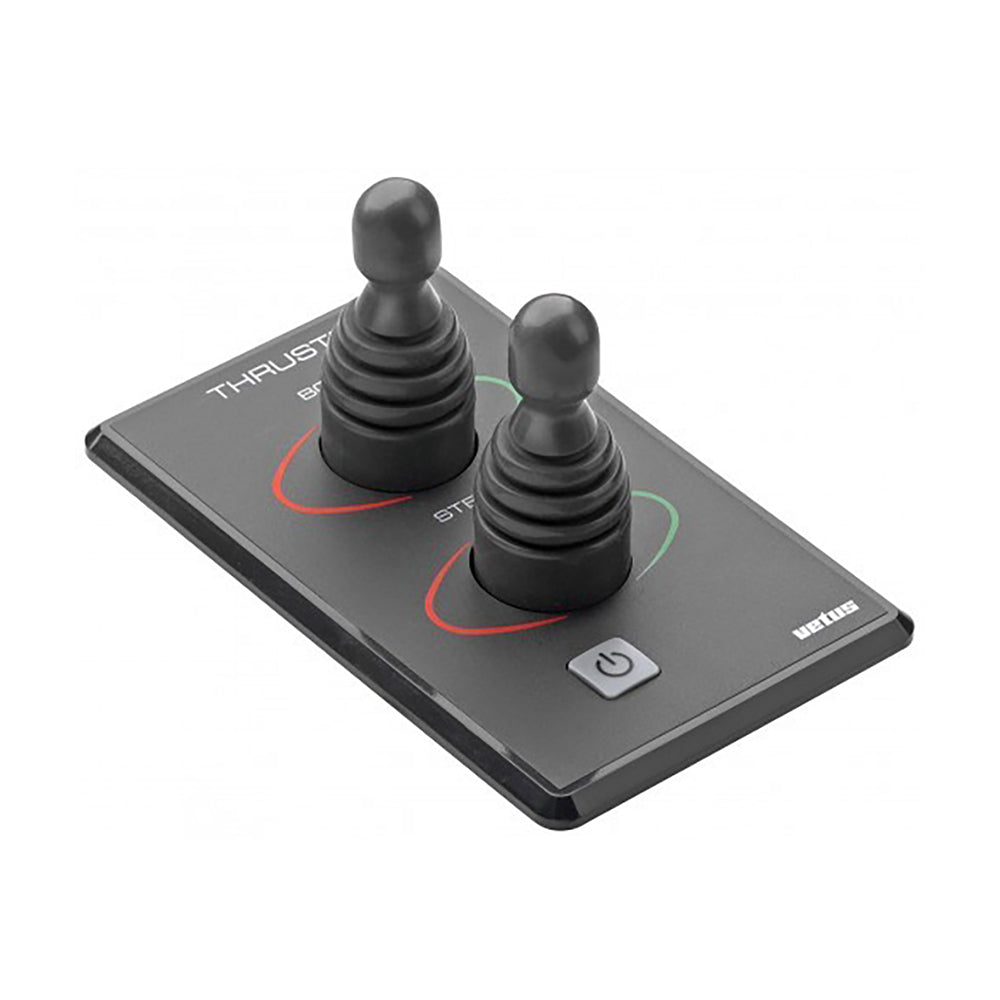

VETUS Bow Thruster Panel w/Joystick [BPJDE2]

Bow Thruster Panel with Joystick

Bow & stern thruster panel with two joy-sticks and time delay, 12/24 volt.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

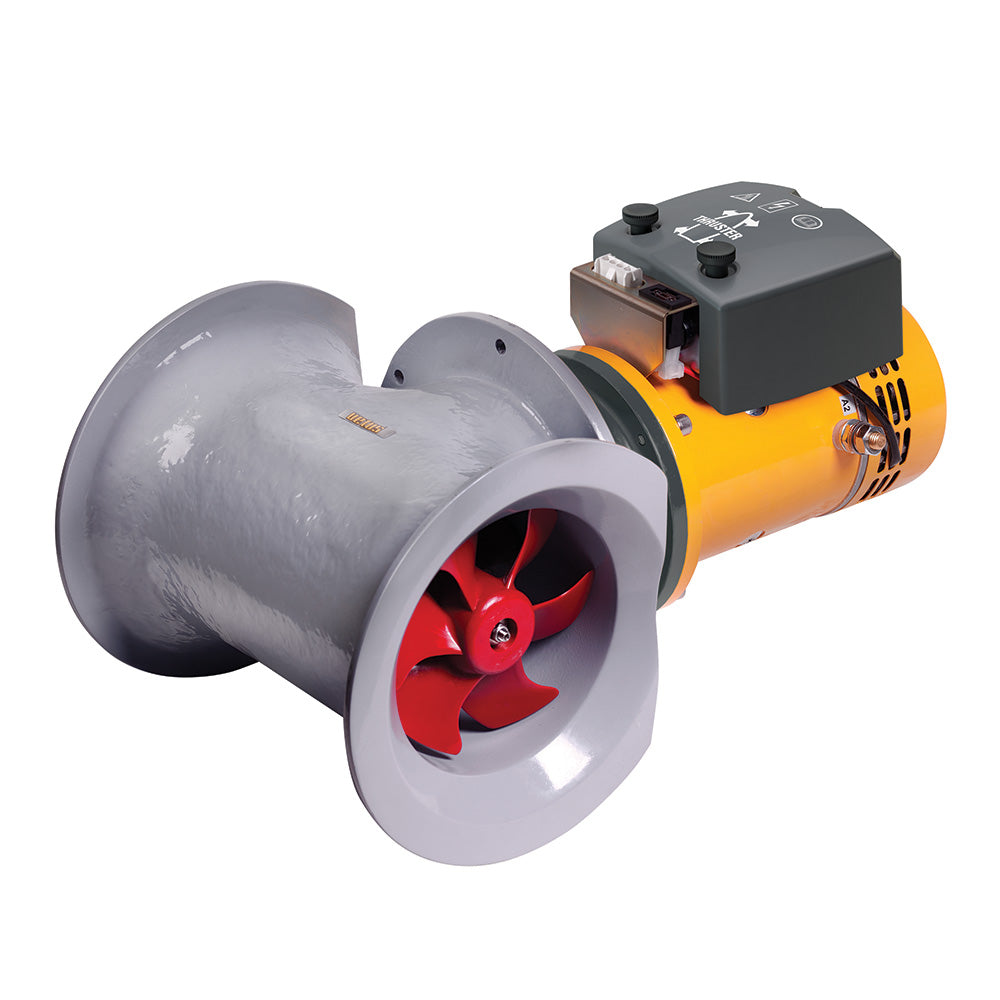

VETUS GRP Stern Thruster Tunnel - Diameter 185mm [STERN185P]

GRP Stern Thruster Tunnel - Diameter 185mm

Combining a VETUS stern thruster with a VETUS bow thruster will provide even greater maneuverability for your boat in locks or harbors. By placing a side-directional thruster in the bow and another one at the transom, everything from docking and sailing away to finding a spot in the lock or marina becomes child’s play! Even the effects of wind and current can be effectively countered.

Installation of a VETUS stern thruster is simple. The electric motor and other electrical components are fitted internally to the transom of the boat. The stern thruster tunnel and the propeller are installed externally on the transom.

Note:

• The range of seven different stern thruster kits can make 14 different stern thruster models
• These kits may also be used with ‘ignition protected’ thrusters and extended-runtime thrusters

Specifications:

• For Thruster Models: BOW60, BOW75, BOW95, BOW95HYDR, BOWA0651, BOWA0761, BOWA0764, BOWB065, BOWB076, BOWB090, BOWB110, BOWB130
• Internal Tunnel Diameter: 185mm
