Mastervolt

Mastervolt AC Master 12/2000 (230V) Inverter [28012000]

~~$1,754.99~~$979.99

Mastervolt AC Master 12/2000 (230V) Inverter [28012000]

AC Master 12/2000 (230V) Inverter

Reliable AC power for recreational and semi-professional use.

These affordable sine wave inverters convert 12 or 24 V battery voltage into reliable 230 V 50/60 Hz or 120 V 50/60 Hz grid power, making them ideal for recreational and semi-professional applications. The AC Master series is easy to install and delivers full output, even under the most demanding conditions. Pure sine wave technology provides an outstanding power quality, ensuring the correct functioning of sensitive equipment. The usage of high-frequency switching technology eliminates any annoying humming and buzzing sounds.

Representing complete value for money, these ruggedly built inverters provide essential home comforts when you’re far from the nearest grid connection.

Features:

Pure sine wave technology protects sensitive equipment.
Delivers full output at high peak power under the most demanding conditions.
Automatic power-saving system for extended runtime.
Compact and lightweight design, saving valuable installation time.
Reliable and safe operation; protected against over-temperature, overload, short circuit, high or low battery voltage.
Variable-speed fan for quiet operation at low power.
Optional remote control for instant switch-off of the inverter and all connected equipment (not available for the 300 and 500 W models).
Convenient plug connection for all models, 2500/3500 Watt models also hard-wired.

Applications:

Both recreational and semi-professional use, where grid power varies or is unavailable. Applications include lighting, appliances, electric cooking, and power tools. For (mobile) applications in your home, office, or service vehicle, or during your holidays.

General Specifications:

Output voltage: 230/240 V 50/60 Hz (selectable)
Output waveform: True sine
Nominal battery voltage:12V
Recommended battery capacity: ≥ 200 Ah
Continuous power at 25 °C / 77 °F, cos phi 1: 2000 W
Continuous power at 40 °C / 104 °F, cos phi 1: 2000 W
Peak load (1 min.): < 2300 W
Peak load (1 s): < 4000 W
AC connection: Plug connection EU (Schuko)
Galvanic isolation: Yes
Efficiency: 94%
Display/read-out: LED indication: battery voltage, load level, status
Alarms: Potential free alarm contact
Dimensions, hxwxd: 248 x 443 x 83 mm/9.8 x 17.4 x 3.3 inch
Weight: 5.2 kg/11.5 lb
Compliance: Safety: CE, E-mark, RCM

Technical Specifications:

Technology: high frequency, input & output fully isolated
Low battery voltage, switches off at 10.5 V
Low battery voltage, switches on at 12.5 V
High battery voltage, switches off at 16.5 V
High battery voltage, switches on at 14.5 V
Input current (nominal load): 200 A
No-load power consumption (ON mode): < 1.8 A
No-load power consumption (energy saving mode): < 0.1 A
Minimal DC fuse (slow blow): 250 A
Minimal cable size: 70 mm²
Harmonic distortion typical: < 3 %
Cos phi: All power factors allowed
Temperature range (ambient temp.): -20 °C to 60 °C, derating power > 40 °C/-4 °F to 140 °F
Cooling: Temperature and load controlled fan
Protection degree: IP21, horizontal wall mounting
Protections: Over-temperature, overload, short circuit, high/low voltage, reverse polarity (fuse)
MasterBus compatible: Yes, using a MasterBus AC Master Interface

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Owner's Manual (pdf)
Brochure (pdf)

Mastervolt

Mastervolt AC Master 12/2500 (230V) Inverter [28012500]

~~$2,302.99~~$1,285.99

Mastervolt AC Master 12/2500 (230V) Inverter [28012500]

Ships Direct From Manufacturer

AC Master 12/2500 (230V) Inverter

Reliable AC power for recreational and semi-professional use.

These affordable sine wave inverters convert 12 or 24 V battery voltage into reliable 230 V 50/60 Hz or 120 V 50/60 Hz grid power, making them ideal for recreational and semi-professional applications. The AC Master series is easy to install and delivers full output, even under the most demanding conditions. Pure sine wave technology provides an outstanding power quality, ensuring the correct functioning of sensitive equipment. The usage of high-frequency switching technology eliminates any annoying humming and buzzing sounds.

Representing complete value for money, these ruggedly built inverters provide essential home comforts when you’re far from the nearest grid connection.

Features:

Pure sine wave technology protects sensitive equipment.
Delivers full output at high peak power under the most demanding conditions.
Automatic power-saving system for extended runtime.
Compact and lightweight design, saving valuable installation time.
Reliable and safe operation; protected against over-temperature, overload, short circuit, high or low battery voltage.
Variable-speed fan for quiet operation at low power.
Optional remote control for instant switch-off of the inverter and all connected equipment (not available for the 300 and 500 W models).
Convenient plug connection for all models, 2500/3500 Watt models also hard-wired.

In addition, the 2500/3500 Watt models offer:

Combine 2 up to 15 units to obtain high power or 3-phase systems.
Integrated transfer system, switches automatically between AC power sources.

Applications:

Both recreational and semi-professional use, where grid power varies or is unavailable. Applications include lighting, appliances, electric cooking, and power tools. For (mobile) applications in your home, office, or service vehicle, or during your holidays.

General Specifications:

Output voltage: 230/240 V 50/60 Hz (selectable)
Output waveform: True sine
Nominal battery voltage: 12V
Recommended battery capacity: ≥ 270 Ah
Continuous power at 25 °C / 77 °F, cos phi 1: 2500 W
Continuous power at 40 °C / 104 °F, cos phi 1: 2500 W
Peak load (1 min.): < 3000 W
Peak load (1 s): < 4000 W
AC connection: Hardwired + plug connection EU (Schuko), with UK plug (code 28212500) or NZ/AU plug (code 28412500)
Galvanic isolation: Yes
Efficiency: 88%
Parallel configuration: Yes, up to 15 units
3-Phase configuration: Yes, 3 units
Display/read-out: LED indication: battery voltage, load level, status
Alarms: Potential free alarm contact
Dimensions, hxwxd: 283 x 436 x 128 mm/11.1 x 17.2 x 5.0 inch
Weight: 8 kg/17.6 lb
Compliance: Safety: CE, E-mark, RCM

Technical Specifications:

Technology: High frequency, input & output fully isolated
Low battery voltage, switches off at 10.5 V
Low battery voltage, switches on at 12.5 V
High battery voltage, switches off at 16.5 V
High battery voltage, switches on at 14.5 V
Input current (nominal load): 250 A
No-load power consumption (ON mode): < 3.6 A
No-load power consumption (energy saving mode): < 1.1 A
Minimal DC fuse (slow blow): 300 A
Minimal cable size: 95 mm²
Harmonic distortion typical: < 5 %
Cos phi: All power factors allowed
Temperature range (ambient temp.): -20 °C to 60 °C, derating power > 40 °C/-4 °F to 140 °F
Cooling: Temperature and load controlled fan
Protection degree: IP21, horizontal wall mounting
Protections: Over-temperature, overload, short circuit, high/low voltage, reverse polarity (fuse)
MasterBus compatible: Yes, using a MasterBus AC Master Interface

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Owner's Manual (pdf)
Brochure (pdf)

Mastervolt

Mastervolt AC Master 12/1500 (230V) Inverter [28011500]

~~$1,324.99~~$739.99

Mastervolt AC Master 12/1500 (230V) Inverter [28011500]

AC Master 12/1500 (230V) Inverter

Reliable AC power for recreational and semi-professional use.

These affordable sine wave inverters convert 12 or 24 V battery voltage into reliable 230 V 50/60 Hz or 120 V 50/60 Hz grid power, making them ideal for recreational and semi-professional applications. The AC Master series is easy to install and delivers full output, even under the most demanding conditions. Pure sine wave technology provides an outstanding power quality, ensuring the correct functioning of sensitive equipment. The usage of high-frequency switching technology eliminates any annoying humming and buzzing sounds.

Representing complete value for money, these ruggedly built inverters provide essential home comforts when you’re far from the nearest grid connection.

Features:

Pure sine wave technology protects sensitive equipment.
Delivers full output at high peak power under the most demanding conditions.
Automatic power-saving system for extended runtime.
Compact and lightweight design, saving valuable installation time.
Reliable and safe operation; protected against over-temperature, overload, short circuit, high or low battery voltage.
Variable-speed fan for quiet operation at low power.
Optional remote control for instant switch-off of the inverter and all connected equipment (not available for the 300 and 500 W models).
Convenient plug connection for all models, 2500/3500 Watt models also hard-wired.

Applications:

Both recreational and semi-professional use, where grid power varies or is unavailable. Applications include lighting, appliances, electric cooking, and power tools. For (mobile) applications in your home, office, or service vehicle, or during your holidays.

General Specifications:

Output voltage: 200/220/230/240 V – 50/60 Hz (selectable)
Output waveform: True sine
Nominal battery voltage:12V
Recommended battery capacity: ≥ 160 Ah
Continuous power at 25 °C / 77 °F, cos phi 1: 1500 W
Continuous power at 40 °C / 104 °F, cos phi 1: 1500 W
Peak load (1 min.): < 1730 W
Peak load (1 s): < 2650 W
AC connection: Plug connection EU (Schuko), with UK plug (code 28211500) or with NZ/AU plug (code 28411500)
Galvanic isolation: Yes
Efficiency: 93%
Display/read-out: LED indication: battery voltage, load level, status
Alarms: Potential free alarm contact
Dimensions, hxwxd: 248 x 421 x 83 mm/9.8 x 16.6 x 3.3 inch
Weight: 4.2 kg/9.3 lb
Compliance: Safety: CE, E-mark, RCM

Technical Specifications:

Technology: high frequency, input & output fully isolated
Low battery voltage, switches off at 10.5 V
Low battery voltage, switches on at 12.5 V
High battery voltage, switches off at 16.5 V
High battery voltage, switches on at 14.5 V
Input current (nominal load): 150 A
No-load power consumption (ON mode): < 1.8 A
No-load power consumption (energy saving mode): < 0.1 A
Minimal DC fuse (slow blow): 175 A
Minimal cable size: 50 mm²
Harmonic distortion typical: < 3 %
Cos phi: All power factors allowed
Temperature range (ambient temp.): -20 °C to 60 °C, derating power > 40 °C/-4 °F to 140 °F
Cooling: Temperature and load controlled fan
Protection degree: IP21, horizontal wall mounting
Protections: Over-temperature, overload, short circuit, high/low voltage, reverse polarity (fuse)
MasterBus compatible: Yes, using a MasterBus AC Master Interface

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Owner's Manual (pdf)
Brochure (pdf)

Mastervolt

Mastervolt AC Master 12/3500 (230V) Inverter [28013500]

~~$3,035.99~~$1,694.99

Mastervolt AC Master 12/3500 (230V) Inverter [28013500]

Ships Direct From Manufacturer

AC Master 12/3500 (230V) Inverter

Reliable AC power for recreational and semi-professional use.

These affordable sine wave inverters convert 12 or 24 V battery voltage into reliable 230 V 50/60 Hz or 120 V 50/60 Hz grid power, making them ideal for recreational and semi-professional applications. The AC Master series is easy to install and delivers full output, even under the most demanding conditions. Pure sine wave technology provides an outstanding power quality, ensuring the correct functioning of sensitive equipment. The usage of high-frequency switching technology eliminates any annoying humming and buzzing sounds.

Representing complete value for money, these ruggedly built inverters provide essential home comforts when you’re far from the nearest grid connection.

Features:

Pure sine wave technology protects sensitive equipment.
Delivers full output at high peak power under the most demanding conditions.
Automatic power-saving system for extended runtime.
Compact and lightweight design, saving valuable installation time.
Reliable and safe operation; protected against over-temperature, overload, short circuit, high or low battery voltage.
Variable-speed fan for quiet operation at low power.
Optional remote control for instant switch-off of the inverter and all connected equipment (not available for the 300 and 500 W models).
Convenient plug connection for all models, 2500/3500 Watt models also hard-wired.

In addition, the 2500/3500 Watt models offer:

Combine 2 up to 15 units to obtain high power or 3-phase systems.
Integrated transfer system, switches automatically between AC power sources.

Applications:

Both recreational and semi-professional use, where grid power varies or is unavailable. Applications include lighting, appliances, electric cooking, and power tools. For (mobile) applications in your home, office, or service vehicle, or during your holidays.

General Specifications:

Output voltage: 230/240 V 50/60 Hz (selectable)
Output waveform: True sine
Nominal battery voltage: 12V
Recommended battery capacity: ≥ 360 Ah
Continuous power at 25 °C / 77 °F, cos phi 1: 3500 W
Continuous power at 40 °C / 104 °F, cos phi 1: 3500 W
Peak load (1 min.): < 4500 W
Peak load (1 s): < 6000 W
AC connection: Hardwired + plug connection EU (Schuko), UK plug (code 28213500), or NZ/AU plug(code 28413500)
Galvanic isolation: Yes
Efficiency: 90%
Parallel configuration: Yes, up to 15 units
3-Phase configuration: Yes, 3 units
Display/read-out: LED indication: battery voltage, load level, status
Alarms: Potential free alarm contact
Dimensions, hxwxd: 283 x 496 x 128 mm/11.1 x 19.5 x 5.0 inch
Weight: 10 kg/22.0 lb
Compliance: Safety: CE, E-mark, RCM

Technical Specifications:

Technology: High frequency, input & output fully isolated
Low battery voltage, switches off at 10.5 V
Low battery voltage, switches on at 12.5 V
High battery voltage, switches off at 16.5 V
High battery voltage, switches on at 14.5 V
Input current (nominal load): 350 A
No-load power consumption (ON mode): < 3.6 A
No-load power consumption (energy saving mode): < 1.1 A
Minimal DC fuse (slow blow): 400 A
Minimal cable size: 120 mm²
Harmonic distortion typical: < 3 %
Cos phi: All power factors allowed
Temperature range (ambient temp.): -20 °C to 60 °C, derating power > 40 °C/-4 °F to 140 °F
Cooling: Temperature and load controlled fan
Protection degree: IP21, horizontal wall mounting
Protections: Over-temperature, overload, short circuit, high/low voltage, reverse polarity (fuse)
MasterBus compatible: Yes, using a MasterBus AC Master Interface

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Owner's Manual (pdf)
Brochure (pdf)

Mastervolt

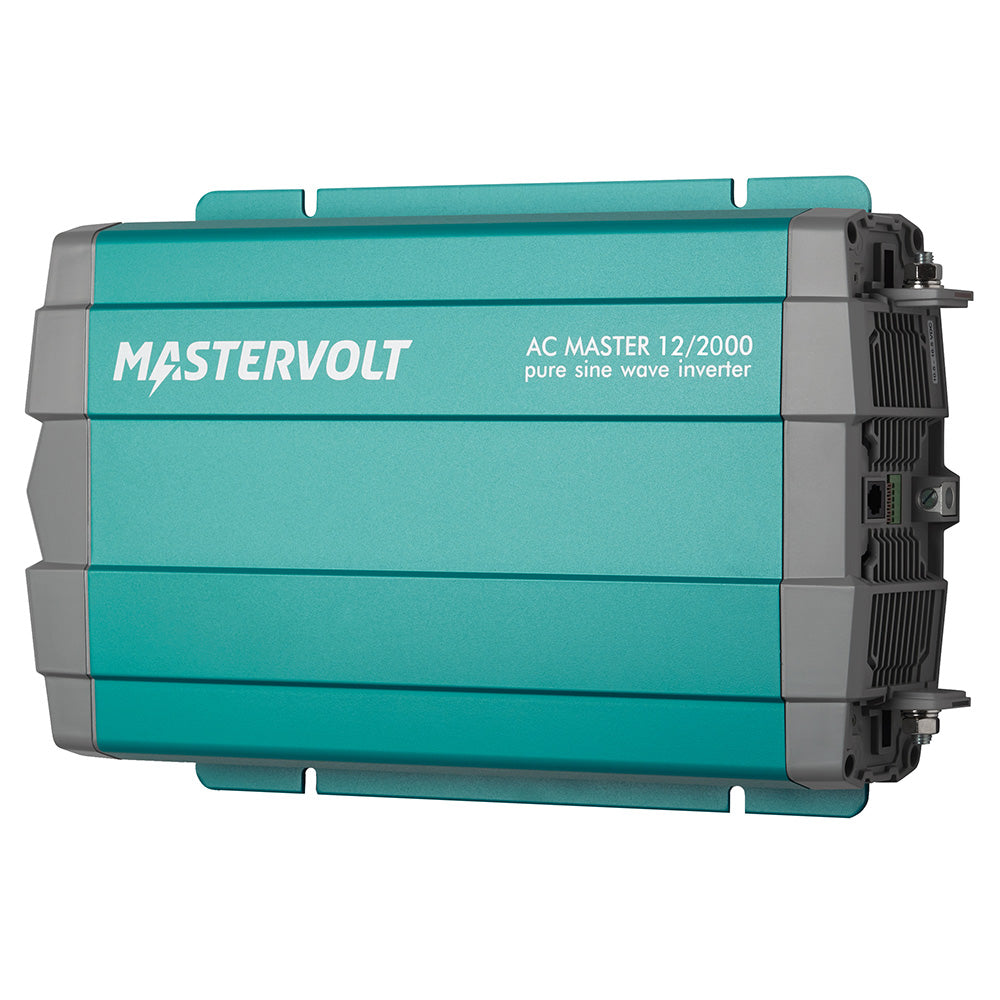

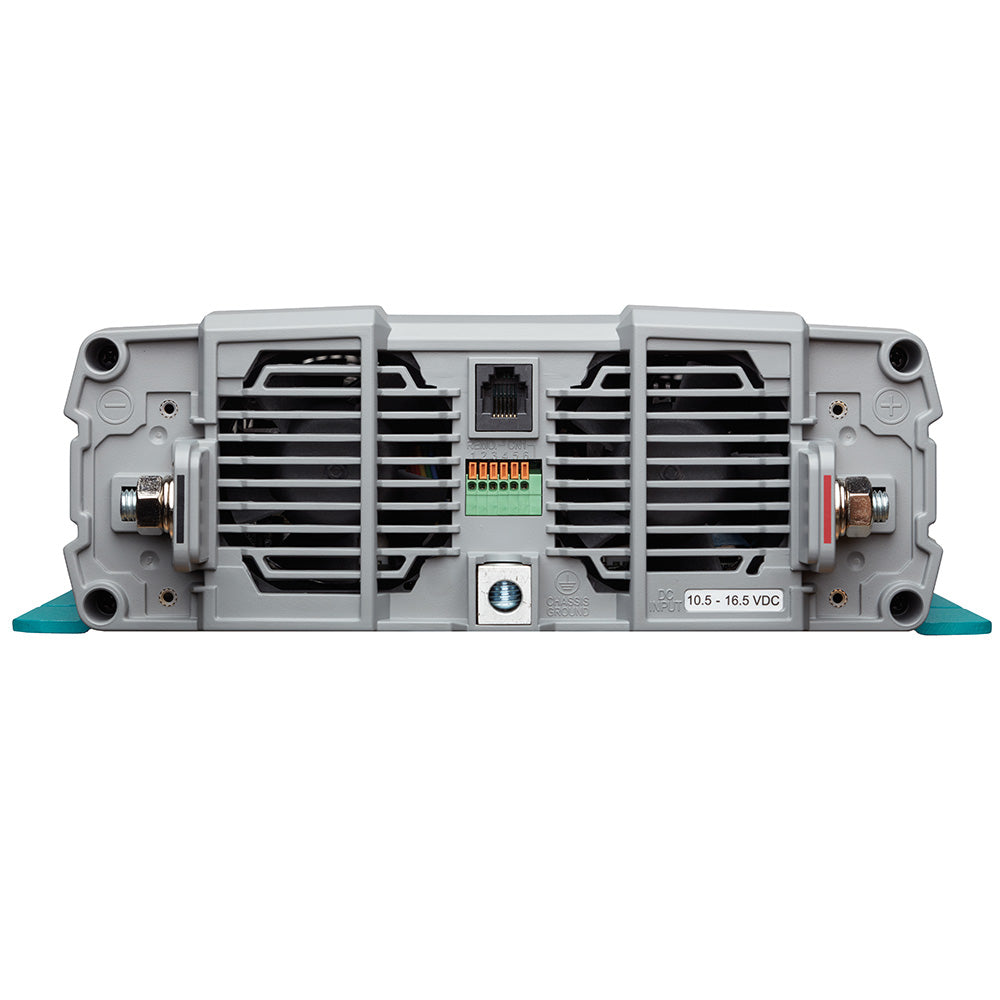

Mastervolt AC Master 12/2000 (120V) Inverter [28512000]

~~$1,516.99~~$846.99

Mastervolt AC Master 12/2000 (120V) Inverter [28512000]

AC Master 12/2000 (120V) Inverter

Reliable AC power for recreational and semi-professional use.

These affordable sine wave inverters convert 12 or 24 V battery voltage into reliable 230 V 50/60 Hz or 120 V 50/60 Hz grid power, making them ideal for recreational and semi-professional applications. The AC Master series is easy to install and delivers full output, even under the most demanding conditions. Pure sine wave technology provides an outstanding power quality, ensuring the correct functioning of sensitive equipment. The usage of high-frequency switching technology eliminates any annoying humming and buzzing sounds.

Representing complete value for money, these ruggedly built inverters provide essential home comforts when you’re far from the nearest grid connection.

Features:

Pure sine wave technology protects sensitive equipment.
Delivers full output at high peak power under the most demanding conditions.
Automatic power-saving system for extended runtime.
Compact and lightweight design, saving valuable installation time.
Reliable and safe operation; protected against over-temperature, overload, short circuit, high or low battery voltage.
Variable-speed fan for quiet operation at low power.
Optional remote control for instant switch-off of the inverter and all connected equipment (not available for the 300 and 500 W models).
Convenient plug connection for all models, 2500/3500 Watt models also hard-wired.

Applications:

Both recreational and semi-professional use, where grid power varies or is unavailable. Applications include lighting, appliances, electric cooking and power tools. For (mobile) applications in your home, office or service vehicle, or during your holidays.

General Specifications:

Output voltage: 115/120 V – 50/60 Hz (selectable)
Output waveform: True sine
Nominal battery voltage:12V
Recommended battery capacity: ≥ 200 Ah
Continuous power at 25 °C / 77 °F, cos phi 1: 2000 W
Continuous power at 40 °C / 104 °F, cos phi 1: 2000 W
Peak load (1 min.): < 2300 W
Peak load (1 s): < 3500 W
AC connection: North American socket with GFCI
Galvanic isolation: yes
Efficiency: 92 %
Display/read-out: LED indication: battery voltage, load level, status
Alarms: Potential free alarm contact
Dimensions, hxwxd: 248 x 443 x 83 mm/9.8 x 17.4 x 3.3 inch
Weight: 5.2 kg/11.5 lb
Compliance: ABYC A31, CE, E-mark, RCM

Technical Specifications:

Technology: high frequency, input & output fully isolated
Low battery voltage, switches off at 10.5 V
Low battery voltage, switches on at 12.5 V
High battery voltage, switches off at 16.5 V
High battery voltage, switches on at 14.5 V
Input current (nominal load): 200 A
No-load power consumption (ON mode): < 1.8 A
No-load power consumption (energy saving mode): < 0.1 A
Minimal DC fuse (slow blow): 250 A
Minimal cable size: 70 mm²
Harmonic distortion typical: < 3 %
Cos phi: All power factors allowed
Temperature range (ambient temp.): -20 °C to 60 °C, derating power > 40 °C/-4 °F to 140 °F
Cooling: Temperature and load controlled fan
Protection degree: IP21, horizontal wall mounting
Protections: Over-temperature, overload, short circuit, high/low voltage, reverse polarity (fuse)
MasterBus compatible: Yes, using a MasterBus AC Master Interface

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Owner's Manual (pdf)
Brochure (pdf)

Samlex America

Samlex 3000W Modified Sine Wave Inverter - 12V [SAM-3000-12]

~~$678.40~~$542.70

Mastervolt

Mastervolt Mass Sine Wave Inverter 24/800 (230V/50Hz) [24020800]

~~$2,050.99~~$1,144.99

Mastervolt Mass Sine Wave Inverter 24/800 (230V/50Hz) [24020800]

Ships Direct From Manufacturer

Mass Sine Wave Inverter 24/800 (230V/50Hz)

For the toughest tasks
Mass Sine sine wave inverters are designed for the toughest conditions for professional, semi-professional and recreational purposes. Even under the most extreme conditions the products from the Mass Sine series operate faultlessly, giving you round-the-clock output when necessary. The sustainability and technologies that underpin the Mass concept have long been proven in practice. With an MTBF of 280,000 hours at full capacity and 24/7 use, the Mass products are ideal for the toughest tasks and any situation that requires a reliable power supply.

Making the best even better
The reliability and long lifespan of Mastervolt's sine wave inverters have been established beyond doubt over the past 20 years. While the Mass products have evolved with the latest technological developments, the dimensions and connections have remained the same. As a result it is exceptionally easy to replace one unit with another with only negligible downtime.

Mastervolt Green by Heart
As part of our constant search for eco-friendly and long-lasting solutions, Mastervolt has developed the Green by Heart programme. Its impact on the Mass Sine inverters include:

An exceptionally effective use of the consumed input current (cos phi) > 0.98!
Use of top quality components with a long lifespan.
Savings in weight and space.
Fewer installation materials.

Powerful selling points

Capacity between 800 W and 5 kW.
Suitable for high starting/peak loads, even up to 200% at brief consumption.
230V/50Hz pure sine wave voltage; no faults or humming sounds from connected equipment, not even with sensitive communication and measuring equipment.
Fully MasterBus compatible with AC Power Analyser or MasterBus Inverter Interface.
All Mastervolt inverters provide pure sine wave voltage to ensure seamless operation of the connected equipment. Mastervolt inverters are the best choice available.

MasterBus compatible
In combination with the MasterBus Inverter Interface or AC Power Analyser, you can easily connect every Mass Sine inverter within a MasterBus network. All you need is a single cable with one connection. Your benefits: Fast and easy installation, plus centralised monitoring, configuration and operation of your system with a MasterView panel.

Easy and safe connection
Mass products are equipped with certified industrial connection technology. The larger inverter models have internal connections, the smaller models use a cable and plug & play socket.

Automatic switching
Easy to install within a mains voltage and/or generator power system, the Mass Sine inverter can switch between sources or combine the supply using the Masterswitch or Systemswitch system.

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

Inverter Cont. Output Wattage: 650w
AC Connection Type: Hardwire
DC Connection Type: Hardwire
GFCI: No
Outlet Qty: None
Inverter Surge Rating: 1600w
Inverter Input Voltage: 24v
Inverter Output Voltage: 230v
Waveform: True Sine Wave
Box Dimensions: 8"H x 14"W x 17"L WT: 11.6 lbs
UPC: 816882020582

Owner's Manual (pdf)
Brochure (pdf)

Mastervolt

Mastervolt Mass Sine Wave Inverter 12/2000 (230V/50Hz) [24012000]

~~$4,308.99~~$2,404.99

Mastervolt Mass Sine Wave Inverter 12/2000 (230V/50Hz) [24012000]

Ships Direct From Manufacturer

Mass Sine Wave Inverter 12/2000 (230V/50Hz)

For the toughest tasks
Mass Sine sine wave inverters are designed for the toughest conditions for professional, semi-professional and recreational purposes. Even under the most extreme conditions the products from the Mass Sine series operate faultlessly, giving you round-the-clock output when necessary. The sustainability and technologies that underpin the Mass concept have long been proven in practice. With an MTBF of 280,000 hours at full capacity and 24/7 use, the Mass products are ideal for the toughest tasks and any situation that requires a reliable power supply.

Making the best even better
The reliability and long lifespan of Mastervolt's sine wave inverters have been established beyond doubt over the past 20 years. While the Mass products have evolved with the latest technological developments, the dimensions and connections have remained the same. As a result it is exceptionally easy to replace one unit with another with only negligible downtime.

Mastervolt Green by Heart
As part of our constant search for eco-friendly and long-lasting solutions, Mastervolt has developed the Green by Heart programme. Its impact on the Mass Sine inverters include:

An exceptionally effective use of the consumed input current (cos phi) > 0.98!
Use of top quality components with a long lifespan.
Savings in weight and space.
Fewer installation materials.

Powerful selling points

Capacity between 800 W and 5 kW.
Suitable for high starting/peak loads, even up to 200% at brief consumption.
230V/50Hz pure sine wave voltage; no faults or humming sounds from connected equipment, not even with sensitive communication and measuring equipment.
Fully MasterBus compatible with AC Power Analyser or MasterBus Inverter Interface.
All Mastervolt inverters provide pure sine wave voltage to ensure seamless operation of the connected equipment. Mastervolt inverters are the best choice available.

MasterBus compatible
In combination with the MasterBus Inverter Interface or AC Power Analyser, you can easily connect every Mass Sine inverter within a MasterBus network. All you need is a single cable with one connection. Your benefits: Fast and easy installation, plus centralised monitoring, configuration and operation of your system with a MasterView panel.

Easy and safe connection
Mass products are equipped with certified industrial connection technology. The larger inverter models have internal connections, the smaller models use a cable and plug & play socket.

Automatic switching
Easy to install within a mains voltage and/or generator power system, the Mass Sine inverter can switch between sources or combine the supply using the Masterswitch or Systemswitch system.

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

AC Connection Type: Hardwire
DC Connection Type: Hardwire
GFCI: No
Outlet Qty: None
Inverter Surge Rating: 4000w
Inverter Input Voltage: 12v
Inverter Output Voltage: 230v
Waveform: True Sine Wave
Inverter Cont. Output Wattage: 1800w
Box Dimensions: 8"H x 16"W x 21"L WT: 25.6 lbs
UPC: 816882020568

Owner's Manual (pdf)
Brochure (pdf)
