Automotive/RV

Dometic CFX5 95DZ Ice-Free 95L Electric Cooler - Black [97000050758]

CFX5 95DZ Ice-Free 95L Electric Cooler - Black

This is the Big One. Dual zone cooling and a capacity that lets you get nomadic for a while – or go all out with campsite dinners. Vacuum Insulated Panels deliver outstanding insulation, and two cooling compartments keep everything at the right temp – ice cream won’t melt, cheese won’t freeze. You can control it with our smartphone app, a carbon steel frame protects, and – cheers – a bottle opener’s built in.

Features:

• The 96L DZ capacity holds up to 133 x 12 oz cans – a large size for big groups and extended nomadic travel
• Temperature range of -7°F (-22C) to 68°F (20C); uses less power than a 60W light bulb.
• Track energy consumption and monitor temperature with the cooler’s Bluetooth smartphone app; be alerted when the lid is left open, monitor history, and connect multiple devices at once.
• Optimized ratio of exterior to interior proportions provides maximum compressor efficiency, while the extended evaporator on inner walls ensures an even distribution of cold air.
• Powered by AC (110-240V), DC (12/24V) – or go off-grid with Dometic batteries and Obsidian solar panels.
• 3-stage dynamic battery protection system actively monitors inbound power and prevents draining a vehicle battery, or allows deep draw on dual batteries.
• Two cooling zones allow you to bring refrigerated and frozen foods all at once.
• Internal details include a removable wire divider and an interior light.
• External details include self-folding aluminum alloy handles, a removable, textured nonslip lid, TPE gaskets to ensure a tight lid seal, and an integrated bottle opener.

Specifications:

• Scope of delivery - 1 cooler, 1 manual, 1 warranty card, 1 Connection cable for 12/24V connection, 1 Connection cable for 100-240V connection, removable wire baskets, bottle opener
• Single or Dual Zone - Dual
• Advanced Materials and Design in a 95L DZ Dual-Zone Electric Cooler
• Refrigeration technology - Compressor

Technical Specifications:

• Product Dimensions - 20.87" (D) x 18.58" (H) x 37.87" (W)
• Product Weight - 63.50lbs
• Input Voltage (AC) - 100-240V AC
• Input Voltage (DC) - 12-24V
• Rated Input Current (AC) - 1.15A at 100V, 0.48A at 240V
• Rated Input Current (DC) - 4.5A at 24V, 9.8A at 12V
• Rated Input Power - 65W
• Input Frequency - 50/60Hz
• Refrigerant Type - R1234YF

Specifications:

• Color: Black
• Box Dimensions: 20"H x 23"W x 39"L WT: 75.4 lbs
• UPC: 034223507589

Owner's Manual (pdf)

PT-24-13W Battery Charger

“Smart” marine battery charging technology for 24-volt systems aboard workboats, military vessels, commercial vessels, and recreational craft. This charger interacts with batteries, providing the optimum three-stage charge process for fast recovery and conditioning, maximizing performance, and extending battery life.

A selector switch adjusts output voltage to adapt to gel-cell, flooded lead-acid, or AGM battery types. An optional temperature compensation sensor also adjusts output for ideal voltage based on changes in the batteries’ ambient temperature. All models are housed in a rugged stainless steel case with a durable white powder coat finish, and the internal circuitry is polyurethane coated for maximum corrosion resistance.

Features:

• 24-volt model
• “Smart” circuitry provides three-stage charging – bulk, absorption, float
• Gel-Cell/Flooded Lead-acid/AGM battery type switch selects optimum charge/float voltages
• Multiple isolated output banks; ammeter indicates total output current
• The optional sensor adjusts output voltage based on battery temperature
• Current limiting prevents damage from overloading
• Use as a power supply; can power loads without a battery in line
• Built to last – rugged stainless steel case with a durable white powder coat finish with an optional drip shield and marinized internal circuitry
• Protection: Current Limiting, Thermal Protection, Forced Air Cooling, Drip Shield
• Install in conjunction with PT-MCU for additional control and monitoring
• ABS-type approval for battery charging and power supplies

Specifications:

• Input VAC (50-60 Hz.): 90 – 132, 180 – 264
• Input Amps @ Full Load: @ 115 VAC: 6.5, @ 230 VAC: 4
• Power Factor: .7
• Max Output Amps: 13
• Output Banks: 3
• Battery Capacity (Amp-Hours): 26 – 130
• Operating Temp. Rating Reference: T-2
• Case Size Reference: A-1
• Case Size (H x W x D): 11.2A x 7.7 x 4.75A inches (28.4A x 19.6 x 12.1A centimeters) *Note with Dripshield installed A add 1.1” (2.8 cm) to height and .92” (2.3 cm) to depth
• Weight Lbs./Kg: 8/4
• Optional Temp. Sensor Model: TCS-12/24
• Remote Panel Model: RP
• Compliance Reference: CG, ABS

Temperature Rating References:

• Temperature: -10 degrees C to +60 degrees C
• Derate Linearly From 100% @ 50 degrees C to 60% @ 60 degrees C

Nominal Output Voltages at Gel/Flooded Switch Settings (without Temperature Compensation):

• Gel-Cell: 28.0 VDC Charge @ 50% load and 27.2 VDC Float @ .5 amp load
• Flooded/AGM: 28.4 VDC Charge @ 50% load and 26.8 VDC Float @ .5 amp load

Compliance References:

• UL: UL 1950 (per DNB report)
• CG: USCG CFR 183.410 (Ignition protected)
• EN: EN 60335-1
• CE: Carries the CE mark
• ABS: PT Series meets SVR 2009 4-8-3/5.9, Under 90 meters Rules 2006 4-6-4/7.19, and HSNC 2007 4-8-3/5.13.

Options:

• Remote Panel, model RP, for use with all models except PT-24-20U, PT-24-60, and PT-32-25 (LEDs indicate charger output stage. Manual re-initialization of three-stage charge cycle. With 25′ of cable. Panel dimensions: 3″ H x 4.75″ W)

Specifications:

• Charger Input - Voltage: 115/230v
• Charger Output - Amps: 13a
• Charger Output Voltage: 24v
• Charging Banks: 3
• Portable: No
• Inverter Input Voltage: 115/230v
• Inverter Output Voltage: 24v
• Outlet Qty: Hardwire
• Box Dimensions: 10"H x 10"W x 16"L WT: 9 lbs

These inverters provide AC power source onboard trucks, RVs and boats. Featuring high surge capability, they are ideal for users who may need to power multiple loads such as appliances, power tools and other onboard electronics at the same time. The NEW XPower Inverters are certified to CSA standard C22.2 No. 107.1-01 and UL 458.

Mobile Power for Trucks, RVs and Boats

XPower Inverters connect easily to 12 volt batteries to provide AC power for a variety of medium to heavy duty applications. Designed for easy installation and operation, the XPower inverters provide a reliable source of power onboard trucks, RVs and boats to run home appliances, consumer electronics, entertainiment systems, power tools, office equipment and much more. They are also suitable for small contractors who need to operate handheld power tools from their van or pick-up truck. The powerful 5000-watt model has four GFCI oulets for multiple loads and an easy-to-read digital display for instant system information. All models meet the stringent UL458 regulatory requirements.

Product Features:

• Portable power for AC products

• Two GFCI AC receptacles for connecting multiple loads

• 5000-watt model: Four GFCI AC receptacles, each equipped with a 20-amp breaker

• High surge capacity for products that require more power to start

• High efficiency - converts virtually all the battery's available power to AC

• Mounting brackets for convenient installation

• Heavy duty stud connectors

• Remote on/off switch included


• Overload and over temperature shutdown

• Over voltage protection (15.0 VDC)

• Low voltage alarm (11.0 VDC)

• Low voltage cut-out (10.5 VDC)


• Household Appliances: compact microwave ovens, bread makers, food processors, small bar refrigerators, small vacuum cleaners, fluorescent and incandescent lights, sewing machines and fans

• Handheld Power Tools: drills, jigsaws, sanders and buffers

• Entertainment Electronics: televisions, VCRs, video games, stereos, musical instruments and satellite equipment

• Office Equipment: computers with 17" monitors, facsimile machines

  WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) which is known to the State of California to cause cancer, and Di-isodecyl Phthalate (DIDP) which is known to the State of California to cause reproductive harm. For more information go to P65Warnings.ca.gov.

  Specifications:

  • DC Connection Type: Hardwire
  • GFCI: Yes
  • Outlet Qty: 2 Duplex GFCI
  • Inverter Surge Rating: 10000w
  • Inverter Input Voltage: 12v
  • Waveform: Modified Sine Wave
  • Inverter Cont. Output Wattage: 4000w
  • AC Connection Type: Hardwire
  • Inverter Output Voltage: 115v +/- 5%
  • Box Dimensions: 11"H x 13"W x 24"L WT: 30 lbs
  • UPC: 715535896591

  Quick Guide (pdf)
  Owner's Manual (pdf)
  Brochure (pdf)

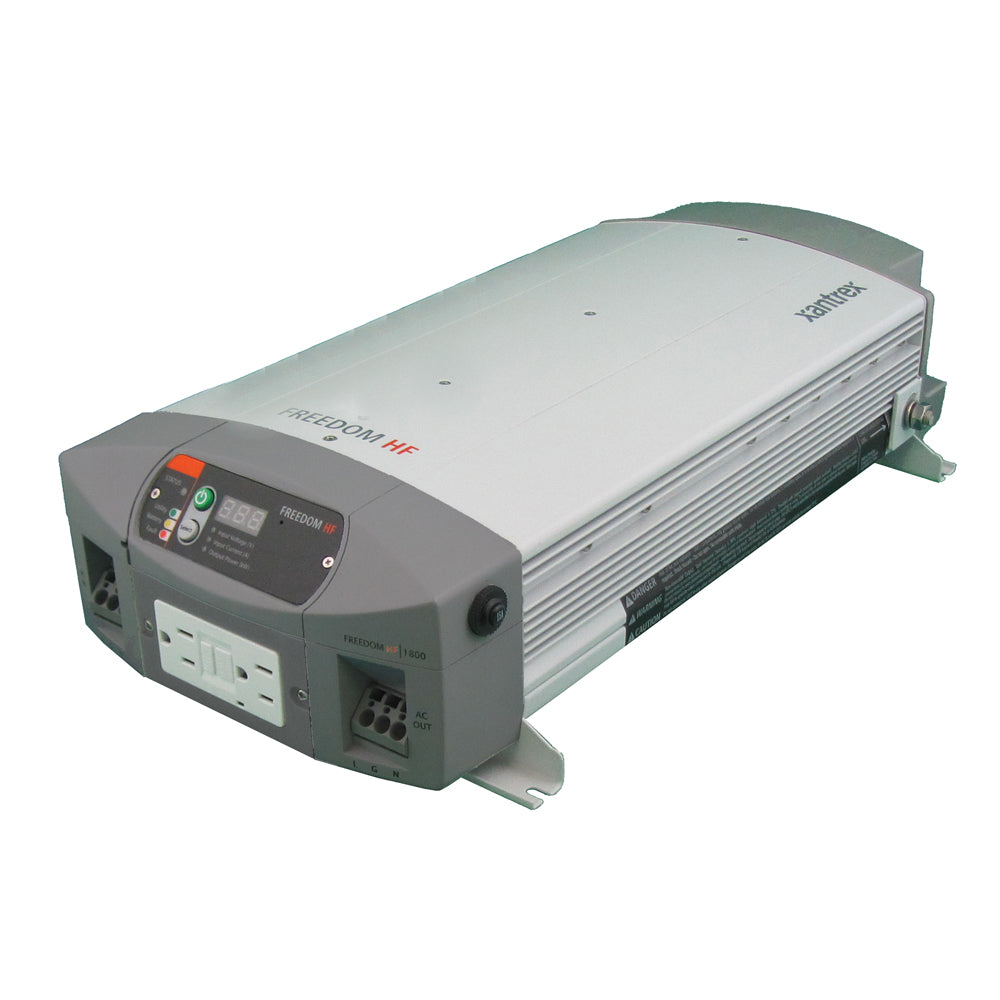

Xantrex Freedom HF 1800 Inverter/Charger [806-1840]

Freedom HF 1800

Compact inverter/charger to power the comforts of home on your boat, RV, or truck

With modified sine wave output, Freedom HF 1800 inverter/charger is designed to run entertainment systems and small appliances in smaller boats, RV's and trucks. The Freedom HF inverter/charger is the smallest, lightest, and least expensive model in the Xantrex lineup.

Freedom HF is designed for demanding marine and RV conditions. Temperature-controlled multistage charging ensures that your batteries are recharged safely and efficiently. Both models include an automatic transfer switch and a detachable digital remote control panel display that provides precise system information and can be mounted wherever you require the information.

Product Features:

• Designed to power loads such as microwave ovens, TVs, DVD players, small appliances and other electronic equipment

• Removable digital display to provide system status

• Automatic three-stage battery charger

• Designed to be hardwired using a terminal strip, or by connecting AC through GFIC receptacles (Included)

• Built-in 30-amp relay to automatically transfer between inverter power and incoming AC utility power

Protection Features:

• Battery over-voltage and under-voltage protection

• Over-temperature shutdown

• Automatic overload protection

• Short-circuit protection

• Ground-fault protection

• ETL listed for use in mobile RV and marine applications

WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) which is known to the State of California to cause cancer, and Di-isodecyl Phthalate (DIDP) which is known to the State of California to cause reproductive harm. For more information go to P65Warnings.ca.gov.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

• Inverter Output Voltage: 120v
• Inverter Input Voltage: 12v
• Charger Input - Voltage: 120v
• Outlet Qty: 1 Duplex GFCI
• Charging Banks: 1
• Inverter Cont. Output Wattage: 1800w
• Charger Output Voltage: 12v
• Charger Output - Amps: 40a
• Box Dimensions: 6"H x 11"W x 20"L WT: 15.4 lbs
• UPC: 715535890421

Quick Guide (pdf)
Owner's Manual (pdf)

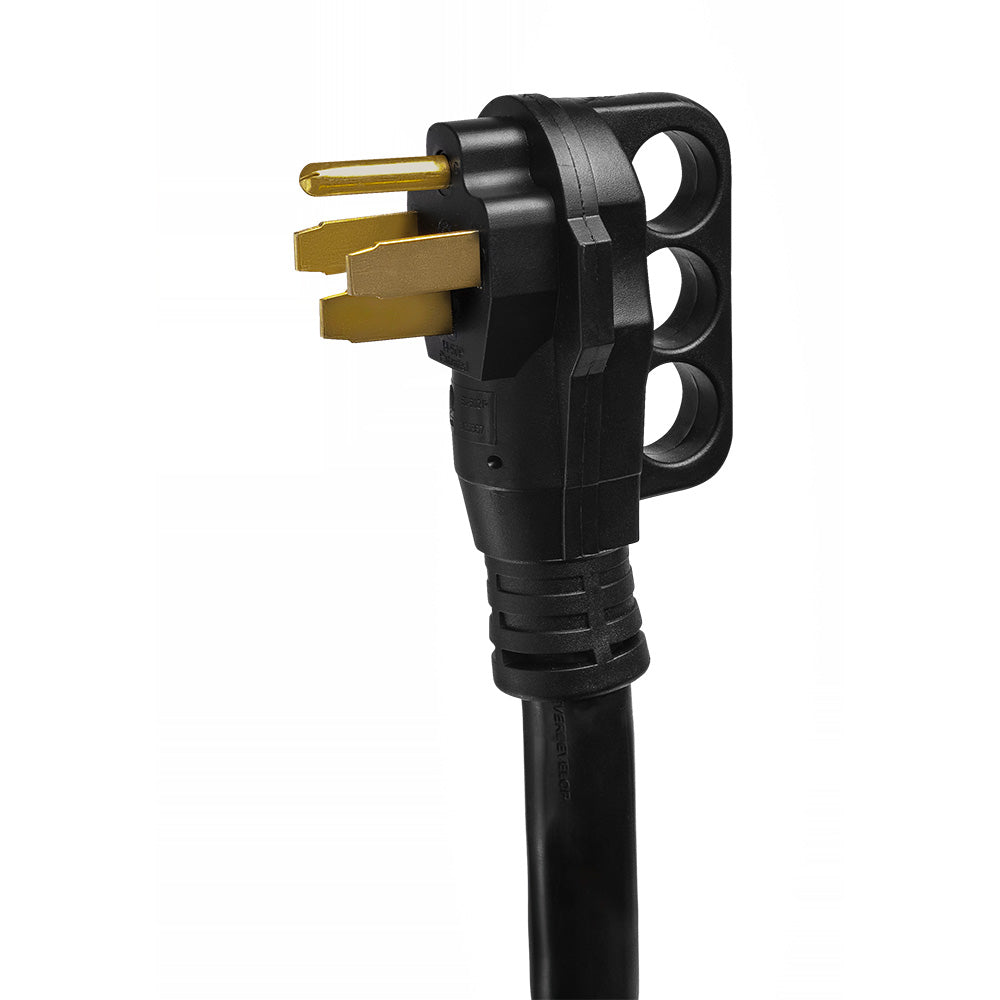

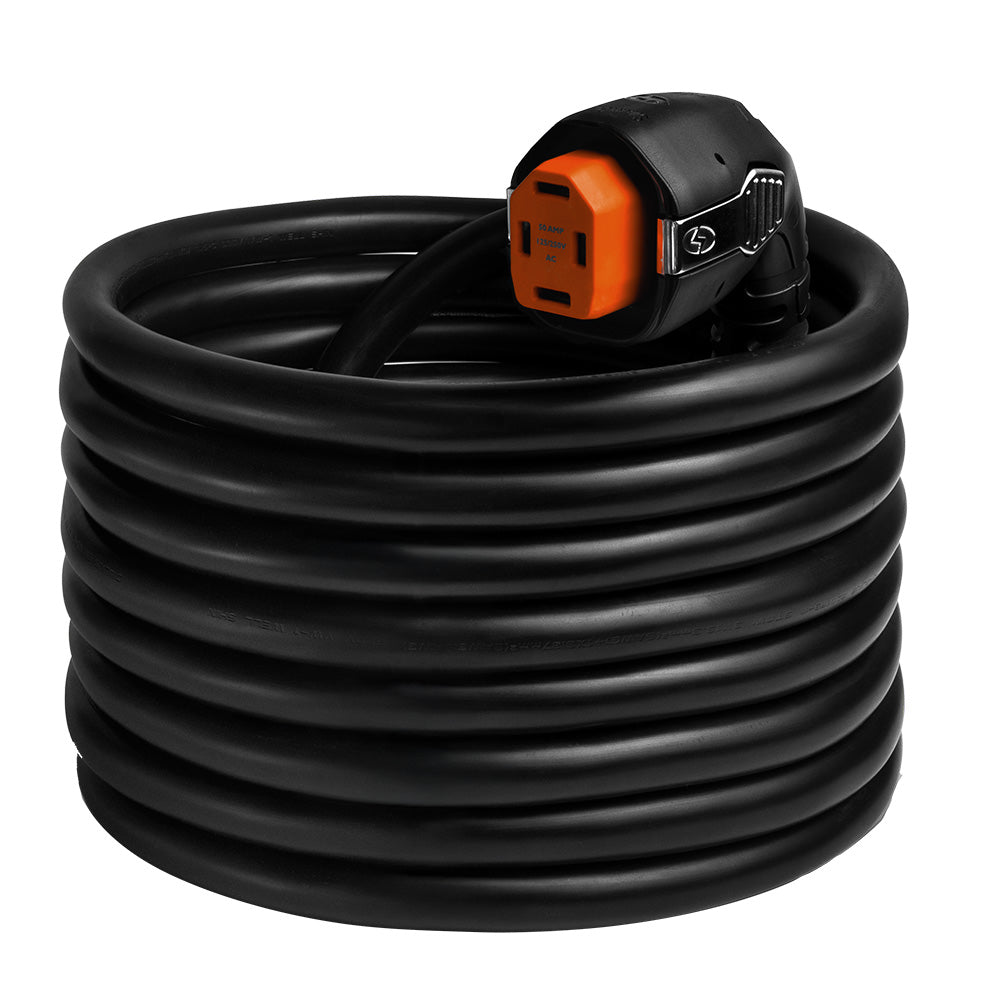

SmartPlug 50 AMP Angled RV Dual Configuration Cordset - 30' [R50304A]

50 AMP Angled RV Dual Configuration Cordset - 30'

The angled cordsets produced by SmartPlug are the culmination of extensive research and valuable customer feedback.

Features:

• Easy one-handed engagement and disengagement of your shore power connection
• Relieves stress on the structure to protect your Boat/RV
• Cord rests close to the side, reducing run-over risk and trip hazards
• Easier to store and coil
• Available in 30A and 50A configurations

Specifications:

• Amperage: 50a
• Length: 30'
• Type: Cables
• Voltage: 125/250v
• Box Dimensions: 7"H x 16"W x 16"L WT: 26.45 lbs
• UPC: 682500442490

Dometic CFX5 75DZ Ice-Free 75L Electric Cooler - Black [97000050757]

Ships Direct From Manufacturer

CFX5 75DZ Ice-Free 75L Electric Cooler - Black

The CFX5 75DZ is a fan favorite. One of our largest ice-free electric coolers – great for a van’s portable fridge or long camping trips. Dual cooling zones mean ice cream won’t melt and cheese won’t freeze. Super-efficient Vacuum Insulated Panels deliver outstanding insulation, and temperatures go as low as -7F degrees. You can control it with our smartphone app, a carbon steel frame protects, it’s solar compatible, and – cheers – a bottle opener’s built in.

Features:

• The CFX5 75 DZ capacity holds up to 113 x 12 oz cans – a large size for weekend adventures, week-long camping trips, and extended nomadic travel.
• Temperature range of -7°F (-22C) to 68°F (20C); uses less power than a 60W light bulb.
• Track energy consumption and monitor temperature with the cooler’s Bluetooth smartphone app; be alerted when the lid is left open, monitor history, and connect multiple devices at once.
• Optimized ratio of exterior to interior proportions provides maximum compressor efficiency, while the extended evaporator on inner walls ensures an even distribution of cold air.
• Powered by AC (110-240V), DC (12/24V) – or go off-grid with Dometic batteries and Obsidian solar panels.
• 3-stage dynamic battery protection system actively monitors inbound power and prevents draining a vehicle battery, or allows deep draw on dual batteries.
• Two cooling zones allow you to bring refrigerated and frozen foods all at once.
• Internal details include a removable wire divider and an interior light.
• External details include self-folding aluminum alloy handles, a removable, textured nonslip lid, TPE gaskets to ensure a tight lid seal, and an integrated bottle opener.

Specifications:

• Scope of delivery - 1 cooler, 1 manual, 1 warranty card, 1 Connection cable for 12/24V connection, 1 Connection cable for 100-240V connection, removable wire baskets, bottle opener
• Single or Dual Zone - Dual
• Advanced Materials and Design in a 75L DZ Dual-Zone Electric Cooler
• Refrigeration technology - Compressor

Technical Specifications:

• Product Dimensions - 19.49" (D) x 18.58" (H) x 35.12" (W)
• Product Weight - 59.76lbs
• Input Voltage (AC) - 100-240V AC
• Input Voltage (DC) - 12-24V
• Rated Input Current (AC) - 1.11A at 100V, 0.47A at 240V
• Rated Input Current (DC) - 4.4A at 24V, 9.7A at 12V
• Rated Input Power - 61W
• Input Frequency - 50/60Hz
• Refrigerant Type - R1234YF

Specifications:

• Color: Black
• Box Dimensions: 19"H x 21"W x 37"L WT: 68.65 lbs
• UPC: 034223507572

Owner's Manual (pdf)

Newmar Power-Pac 7AH Power Supply [POWER-PAC7AH]

Power-Pac 7AH Power Supply

The 12V DC power supply features built-in backup batteries, which are charged during normal operation and then continue to power radios and critical navigation equipment when AC power is lost. The Power-Pac is ideal for commercial vessels, work boats, and yachts.

The Power-Pac’s highly regulated, low-rising 10-amp output powers radios and other sensitive communications equipment without causing RF or audio interference. At the same time, it floats and charges one or two (depending on the model) built-in 7-amp/hour backup batteries. These are kept at peak charge during the normal functioning of the unit when AC is being supplied. In the event of a loss of AC power, the internal batteries automatically take over to power communication equipment, providing a true uninterruptible DC source.

Features:

• Highly regulated, low ripple, noise-free 12-volt output
• Built-in, “on-line” stand-by battery provides immediate backup power in case of AC power loss
• Internal mounting space and terminals for conversion of the 7 A/H model into the 14 A/H model
• Output “Normal” indicator L.E.D.
• “Back-up power only” warning light
• Audible and visual low battery (10.7 VDC) voltage indicators
• Low battery warning buzzer mute switch
• Automatic low battery (10.3 VDC) voltage disconnect
• Low voltage disconnect override button
• Over-voltage protection
• Current limit protection
• Input/output fused
• Separate output terminals are provided for charging external batteries
• 115/230 50-60 Hz input, selected by a slide switch on the rear panel

Specifications:

• Battery Capacity: 7 amp/hour
• Case Size (H x W x D): 5.3 x 9.0 x 10.5 inches (13.3 x 22.9 x 26.7 centimeters)
• Weight: 18 lbs. (8.2 kg)
• Input: 115/230 VAC, 50-60 Hz.
• Output: 13.6 VDC @ 5A cont., 10A Int.
• Regulation: 1% line and load
• Ripple: 1% P-P
• Operating Temp: 0-40 degrees C

With a 7 Amp/Hour Battery Installed, the Unit Provides Approximately the Following Power. *7 Amps for 40 Min.

• 10 amps for 20 min.
• 15 amps for 10 min.
• 20 amps for 4 min.

*Assuming battery at full charge when a.c. power failed.

The Power-Pac 7 A/H (single battery model) can power a 25-watt transceiver for up to 3 hours, based on a 20% transmit/receive duty cycle. Power-Pac 14 A/H can provide the same service for up to 6 hours. Provision is made for expanding backup power up to twelve hours (in this example, longer under lesser loads) with the installation of additional externally wired batteries (total 28 amps/hours max.). Batteries are automatically recharged when the AC is restored.

The operator is kept informed of all important functions, such as AC input, DC output, and battery status, with front panel indicator lights and a low battery warning buzzer.

Protection:

• AC Input fuse
• Internal and external Battery fuses
• Over Voltage
• Current Limit
• Automatic Thermal Shutdown
• Low Battery Disconnect

Mechanical Details:

• Vinyl Laminated aluminum case
• 6’ standard AC power cord
• Ac input selector switch

Battery Details:

• Sealed Lead Acid, Deep-cycle.
• Certified by DOT and IATA for shipment by Air
• Weight per 7 AH Battery; 6 lbs.
• Size (inch): 6” x 3.75” x 2.5”

Options:

• Form C AC Failure Contacts (Contact factory for details)
• Extra batteries, sold separately 7 A/H increments; each Power Pac will accommodate 28 A/H max. (14 internal, 14 external)

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Quick Guide (pdf)
Owner's Manual (pdf)

3000W Pure Sine Wave Inverter - 12V

PST Series (120 VAC)

This high efficiency pure sine inverter converts 12 Volts DC to 3000 Watts of AC power at 120 Volts, 60 Hz. Features include temperature controlled cooling, low interference, wide temperature operating range, overload protection, low battery alarm / shut down & low idle power draw. AC power is available from dual NEMA-20R GFCI outlets on the front panel, the unit is also hard wire capable. Safety certified to UL and CSA standards, FCC Compliant.

Optional LCD remote control, model RC-300.

Features:

• High efficiency & low RF emissions
• Can be hard wired
• 2x Surge
• Wide DC input range
• Dual GFCI Protected Outlets
• Wide temperature operating range -20 to +40°C / -4 to +104°F
• Temperature controlled cooling fan
• Low idle power draw
• Remote Input – Use to turn inverter ON or OFF with ignition start or any other Remote ON/OFF switch
• Optional LCD remote control, model RC-300
• UPC – Universal Protection Circuit: low voltage, over voltage, over temperature, over load and short circuit
• Safety certified to UL & CSA standards, FCC compliant

Specifications:

• Input: 12 VDC
• Output: 120 VAC
• Watts: 3000 Watts
• Remote Control: RC-300 Optional
• Weight: 21.6 (lbs)
• Weight: 9.8 (kg)
• Dimensions: 10.35 x 17.97 x 5.71
• Dimensions: 263 x 456.5 x 145 (mm)
• Safety: UL, CSA
• Warranty: 2 Year Limited

Applications:

• Service vehicles
• Mobile Offices
• Boats
• Recreation Vehicles, Camping
• Telecommunication
• Field work / Construction sites
• Solar power systems
• Emergency backup power
• Home electronics: TV, VCR, video games
• Computers, printers

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Inverter Cont. Output Wattage: 3000w
• Outlet Qty: 2 Duplex GFCI
• Inverter Input Voltage: 12v
• Waveform: Pure Sine Wave
• Box Dimensions: 9"H x 14"W x 21"L WT: 24.8 lbs
• UPC: 622988072420
