Anchoring & Docking - Windlasses

RC10 Automatic Rope/Chain Windlass

• Designed for 5/16" chain and 5/8" rope combination

• Maximum pull: 1540 lbs

• Metric Chain Size: 8mm

• Motor Wattage: 1000W

• Innovative heavy duty stainless steel pressure arm, coupled with a unique rope/chain gypsy, giving an unparalleled level of performance.

• Simple two piece installation, saving time and money and allowing easy retrofitting without disassembly of the windlass.

• Manufactured from marine grade chromed bronze for long term durability

• The topworks can be fully disassembled utilizing the handle provided, a screw driver and common allen key, making regular service and maintenance a breeze. No special tools required!

• A huge, through deck, hawse pipe throat ensures easy entry of the rope/chain rode into and out of the anchor locker

• Not only does the RC10 effortlessly handle combination rope/chain rodes, it works just as well with all chain rodes for those who may want the extra security of an all chain systems combined with an elegantly styled, low profile windlass on their foredeck.

• Exclusive Maxwell 3 Year Limited Warranty ensuring your confidence that you are getting the best product on the market.

Specifications:

• Chain - Diameter (Inches): 5/16"
• Freefall: Yes
• Rope Diameter (Inches): 5/8"
• Vertical/Horizontal: Vertical
• Box Dimensions: 11"H x 17"W x 20"L WT: 50 lbs
• UPC: 1000000004267

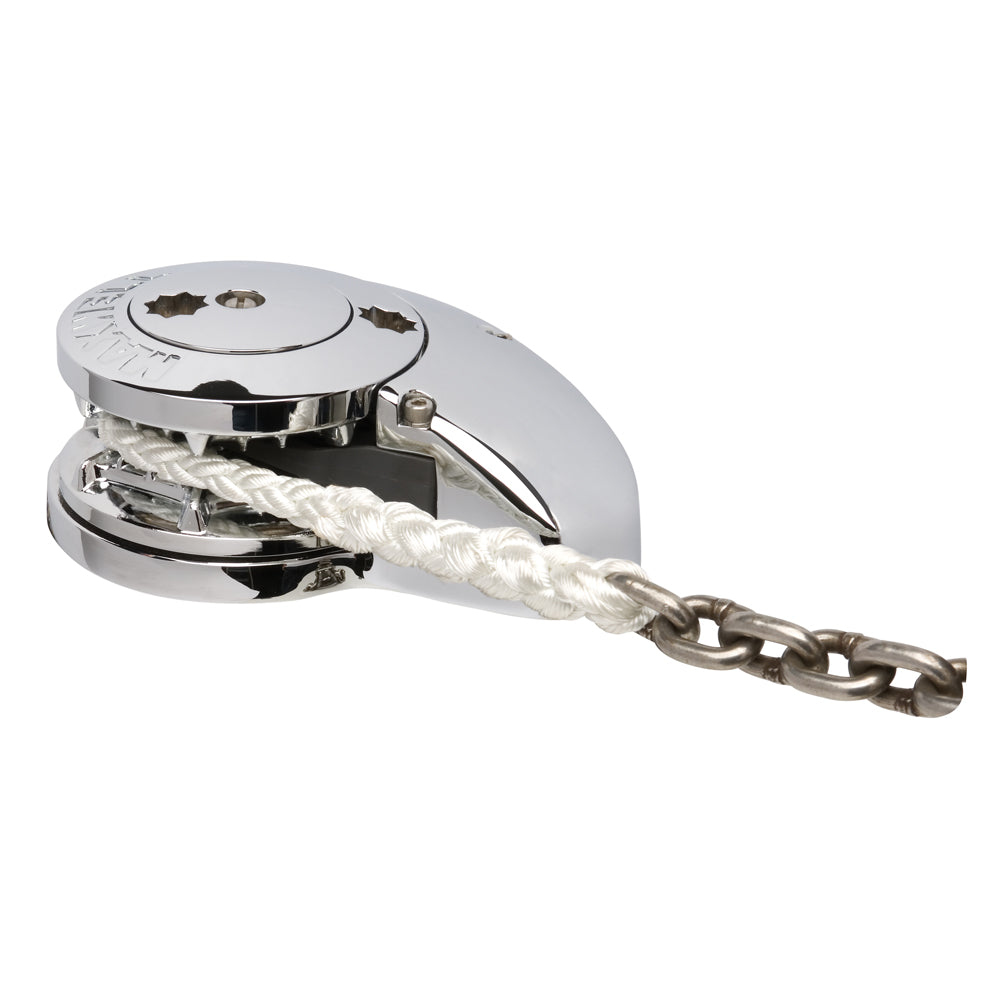

RC10 Automatic Rope/Chain Windlass

• Designed for 3/8" chain and 5/8" rope combination

• Maximum Pull: 1870lbs.

• Metric chain size: 10mm

• Motor Wattage: 1200W

• Innovative heavy duty stainless steel pressure arm, coupled with a unique rope/chain gypsy, giving an unparalleled level of performance.

• Simple two piece installation, saving time and money and allowing easy retrofitting without disassembly of the windlass.

• Manufactured from marine grade chromed bronze for long term durability

• The topworks can be fully disassembled utilizing the handle provided, a screw driver and common allen key, making regular service and maintenance a breeze. No special tools required!

• A huge, through deck, hawse pipe throat ensures easy entry of the rope/chain rode into and out of the anchor locker

• Not only does the RC10 effortlessly handle combination rope/chain rodes, it works just as well with all chain rodes for those who may want the extra security of an all chain systems combined with an elegantly styled, low profile windlass on their foredeck.

• Exclusive Maxwell 3 Year Limited Warranty ensuring your confidence that you are getting the best product on the market.

Specifications:

• Chain - Diameter (Inches): 3/8"
• Freefall: Yes
• Rope Diameter (Inches): 5/8"
• Vertical/Horizontal: Vertical
• Box Dimensions: 12"H x 17"W x 20"L WT: 47 lbs
• UPC: 1000000004151

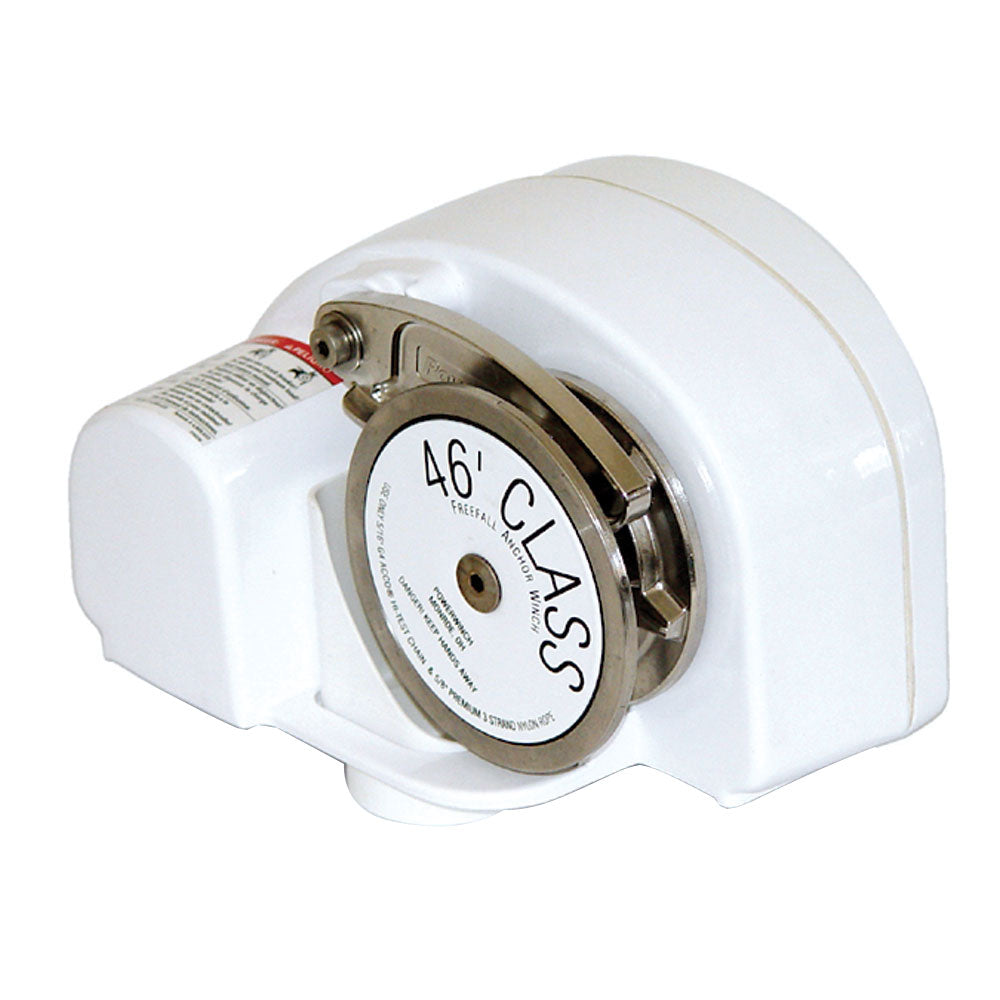

Class 46'

Automatic Helm-Operated Free-Fall Windlass

The Safest Way to Anchor!

• Free-Fall System anchors up to 300'/min - Up to four times faster than powering down

• Exclusive stainless steel rope & chain guidance system - Durable materials stand up to years of use

• Ultra smooth motor uses less amps - Free-fall does not need battery power so it preserves your battery

• Built with durable stainless steel fasteners - Resists corrosion for easy removal

• Watertight seals - For additional protection against corrosion

• One piece motor plate - For smooth power transmission & improved gear life

• Heat treated oil-impregnated gear systems -Smoother operation, resists corrosion, lasts longer

• Stainless steel drive shafts - For years of smooth, reliable performance

• Replaceable Rode-Glide - Smoothly channels rope and chain below deck

• Use tapered back splice - For smooth rope-to-chain transition

Specifications:

• Freefall: Yes
• Rope Diameter (Inches): 5/8"
• Vertical/Horizontal: Horizontal
• Box Dimensions: 9"H x 11"W x 15"L WT: 23.1 lbs
• UPC: 033936777463

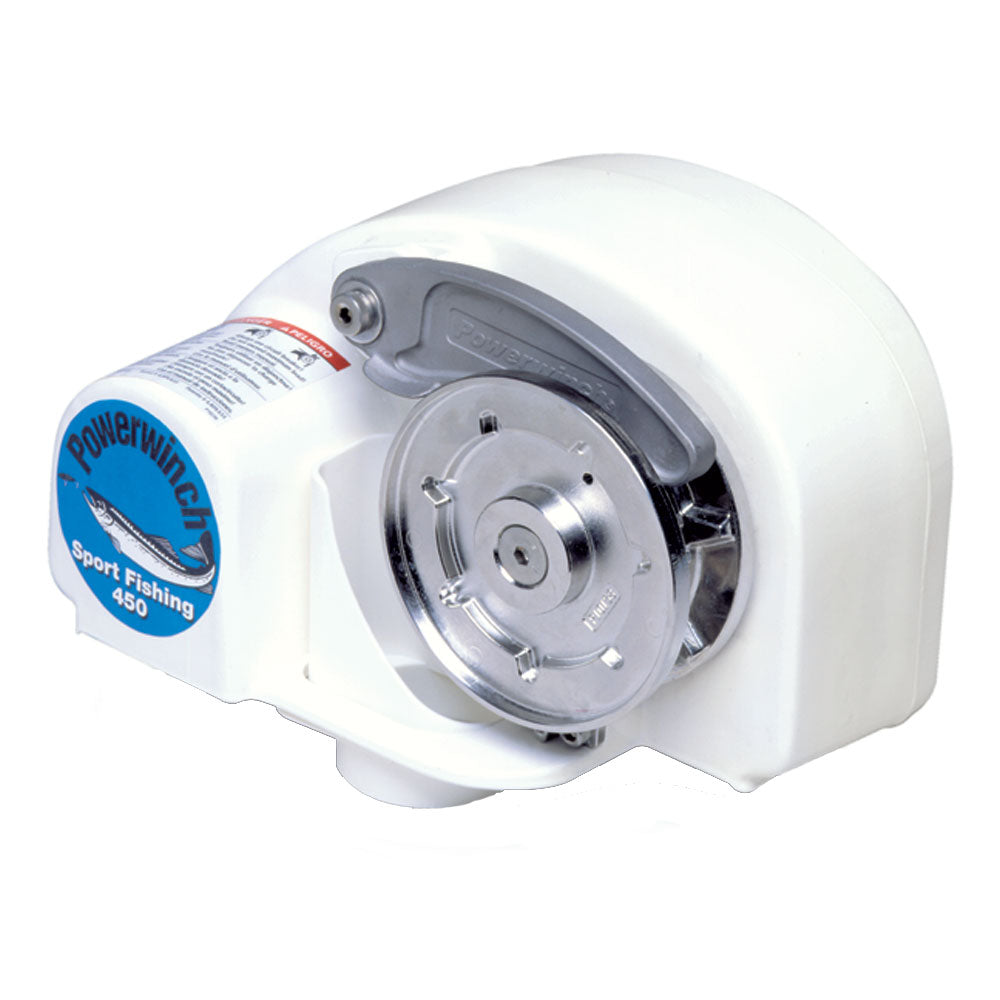

Powerwinch Sport Fish 450, Free-Fall Anchor Windlass [P77727]

Free-Fall Anchor Windlass
Part #: P777727

Automatic Helm-Operated Free-Fall Windlass For The Safest Way To Anchor!

Benefits of Free-Fall over Power-Down:

• Free-Fall System anchors up to 300'/min - Up to four times faster than powering down

• Exclusive stainless steel rope & chain guidance system - Durable materials stand up to years of use

• Ultra smooth motor uses less amps - Free-fall does not need battery power so it preserves your battery

• Built with durable stainless steel fasteners - Resists corrosion for easy removal

• Watertight seals - For additional protection against corrosion

• One piece motor plate - For smooth power transmission & improved gear life

• Heat treated oil-impregnated gear systems -Smoother operation, resists corrosion, lasts longer

• Stainless steel drive shafts - For years of smooth, reliable performance

• Replaceable Rode-Glide - Smoothly channels rope and chain below deck

• Use tapered back splice - For smooth rope-to-chain transition

Specifications:

• Rope Diameter (Inches): 1/2"
• Vertical/Horizontal: Horizontal
• Freefall: Yes
• Box Dimensions: 9"H x 11"W x 16"L WT: 19.5 lbs
• UPC: 810123840151

Owner's Manual (pdf)

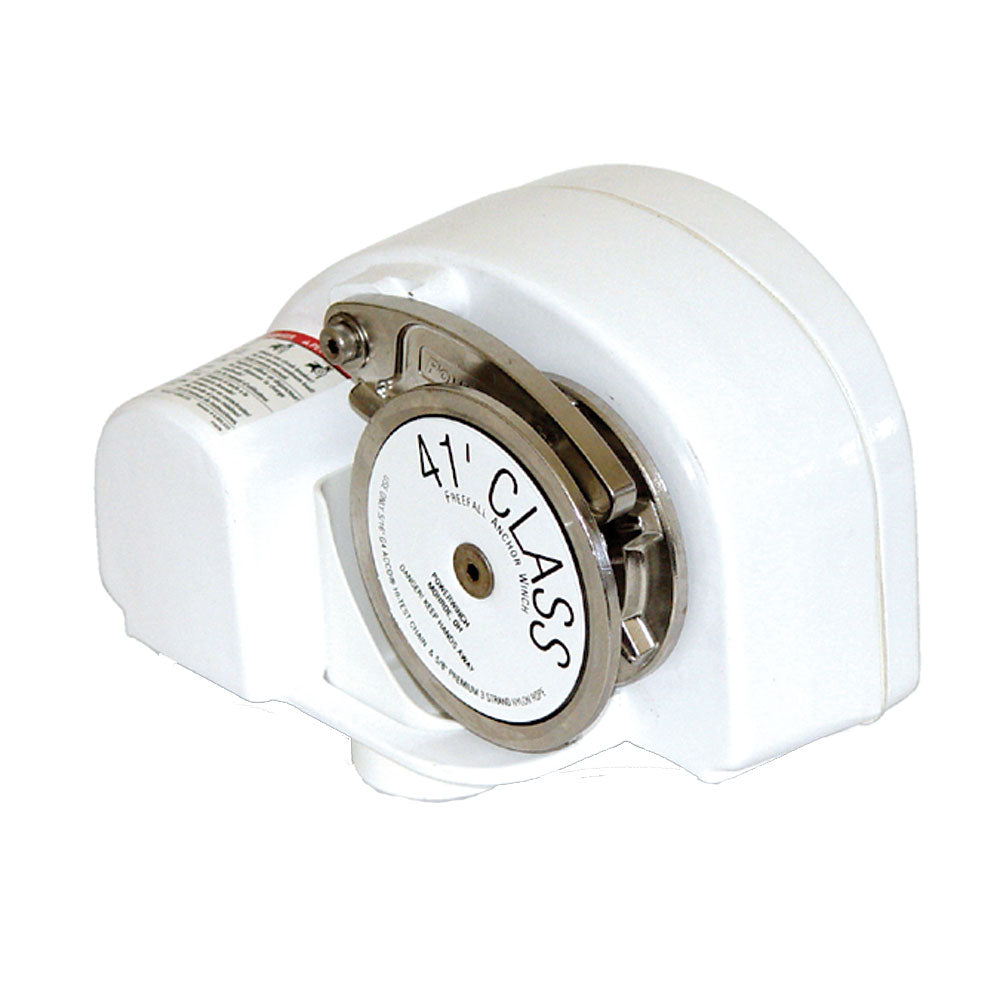

Powerwinch Class 41' Automatic Helm-Operated Free-Fall Windlass [P77741]

Class 41'

Automatic Helm-Operated Free-Fall Windlass

The Safest Way to Anchor!

• Free-Fall System anchors up to 300'/min - Up to four times faster than powering down

• Exclusive stainless steel rope & chain guidance system - Durable materials stand up to years of use

• Ultra smooth motor uses less amps - Free-fall does not need battery power so it preserves your battery

• Built with durable stainless steel fasteners - Resists corrosion for easy removal

• Watertight seals - For additional protection against corrosion

• One piece motor plate - For smooth power transmission & improved gear life

• Heat treated oil-impregnated gear systems -Smoother operation, resists corrosion, lasts longer

• Stainless steel drive shafts - For years of smooth, reliable performance

• Replaceable Rode-Glide - Smoothly channels rope and chain below deck

• Use tapered back splice - For smooth rope-to-chain transition

Specifications:

• Freefall: Yes
• Rope Diameter (Inches): 5/8"
• Vertical/Horizontal: Horizontal
• Box Dimensions: 9"H x 11"W x 15"L WT: 19.2 lbs
• UPC: 810123840175

Owner's Manual (pdf)
