Anchoring & Docking - Windlasses

Capstan 300
Part #: P77726

Versatile rope winch for anchoring, sailing & fishing

The Capstan 300 is a smaller power assisted rope capstan for a variety of uses. It has a maximum pull of 300 lbs with a retrieval speed of 85 feet per minute. Whether anchoring, sailing, or fishing, let the Capstan 300 help spare your back, speed up your retrieval process, and make your boating more pleasurable.

Features:

• Strong pulling power of 300 lbs

• Quick retrieval speed of 85 ft/minute

• Deck mounted design - saves space for rope locker

• Easy to operate footswitch (included)

• Handles unlimited rope lengths

• All aluminum housing with a durable polyester paint finish

• Stainless steel internal shafts, fasteners, & hardware

Specifications:

• Freefall: No
• Rope Diameter (Inches): 5/8"
• Vertical/Horizontal: Horizontal
• Box Dimensions: 9"H x 11"W x 16"L WT: 19.8 lbs
• UPC: 000000166102

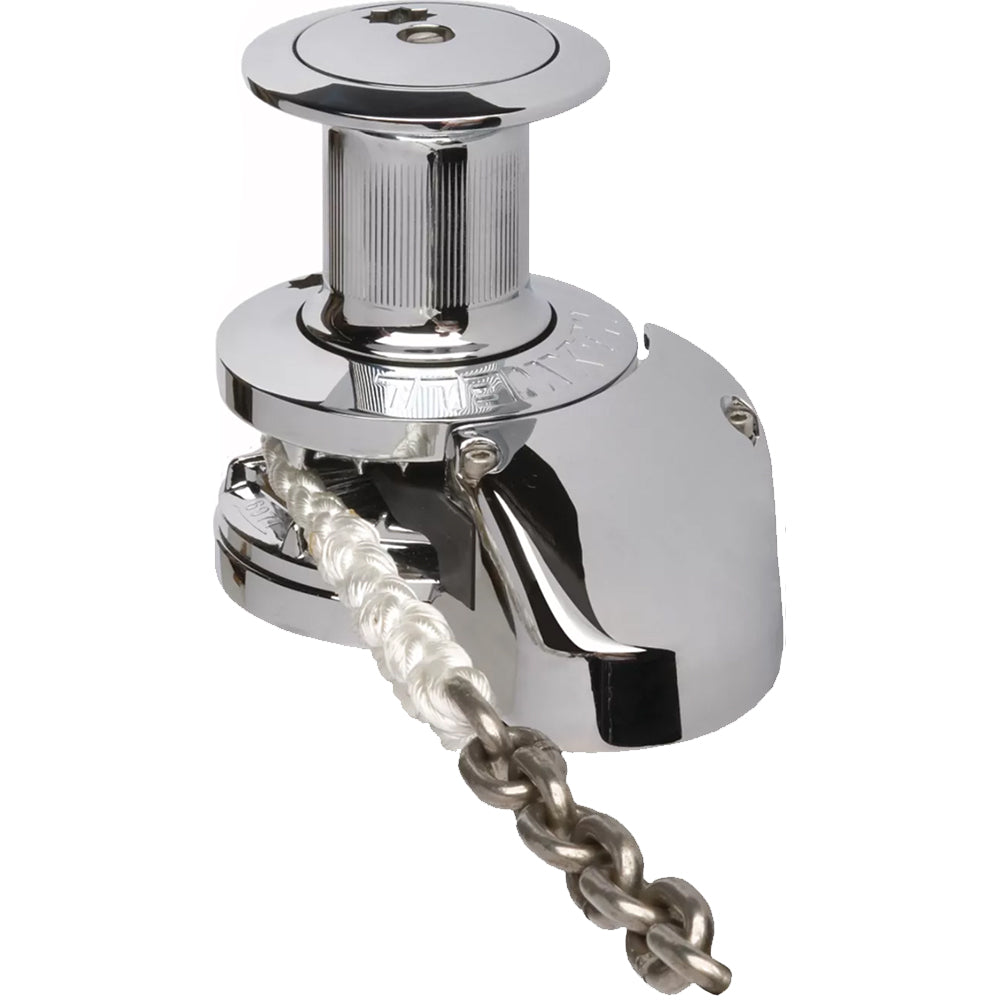

RC10-10 Capstan Windlass 12V - 3/8" Chain & 5/8" Rope

The combined stainless steel and chromed bronze RC10 fully automatic windlass series is designed to effortlessly retrieve and deploy 8mm (5/16") and 10mm (3/8") short link chain and 14mm and 16mm (5/8") three strand or 8-brait (plait) rope.

A sleek, Low Profile version and a fluted stainless steel capstan drum version, are available.
Simple two piece installation saves time and money and allows easy retrofitting without disassembly of the windlass. Unique spacer tube design allows installation through virtually any deck thickness and the multiple mounting positions and self aligning gearbox ensure optimal location of gearbox and motor in virtually all installation situations.

Full disassembly capability of the topworks utilising only the handle provided and an Allen key.
The RC10 is manufactured from marine-grade 316 stainless steel and chromed bronze for long term durability. The heavy duty stainless steel pressure arm, coupled with the unique rope/chain gypsy, is designed to effectively grasp the splice between rope and chain, giving the RC10 an unparalleled level of performance.

In combination with a heavy duty, large wire diameter, stainless steel pre-loaded spring, the pressure arm pivots on a trouble free bearing, thereby exerting maximum control pressure on the rode and splice.

The RC10 works just as effectively with all chain rodes for those who desire a Low Profile, elegantly styled windlass on their foredeck. Huge, through deck hawse pipe throat ensures easy entry of the rope/chain rode into and out of the anchor locker.

Cone type clutch/brake mechanism permits manual, Free Fall anchoring. Sealed oil bath and marine-grade hard anodized, alloy gearbox provides maximum output via a precision worm and worm wheel.

Features:

• Huge, through deck hawse pipe throat ensures easy entry of the rope/chain rode into and out of the anchor locker.
• Cone type clutch/brake mechanism permits manual, Free Fall anchoring.
• Sealed oil bath and marine-grade hard anodised, alloy gearbox provides maximum output via a precision worm and worm wheel.
• Includes - windlass , an on/off breaker panel, a reversing solenoid, an up/down panel switch and a handle

Specifications:

• Chain - Diameter (Inches): 3/8"
• Freefall: Yes
• Rope Diameter (Inches): 5/8"
• Vertical/Horizontal: Vertical
• Box Dimensions: 12"H x 17"W x 20"L WT: 50.3 lbs
• UPC: 1000000004199

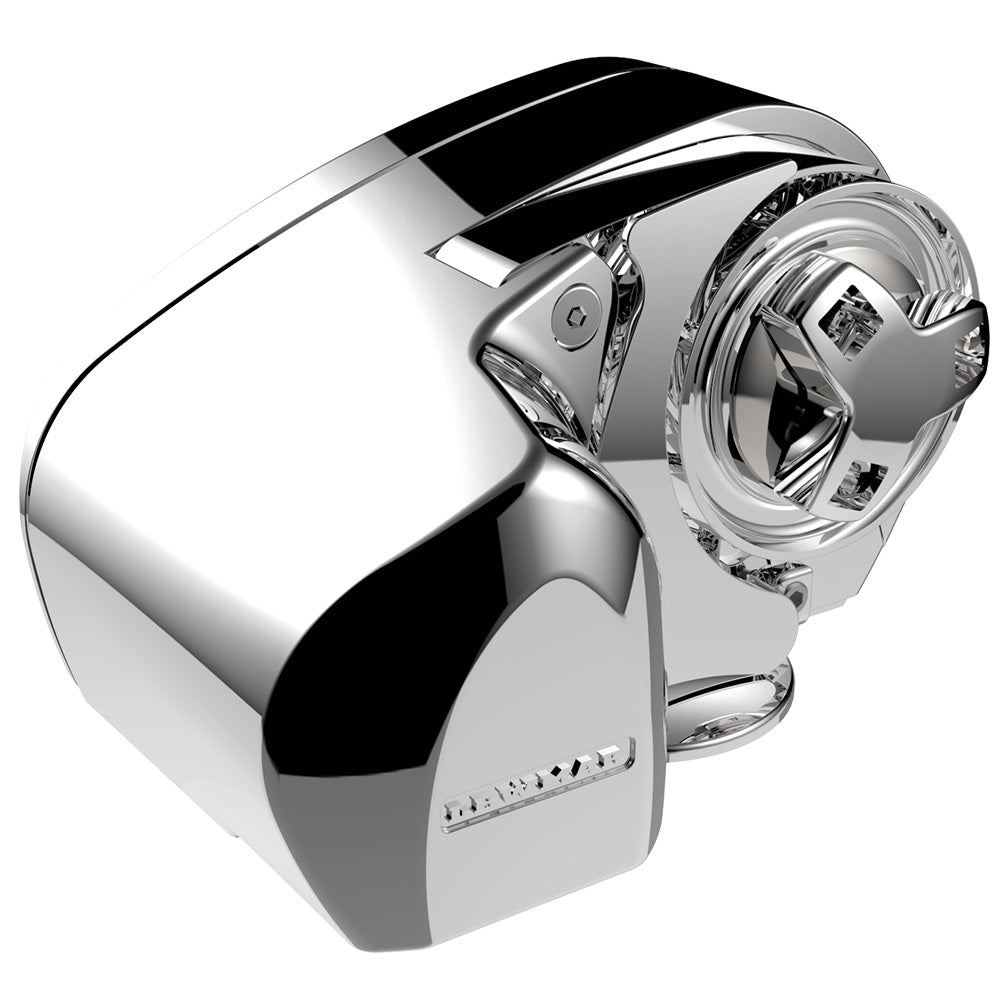

Pro-Series Horizontal 700 Windlass Kit - 12V

Praised by professionals worldwide, the horizontal Pro-Series is a shining example of Lewmar's commitment to providing quality products for boats. It's DIY-ready, easy to install, and housed in 100% 316 stainless steel, making it well protected and durable and with push-button control and a built-in manual emergency recovery system.

Anchoring has never been easier.

Features:

• Powerful motor providing fast line speed
• Manual emergency recovery equipped
• Convenient above-deck installation

Technical Specifications:

• Material - Stainless Steel
• Maximum Pull - 700lbs
• Maximum Line Speed - 82'/min
• Maximum Chain Size - 1/4"
• Maximum Rope Size - 1/2"
• Power - 12 V
• Maximum Boat Length - 32'
• Mounting Position - Horizontal

In the Box:

• Windlass
• Switch
• Circuit breaker
• Dual direction contactor/solenoid
• Instruction manual

*Sold as an Individual

Specifications:

• Chain - Diameter (Inches): .25
• Freefall: Yes
• Rope Diameter (Inches): .5
• Vertical/Horizontal: Horizontal
• Box Dimensions: 9"H x 11"W x 12"L WT: 30 lbs
• UPC: 743683306488

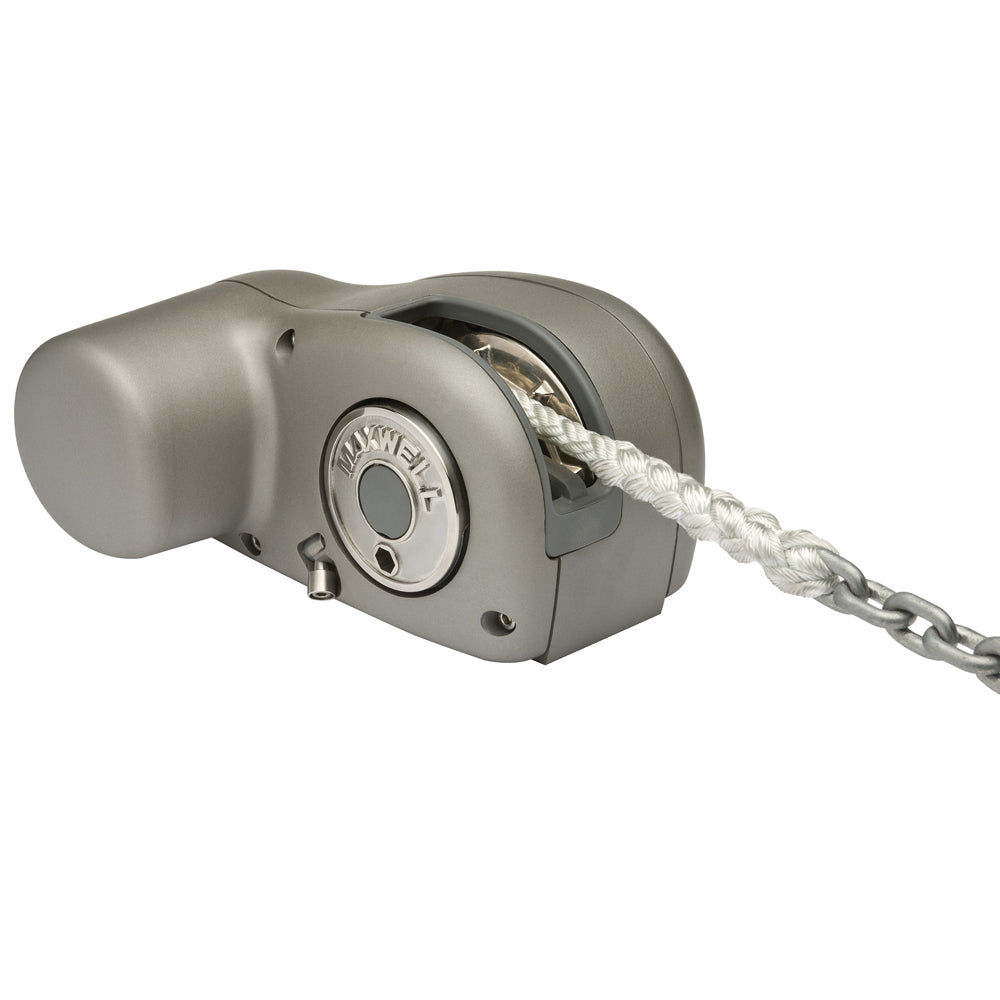

The all new compact HRC6 and HRC8 are Maxwell's horizontal versions of the latest innovative new vertical RC6 and RC8 automatic rope/chain windlasses. The new HRC6 and HRC8 are packed with original and proven features including rode management technology developed by Maxwell.

HRC6

• Simple "bolt down" installation ensures effortless and rapid on-deck installation and set up
• Guaranteed trouble free rode transition from rope to chain, by means of an innovative, proven and patented pressure arm system, within a safe enclosed design
• Integrated composite nylon, through deck hawse pipe for ease of installation and smooth, snag-free operation
• High efficiency spur gearbox incorporating a robust non-backwind mechanism
• High speed, jam-free retrieval of rope and chain controlled from a remote panel mounted Up/Down switch
• Emergency "free fall" function in the event of onboard power failure
• Revolutionary new chainwheel - see over
• Heavy duty, dual direction motor incorporating new technology features, including integrated wiring for quick electrical installation, is easily removed for simple routine electric brush maintenance
• Now incorporating Maxwell's automatic free-fall technology. Simply activate the windlass 'free fall' lever, operate your down control (helm station or footswitch) and the windlass will freefall your anchor. Ready to lift the anchor? Activate the up control and the 'free fall' device automatically disengages allowing you to power up your anchor
• Aesthetically pleasing above deck design, encapsulating the motor and drive in a watertight case, saving space below deck and allowing simple routine maintenance
• Die cast, marine-grade, alloy case is hard anodized for unsurpassed marine protection

Specifications:

• Model: HRC6
• Maximum Pull: 900lbs
• Chain Short Link: 1/4"
• Rope Size (Nylon): 1/2"
• Line Speed(Anchor Retrieval): 108'/min
• Power Supply(DC): 12V or 24V
• Motor Power: 600W
• Net Weight: 25lbs

Specifications:

• Chain - Diameter (Inches): 1/4"
• Freefall: Yes
• Rope Diameter (Inches): 1/2"
• Vertical/Horizontal: Horizontal
• Box Dimensions: 10"H x 14"W x 15"L WT: 29 lbs
• UPC: 1000000002744

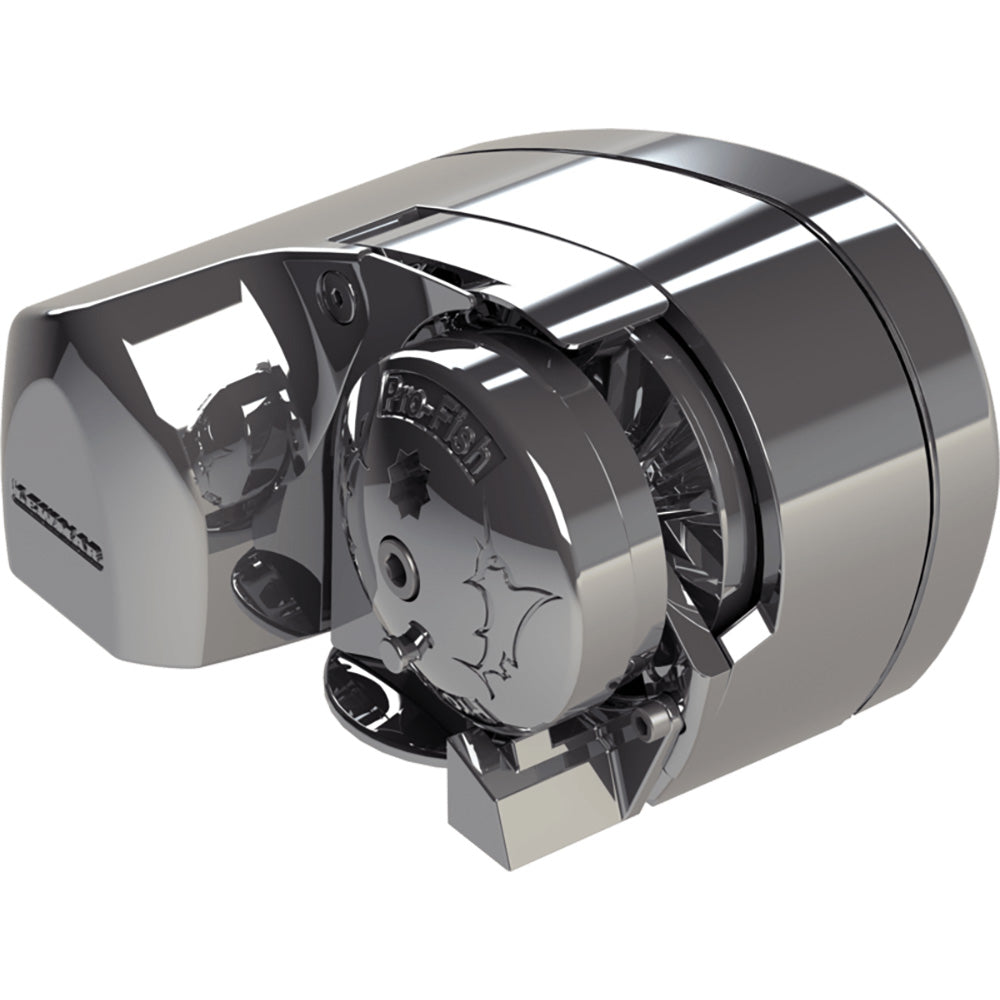

Pro-Fish 700 Windlass - 12V

The Lewmar Pro-Fish model is the ultimate windlass for fishermen.  The Pro-Fish has an automatic freefall that allows you to pull right up over a wreck or ledge, and drop anchor with speed and precision.  No more running your motor or wasting fuel while you hover fish.  You can retrieve your anchor just as easily, with the push of a button.  Plus, the Pro-Fish is DIY-ready and made of durable 316 stainless steel.

This windlass has been specially designed to suit leaded lines up to 7mm in diameter and a revised control arm and new Pro-Guard plate prevent the rope from jumping out of the windlass or snagging during operation.

Features

• Automatic freefall
• Powerful motor providing fast line speed
• Manual emergency recovery equipped all you need is a common 1/2 socket wrench
• Strong  316 stainless steel, including control arm and stripper
• Maximum pulling power: 320kg (700 lb) for the 700 and 454kg (1,000 lb) for the 1000
• Convenient above-deck installation
• 5-year warranty
• For boats up to 12m (38ft)

Technical Specifications:

• Chain Size - 1/4" G4 or BBB
• Rope Size - 1/2" 3-strand or 8-plait
• Motor Voltage - 12 Volt DC
• Motor Power - 500 Watt
• Maximum Pulling Power - 700lb (318kg)
• Maximum Working Load - 175lb  (79.38)
• For boats up to 32' (9.75M)

In the Box:

• Windlass
• Base gasket
• Mounting hardware
• Circuit breaker
• Dual-direction solenoid
• Rocker switch
• Instruction manual

*Sold as an Individual

Specifications:

• Chain - Diameter (Inches): .25
• Freefall: Yes
• Rope Diameter (Inches): .50
• Vertical/Horizontal: Horizontal
• Box Dimensions: 8"H x 11"W x 12"L WT: 20 lbs
• UPC: 743683306860

Pro-Fish 1000 Horizontal Windlass Kit - 12V

Lewmar's Pro-Fish model is the ultimate windlass for fishermen.  The Pro-Fish has an automatic freefall that allows you to pull right up over a wreck or ledge, and drop anchor with speed and precision.  No more running your motor or wasting fuel while you hover fish.  You can retrieve your anchor just as easily, with the push of a button. Plus, the Pro-Fish is DIY-ready and made of durable 316 stainless steel.

The Pro-Fish is perfectly suited to installation in the stern of a boat, where it can be utilized for easy Scandinavian-style stern anchoring.  The automatic free-fall mechanism means access to the windlass is not required to drop or retrieve the anchor and the all-stainless design is extremely resistant to corrosion.

This windlass has been specially designed to suit leaded lines up to 5/8" in diameter and a revised control arm and new Pro-Guard plate prevent the rope from jumping out of the windlass or snagging during operation.

Features:

• Automatic freefall
• Powerful motor providing fast line speed
• Manual emergency recovery equipped all you need is a common 1/2 socket wrench
• Convenient above-deck installation

Technical Specifications:

• Chain Size - 5/16" G4 or BBB
• Rope Size - 5/8" 3-strand or 8-plait
• Motor Voltage - 12 Volt DC
• Motor Power - 700 Watt
• Maximum pulling power - 1000lb (453kg)
• Maximum Working Load - 250lb (113.4kg)
• For boats up to 38' (11.58M)

In the Box:

• Windlass
• Base gasket
• Mounting hardware
• Circuit breaker
• Dual-direction solenoid
• Rocker switch
• Instruction manual

*Sold as an Individual

Specifications:

• Freefall: Yes
• Vertical/Horizontal: Horizontal
• Box Dimensions: 9"H x 12"W x 13"L WT: 32 lbs
• UPC: 743683326677

• Maximum Pull: 1320lbs

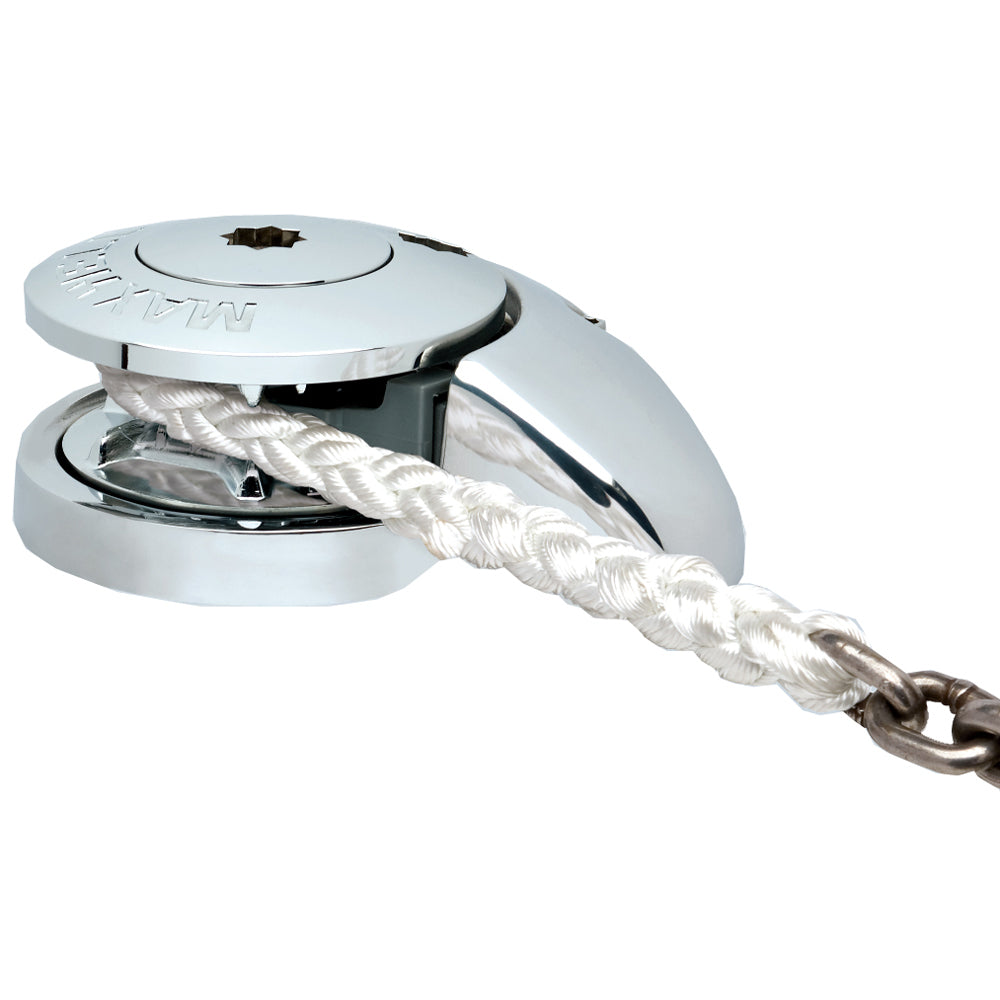

• The larger RC8-8 can be used with 8mm (5/16") chain spliced to 14mm (9/16") three strand or 8-plait rope.
• The ingeniously designed rope/chain gypsy (chainwheel) is able to accommodate a wide range of chain pitch differences within the specified chain size diameters suitable for use with the RC8 Series.
• Sleek, low profile and MAX-grip capstan drum versions are available to suit individual user preference.
• Simple two piece installation saves time and money and allows easy retrofitting without disassembly of the windlass.
• Unique spacer tube design allows installation through virtually any deck thickness and the multiple mounting positions and self aligning gearbox ensure optimal location of gearbox and motor in virtually all installation situations.
• Full disassembly capability of top works utilizing handle provided, a screw driver and an Allen key.
• The RC8 Series is manufactured from marine grade 316 stainless steel for long term durability. The heavy duty stainless steel pressure arm is designed to effectively help grasp the rope/chain splice, giving the RC8 an unparalleled level of performance.
• In combination with a heavy duty, large wire diameter, stainless steel pre-loaded spring, the pressure arm always exerts maximum control pressure.
• The RC8 works just as effectively with all-chain rodes for those who desire a low profile, elegantly styled windlass on their foredeck.
• Huge through deck hawse pipe throat ensures easy entry of the rope/chain rode into and out of the anchor locker.
• Cone type clutch/brake mechanism permits manual, free fall anchoring.
• Manual override using the emergency crank handle provided
• Sealed oil bath and marine grade hard anodised, alloy gearbox provides high efficiency output drive via precision worm and worm wheel.
• Kits include: windlass , an on/off breaker panel, a reversing soleniod, an up/down panel switch and a handle.

Anchor Rode Sold Seperately

Specifications:

• Chain - Diameter (Inches): 5/16"
• Freefall: Yes
• Rope Diameter (Inches): 9/16"
• Vertical/Horizontal: Vertical
• Box Dimensions: 11"H x 18"W x 20"L WT: 44 lbs
• UPC: 1000000004908

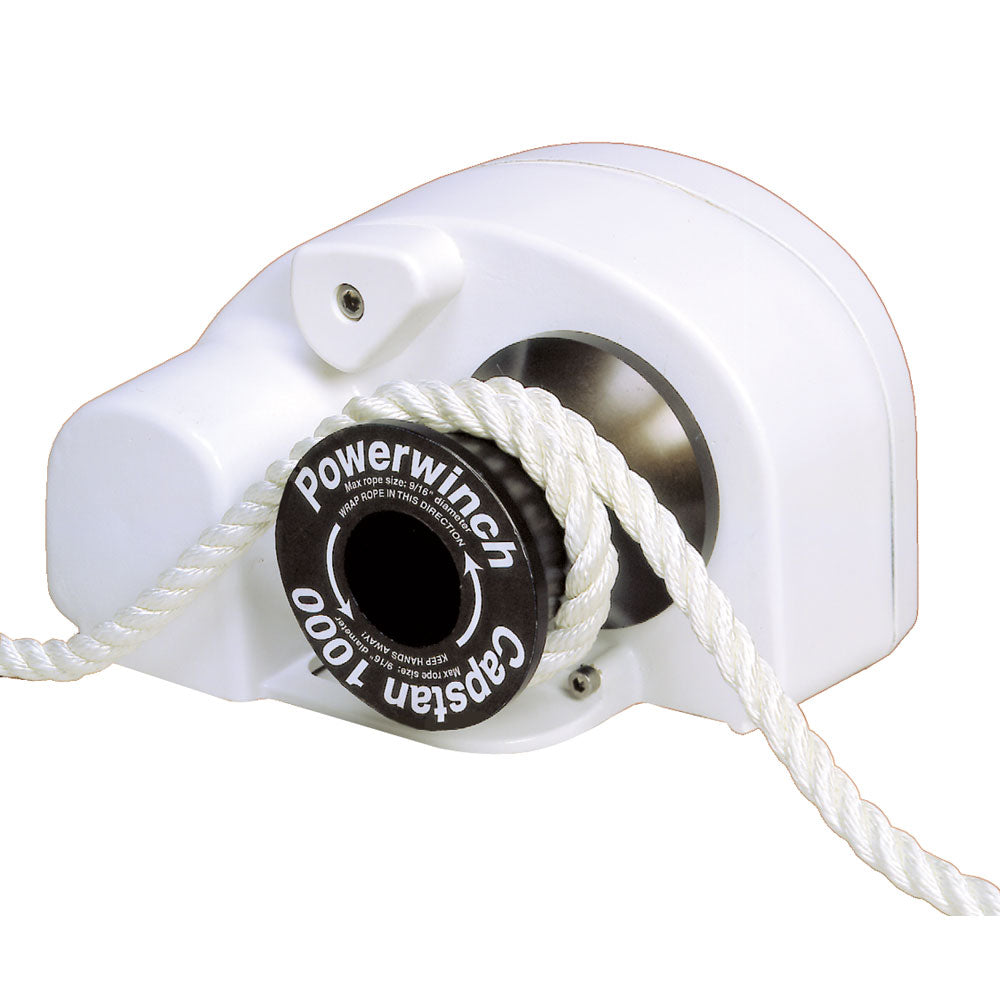

Powerwinch Capstan 1000 Winch [P77099]

Capstans

Why Capstans?
Rather than using the hand-over-hand method of retrieving lines, the capstan offers a mechanical advantage that is both faster and safer. The capstan does the heavy lifting with only a small amount of effort. The maximum speed of the line retrieval depends on the rotational speed of the drum. The benefit is that the retrieval speed can be adjusted by decreasing the tension on the retrieved line, maintaining control over a very heavy load with little effort.
This useful device, which has been around since the early days of sailing, is still used today. Recreational fishermen, like commercial fishermen, use these for hauling crab and lobster pots and there are many other uses aboard boats. The few mechanical parts and ease of use have made this a favorite of fisherman worldwide. While chains should NEVER be wrapped around a drum, the majority of lines can be handled on a capstan.

A capstan, typically operated by an easy to use footswitch (R001459), allows the boater to control lines with ease without having additional crew members. Powerwinch has a model to fit your needs. All Powerwinch capstans come with a foot control switch that allows for hands-free operation.

Capstan 1000
Multi-purpose rope winch for anchoring, sailing & Fishing
1000 pounds of pulling power!
Our largest capstan, the Capstan 1000, is a power assisted rope capstan for larger applications with 1000 pound pull power and 40 ft/minute retrieval speed. A great tool for quick retrieval lobster, prawn and crab pots. The Capstan 100 also provides power assist for limited crew sailboats and power assisted anchor retrieval. Uses up to 3/4" diameter rope.

• Fast 40'/min retrieval speed

• 1000 lb max pulling power

• Handles unlimited rope lengths

• Easy to operate footswitch (included)

• All aluminum housing with a durable polyester finish

• Thermal automatic resetting circuit breaker

• One piece, heat-treated and oil-impregnated gears

• Stainless steel internal shafts, fasteners, and hardware

• Two year limited warranty

Specifications:

• Rope Diameter (Inches): 3/4"
• Vertical/Horizontal: Horizontal
• Freefall: No
• Box Dimensions: 9"H x 11"W x 15"L WT: 20.9 lbs
• UPC: 033936770990

Owner's Manual (pdf)
