2-1/2" E-Valve Kit - Bronze Electric Flanged Seacock - 24V

Features:

• Motorized (24V) valve operation for seacock sizes 2 1/2"
• Allows for multiple applications with the same control box
• Manual valve operation if power is lost
• Automatic operation feature prevents engine flooding
• Requires less than 1 amp of power
• Gearbox is IP-67 rated and CP-712 compliant
• NMEA2000 ready
• UL-listed seacock includes grease zerk fitting for lubrication
• Push-button control from the engine room with basic E-valve; wireless control from the helm with optional LCD-5 touchscreen
• Optional LCD-5 touchscreen displays and operates multiple E-valves and provides many safety and convenience functions

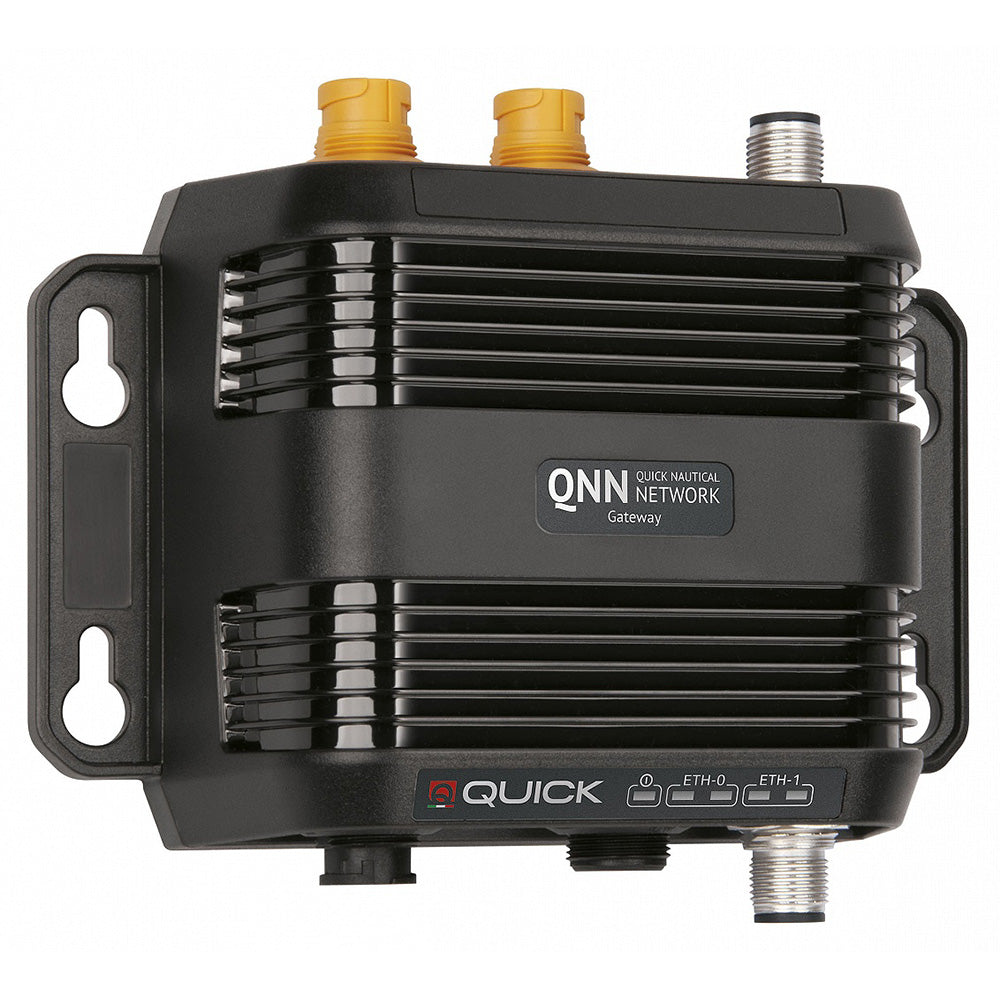

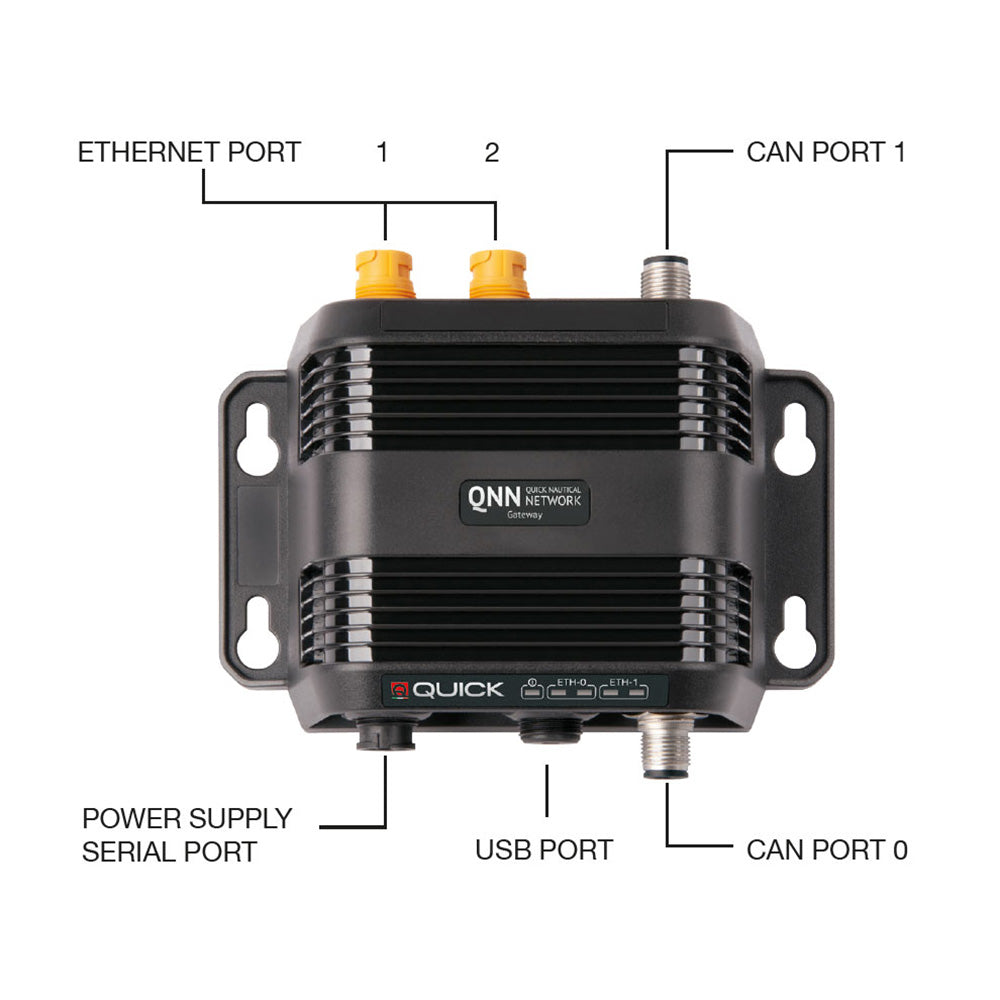

QNN Gateway

QNN - Quick Nautical Network allows you to control Quick Systems on all the latest-generation navigation panels.

The QNN - Quick Nautical Network is an innovative device that allows the integration of Quick systems with navigation systems.

The QNN - Quick Nautical Network is a gateway, able to receive all of the different protocols used by Quick devices (e.g. thrusters, battery chargers, windlasses, MC² Quick Gyros, lights and so on), and convert them into the HTML5 protocol to be integrated with all the new generation chart plotters on the market.

Thanks to the plug & play connection system that is easily installed, the calibrations made on the Quick products systems or on the chart plotter are automatically shared between the two systems (Quick and chart plotter).

As long as the user has a new-generation chart plotter compatible* with HTML5, they will only need to connect the chart plotter to the QNN and to the Quick products systems.

The QNN system is compatible with all the latest generation chart plotters.

The graphic interface is simple and intuitive; the sections that communicate with the Quick systems can be accessed via the links available on the QNN Home Page:

• Anchoring systems (QNC CHC e PCS)
• Thruster systems (PCS)
• Stabilizers (MC2 Quick Gyro)
• Battery charger (NRG+)
• Sine wave inverter (HSI)
• Illumination

QNN - Quick Nautical Network offers practicality and comfort in the management of Quick products installed on board. Checking the status of the battery chargers and stabilizers or managing the lighting of certain areas becomes easier and quicker, just like manoeuvring on the quay or raising the anchor from the same location.

The connection of the different systems takes place through simple devices that can be easily connected to the QNN Gateway (plug & play).

3" E-Valve Kit - Bronze Electric Flanged Seacock - 24V

Features:

• Motorized (24V) valve operation for seacock sizes 3"
• Allows for multiple applications with the same control box
• Manual valve operation if power is lost
• Automatic operation feature prevents engine flooding
• Requires less than 1 amp of power
• Gearbox is IP-67 rated and CP-712 compliant
• NMEA2000 ready
• UL-listed seacock includes grease zerk fitting for lubrication
• Push-button control from the engine room with basic E-valve; wireless control from the helm with optional LCD-5 touchscreen
• Optional LCD-5 touchscreen displays and operates multiple E-valves and provides many safety and convenience functions

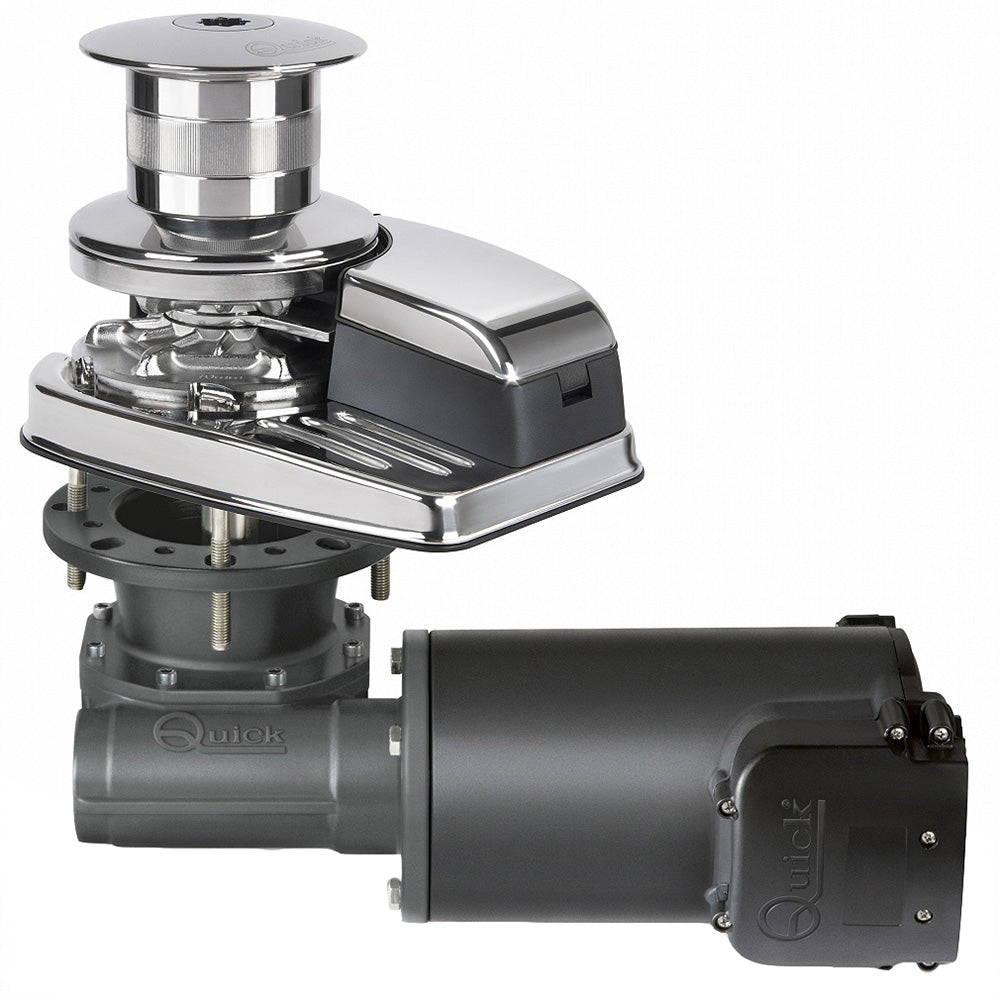

Dylan DR4 Windlass - 2000W, 24V, 12mm Gypsy - 3/4" Rope

The DR4 is a vertical application windlass perfect for boats with limited deck space. This base is composed of AISI 316 stainless steel and anodized aluminum in hard oxide. It is equipped with an emergency manual lift system so you can easily retrieve your anchor during instances when you may lose battery power on your boat. Features include an IP67 watertight motor.  The unit is sold complete with the windlass, solenoid unit, clutch handle, and mounting hardware.

Features:

• Vertical Windlass
• Includes T6315-24 solenoid
• 12mm Gypsy
• Requires 3/4" Rope
• For boats 49- 66 ft
• 1500W Motor, 12V
• Base in stainless steel AISI316 and  anodized aluminum in hard oxide
• Rope and chain on a single gypsy
• Integrated sensor and magnet for chain counter
• Manual Free-Fall system
• Emergency manual lift system
• Supplied with pressure lever
• Inspection lid
• IP66 watertight motor (2000W)
• Anodized aluminum gearbox

Specifications:

• Motor power - 2000 W
• Motor supply voltage - 24 V
• Maximum pull - 1600 Kg / 3527 lb
• Maximum working load - 750 Kg / 1653 lb
• Working load - 250 Kg / 551 lb
• Current absorbtion @ working load - 105 A
• Maximum chain speed - 35,0 m/min / 114.8 ft/min
• Maximum chain speed @ working load - 22,3 m/min / 73.2 ft/min
• Weight - 68.1 lb

1" E-Valve Kit - Bronze Electric Flanged Seacock - 12V

Features:

• Motorized (12V) valve operation for seacock sizes 1"
• Allows for multiple applications with the same control box
• Manual valve operation if power is lost
• Automatic operation feature prevents engine flooding
• Requires less than 1 amp of power
• Gearbox is IP-67 rated and CP-712 compliant
• NMEA2000 ready
• UL-listed seacock includes grease zerk fitting for lubrication
• Push-button control from the engine room with basic E-valve; wireless control from the helm with optional LCD-5 touchscreen
• Optional LCD-5 touchscreen displays and operates multiple E-valves and provides many safety and convenience functions

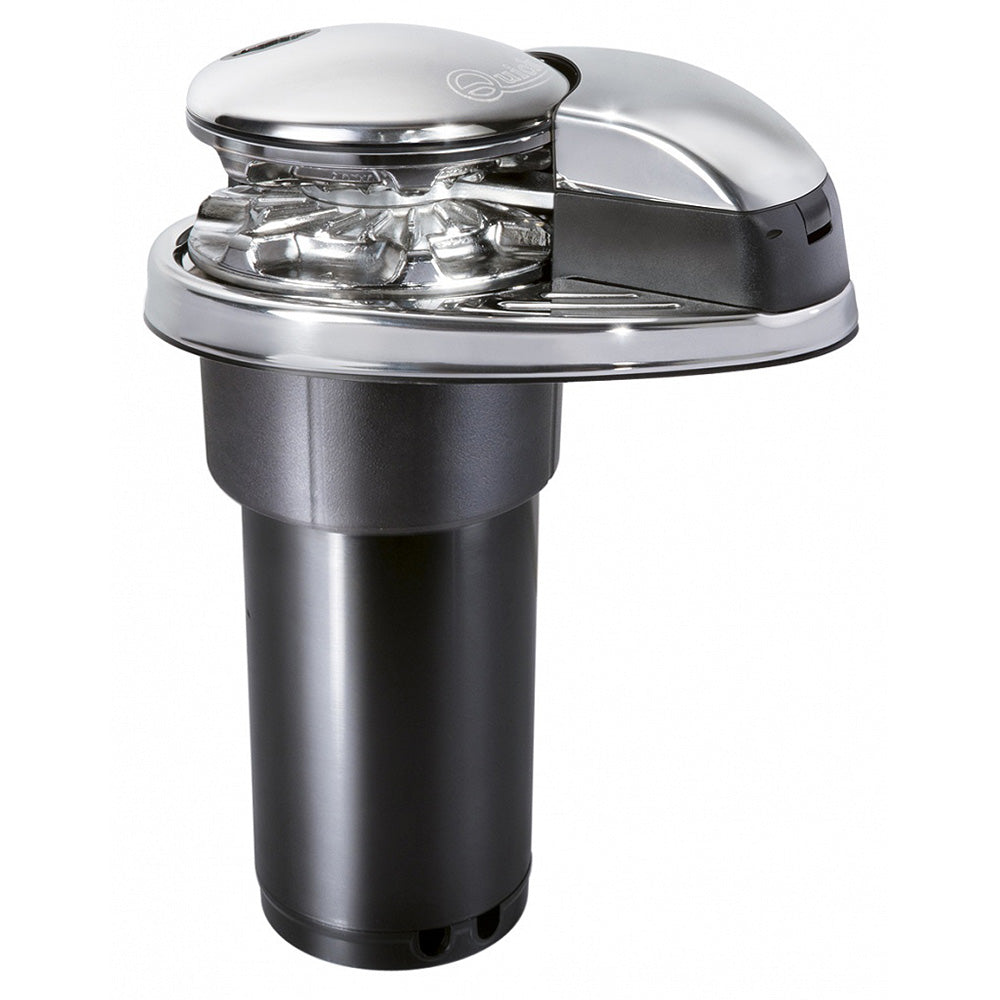

Prince DP2E 1000 Windlass - 800W, 12V 7MM or 1/4" Chain to 9/16" Rope

The DP2E is a vertical application windlass perfect for boats with limited deck space. This unit is composed of AISI 316 stainless steel, which is a durable element when dealing with harsh marine environments. Features include an IP67 watertight motor, epicyclical gearbox, inspection lid, and easy drop-in installation. The unit is sold complete with the windlass, solenoid unit, clutch handle, and mounting hardware.

Features:

• Vertical windlass
• Includes T6415-12 Solenoid
• 7mm - 1/4" Gypsy
• Boats 23-40 ft
• Requires 9/16" three-stranded polyester rope
• Stainless steel AISI 316 base and anodized aluminum in hard oxide.
• Rope and chain on a single gypsy
• Integrated sensor and magnet for chain counter
• Manual Free-Fall system
• Supplied with pressure lever
• Inspection lid
• Motor watertight to IP66
• Anodized aluminum gearbox

Specifications:

• Motor power - 800 W
• Motor supply voltage - 12 V
• Maximum pull - 820 Kg / 1808 lb
• Maximum working load - 290 Kg / 639 lb
• Working load - 95 Kg / 209 lb
• Current absorption @ working load - 84 A
• Maximum chain speed - 22,5 m/min / 73.8 ft/min
• Maximum chain speed @ working load - 15.2 m/min / 49.9 ft/min
• Weight - 8,3 Kg / 20.9 lb

1-1/4" E-Valve Kit - Bronze Electric Flanged Seacock - 12V

Features:

• Motorized (12V) valve operation for seacock sizes 1 1/4"
• Allows for multiple applications with the same control box
• Manual valve operation if power is lost
• Automatic operation feature prevents engine flooding
• Requires less than 1 amp of power
• Gearbox is IP-67 rated and CP-712 compliant
• NMEA2000 ready
• UL-listed seacock includes grease zerk fitting for lubrication
• Push-button control from the engine room with basic E-valve; wireless control from the helm with optional LCD-5 touchscreen
• Optional LCD-5 touchscreen displays and operates multiple E-valves and provides many safety and convenience functions

1-1/4" E- Valve Kit - Bronze Electric Flanged Seacock - 24V

Features:

• Motorized (24V) valve operation for seacock sizes 1 1/4"
• Allows for multiple applications with the same control box
• Manual valve operation if power is lost
• Automatic operation feature prevents engine flooding
• Requires less than 1 amp of power
• Gearbox is IP-67 rated and CP-712 compliant
• NMEA2000 ready
• UL-listed seacock includes grease zerk fitting for lubrication
• Push-button control from the engine room with basic E-valve; wireless control from the helm with optional LCD-5 touchscreen
• Optional LCD-5 touchscreen displays and operates multiple E-valves and provides many safety and convenience functions
