Above $500

Octopus Autopilot Pump Type 1 Adjustable Reversing 12V Up To 15 CI Cylinder [OCTAF1012]

Autopilot Pump Type 1 Adjustable Reversing 12V Up To 15 CI Cylinder

TWICE THE POWER

The unique Octopus piston pump delivers over twice the hydraulic output per watt of input than a standard hydraulic gear pump.

HALF THE POWER CONSUMPTION

Gear pumps leak oil between the gears, while a piston (such as used in car engines) does not.  This means the piston pump will place the cylinder ram exactly where it is required, positioning the rudder accurately.  This gives far sharper steering, reducingunnecessary course corrections meaning battery consumption on Octopus pumps is up to half that of other pumps.

PINPOINT ACCURACY

Leading autopilot manufacturers choose Octopus pumps for their non RFB pilot systems which do not have a Rudder Feedback unit. Previously, slop in the system caused by gear leakage meant that a Rudder Feedback unit was necessary to tell the pilot the exact rudder position. As Octopus pumps will always bring the ram back to the required position the Rudder Feedback unit is not required, which also greatly simplifies installation.

SAVE ON INSTALLATION COSTS

A professional installation should always have a method of isolating the pump from the steering system - Octopus pumps feature inbuilt shut off valves in the pump manifold.

ADJUSTABLE FLOW RATE

A pump that does not have variable flow (unless dedicated to a range of cylinders such as our fixed 0.8L pump) will be operating too fast or too slow in 90% of cases.  Autopilot manufacturers get around this problem by adjusting the output to the pump to compensate, which either forces the pump to operate for longer periods of time which increases power consumption and wear on the parts, or it will operate at high pressure for short periods of time - also putting unnecessary strain and wear on the system.

Octopus Variable Flow Reversing Pumps precisely control the speed of the ram, reducing unnecessary battery consumption, pressure, strain and wear on the hydraulic system.

Getting the best steering performance for the boat. The flow rate of the pump can be set to get the best hard over time (cylinder ram speed) for the particular boat.

Features:

• Reliable - Piston pump technology with only three moving parts
• Twice the Power - Delivers over twice the hydraulic output per watt of input
• Half the Power Consumption - Accurate ram positioning means fewer course corrections
• Adjustable Flow Rate - Configure performance to suit your vessel
• Easy Servicing - Shut off valves allow removal without draining steering system

Specifications:

• Type: Pumps/Drives
• Box Dimensions: 5"H x 6"W x 12"L WT: 8.3 lbs
• UPC: 628309272753

Raymarine Ray90 Wired Second Station Kit w/Passive Speaker, RayMic Wired Handset  RayMic Extension Cable - 10M [T70432]

Ray90 Wired Second Station Kit with Passive Speaker, RayMic Wired Handset & RayMic Extension Cable - 10M

Modular Dual-Station VHF Radio System

Raymarine’s fixed mount Ray90 modular VHF radio brings multi-station communications to a whole new level of power, performance, and flexibility. The Ray90 is a black-box design with a transceiver that hides out of sight while the ergonomic RayMic handset and remote speaker provide full control of the radio with crystal clear audio.

Features:

• Black box, multi-station capable VHF radio
• Expandable to 2 handsets
• Built-in loudhailer and fog signal generator
• Optional external GPS
• Simple NMEA2000 and NMEA0183 Networking

Ray90 is equipped with a powerful 25-watt transmitter and commercial grade electronics for long life and superior performance. Channel scanning, dual-watch, tri-watch and weather alert are standard. Class D Digital Selective Calling radio and integrated GPS makes setting up the advanced safety and calling features easy. Simply input your vessel’s MMSI number during setup and you’re ready to go. For GPS operation the optional GA150 passive GPS antenna is required.

Position Tracking

Use Ray90’s position tracking feature to keep tabs on up to 5 nearby DSC equipped vessels. Their positions are automatically shared with your Raymarine MFD. Keep an eye on other boats in your cruising party, monitor vessels of interest, or manage your local fleet. In Europe the Ray90 supports the ATIS system on navigable inland waterways.

Loudhailer

Ray90’s built-in loudhailer will make you heard on-deck and across the harbour. Connect an optional hailing horn and make your presence known with 30-watts of audio output, plus 2-way talkback. When things get foggy, the loudhailer can also be set to automatically sound required fog signals for power and sailing vessels underway and at anchor.

Waterproof & Ruggedized

Ray90’s transceiver unit is cast in solid aluminum for shock and vibration resistance and maximum heat dissipation. RayMic handsets feature super-bright backlighting for easy viewing in all conditions and oversized keys provide a sure grip with easy access to commonly used functions.

Expand Your System

The Ray90 system includes 1 RayMic wired handset and a passive speaker kit. Expand your system with an additional RayMic handset and remote speaker. For noisy environments choose the optional active remote speaker. No matter how small or how large your vessel is, the Ray90 all the power and performance you need for essential communications on the water.

Specifications:

• Type: Microphones
• Box Dimensions: 7"H x 12"W x 18"L WT: 5.5 lbs
• UPC: 723193826751

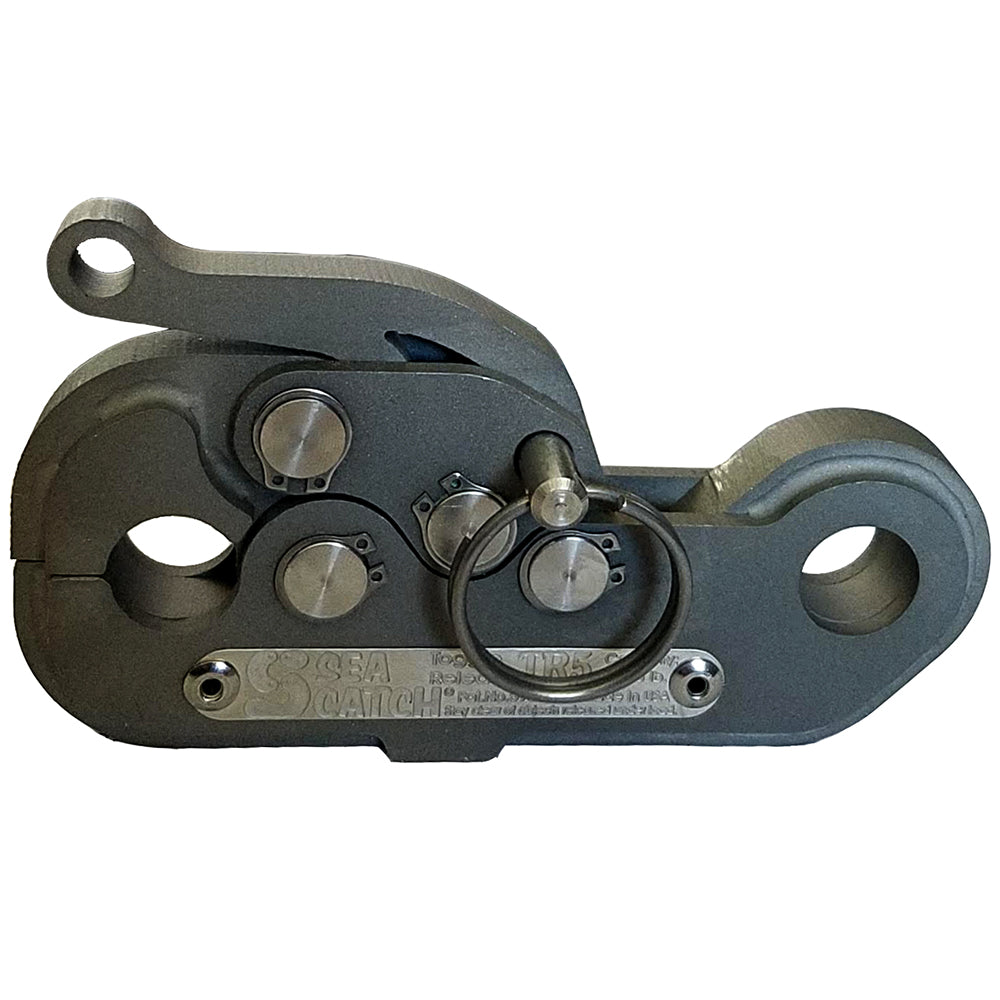

Sea Catch TR5 w/Safety Pin - 7/16" Shackle [TR5]

TR5 w/Safety Pin - 7/16" Shackle

Features:

• Perpendicular or parallel release directions
• Hitch pin lock for device locking safety
• Computer generated parts precision-cut from aerospace grade stainless steel plate
• Low friction, low effort lanyard-style release for maximum user safety
• On load/off load releasing
• All parts 100% stainless steel
• No springs
• Break Load 16,618 pounds and SWL 3,323 pounds

WARNING: This product can expose you to chemicals including Titanium dioxide which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

Owner's Manual (pdf)
Brochure (pdf)

SI-TEX MDA-1 Metadata Class B AIS Transceiver w/Internal GPS - Must Be Programmed [MDA-1]

MDA-1 Metadata Class B AIS Transceiver

**As the FCC requires all units sold in the US to be programmed by a qualified technician. Please submit the form below for programming at time of purchase. A copy of the MMSI Registration or FCC Ship Station License is required along with the vessel master or owner's signature on the completed programming form.**

Click here to download form.

Utilizes a compact (5.5"X3.9"X1.9") module that is IPx7 Waterproof rated, for flexible location and rugged performance in any marine environment.

Class B AIS Transceiver featuring an Rmax Class B engine that provides maximum range and efficient real-time AIS message processing for all message types. Despite its compact size, the Metadata Class B Transceiver features an internal 50-channel GPS smart antenna, eliminating the need for an external GPS antenna in many installations. It also features NMEA0183, NMEA2000 and USB connectivity for easy plug-and-play installations on recreational or commercial vessels wanting to send and receive AIS data.

Unit will need to be mounted with a clear view of the sky to utilize the internal GPS antenna.

Specifications:

Power

• 12 to 24V DC
• Power consumption: 150mA @12VDC, <2W average

Data Interfaces

• USB
• NMEA2000
• IEC61162-1 (NMEA0183) output, 38400baud
• IEC61162-1 (NMEA0183) input, 4800baud
• Silent mode switch input

Supplied with

• 2m power and NMEA0183 cable
• User manual and quick start guide
• Product CD
• Fixing screws

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

• Display Included: No
• GPS Included: Yes
• Function: Receive/Transmit
• AIS Class: B
• Antenna Included: No
• Box Dimensions: 5"H x 6"W x 8"L WT: 1.6 lbs
• UPC: 010407510484

Brochure (pdf)

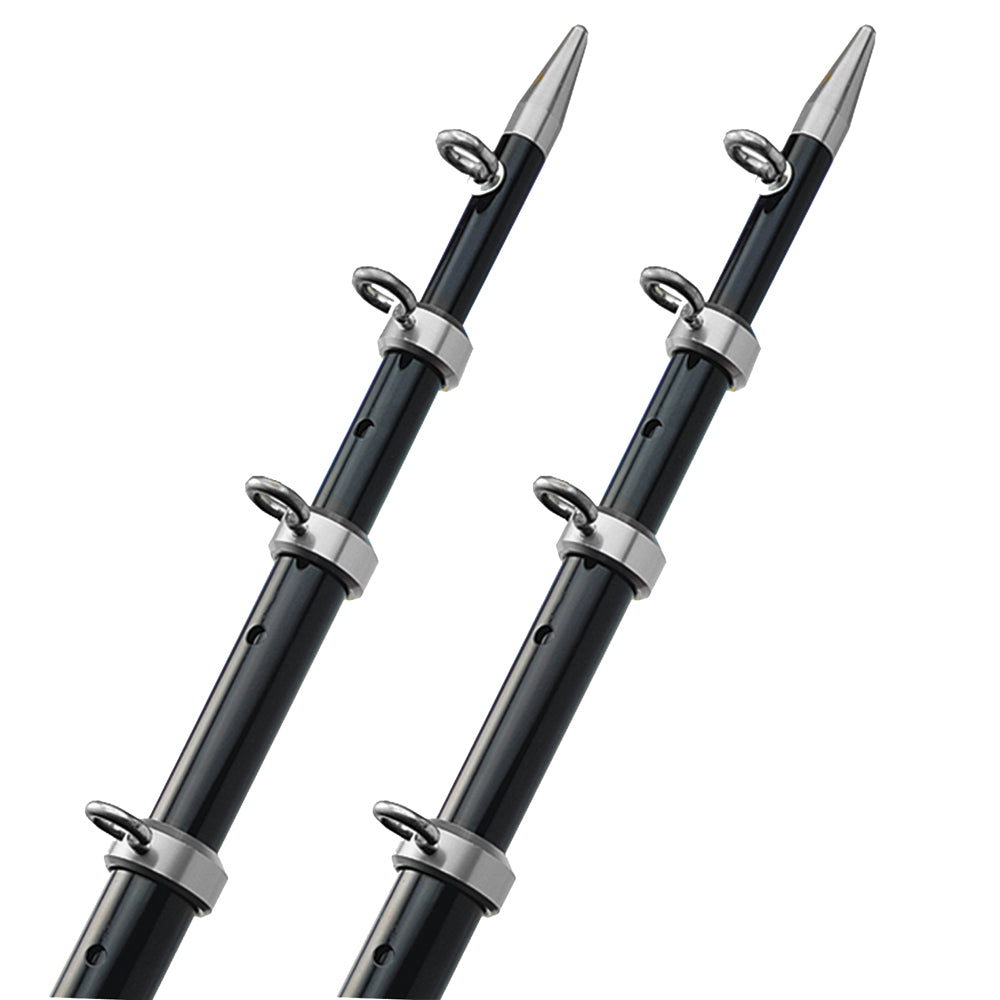

15' Telescoping Outriggers - 1-1/2" Diameter

Telescopes to less than 6 feet for bridge clearance, trailering and storage. Designed for universal use with Grand Slams, Sport Slams, Striker Bases, and other brands of mounts that accept 1-1/2" butt end diameter outriggers.

Finish: Black/SilverThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

• Construction: Anodized Aluminum
• Diameter (Inches): 1-1/2"
• Finish: Black/Silver
• Length (Feet): 15'
• Box Dimensions: 5"H x 9"W x 75"L WT: 15 lbs
• UPC: 630838011970

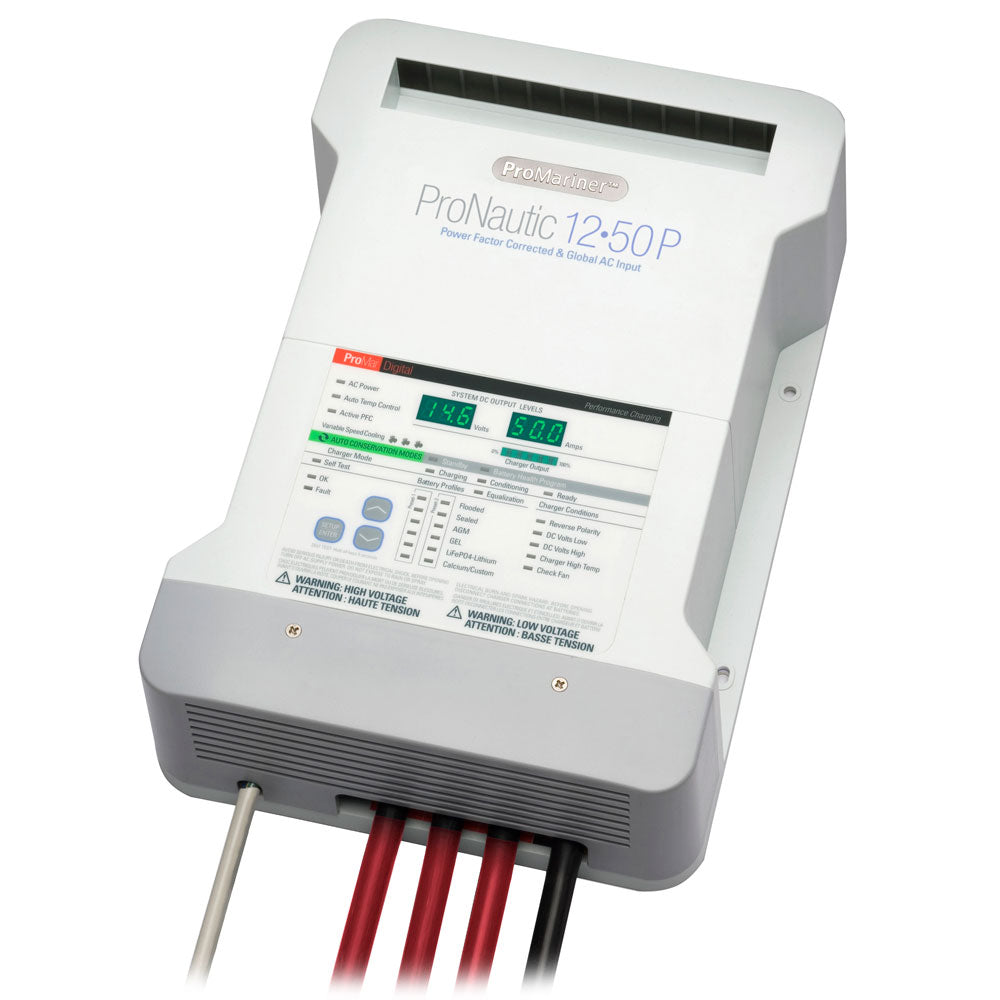

ProMariner ProNautic 1250P 50 Amp 3 Bank Battery Charger [63150]

All Digital Electronic Charging
Industry recognized with the 2010 IBEX Innovation Award, ProNauticP employs our ProMar Digital Performance Charging Platform which combines all digital control and software-based power conversion technology with global energy management features. ProNauticP addresses the trend of incorporating and using more 12-volt electronics on-board today's power, sail, cruising and sport fishing boats. Boasting twelve digitally-controlled performance charging profiles with finger tip selection, ProNauticP fully charges, conditions, maintains and re-conditions batteries while extending battery life and maximizing battery reserve power performance. ProNauticP is Power Factor Corrected with auto-ranging global AC input allowing all models to operate off a standard household power connection. Featuring dual digital displays for real-time display of actual charging voltage and amperage and AC power-on diagnostics with pass or fail status in addition to discreet fault indication for mis-wiring or adverse battery bank conditions. Designed to provide more time on the water enjoying what you like most... boating.

ProMar Digital Performance Charging

ProMar Digital Charging Performance - 12 Selectable Profiles
Up to 12 performance & precision 4-stage charging profiles: Charge, Condition, Maintain and Re-condition. Automatic dockside power mode for 12 Volt DC lighting and appliances. Factory set for Flooded (Lead Acid) batteries. AGM, GEL selectable.

Power Factor Correction - Global AC Input
Auto-ranging (100-250VAC/50-60Hz) global AC input with reduced harmonic distortion allowing all models to operate off a household power outlet connection. ProNauticP consumes less power so more AC power is available on board.

Distributed On Demand Technology
Automatically senses and distributes 100% of available charging amps to any one bank or combination of all banks.

Digital Self-Calculating Absorption and Battery Health Re-Conditioning Mode
Automatically programs conditioning time based on discharge state of batteries. Automatically de-sulfates batteries after 21 days in the maintain mode, improving reserve power performance & extending battery life.

Conservation Energy Saver Mode
After 72 hours of not seeing a load greater than 5 amps, float voltage will be lowered consuming less energy during storage periods. (for flooded & sealed charge profiles)

Service and Fault Mode LED Indicators
Real time indication of wiring faults or adverse conditions that may impact the operation of a boat's charging system.

Automatic Fan Speed Control
Quiet operation. Innovative front exhaust prevents restriction of air flow and cooling.

Automatic Temperature Compensation and Built-in Safety
Remote temperature probe included - Ignition protected and current limiting. Designed and constructed to: Marine ULc 1236, CE, CTick and FCC Class B.

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Charger Output - Amps: 50a
• Charging Banks: 3
• Portable: No
• Charger Input - Voltage: 120/240v
• Charger Output Voltage: 12v
• Box Dimensions: 6"H x 11"W x 15"L WT: 8.15 lbs
• UPC: 031669631502

Owner's Manual (pdf)
Brochure (pdf)

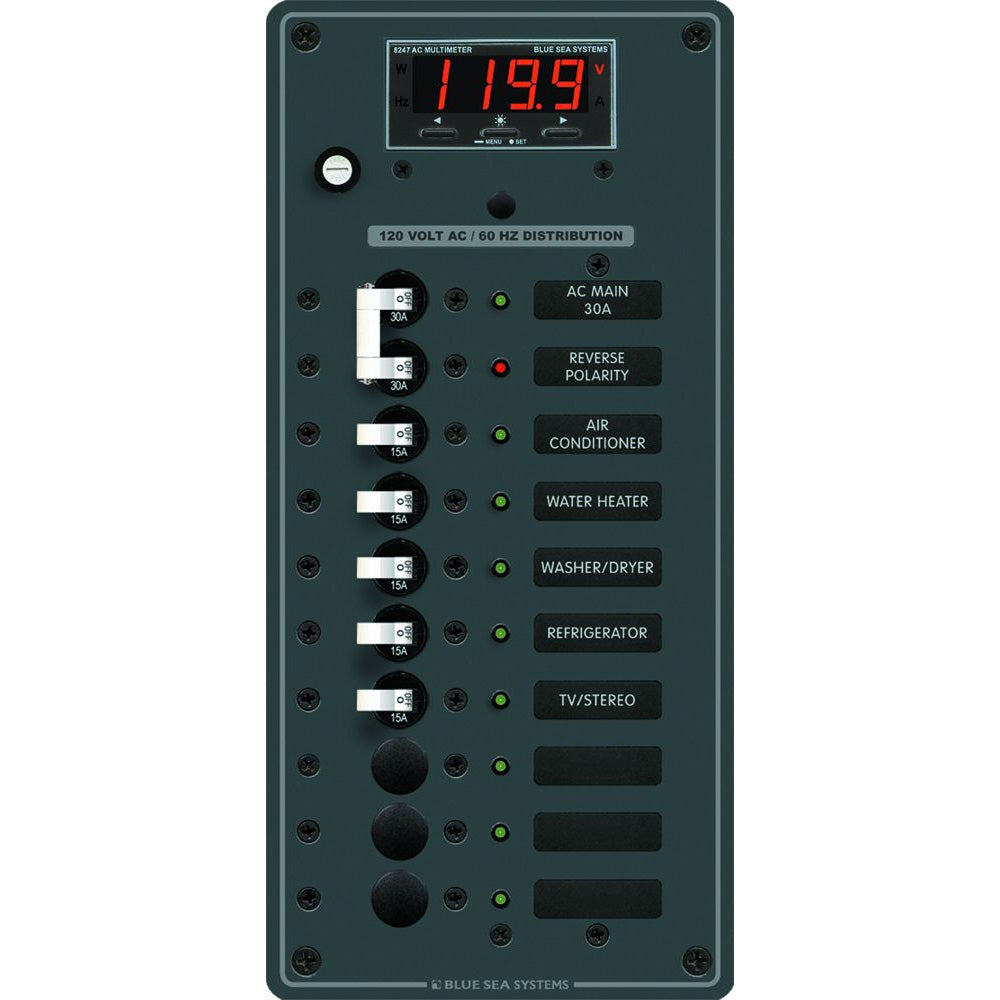

Blue Sea 8406 AC Main + 8 Positions [8406]

Main + 8 Positions

• (1) 30A Double Pole Circuit Breaker

• (5) 15A Single Pole Circuit Breaker

• (1) 8247 AC Digital Multimeter w/ Alarm

• Red reverse polarity indicating LED

• All hot, neutral and safety ground buses installed, fully pre-wired

• All circuit label positions are backlit on standard panels - No kit required

• "ON" indicating LEDs installed in all circuit positions

• Maximum panel amperage - 50 Amperes

• MIL-C-5541C or equivalent immersion undercoating for lifetime corrosion resistance

• Two-part polyurethane slate gray finish

• Heavy 1/8" aluminum 5052 alloy

• Industry standard height and width

• Countersunk mounting holes throughout

• Detailed installation instructions and cutout template included

• Includes set of 30 common Large Format Labels

• Over 500 individual Labels available

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Voltage: 120v
• Max Breaker Quantity: 8
• AC/DC: AC
• Box Dimensions: 5"H x 9"W x 11"L WT: 3.5 lbs
• UPC: 632085084066

Quick Guide (pdf)
Owner's Manual (pdf)
Brochure (pdf)

Powerwinch Class 41' Automatic Helm-Operated Free-Fall Windlass [P77741]

Class 41'

Automatic Helm-Operated Free-Fall Windlass

The Safest Way to Anchor!

• Free-Fall System anchors up to 300'/min - Up to four times faster than powering down

• Exclusive stainless steel rope & chain guidance system - Durable materials stand up to years of use

• Ultra smooth motor uses less amps - Free-fall does not need battery power so it preserves your battery

• Built with durable stainless steel fasteners - Resists corrosion for easy removal

• Watertight seals - For additional protection against corrosion

• One piece motor plate - For smooth power transmission & improved gear life

• Heat treated oil-impregnated gear systems -Smoother operation, resists corrosion, lasts longer

• Stainless steel drive shafts - For years of smooth, reliable performance

• Replaceable Rode-Glide - Smoothly channels rope and chain below deck

• Use tapered back splice - For smooth rope-to-chain transition

Specifications:

• Freefall: Yes
• Rope Diameter (Inches): 5/8"
• Vertical/Horizontal: Horizontal
• Box Dimensions: 9"H x 11"W x 15"L WT: 19.2 lbs
• UPC: 810123840175

Owner's Manual (pdf)
